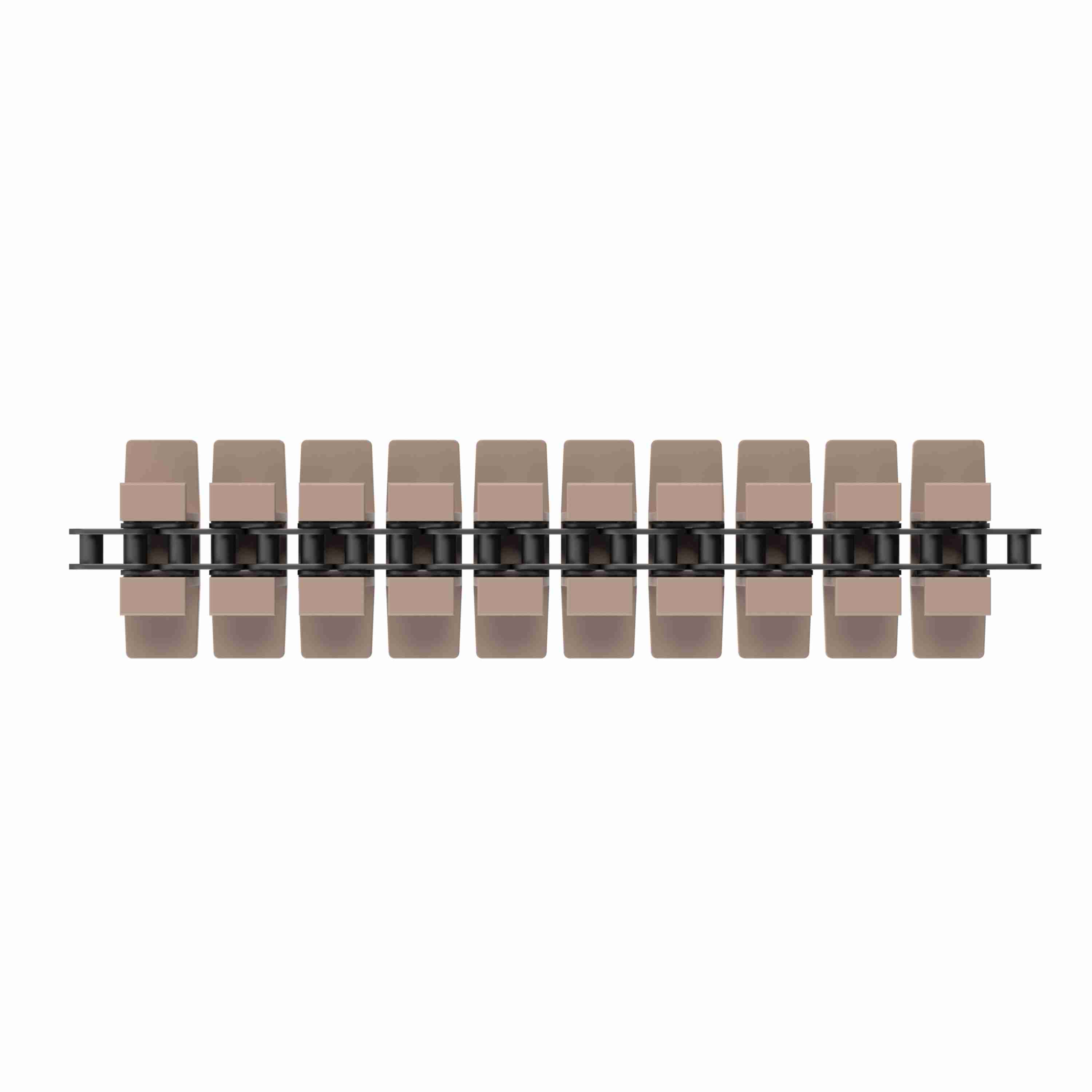

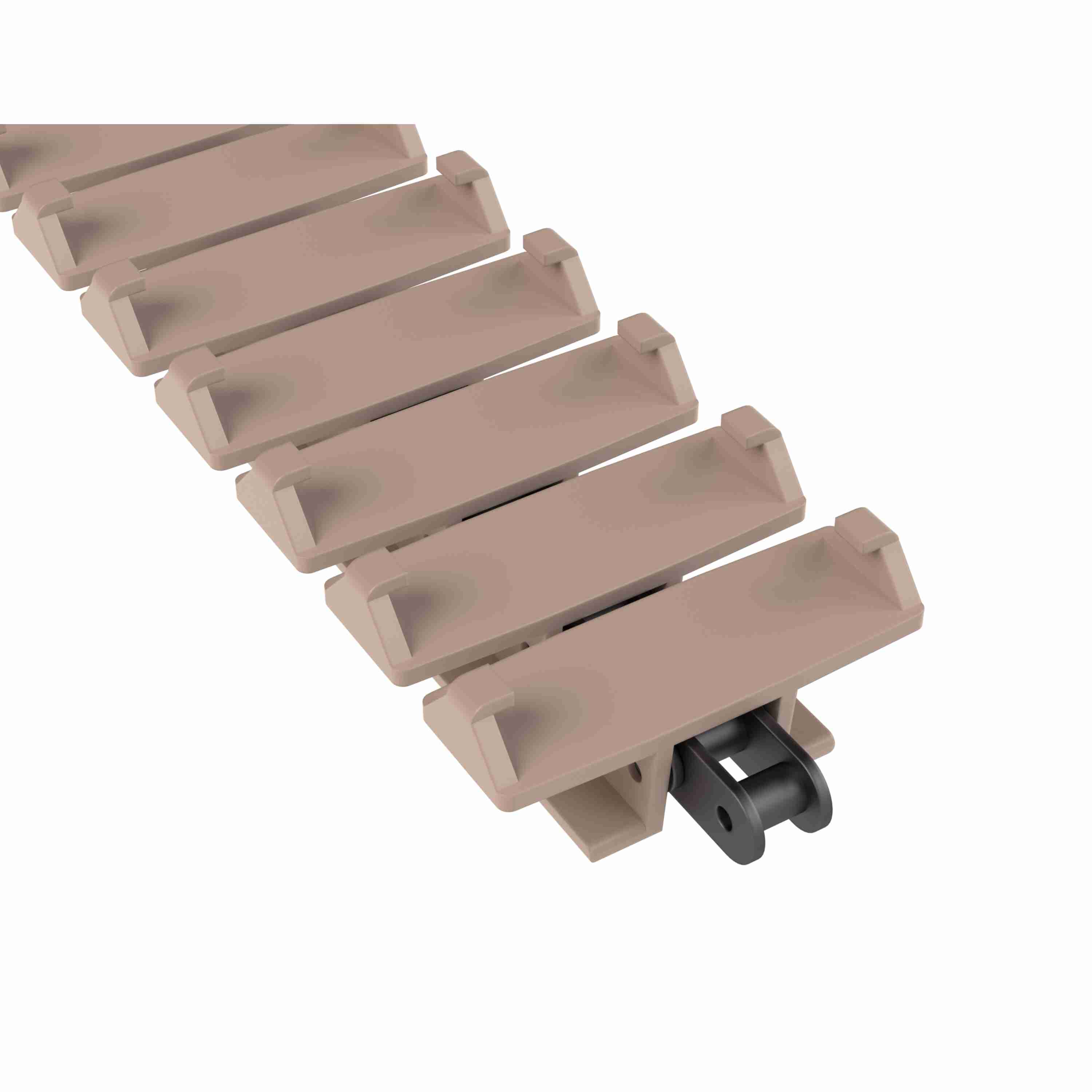

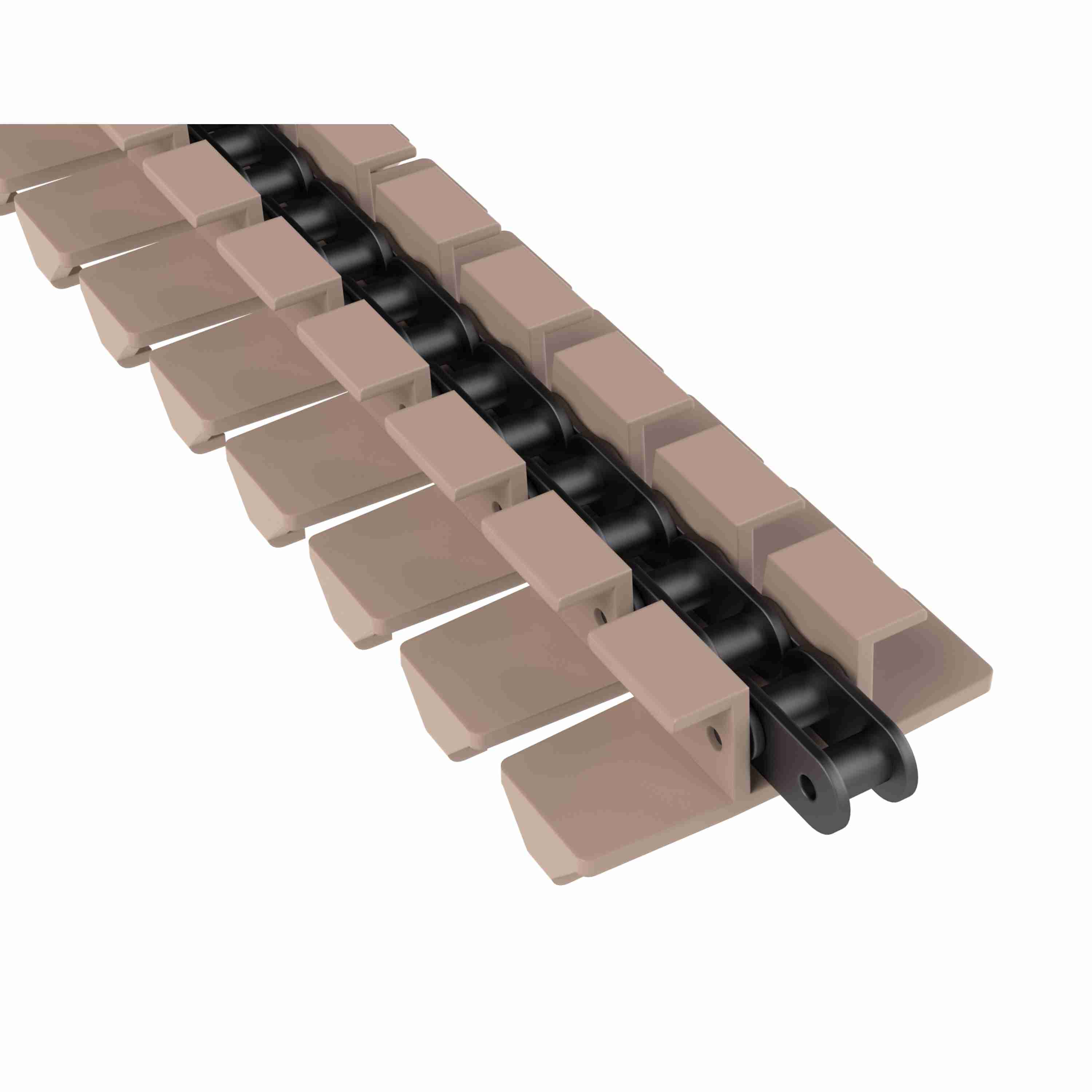

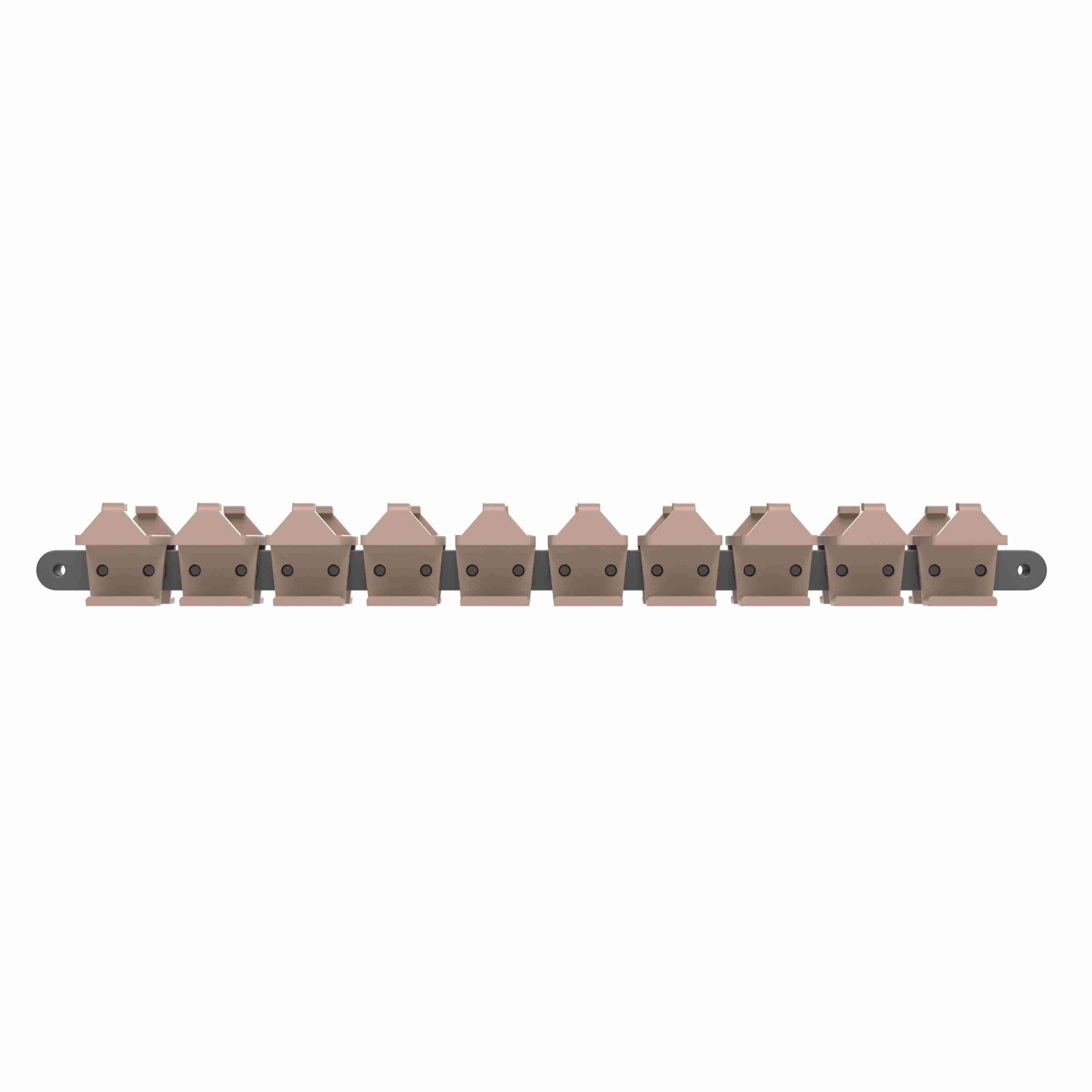

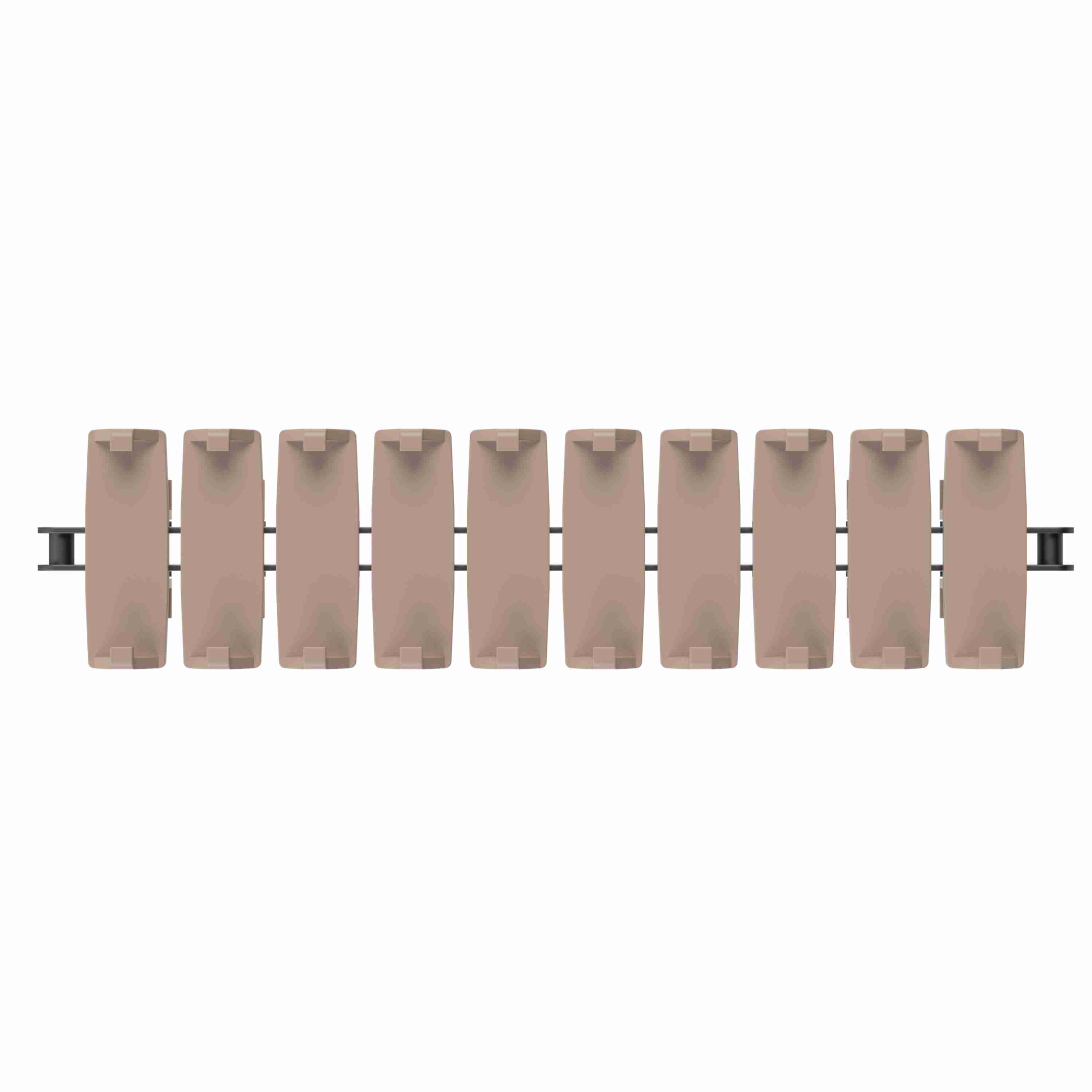

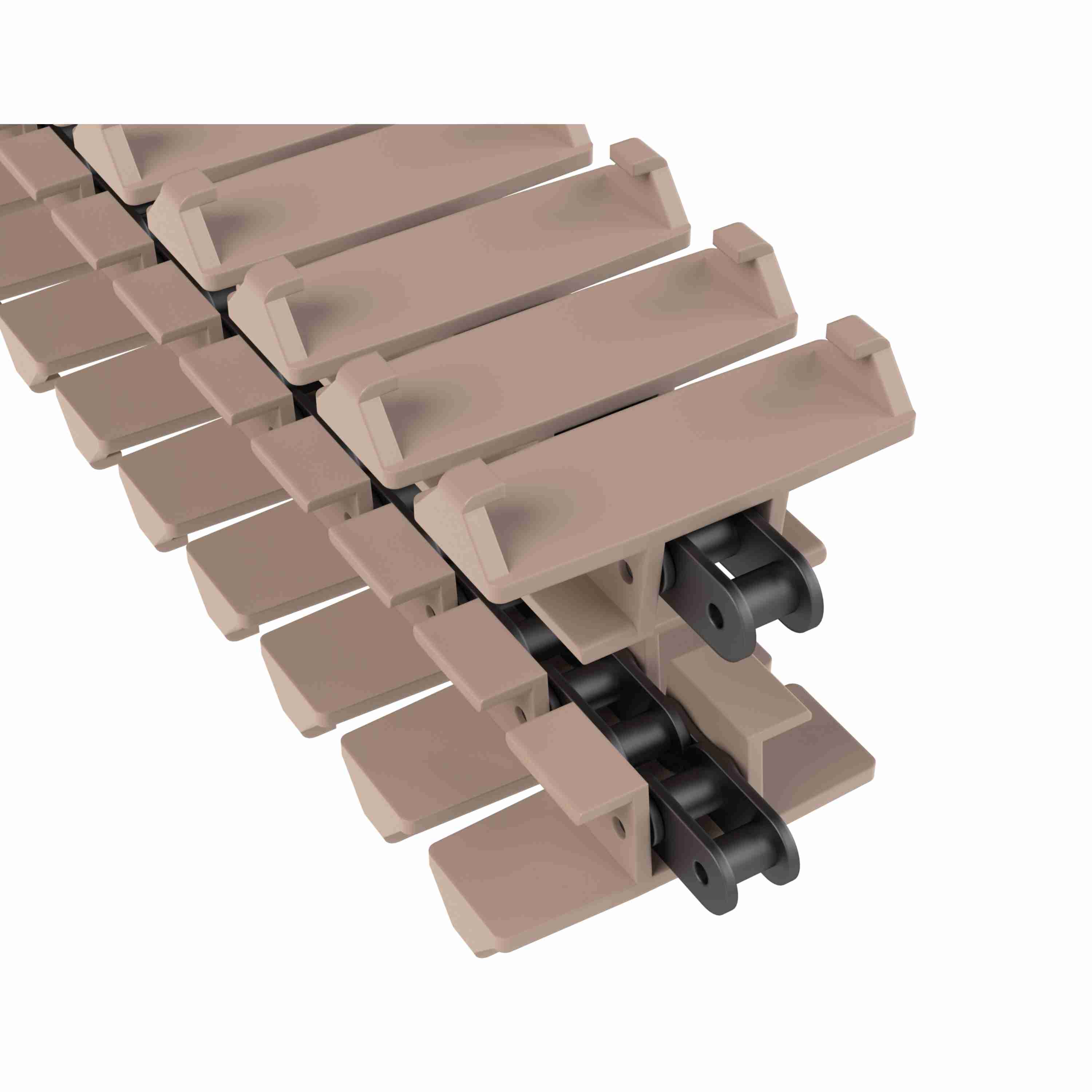

Rexnord 1873TAB SideGrip™ Side-flexing, Material: Tan Low Friction, Width: 3.75in, Pitch: 1.5in - 114-676-1
Part #:10075617
Catalog #:114-676-1
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Width Measurement System: | Imperial | Straight or Side-Flex: | Side-flexing |
| Flight Thickness (mm): | 4 mm | Chain Number: | 1873TAB SideGrip™ |
| Gripper Hardness: | None | Chain Material Description: | Tan Low Friction |
| Chain Width (in): | 3.75 in | Surface Type: | SideGrip™ |
| Chain Pitch (in): | 1.5 in | Chain Pitch (mm): | 38.1 mm |
| Series: | TableTop 1873 Series Side-flexing Chain | Flight Thickness (in): | 0.16 in |
| Curve Retention Type: | TAB | Gripper Color: | None |
| Chain Material: | LF | Gripper Style: | None |
| Chain Width (mm): | 95.3 mm | Gripper Material: | None |
General Specifications
| UPC: | 698210847760 | Weight: | 0.08 LB |
| Packaged Length: | 48.00 IN | Packaged Width: | 48.00 IN |
| Packaged Height: | 24.00 IN | HTC: | 3926909989 |
| Country of Origin: | Mexico |
