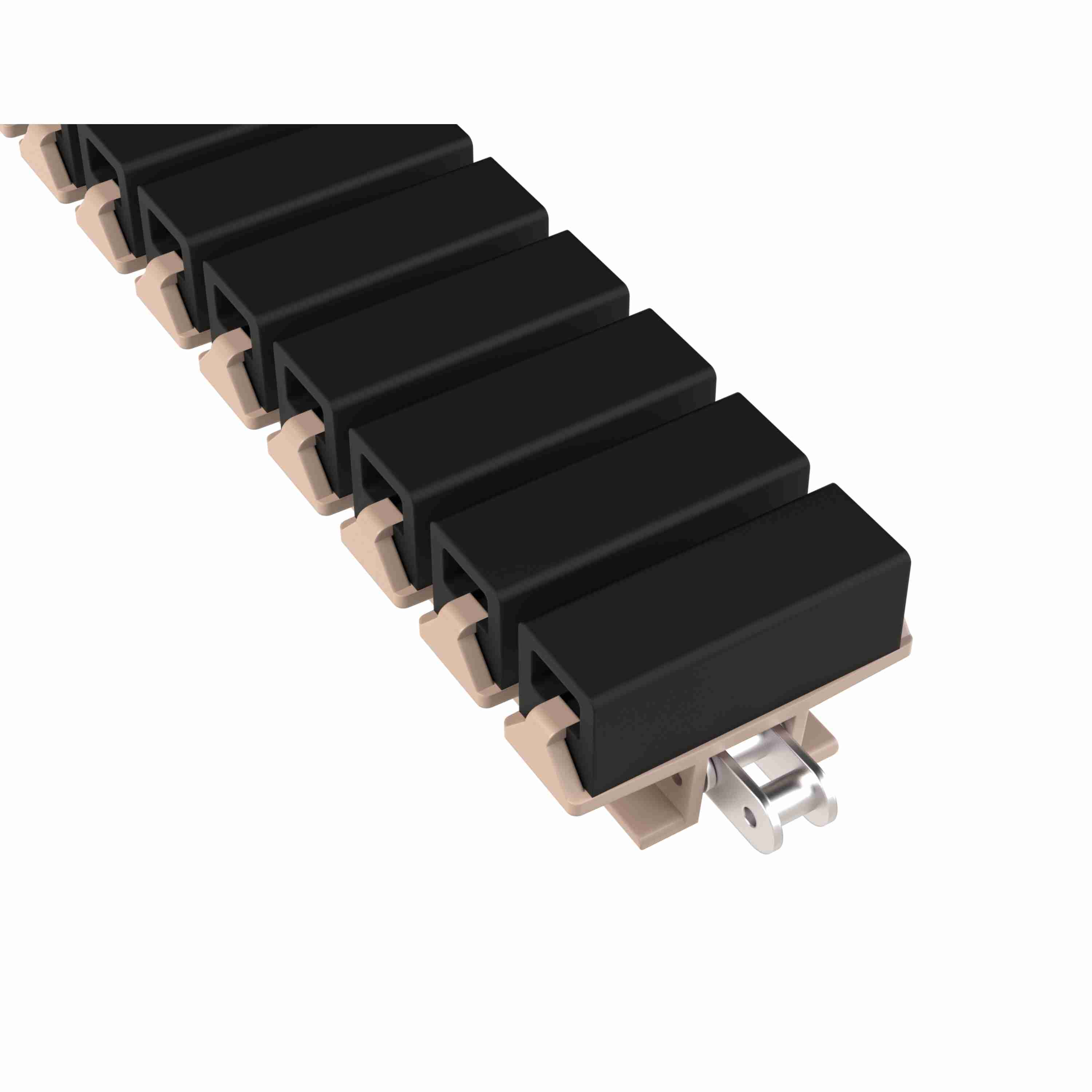

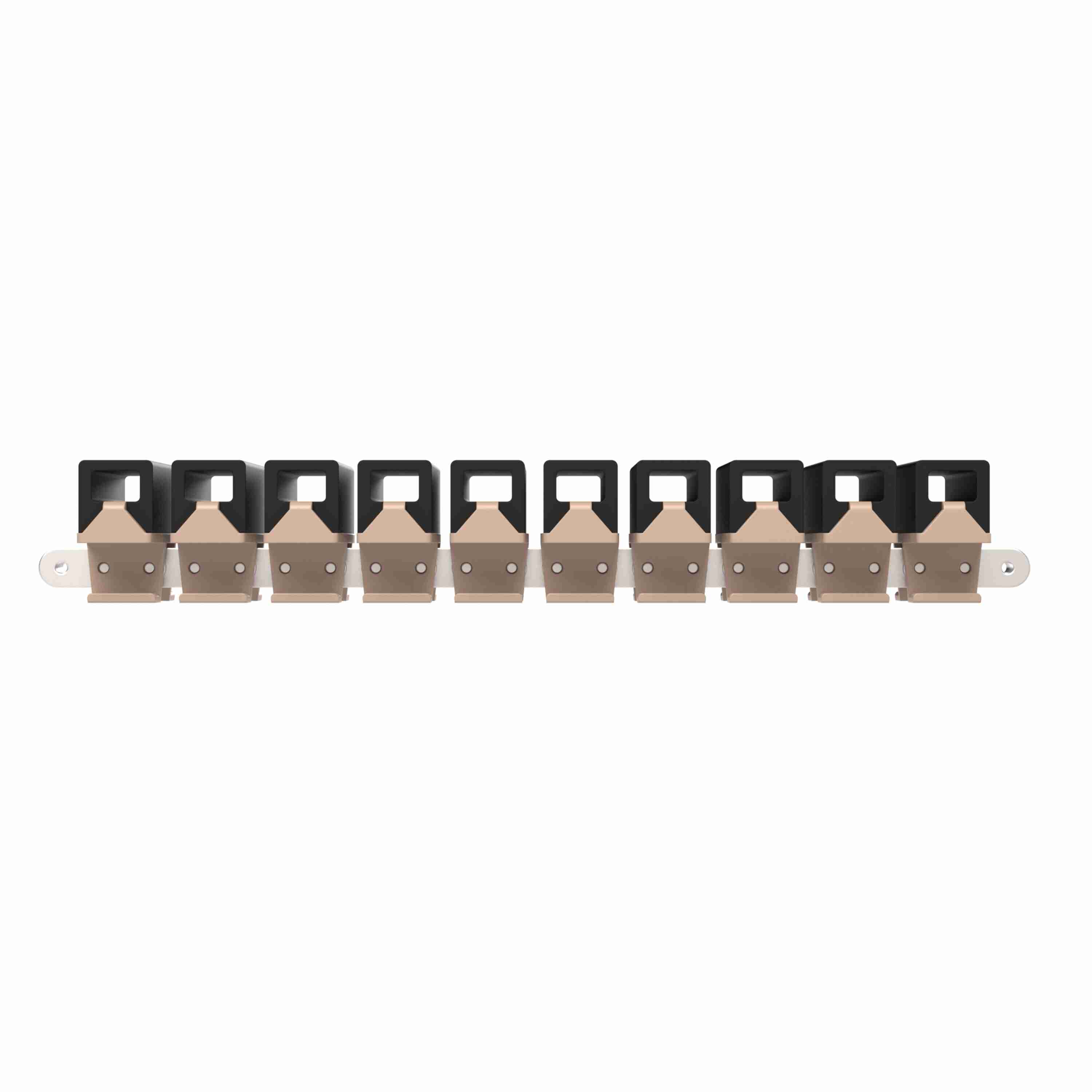

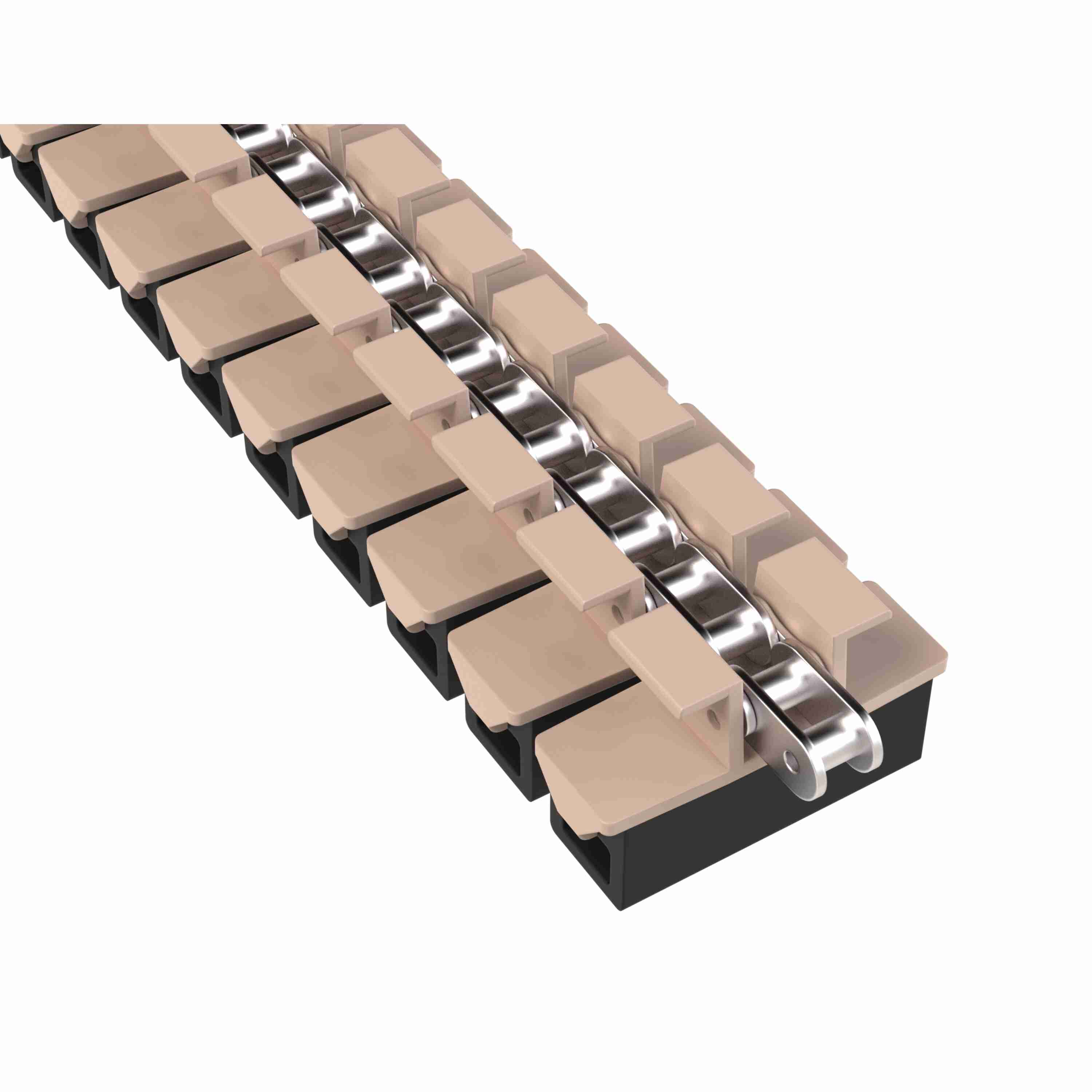

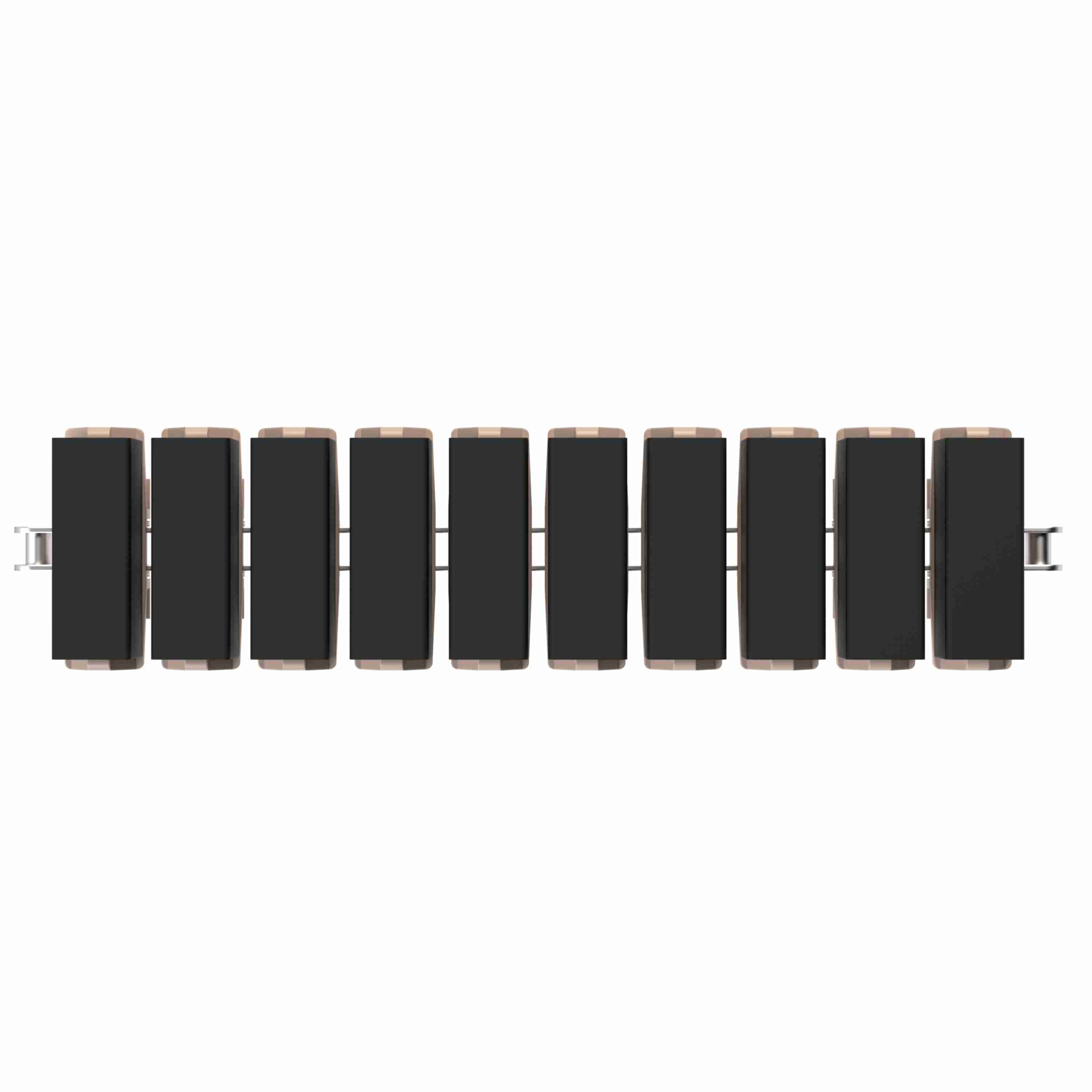

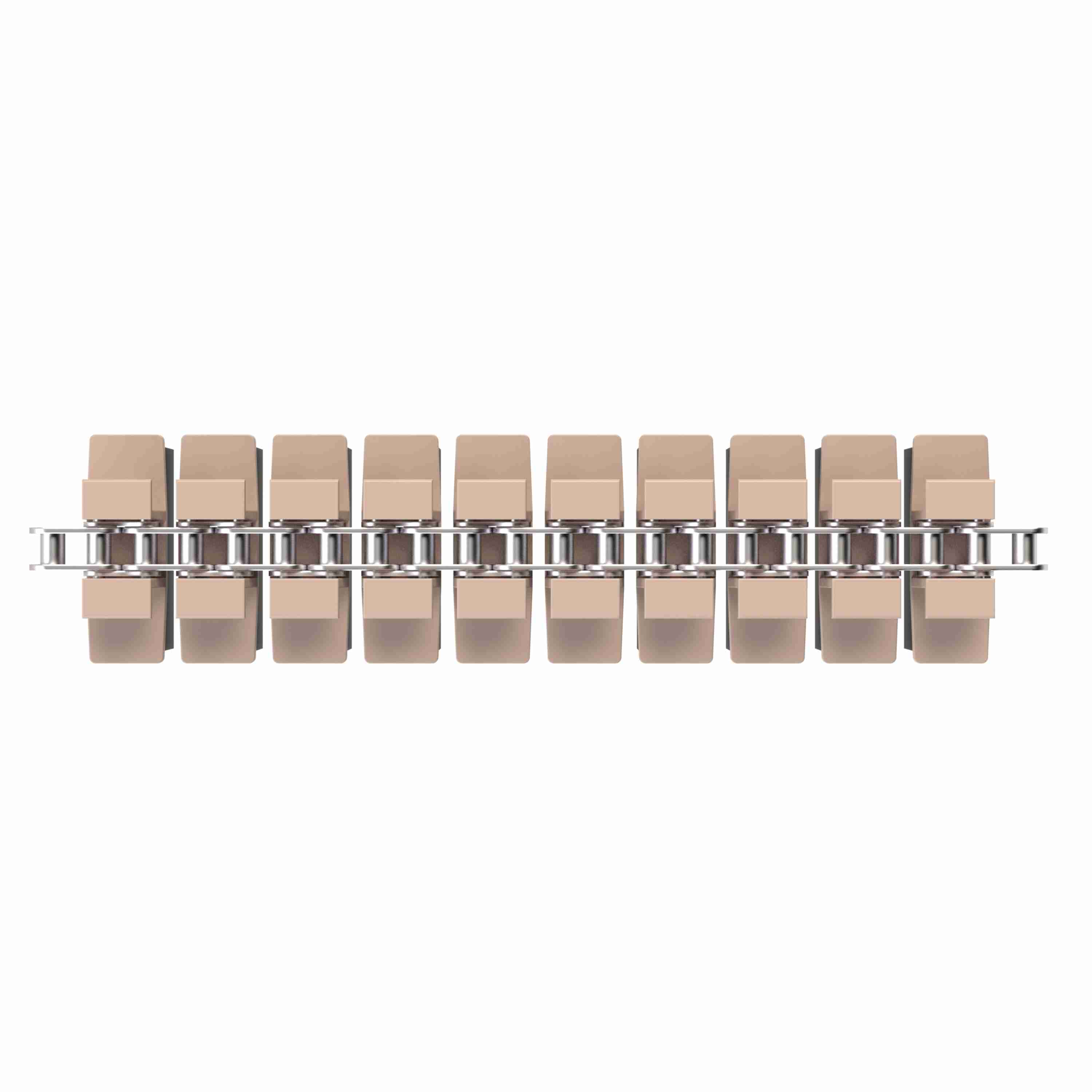

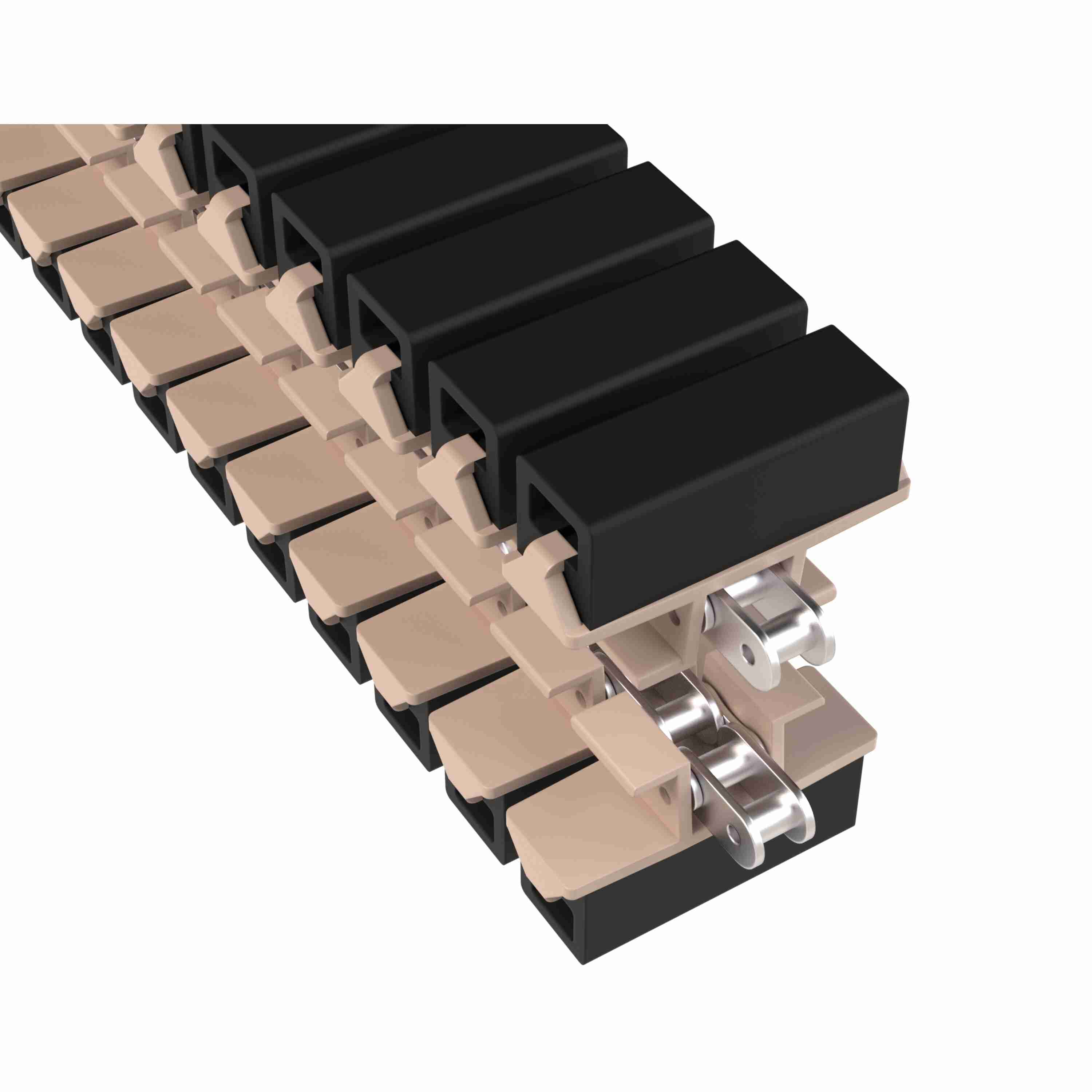

Rexnord 1873TAB SideGrip™ Side-flexing, Material: Tan Low Friction, Width: 3.75in, Pitch: 1.5in - 81426251
Part #:10145386
Catalog #:81426251
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Gripper Hardness: | 50 Shore A | Chain Material Description: | Tan Low Friction |
| Flight Thickness (in): | 0.16 in | Base Chain Material: | Stainless Steel |
| Chain Width Measurement System: | Imperial | Gripper Style: | D |
| Chain Strength (N): | 3,330 N | Chain Width (mm): | 95.3 mm |
| Chain Strength (lb): | 750 lb | Chain Pitch (mm): | 38.1 mm |
| Gripper Color: | Black | Surface Type: | SideGrip™ |
| Series: | TableTop 1873 Series Side-flexing Chain | Chain Width (in): | 3.75 in |
| Chain Pitch (in): | 1.5 in | Flight Thickness (mm): | 4 mm |
| Curve Retention Type: | TAB | Straight or Side-Flex: | Side-flexing |
| Chain Material: | LF | Gripper Material: | EPDM |
| Chain Number: | 1873TAB SideGrip™ |
General Specifications
| Weight: | 0.27 LB | HTC: | 8431390010 |
| Country of Origin: | Mexico |
