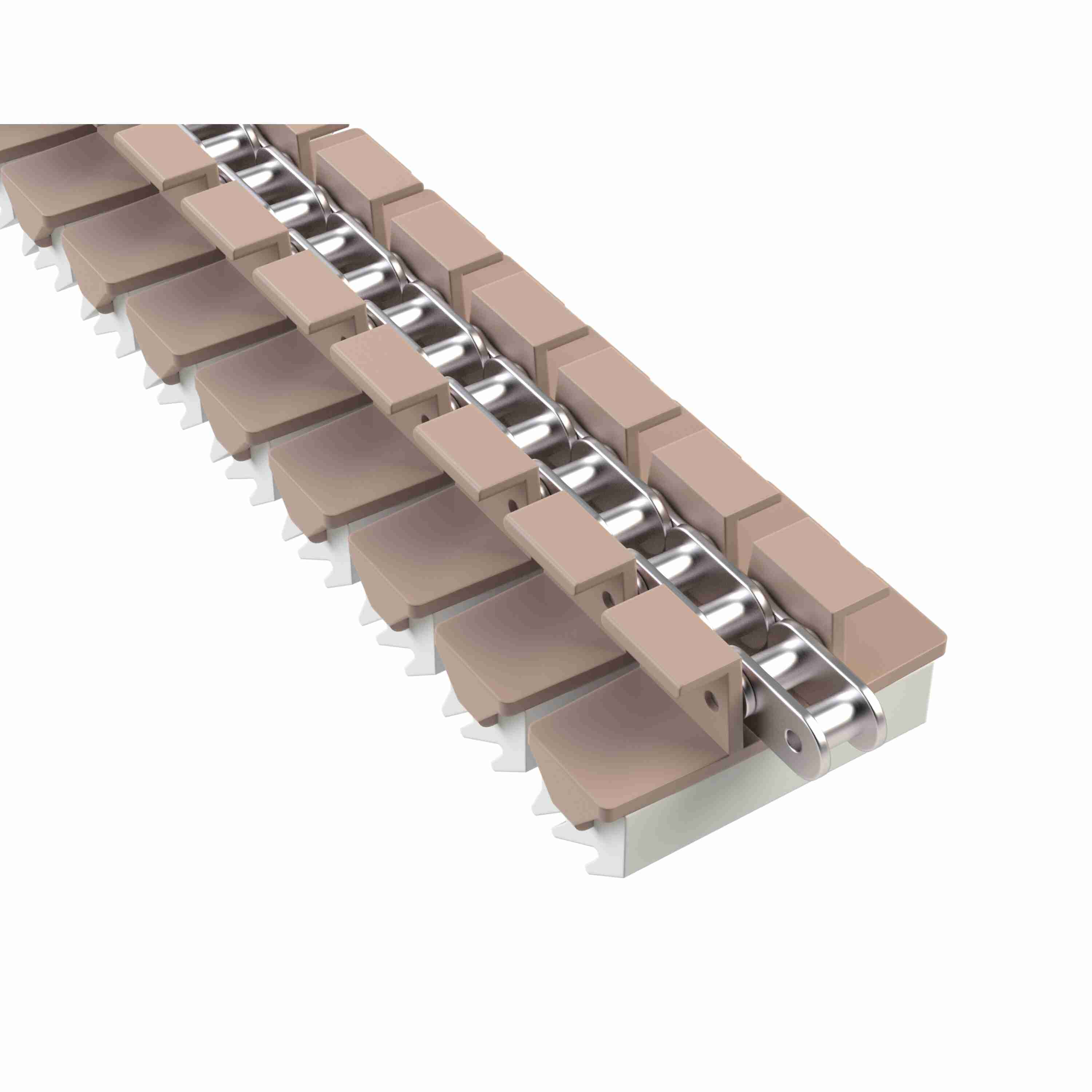

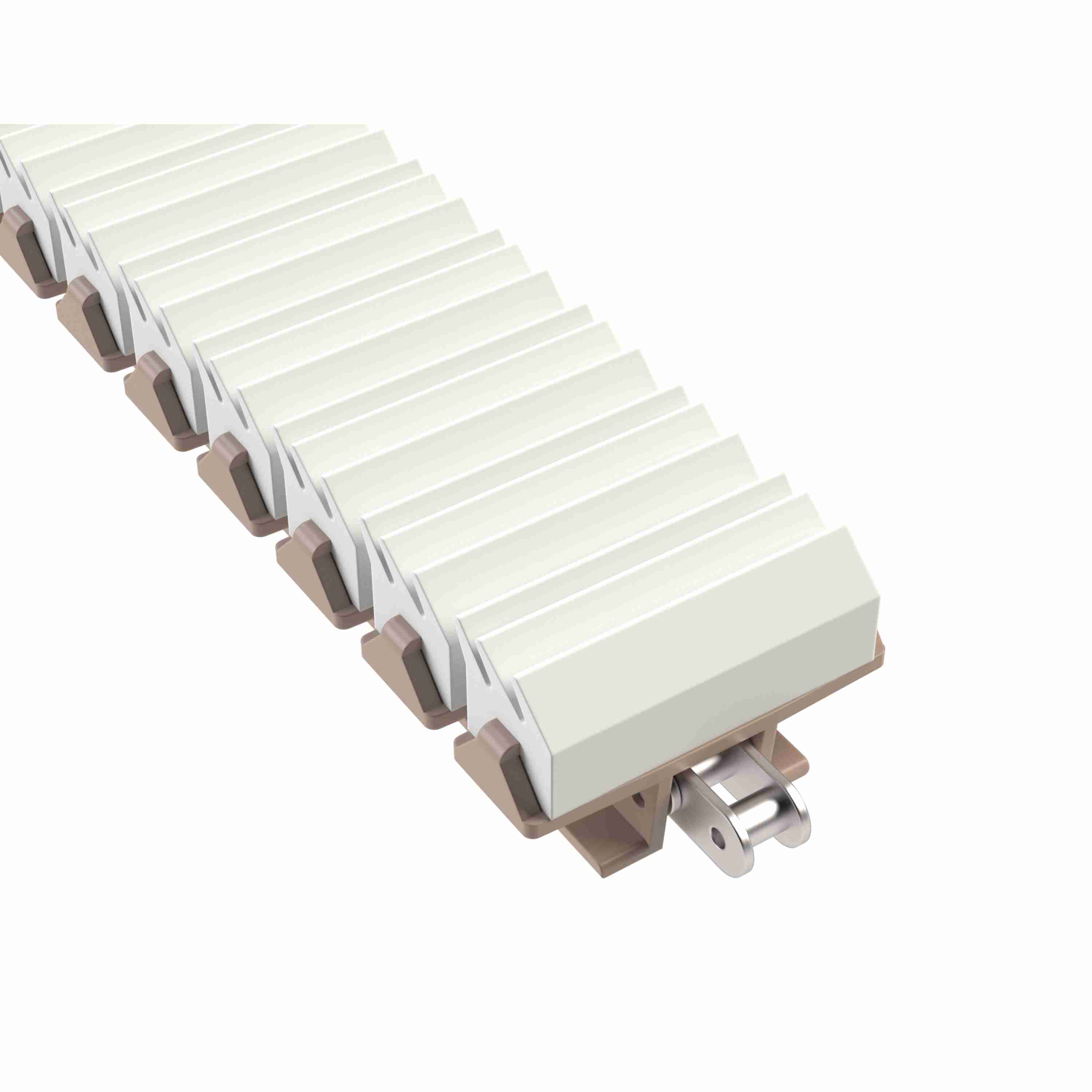

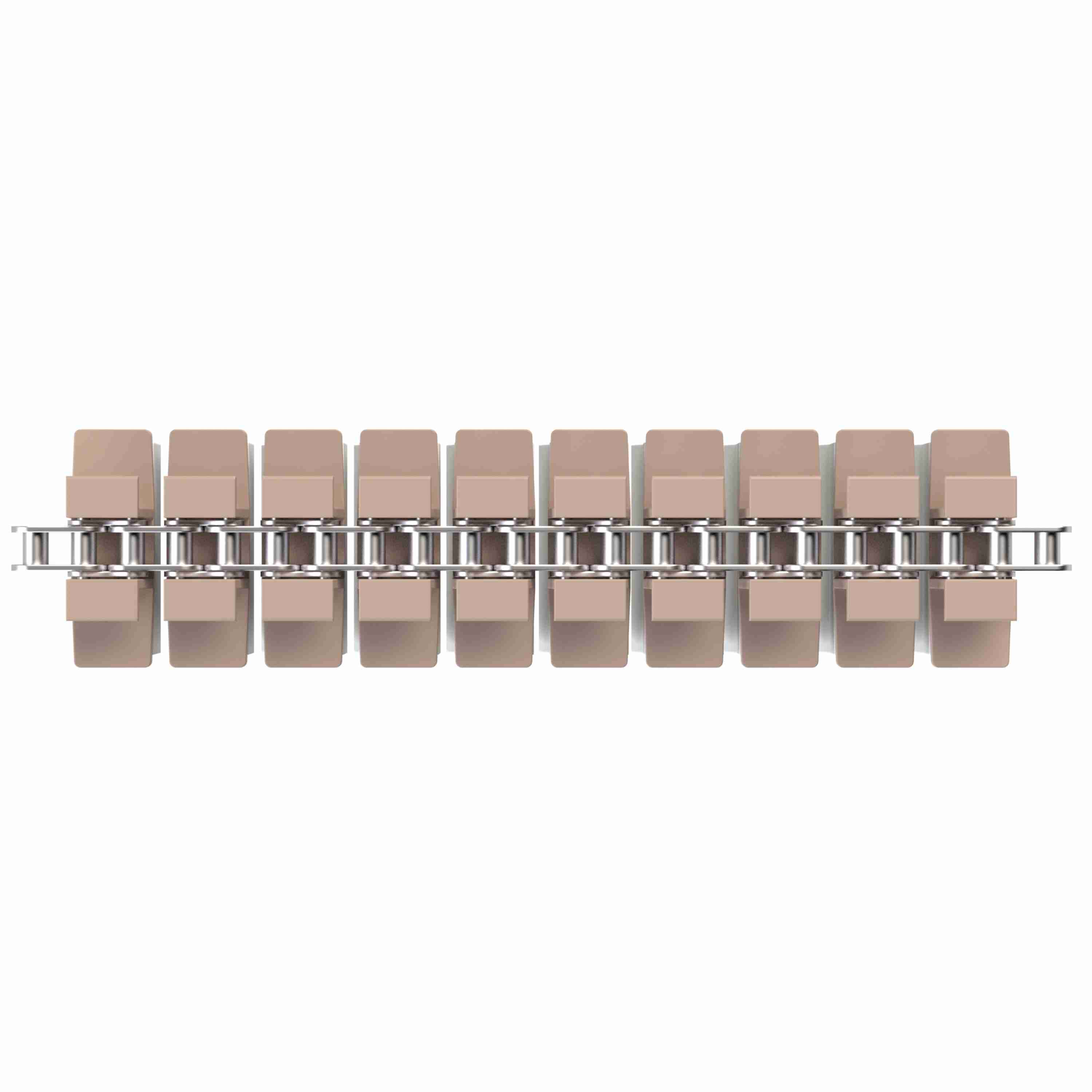

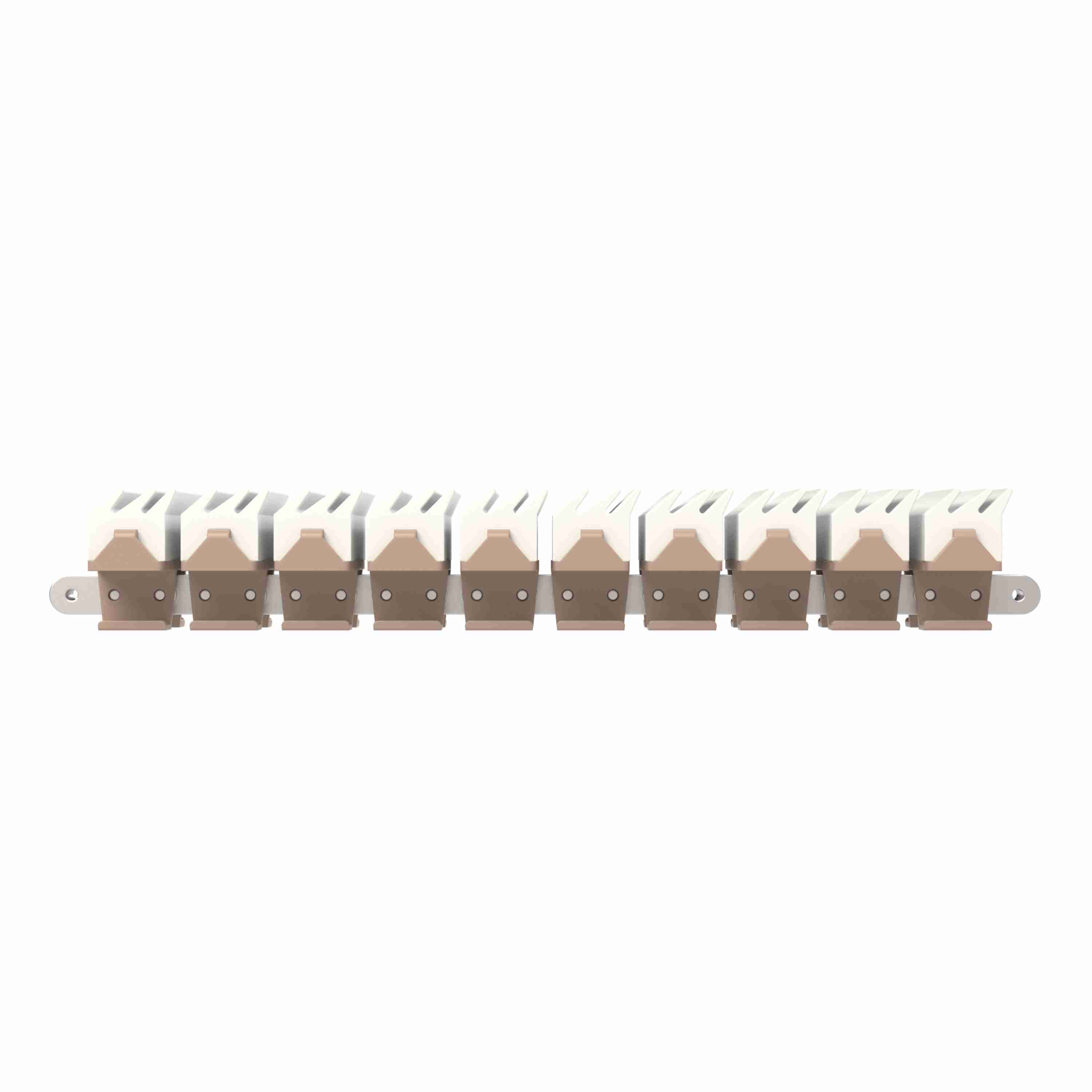

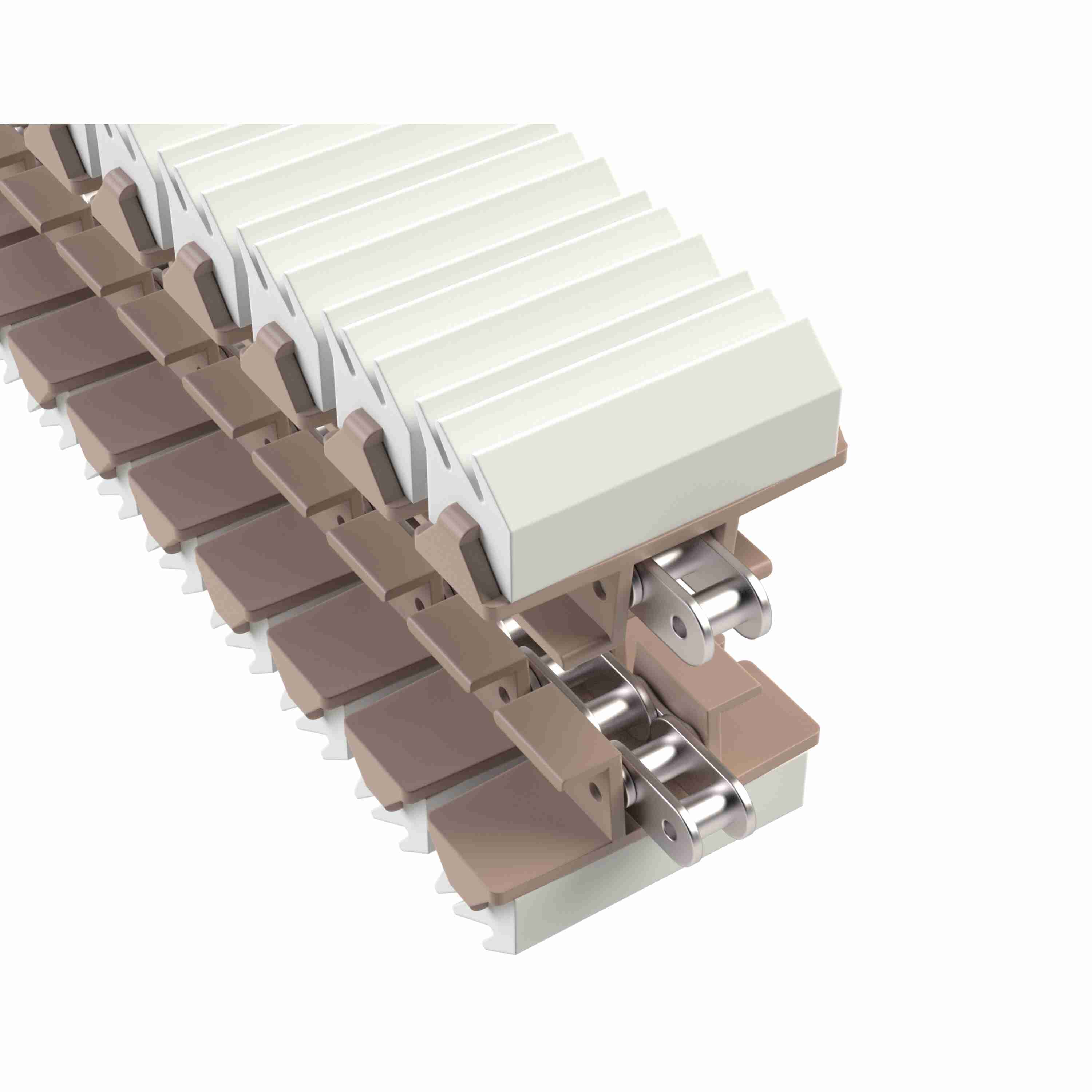

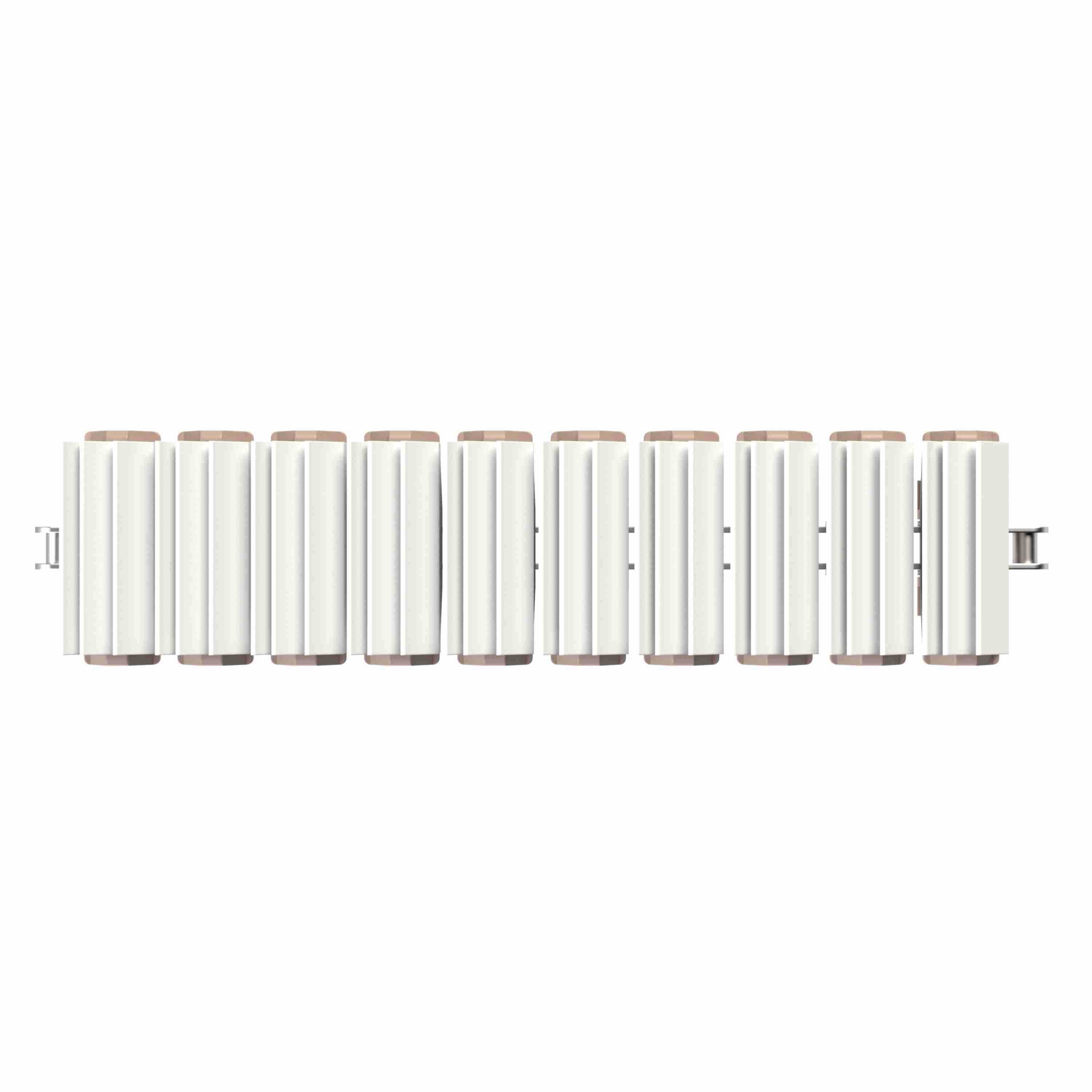

Rexnord 1873TAB SideGrip™ Side-flexing, Material: Tan Low Friction, Width: 3.75in, Pitch: 1.5in - 81426504
Part #:10145407
Catalog #:81426504
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Gripper Hardness: | 50 Shore A | Flight Thickness (mm): | 4 mm |
| Chain Width (mm): | 95.3 mm | Chain Number: | 1873TAB SideGrip™ |
| Series: | TableTop 1873 Series Side-flexing Chain | Curve Retention Type: | TAB |
| Base Chain Material: | Stainless Steel | Gripper Style: | Jaw |
| Straight or Side-Flex: | Side-flexing | Chain Width (in): | 3.75 in |
| Chain Pitch (in): | 1.5 in | Chain Strength (lb): | 750 lb |
| Chain Width Measurement System: | Imperial | Chain Strength (N): | 3,330 N |
| Chain Material Description: | Tan Low Friction | Chain Material: | LF |
| Gripper Color: | White | Surface Type: | SideGrip™ |
| Flight Thickness (in): | 0.16 in | Chain Pitch (mm): | 38.1 mm |
| Gripper Material: | Neoprene |
General Specifications
| Weight: | 0.40 LB | HTC: | 8431390010 |
| Country of Origin: | Mexico |
