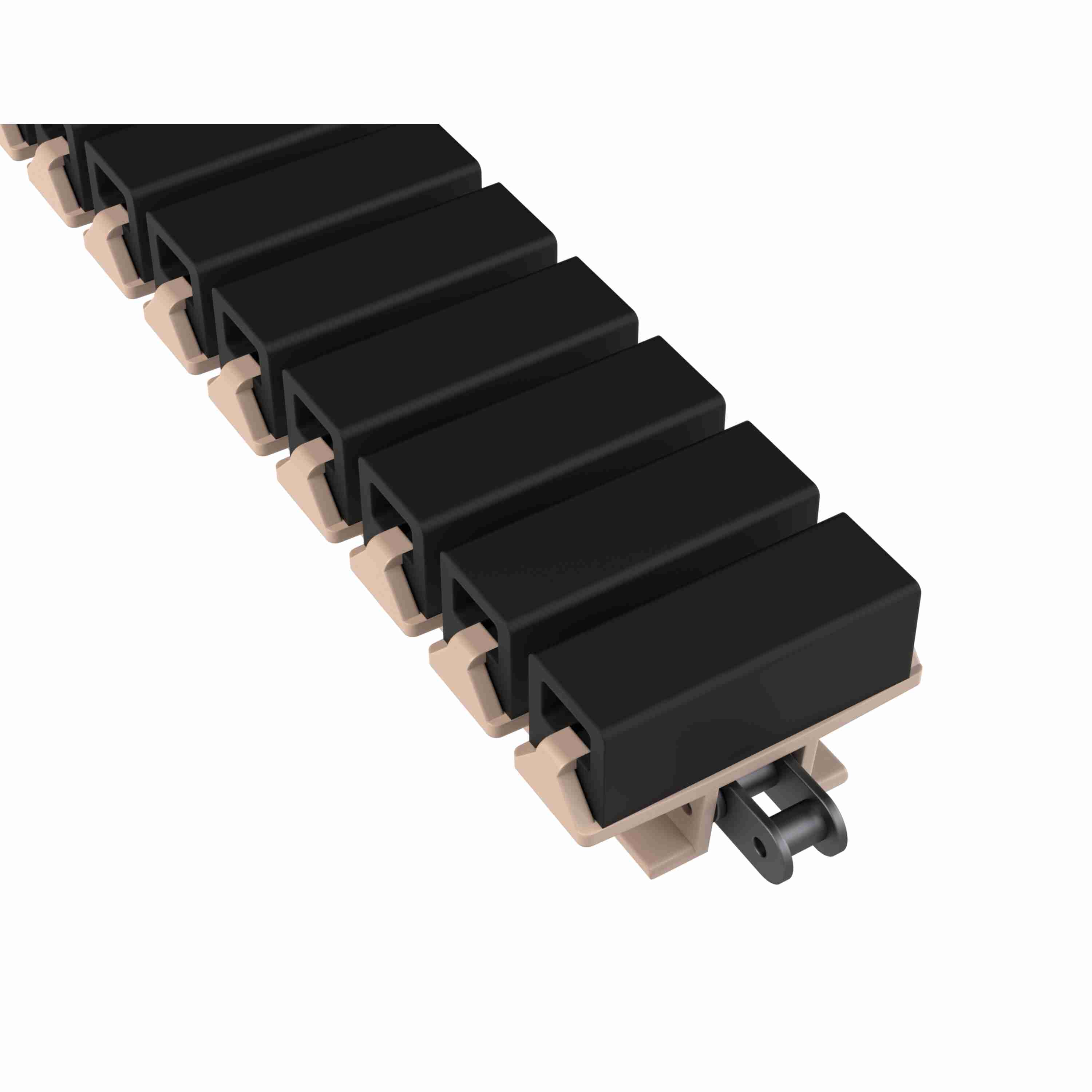

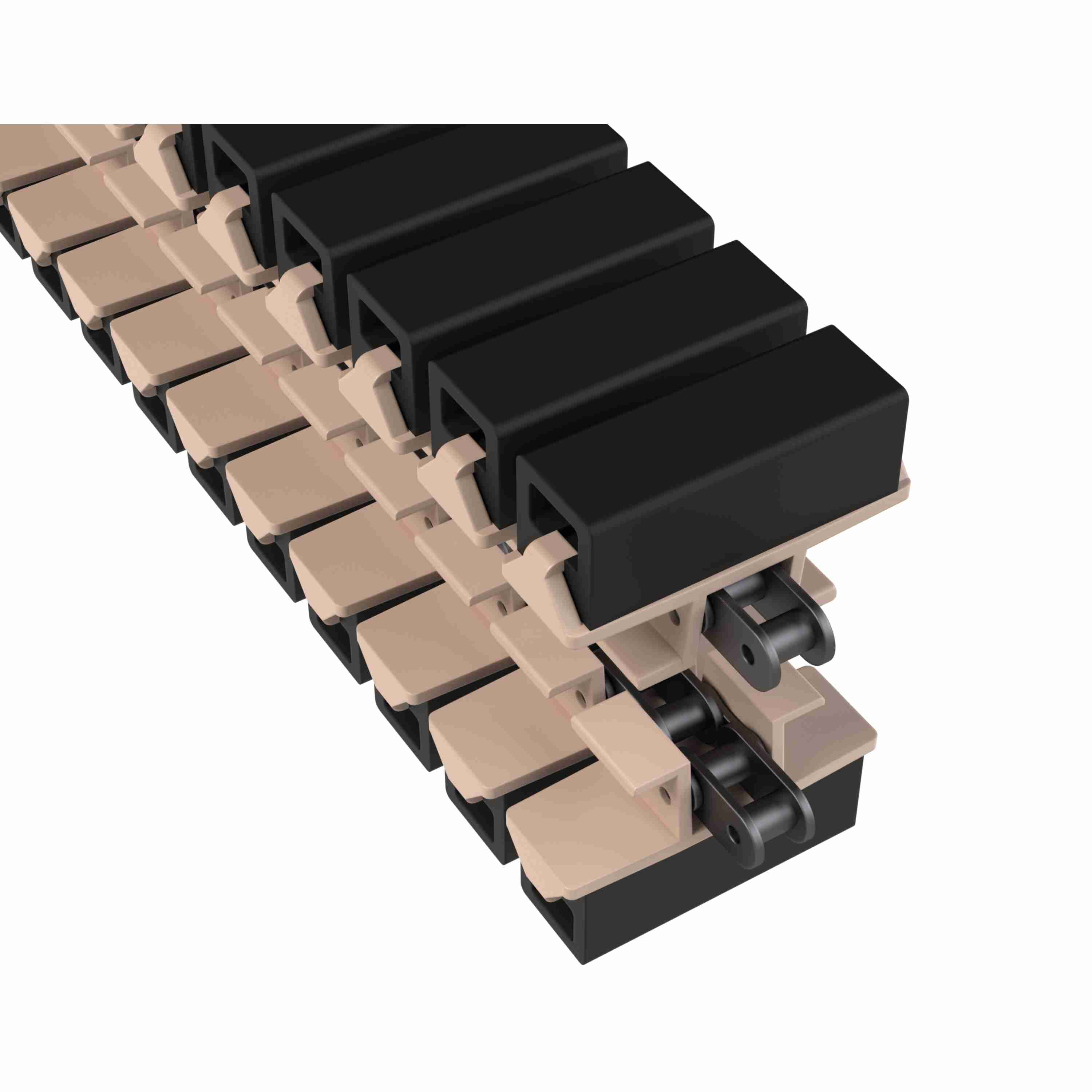

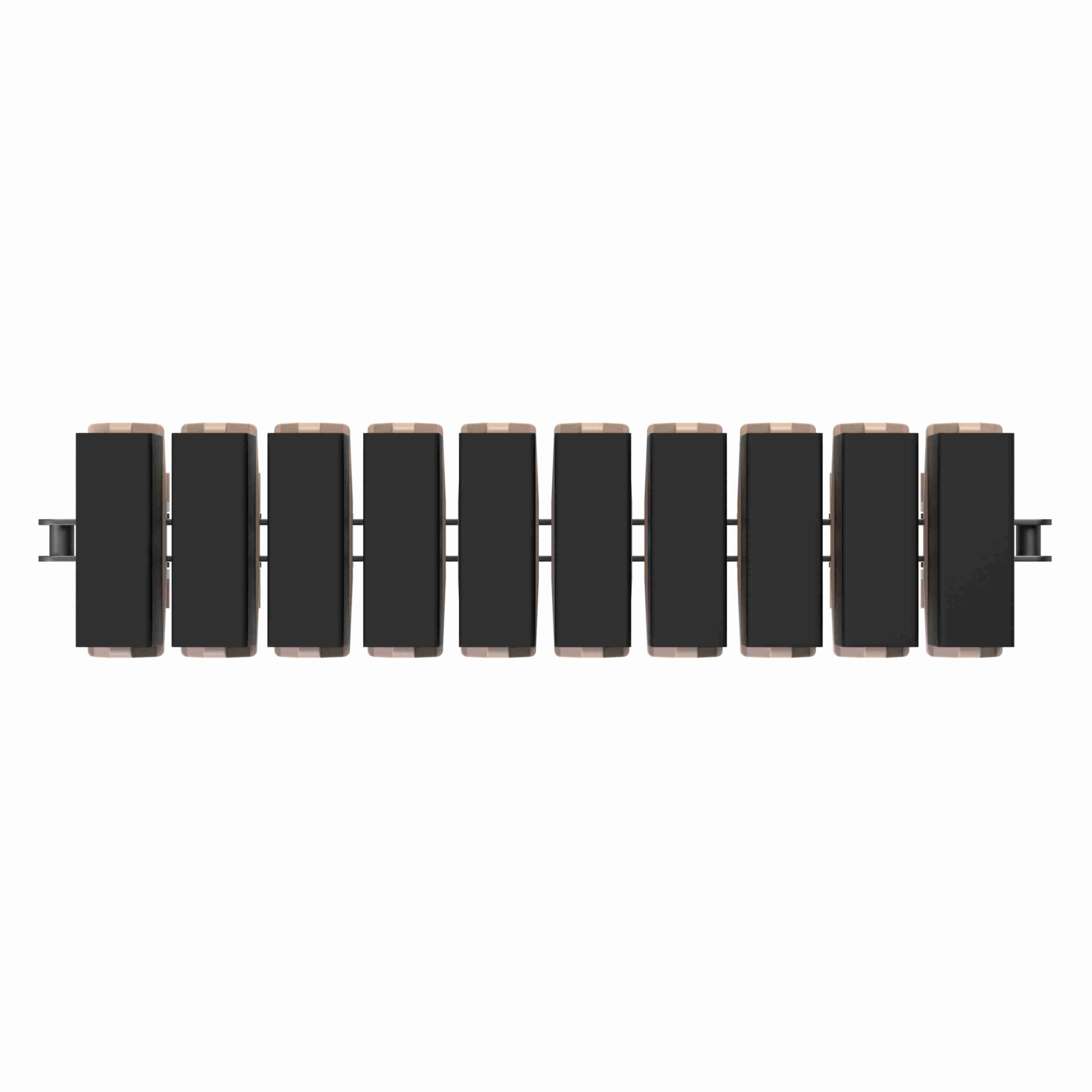

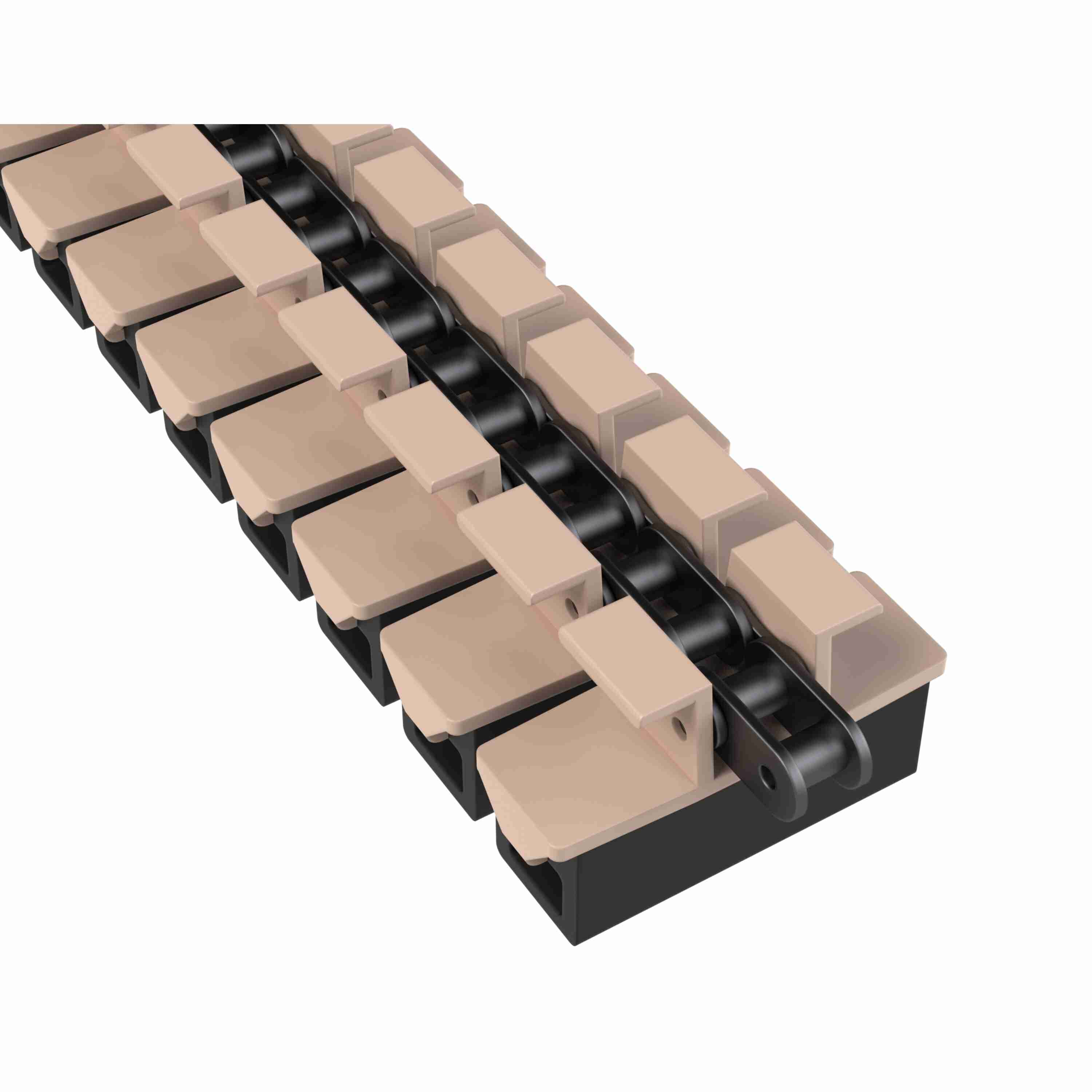

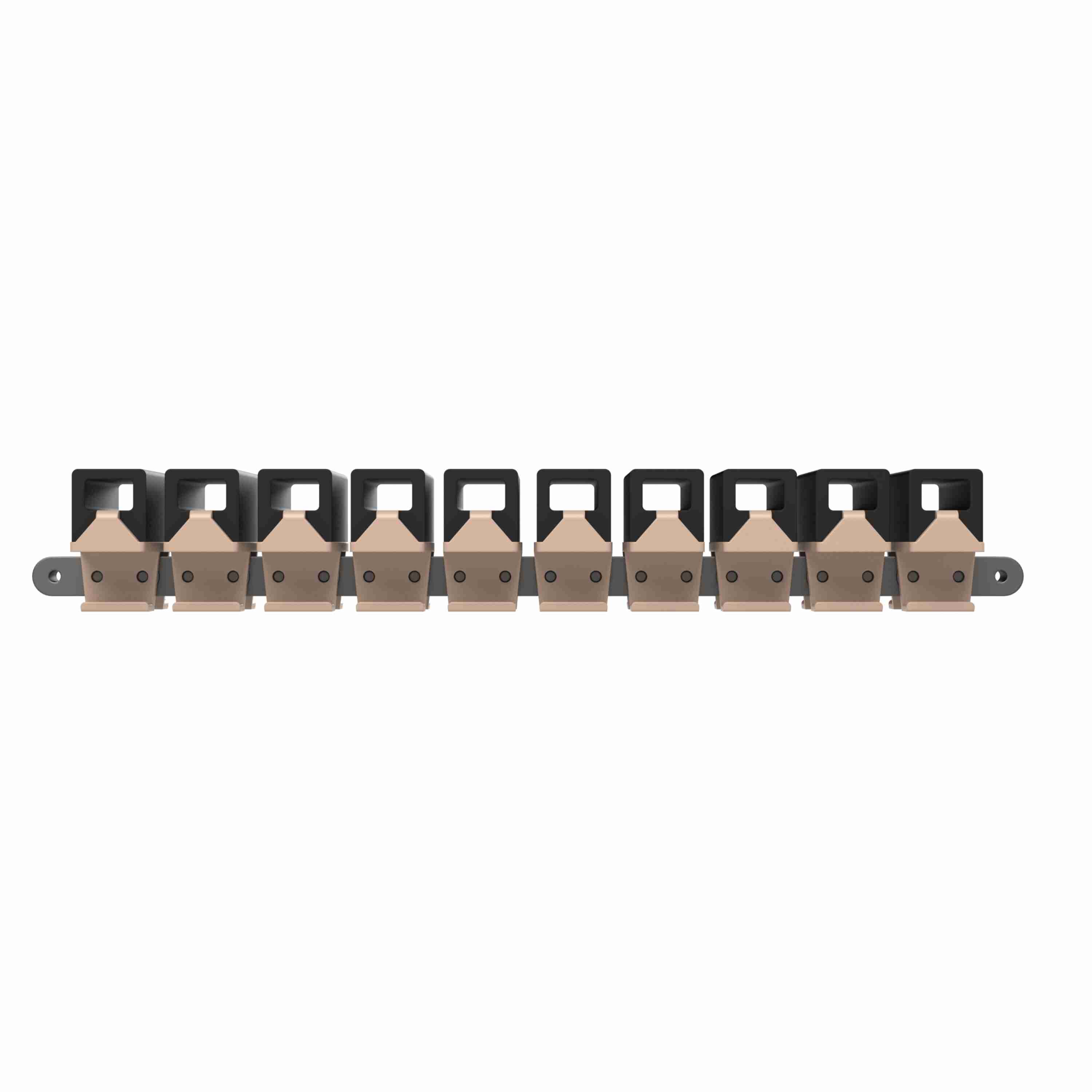

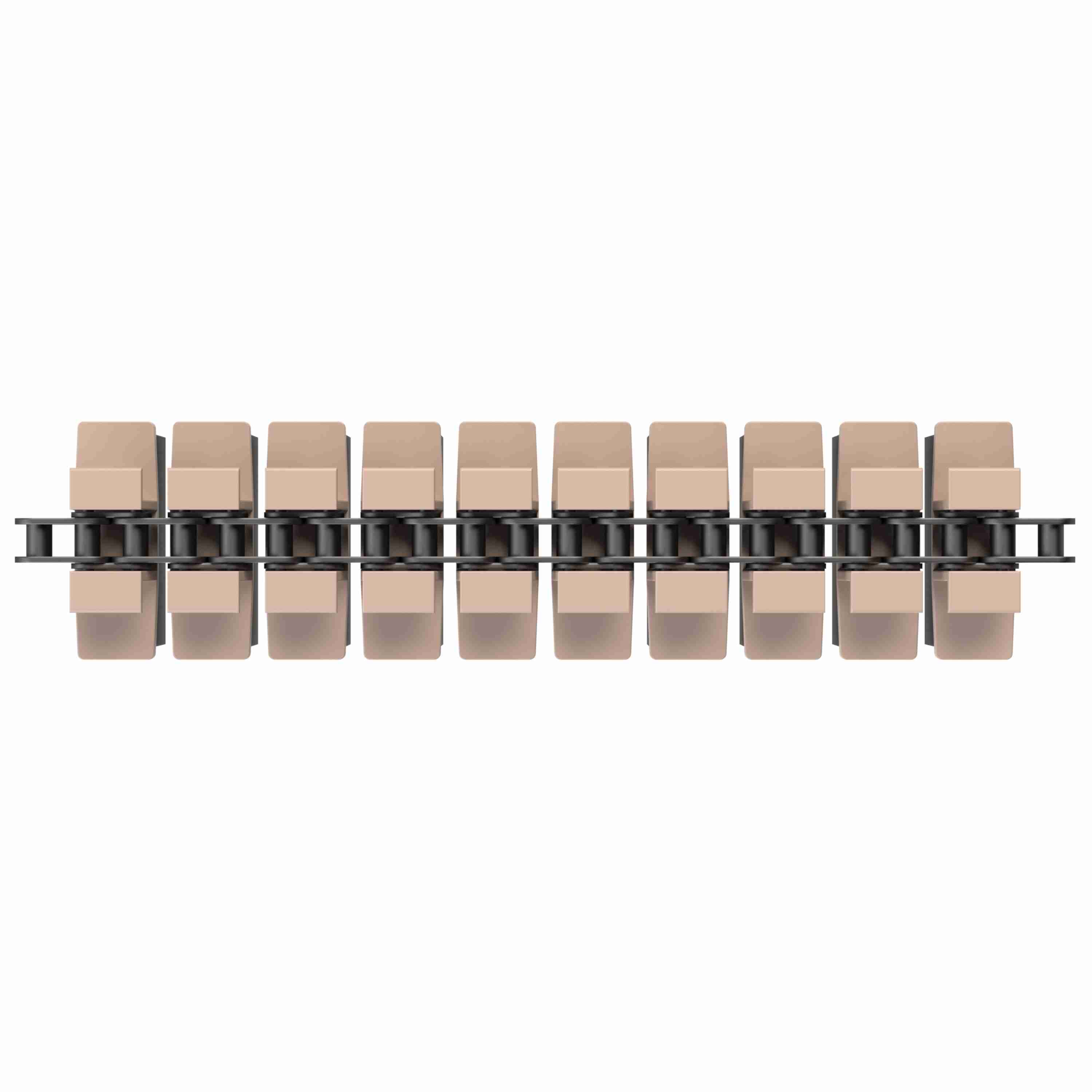

Rexnord 1873TAB SideGrip™ Side-flexing, Material: Tan Low Friction, Width: 3.75in, Pitch: 1.5in - LF1873-GD
Part #:10177564
Catalog #:LF1873-GD
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Base Chain Material: | Steel | Chain Strength (N): | 4,440 N |
| Chain Width Measurement System: | Imperial | Series: | TableTop 1873 Series Side-flexing Chain |
| Chain Pitch (mm): | 38.1 mm | Chain Width (mm): | 95.3 mm |
| Chain Strength (lb): | 1,000 lb | Flight Thickness (mm): | 4 mm |
| Gripper Material: | EPDM | Surface Type: | SideGrip™ |
| Curve Retention Type: | TAB | Gripper Color: | Black |
| Chain Pitch (in): | 1.5 in | Chain Material Description: | Tan Low Friction |
| Chain Number: | 1873TAB SideGrip™ | Gripper Style: | D |
| Straight or Side-Flex: | Side-flexing | Chain Material: | LF |
| Gripper Hardness: | 50 Shore A | Chain Width (in): | 3.75 in |
| Flight Thickness (in): | 0.16 in |
General Specifications
| Weight: | 0.14 KG | HTC: | 8431390010 |
| Country of Origin: | Mexico |
