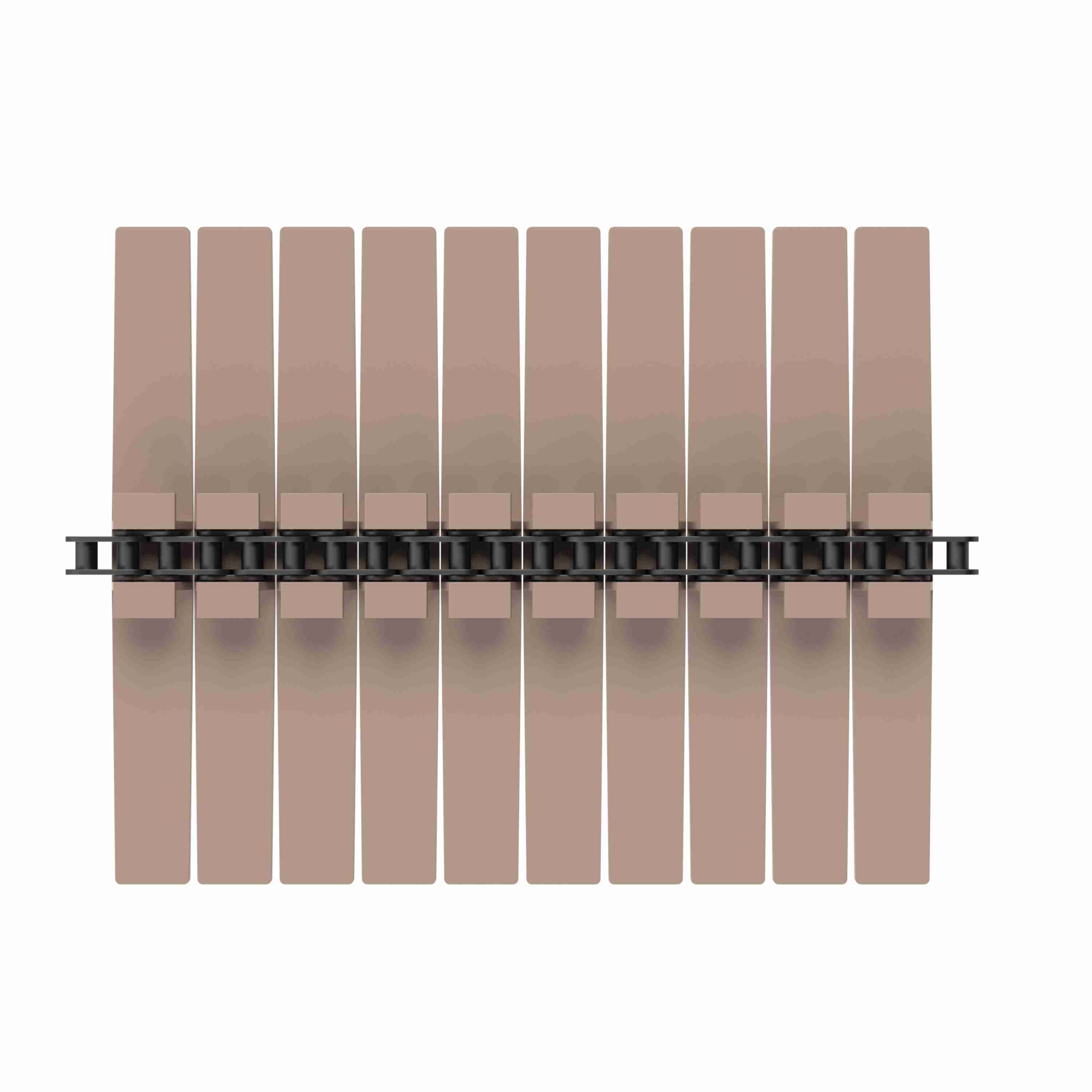

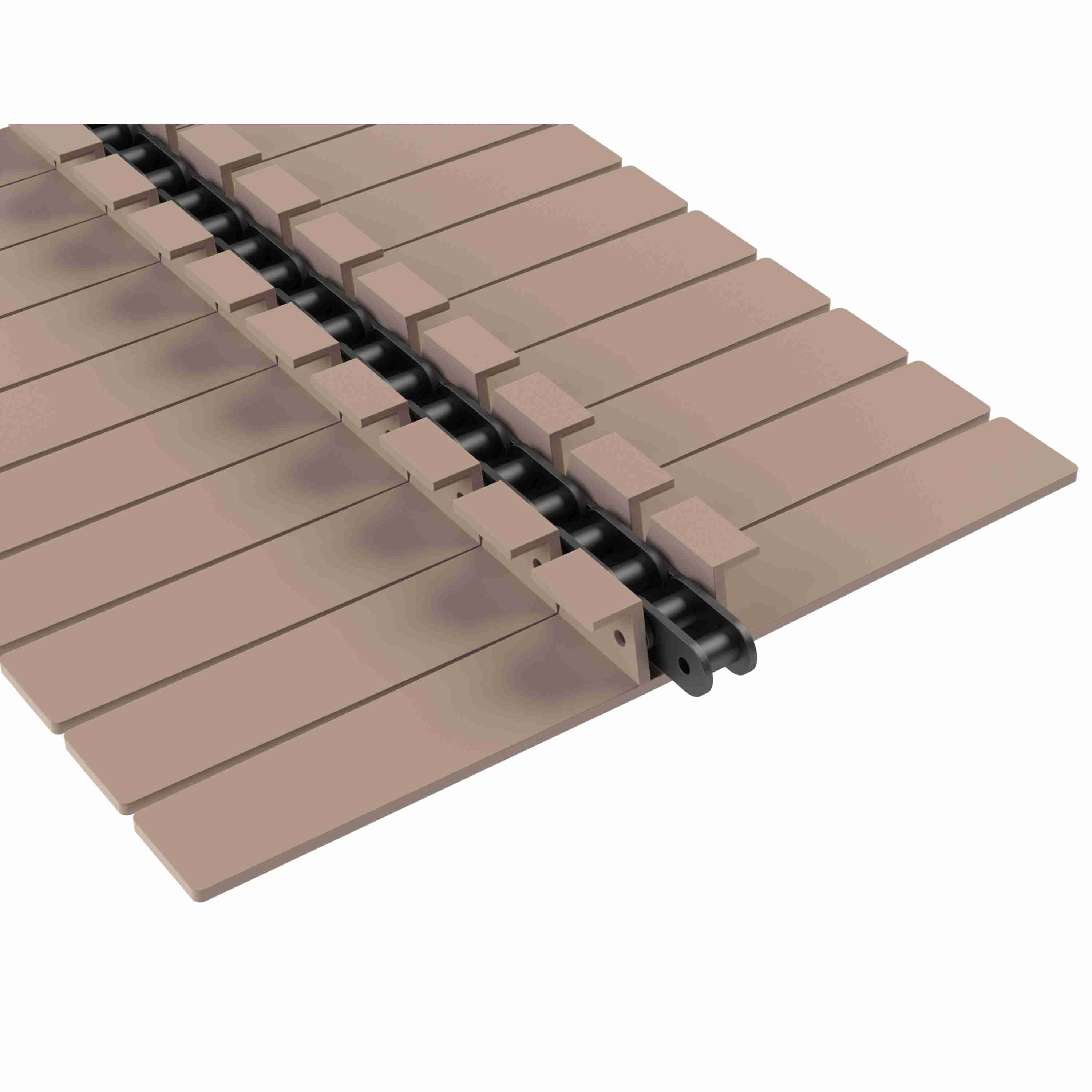

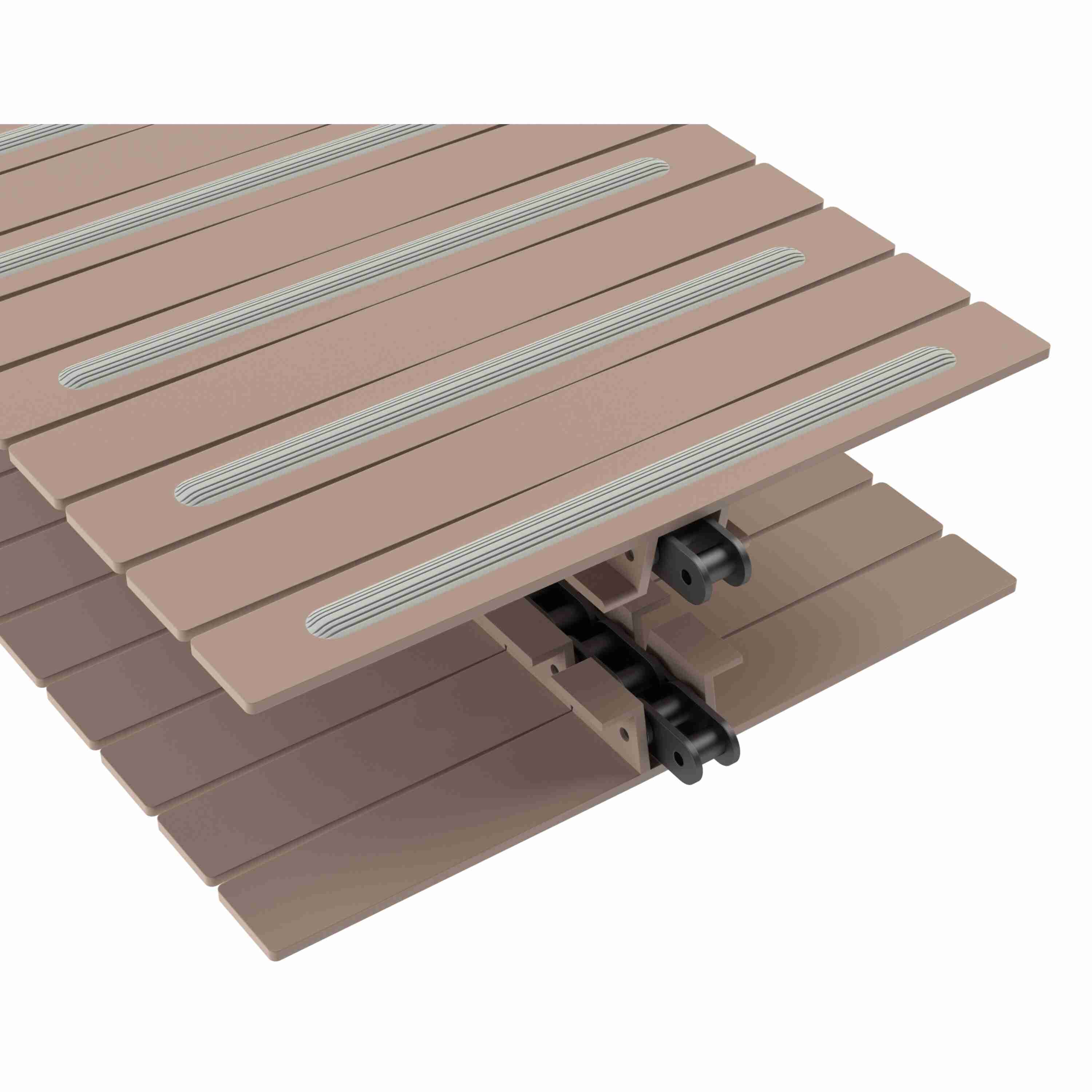

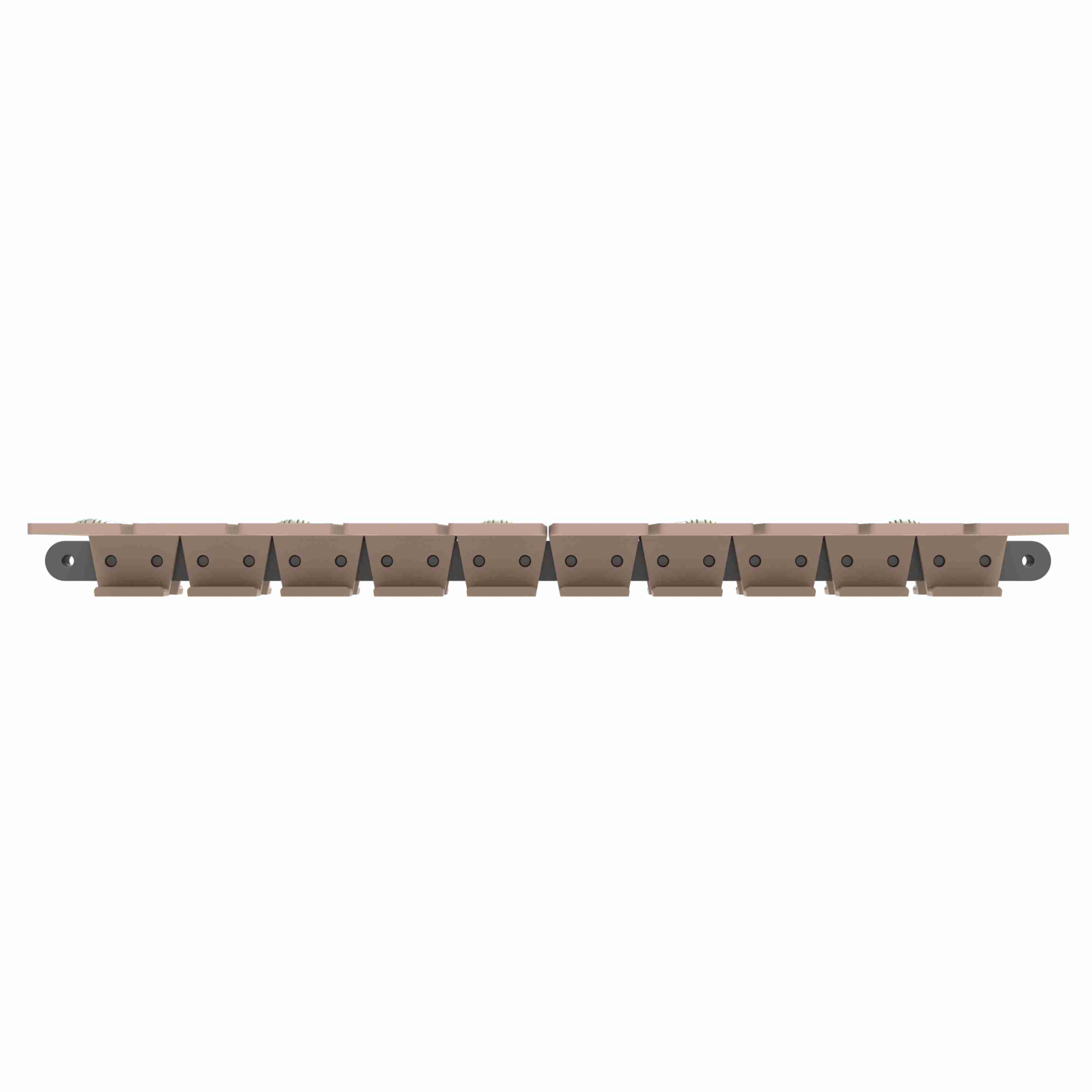

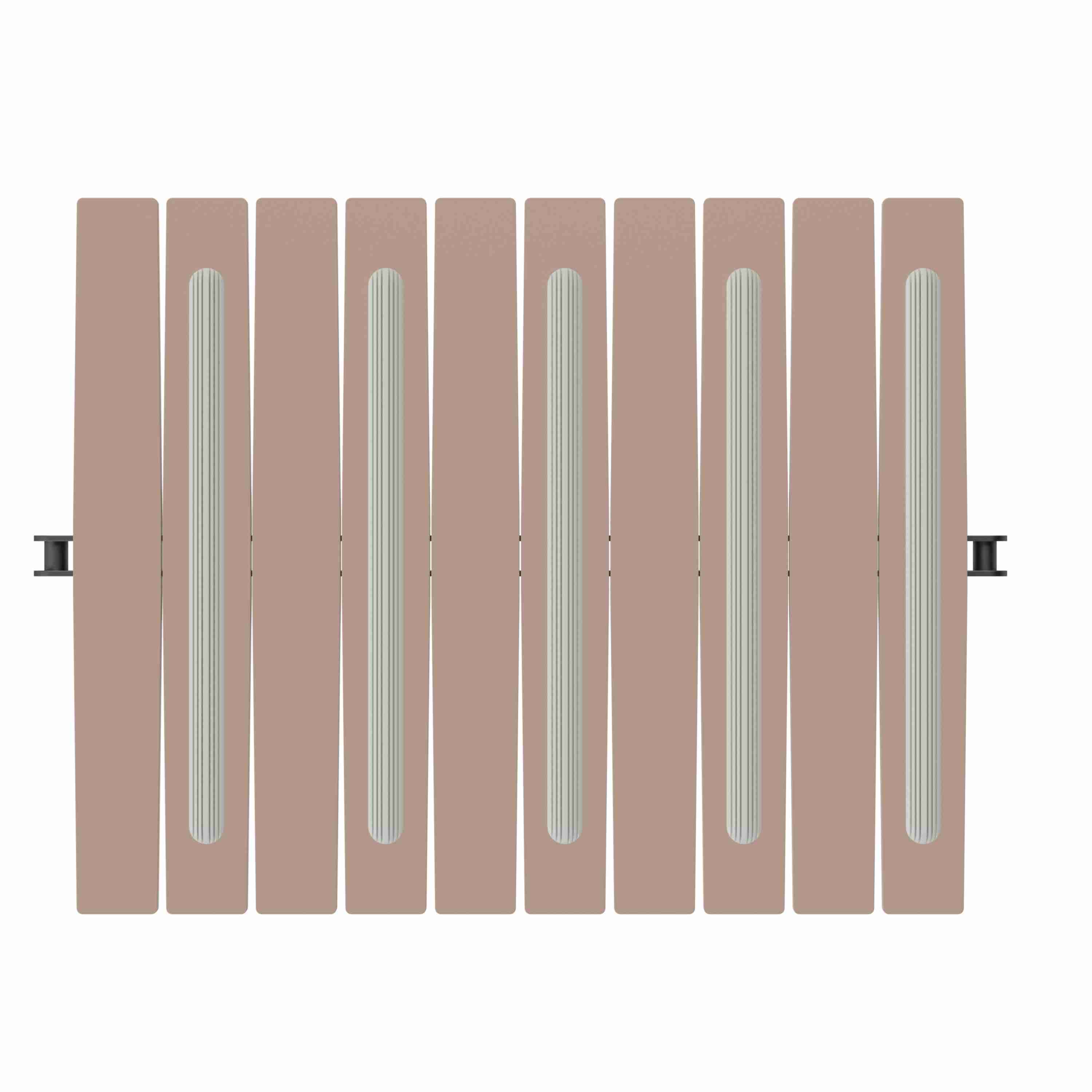

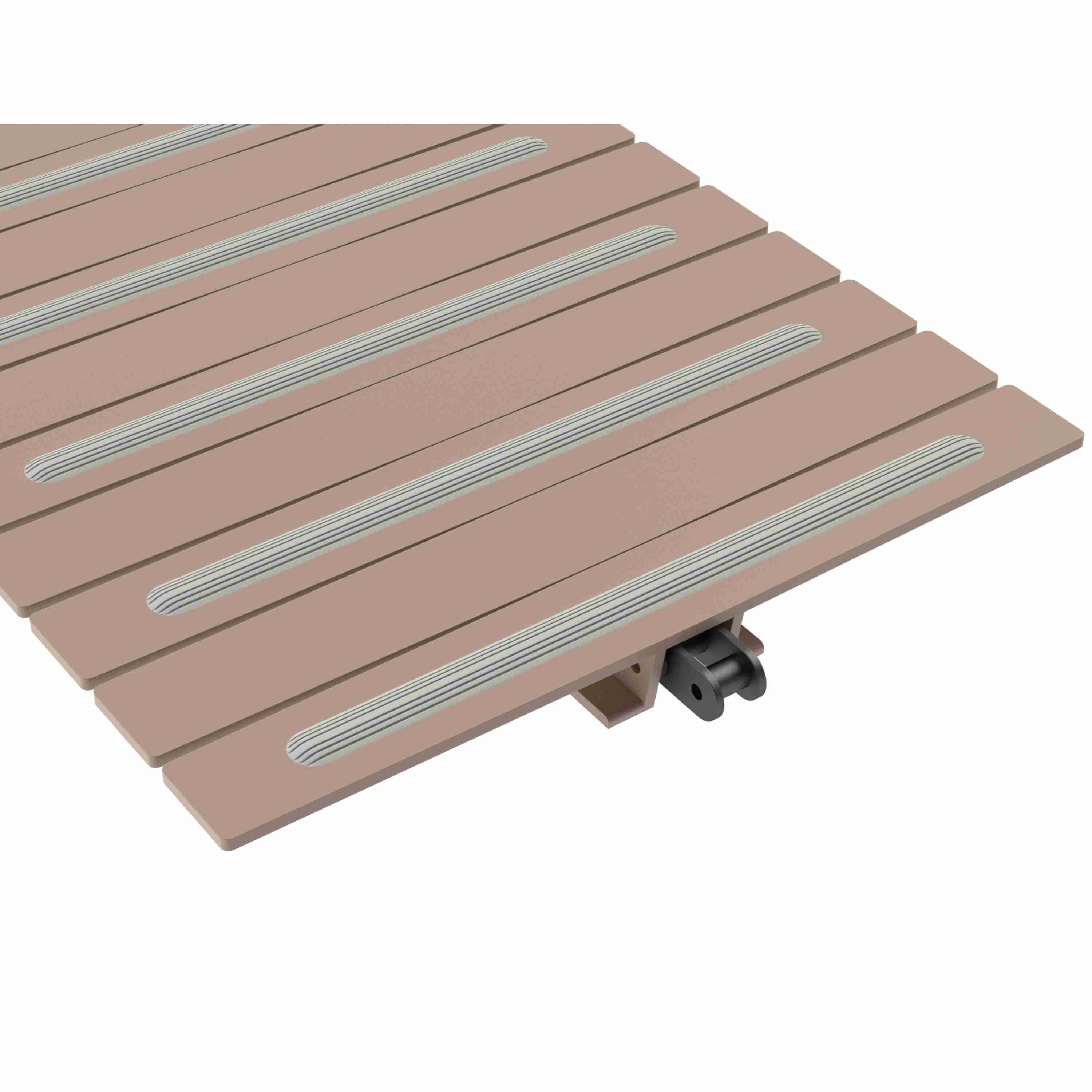

Rexnord 1873TAB SuperGrip™ Side-flexing SuperGrip™, Material: Tan Low Friction, Width: 12in, Pitch: 1.5in - 81418877
Part #:10145122
Catalog #:81418877
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Pitch (in): | 1.5 in | Chain Width (in): | 12 in |
| Base Chain Material: | Steel | Series: | TableTop 1873 Series Side-flexing Chain |
| Flight Thickness (in): | 0.24 in | Straight or Side-Flex: | Side-flexing |
| Chain Width Measurement System: | Imperial | Chain Strength (N): | 4,440 N |
| Chain Number: | 1873TAB SuperGrip™ | Number of SuperGrip/RubberTop Rows: | 1 Row |
| Chain Pitch (mm): | 38.1 mm | Chain Width (mm): | 304.8 mm |
| Curve Retention Type: | TAB | Chain Material: | LF |
| Chain Strength (lb): | 1,000 lb | SG/RT Spacing (Pitches): | Every 2nd Pitch |
| SG/RT Spacing (mm): | 76.2 mm | Surface Type: | SuperGrip™ |
| Flight Thickness (mm): | 6.1 mm | SG/RT Spacing (in): | 3 in |
| Chain Material Description: | Tan Low Friction |
General Specifications
| Weight: | 0.25 LB | HTC: | 8431390010 |
| Country of Origin: | Mexico |
