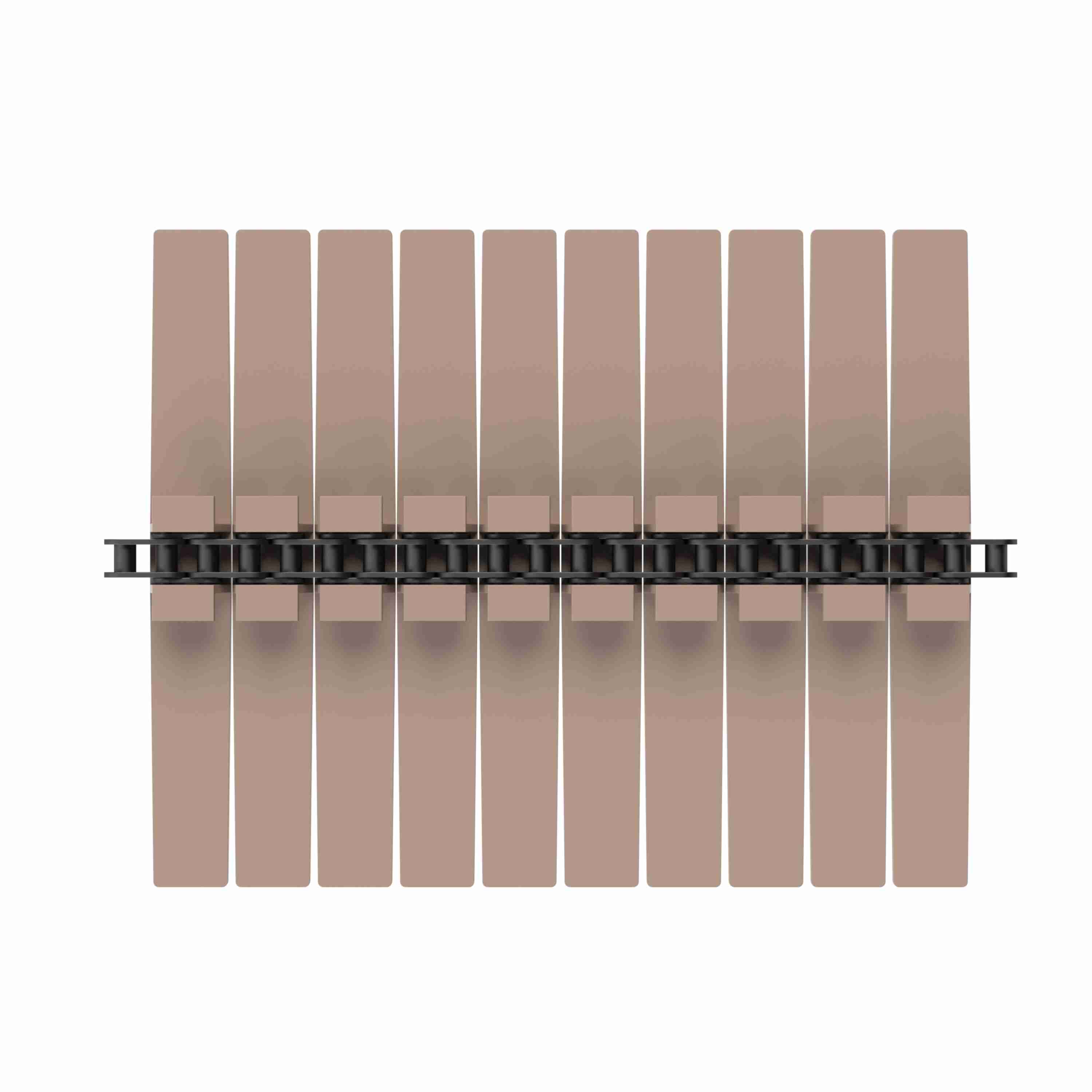

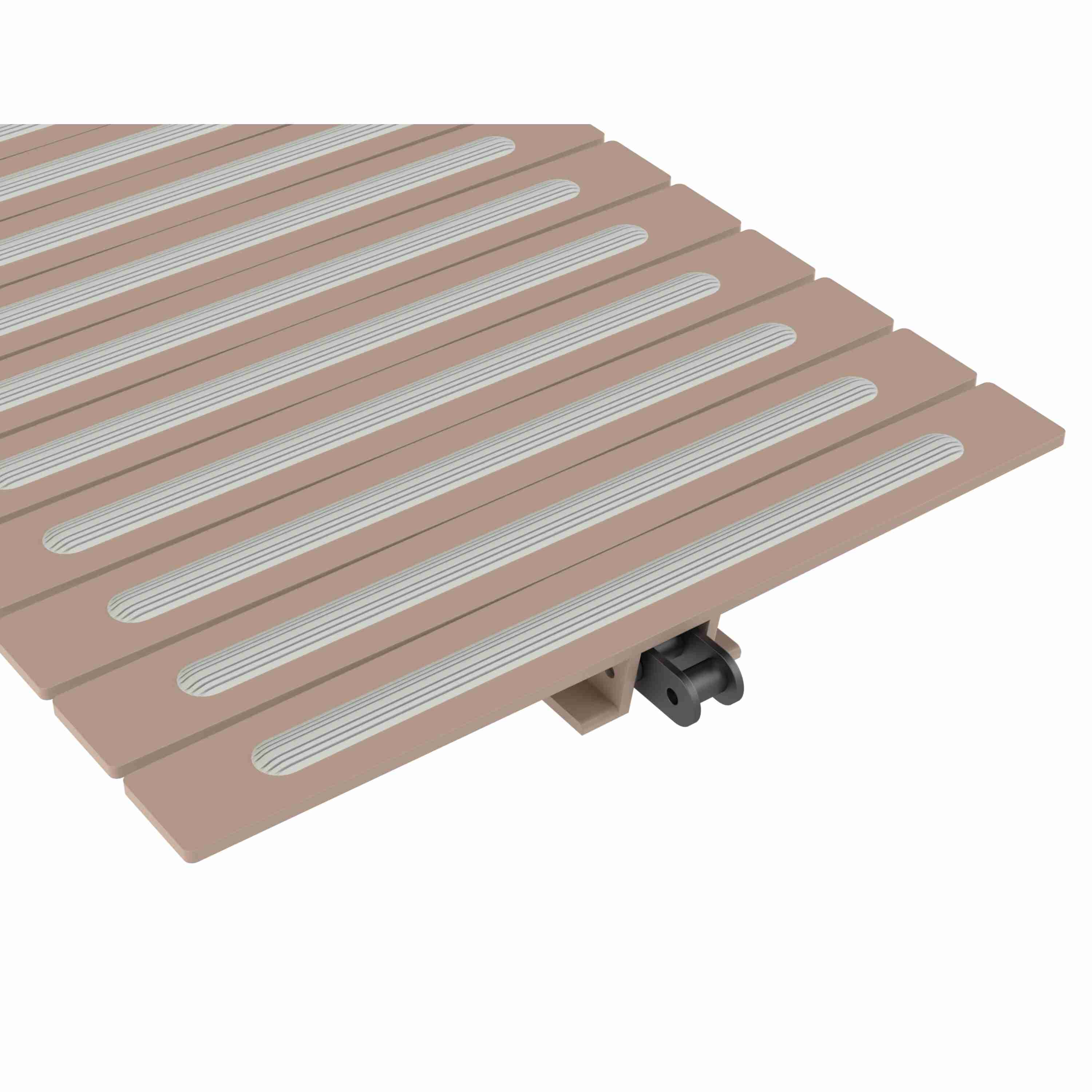

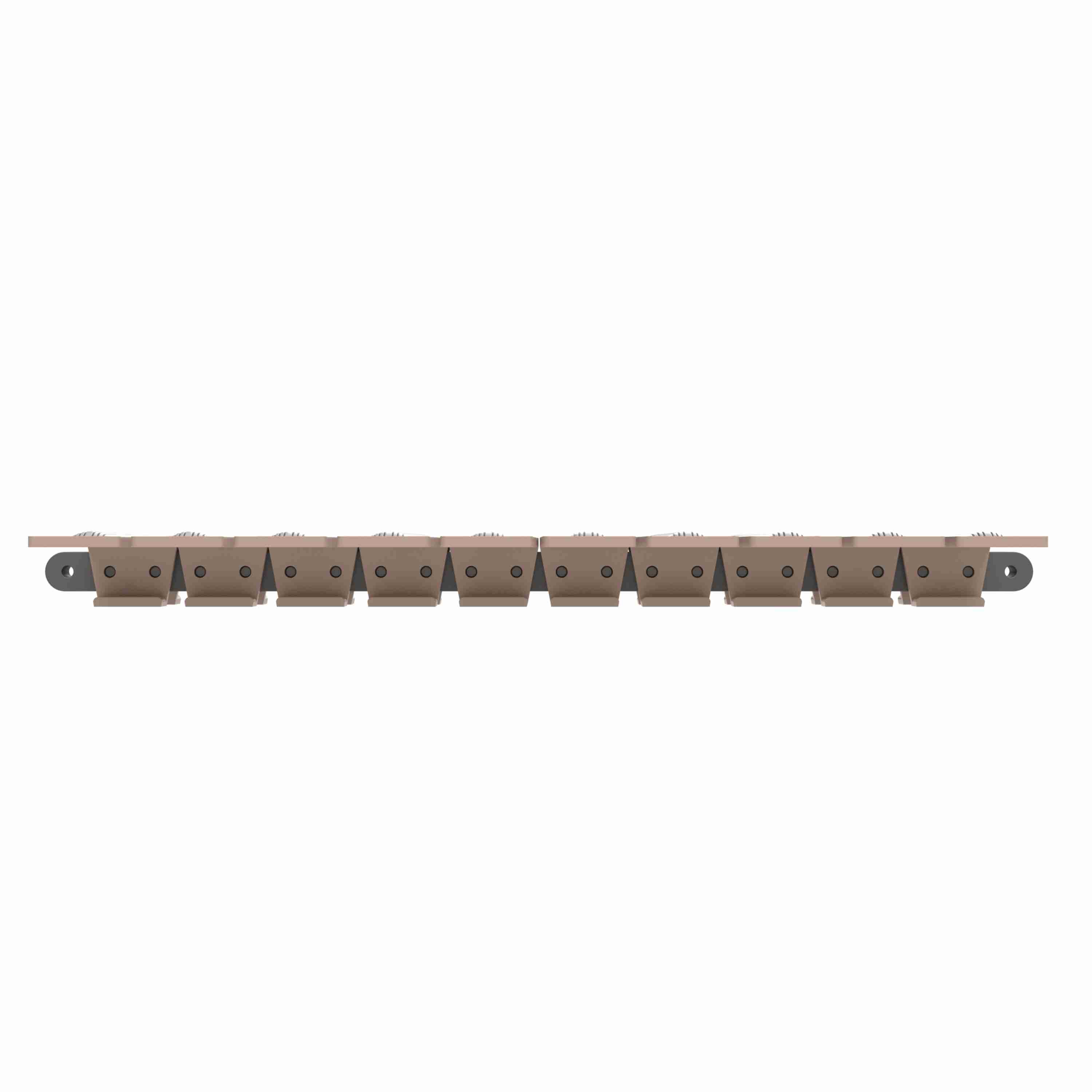

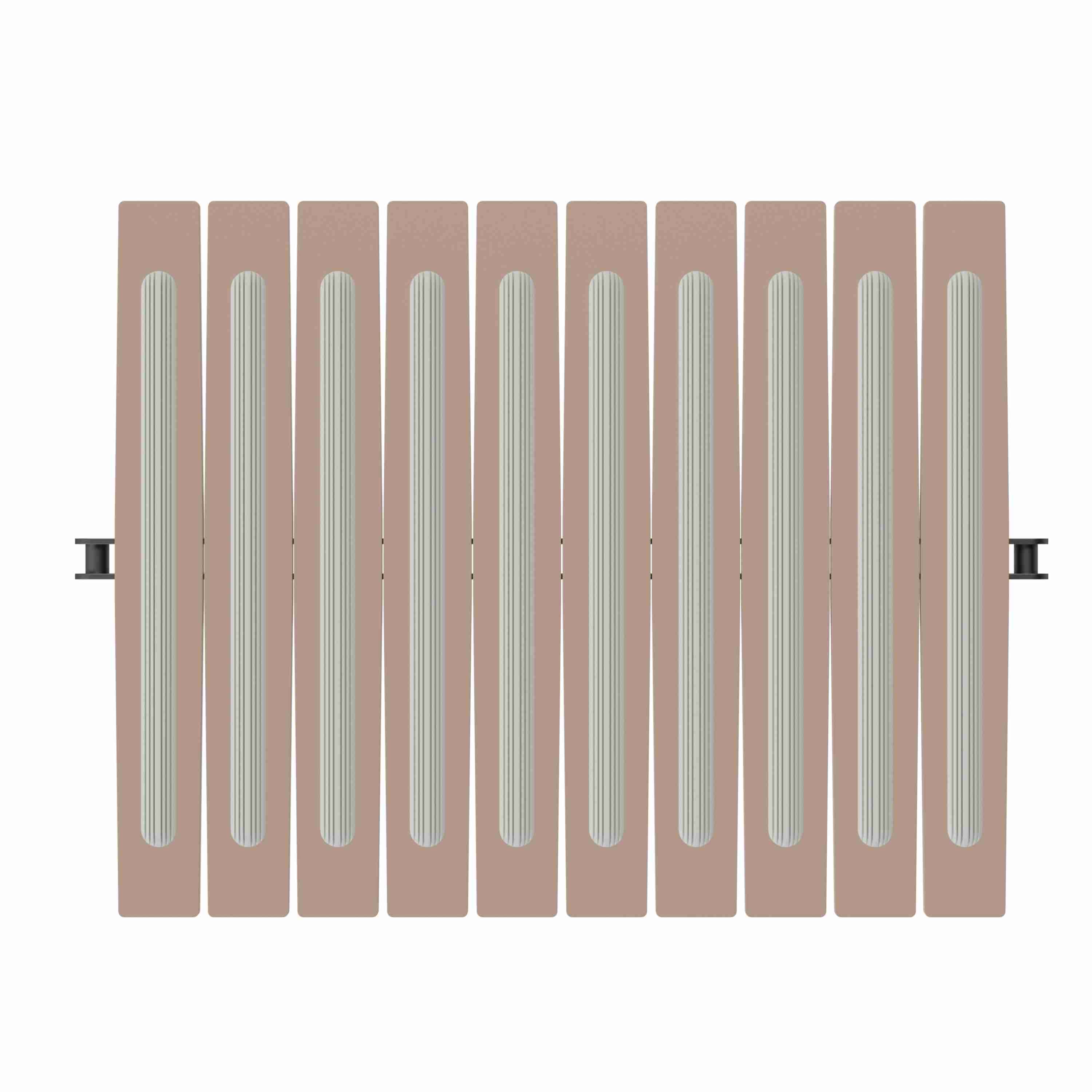

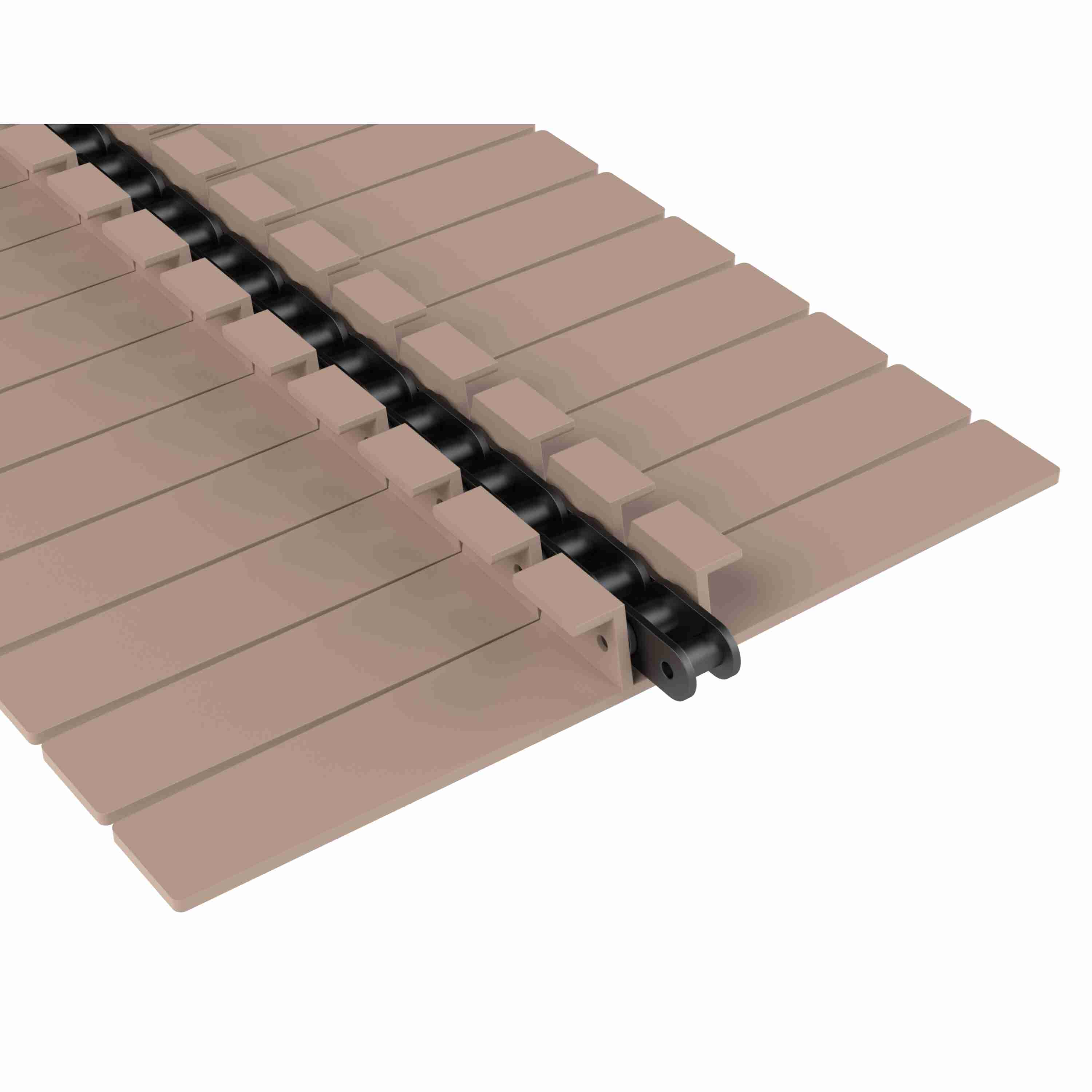

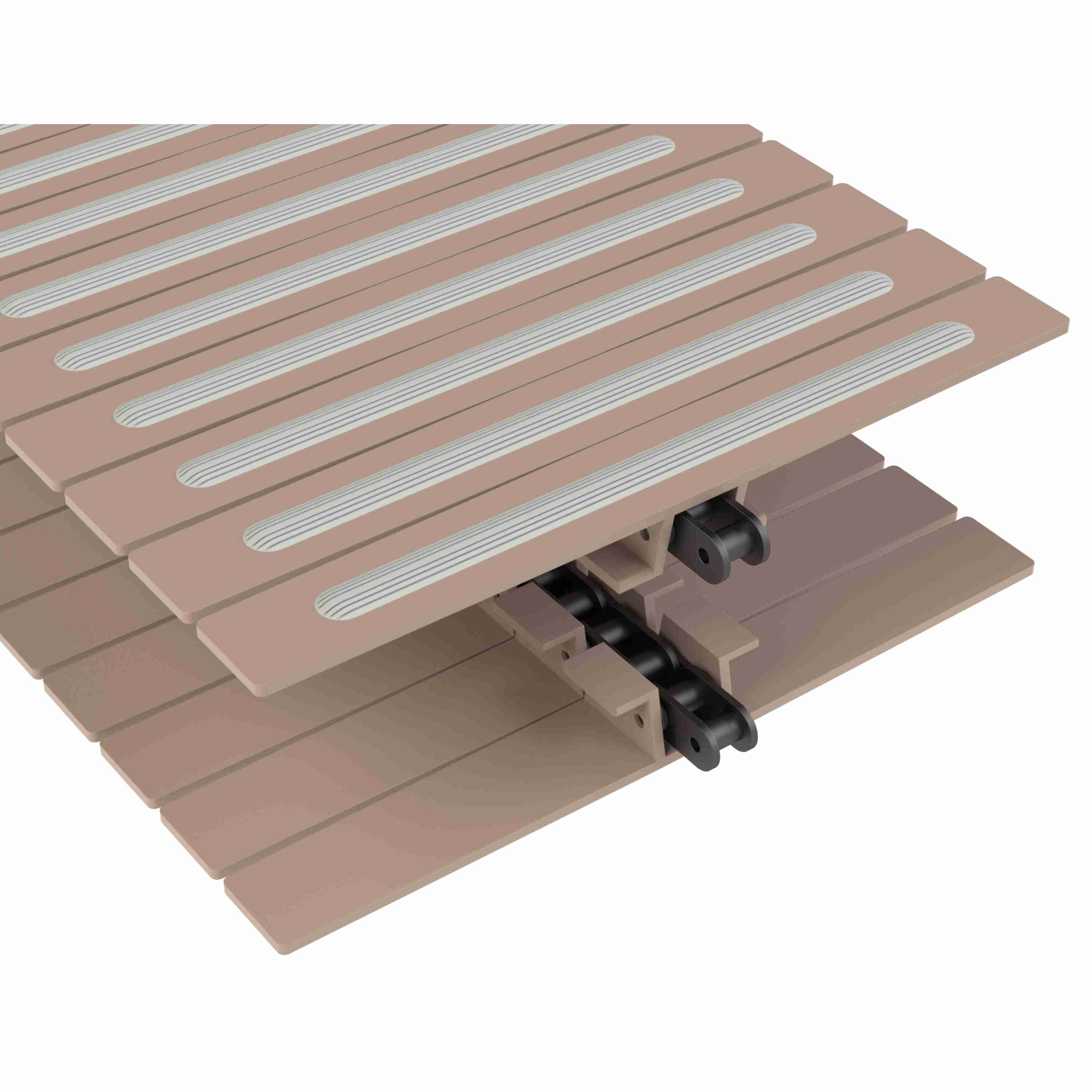

Rexnord 1873TAB SuperGrip™ Side-flexing SuperGrip™, Material: Tan Low Friction, Width: 12in, Pitch: 1.5in - L1873644202
Part #:10373923
Catalog #:L1873644202
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Surface Type: | SuperGrip™ | Flight Thickness (mm): | 6.1 mm |
| Straight or Side-Flex: | Side-flexing | Number of SuperGrip/RubberTop Rows: | 1 Row |
| Chain Pitch (mm): | 38.1 mm | Chain Pitch (in): | 1.5 in |
| Series: | TableTop 1873 Series Side-flexing Chain | Chain Strength (N): | 3,330 N |
| Chain Width Measurement System: | Imperial | Chain Material: | LF |
| Flight Thickness (in): | 0.24 in | Chain Width (mm): | 304.8 mm |
| Chain Material Description: | Tan Low Friction | Chain Width (in): | 12 in |
| Chain Strength (lb): | 750 lb | Curve Retention Type: | TAB |
| Chain Number: | 1873TAB SuperGrip™ | SG/RT Spacing (Pitches): | Every Pitch |
| Base Chain Material: | Stainless Steel |
General Specifications
| Weight: | 0.13 KG | HTC: | 8431390010 |
| Country of Origin: | Mexico |
