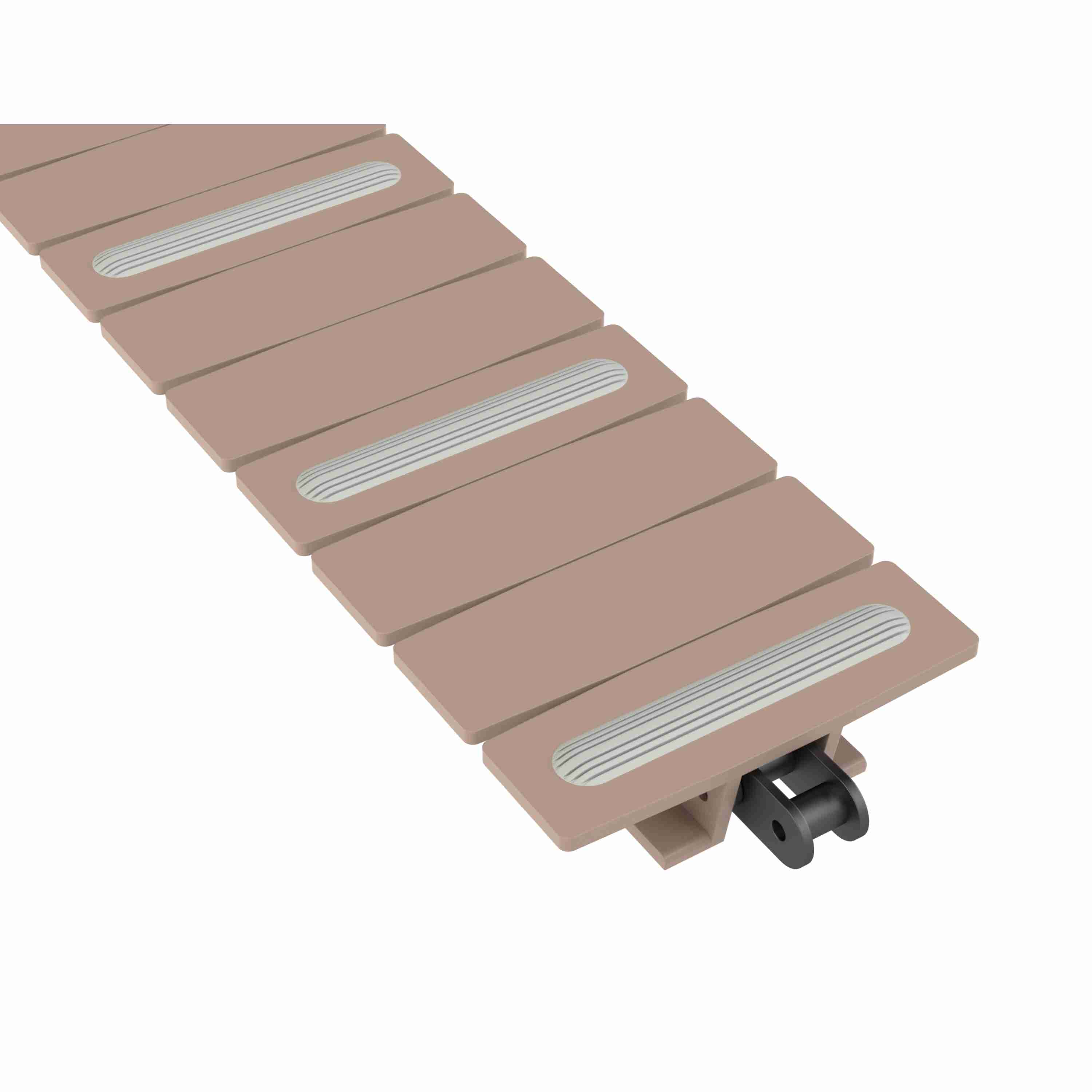

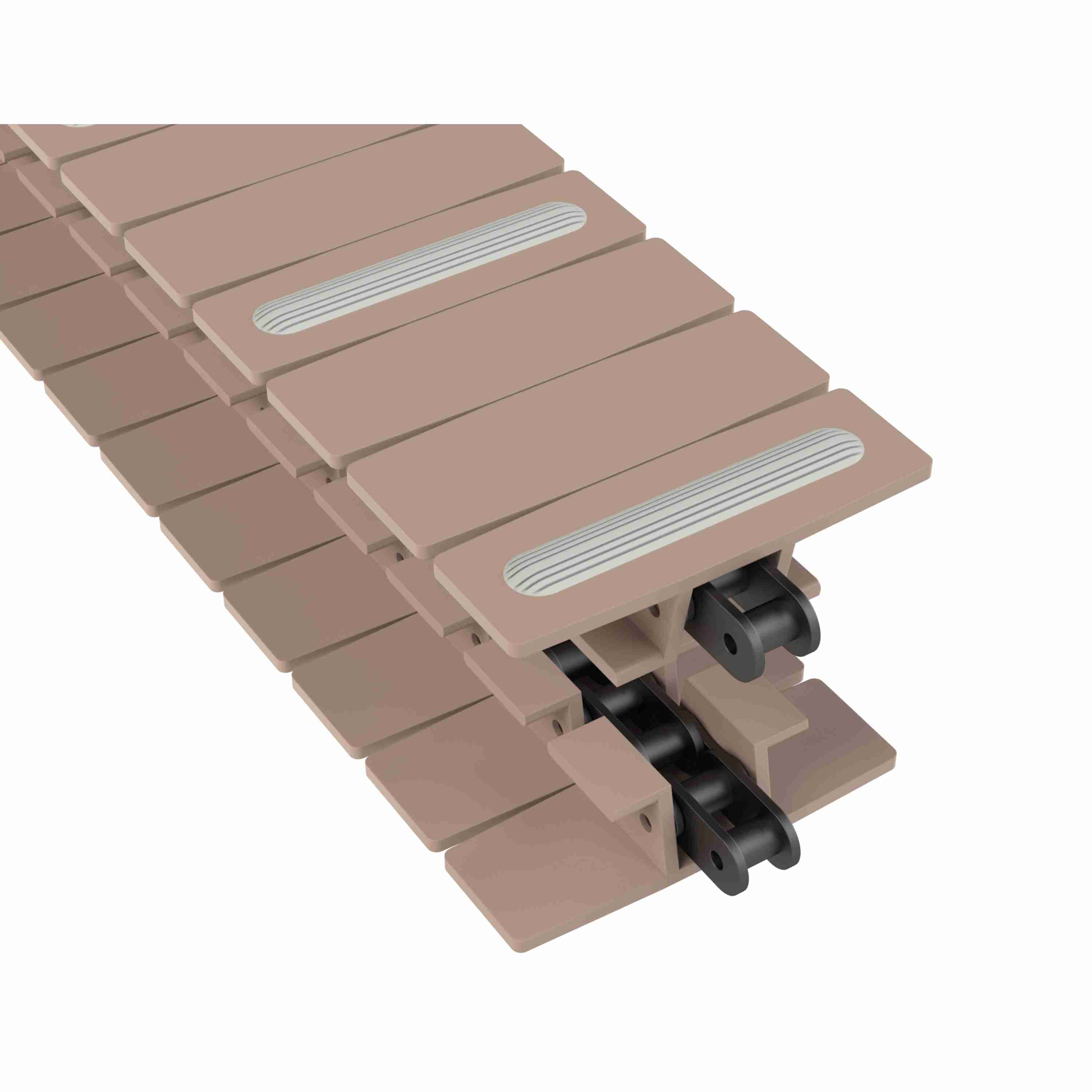

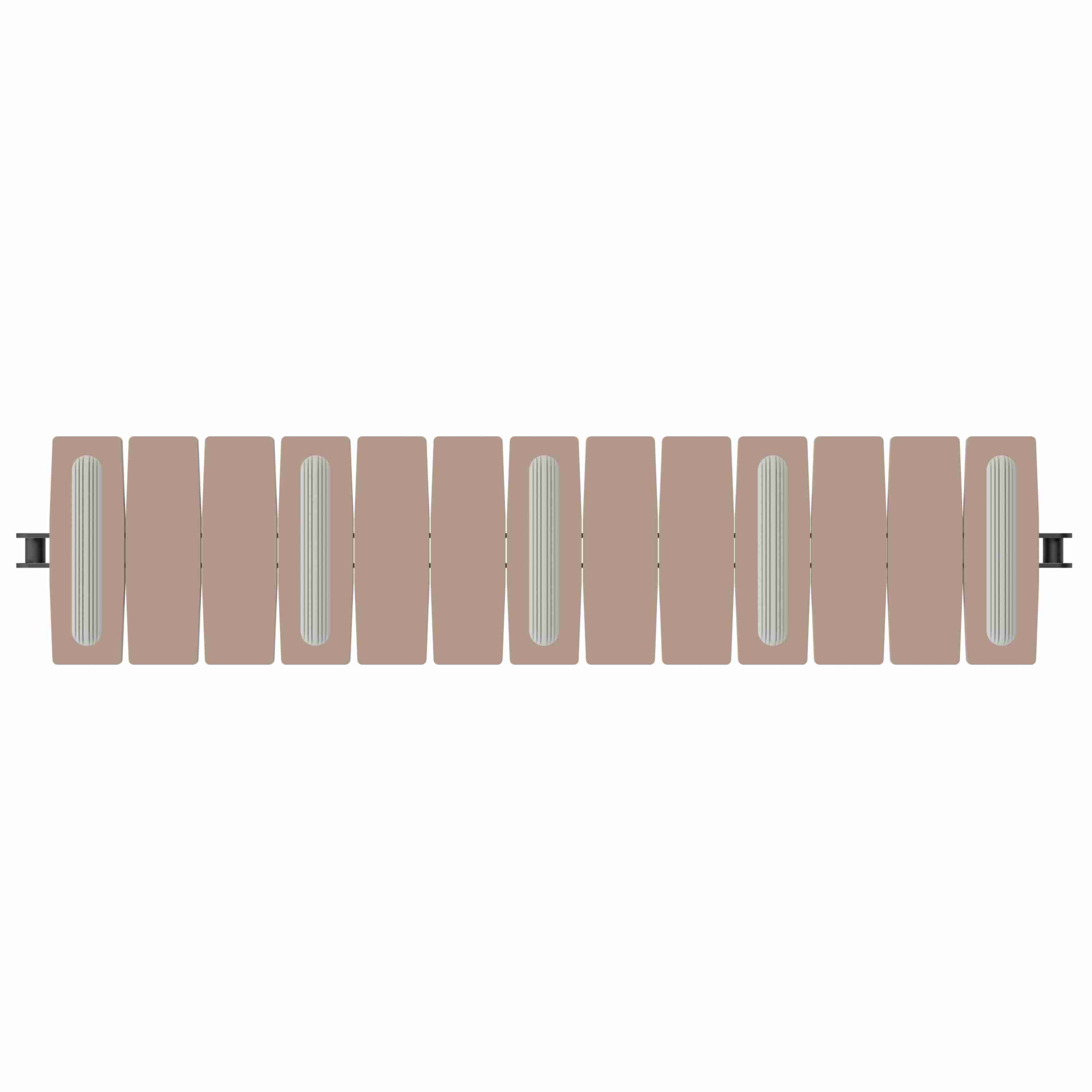

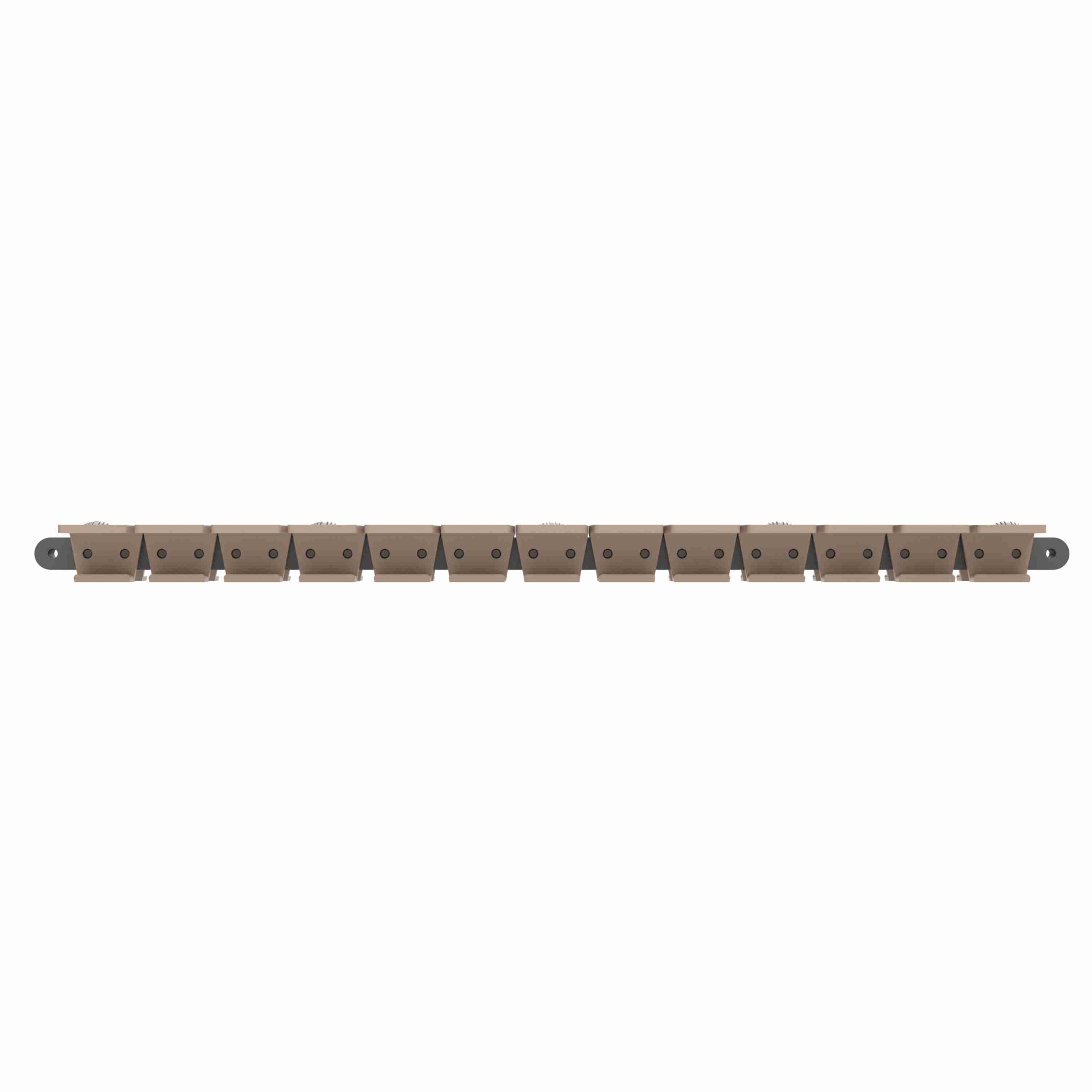

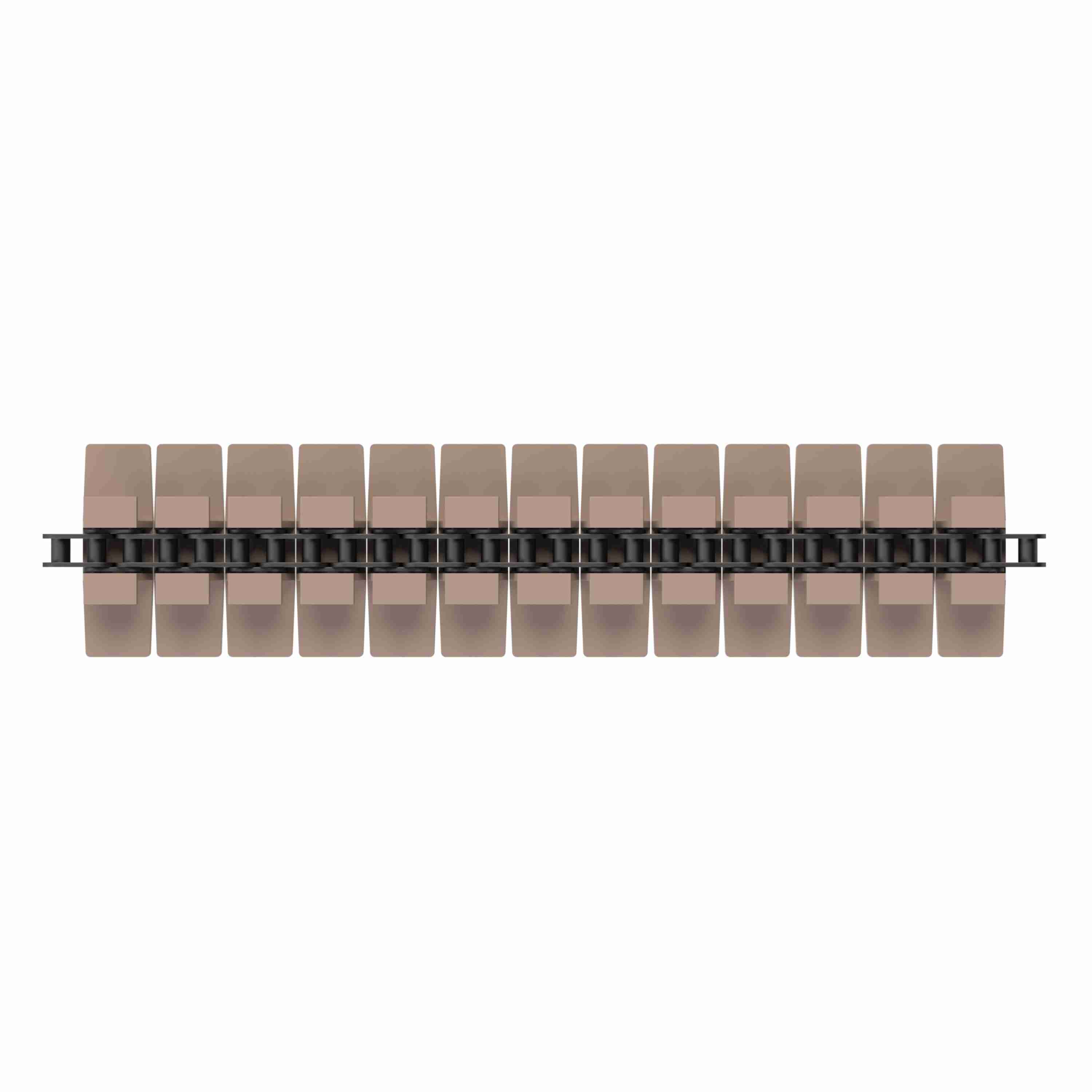

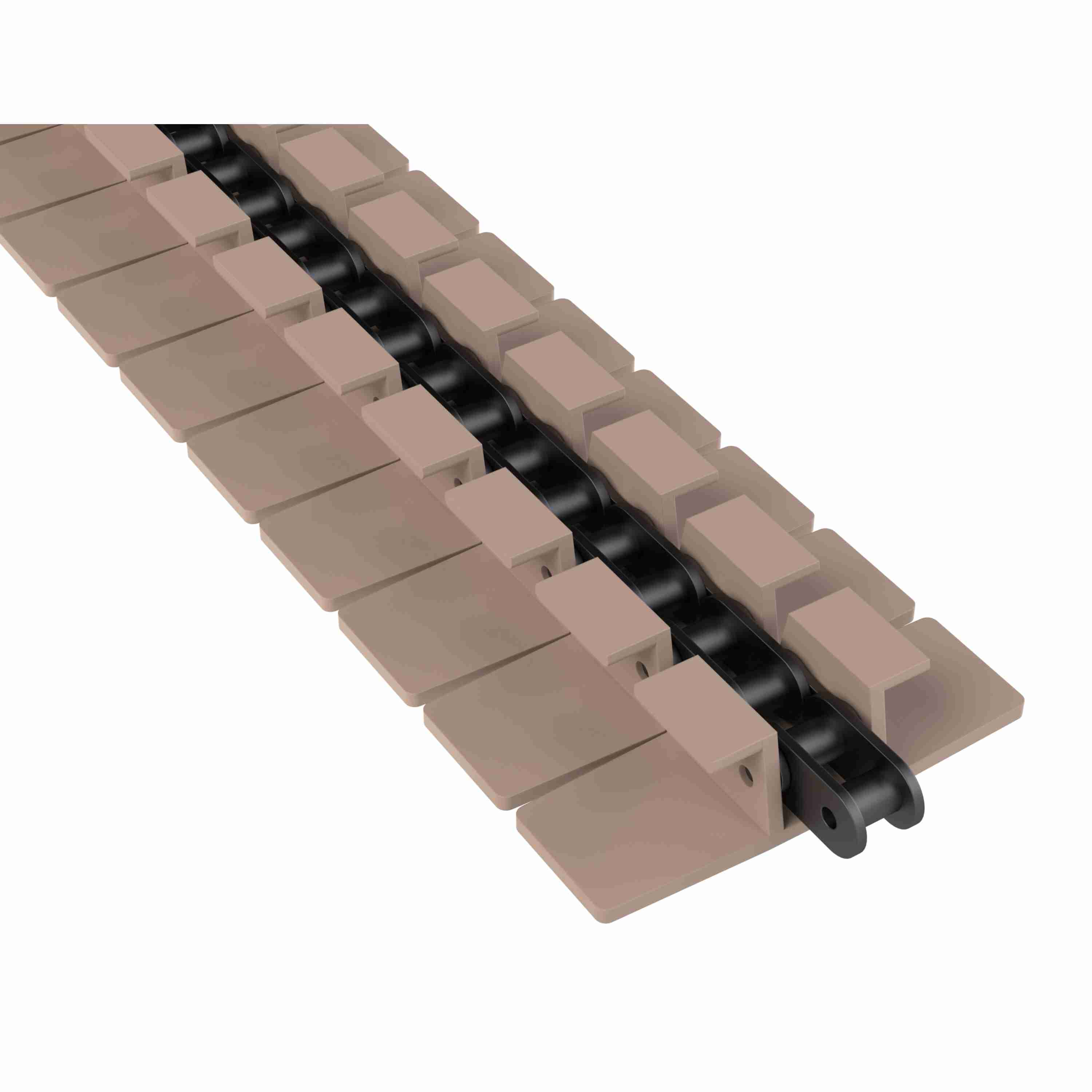

Rexnord 1873TAB SuperGrip™ Side-flexing SuperGrip™, Material: Tan Low Friction, Width: 4.5in, Pitch: 1.5in - 10476220
Part #:10476220
Catalog #:10476220
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Number of SuperGrip/RubberTop Rows: | 1 Row | Chain Strength (N): | 3,330 N |
| SG/RT Spacing (mm): | 114.3 mm | Chain Material: | LF |
| Straight or Side-Flex: | Side-flexing | Chain Number: | 1873TAB SuperGrip™ |
| Chain Pitch (mm): | 38.1 mm | Surface Type: | SuperGrip™ |
| Chain Width Measurement System: | Imperial | Chain Strength (lb): | 750 lb |
| SG/RT Spacing (Pitches): | Every 3rd Pitch | Flight Thickness (in): | 0.24 in |
| Base Chain Material: | Stainless Steel | SG/RT Spacing (in): | 4.5 in |
| Flight Thickness (mm): | 6.1 mm | Chain Pitch (in): | 1.5 in |
| Series: | TableTop 1873 Series Side-flexing Chain | Curve Retention Type: | TAB |
| Chain Material Description: | Tan Low Friction | Chain Width (in): | 4.5 in |
| Chain Width (mm): | 114.3 mm |
General Specifications
| Weight: | 0.19 LB | HTC: | 8431390010 |
| Country of Origin: | Mexico |
