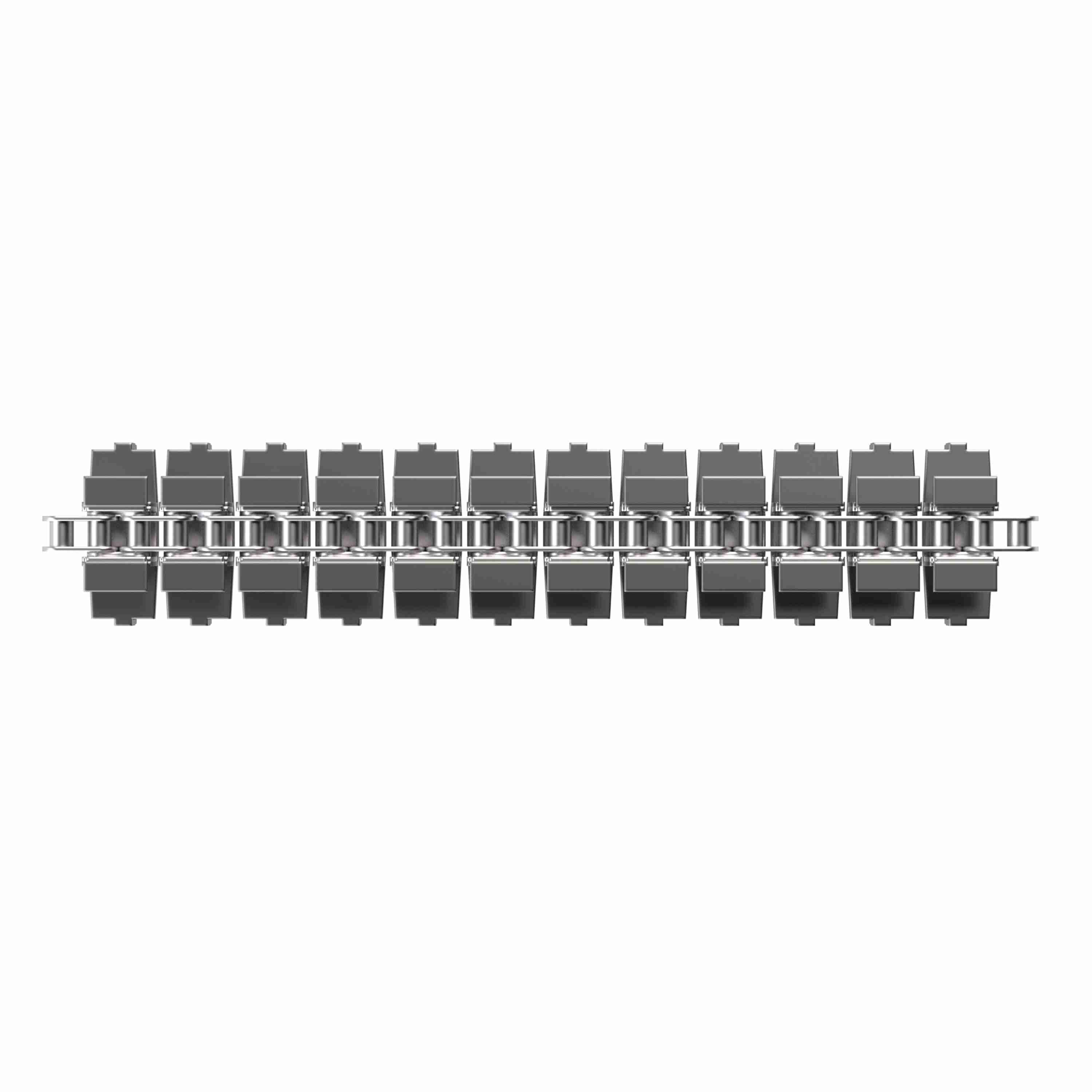

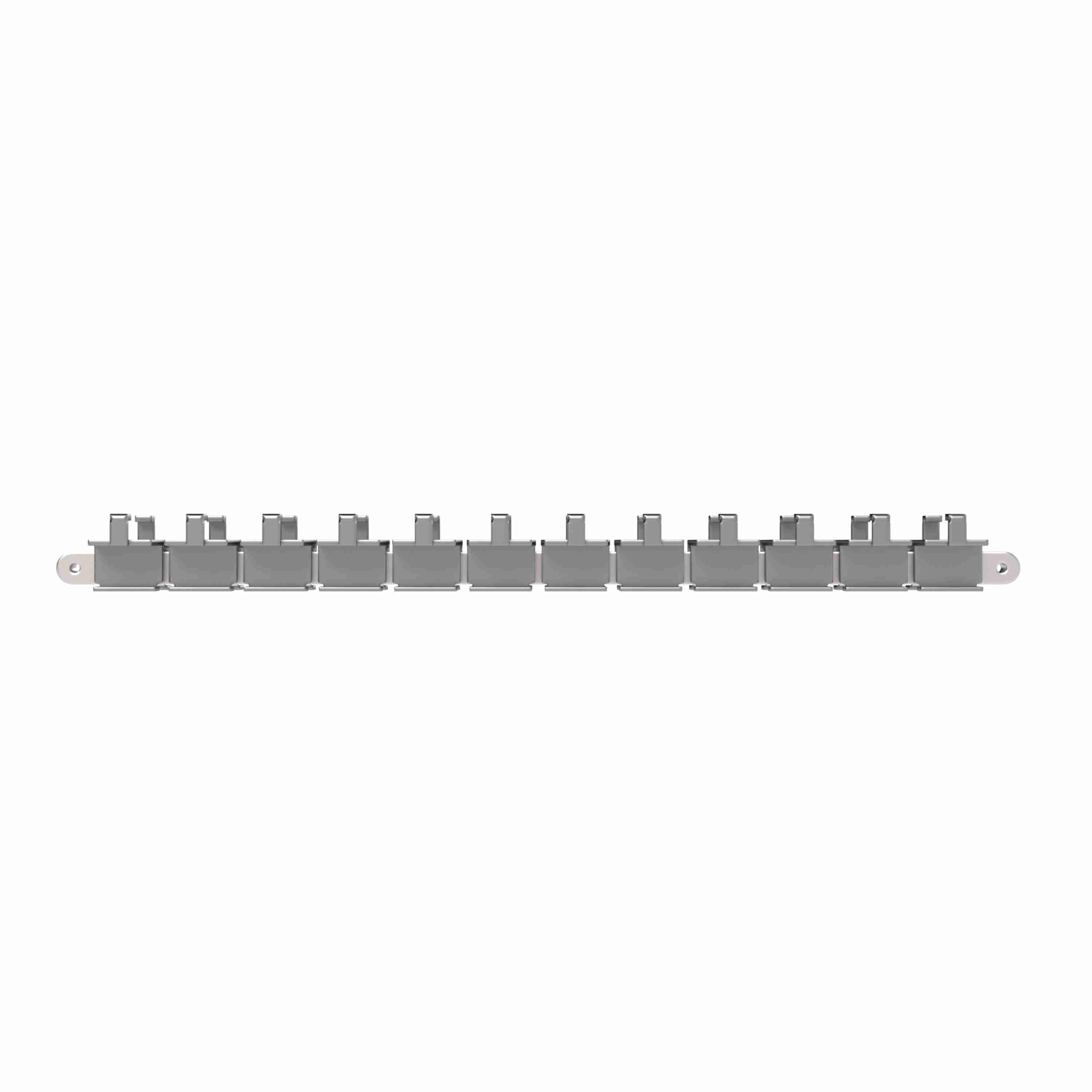

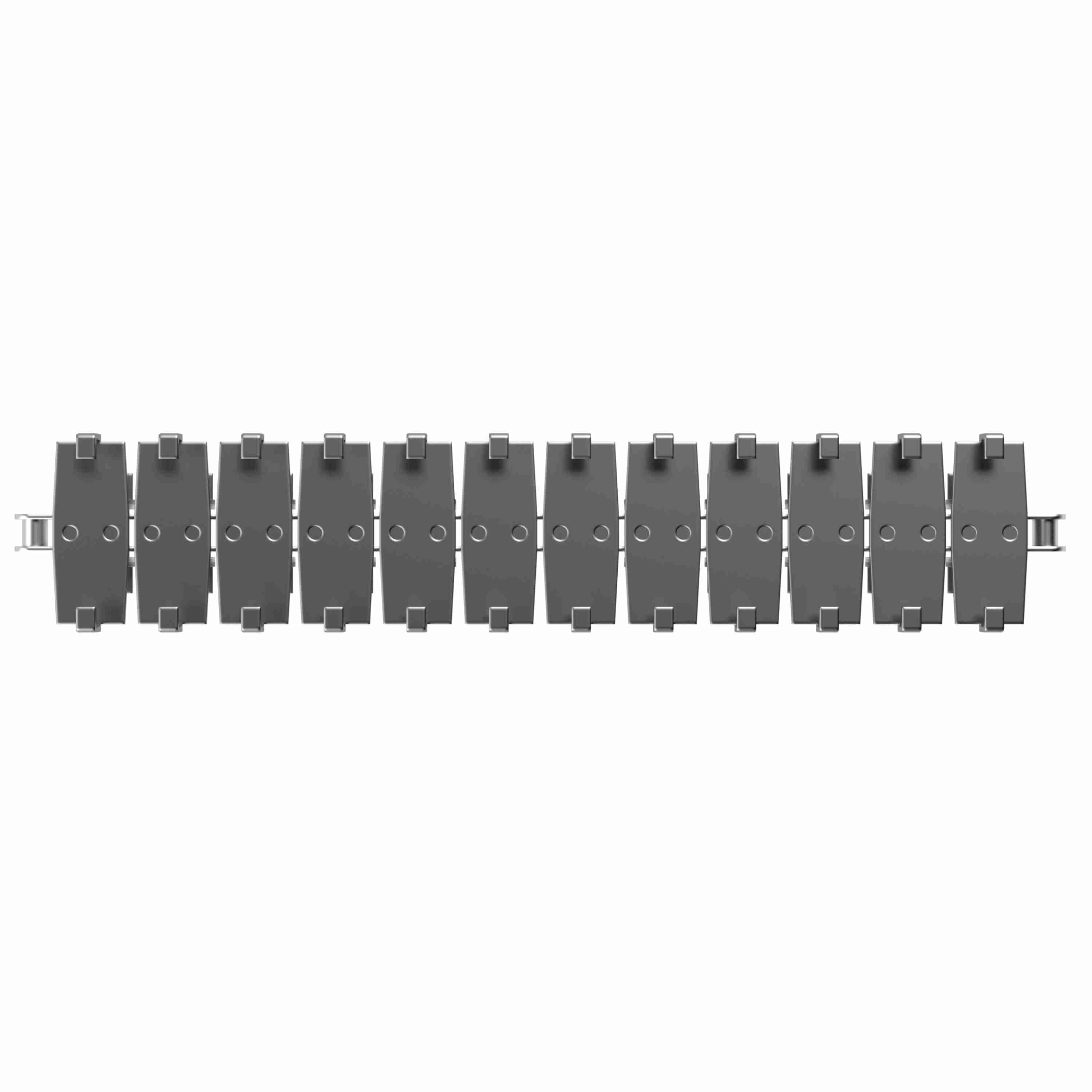

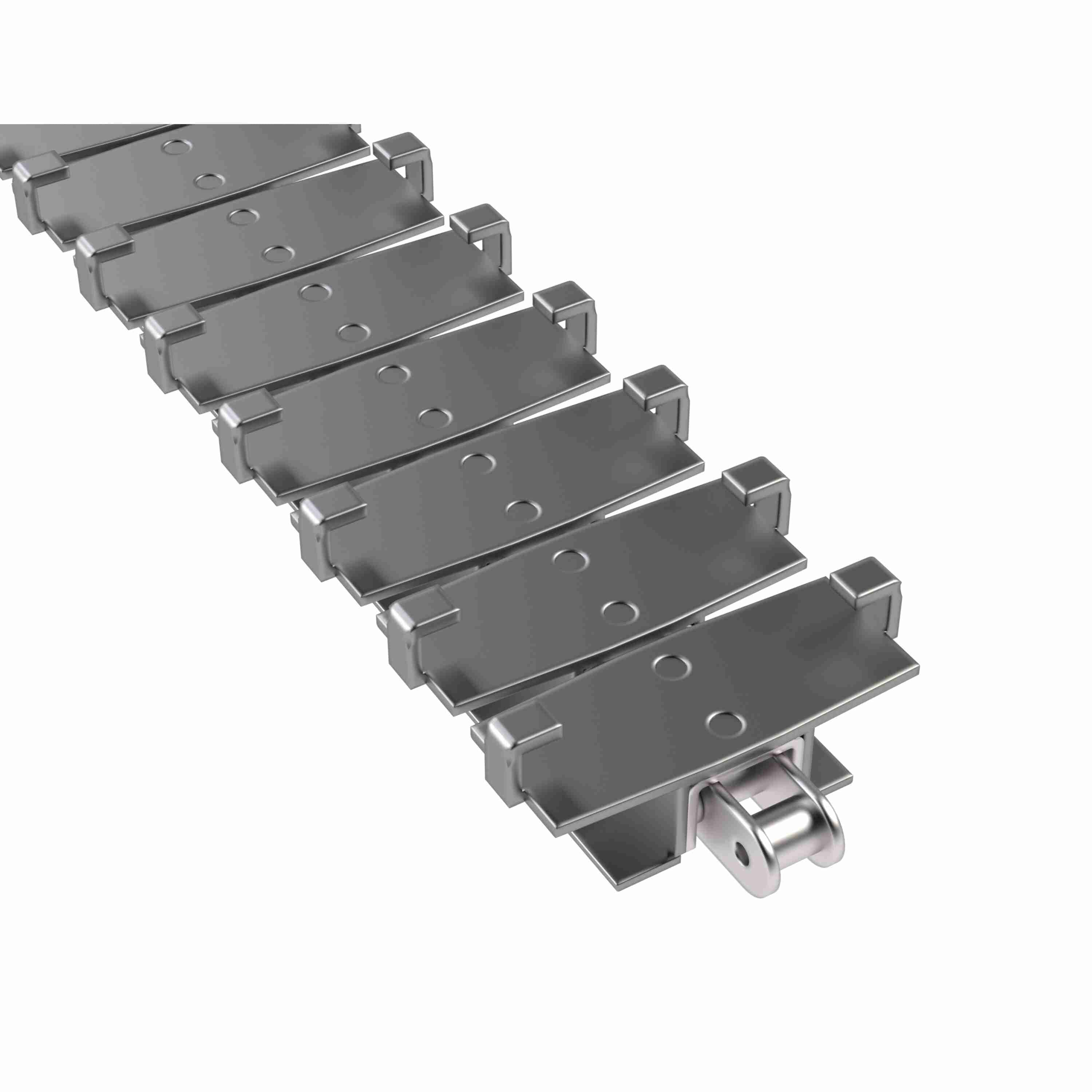

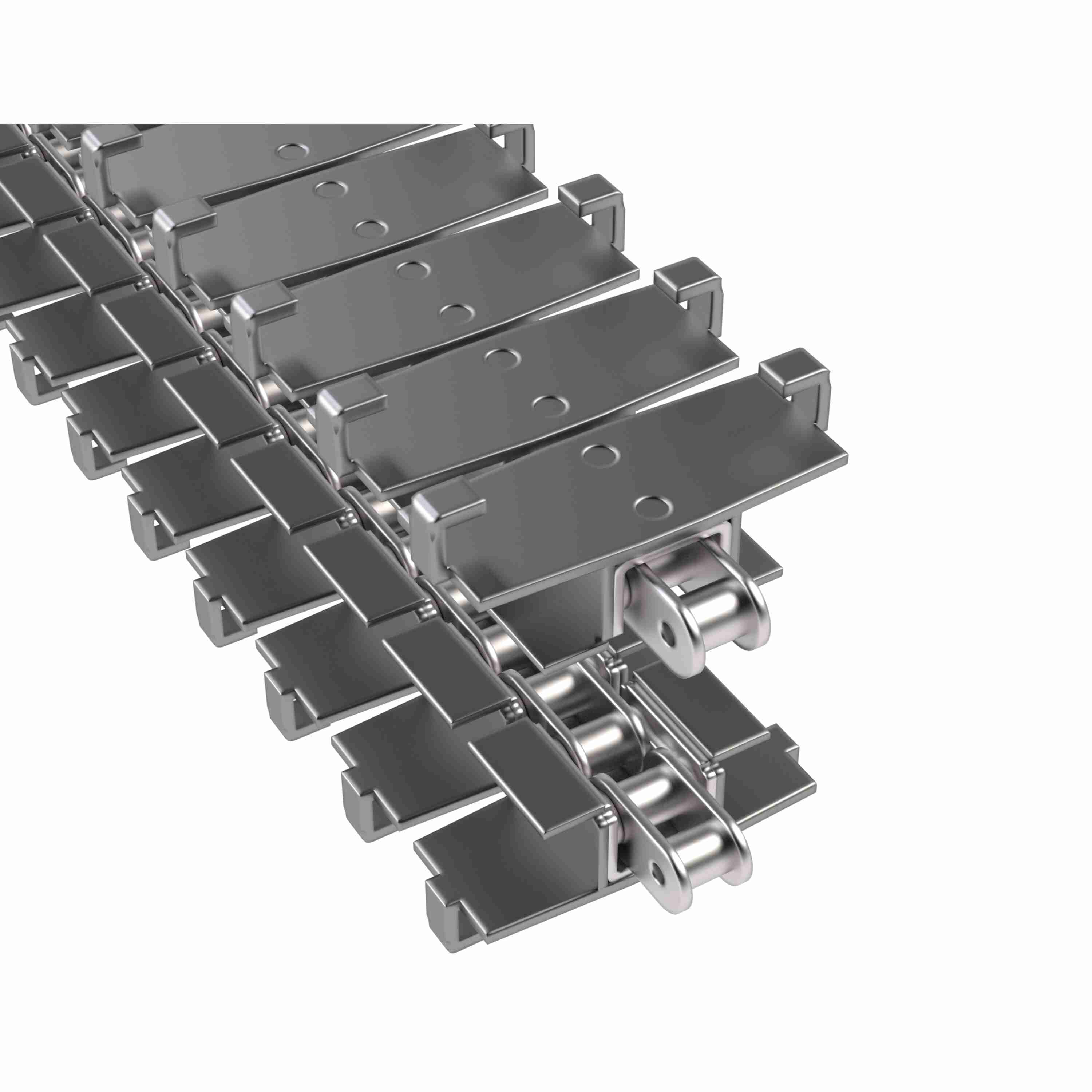

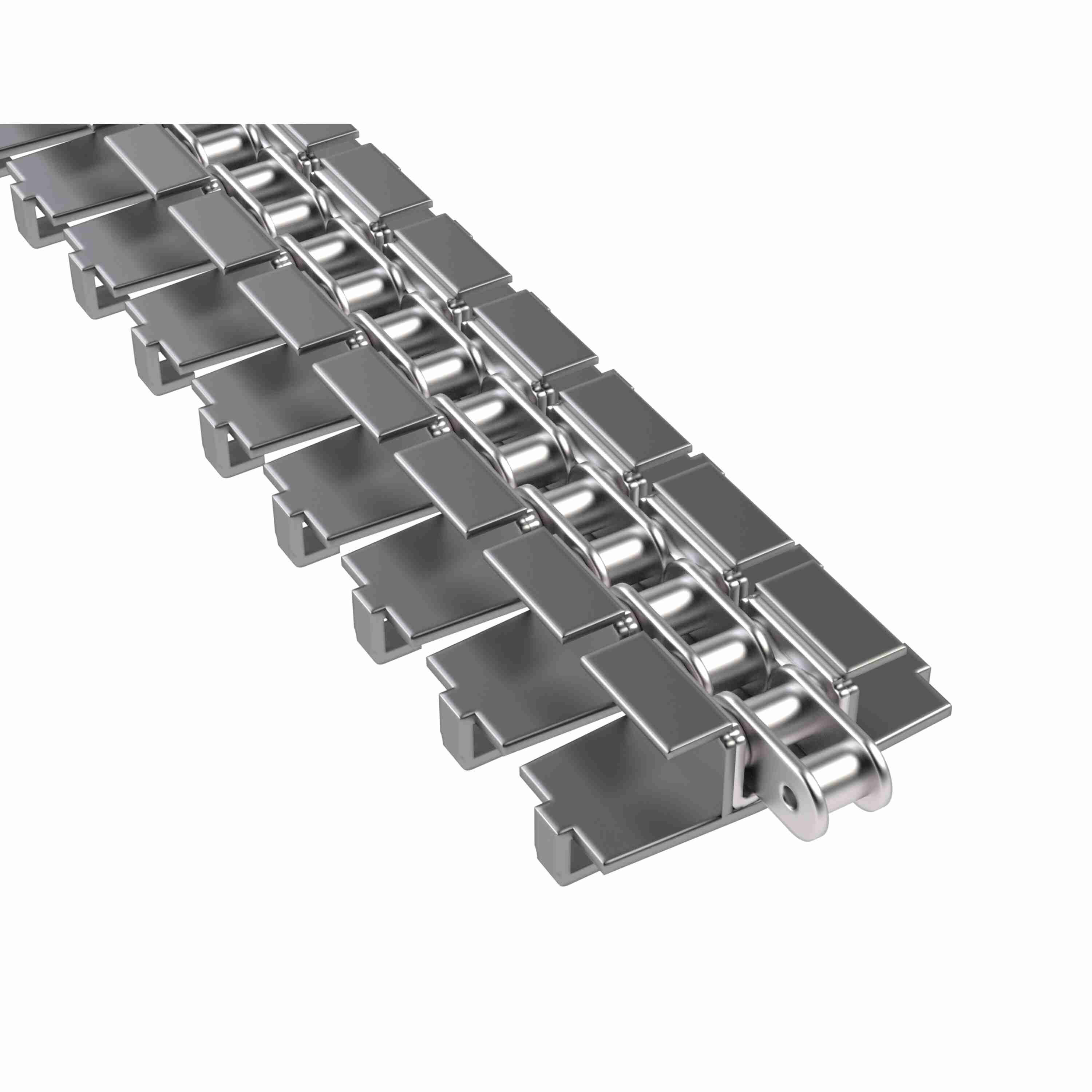

Rexnord 1874TAB SideGrip™ Side-flexing, Material: Stainless Steel, Width: 3.63in, Pitch: 1.5in - 1874SS-SG
Part #:10084607
Catalog #:1874SS-SG
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Curve Retention Type: | TAB | Chain Strength (N): | 3,330 N |
| Series: | TableTop 1874 Series Side-flexing Chain | Gripper Color: | None |
| Chain Width (mm): | 92.1 mm | Chain Strength (lb): | 750 lb |
| Chain Material Description: | Stainless Steel | Base Chain Material: | Stainless Steel |
| Gripper Style: | None | Chain Pitch (mm): | 38.1 mm |
| Chain Width Measurement System: | Imperial | Surface Type: | SideGrip™ |
| Chain Pitch (in): | 1.5 in | Chain Number: | 1874TAB SideGrip™ |
| Chain Material: | SS | Gripper Material: | None |
| Gripper Hardness: | None | Chain Width (in): | 3.63 in |
| Straight or Side-Flex: | Side-flexing | Flight Thickness (in): | 0.12 in |
| Flight Thickness (mm): | 3 mm |
General Specifications
| Weight: | 0.38 LB | HTC: | 7315110060 |
| Country of Origin: | Mexico |
