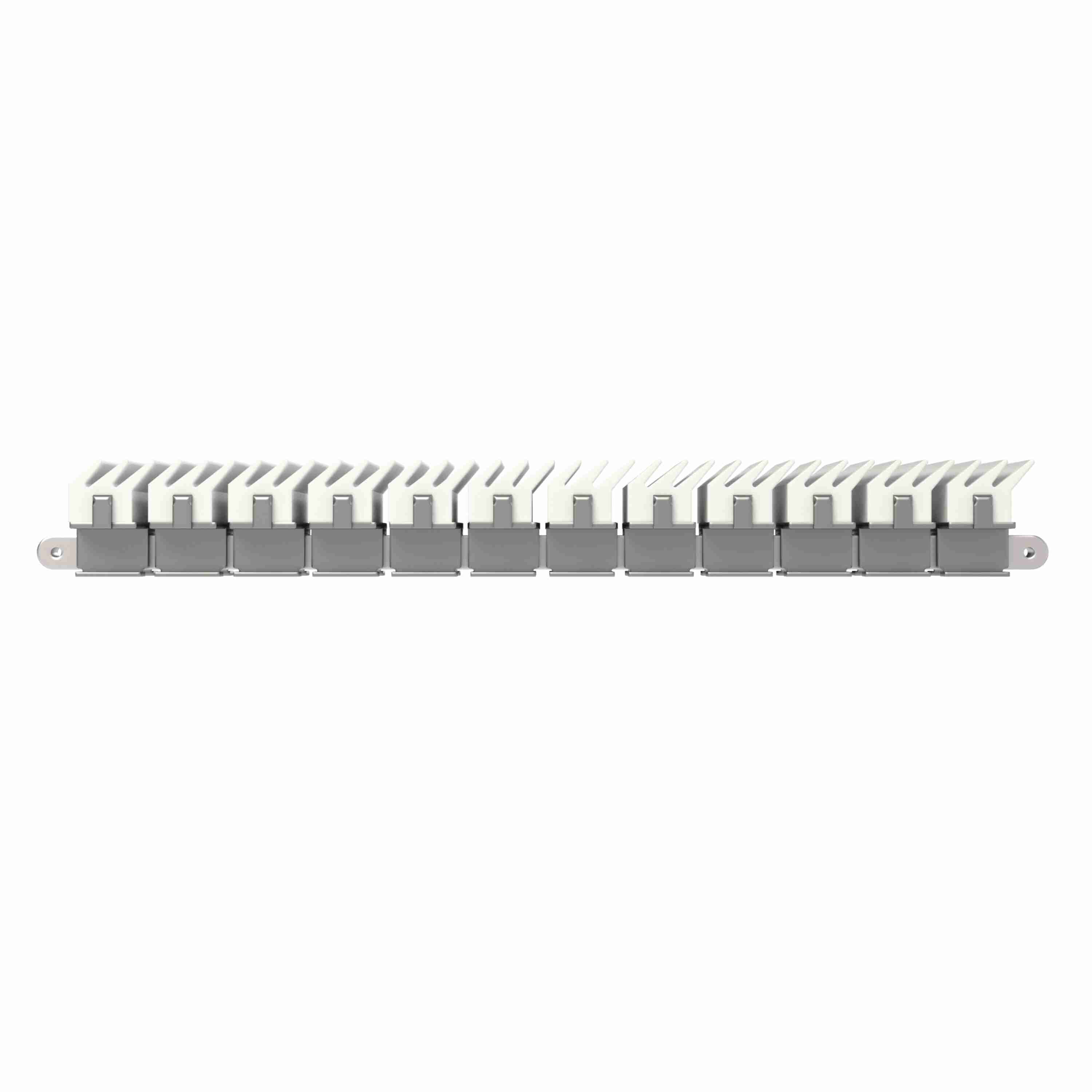

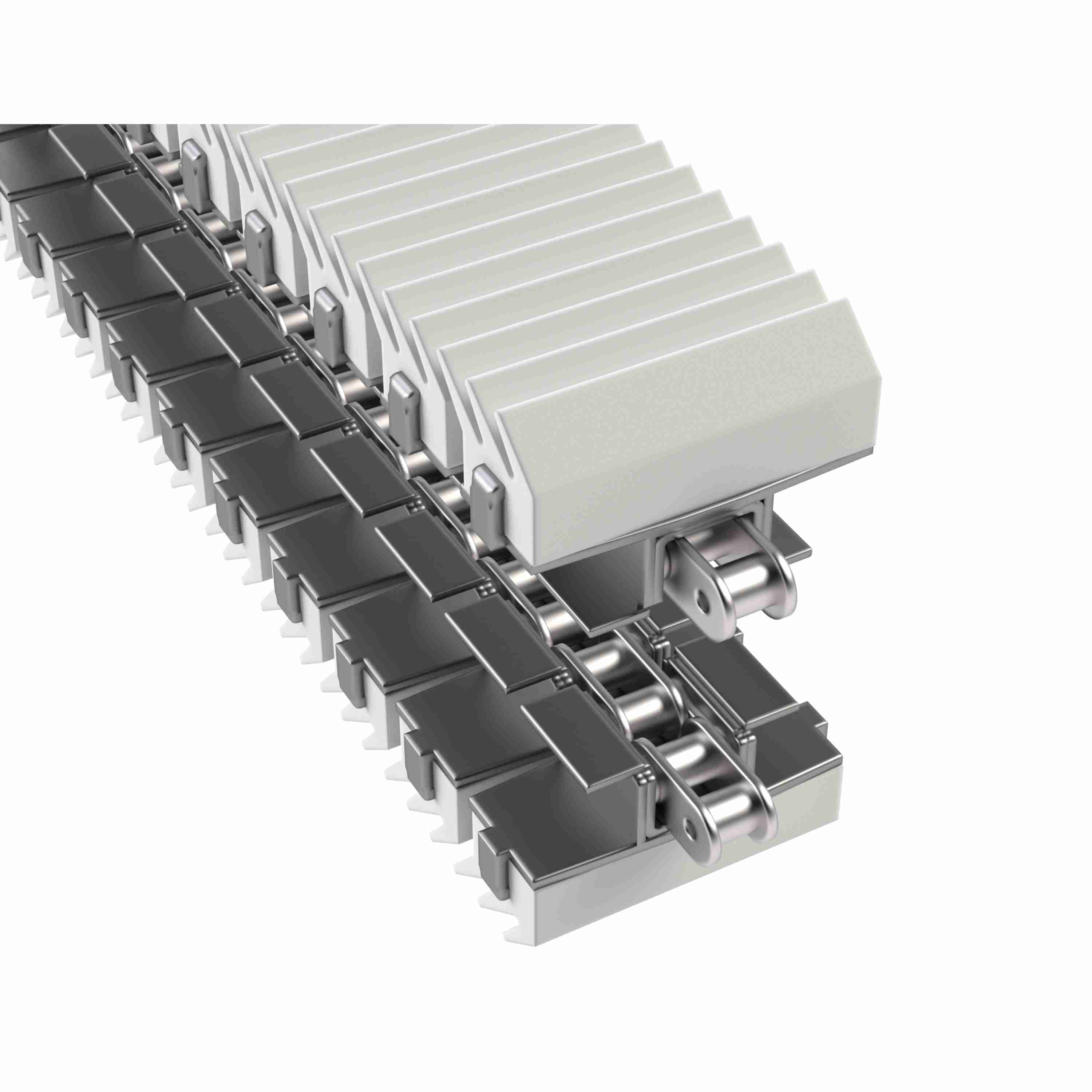

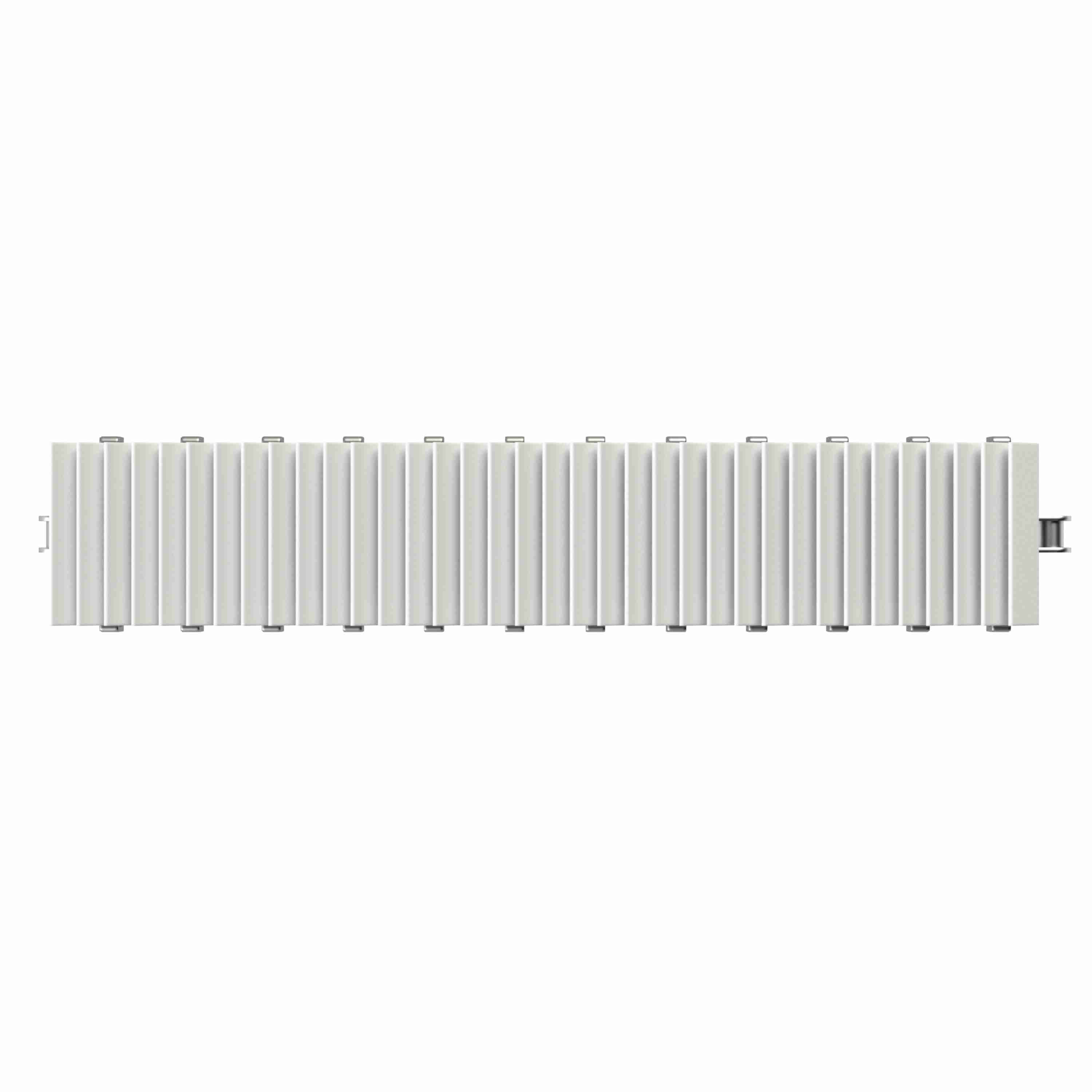

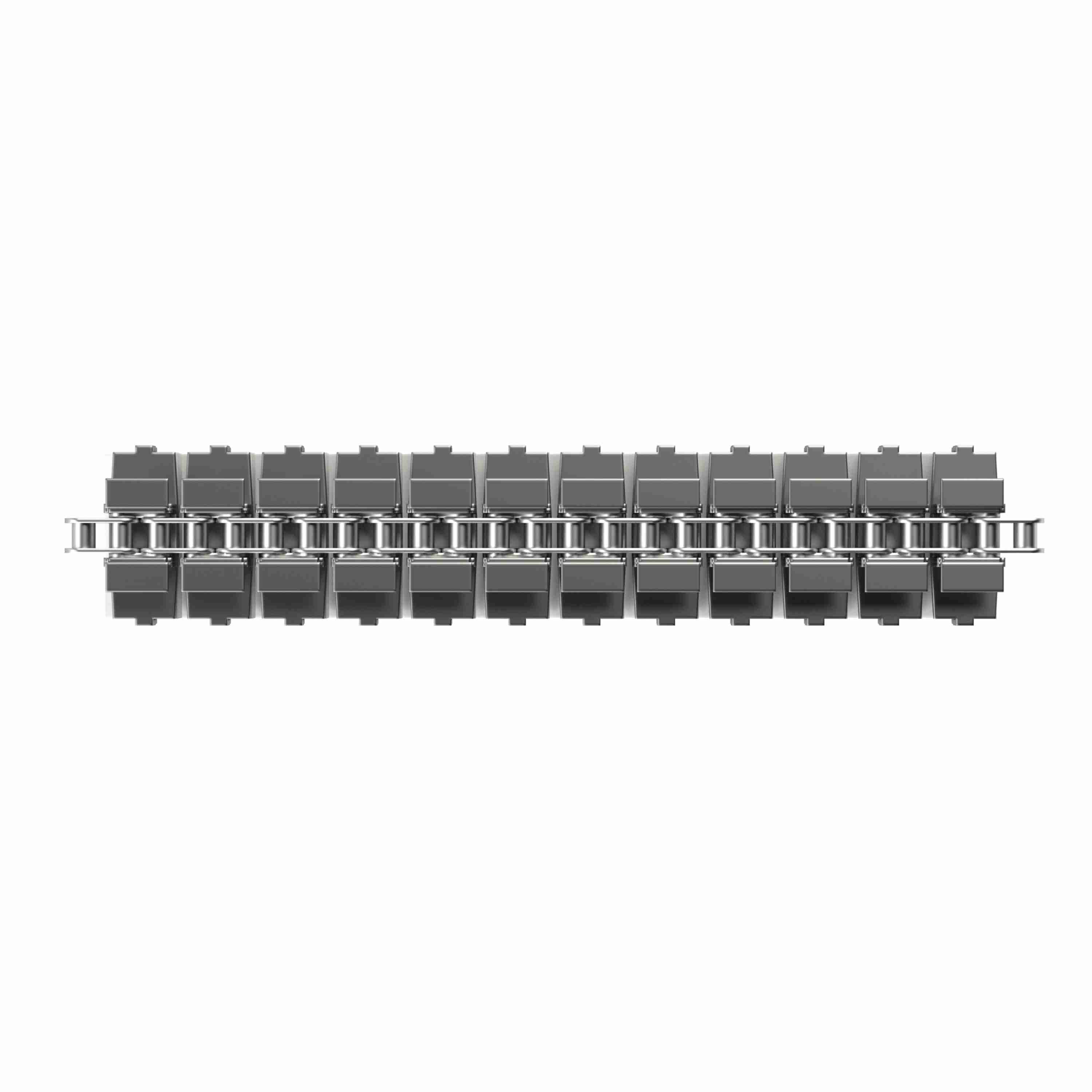

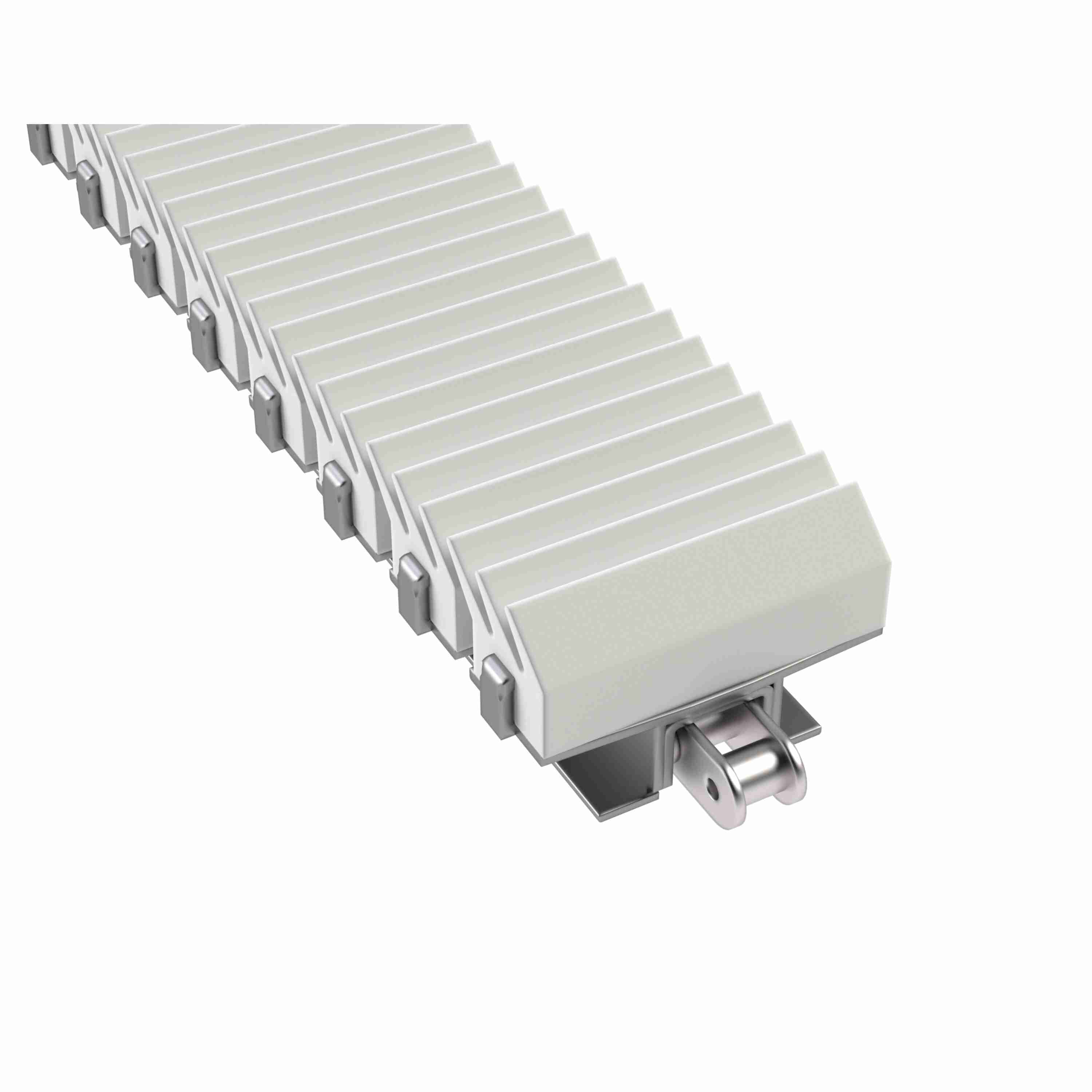

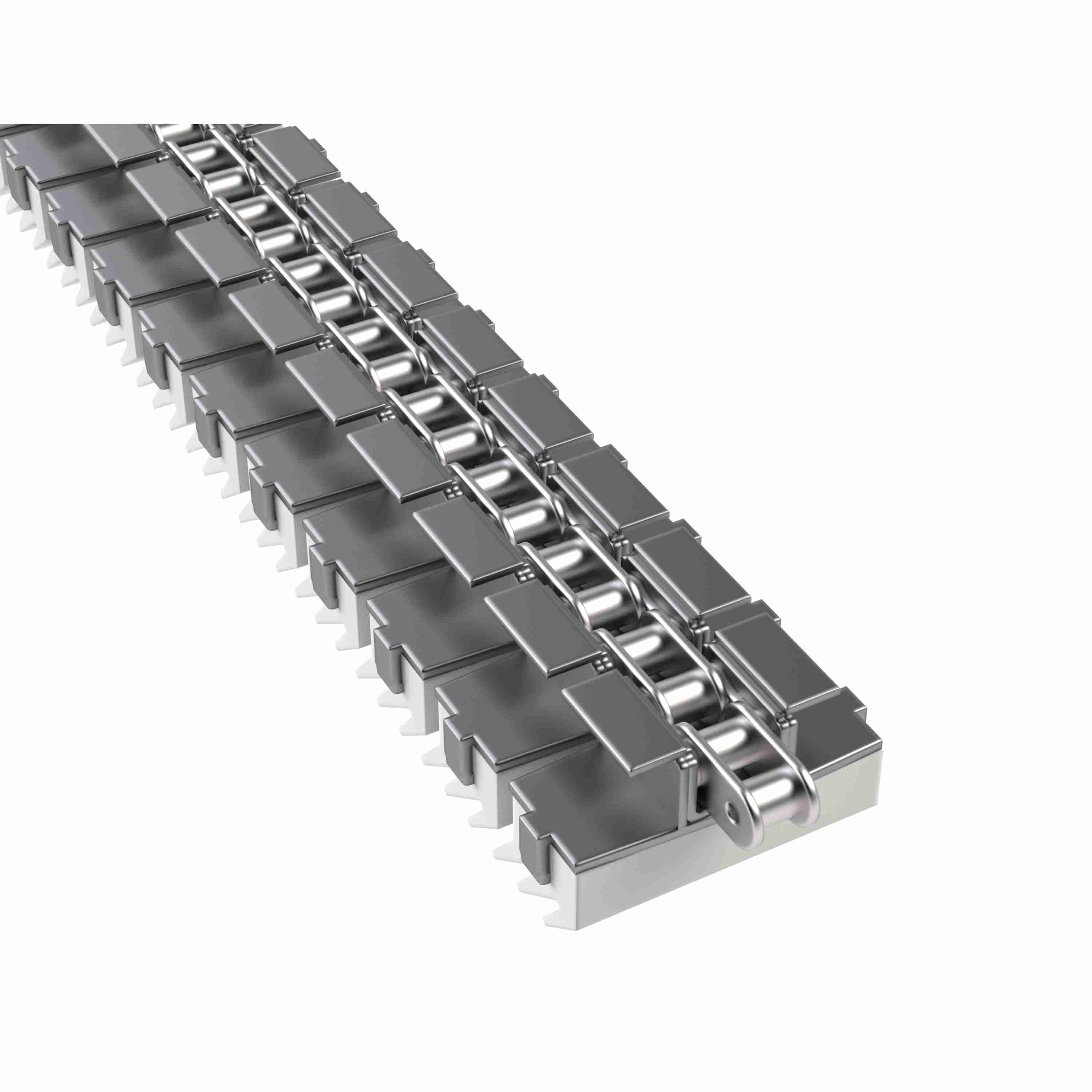

Rexnord 1874TAB SideGrip™ Side-flexing, Material: Stainless Steel, Width: 3.63in, Pitch: 1.5in - 1874SS-SGF2
Part #:10084608
Catalog #:1874SS-SGF2
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Material Description: | Stainless Steel | Curve Retention Type: | TAB |
| Chain Pitch (mm): | 38.1 mm | Chain Pitch (in): | 1.5 in |
| Chain Number: | 1874TAB SideGrip™ | Series: | TableTop 1874 Series Side-flexing Chain |
| Base Chain Material: | Stainless Steel | Chain Material: | SS |
| Chain Strength (lb): | 750 lb | Gripper Material: | EPDM |
| Chain Width (in): | 3.63 in | Surface Type: | SideGrip™ |
| Chain Width Measurement System: | Imperial | Gripper Style: | Jaw |
| Flight Thickness (mm): | 3 mm | Chain Strength (N): | 3,330 N |
| Flight Thickness (in): | 0.12 in | Straight or Side-Flex: | Side-flexing |
| Chain Width (mm): | 92.1 mm | Gripper Color: | White |
| Gripper Hardness: | 50 Shore A |
General Specifications
| Weight: | 0.63 LB | HTC: | 7315120080 |
| Country of Origin: | Mexico |
