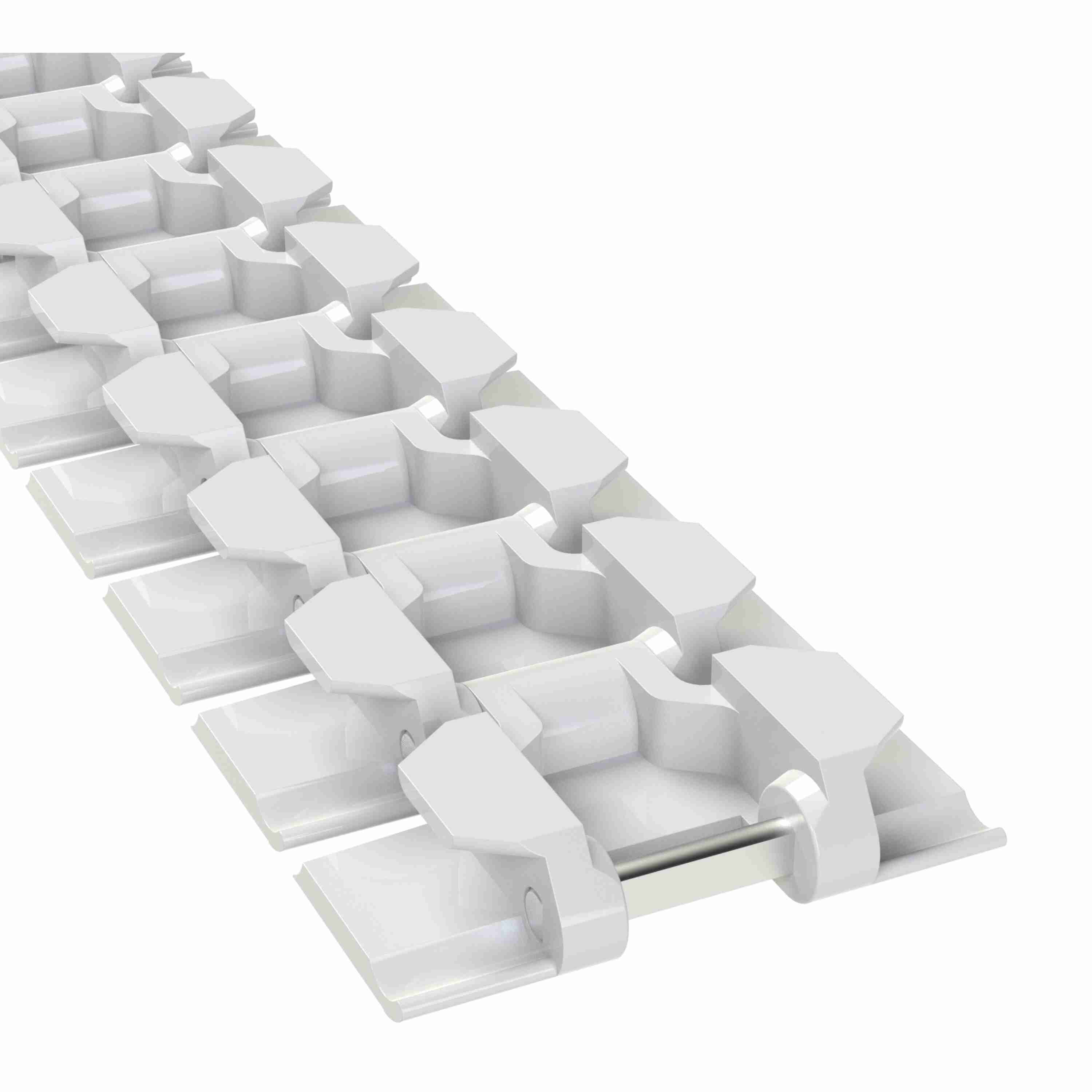

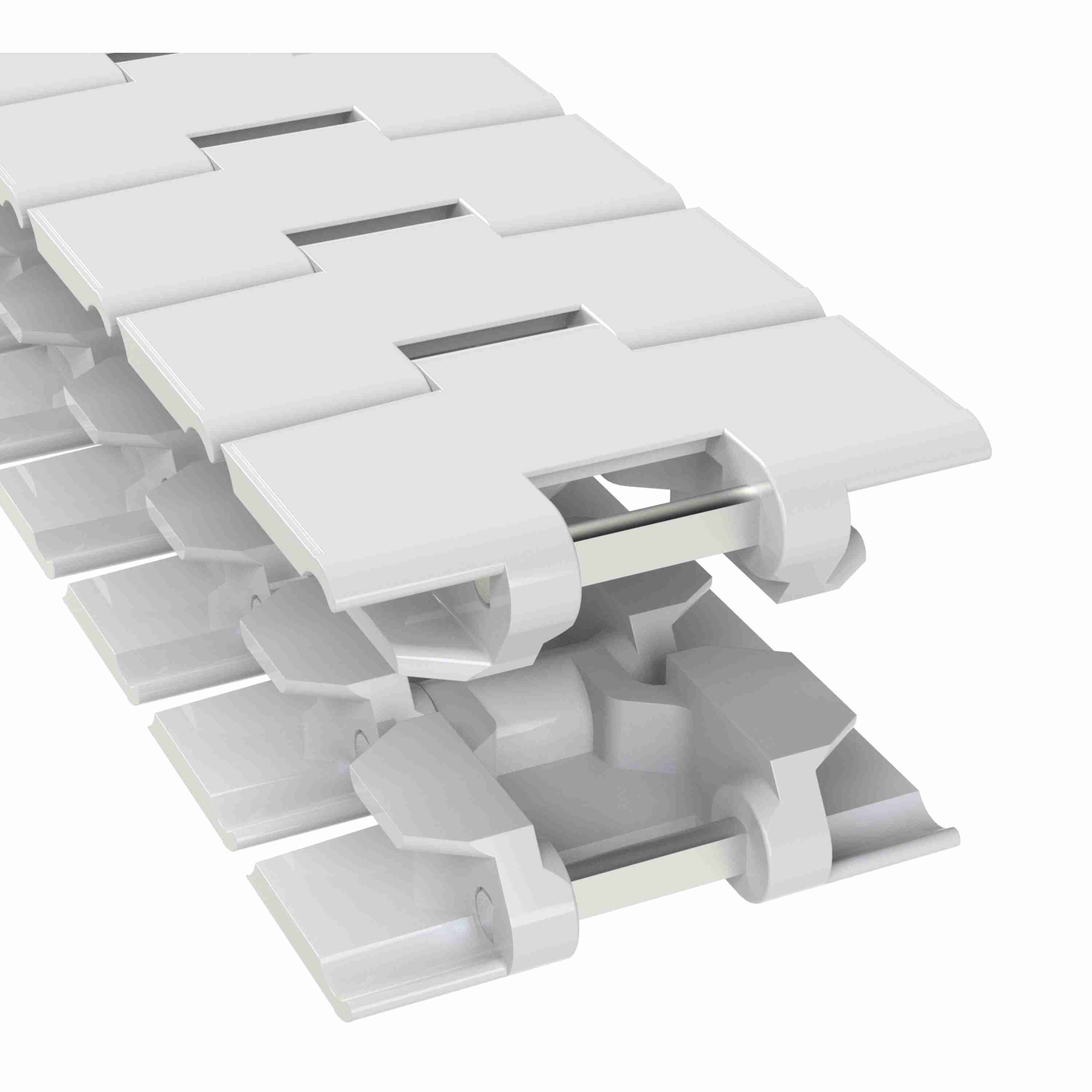

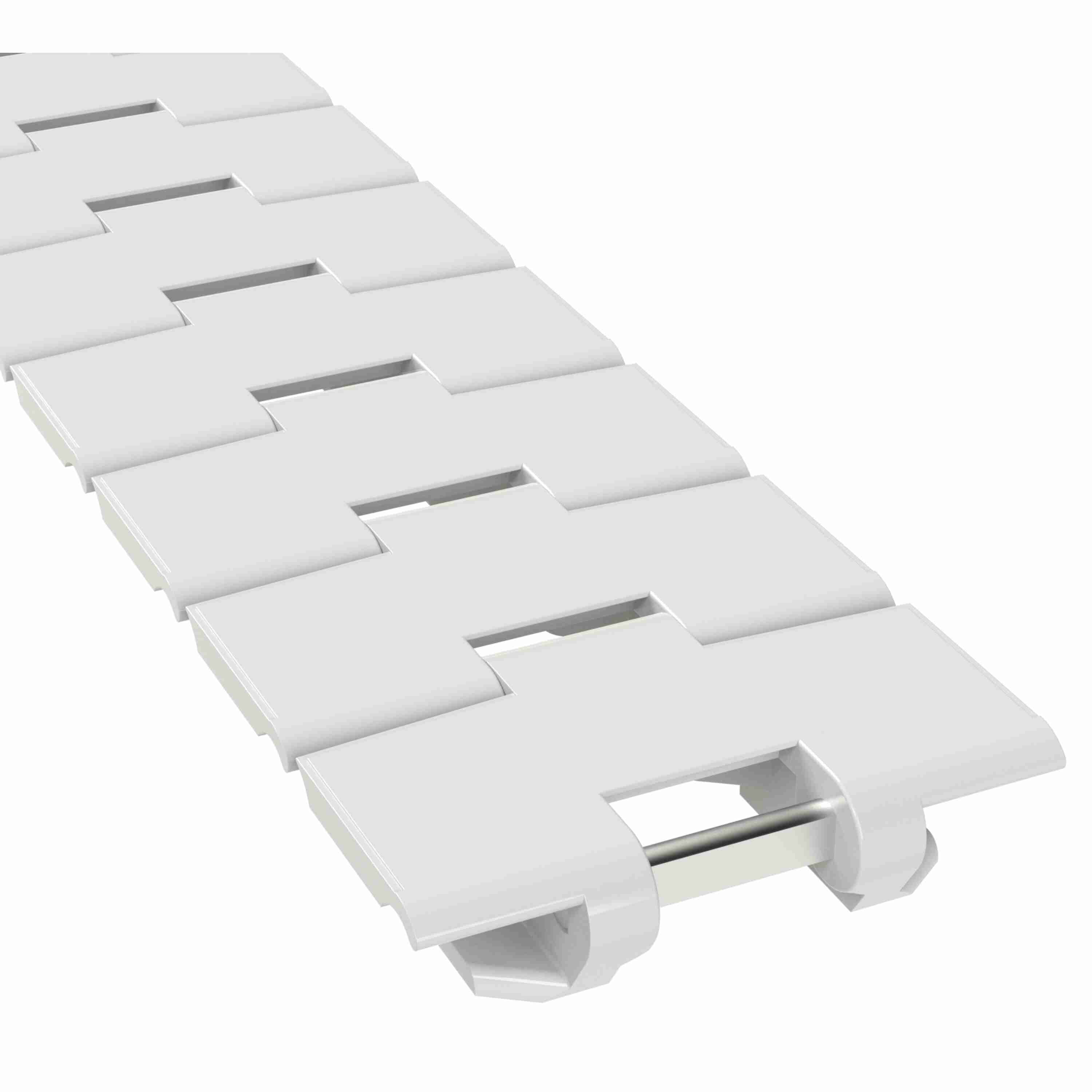

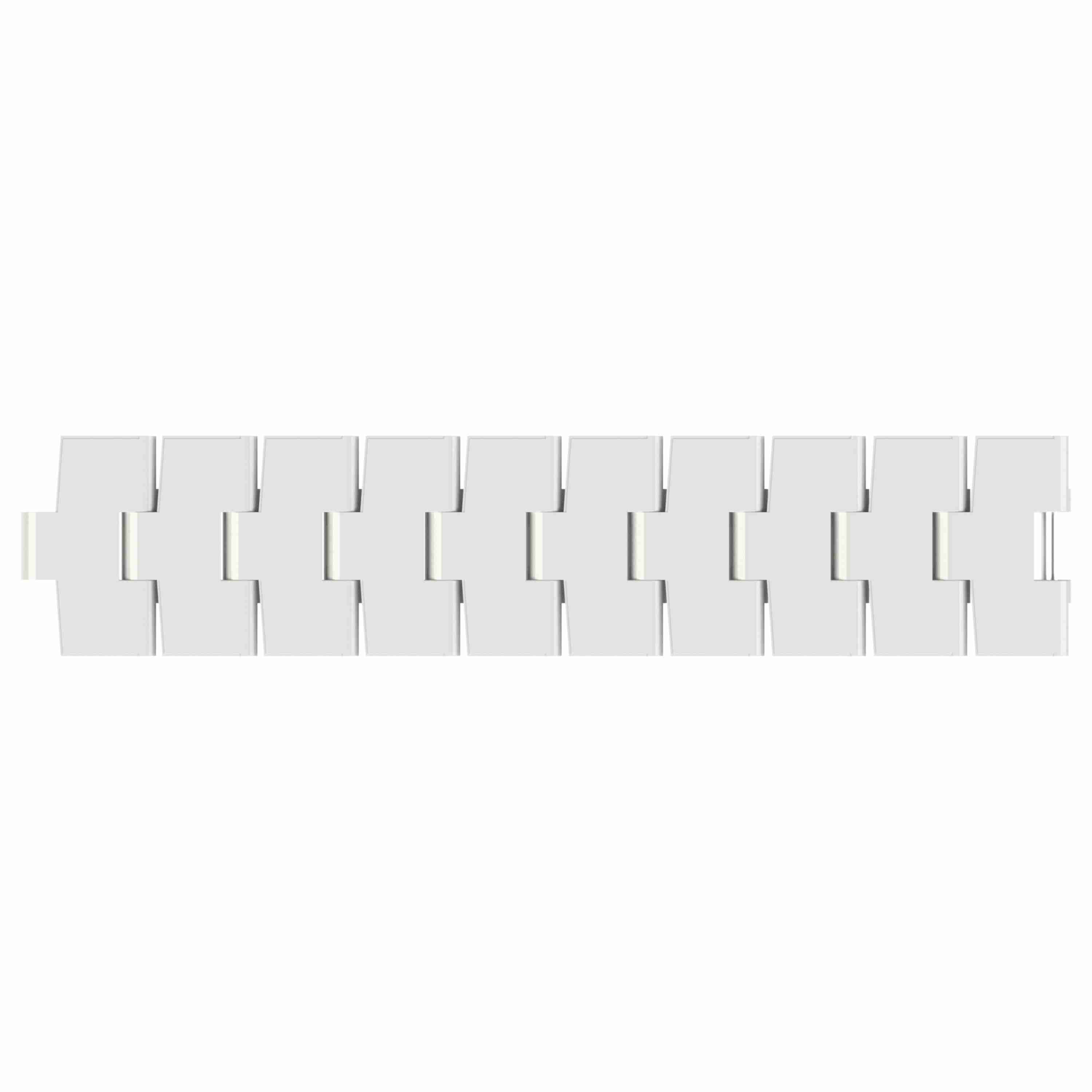

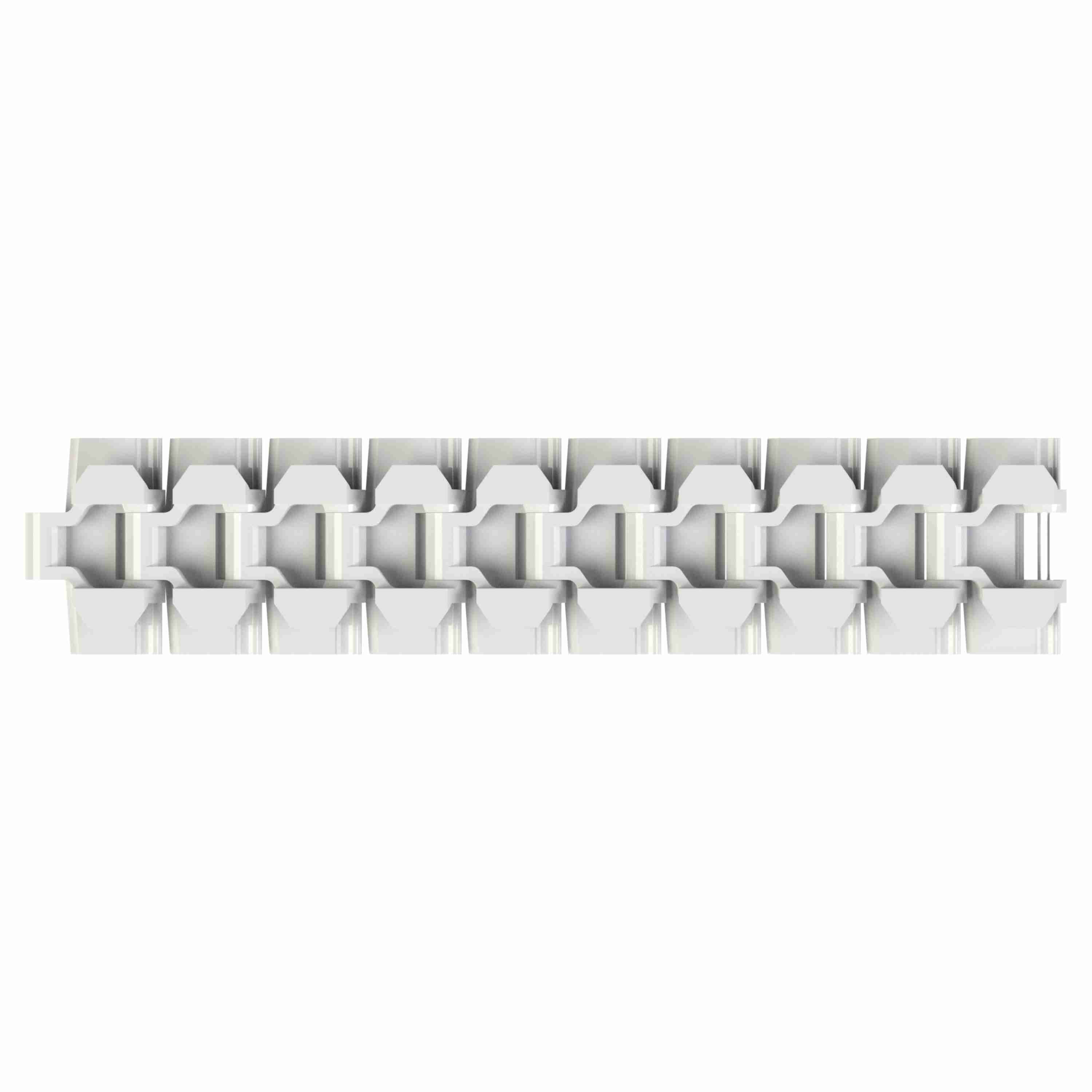

Rexnord 879TAB Side-flexing Solid Top, Material: Silver Platinum Series, Width: 3.25in, Pitch: 1.5in - 81430461
Part #:10145569
Catalog #:81430461
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Width (mm): | 82.6 mm | Chain Width (in): | 3.25 in |
| Chain Material Description: | Silver Platinum Series | Series: | TableTop 879 Series Side-flexing Chain |
| Chain Strength (lb): | 425 lb | Flight Thickness (in): | 0.19 in |
| Chain Pitch (mm): | 38.1 mm | Chain Width Measurement System: | Imperial |
| Straight or Side-Flex: | Side-flexing | Rod/Pin Material: | Stainless Steel |
| Chain Material: | PS | Chain Number: | 879TAB |
| Curve Retention Type: | TAB | Chain Pitch (in): | 1.5 in |
| Surface Type: | Solid Top | Flight Thickness (mm): | 4.8 mm |
| Chain Strength (N): | 1,887 N |
General Specifications
| Weight: | 0.09 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
