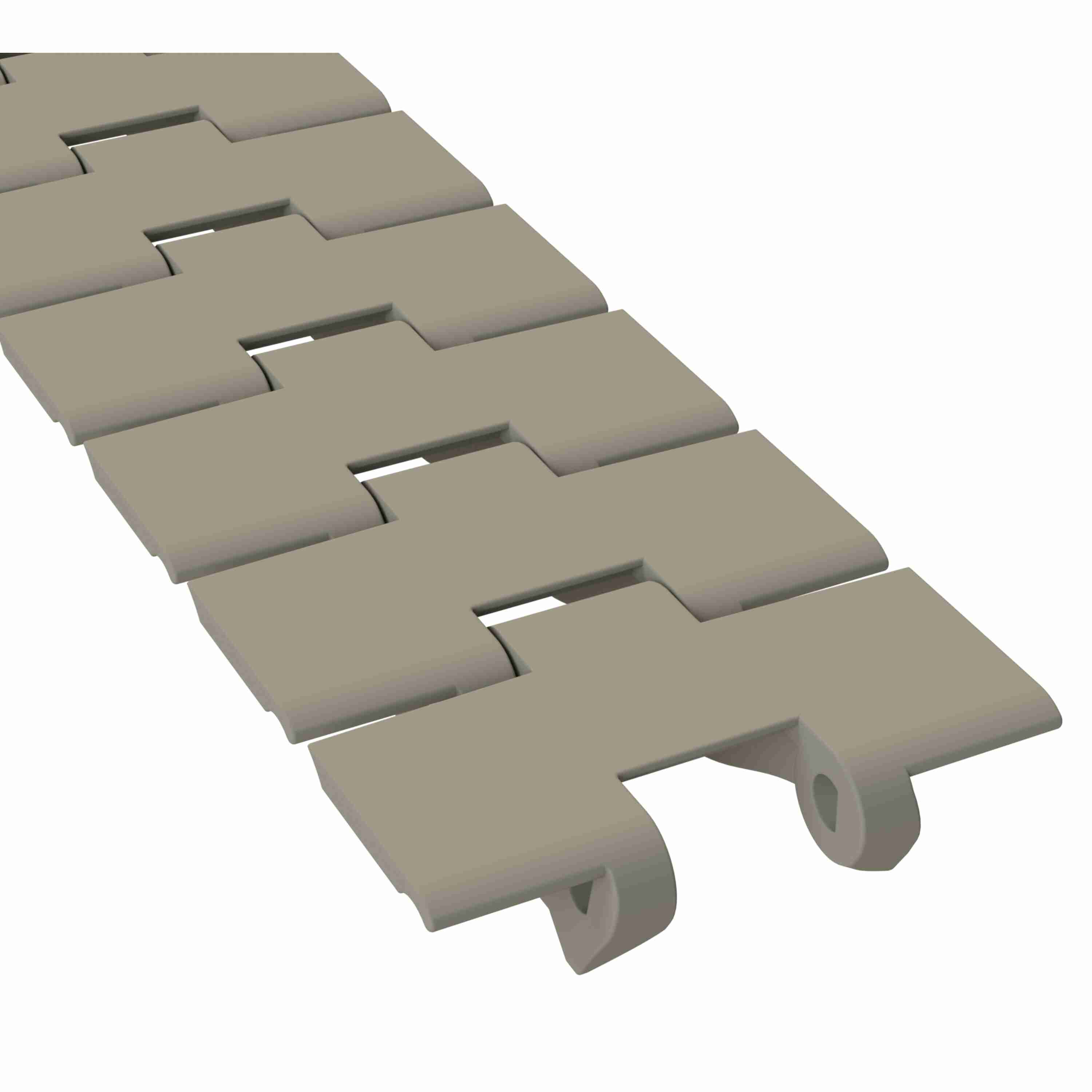

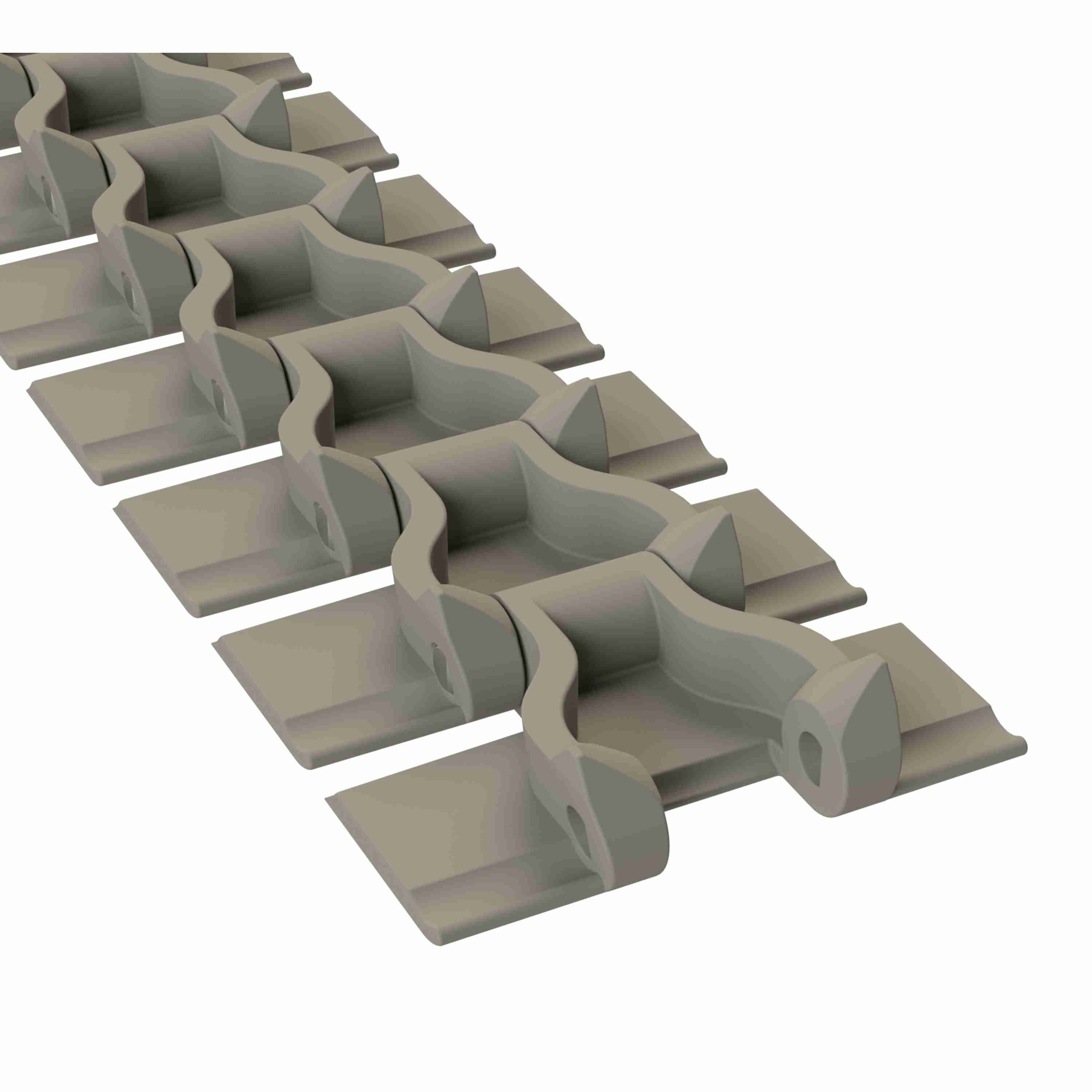

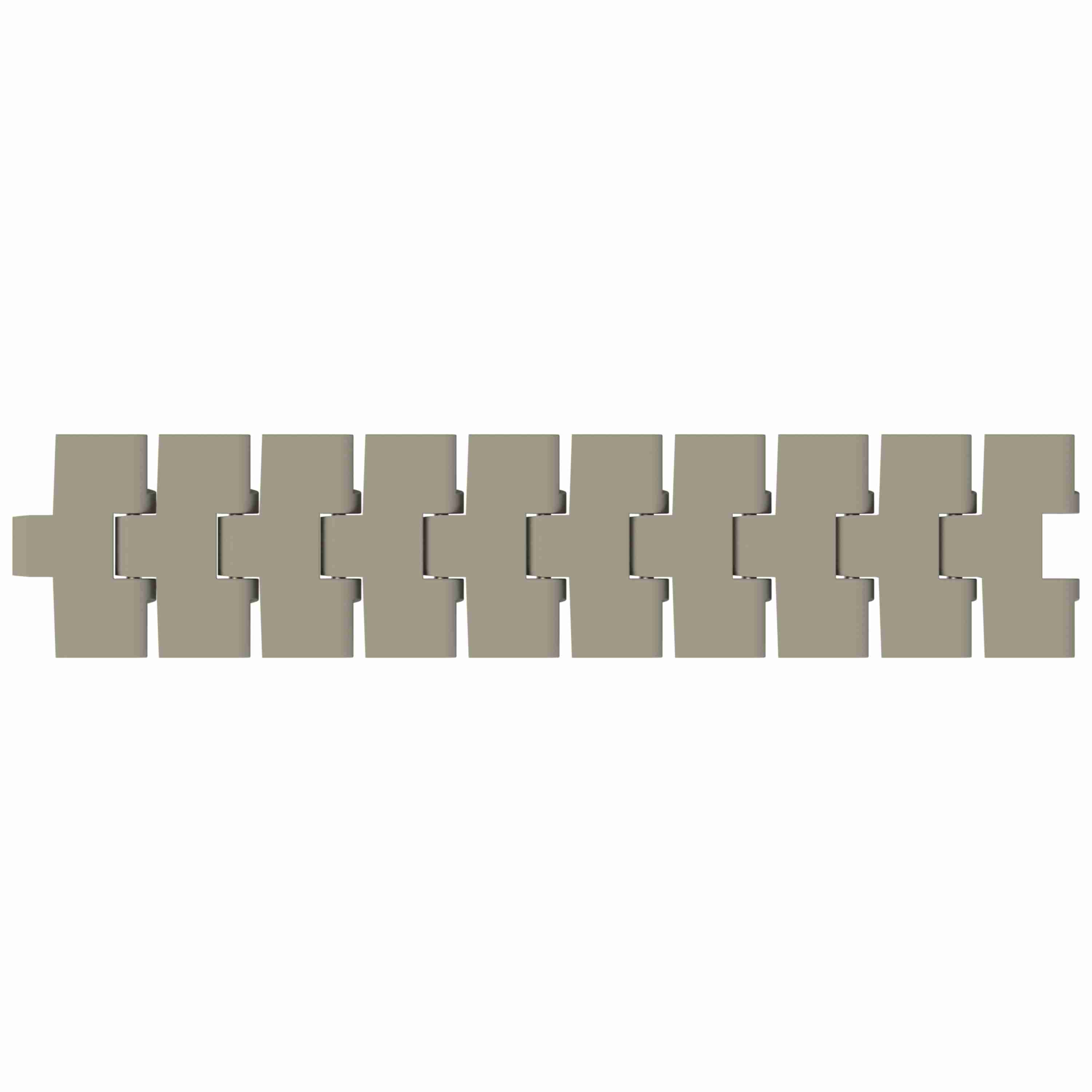

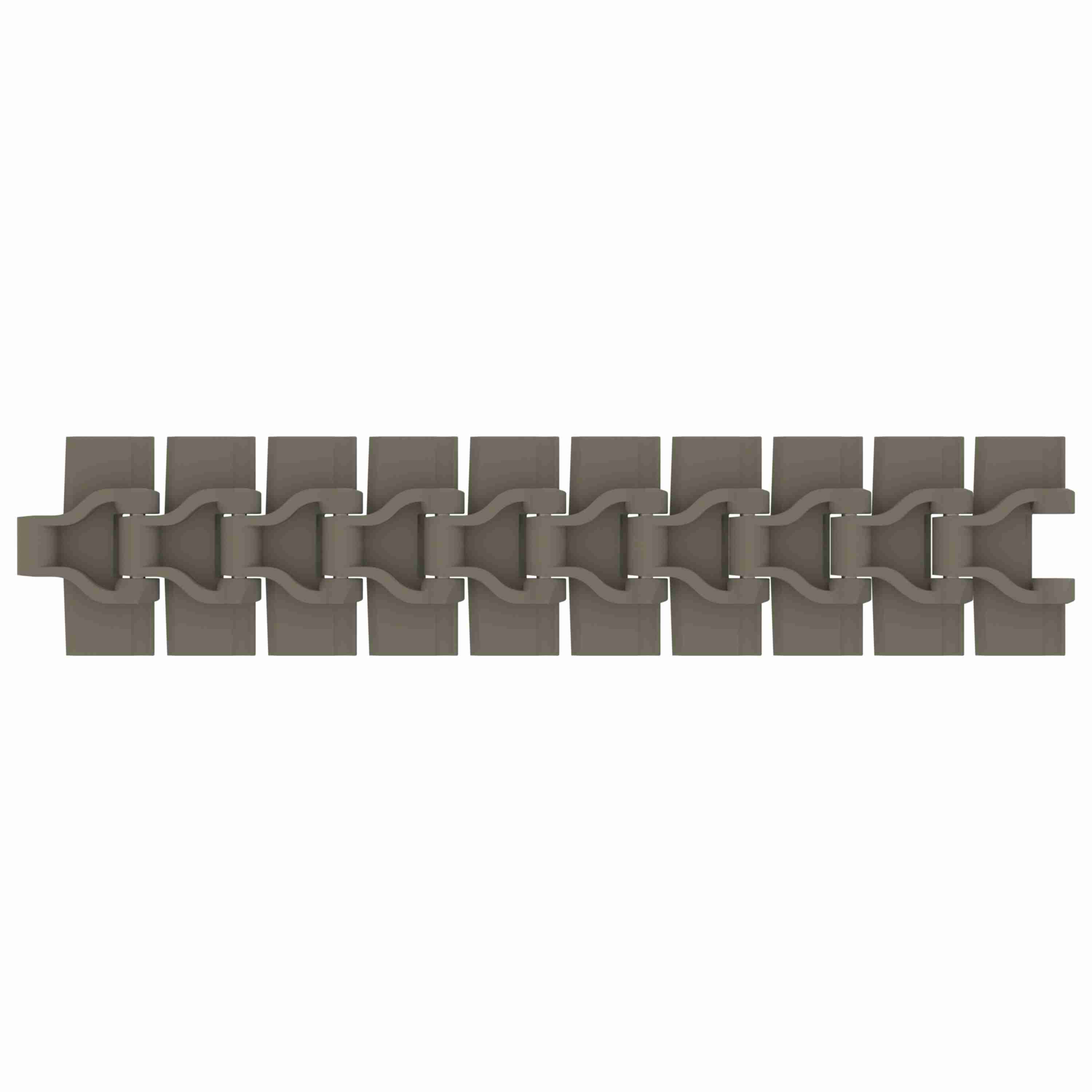

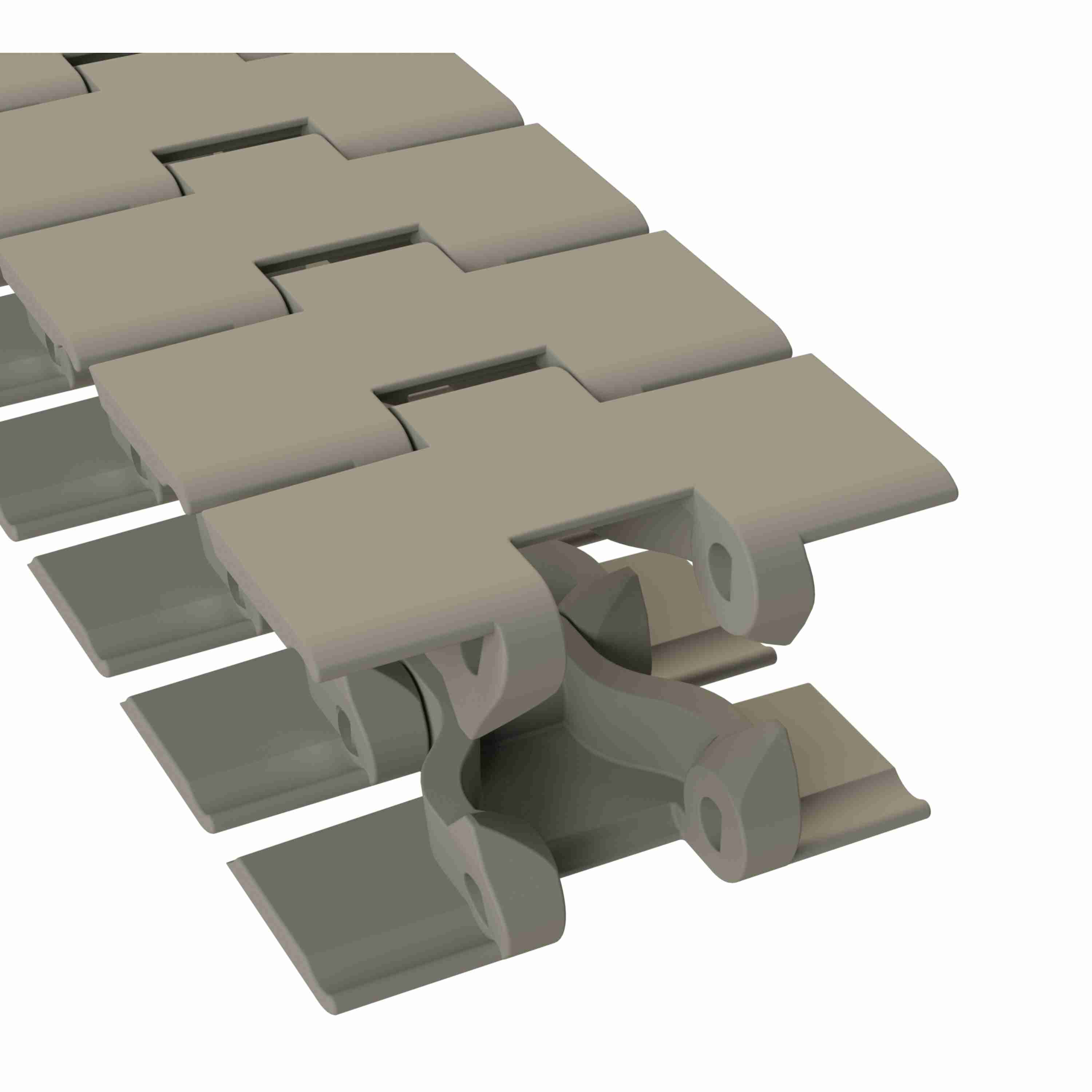

Rexnord 880B Side-flexing Solid Top, Material: Extreme Chemical Resistant (Grey), Width: 3.25in, Pitch: 1.5in - 81432161
Part #:10145672
Catalog #:81432161
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Pitch (in): | 1.5 in | Straight or Side-Flex: | Side-flexing |
| Chain Width Measurement System: | Imperial | Surface Type: | Solid Top |
| Chain Width (in): | 3.25 in | Chain Width (mm): | 82.6 mm |
| Chain Strength (lb): | 340 lb | Chain Material Description: | Extreme Chemical Resistant (Grey) |
| Chain Pitch (mm): | 38.1 mm | Chain Number: | 880B |
| Flight Thickness (in): | 0.16 in | Curve Retention Type: | Bevel |
| Chain Strength (N): | 1,510 N | Series: | TableTop 880 Series Side-flexing Chain |
| Chain Material: | CR | Flight Thickness (mm): | 4 mm |
| Rod/Pin Material: | 316 Stainless Steel |
General Specifications
| Weight: | 0.08 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
