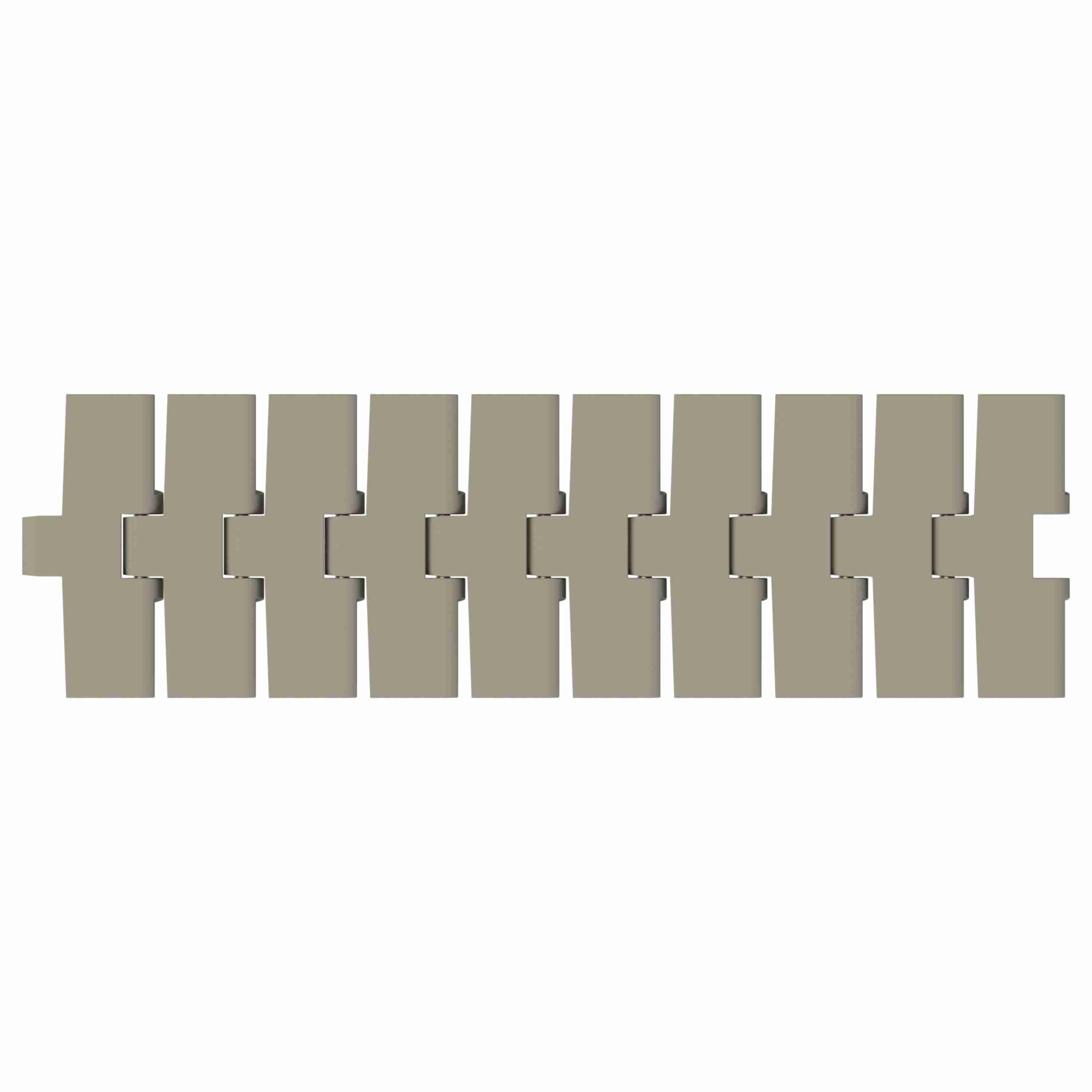

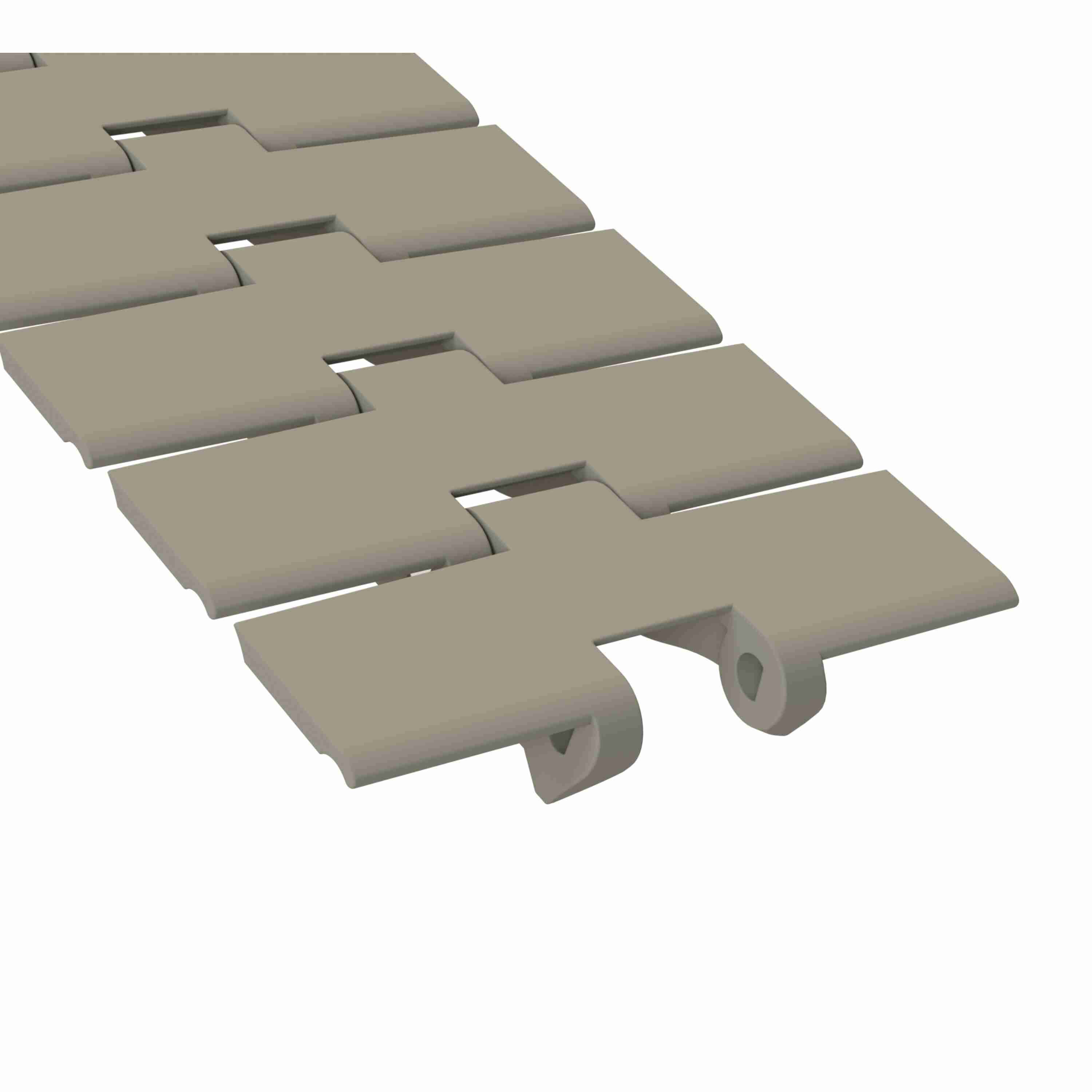

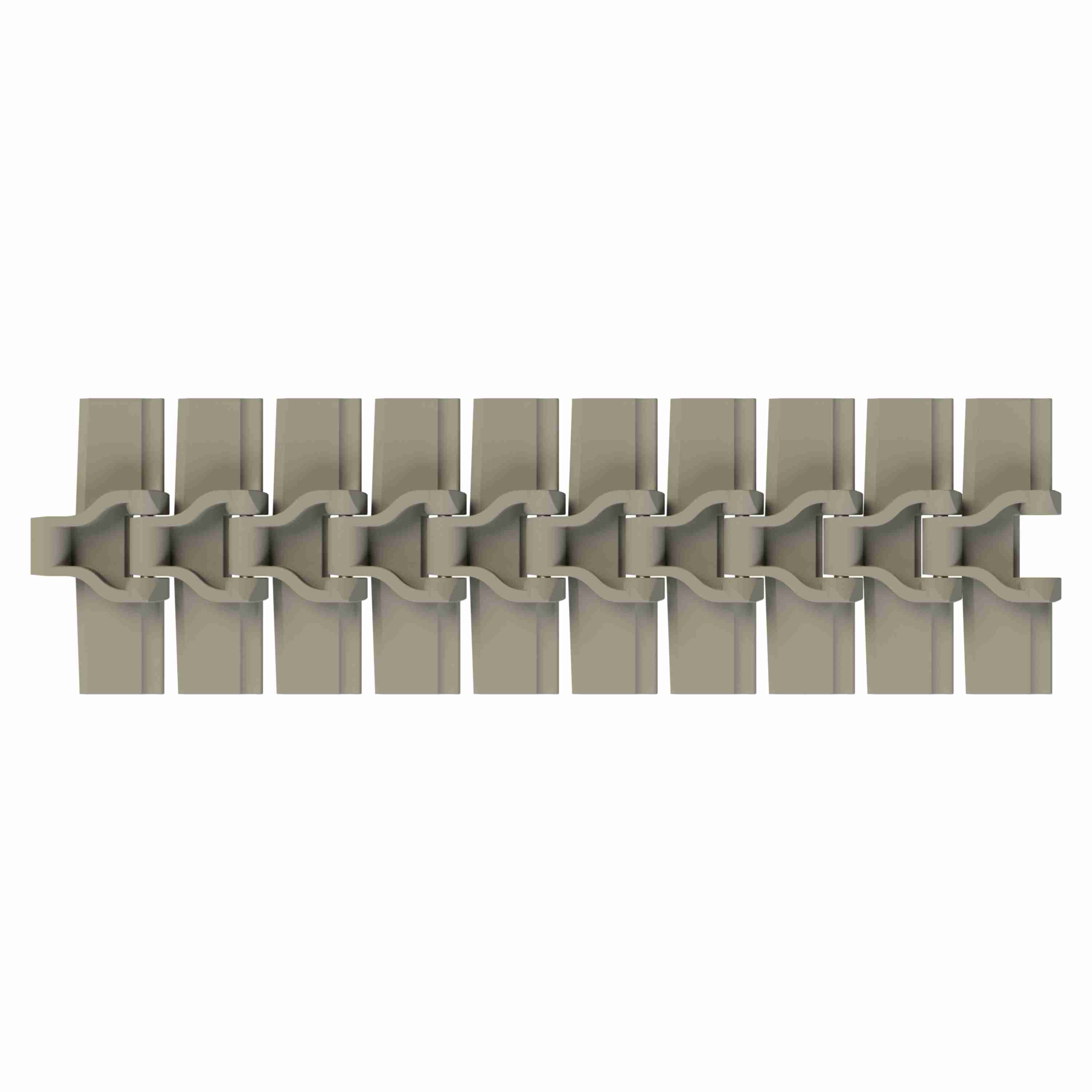

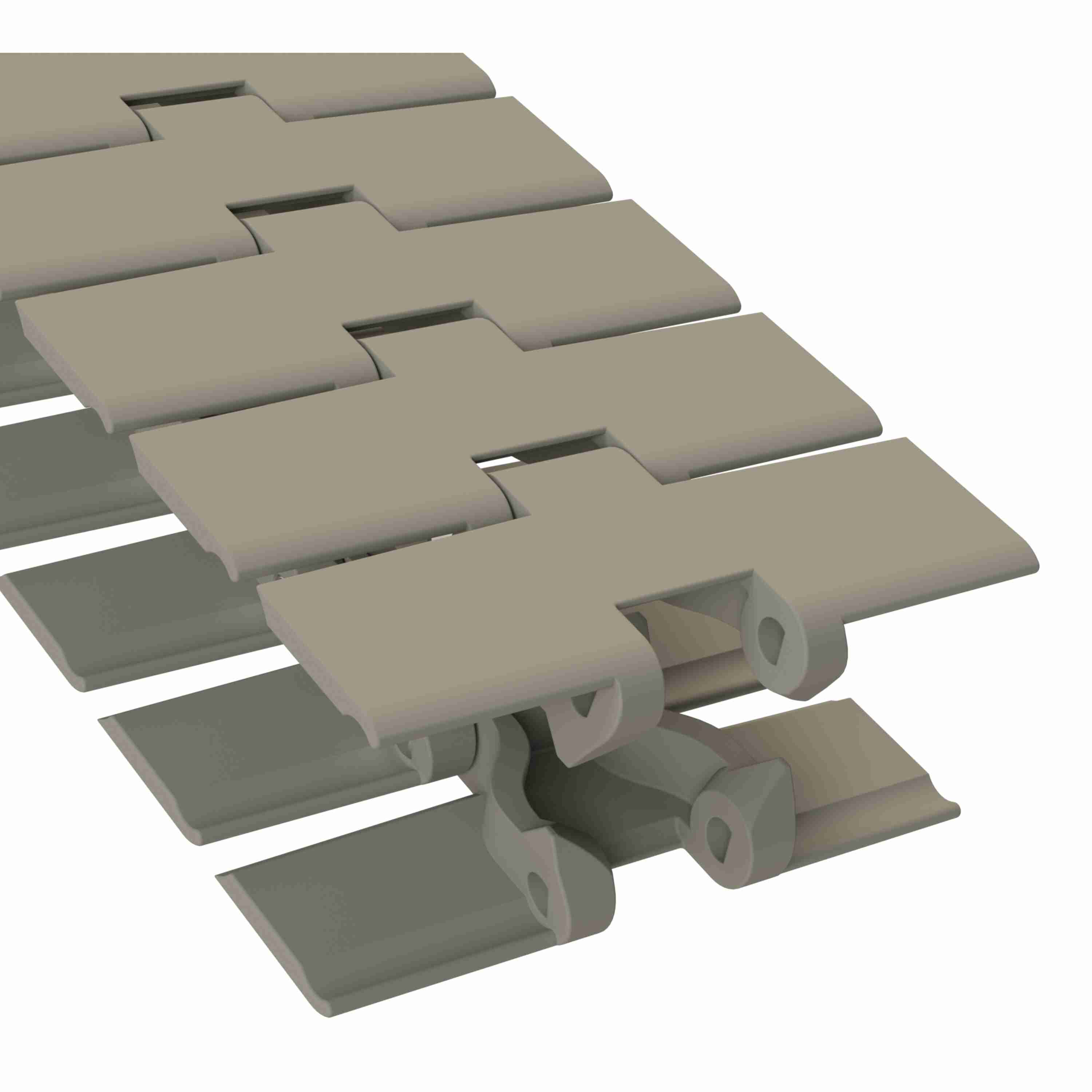

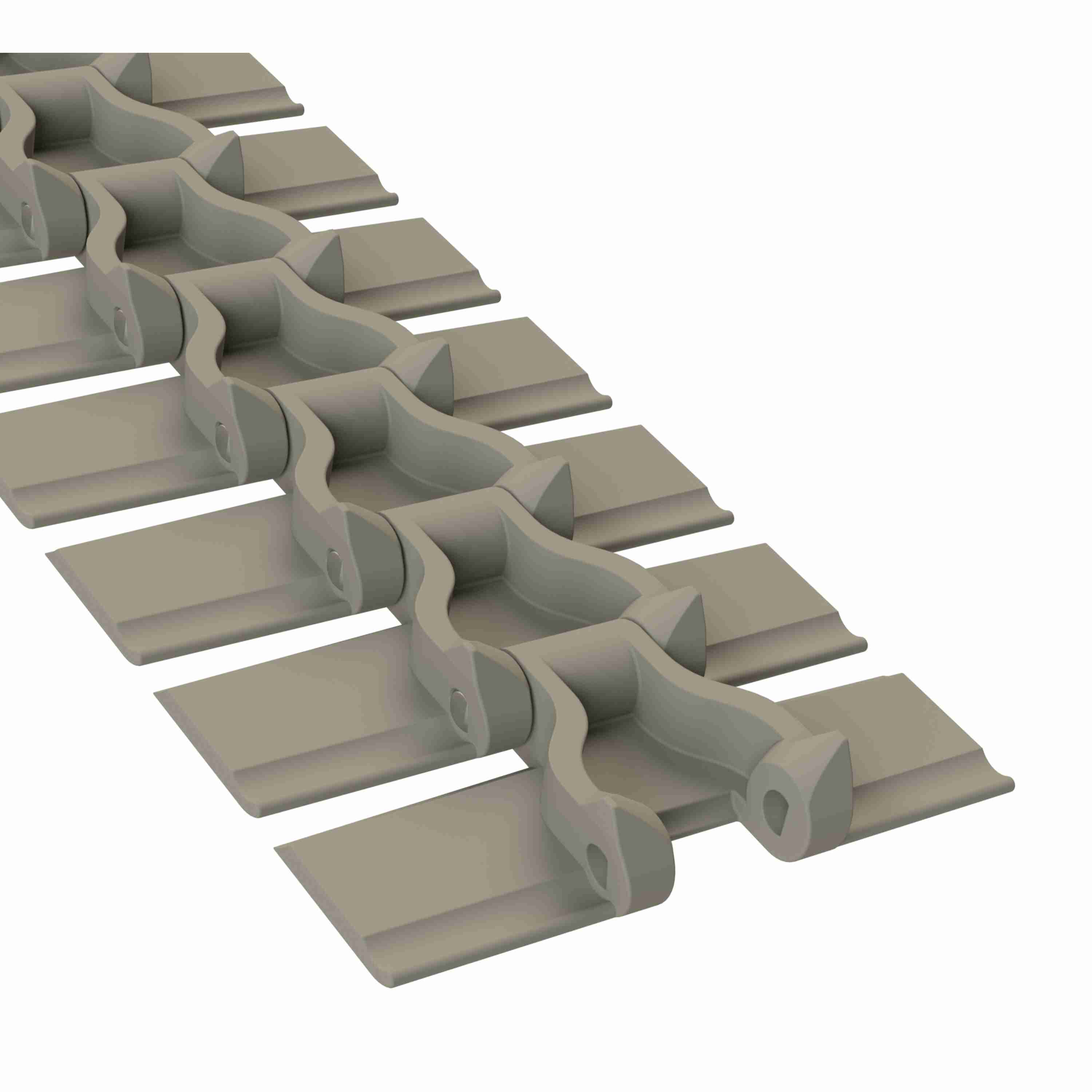

Rexnord 880B Side-flexing Solid Top, Material: Extreme Chemical Resistant (Grey), Width: 4.5in, Pitch: 1.5in - 81432162
Part #:10145673
Catalog #:81432162
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Material Description: | Extreme Chemical Resistant (Grey) | Straight or Side-Flex: | Side-flexing |
| Chain Width (in): | 4.5 in | Chain Pitch (in): | 1.5 in |
| Rod/Pin Material: | 316 Stainless Steel | Chain Strength (lb): | 340 lb |
| Chain Number: | 880B | Series: | TableTop 880 Series Side-flexing Chain |
| Chain Width Measurement System: | Imperial | Chain Width (mm): | 114.3 mm |
| Chain Pitch (mm): | 38.1 mm | Flight Thickness (in): | 0.16 in |
| Chain Material: | CR | Chain Strength (N): | 1,510 N |
| Curve Retention Type: | Bevel | Surface Type: | Solid Top |
| Flight Thickness (mm): | 4 mm |
General Specifications
| Weight: | 0.10 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
