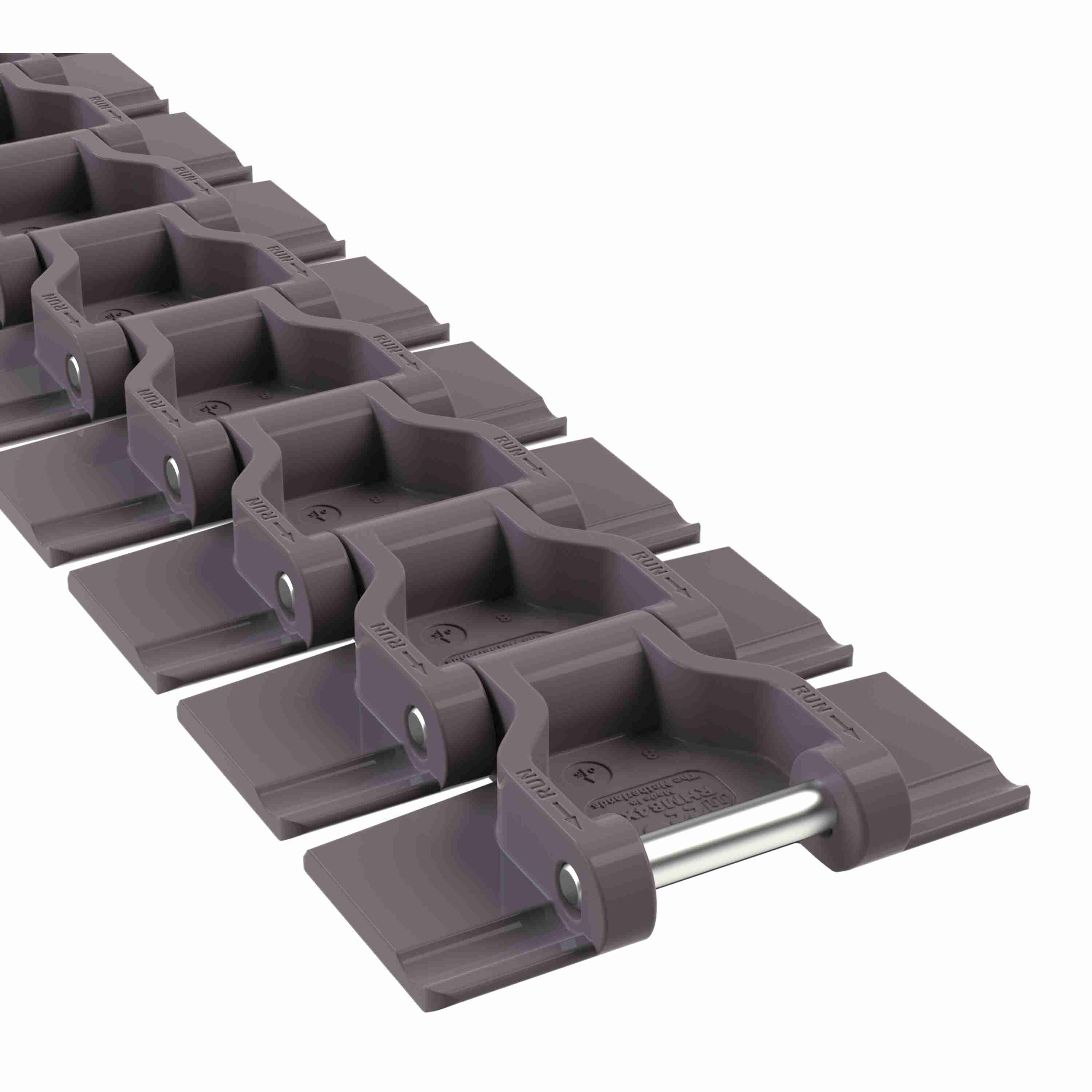

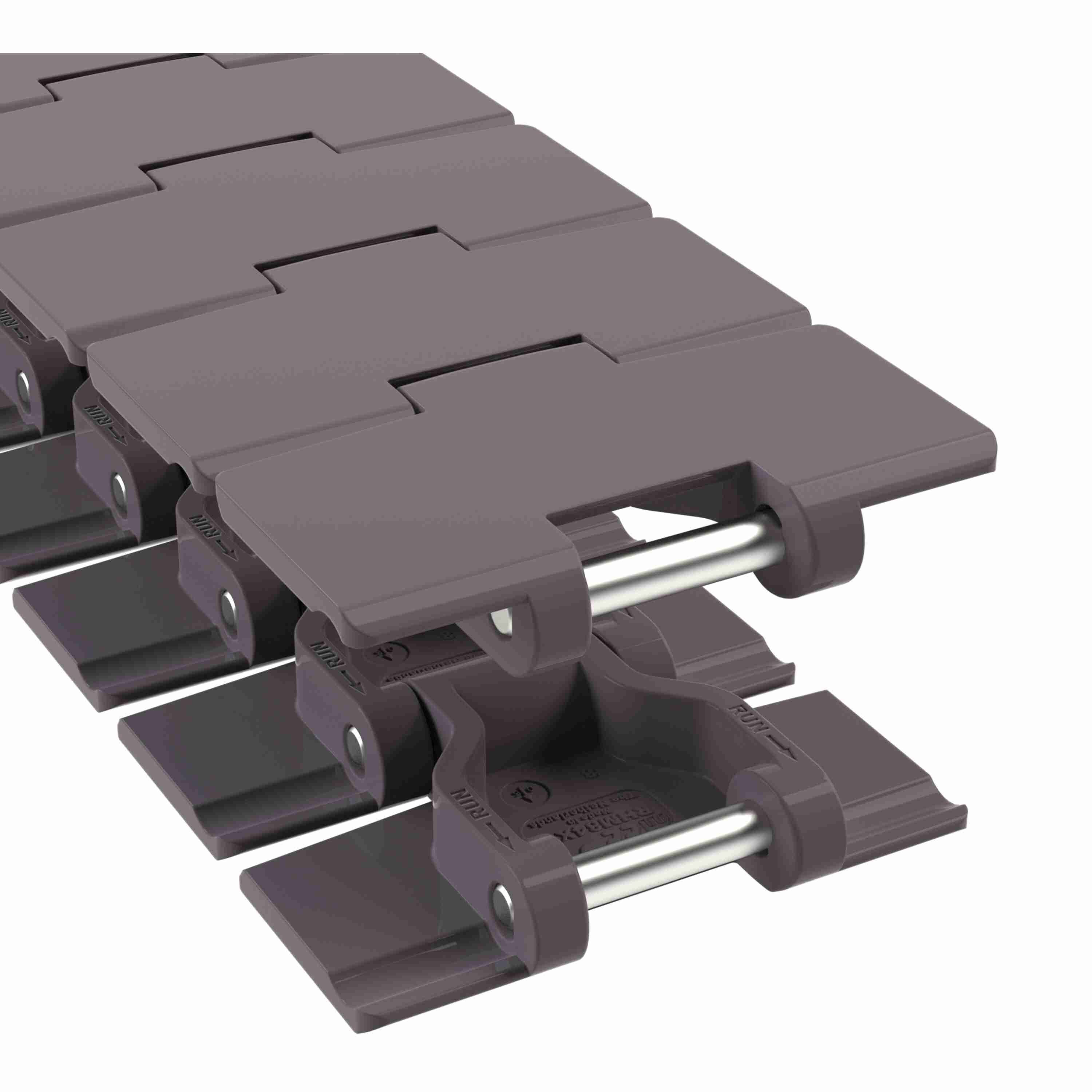

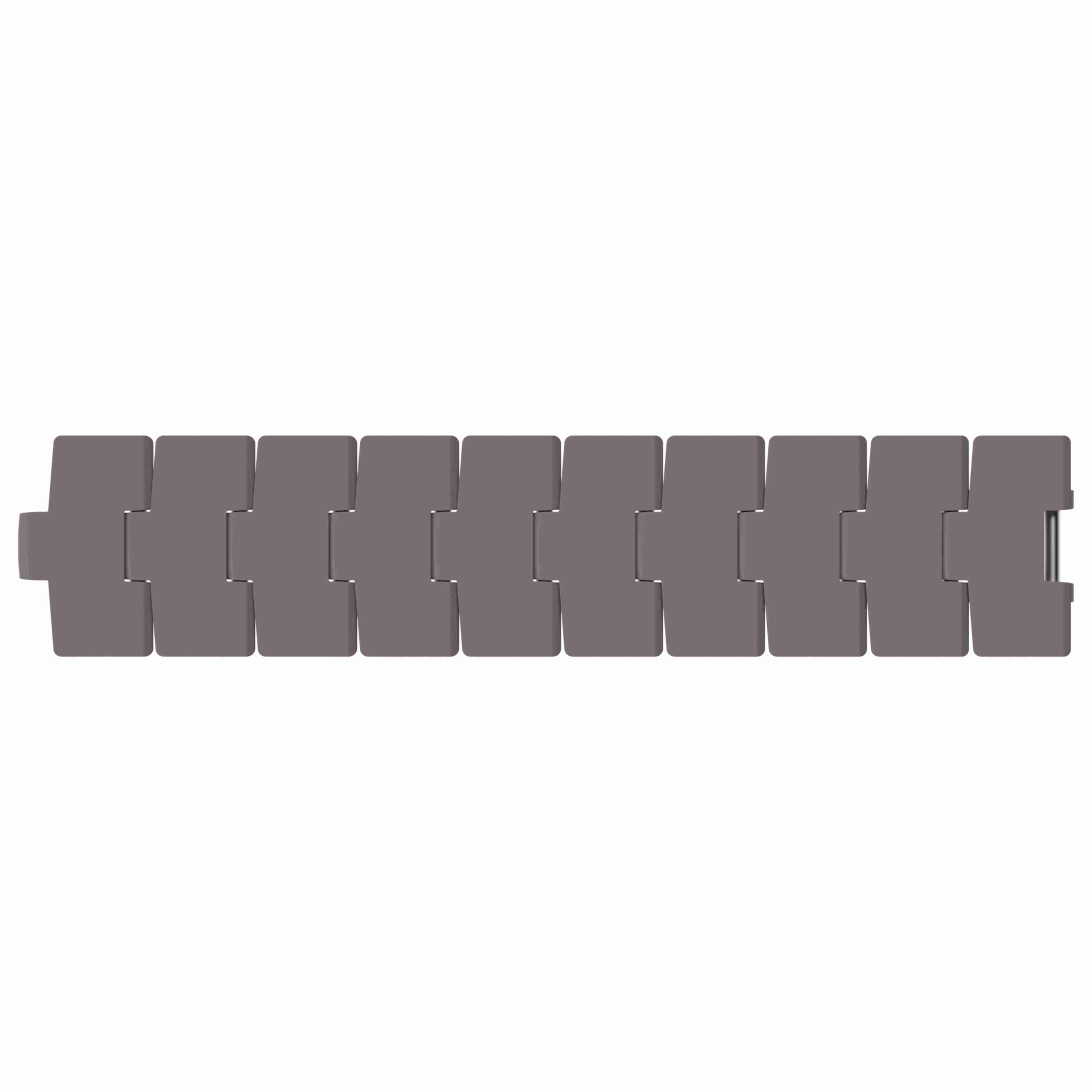

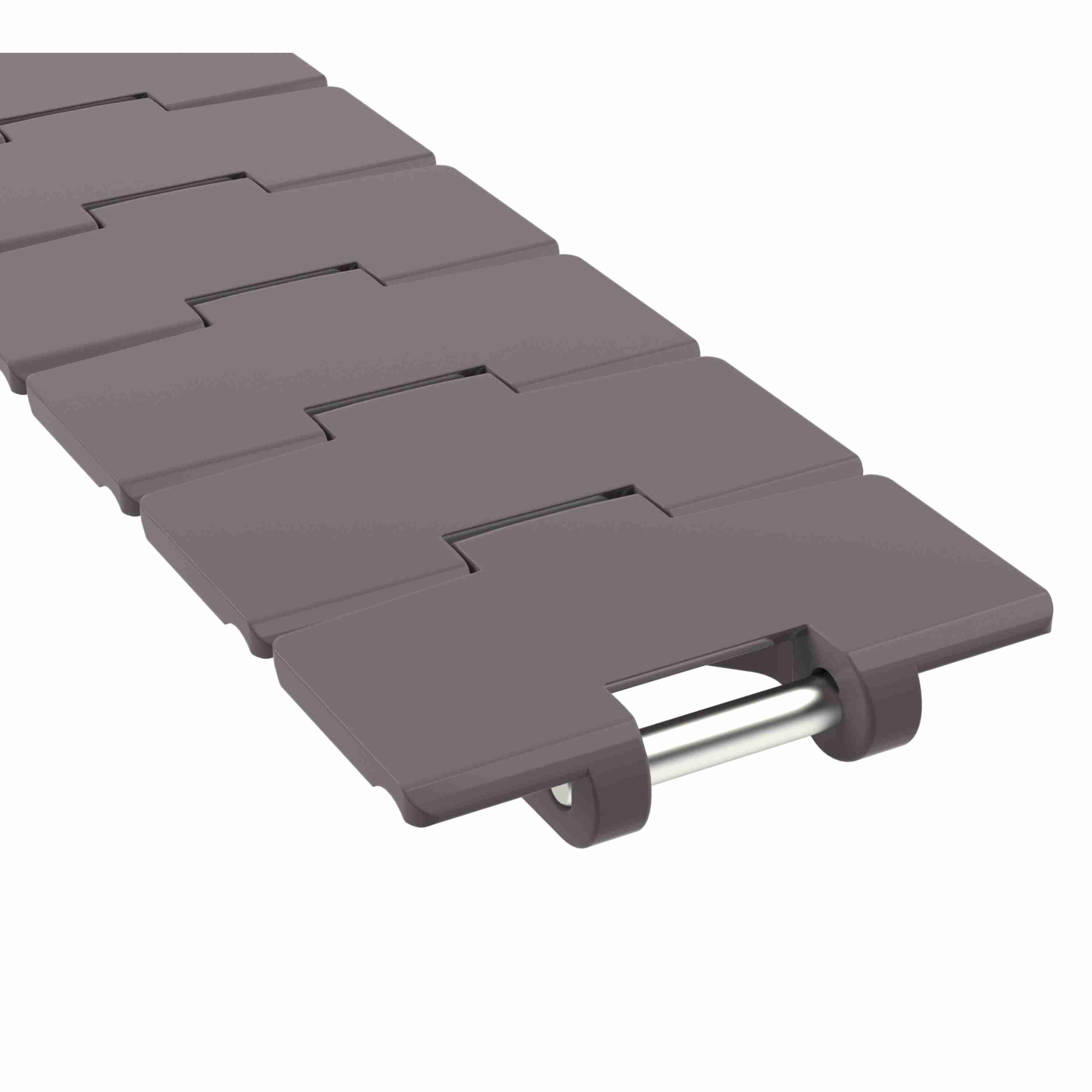

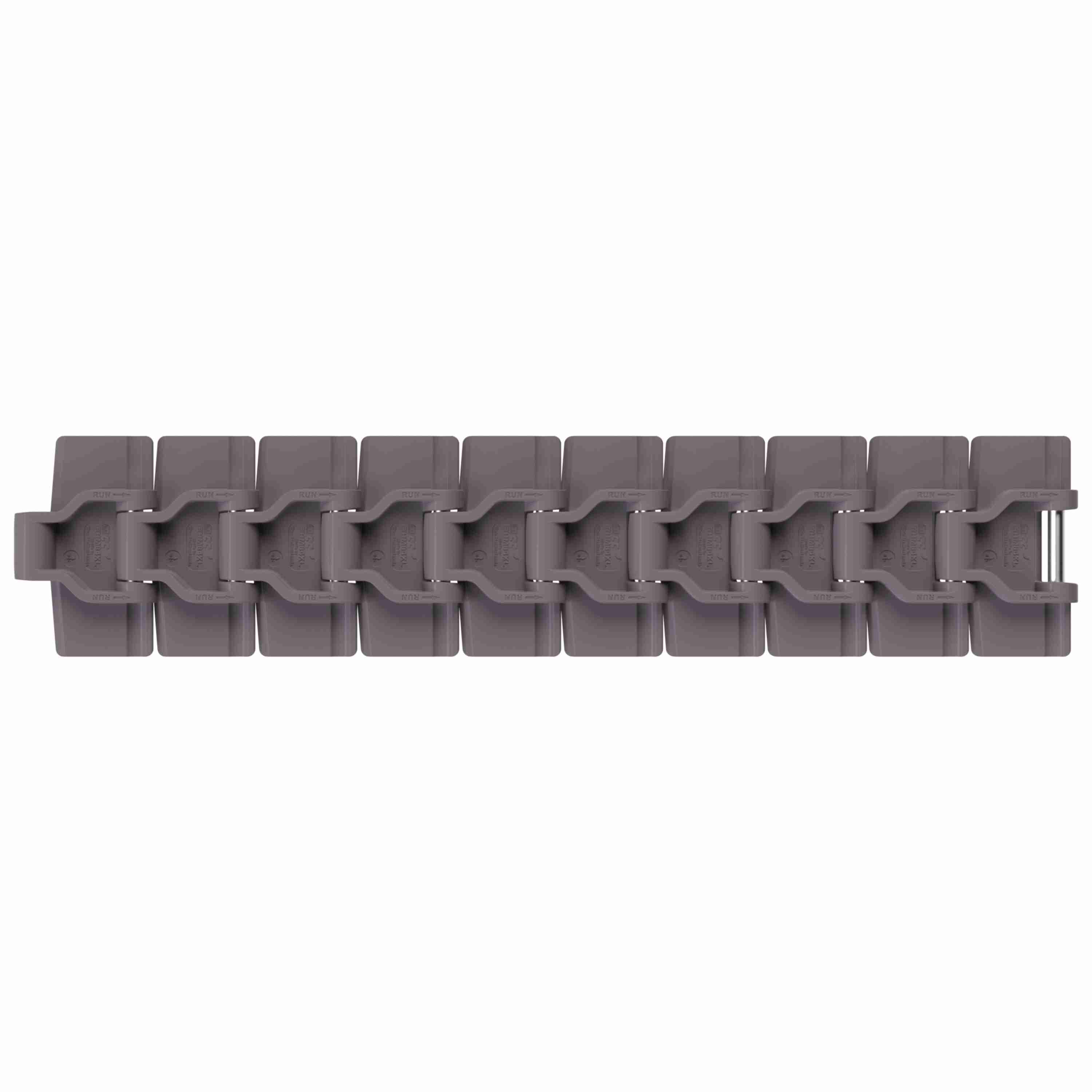

Rexnord 880M Side-flexing Solid Top, Material: Brown High Performance, Width: 3.25in, Pitch: 1.5in - 781.10.20
Part #:10144179
Catalog #:781.10.20
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Strength (N): | 2,100 N | Chain Pitch (mm): | 38.1 mm |
| Flight Thickness (in): | 0.16 in | Chain Width (mm): | 82.6 mm |
| Chain Width (in): | 3.25 in | Straight or Side-Flex: | Side-flexing |
| Chain Number: | 880M | Flight Thickness (mm): | 4 mm |
| Chain Pitch (in): | 1.5 in | Rod/Pin Material: | Stainless Steel |
| Surface Type: | Solid Top | Chain Strength (lb): | 473 lb |
| Chain Width Measurement System: | Imperial | Chain Material: | HP |
| Curve Retention Type: | Magnetic | Series: | TableTop 880 Series Side-flexing Chain |
| Chain Material Description: | Brown High Performance |
General Specifications
| Weight: | 0.03 KG | HTC: | 3926906090 |
| Country of Origin: | Netherlands |
