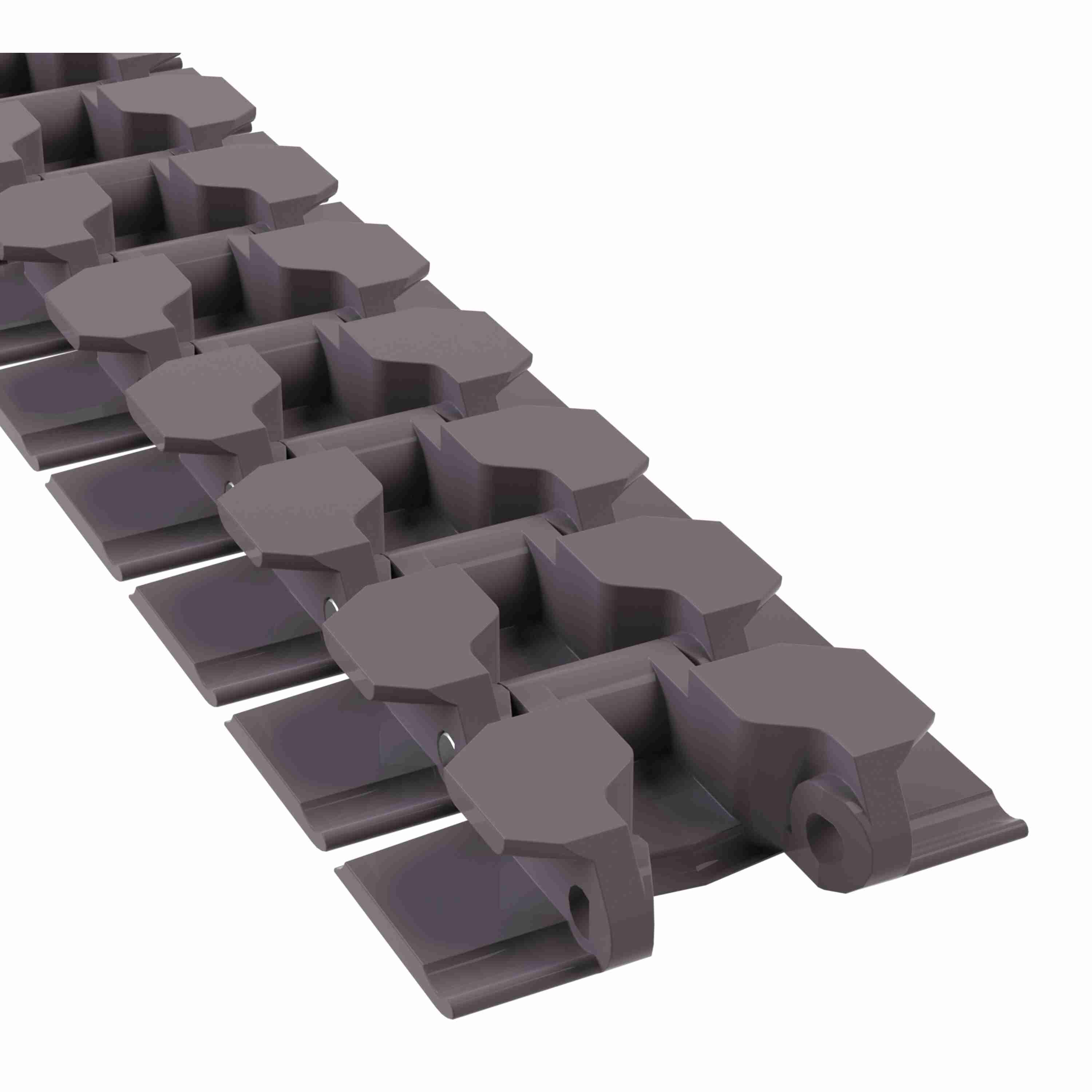

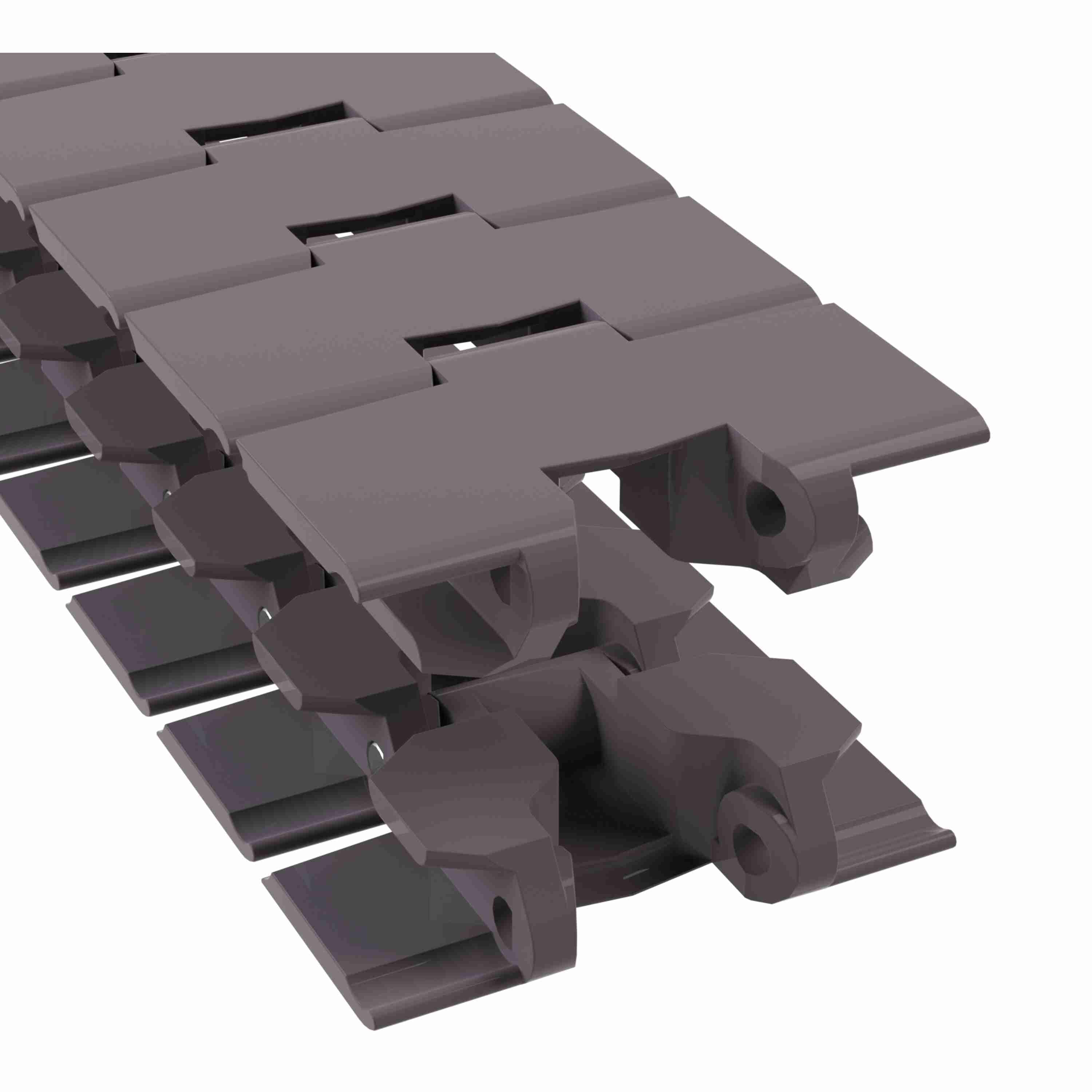

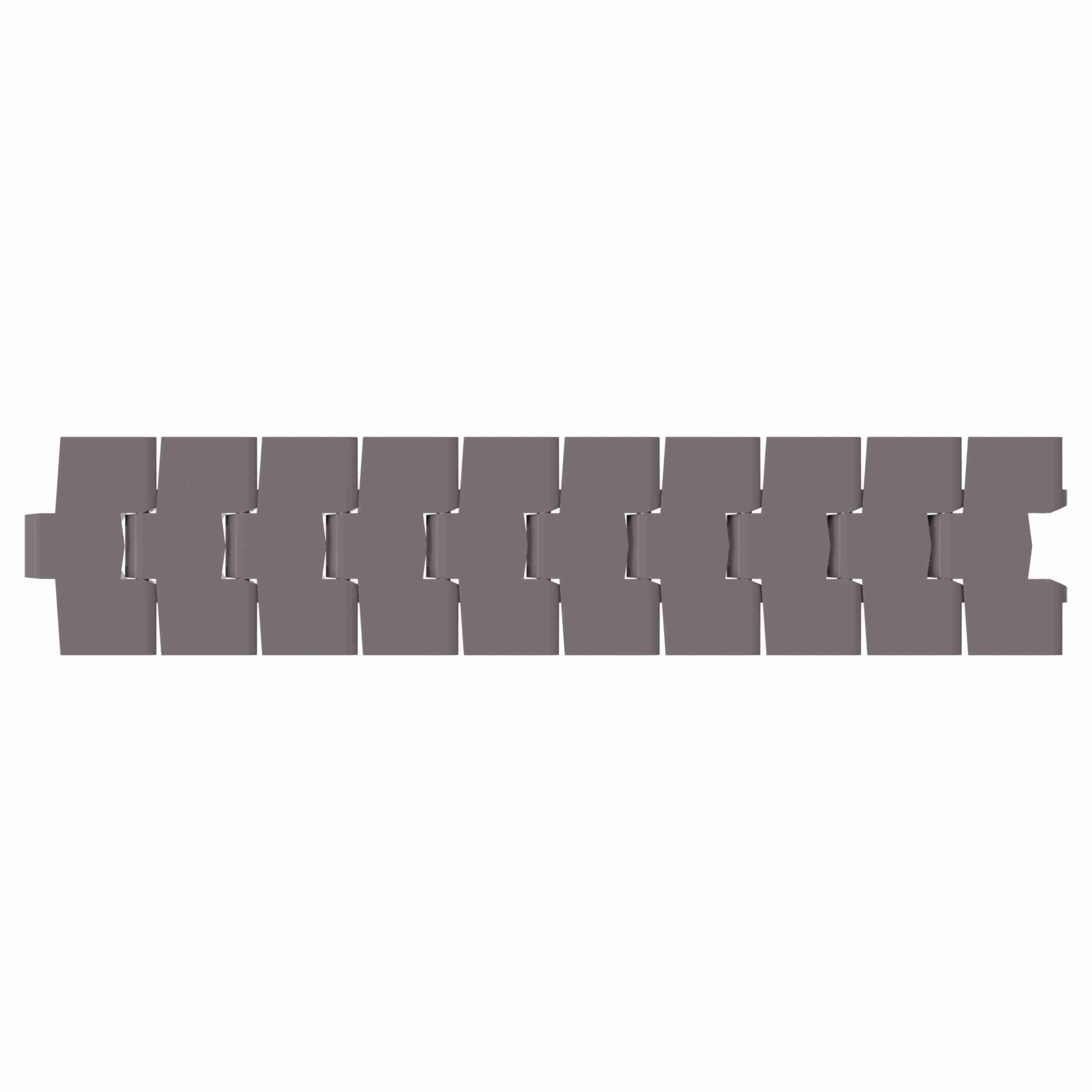

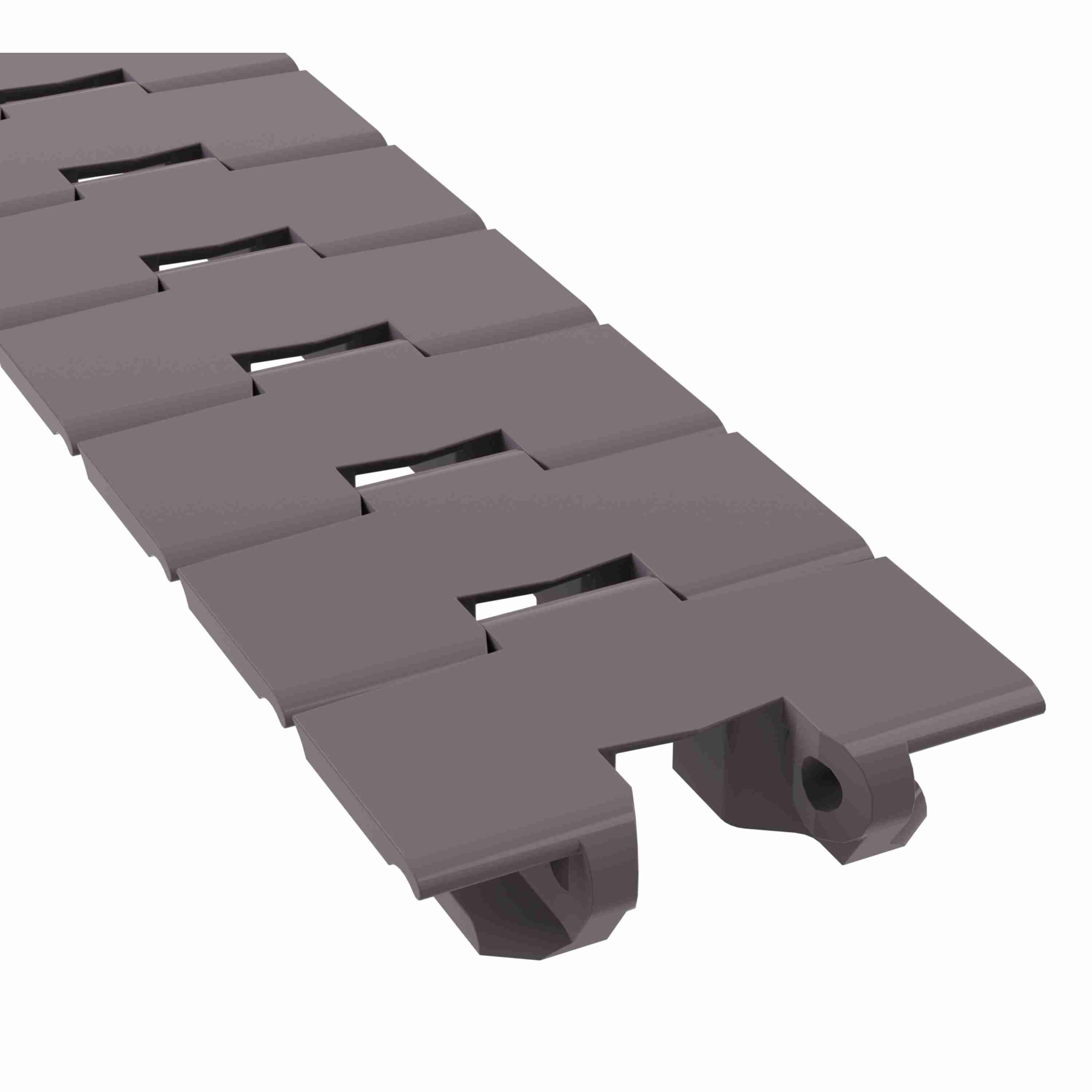

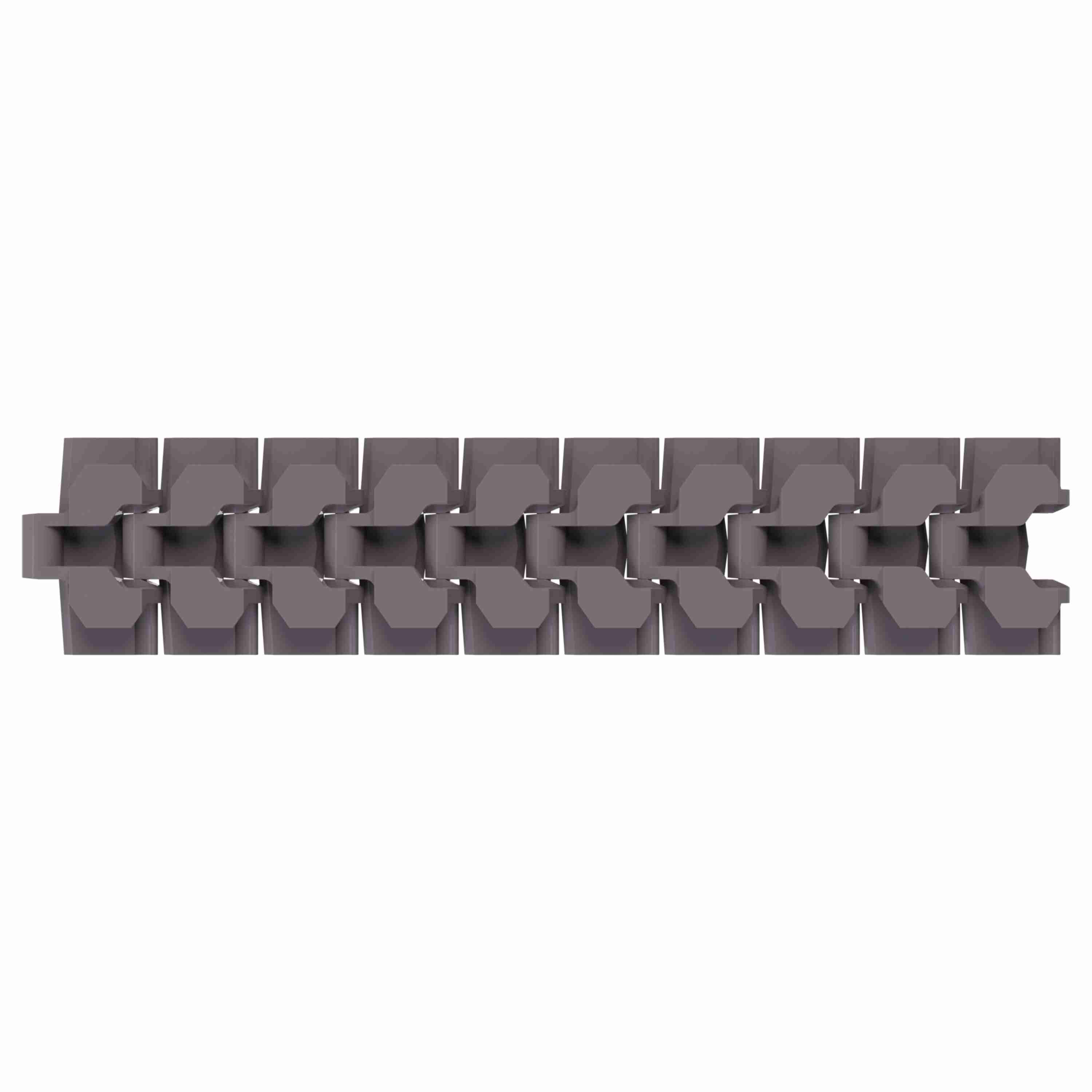

Rexnord 880TAB BO Side-flexing Solid Top Tight Radius, Material: Brown High Performance, Width: 3.25in, Pitch: 1.5in - 81410921
Part #:10144923
Catalog #:81410921
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Strength (lb): | 425 lb | Chain Pitch (mm): | 38.1 mm |
| Chain Width Measurement System: | Imperial | Chain Width (in): | 3.25 in |
| Chain Width (mm): | 82.6 mm | Chain Material: | HP |
| Chain Pitch (in): | 1.5 in | Flight Thickness (mm): | 4 mm |
| Chain Number: | 880TAB BO | Series: | TableTop 880 Series Side-flexing Chain |
| Flight Thickness (in): | 0.16 in | Curve Retention Type: | TAB |
| Chain Material Description: | Brown High Performance | Chain Strength (N): | 1,887 N |
| Straight or Side-Flex: | Side-flexing | Surface Type: | Solid Top Tight Radius |
| Rod/Pin Material: | Stainless Steel |
General Specifications
| Weight: | 0.08 LB | HTC: | 3926909989 |
| Country of Origin: | Mexico |
