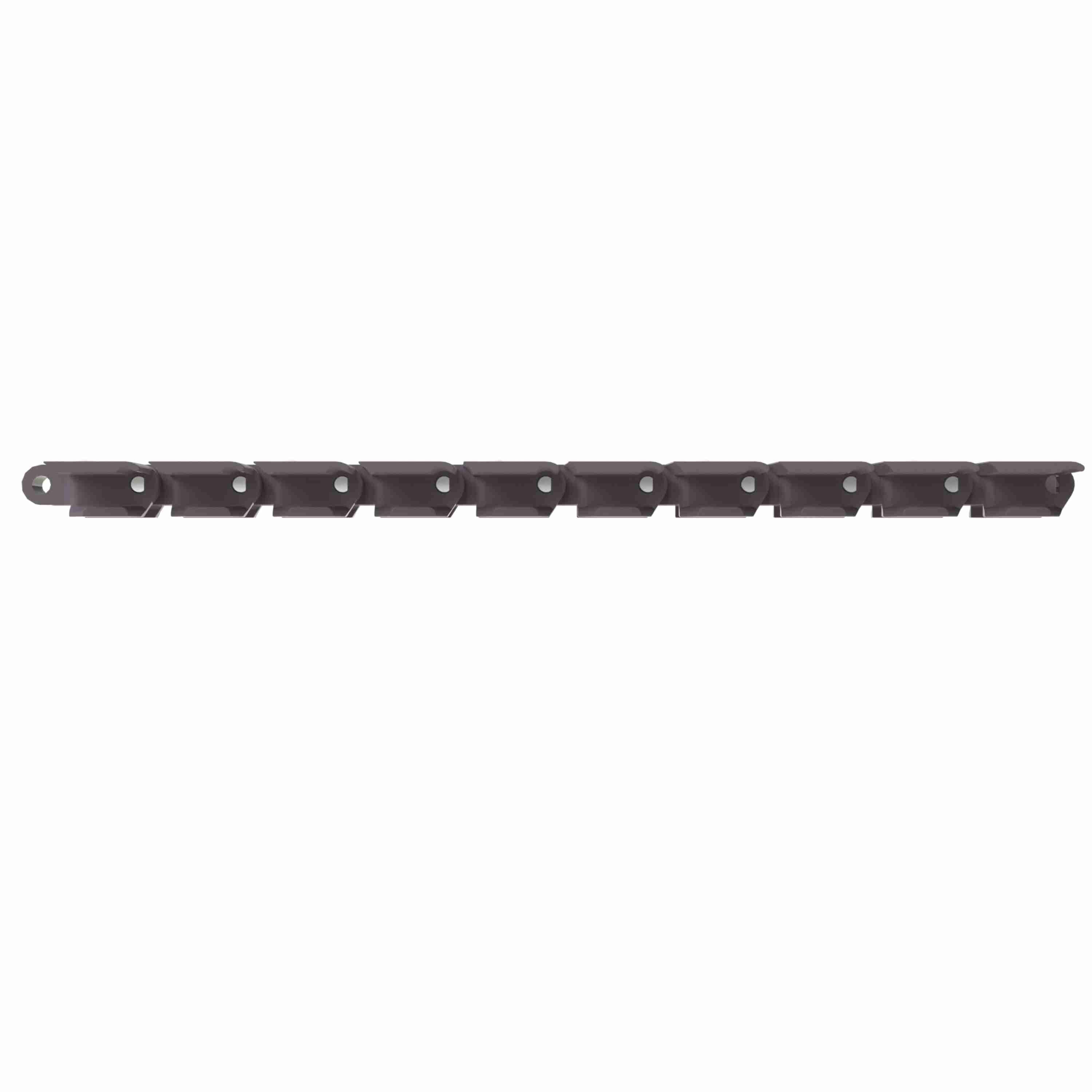

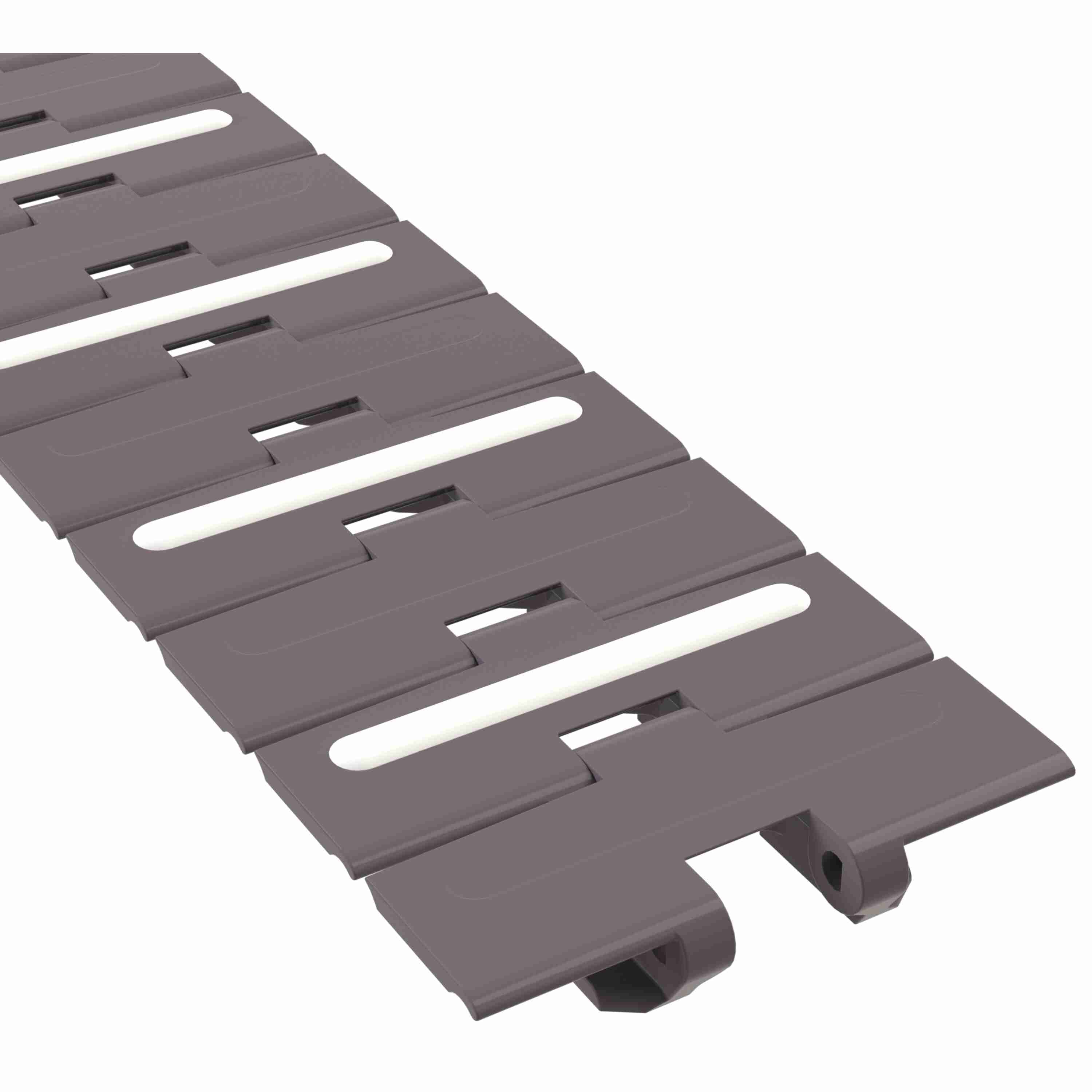

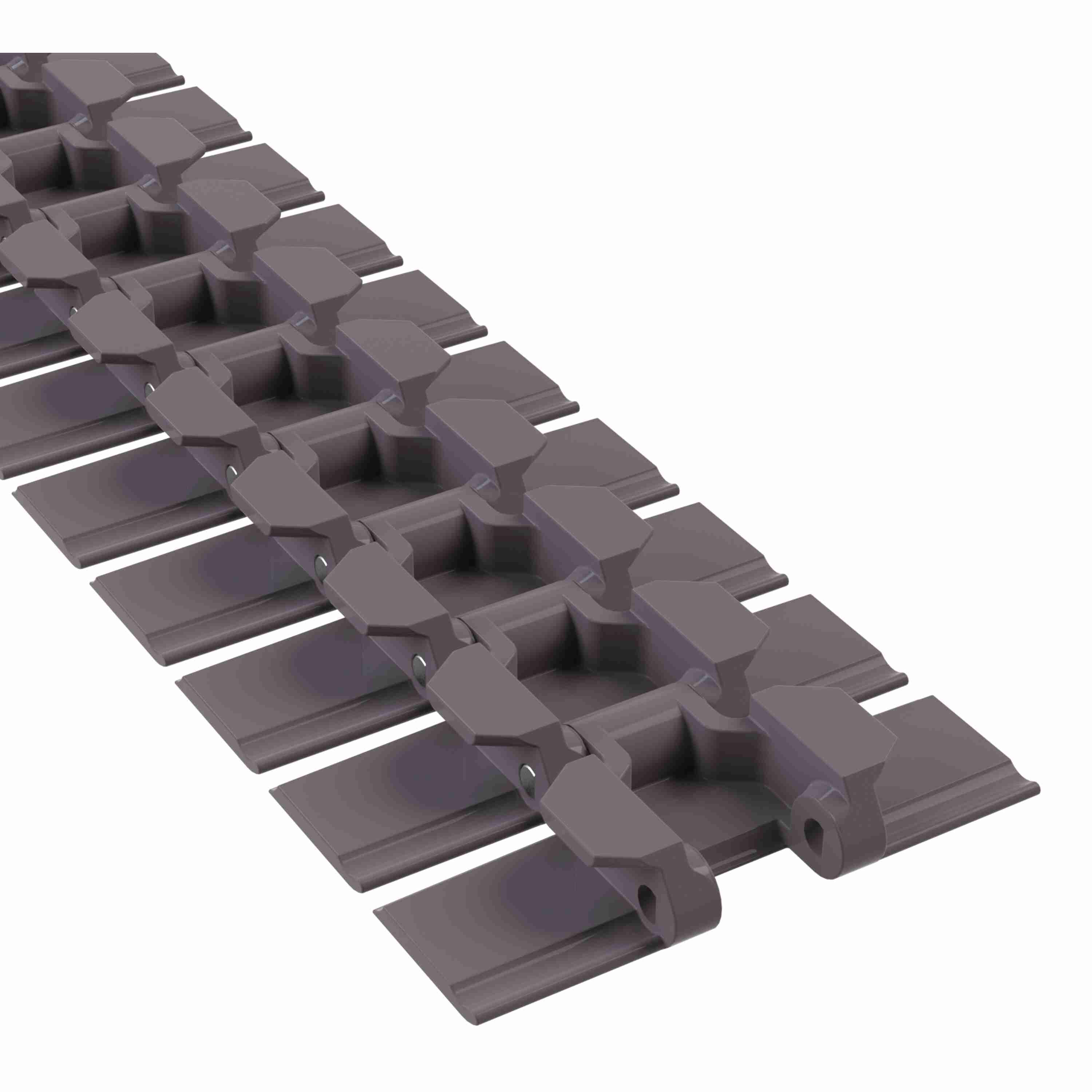

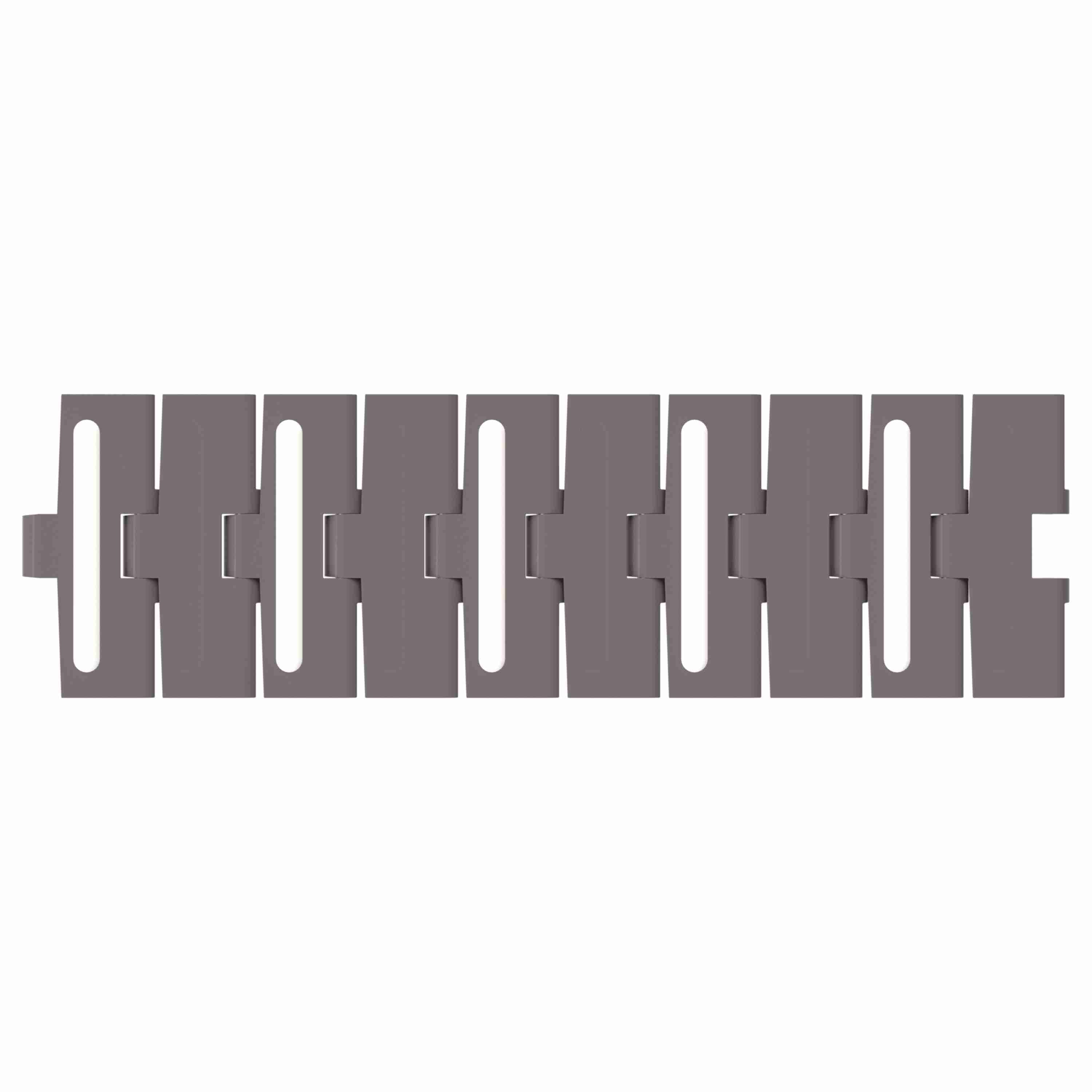

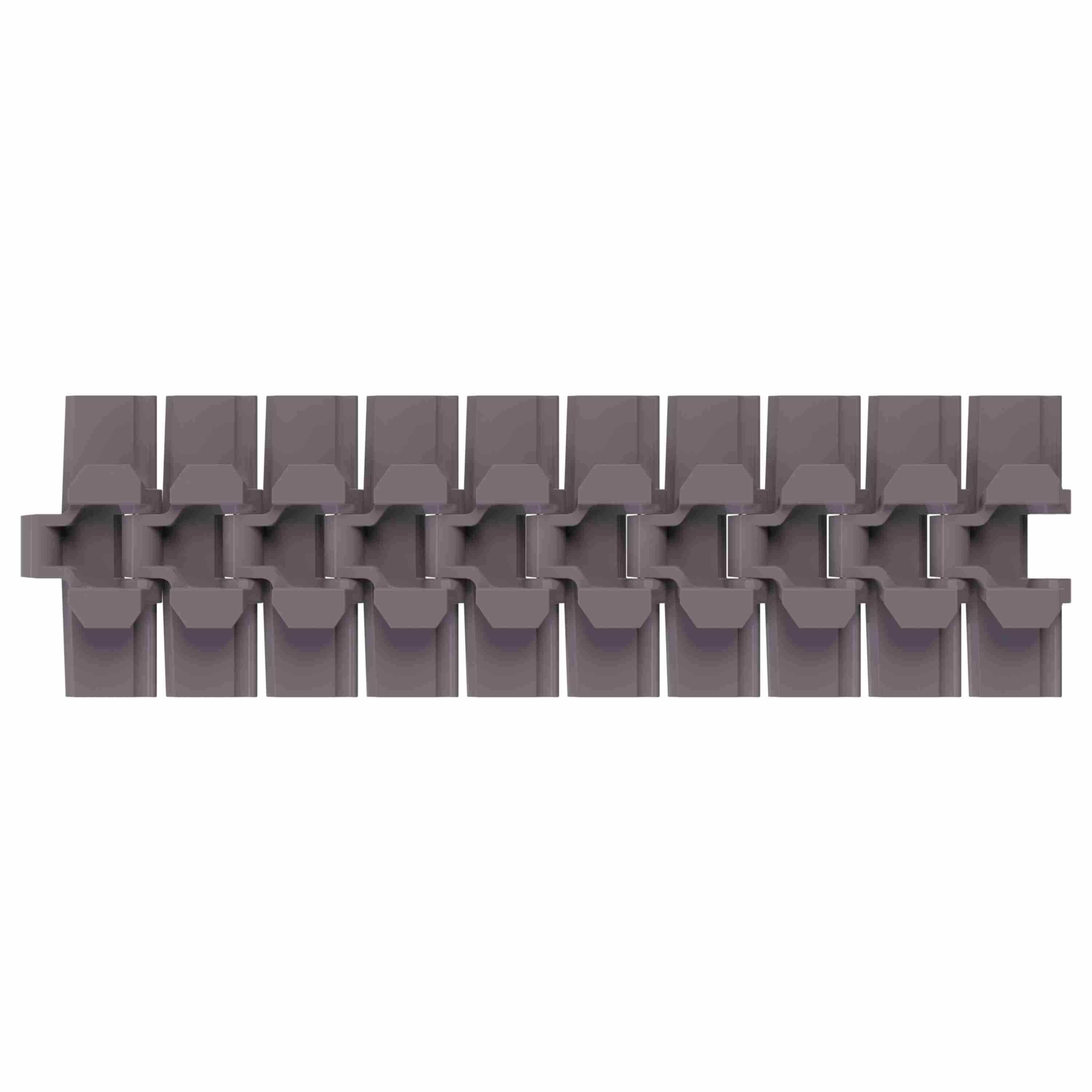

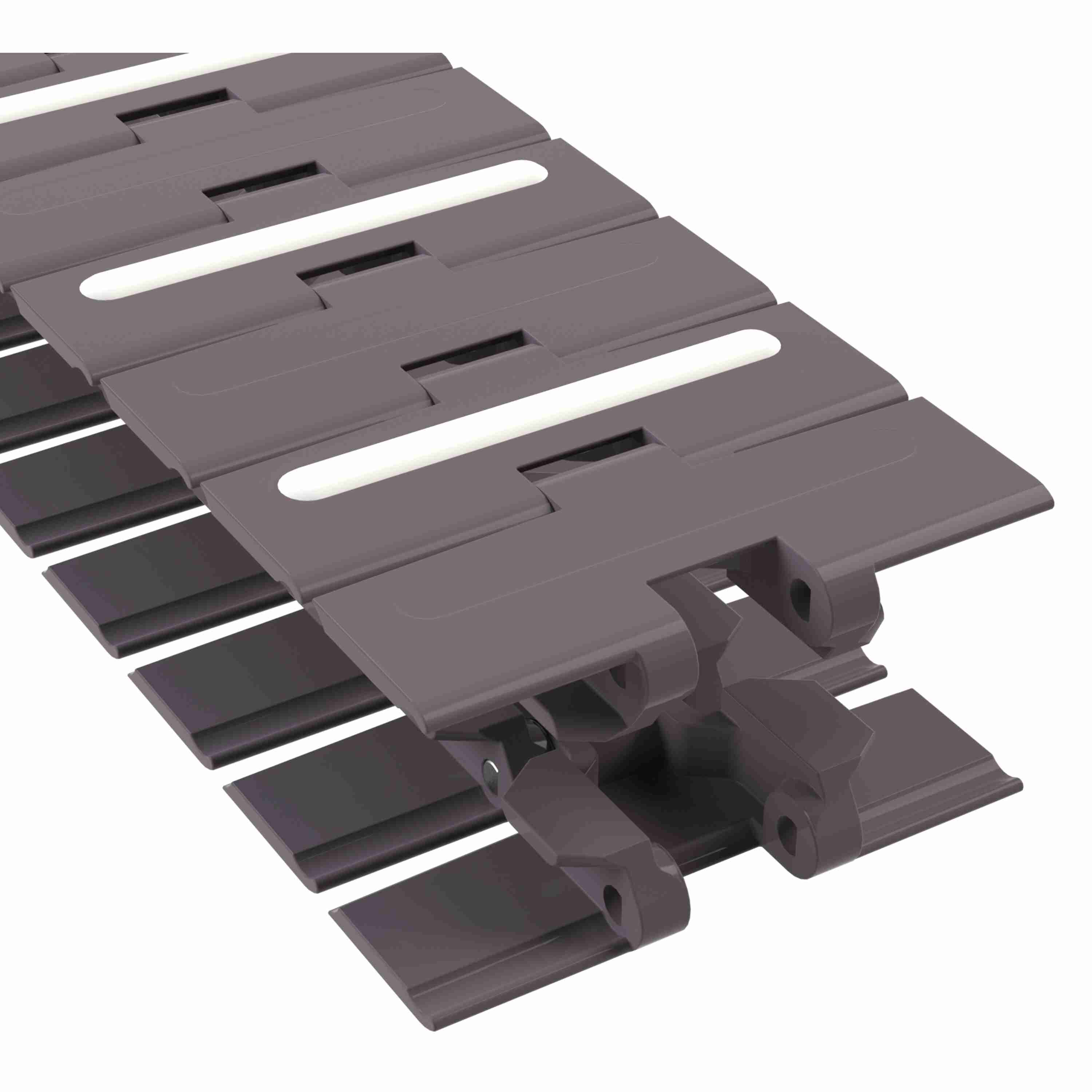

Rexnord 880TAB RubberTop® Side-flexing RubberTop®, Material: Brown High Performance, Width: 4.5in, Pitch: 1.5in - 81415982
Part #:10145048
Catalog #:81415982
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Flight Thickness (in): | 0.24 in | Chain Strength (lb): | 425 lb |
| Chain Pitch (in): | 1.5 in | Chain Strength (N): | 1,887 N |
| Number of SuperGrip/RubberTop Rows: | 1 Row | Chain Pitch (mm): | 38.1 mm |
| Chain Material: | HP | SG/RT Spacing (mm): | 76.2 mm |
| Chain Number: | 880TAB RubberTop® | Chain Width (mm): | 114.3 mm |
| Surface Type: | RubberTop® | SG/RT Spacing (Pitches): | Every 2nd Pitch |
| Chain Width (in): | 4.5 in | Curve Retention Type: | TAB |
| SG/RT Spacing (in): | 3 in | Chain Material Description: | Brown High Performance |
| Series: | TableTop 880 Series Side-flexing Chain | Rod/Pin Material: | Stainless Steel |
| Straight or Side-Flex: | Side-flexing | Flight Thickness (mm): | 6.1 mm |
| Chain Width Measurement System: | Imperial |
General Specifications
| Weight: | 0.09 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
