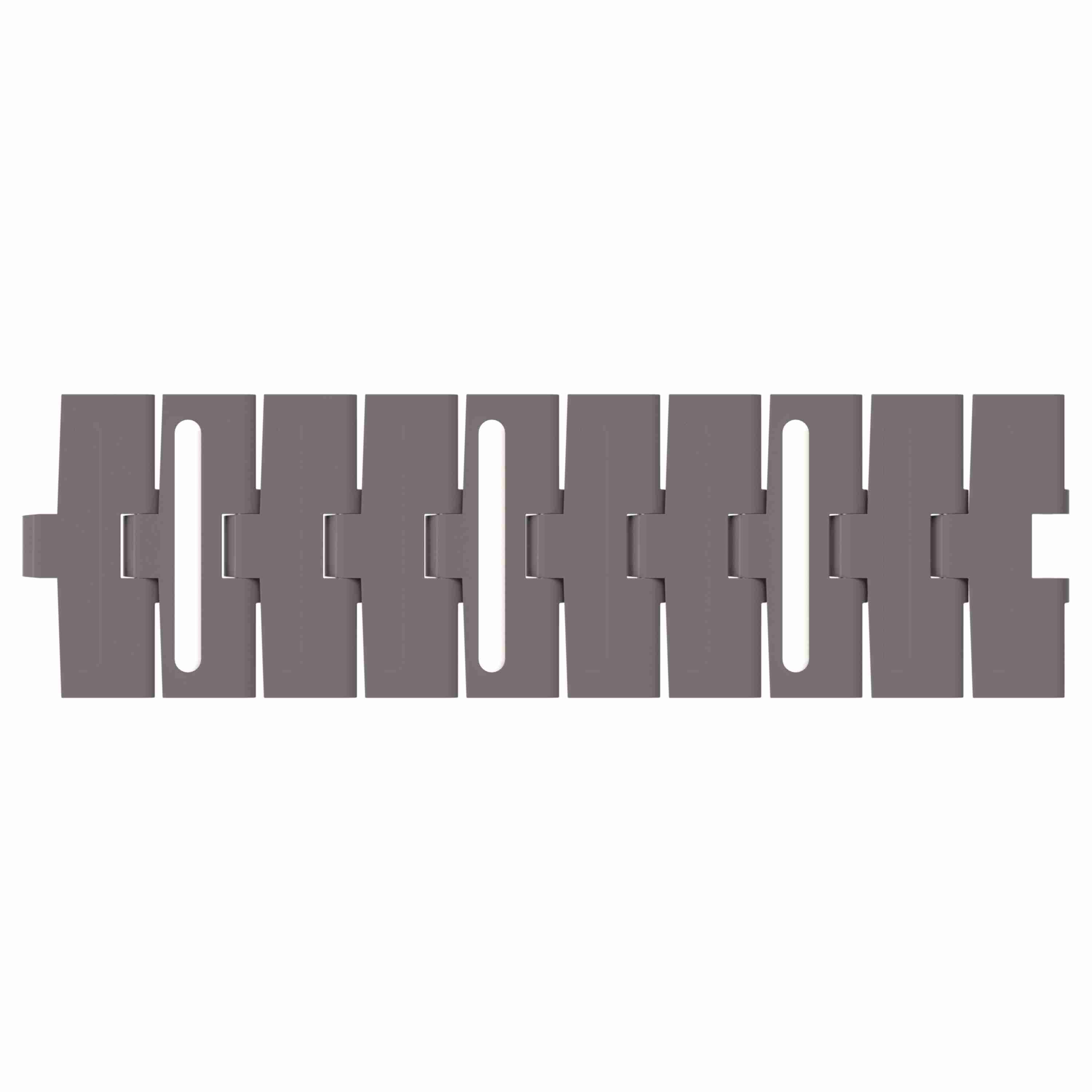

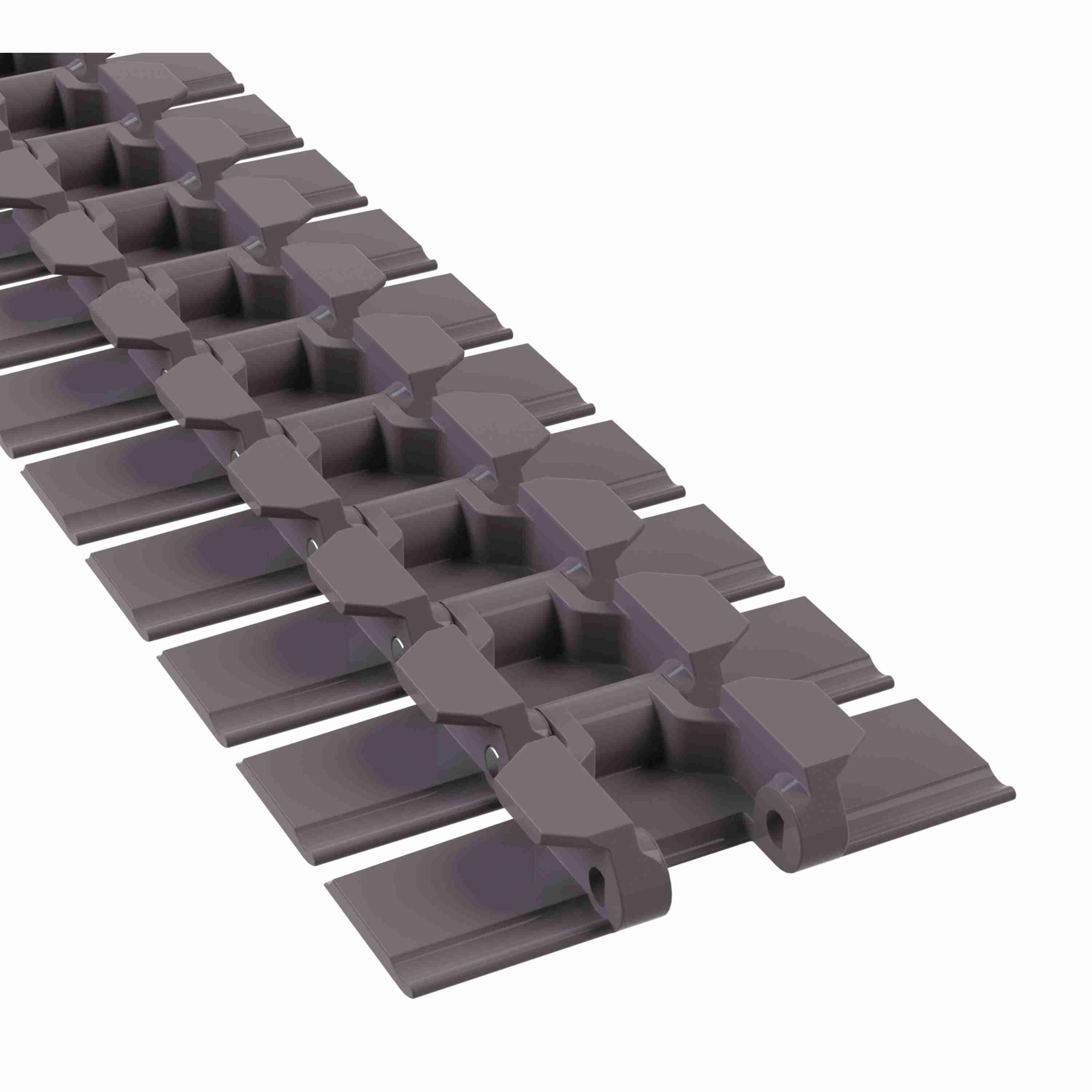

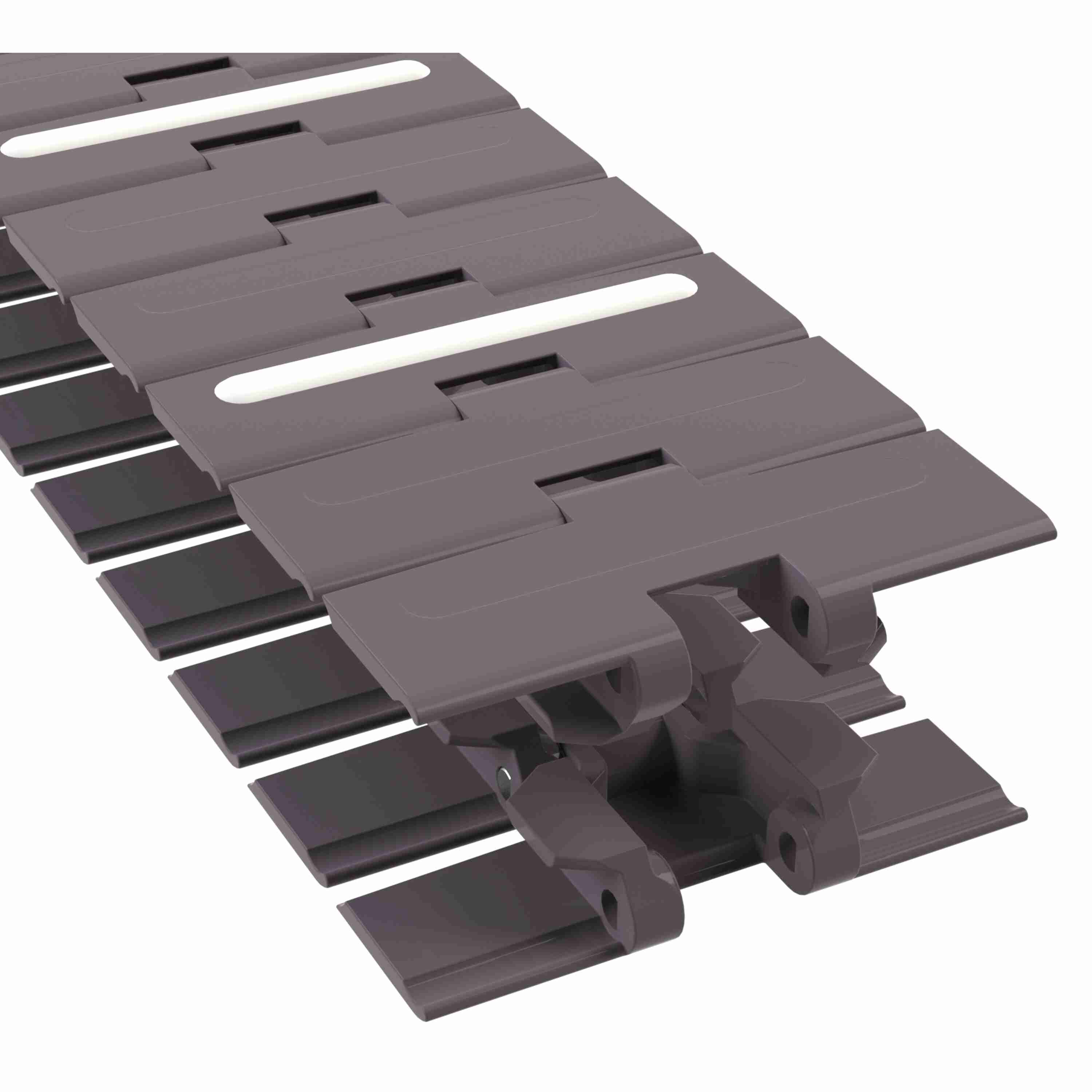

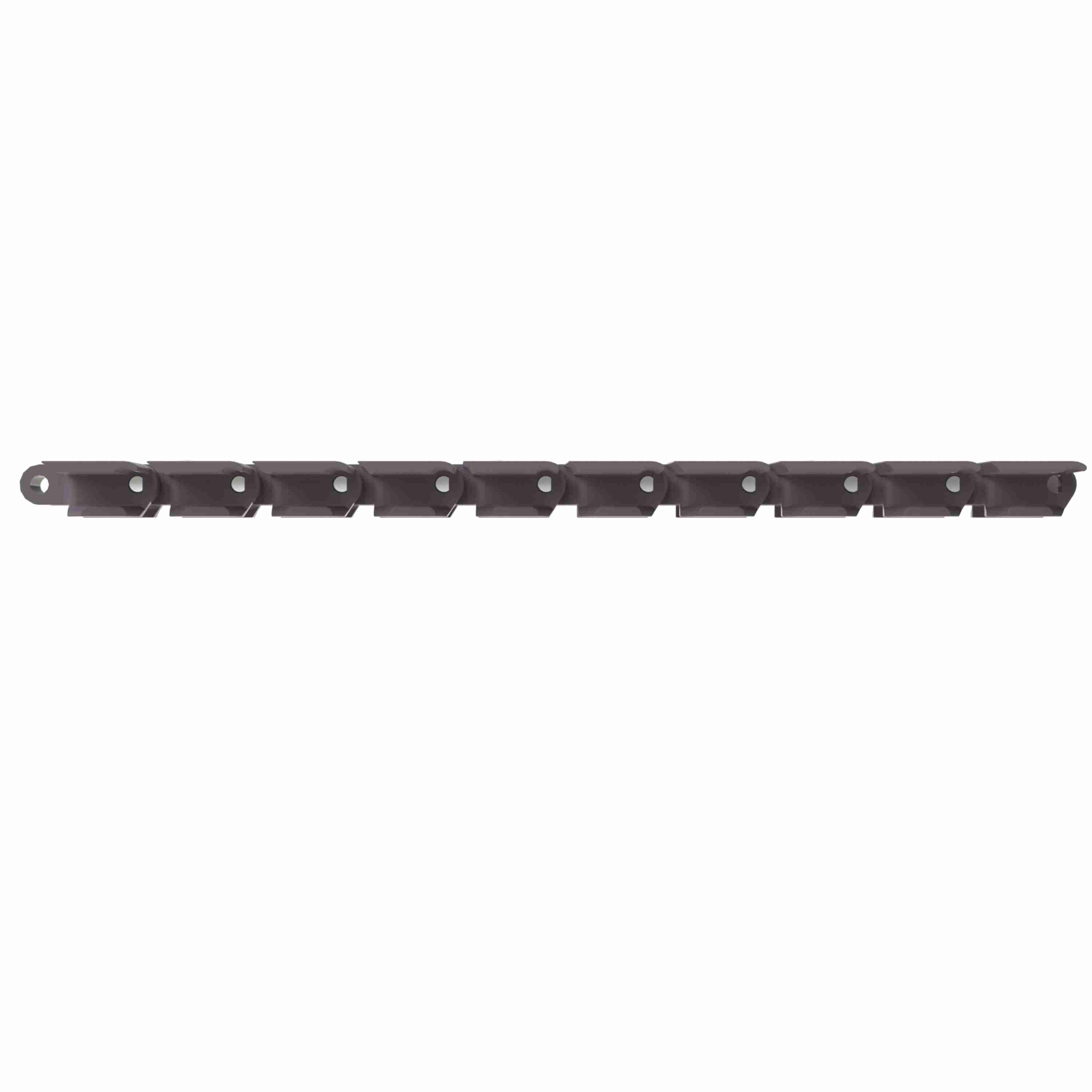

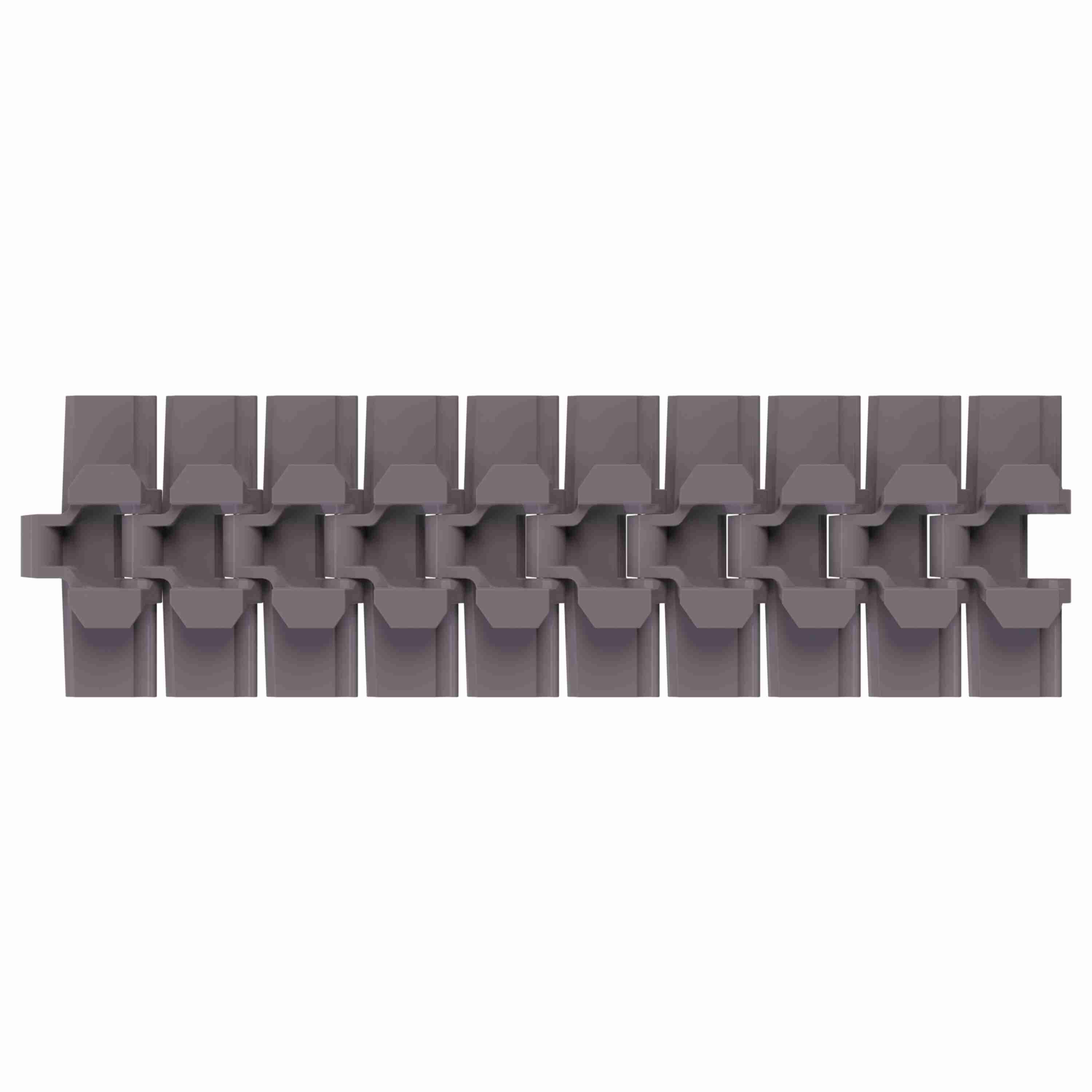

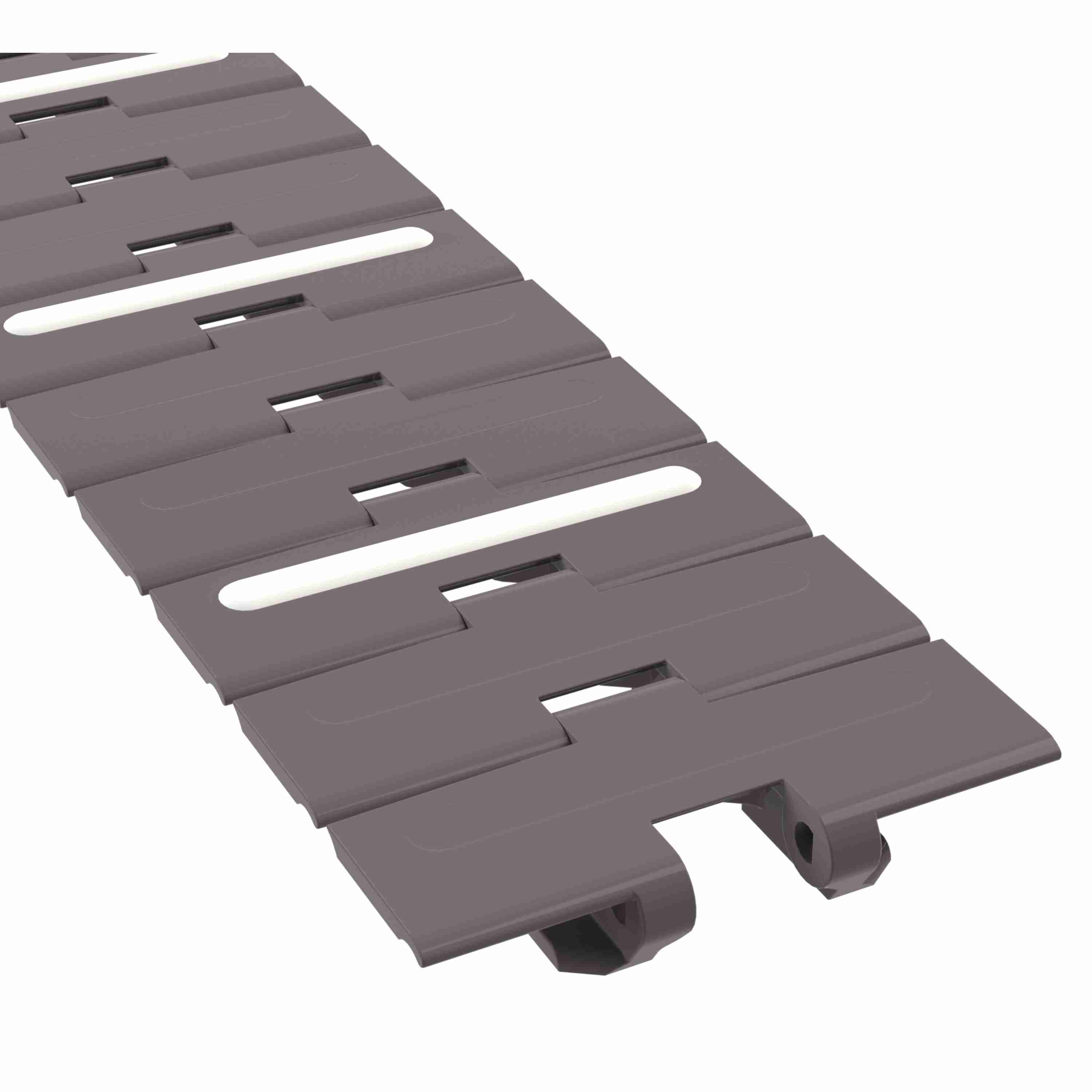

Rexnord 880TAB RubberTop® Side-flexing RubberTop®, Material: Brown High Performance, Width: 4.5in, Pitch: 1.5in - 81416322
Part #:10145063
Catalog #:81416322
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Curve Retention Type: | TAB | Chain Pitch (in): | 1.5 in |
| Surface Type: | RubberTop® | Chain Number: | 880TAB RubberTop® |
| Flight Thickness (in): | 0.24 in | SG/RT Spacing (mm): | 114.3 mm |
| Chain Material: | HP | SG/RT Spacing (in): | 4.5 in |
| Chain Pitch (mm): | 38.1 mm | Rod/Pin Material: | Stainless Steel |
| Chain Width (in): | 4.5 in | Flight Thickness (mm): | 6.1 mm |
| Number of SuperGrip/RubberTop Rows: | 1 Row | SG/RT Spacing (Pitches): | Every 3rd Pitch |
| Chain Strength (lb): | 425 lb | Chain Width (mm): | 114.3 mm |
| Series: | TableTop 880 Series Side-flexing Chain | Straight or Side-Flex: | Side-flexing |
| Chain Width Measurement System: | Imperial | Chain Strength (N): | 1,887 N |
| Chain Material Description: | Brown High Performance |
General Specifications
| Weight: | 0.09 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
