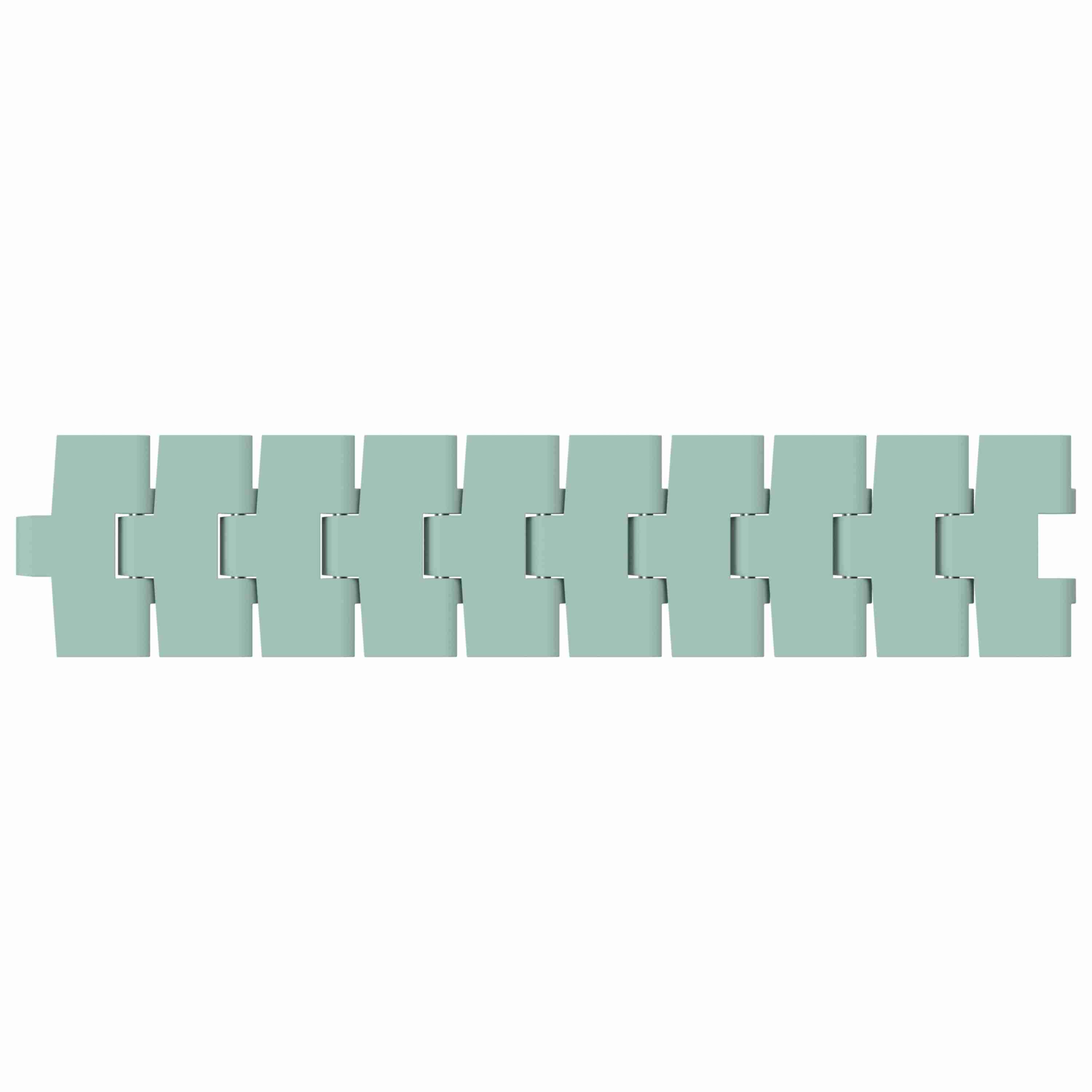

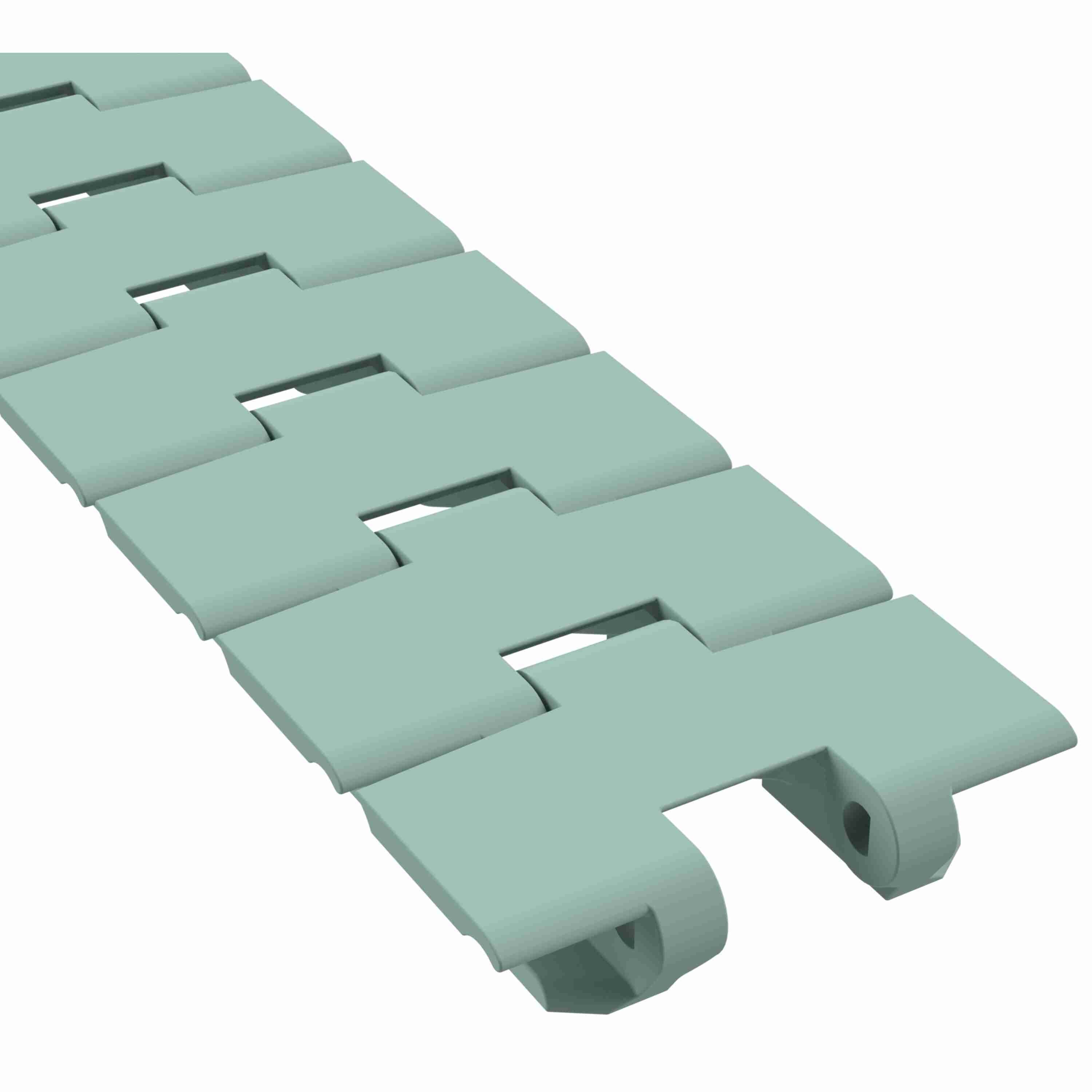

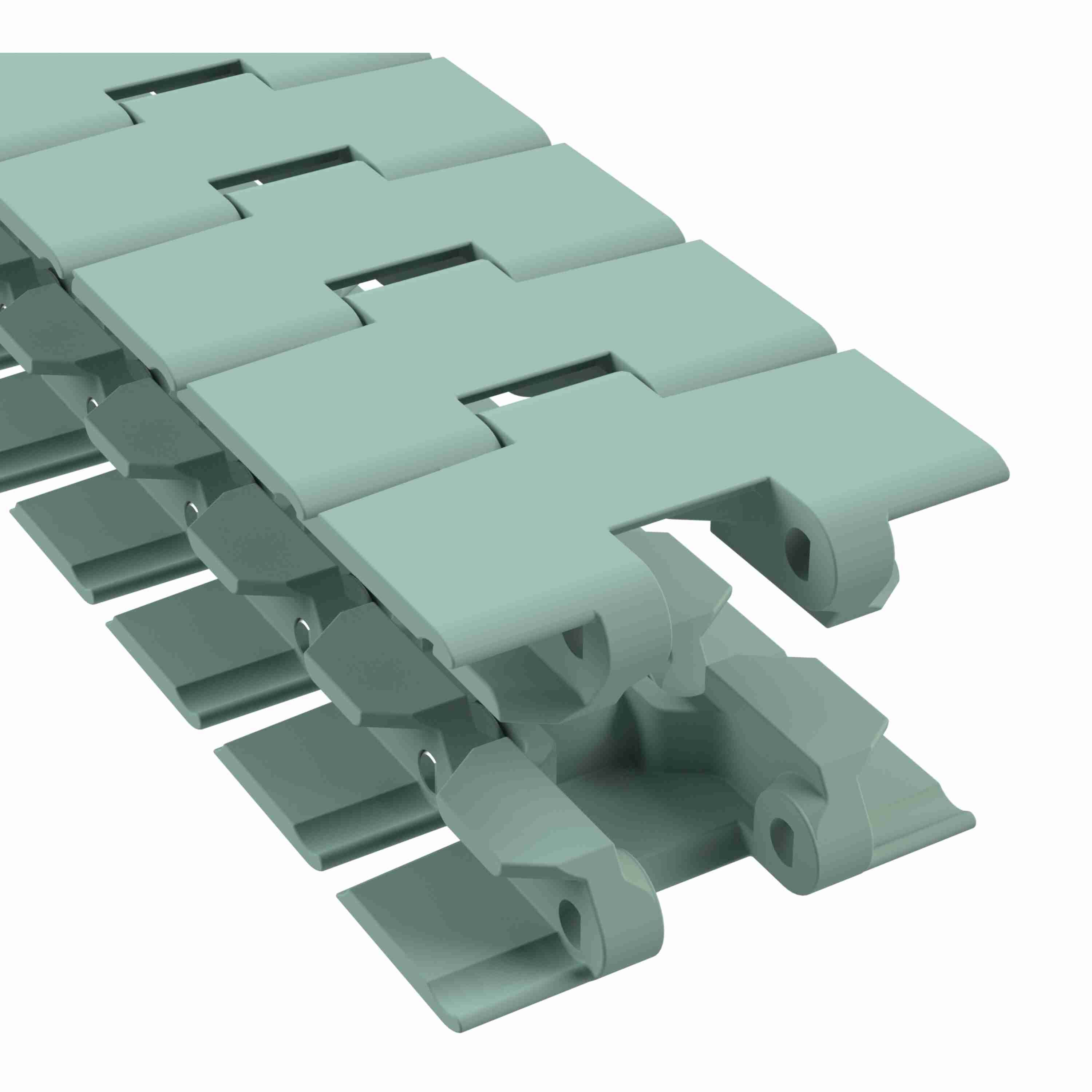

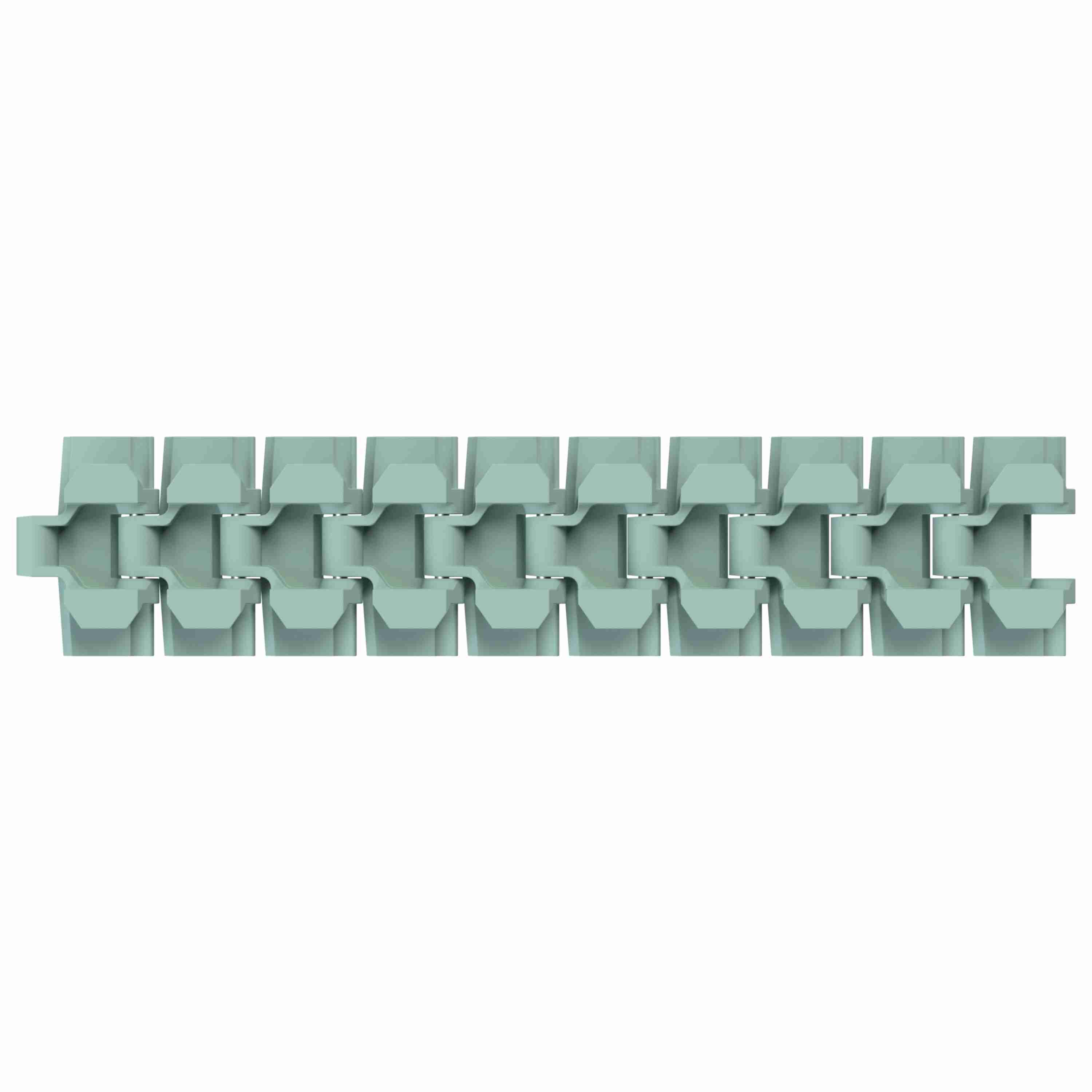

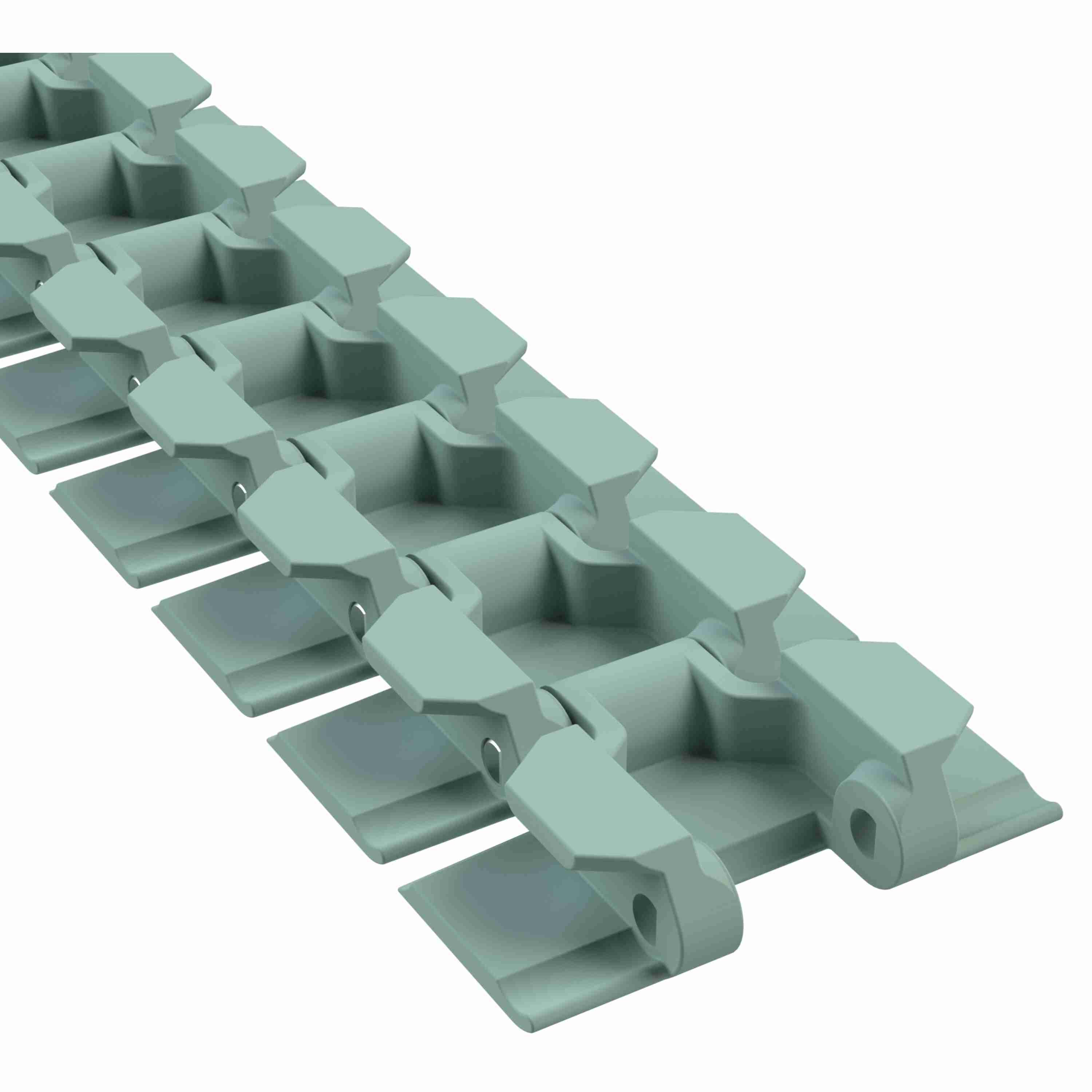

Rexnord 880TAB Side-flexing Solid Top, Material: Heat Stabilized (Green), Width: 3.25in, Pitch: 1.5in - 81447891
Part #:10146140
Catalog #:81447891
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Width (mm): | 82.6 mm | Chain Material Description: | Heat Stabilized (Green) |
| Curve Retention Type: | TAB | Chain Pitch (in): | 1.5 in |
| Chain Pitch (mm): | 38.1 mm | Chain Strength (lb): | 425 lb |
| Straight or Side-Flex: | Side-flexing | Flight Thickness (in): | 0.16 in |
| Surface Type: | Solid Top | Chain Number: | 880TAB |
| Chain Width Measurement System: | Imperial | Series: | TableTop 880 Series Side-flexing Chain |
| Chain Material: | HS | Chain Strength (N): | 1,887 N |
| Flight Thickness (mm): | 4 mm | Chain Width (in): | 3.25 in |
| Rod/Pin Material: | Stainless Steel |
General Specifications
| Weight: | 0.07 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
