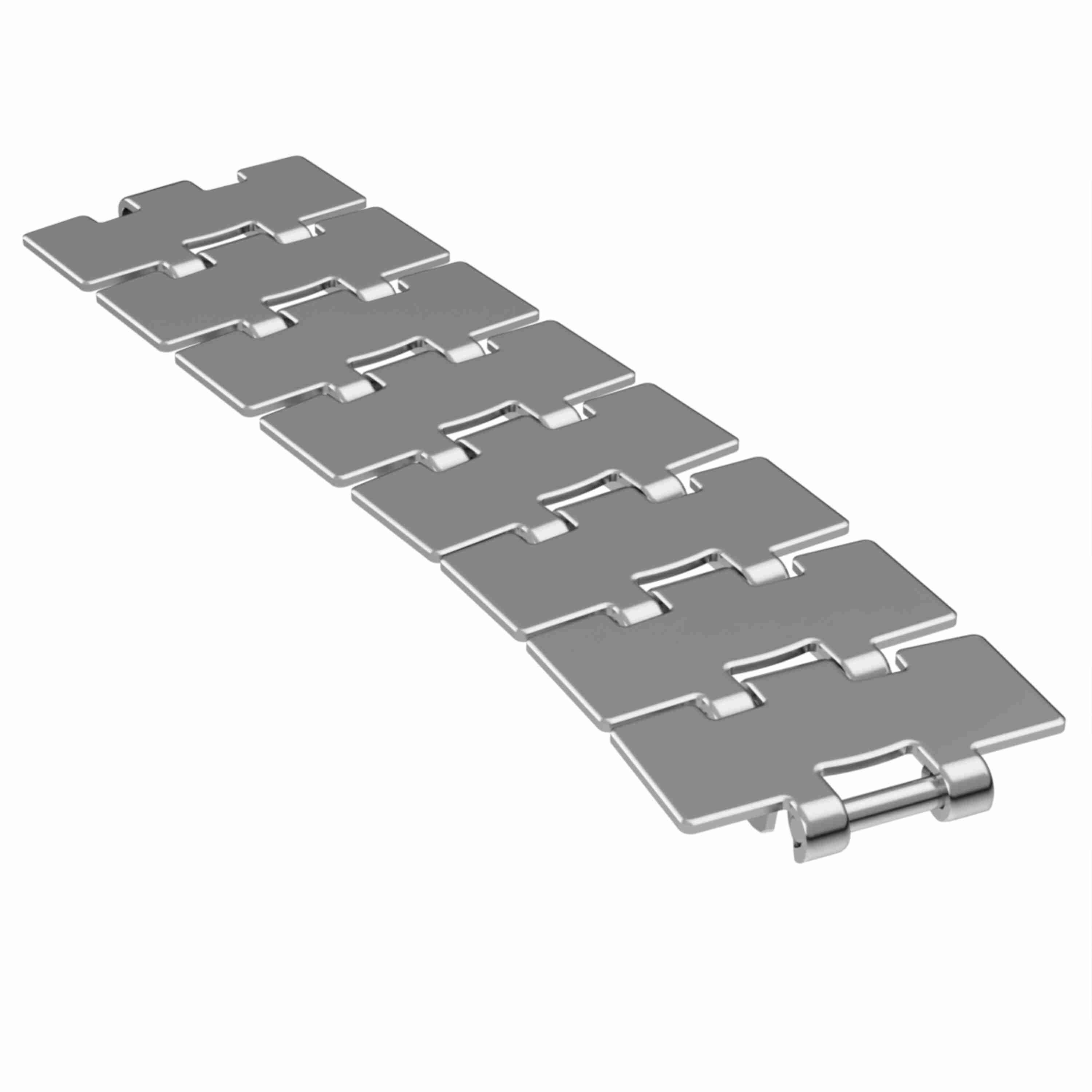

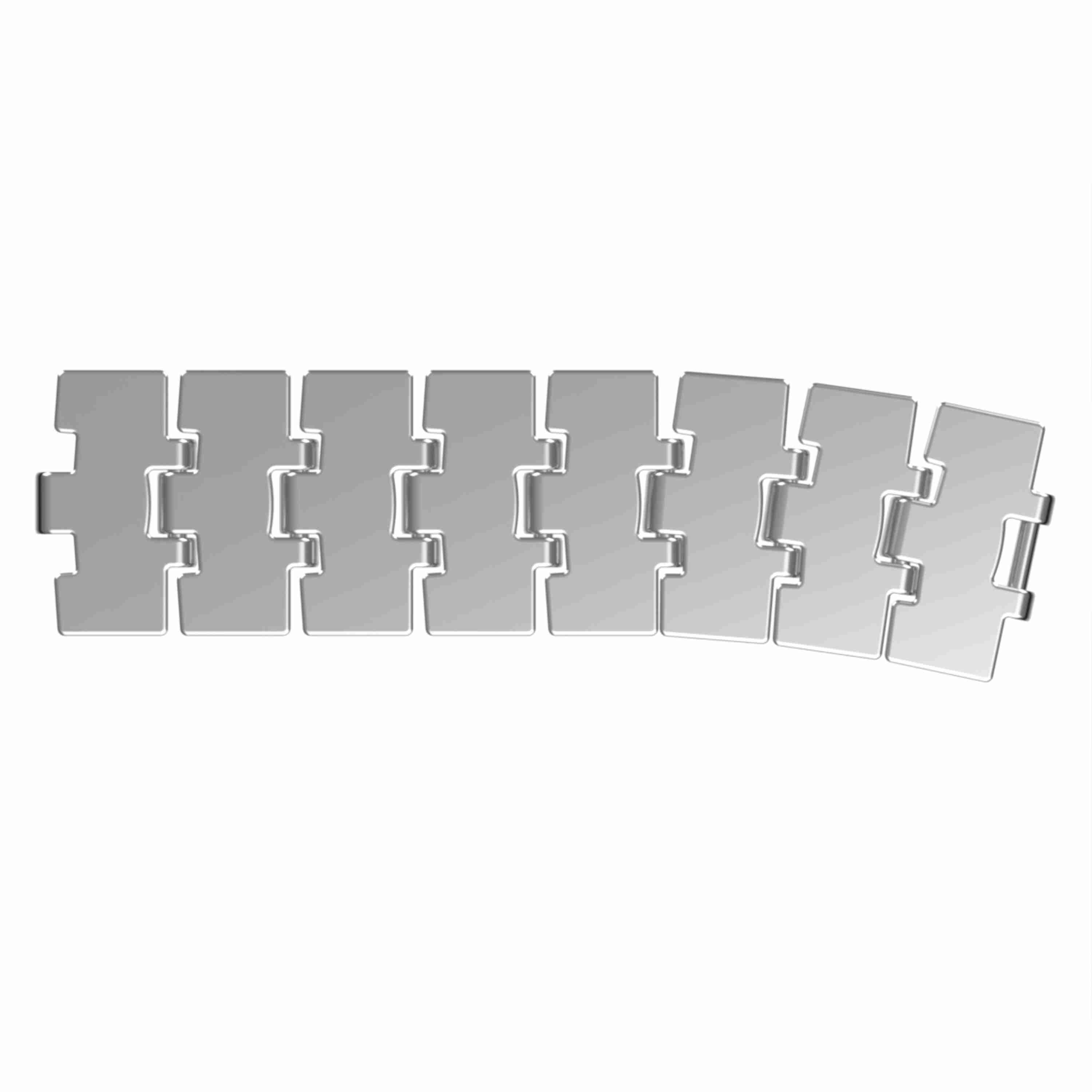

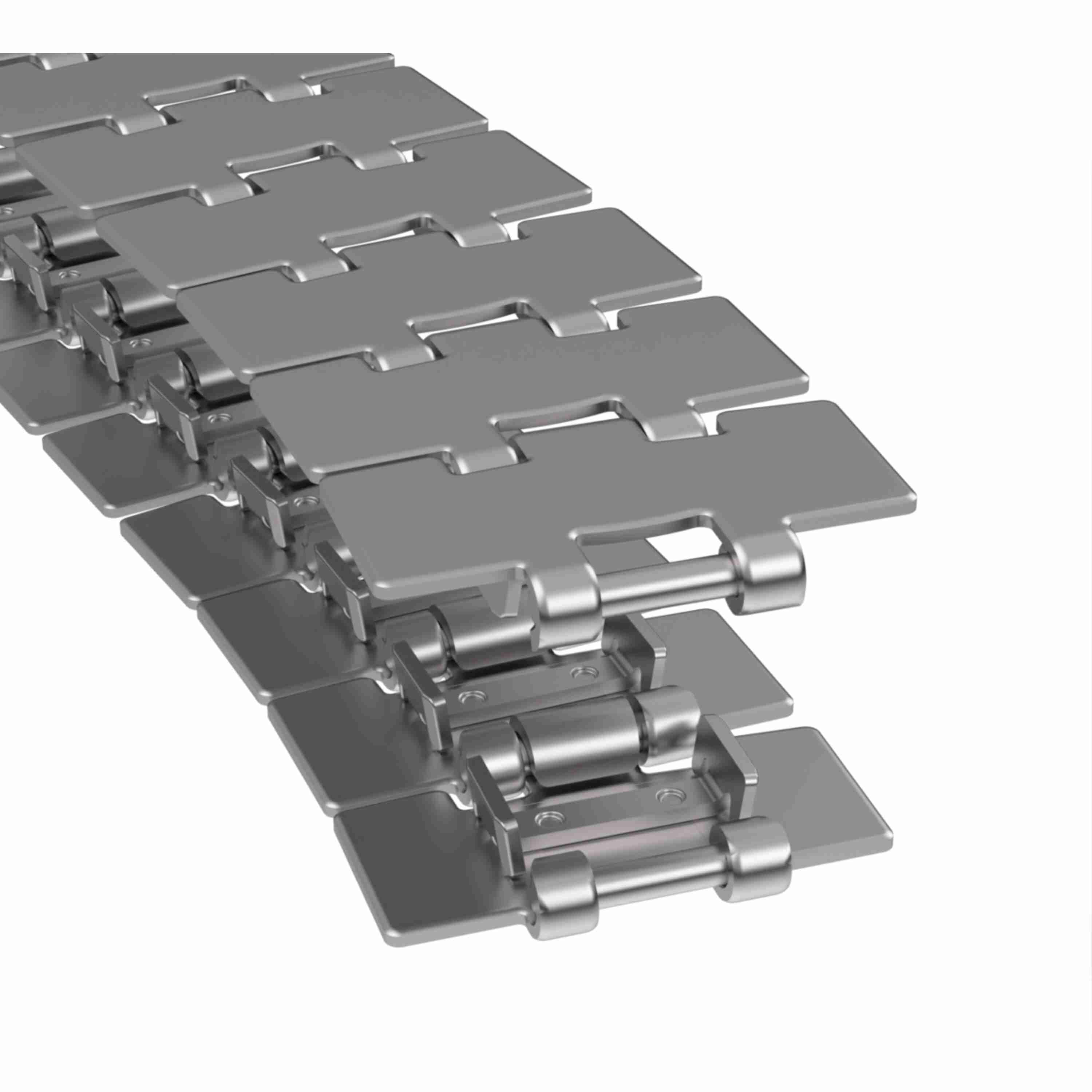

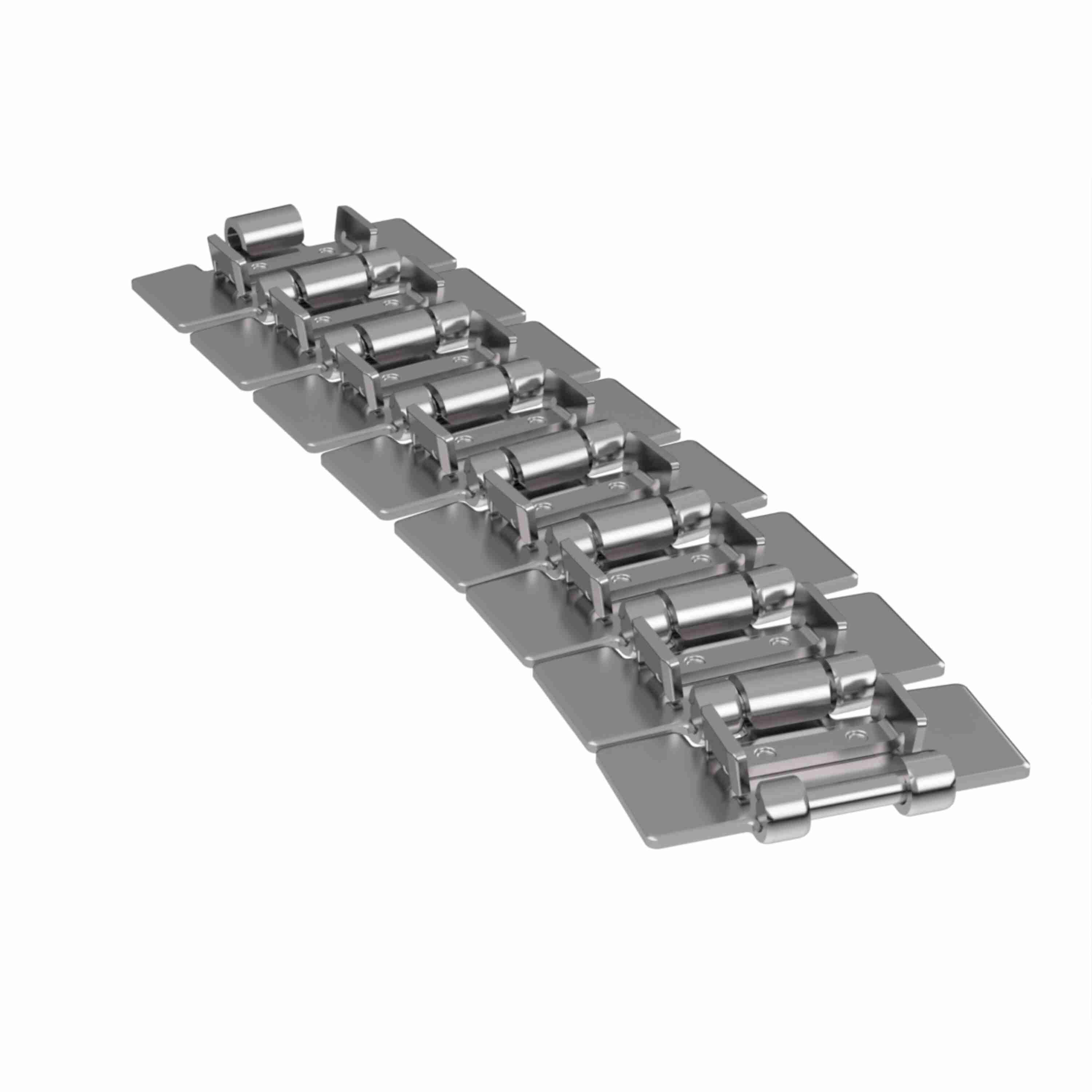

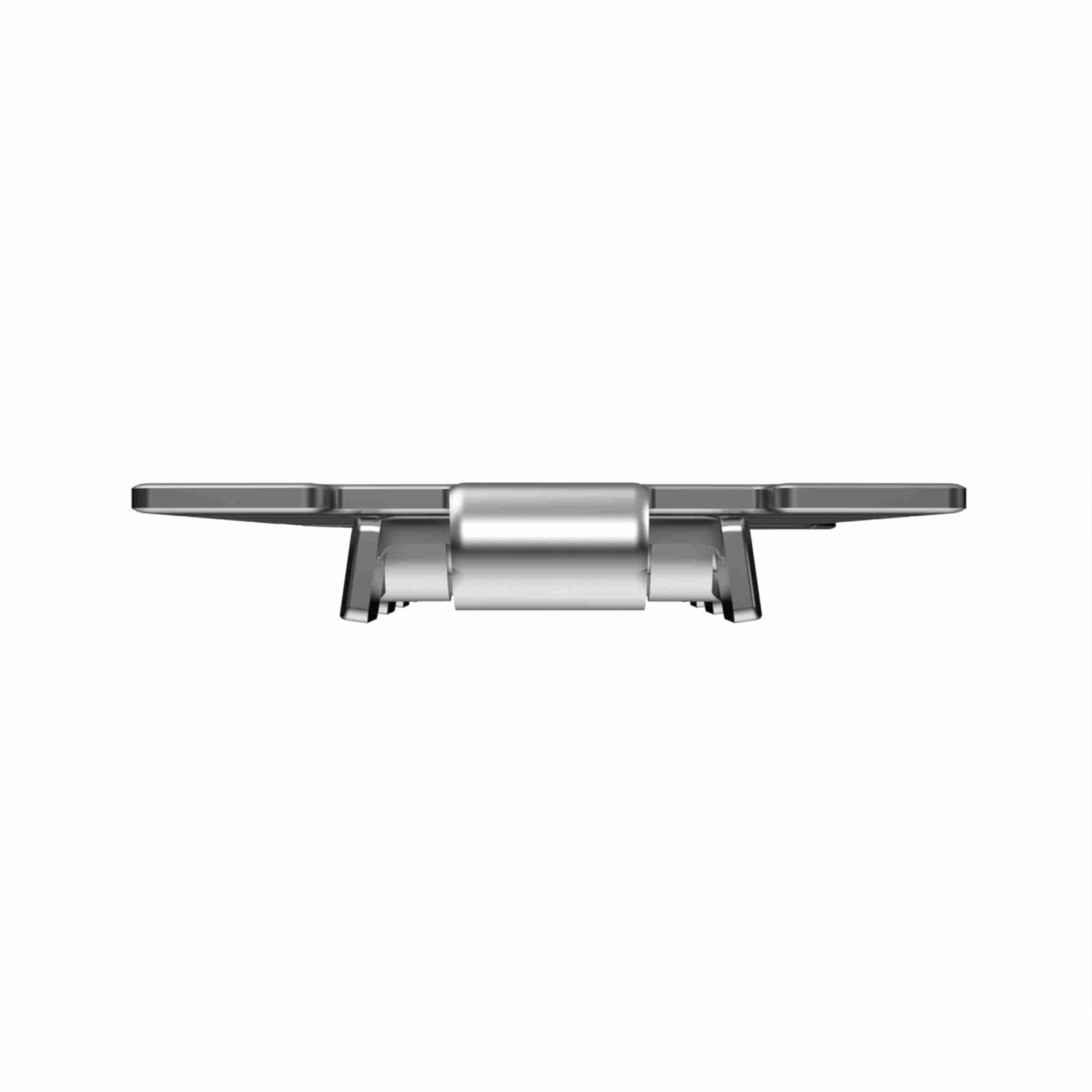

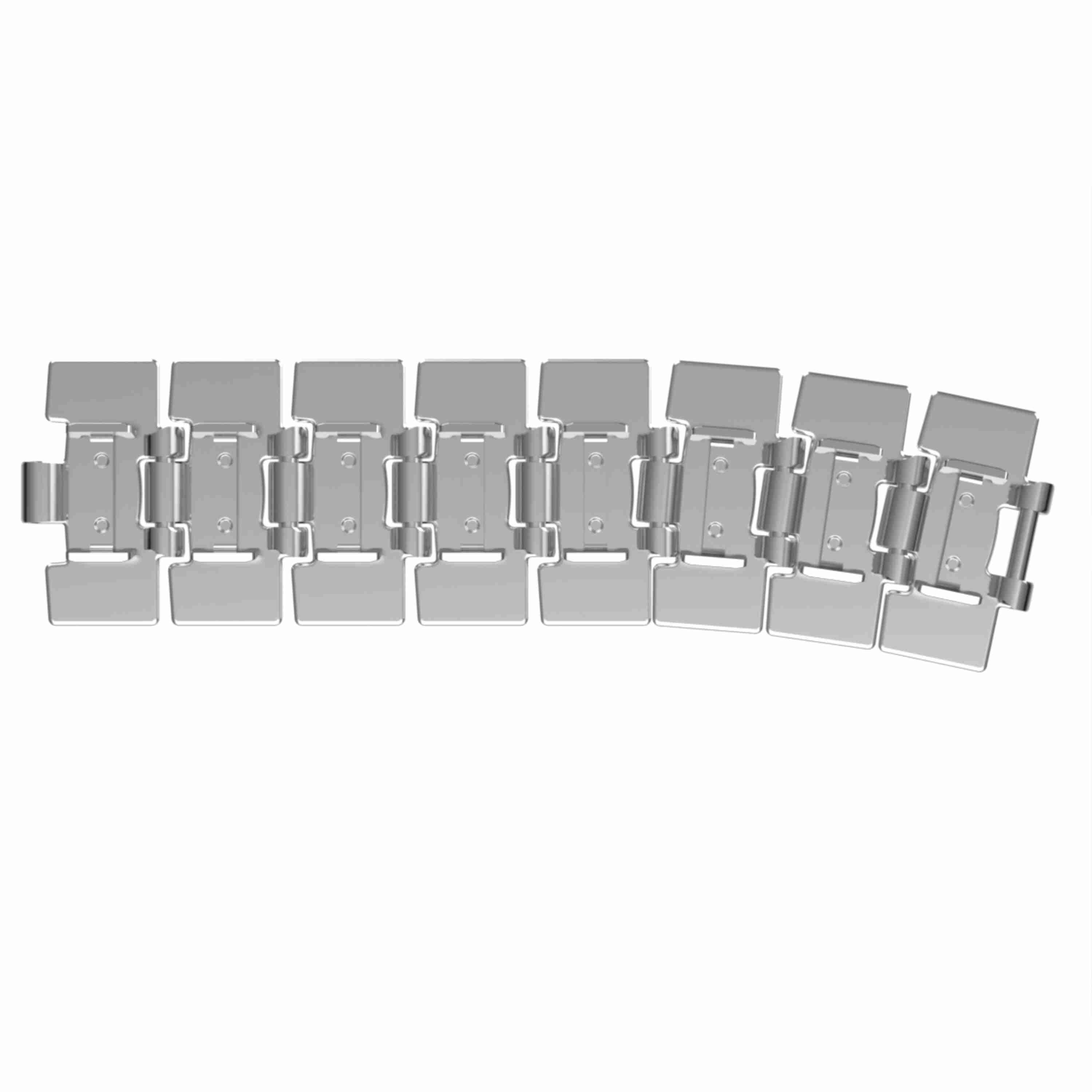

Rexnord 8811B Side-flexing Solid Top, Material: 0, Width: 3.25in, Pitch: 1.5in - 10375214
Part #:10375214
Catalog #:10375214
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Series: | TableTop 8811 Series Side-flexing Chain | Flight Thickness (mm): | 3.1 mm |
| Flight Thickness (in): | 0.12 in | Surface Type: | Solid Top |
| Chain Pitch (in): | 1.5 in | Chain Width (mm): | 82.6 mm |
| Straight or Side-Flex: | Side-flexing | Chain Strength (N): | 6,000 N |
| Chain Pitch (mm): | 38.1 mm | Chain Number: | 8811B |
| Curve Retention Type: | Bevel | Chain Strength (lb): | 1,351 lb |
| Chain Material: | SSC | Chain Width (in): | 3.25 in |
| Chain Width Measurement System: | Imperial | Rod/Pin Material: | Stainless Steel |
General Specifications
| Weight: | 0.11 KG | HTC: | 7315120080 |
| Country of Origin: | Netherlands |
