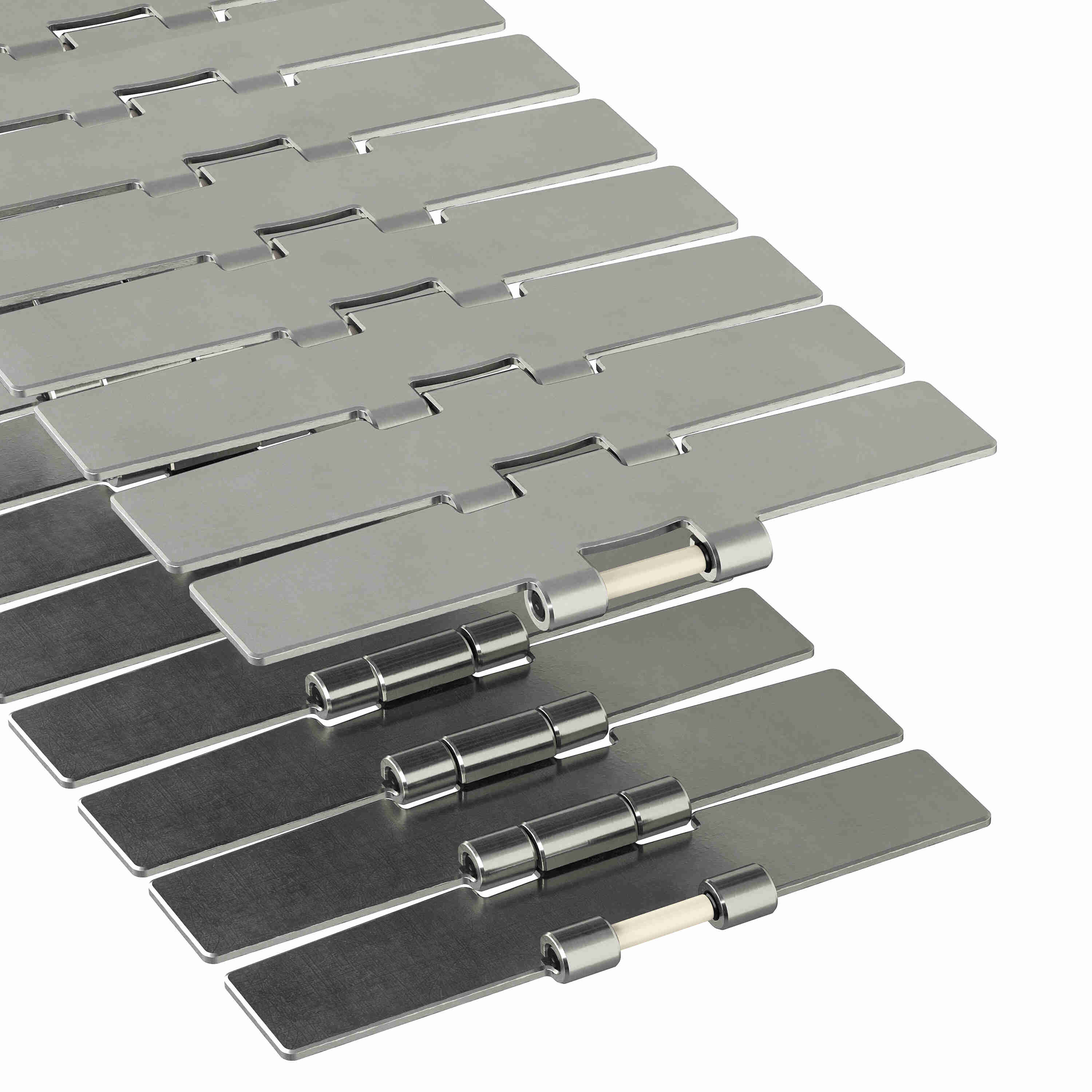

Rexnord 8811M DR Side-flexing Solid Top, Material: 0, Width: 3.25in, Pitch: 1.5in - 10829859
Part #:10829859
Catalog #:10829859
KEY FEATURES
- 8811 Series Run Dry 3.25" sideflexing Series Metal TableTop Dry Run chain has a specially formulated polymer pin that allows the chain to operate without lubrication. Metal Table Top chain is the latest chain to be added to our Run Dry portfolio allowing you to save water in crate conveying, and other applications with returnable glass.
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Pitch (in): | 1.5 in | Flight Thickness (in): | 0.12 in |
| Chain Width (in): | 3.25 in | Flight Thickness (mm): | 3.1 mm |
| Chain Strength (lb): | 1,351 lb | Curve Retention Type: | Magnetic |
| Chain Material: | SSC | Series: | TableTop 8811 Series Side-flexing Chain |
| Chain Width (mm): | 82.6 mm | Surface Type: | Solid Top |
| Chain Pitch (mm): | 38.1 mm | Rod/Pin Material: | DR60 Pin |
| Chain Width Measurement System: | Imperial | Straight or Side-Flex: | Side-flexing |
| Chain Number: | 8811M DR | Chain Strength (N): | 6,000 N |
General Specifications
| Weight: | 0.09 KG | HTC: | 7315120080 |
| Country of Origin: | Netherlands |
