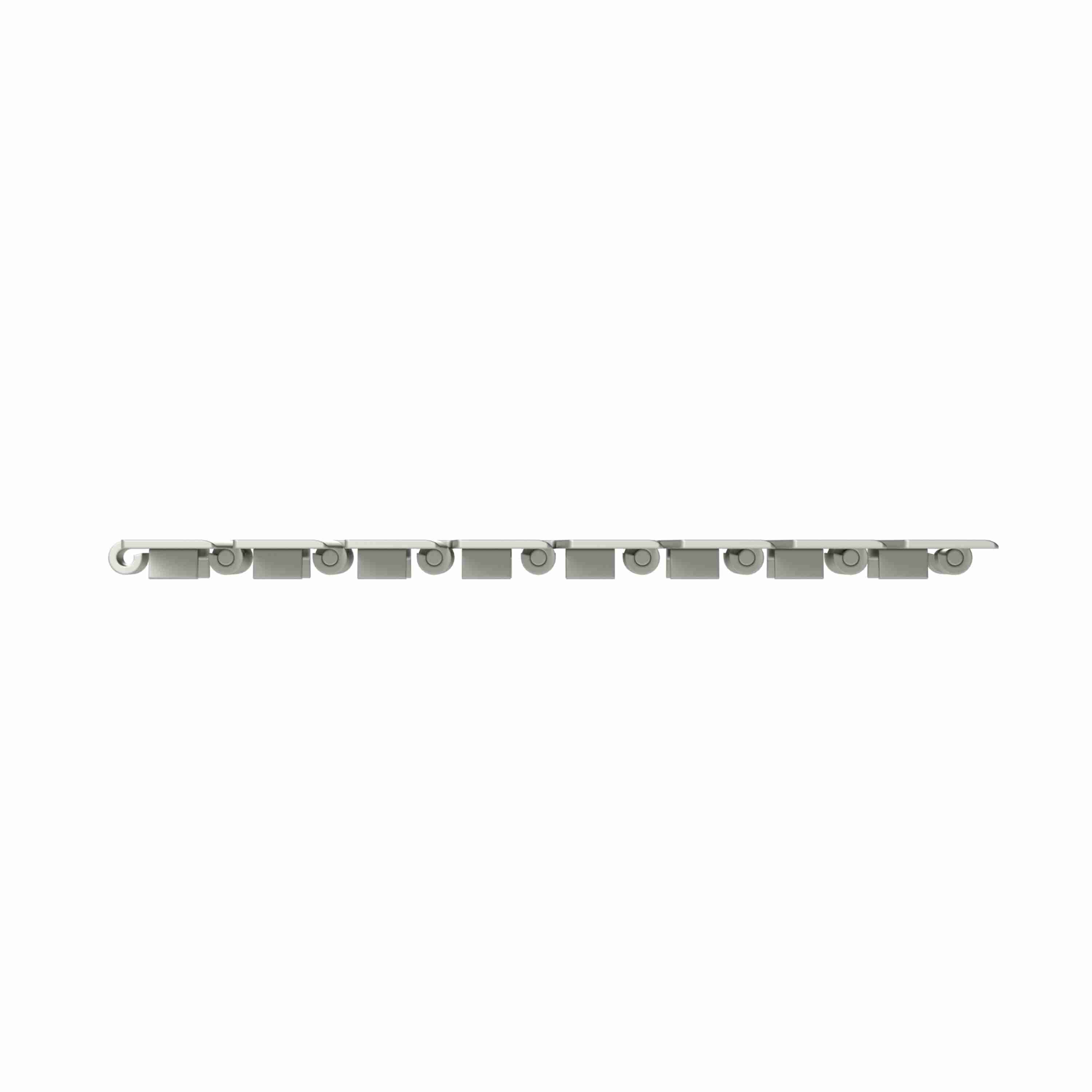

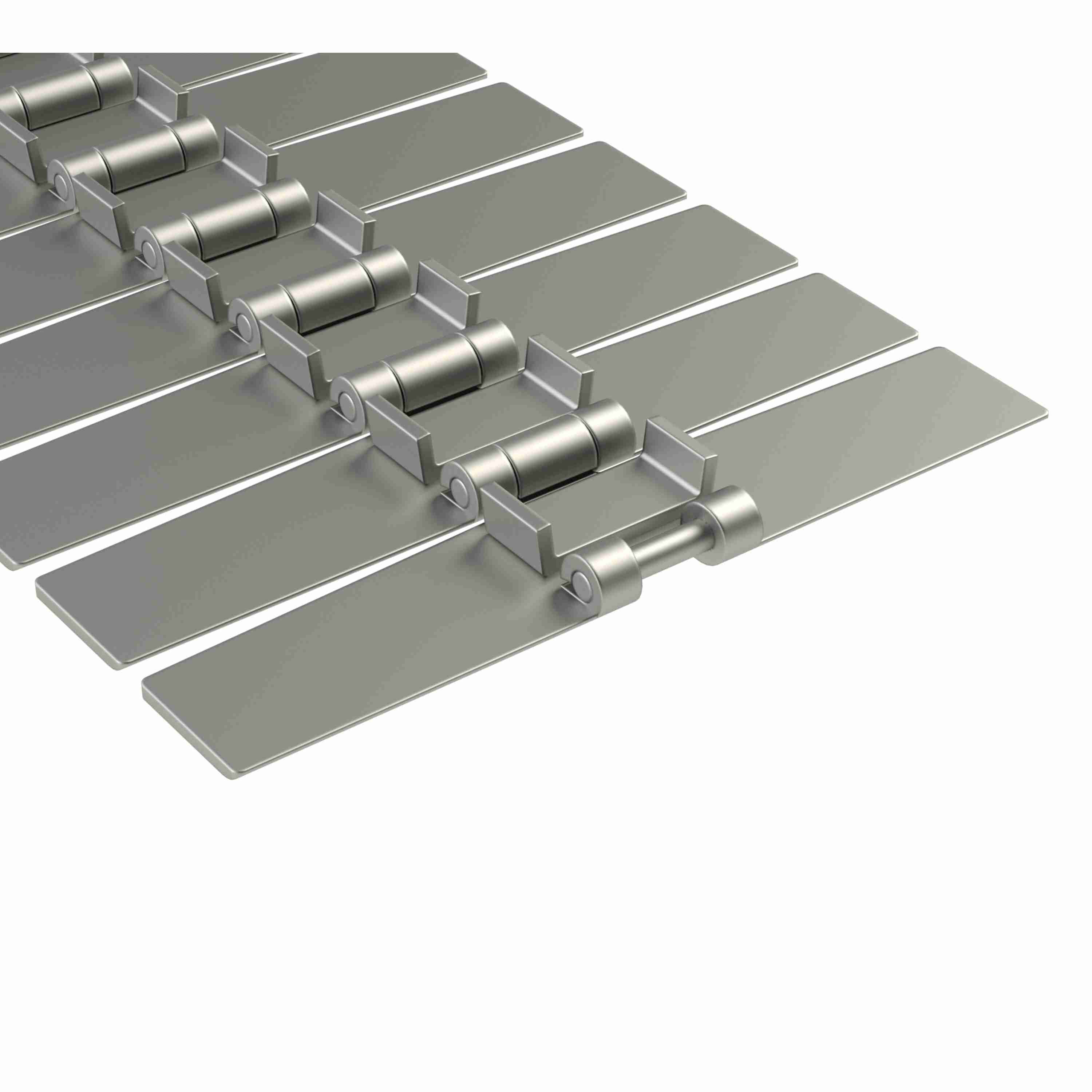

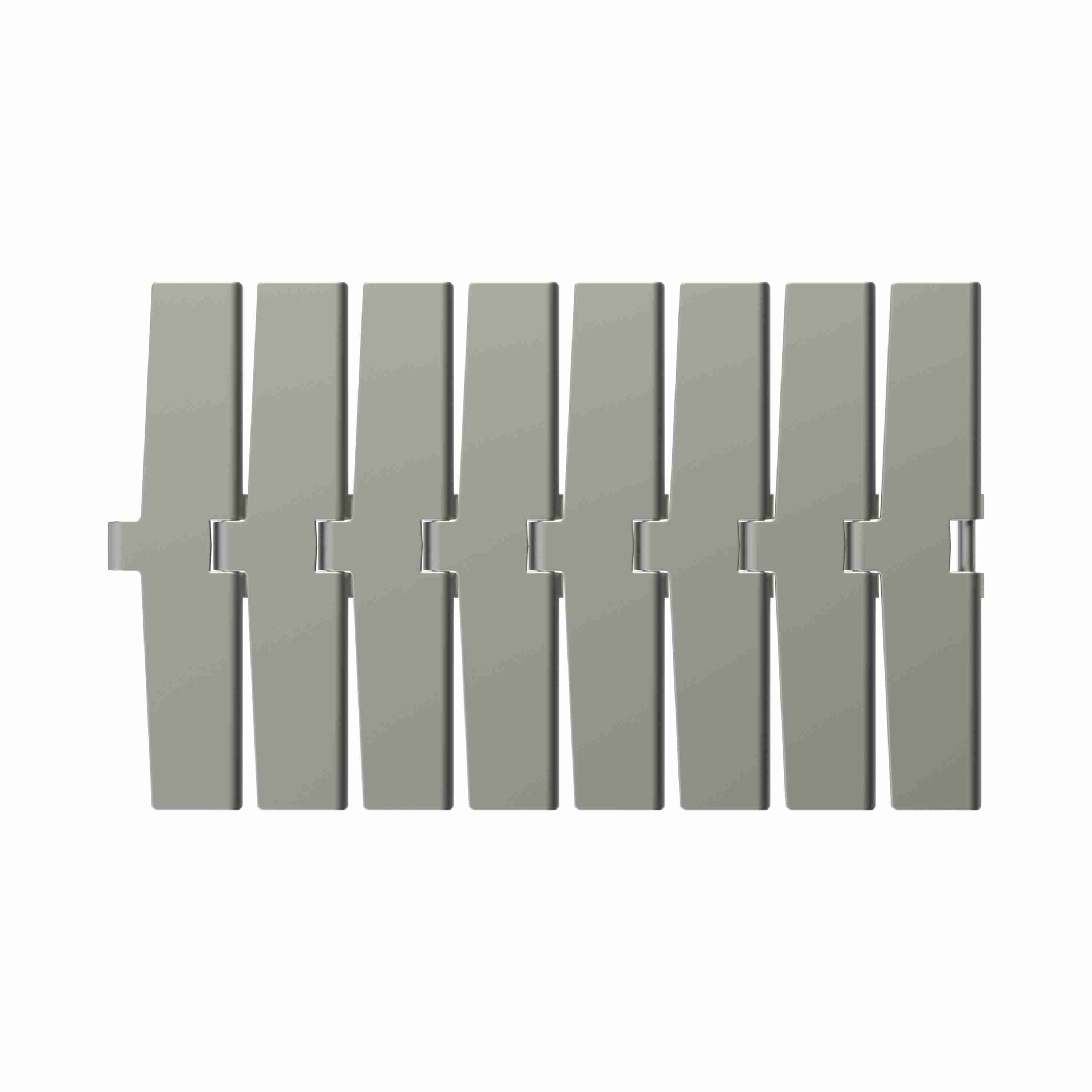

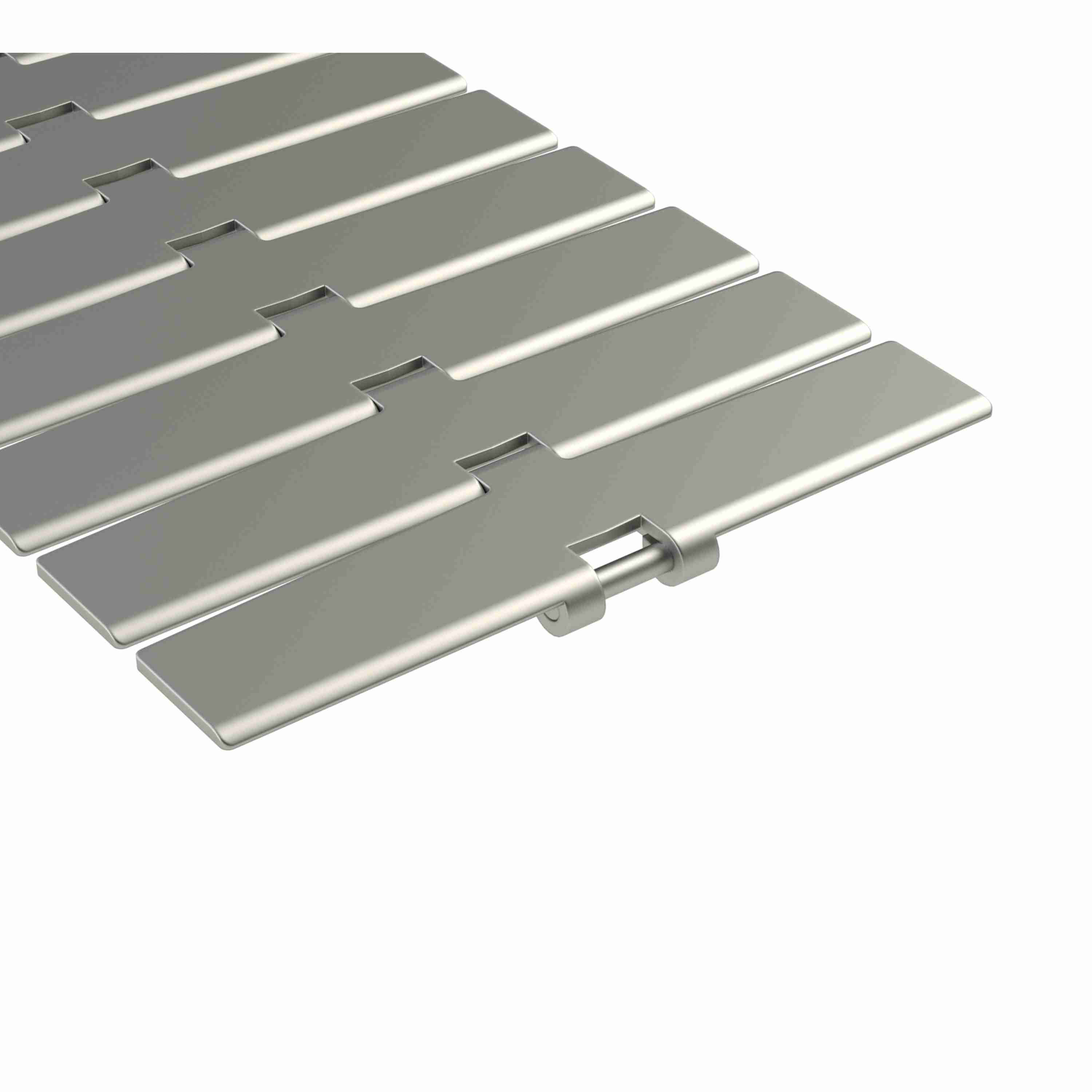

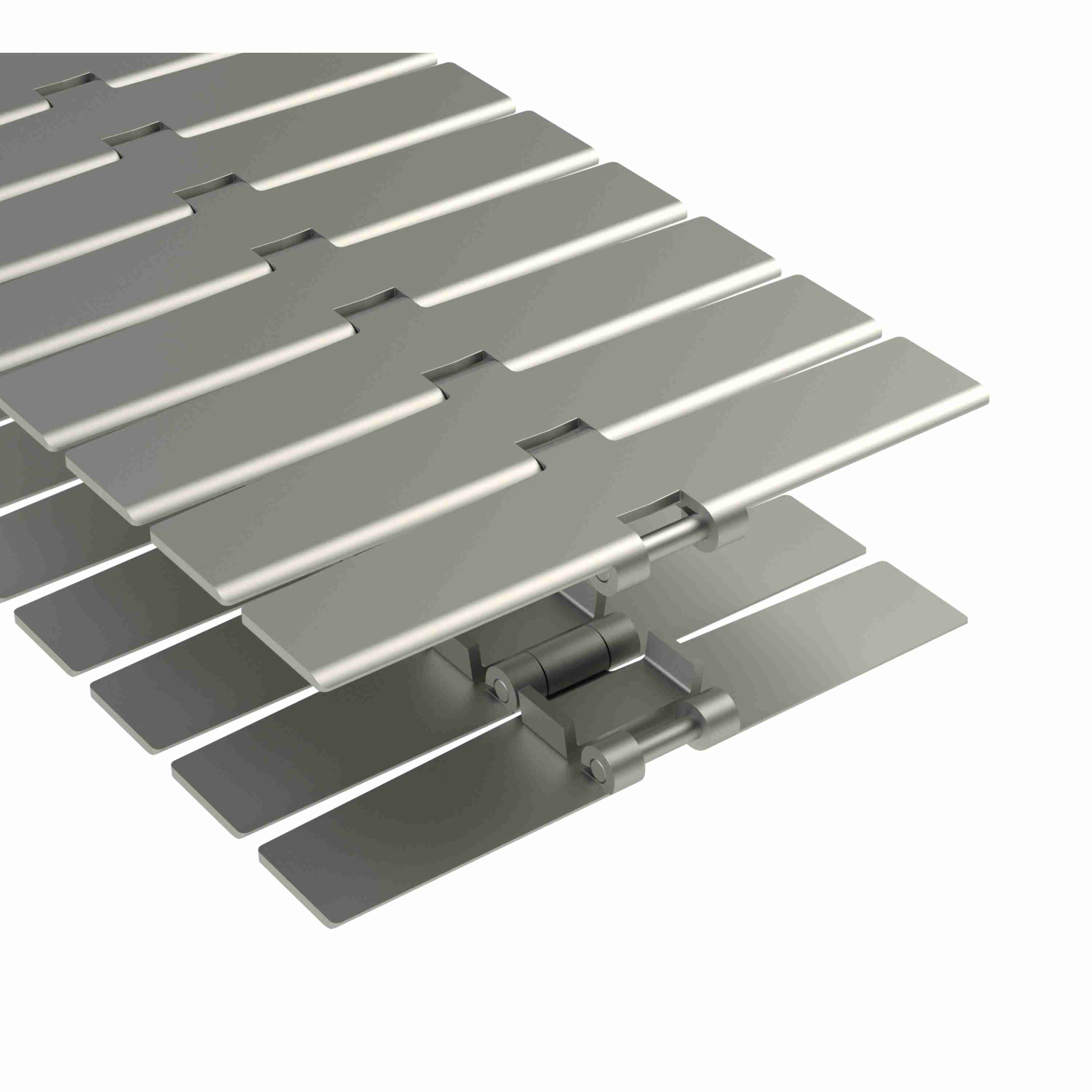

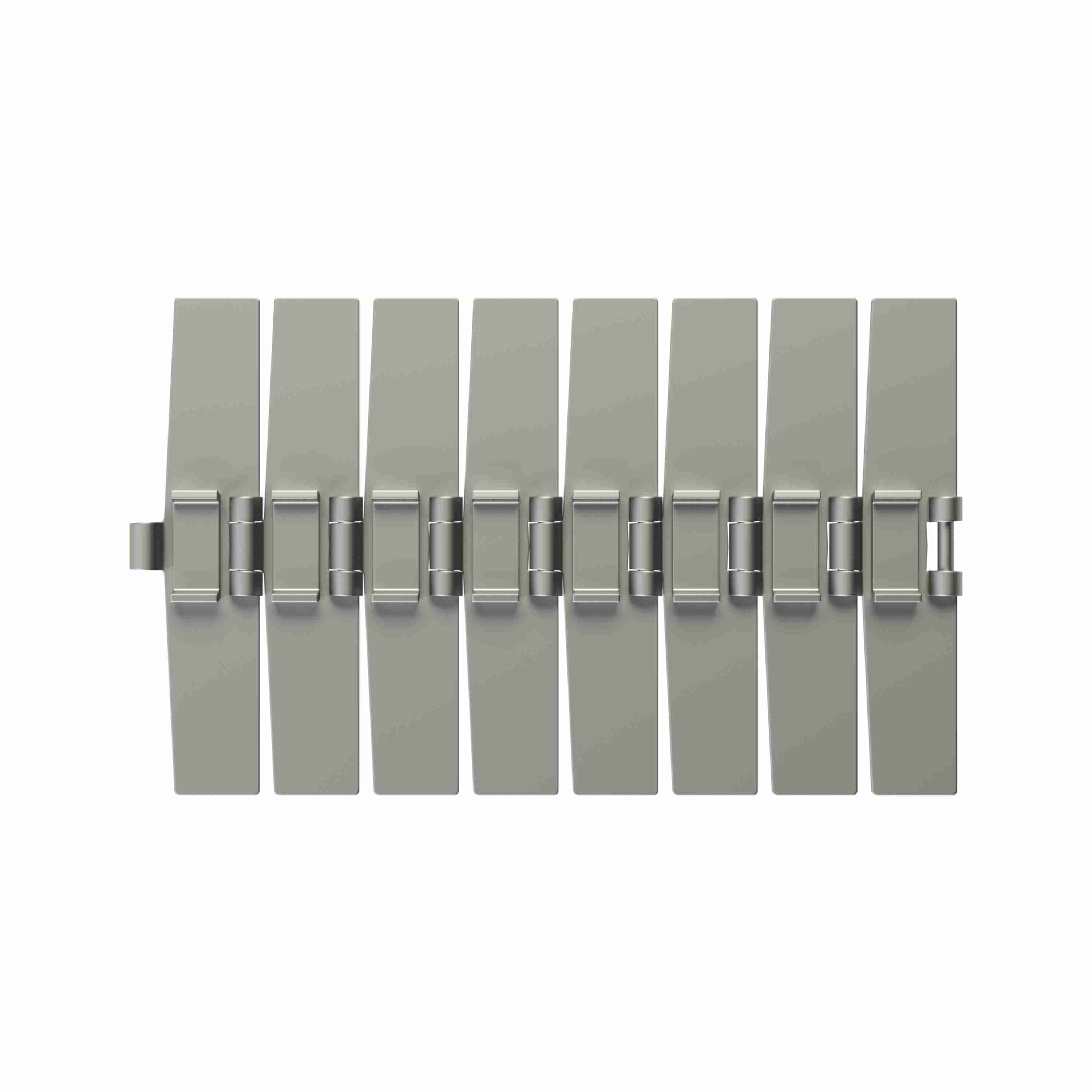

Rexnord 881B Side-flexing Solid Top, Material: Carbon Steel, Width: 7.5in, Pitch: 1.5in - 765.92.72
Part #:10139428
Catalog #:765.92.72
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Number: | 881B | Straight or Side-Flex: | Side-flexing |
| Chain Strength (N): | 2,775 N | Flight Thickness (in): | 0.12 in |
| Series: | TableTop 881 Series Side-flexing Chain | Chain Material: | S |
| Chain Material Description: | Carbon Steel | Chain Pitch (in): | 1.5 in |
| Chain Width (mm): | 190.5 mm | Rod/Pin Material: | Carbon Steel |
| Chain Width Measurement System: | Imperial | Chain Pitch (mm): | 38.1 mm |
| Chain Width (in): | 7.5 in | Surface Type: | Solid Top |
| Curve Retention Type: | Bevel | Flight Thickness (mm): | 3.1 mm |
| Chain Strength (lb): | 625 lb |
General Specifications
| Weight: | 0.44 LB | HTC: | 7315120080 |
| Country of Origin: | Netherlands |
