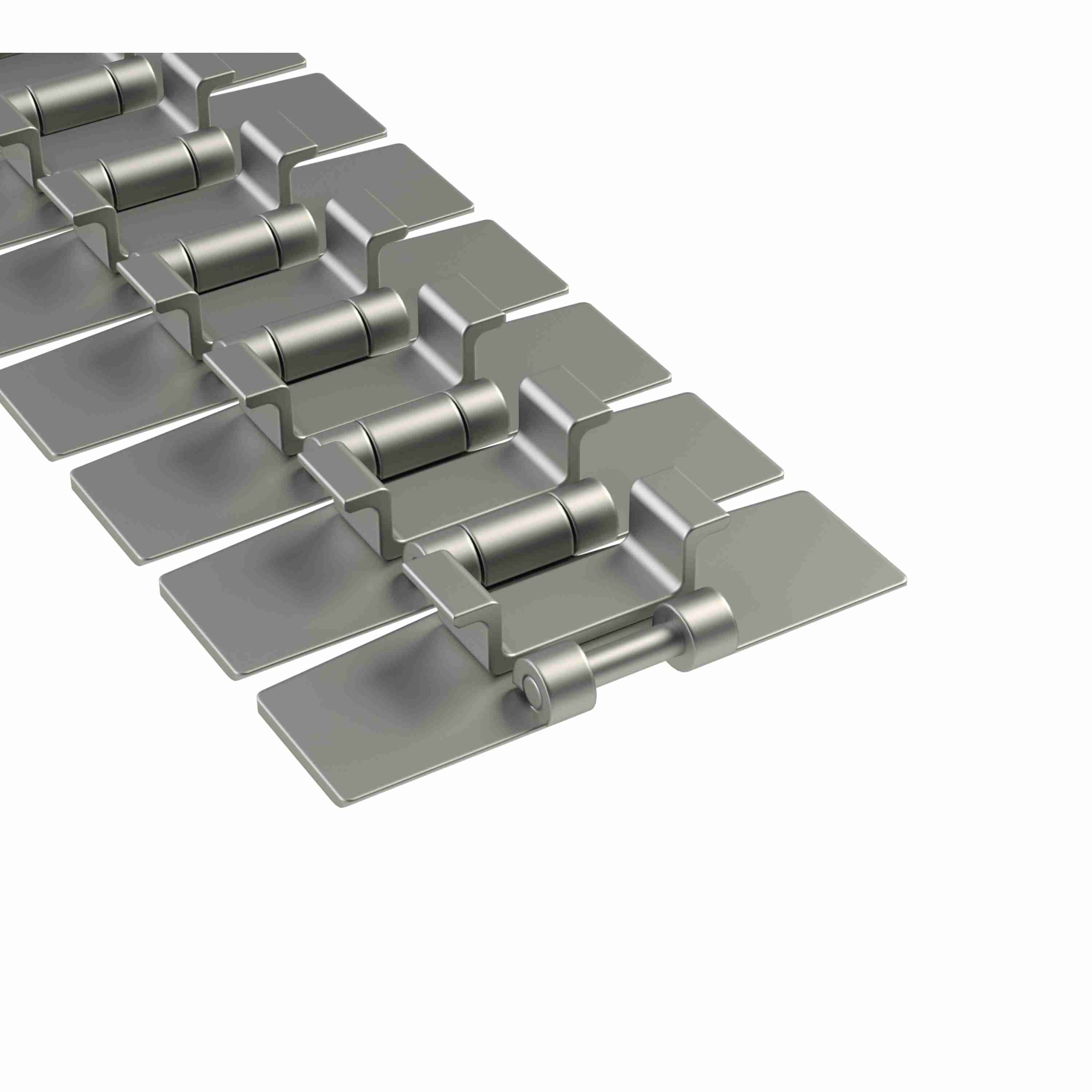

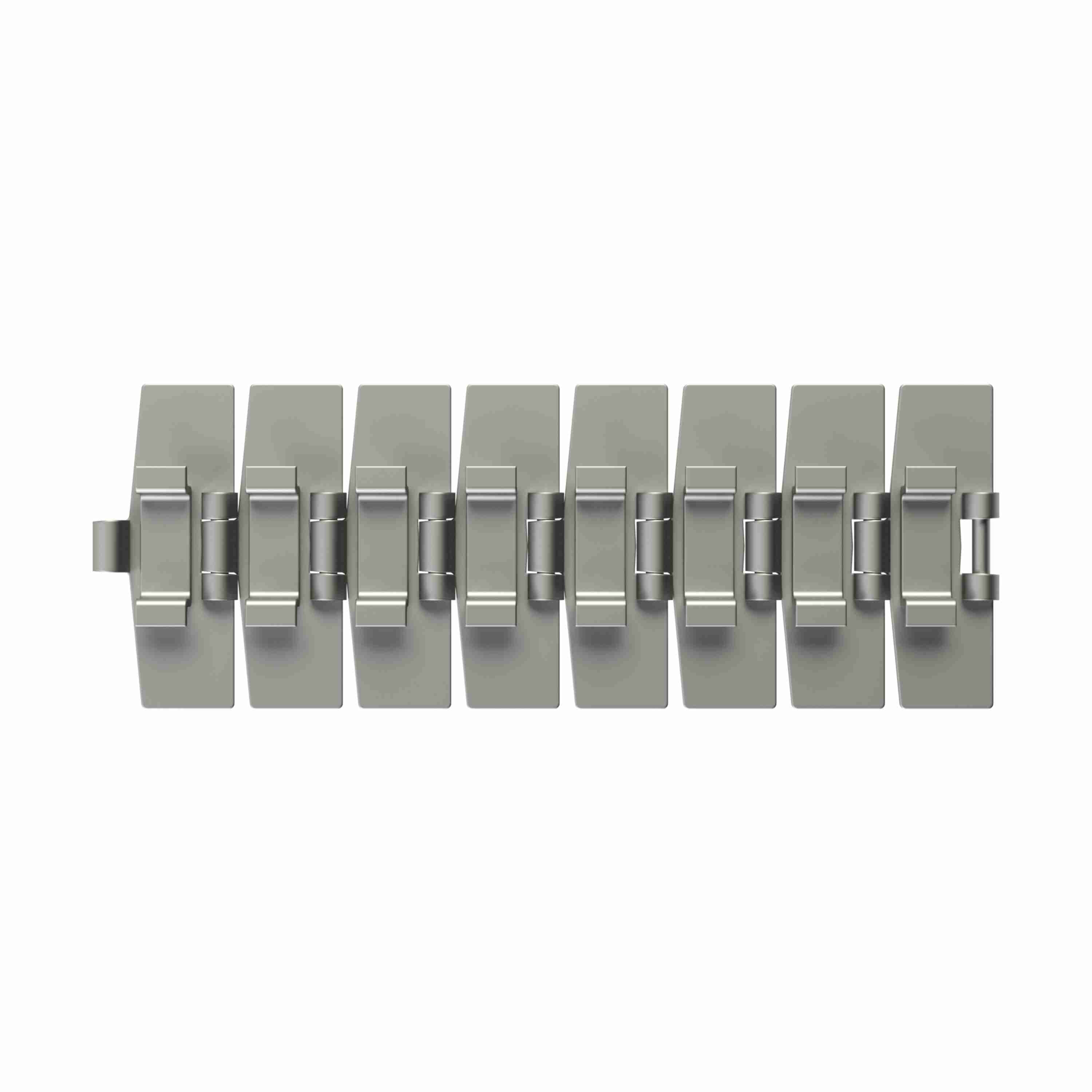

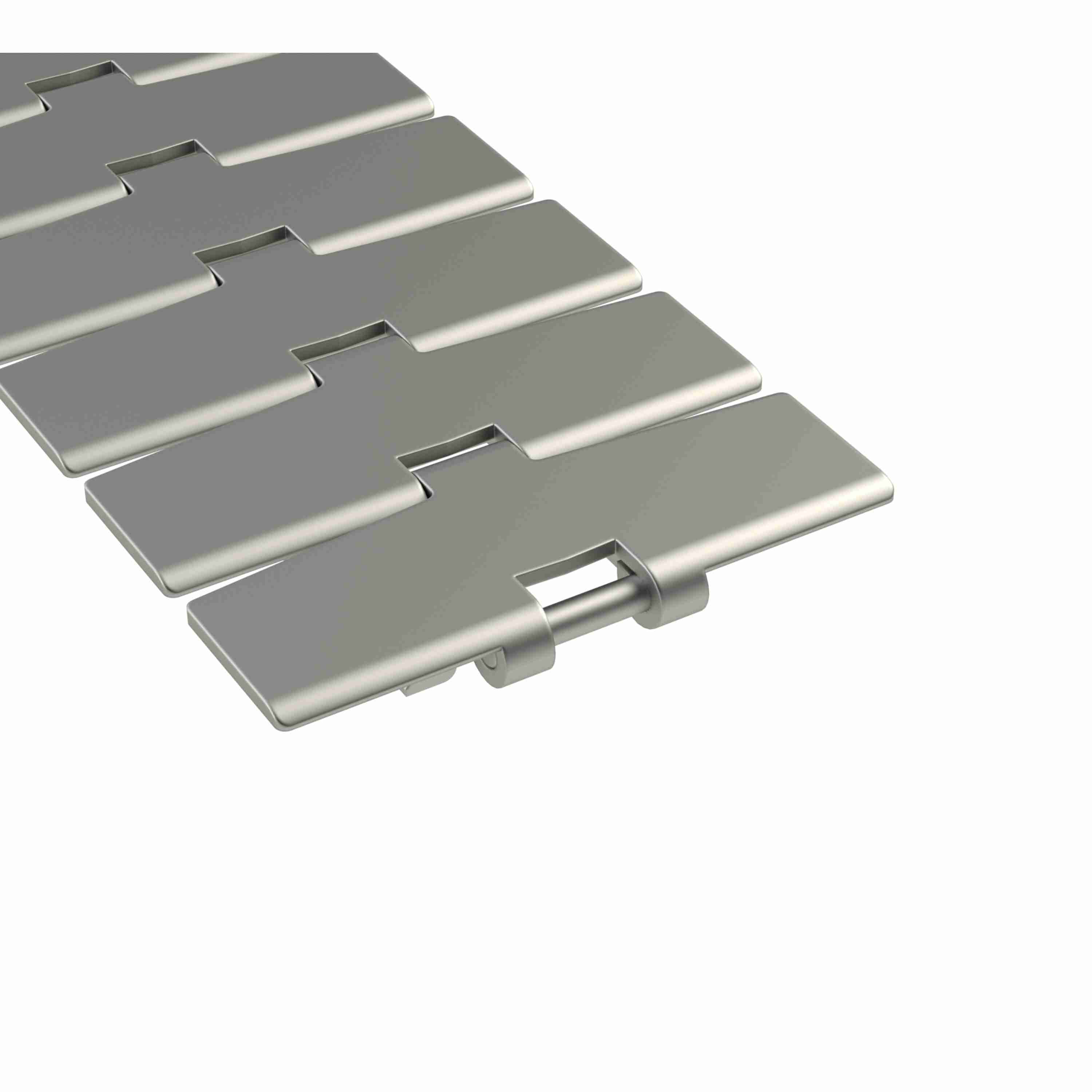

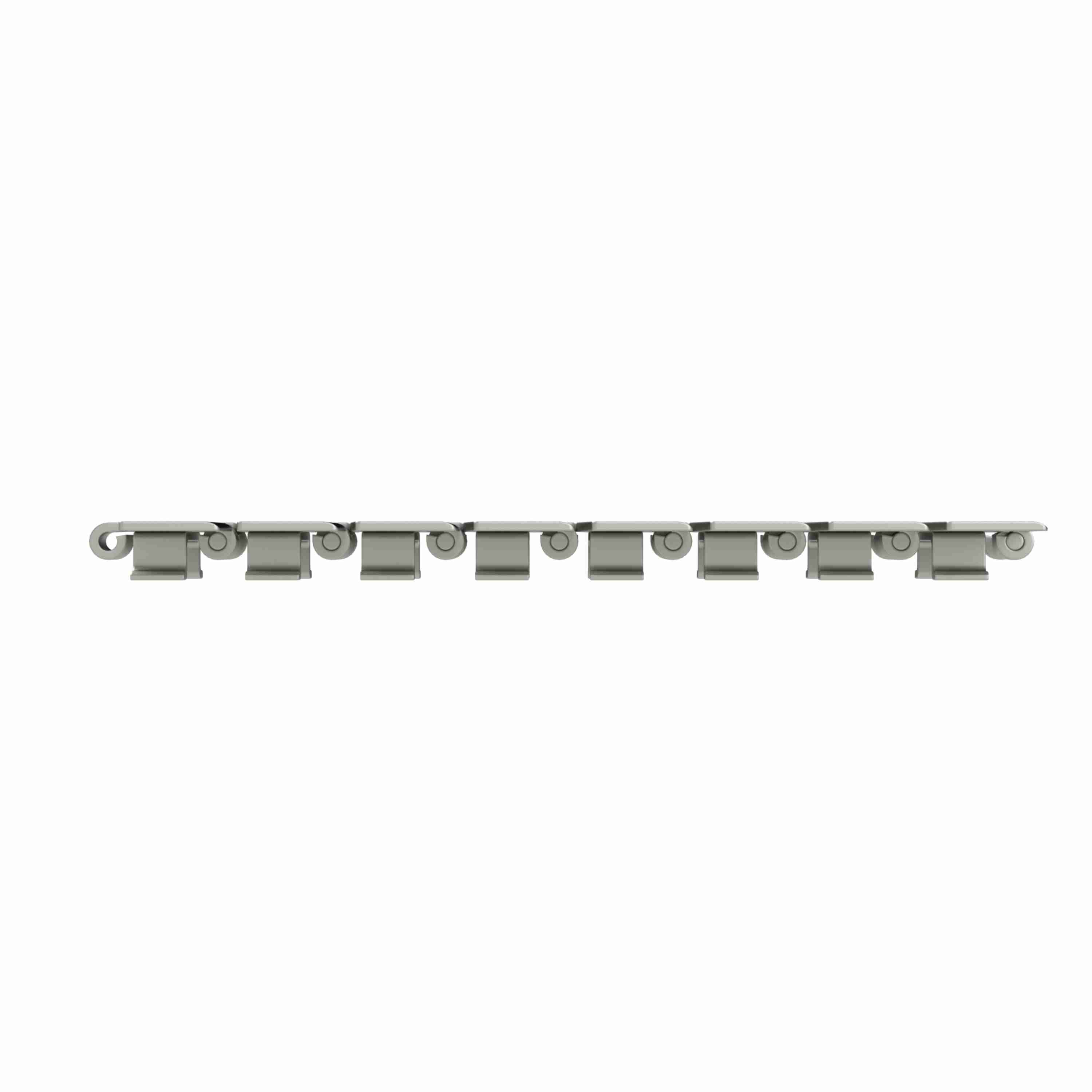

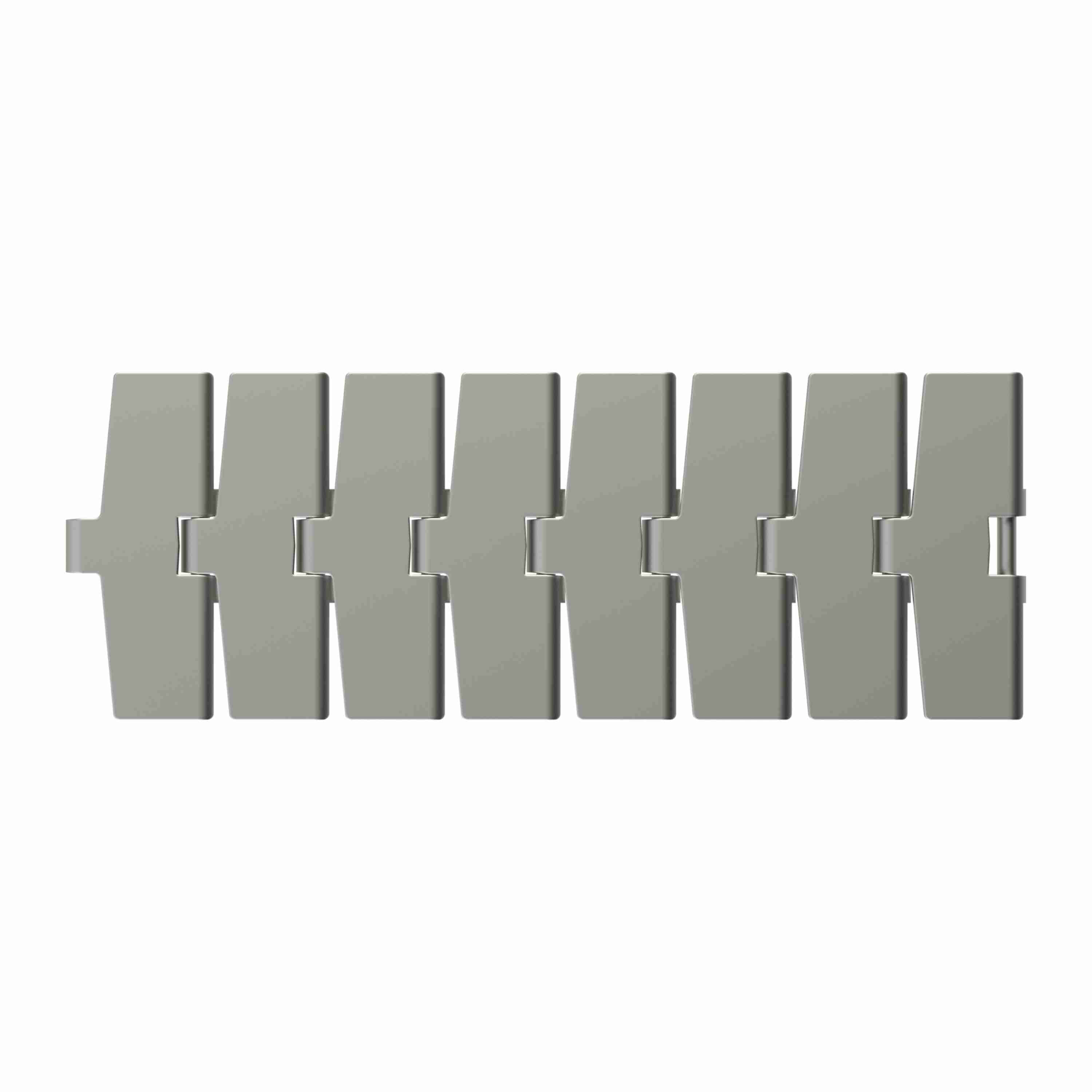

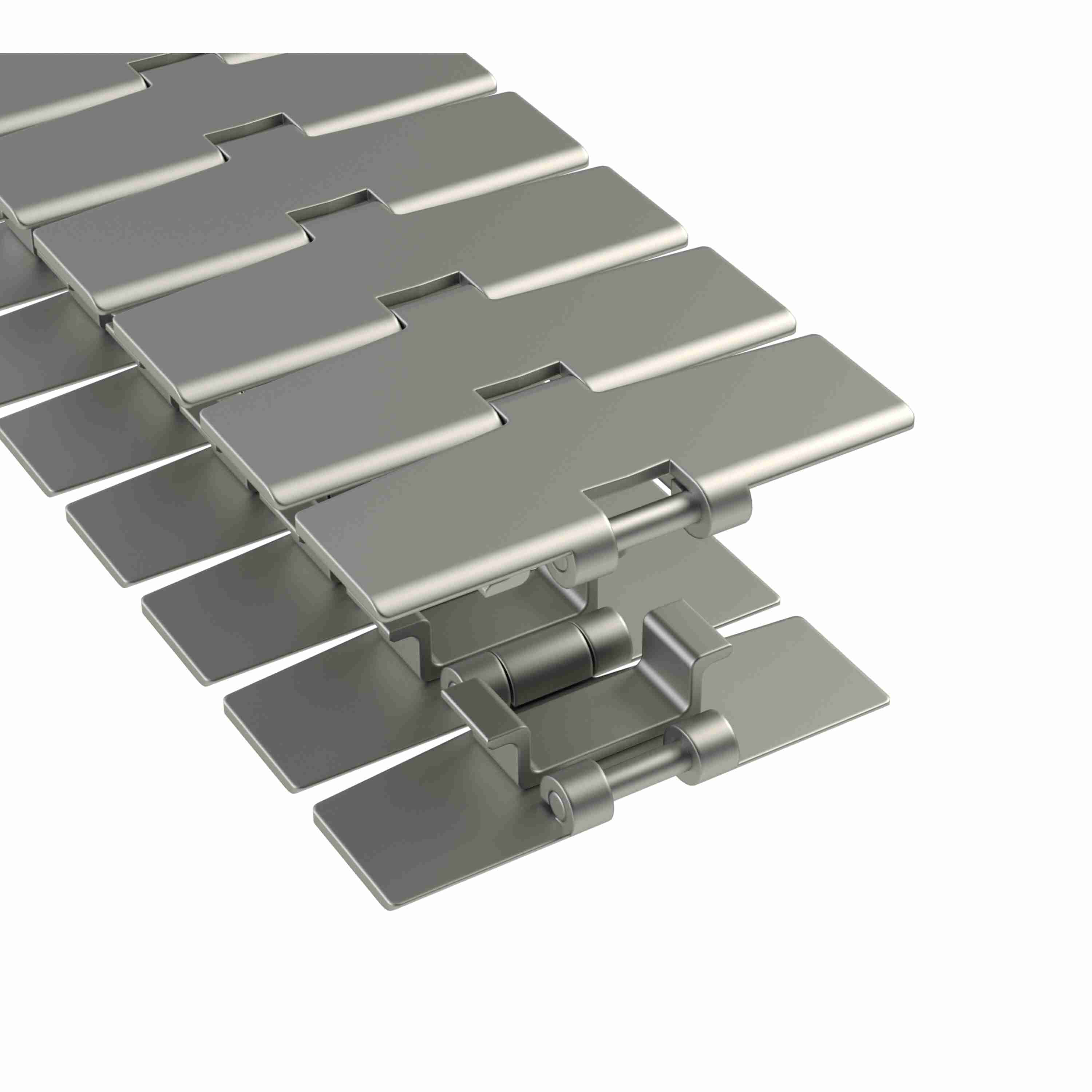

Rexnord 881TAB Side-flexing Solid Top, Material: Carbon Steel, Width: 4.5in, Pitch: 1.5in - 765.91.42
Part #:10139424
Catalog #:765.91.42
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Strength (lb): | 625 lb | Straight or Side-Flex: | Side-flexing |
| Chain Number: | 881TAB | Chain Width (in): | 4.5 in |
| Surface Type: | Solid Top | Flight Thickness (in): | 0.12 in |
| Curve Retention Type: | TAB | Chain Width (mm): | 114.3 mm |
| Chain Width Measurement System: | Imperial | Chain Pitch (mm): | 38.1 mm |
| Flight Thickness (mm): | 3.1 mm | Chain Material Description: | Carbon Steel |
| Chain Strength (N): | 2,775 N | Chain Pitch (in): | 1.5 in |
| Rod/Pin Material: | Carbon Steel | Chain Material: | S |
| Series: | TableTop 881 Series Side-flexing Chain |
General Specifications
| Weight: | 0.31 LB | HTC: | 7315120080 |
| Country of Origin: | Netherlands |
