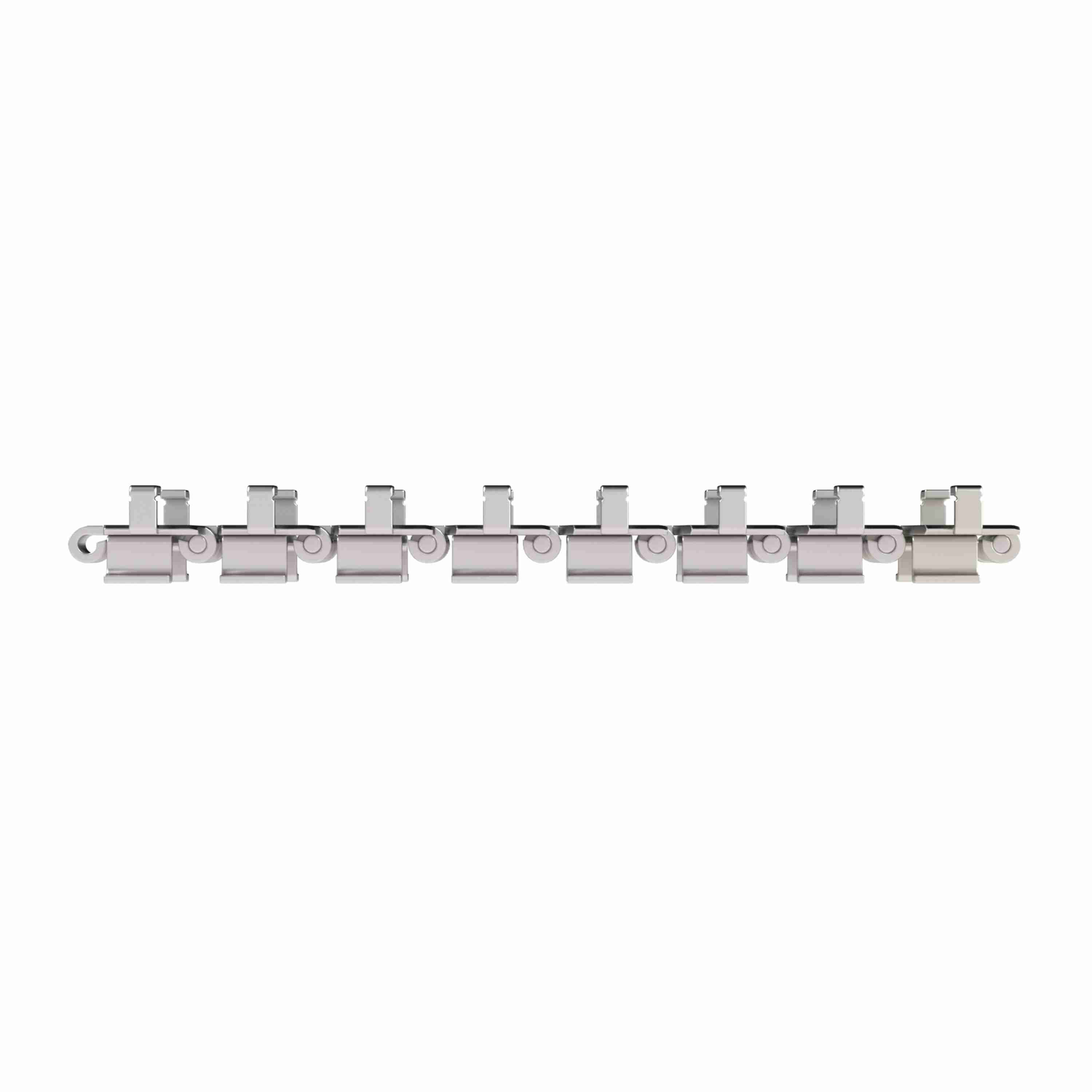

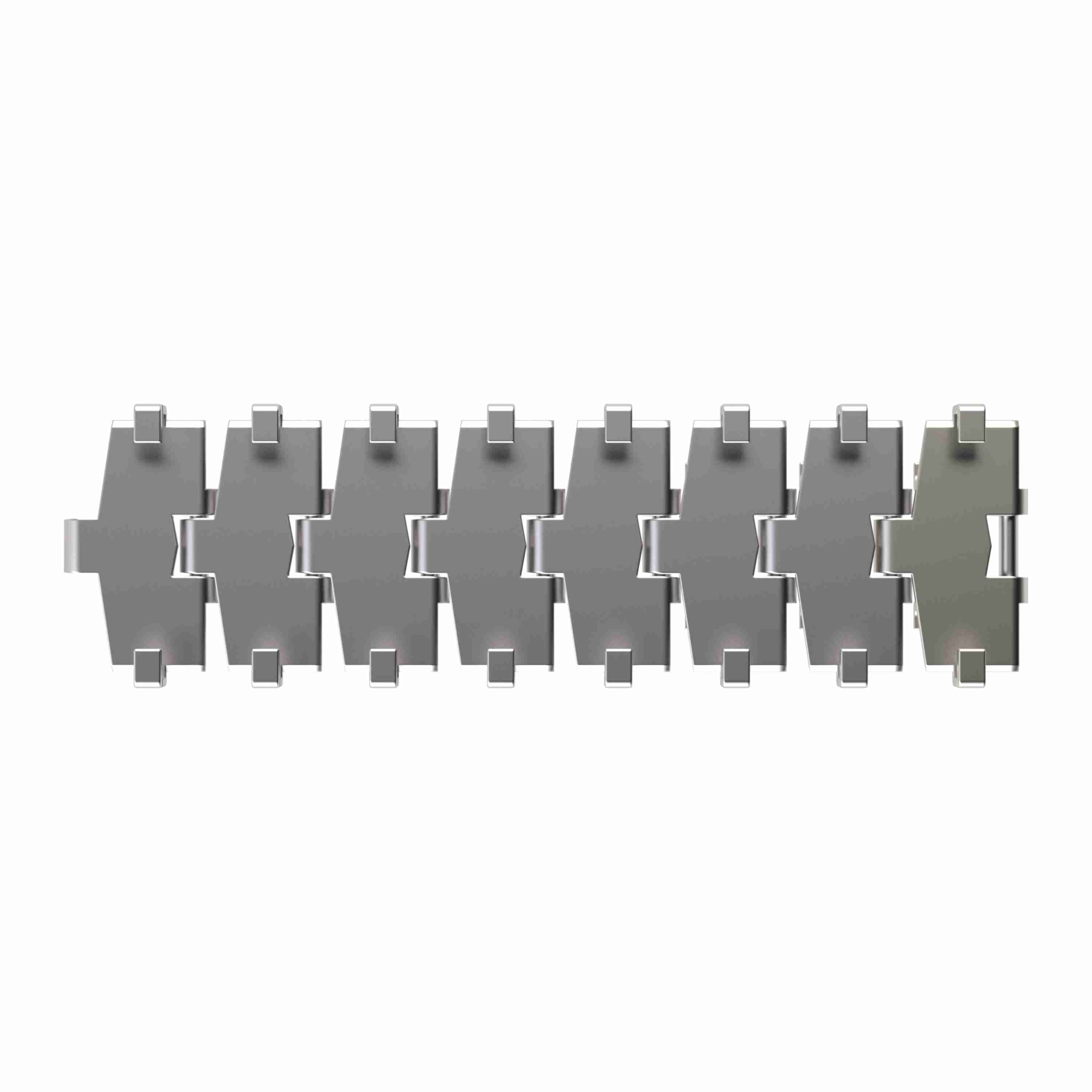

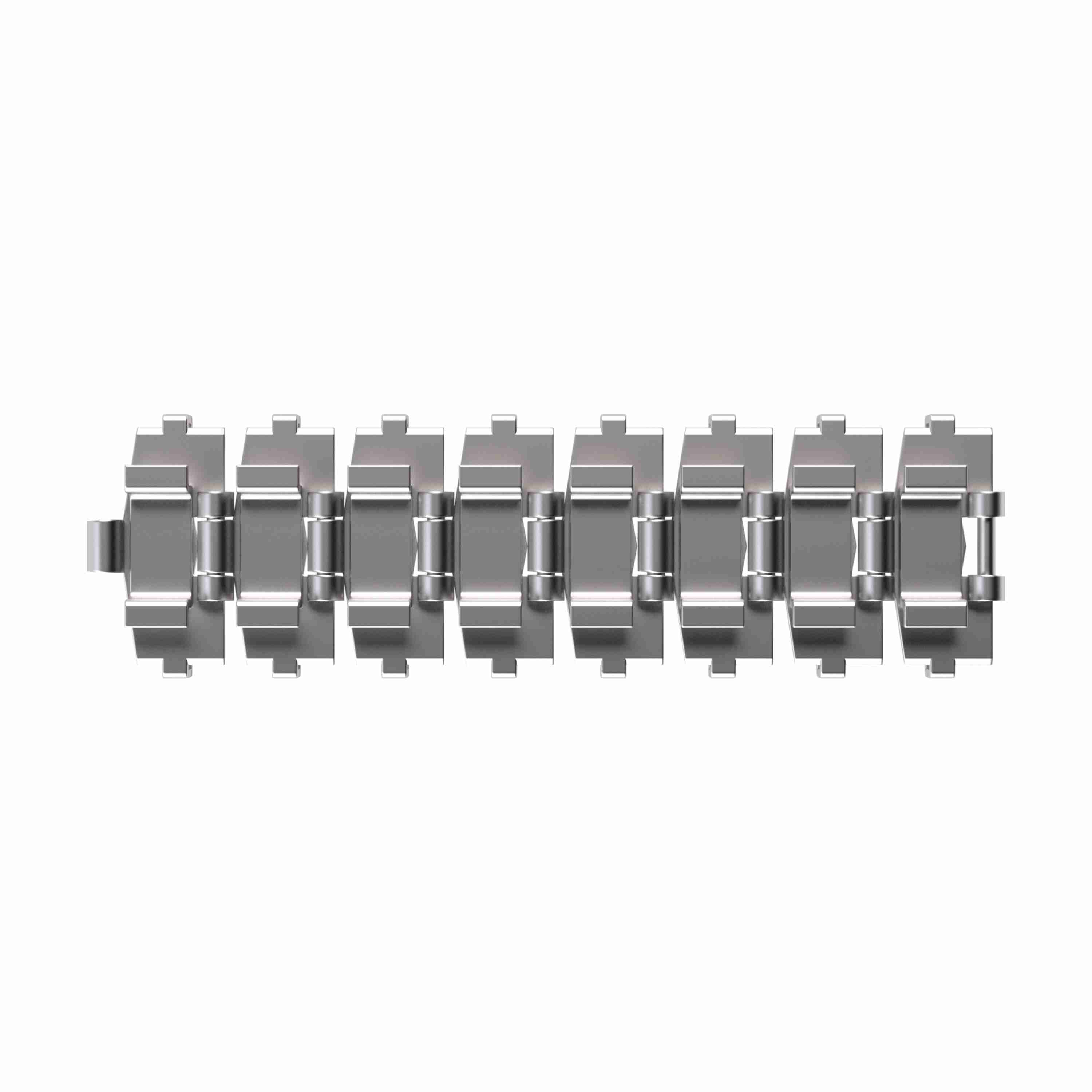

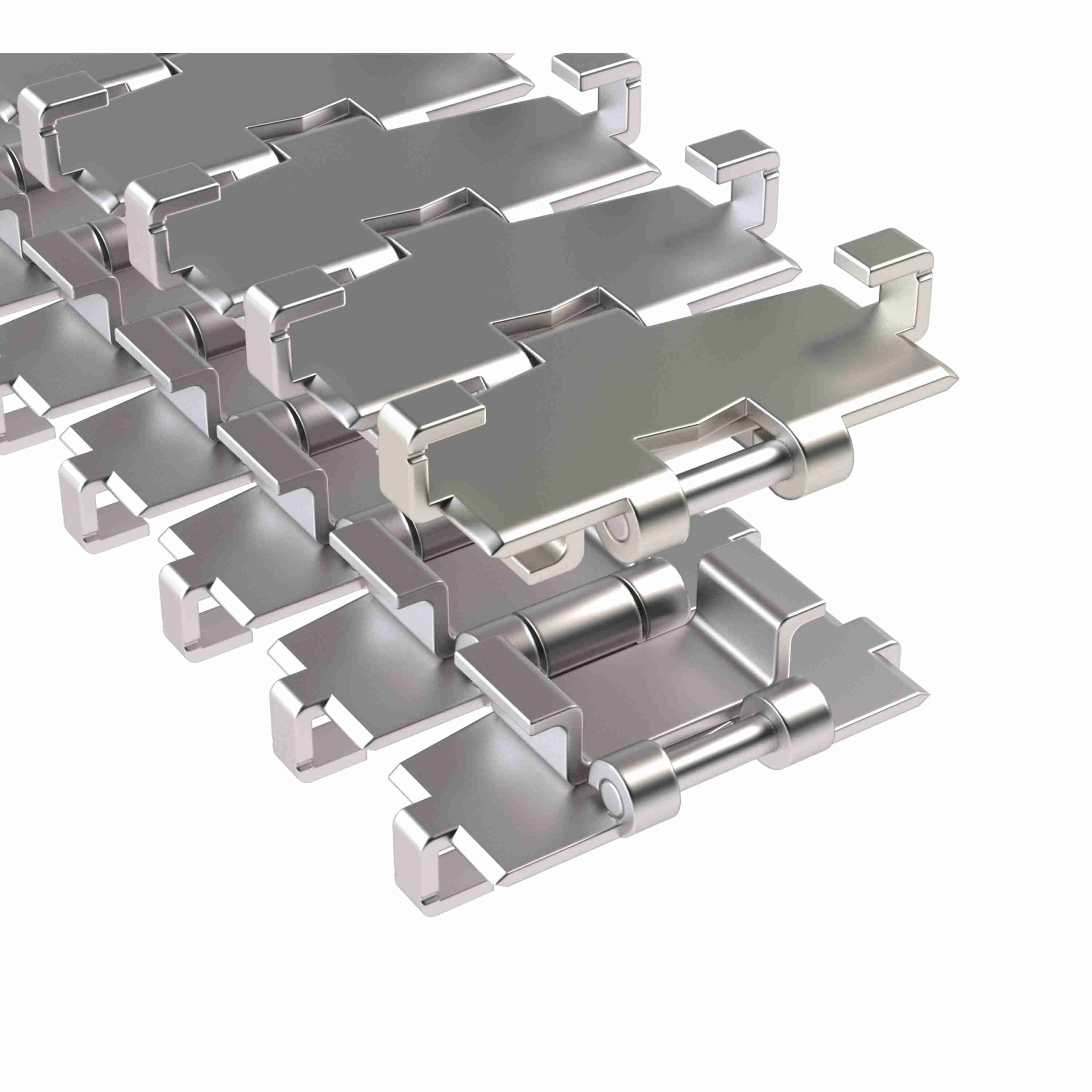

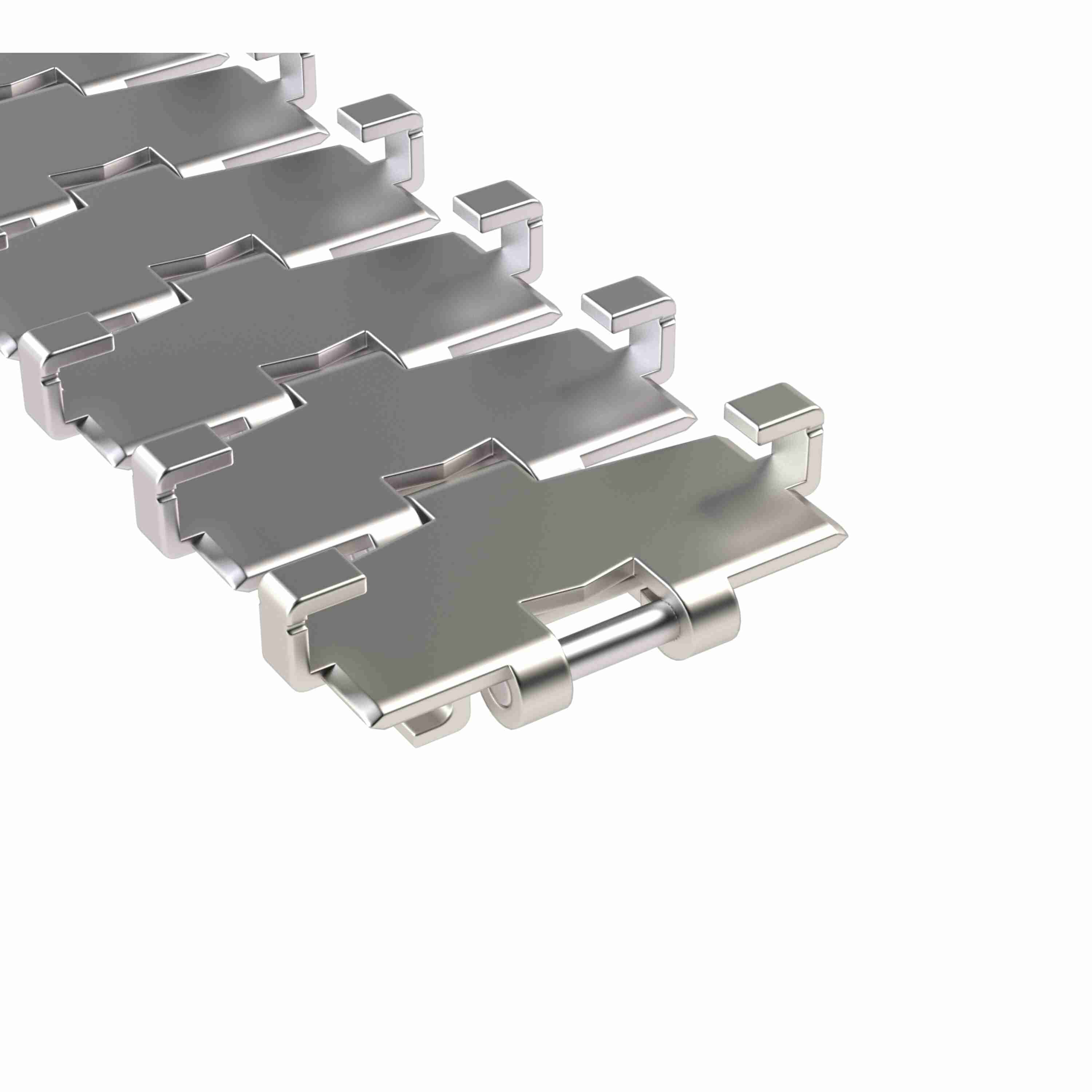

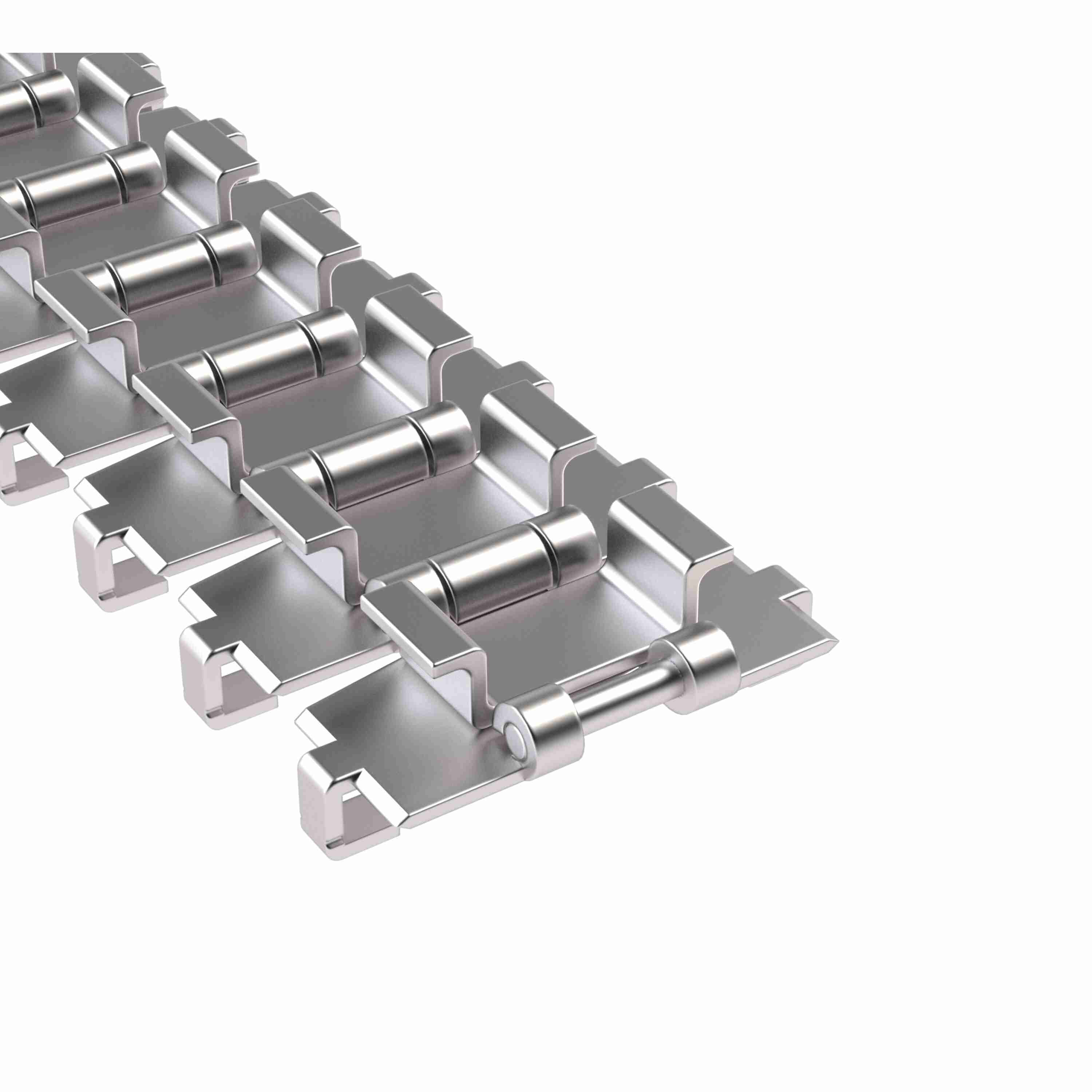

Rexnord 881TAB SideGrip™ Side-flexing, Material: Austenitic Stainless Steel, Width: 3.63in, Pitch: 1.5in - 765.34.31
Part #:10139422
Catalog #:765.34.31
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Strength (lb): | 625 lb | Chain Material: | SSA |
| Gripper Style: | None | Chain Material Description: | Austenitic Stainless Steel |
| Rod/Pin Material: | Stainless Steel | Curve Retention Type: | TAB |
| Gripper Material: | None | Gripper Hardness: | None |
| Chain Width Measurement System: | Imperial | Surface Type: | SideGrip™ |
| Flight Thickness (mm): | 4.8 mm | Chain Pitch (mm): | 38.1 mm |
| Straight or Side-Flex: | Side-flexing | Chain Strength (N): | 2,775 N |
| Chain Pitch (in): | 1.5 in | Chain Number: | 881TAB SideGrip™ |
| Flight Thickness (in): | 0.19 in | Chain Width (mm): | 92.1 mm |
| Chain Width (in): | 3.63 in | Gripper Color: | None |
| Series: | TableTop 881 Series Side-flexing Chain |
General Specifications
| Weight: | 0.31 LB | HTC: | 7315120080 |
| Country of Origin: | Netherlands |
