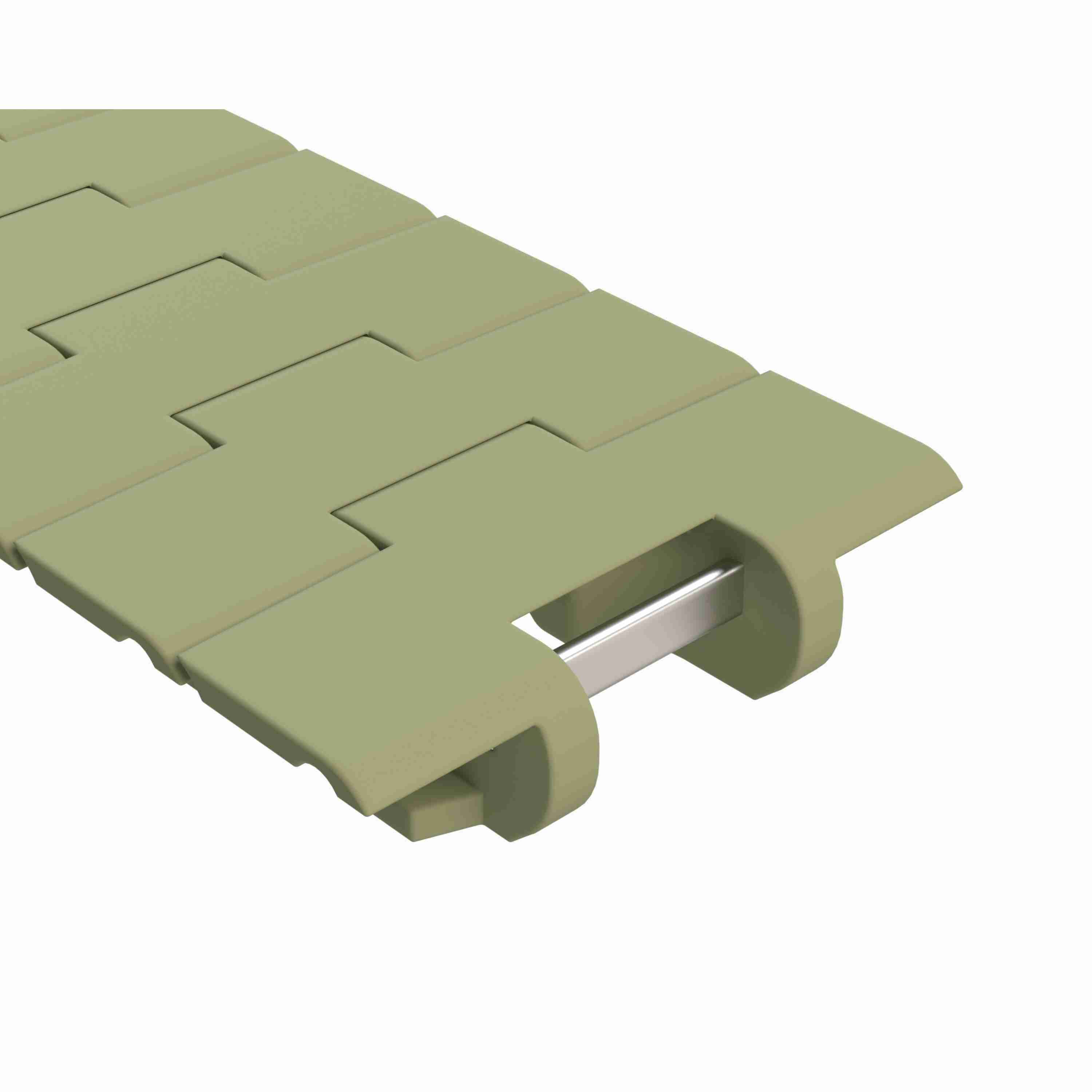

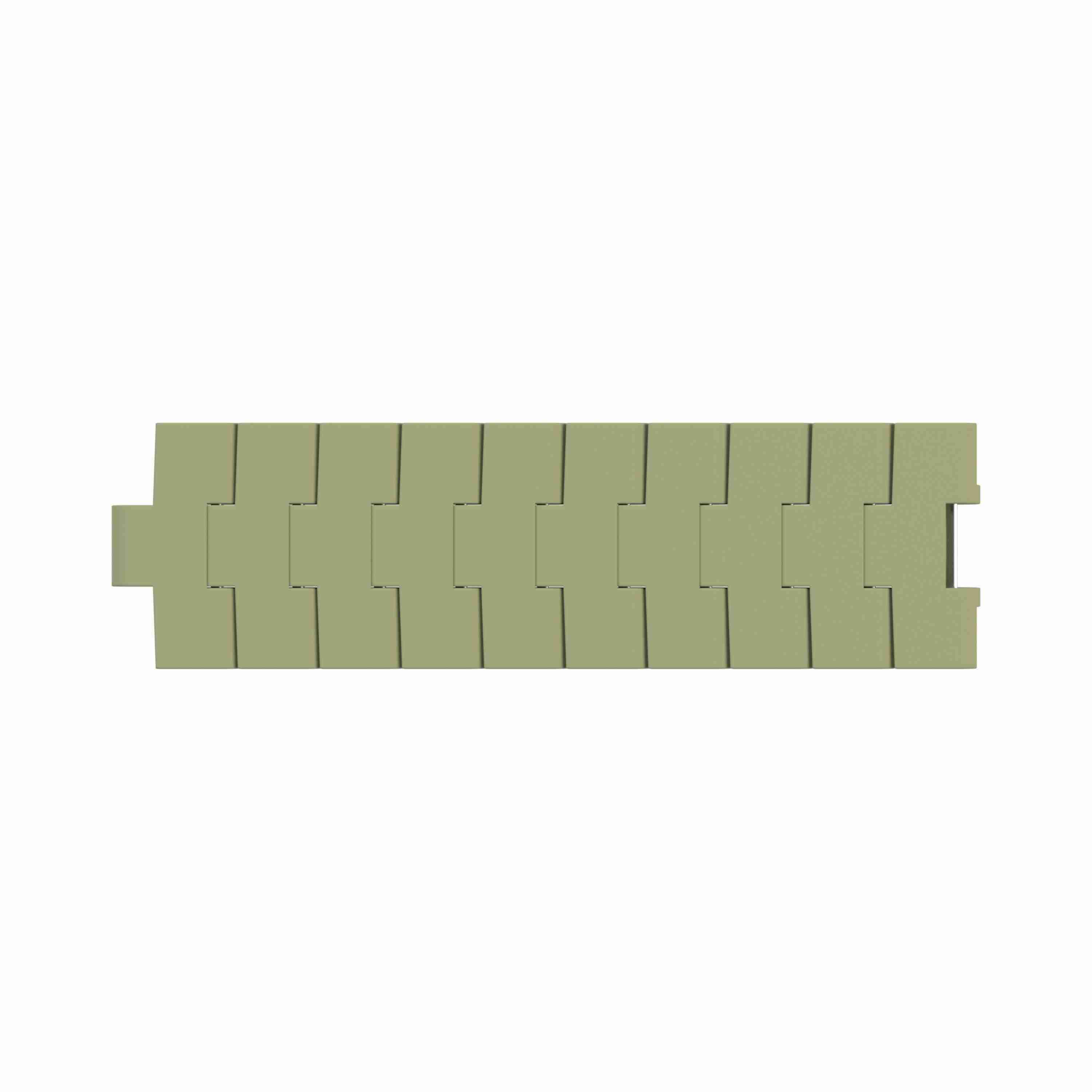

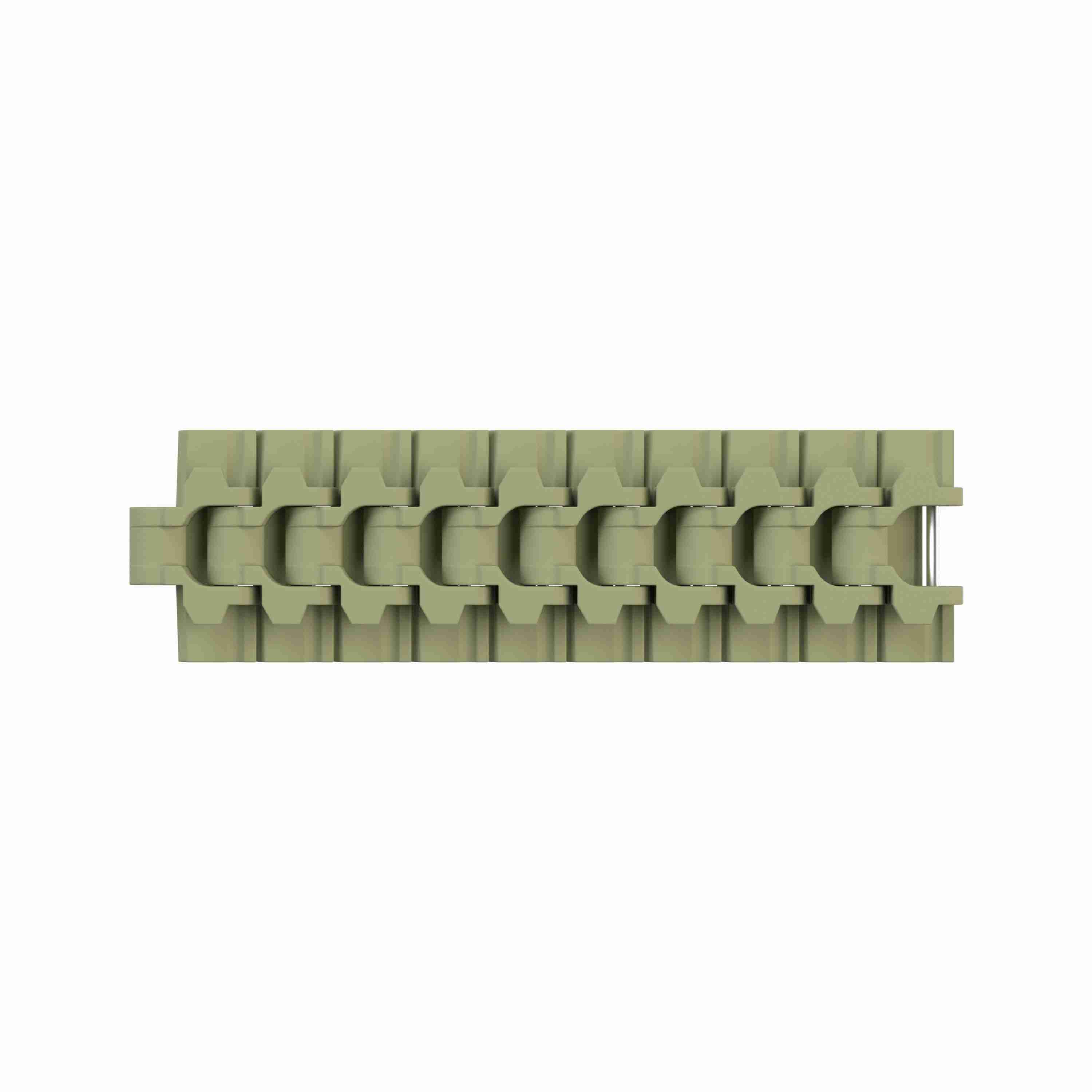

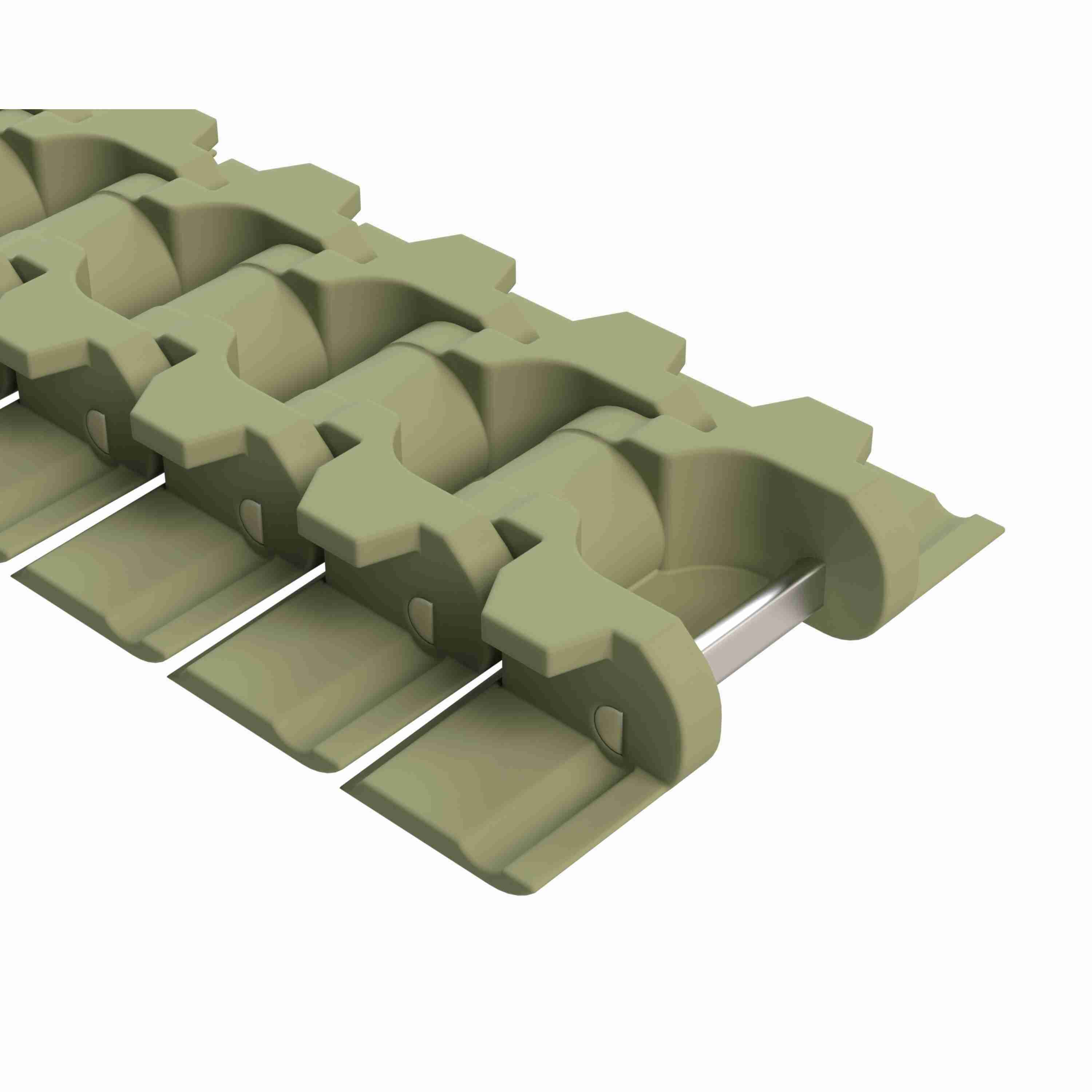

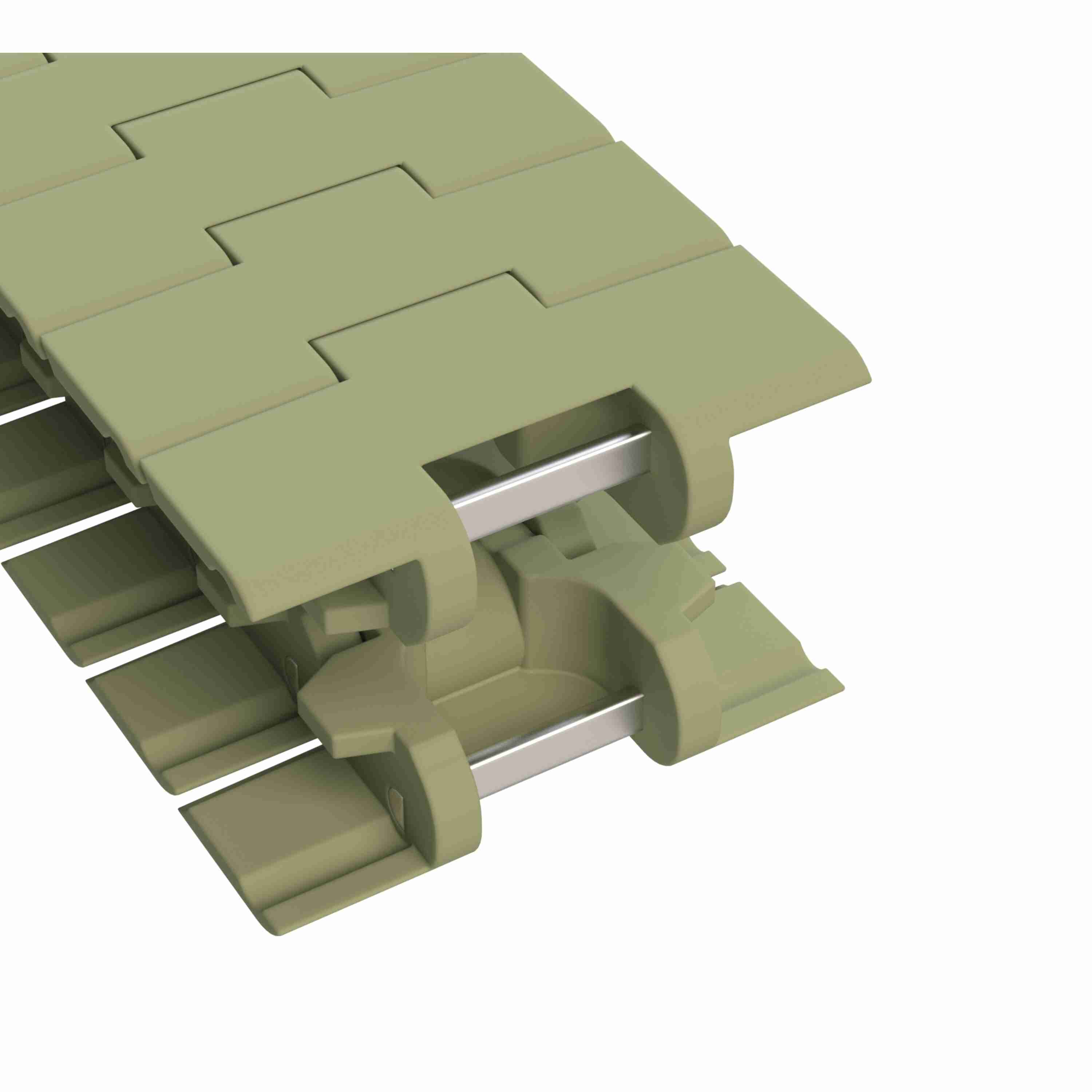

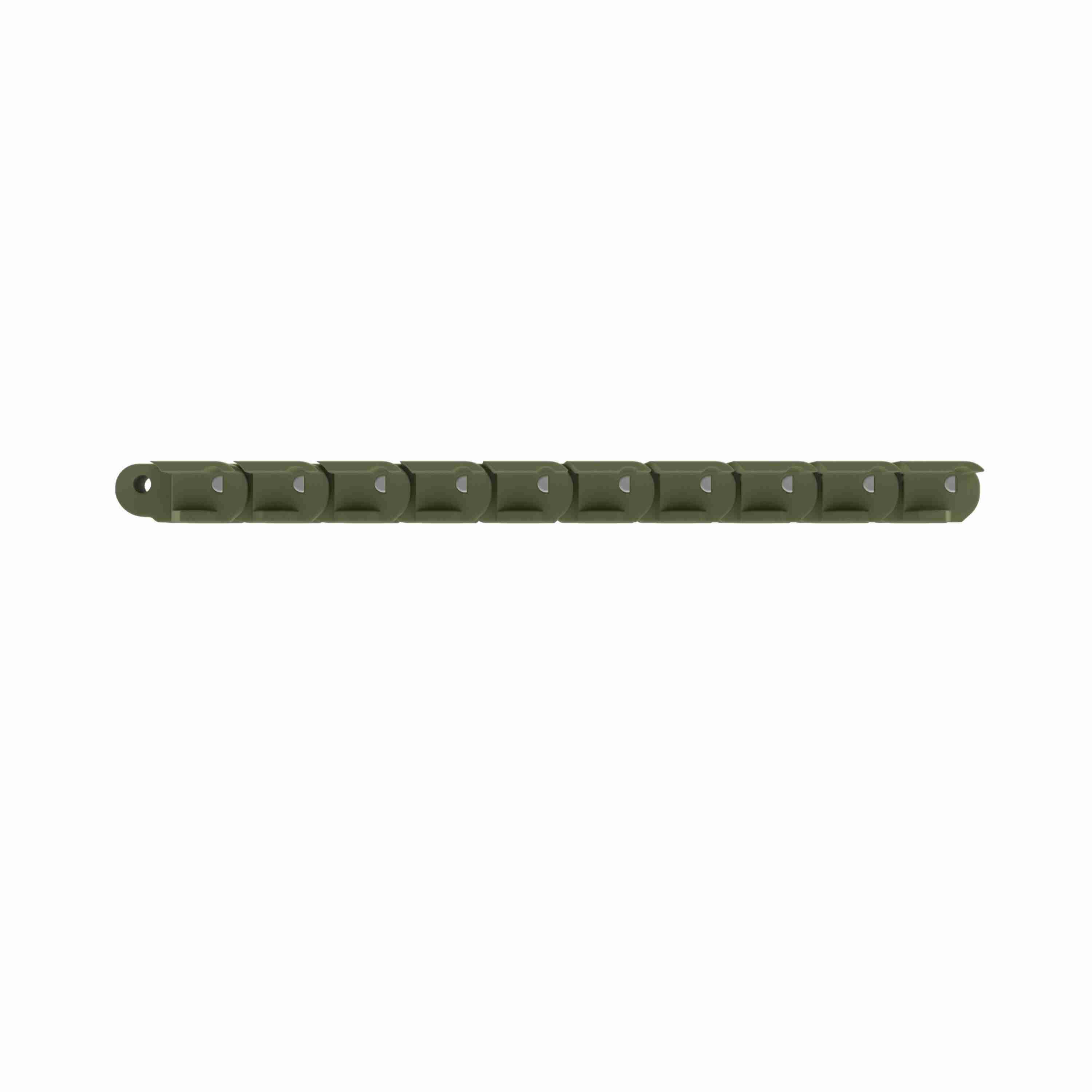

Rexnord 882TAB Side-flexing Solid Top, Material: Green Abrasion Resistant Polyamide, Width: 4.5in, Pitch: 1.5in - 81430511
Part #:10145576
Catalog #:81430511
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Width (in): | 4.5 in | Chain Width Measurement System: | Imperial |
| Series: | TableTop 882 Series Side-flexing Chain | Chain Width (mm): | 114.3 mm |
| Flight Thickness (in): | 0.19 in | Chain Material: | WX |
| Chain Number: | 882TAB | Curve Retention Type: | TAB |
| Chain Pitch (in): | 1.5 in | Chain Pitch (mm): | 38.1 mm |
| Surface Type: | Solid Top | Flight Thickness (mm): | 4.8 mm |
| Chain Strength (lb): | 625 lb | Straight or Side-Flex: | Side-flexing |
| Chain Strength (N): | 2,775 N | Rod/Pin Material: | Stainless Steel |
| Chain Material Description: | Green Abrasion Resistant Polyamide |
General Specifications
| Weight: | 0.17 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
