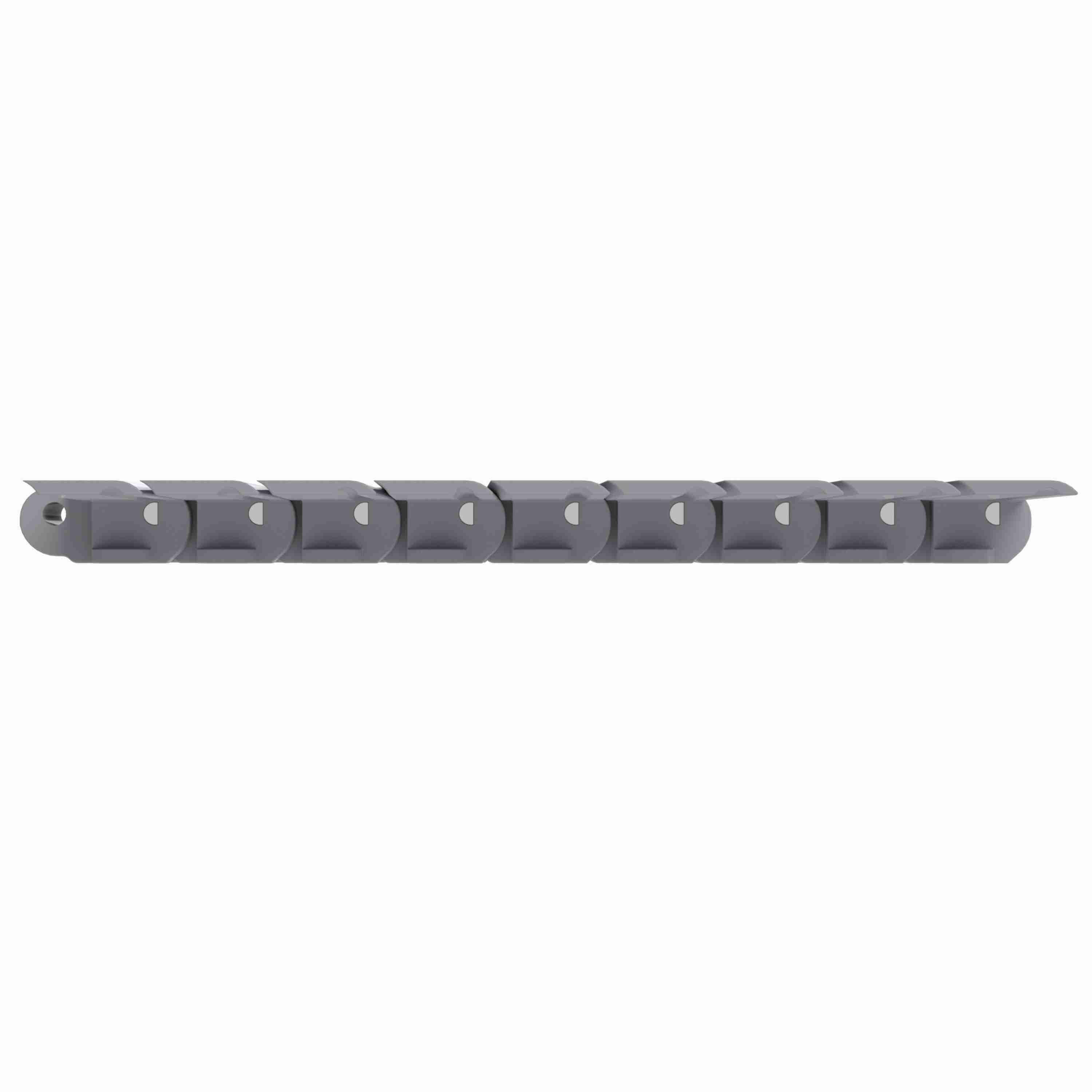

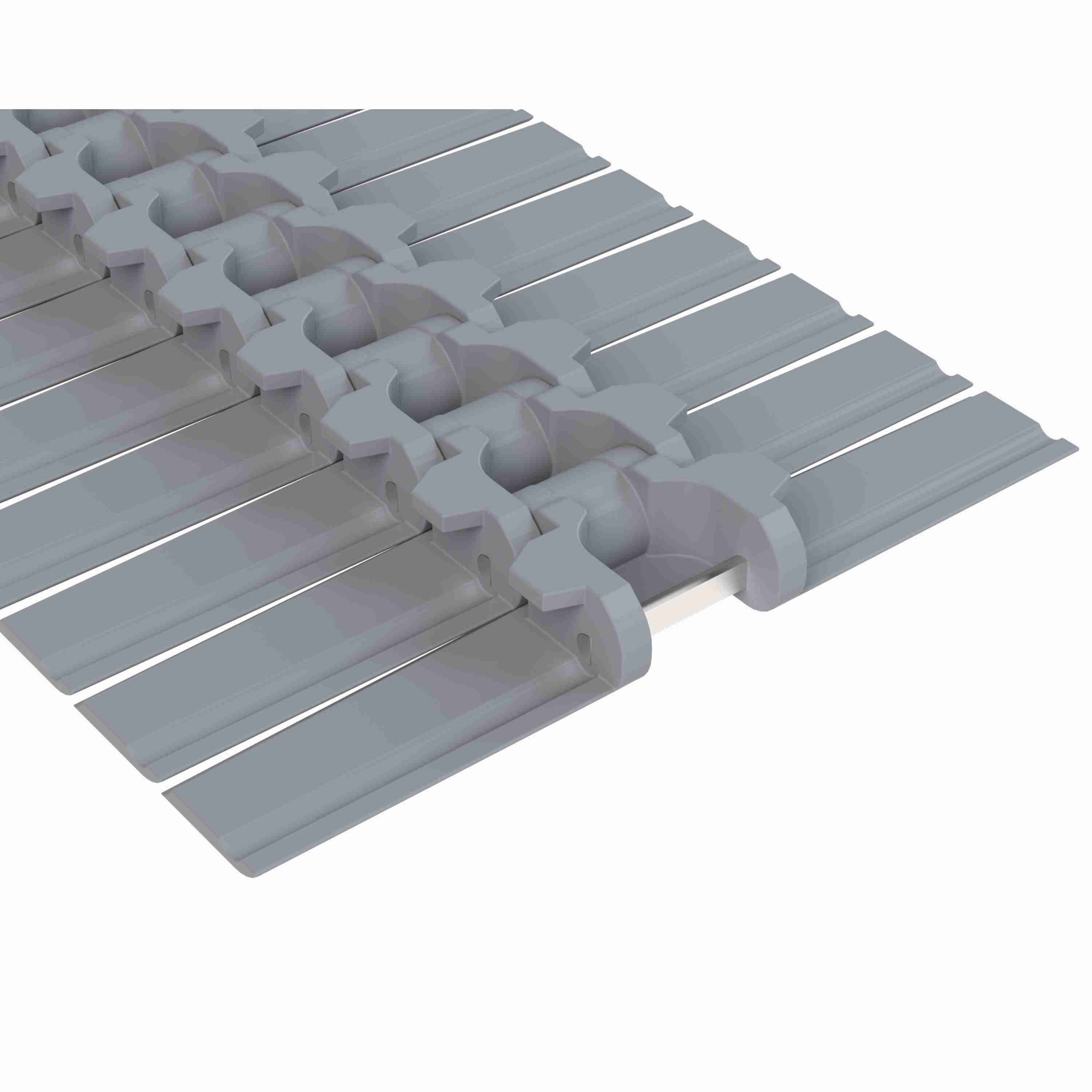

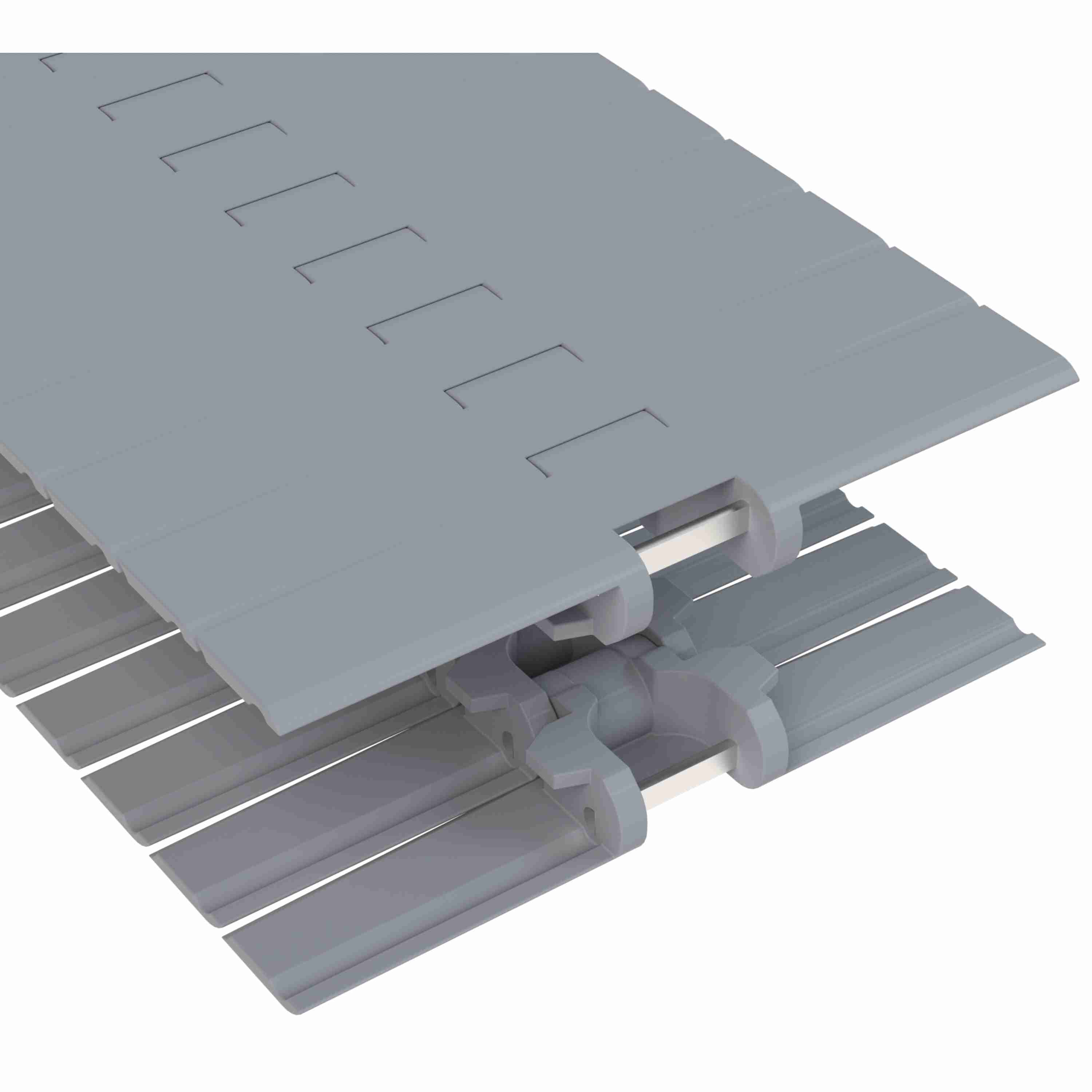

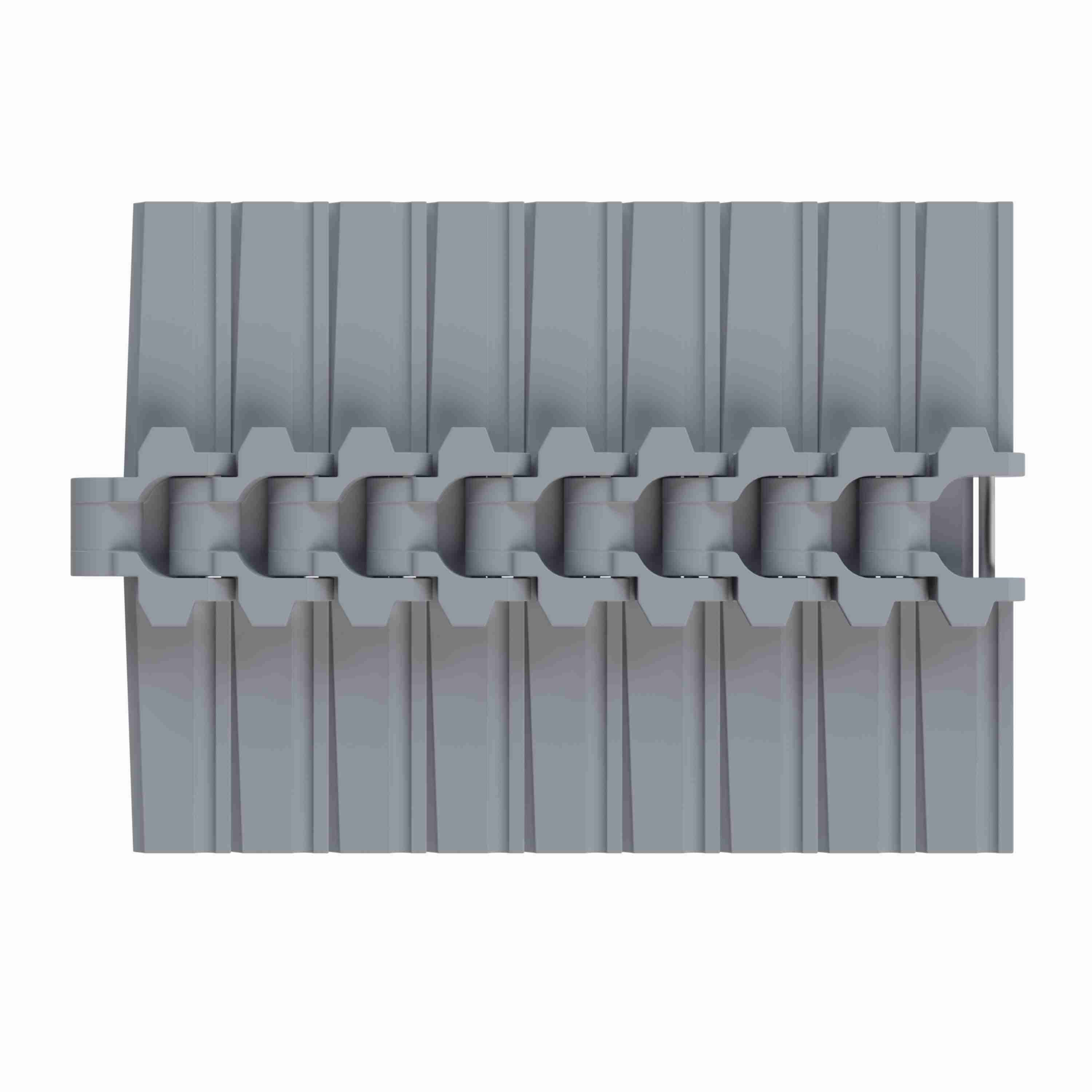

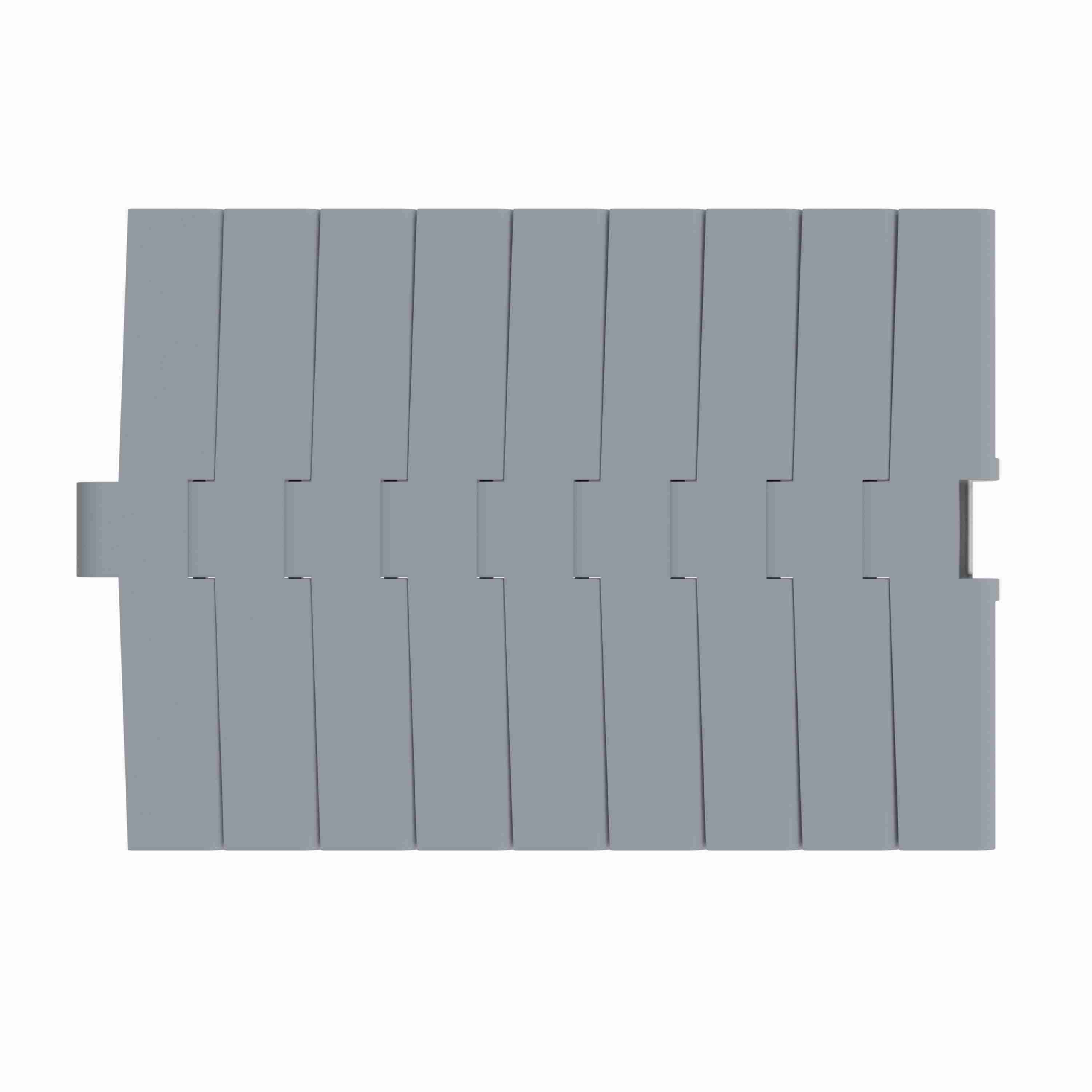

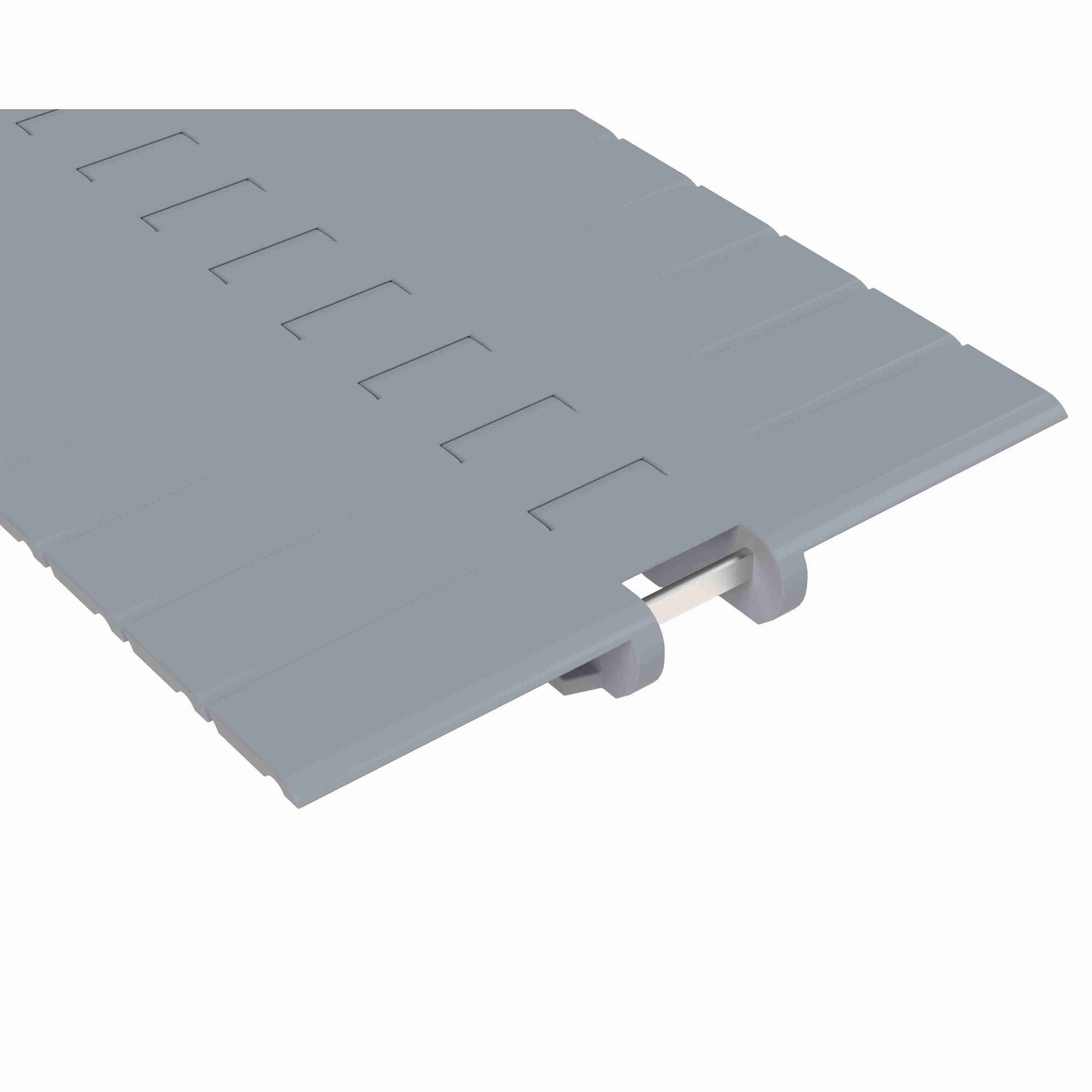

Rexnord 882TAB Side-flexing Solid Top, Material: Silver Platinum Series™ X, Width: 10in, Pitch: 1.5in - 10292836
Part #:10292836
Catalog #:10292836
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Width (mm): | 254 mm | Chain Material: | PSX |
| Chain Width Measurement System: | Imperial | Chain Material Description: | Silver Platinum Series™ X |
| Flight Thickness (in): | 0.19 in | Chain Width (in): | 10 in |
| Chain Strength (lb): | 625 lb | Straight or Side-Flex: | Side-flexing |
| Surface Type: | Solid Top | Chain Pitch (in): | 1.5 in |
| Flight Thickness (mm): | 4.8 mm | Curve Retention Type: | TAB |
| Chain Pitch (mm): | 38.1 mm | Chain Number: | 882TAB |
| Rod/Pin Material: | Stainless Steel | Chain Strength (N): | 2,775 N |
| Series: | TableTop 882 Series Side-flexing Chain |
General Specifications
| Weight: | 0.48 LB | HTC: | 3926909989 |
| Country of Origin: | Mexico |
