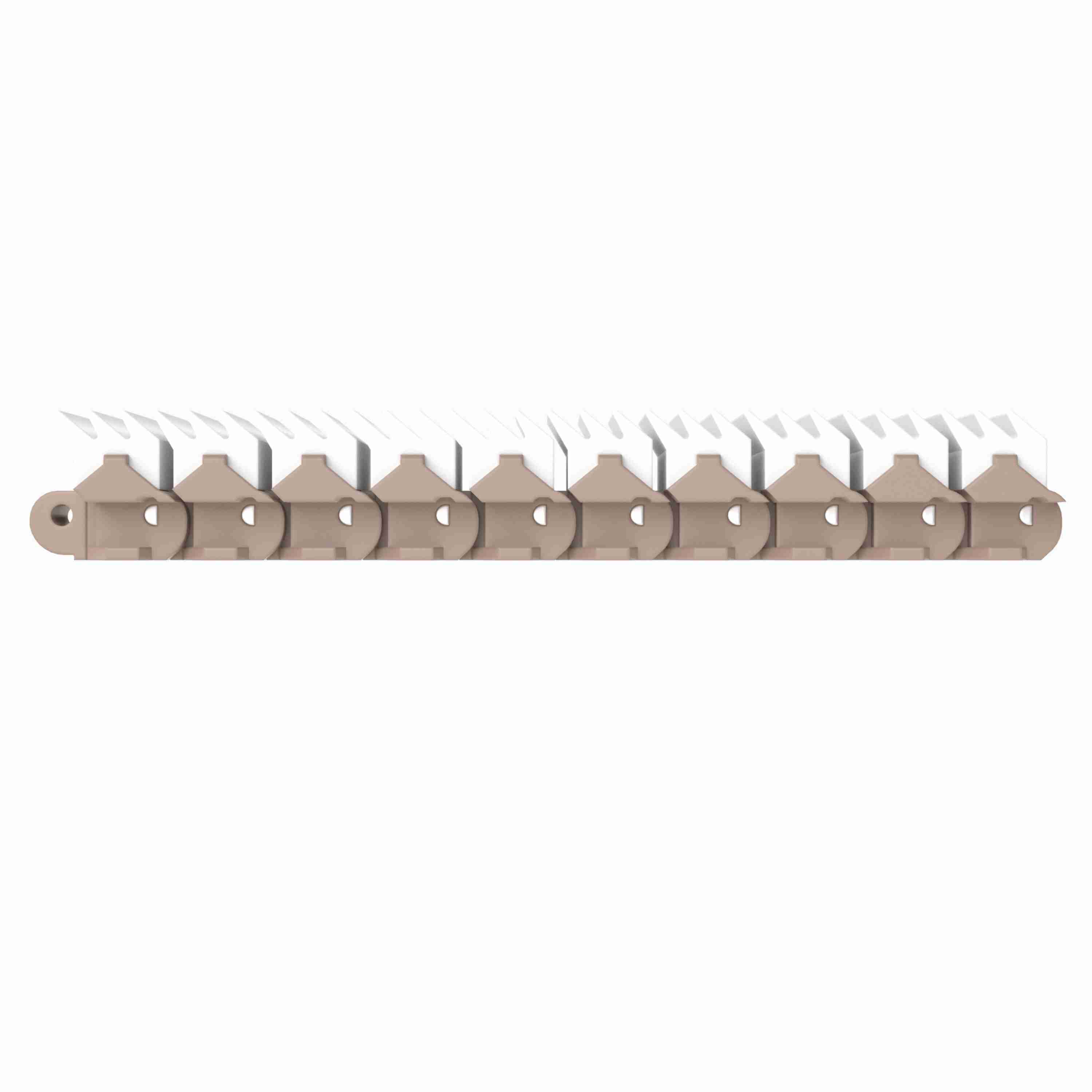

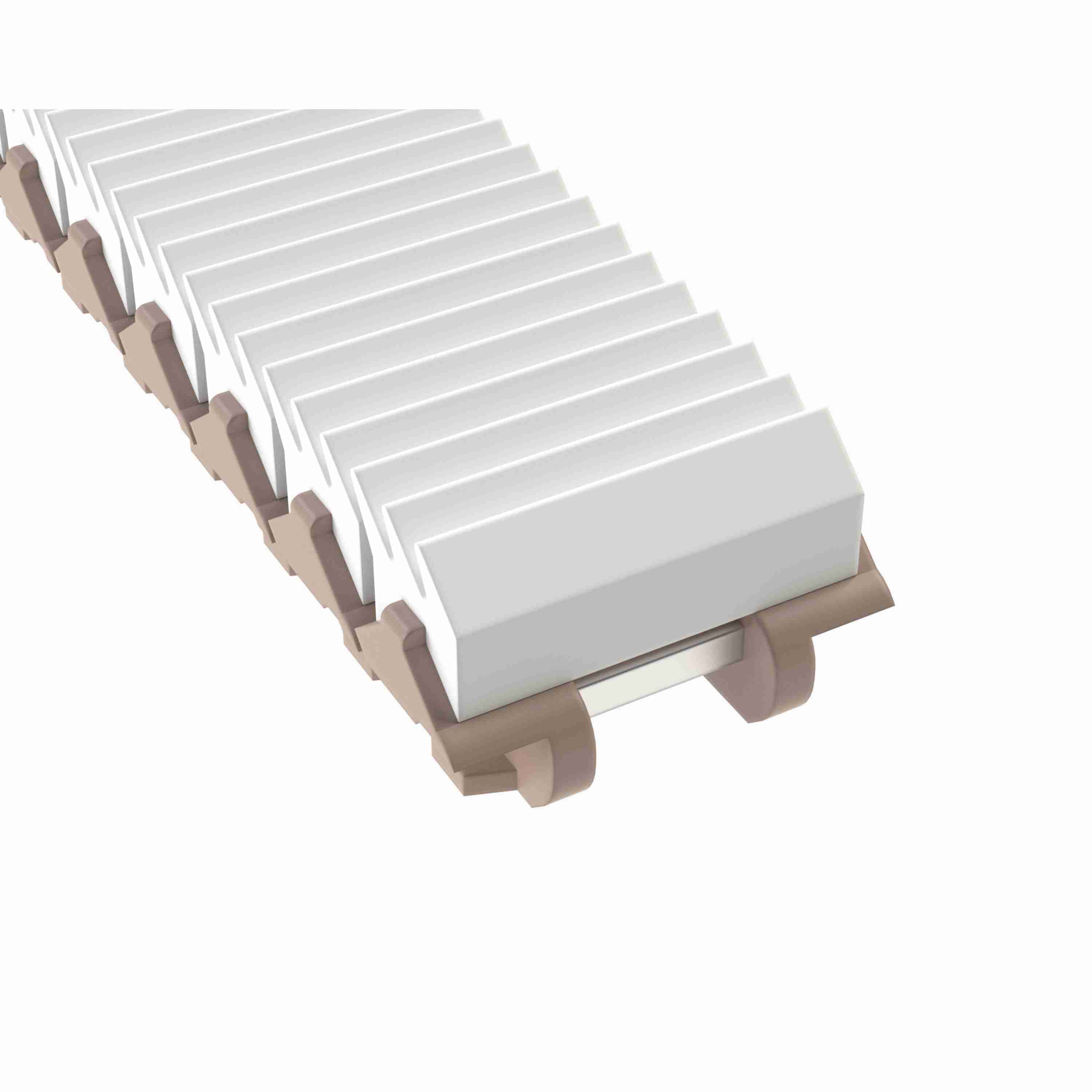

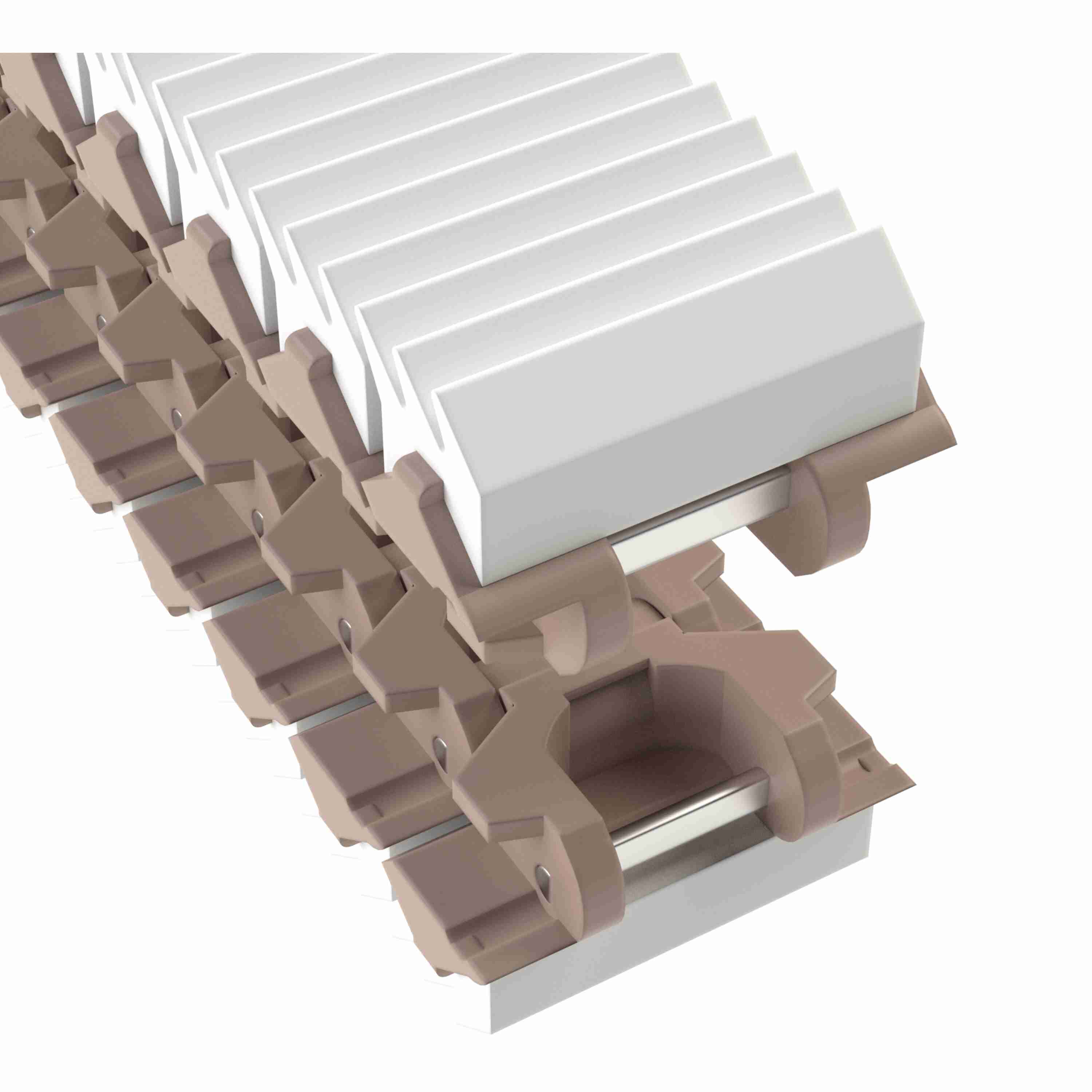

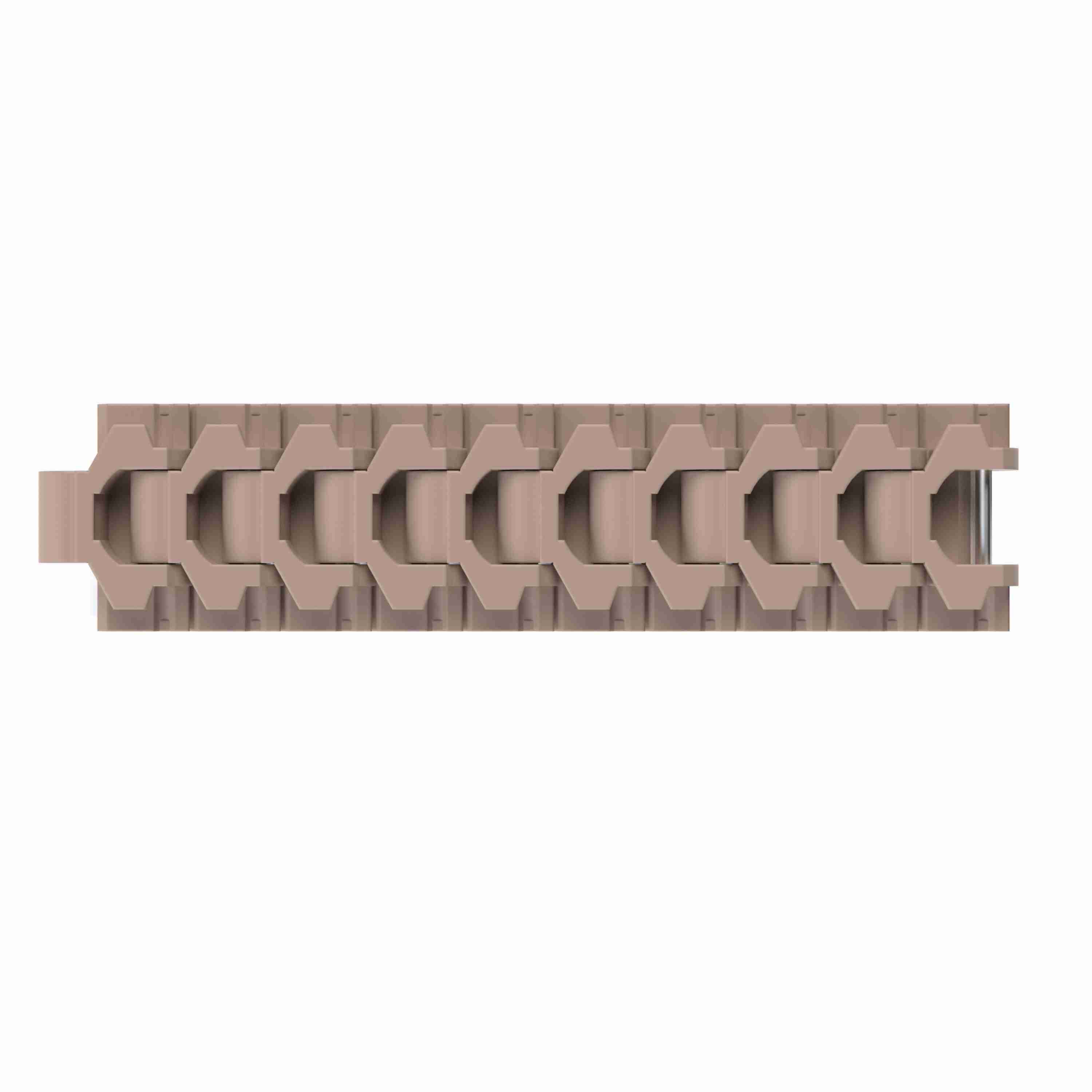

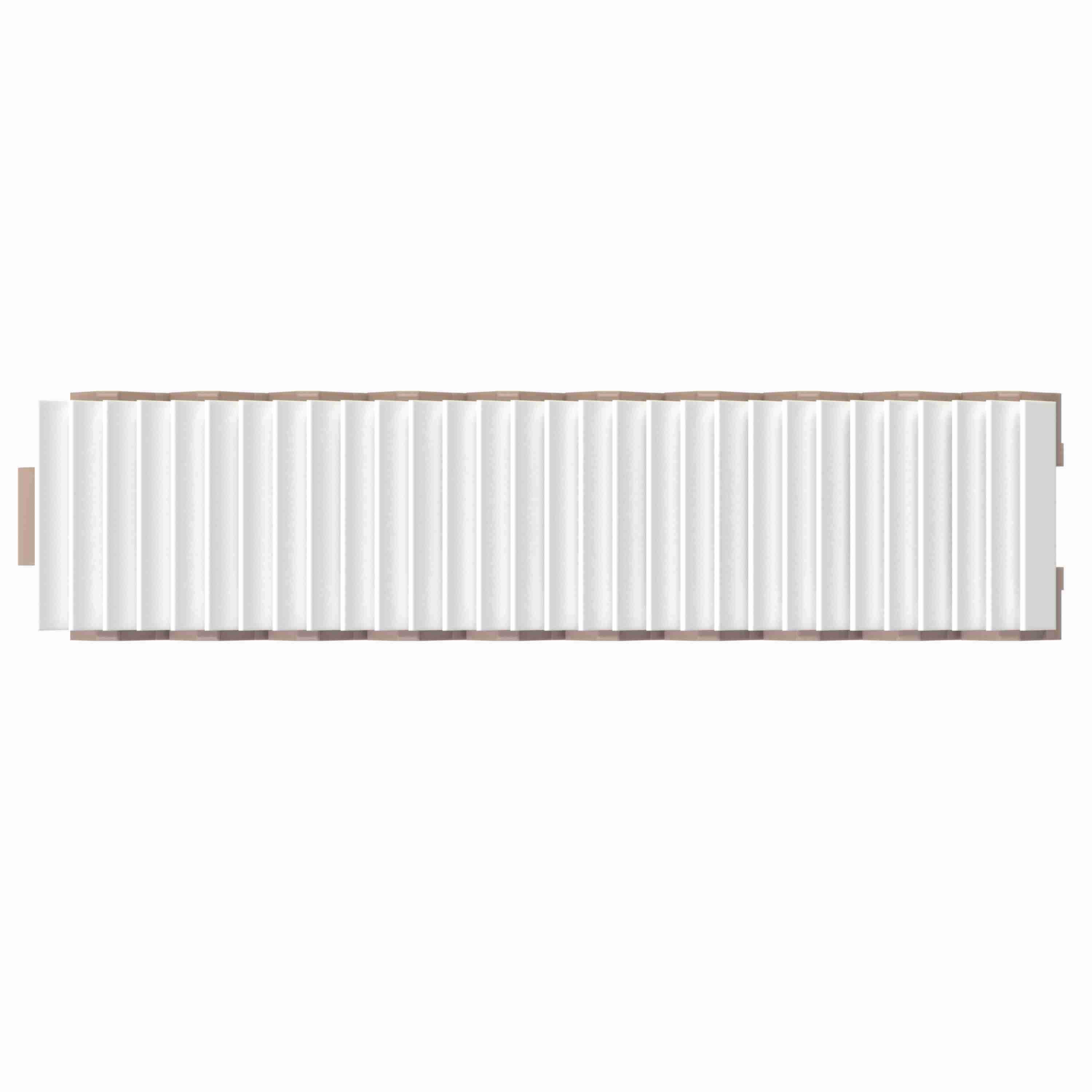

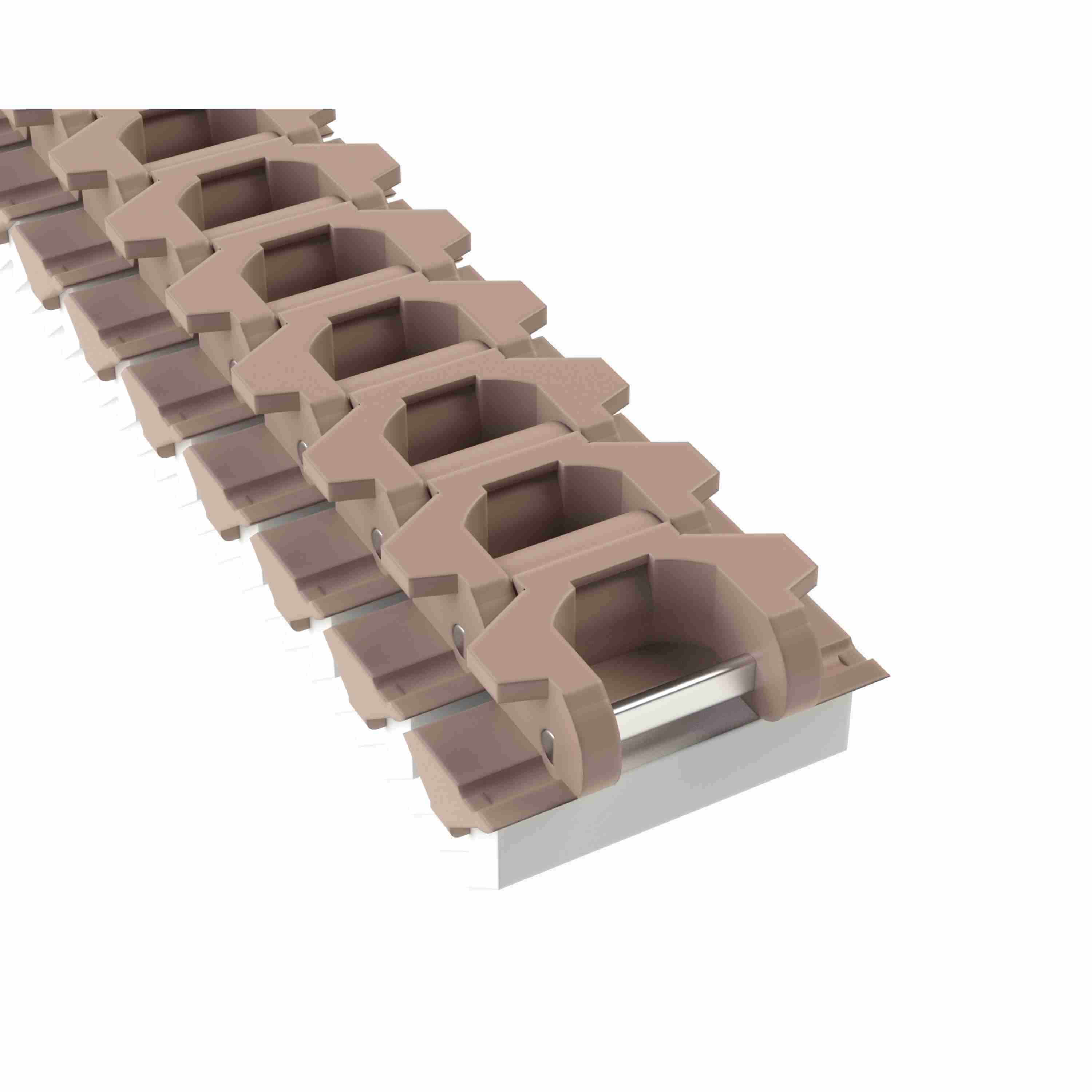

Rexnord 882TAB SideGrip™ Side-flexing, Material: Tan Low Friction, Width: 3.75in, Pitch: 1.5in - 81429092
Part #:10145514
Catalog #:81429092
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Width (mm): | 95.3 mm | Gripper Hardness: | 50 Shore A |
| Chain Pitch (mm): | 38.1 mm | Gripper Material: | Neoprene |
| Series: | TableTop 882 Series Side-flexing Chain | Surface Type: | SideGrip™ |
| Chain Strength (lb): | 625 lb | Straight or Side-Flex: | Side-flexing |
| Chain Material Description: | Tan Low Friction | Rod/Pin Material: | Stainless Steel |
| Chain Material: | LF | Chain Width (in): | 3.75 in |
| Chain Strength (N): | 2,775 N | Chain Pitch (in): | 1.5 in |
| Curve Retention Type: | TAB | Flight Thickness (in): | 0.19 in |
| Chain Width Measurement System: | Imperial | Flight Thickness (mm): | 4.8 mm |
| Chain Number: | 882TAB SideGrip™ | Gripper Color: | White |
| Gripper Style: | Jaw |
General Specifications
| Weight: | 0.08 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
