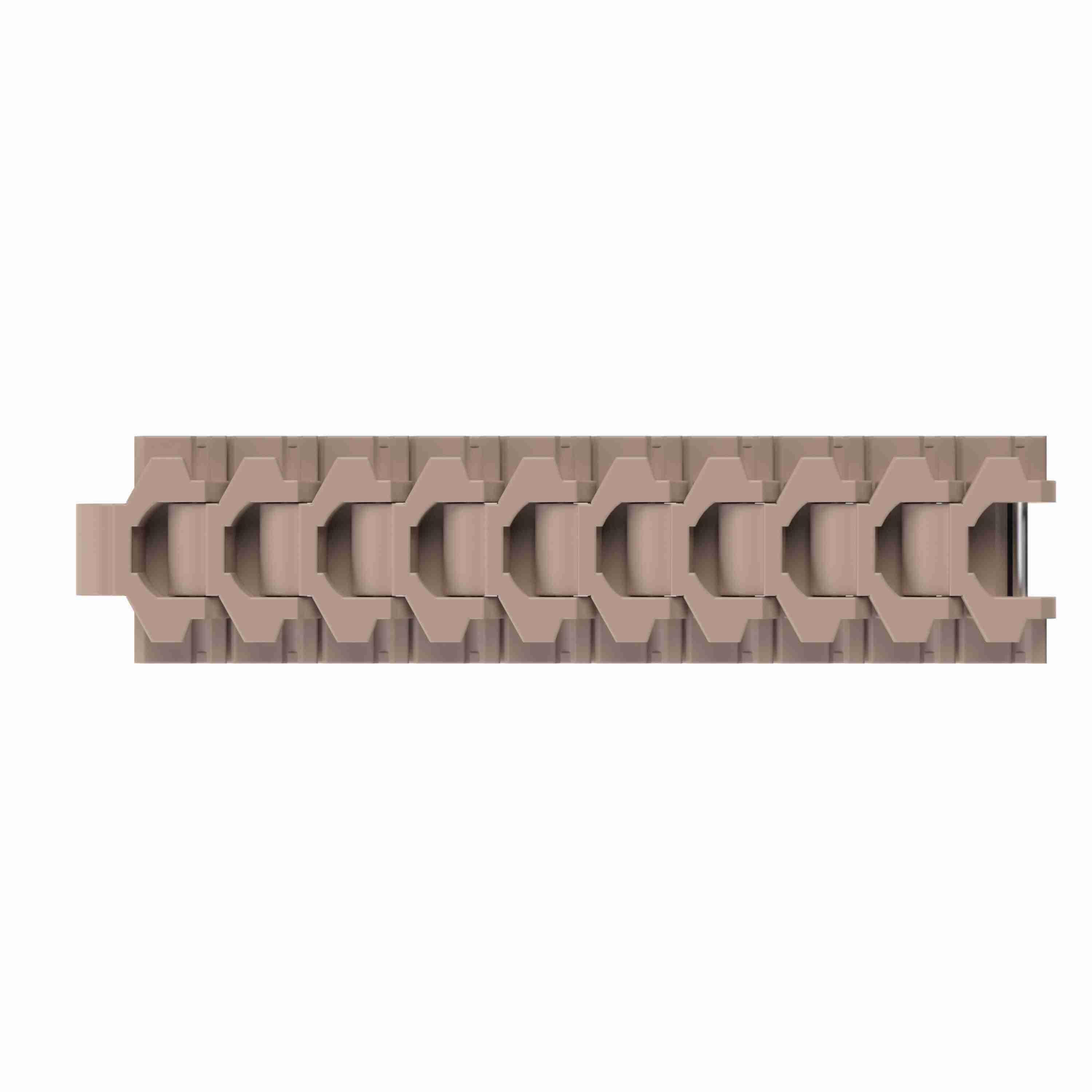

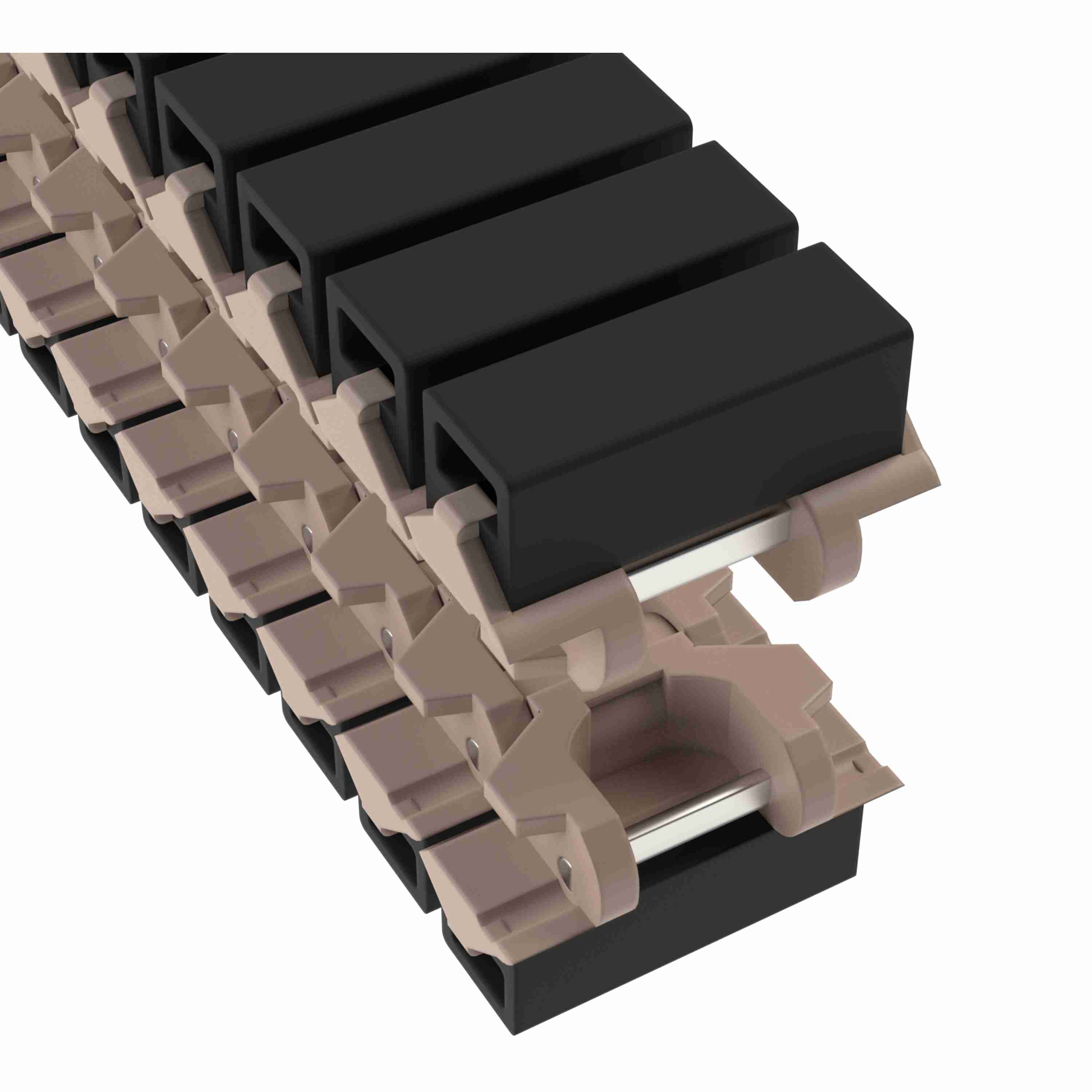

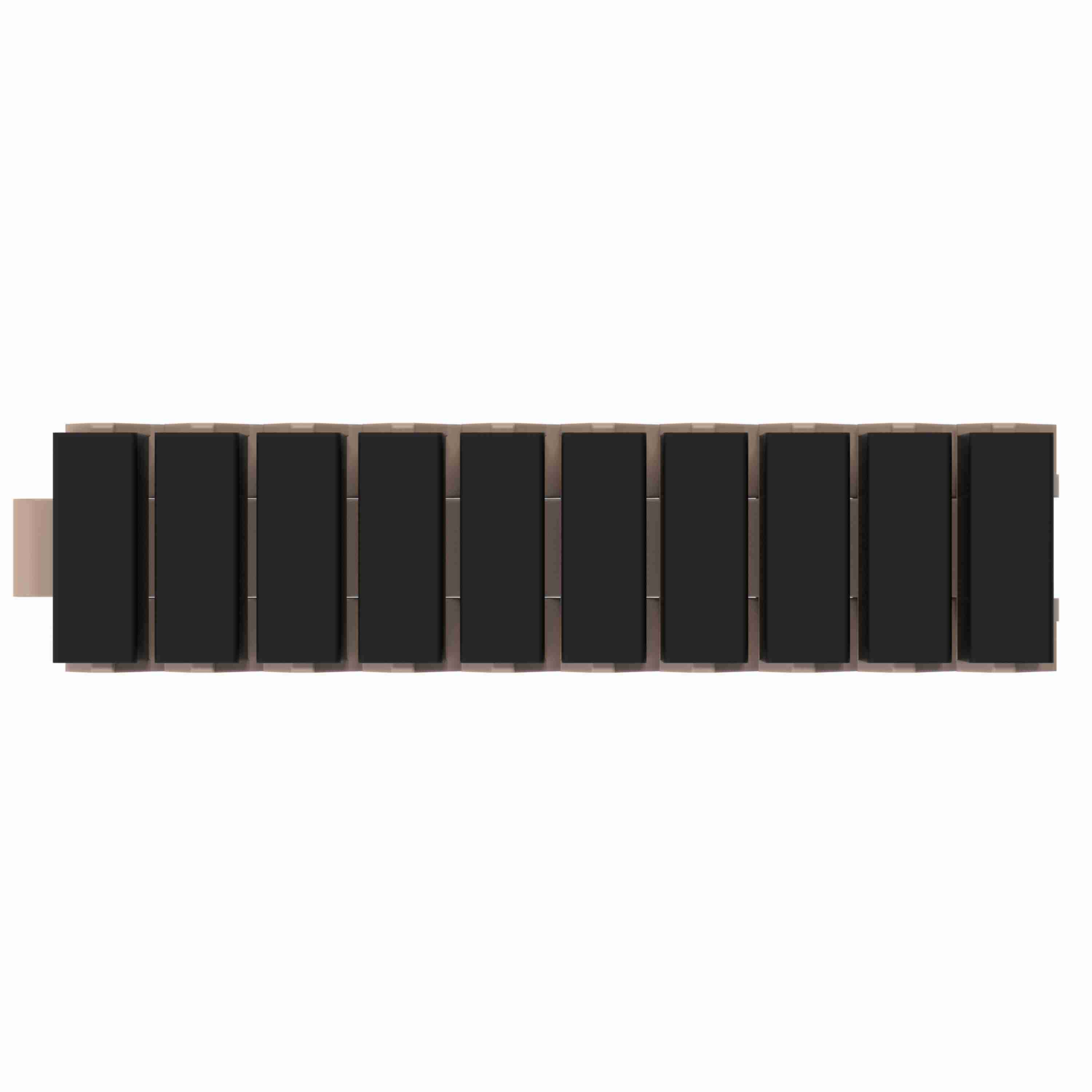

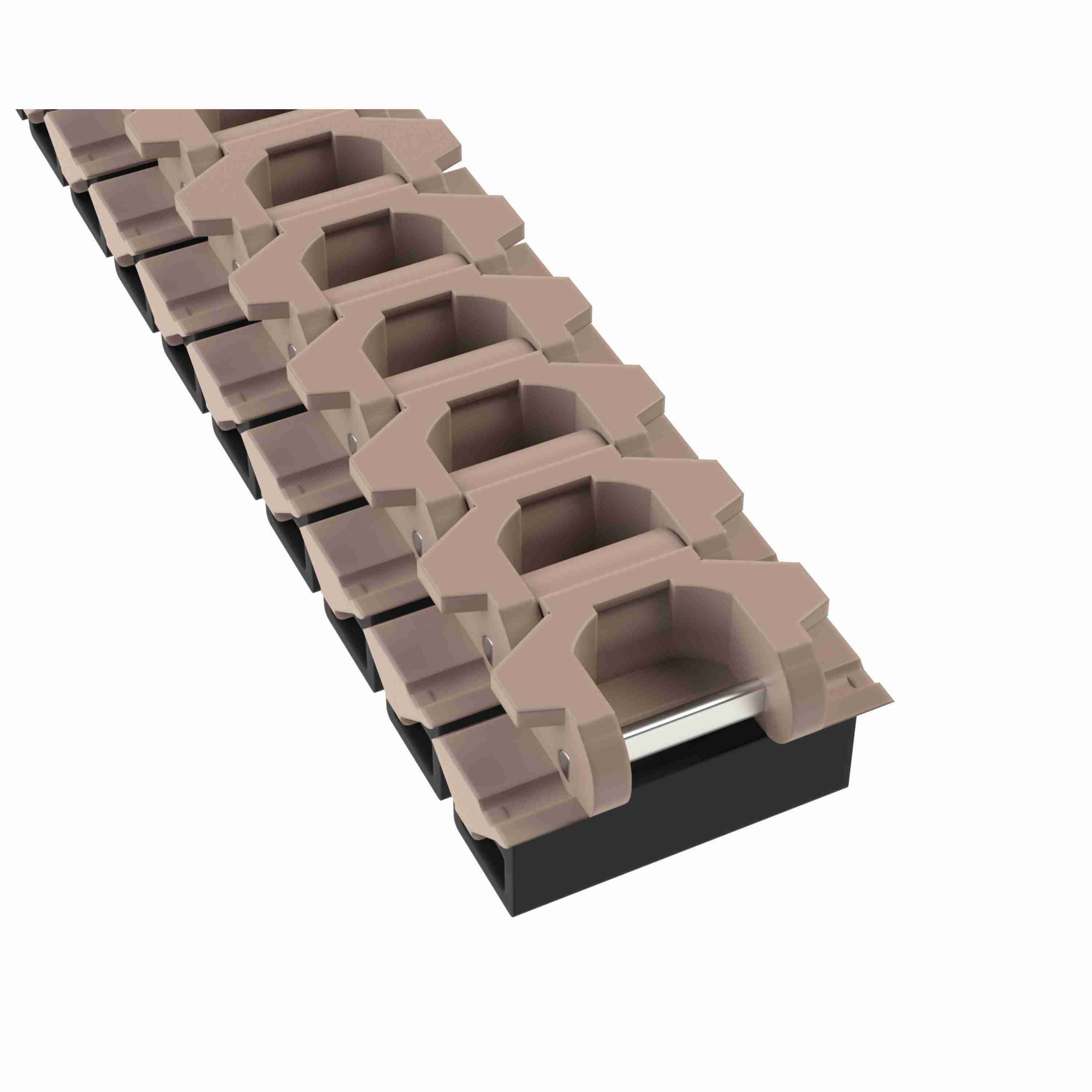

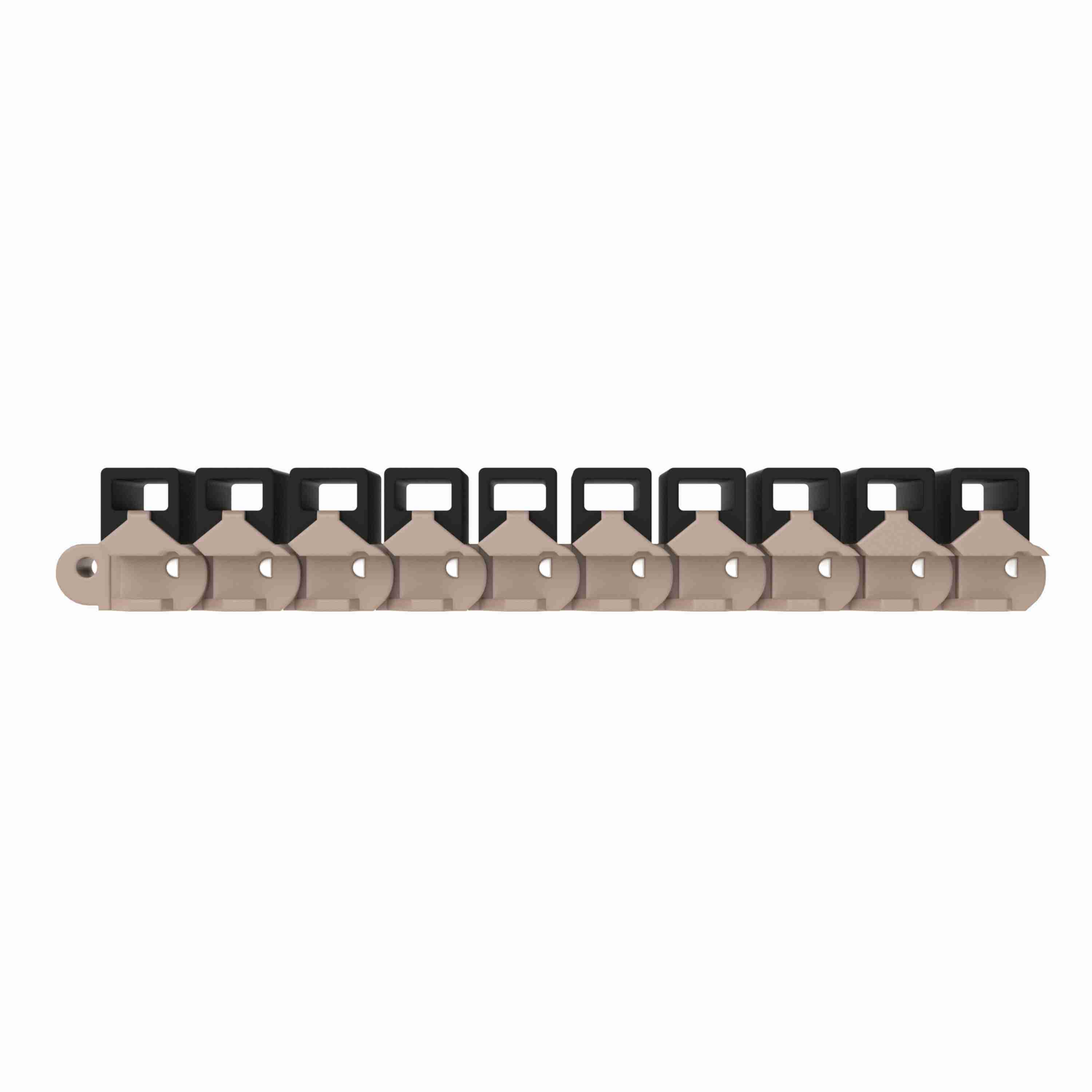

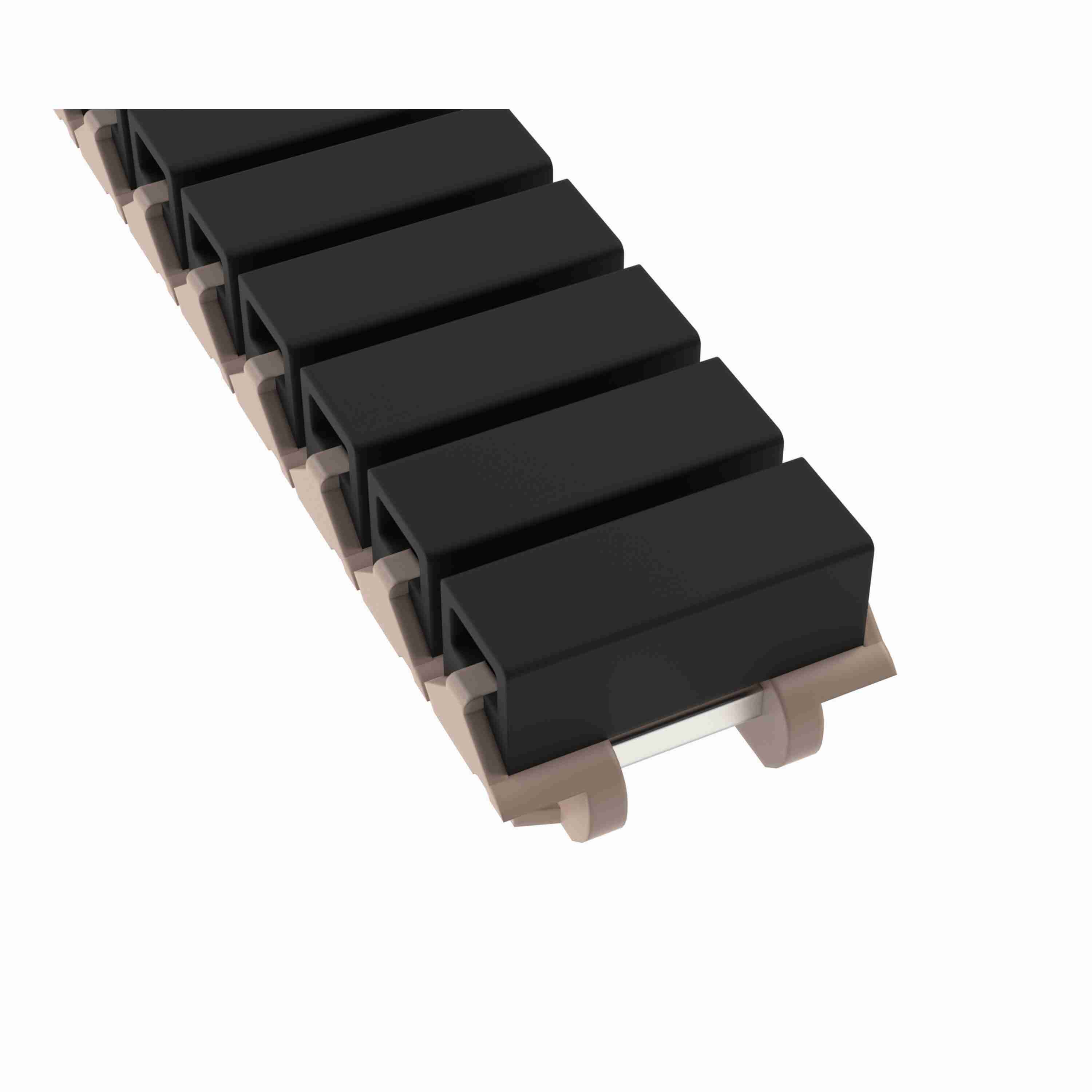

Rexnord 882TAB SideGrip™ Side-flexing, Material: Tan Low Friction, Width: 3.75in, Pitch: 1.5in - LF882-GD
Part #:10177745
Catalog #:LF882-GD
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Rod/Pin Material: | Stainless Steel | Curve Retention Type: | TAB |
| Chain Material: | LF | Chain Strength (N): | 2,775 N |
| Chain Pitch (in): | 1.5 in | Chain Strength (lb): | 625 lb |
| Chain Number: | 882TAB SideGrip™ | Gripper Material: | Neoprene |
| Chain Width Measurement System: | Imperial | Surface Type: | SideGrip™ |
| Chain Material Description: | Tan Low Friction | Gripper Color: | Black |
| Flight Thickness (mm): | 4.8 mm | Chain Width (mm): | 95.3 mm |
| Straight or Side-Flex: | Side-flexing | Chain Pitch (mm): | 38.1 mm |
| Flight Thickness (in): | 0.19 in | Gripper Hardness: | 40 Shore A |
| Chain Width (in): | 3.75 in | Gripper Style: | D |
| Series: | TableTop 882 Series Side-flexing Chain |
General Specifications
| Weight: | 0.32 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
