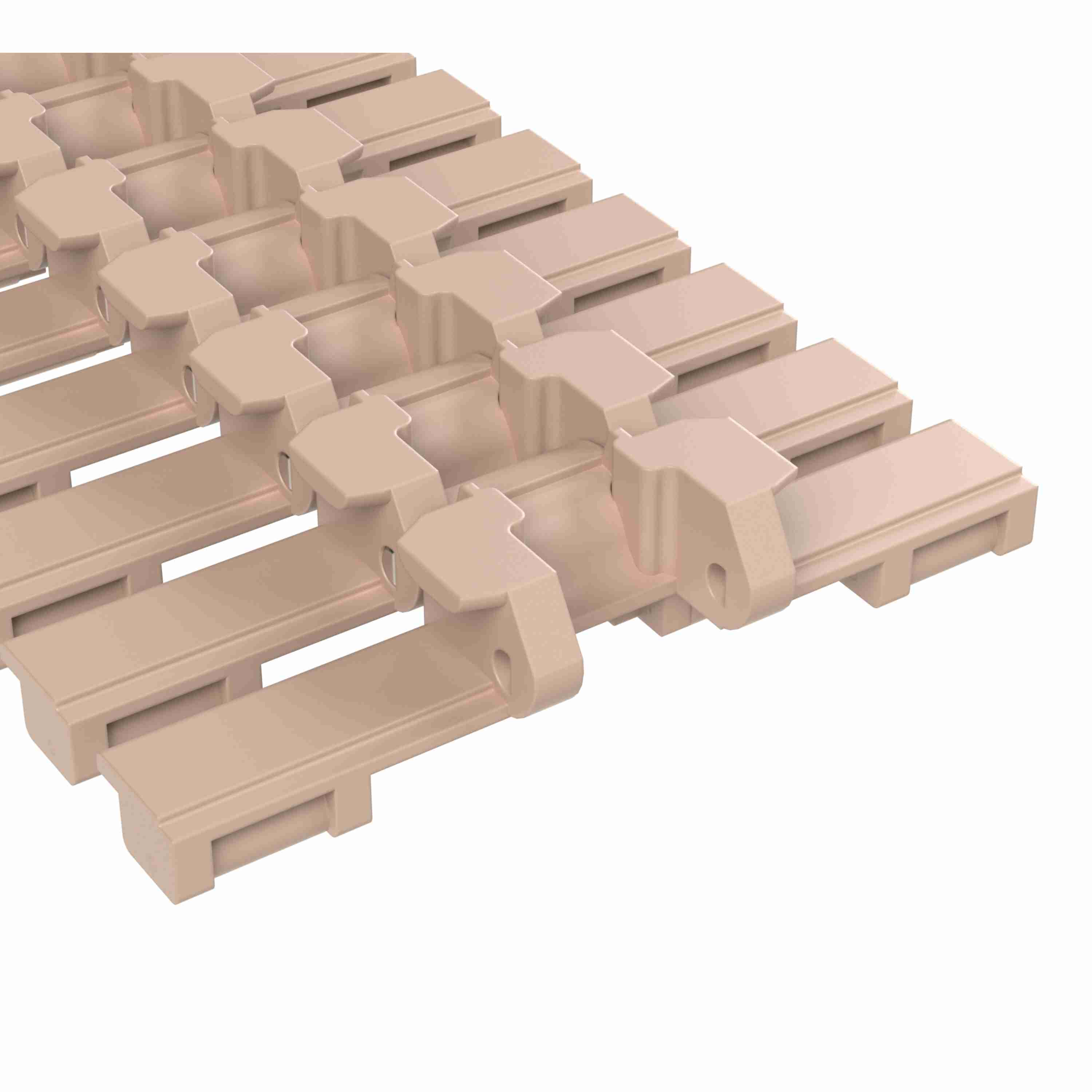

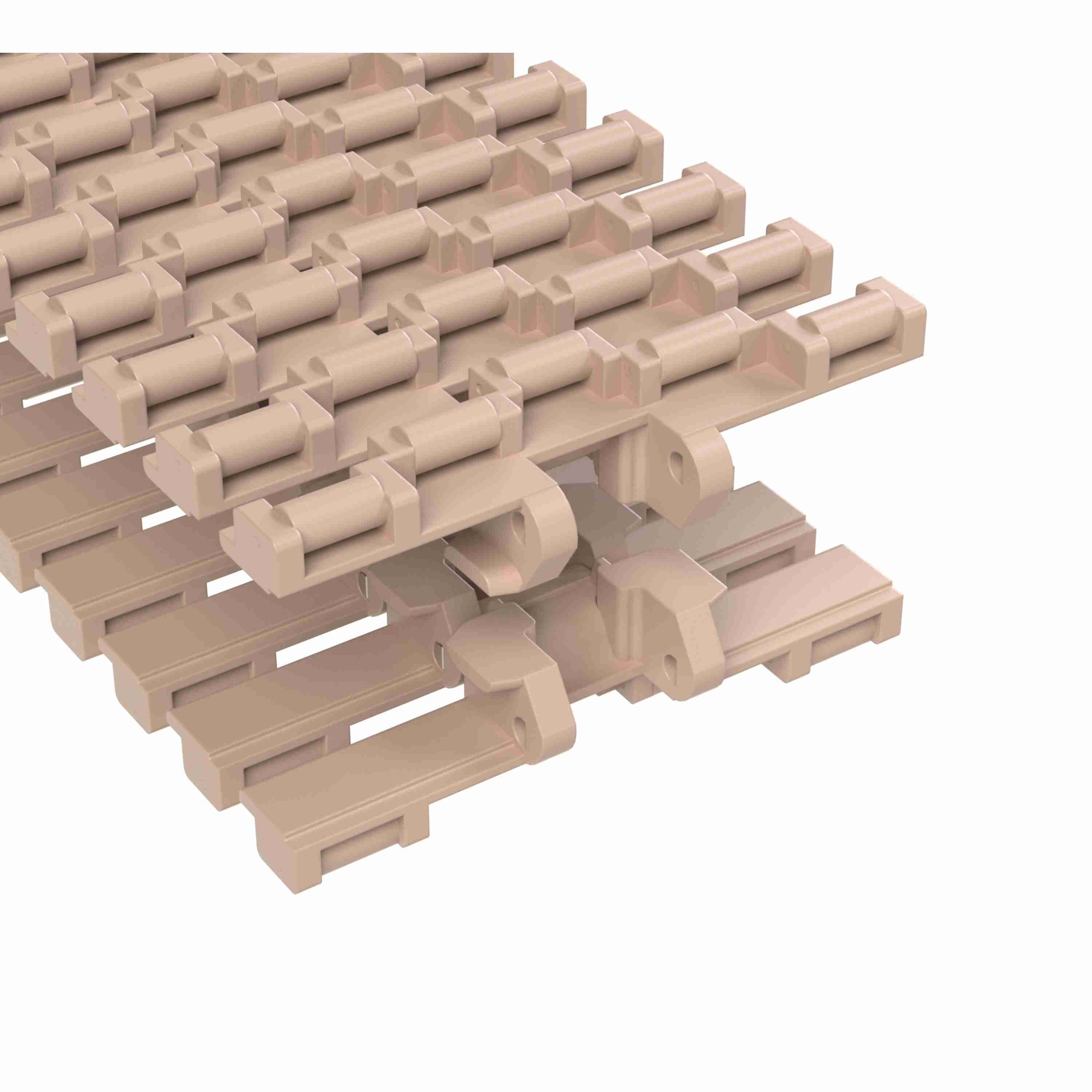

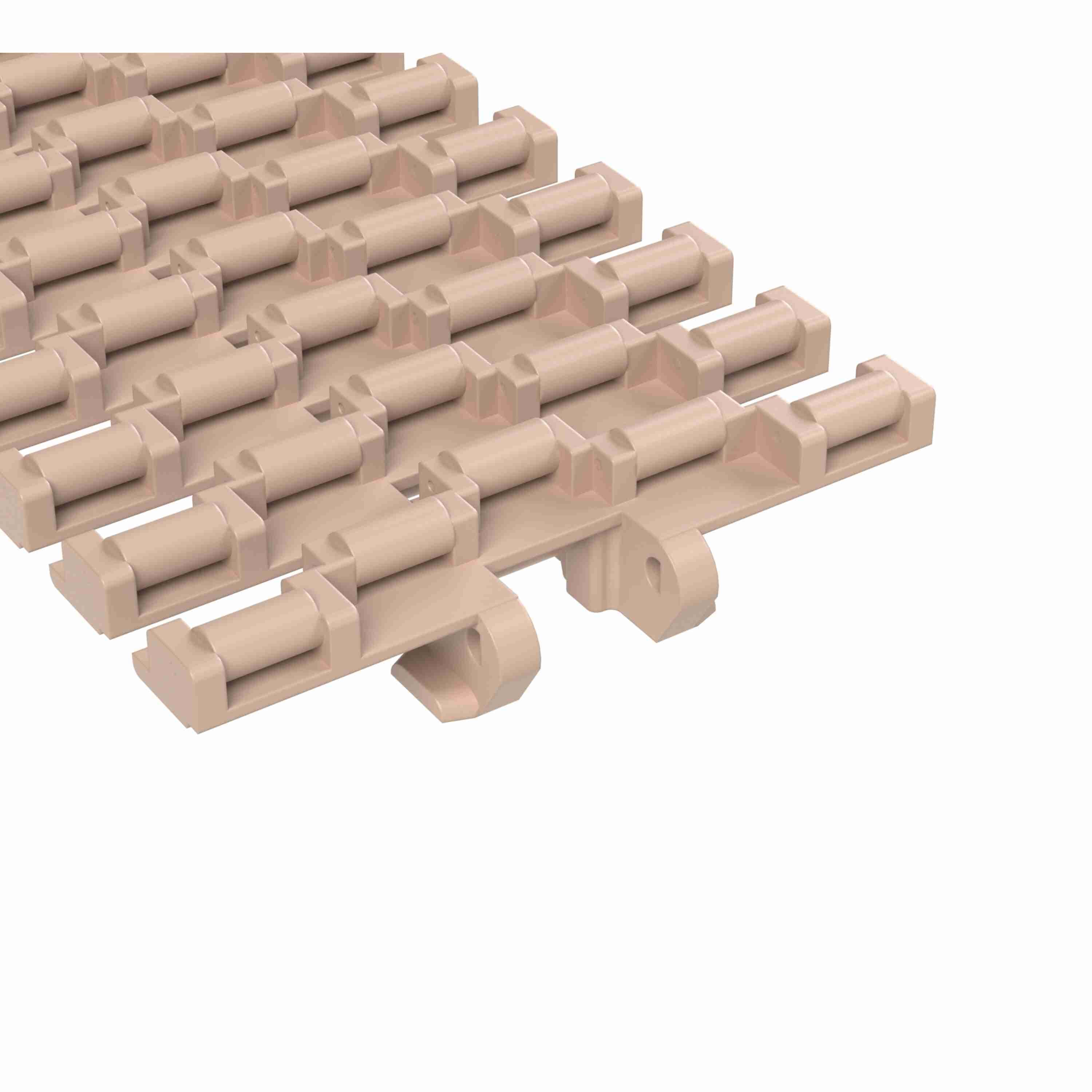

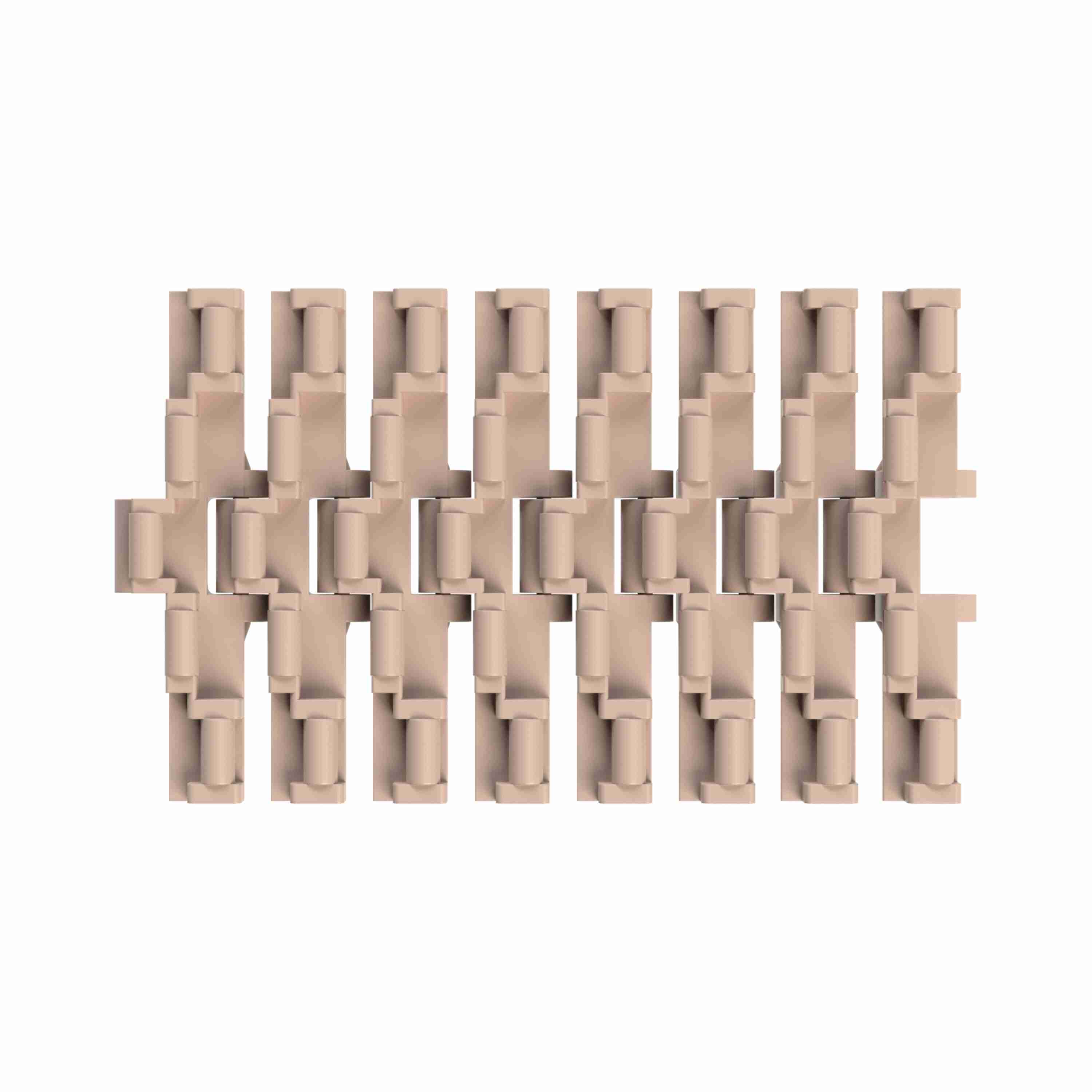

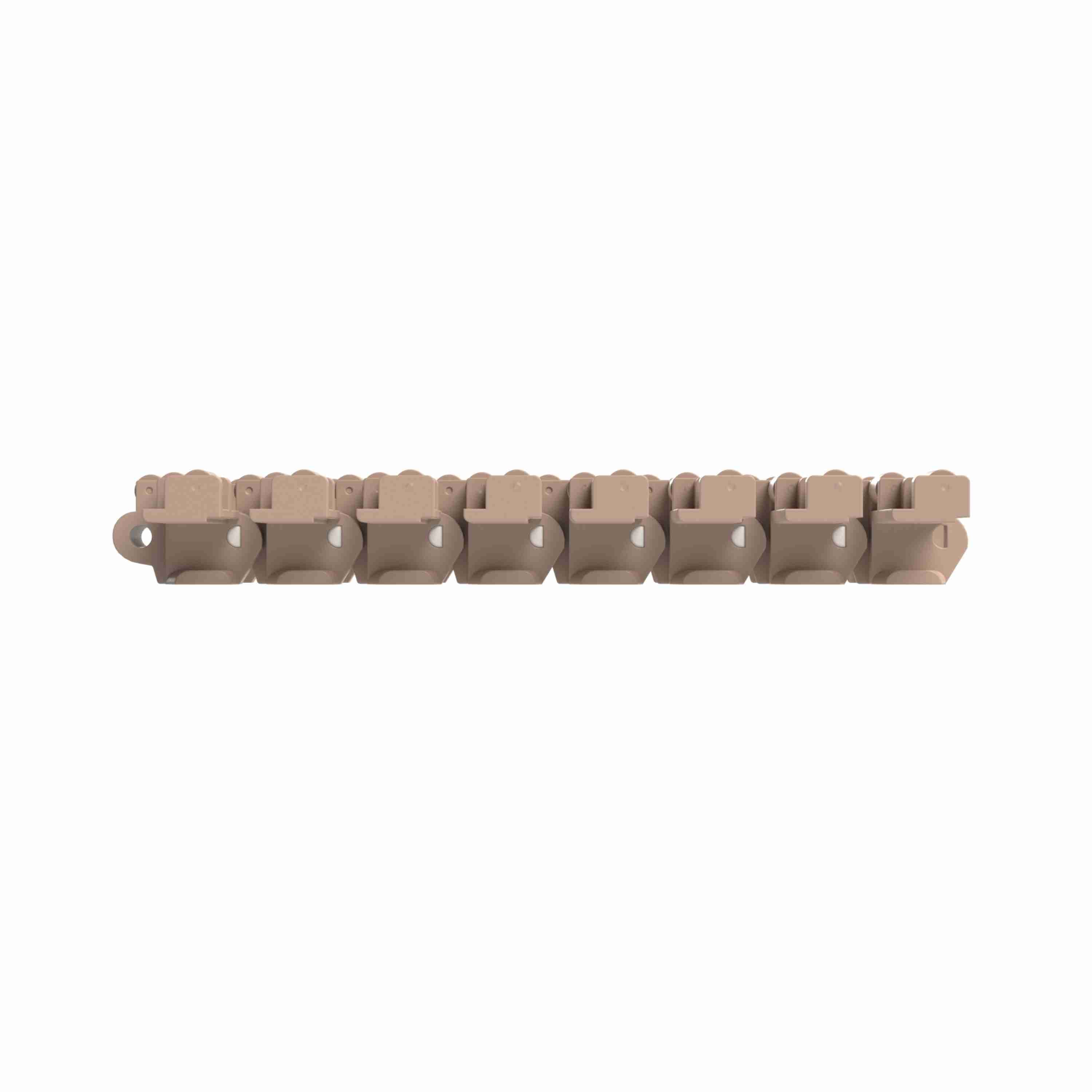

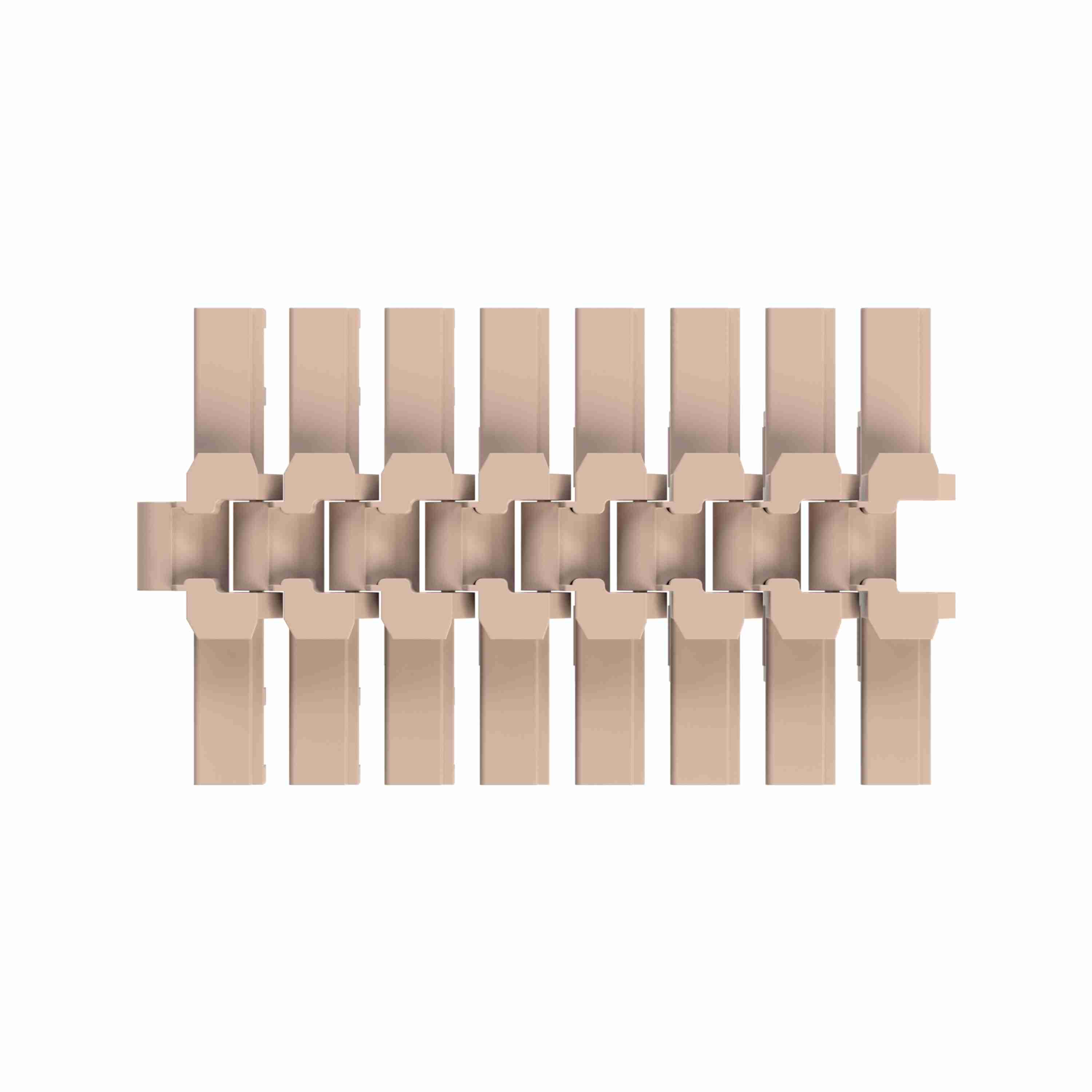

Rexnord 883TAB LBP Side-flexing Low Backline Pressure, Material: Tan Low Friction, Width: 7.5in, Pitch: 1.5in - LBP883TK7.5
Part #:10177548
Catalog #:LBP883TK7.5
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Surface Type: | Low Backline Pressure | Series: | TableTop 883 Series Side-flexing Chain |
| Chain Number: | 883TAB LBP | Chain Strength (lb): | 625 lb |
| Straight or Side-Flex: | Side-flexing | Chain Width Measurement System: | Imperial |
| Chain Width (mm): | 190.5 mm | Chain Strength (N): | 2,775 N |
| Chain Material Description: | Tan Low Friction | Chain Material: | LF |
| Curve Retention Type: | TAB | Rod/Pin Material: | Stainless Steel |
| Chain Pitch (in): | 1.5 in | Flight Thickness (mm): | 19.3 mm |
| Chain Pitch (mm): | 38.1 mm | Flight Thickness (in): | 0.76 in |
| Chain Width (in): | 7.5 in |
General Specifications
| Weight: | 0.29 LB | HTC: | 3926909989 |
| Country of Origin: | Mexico |
