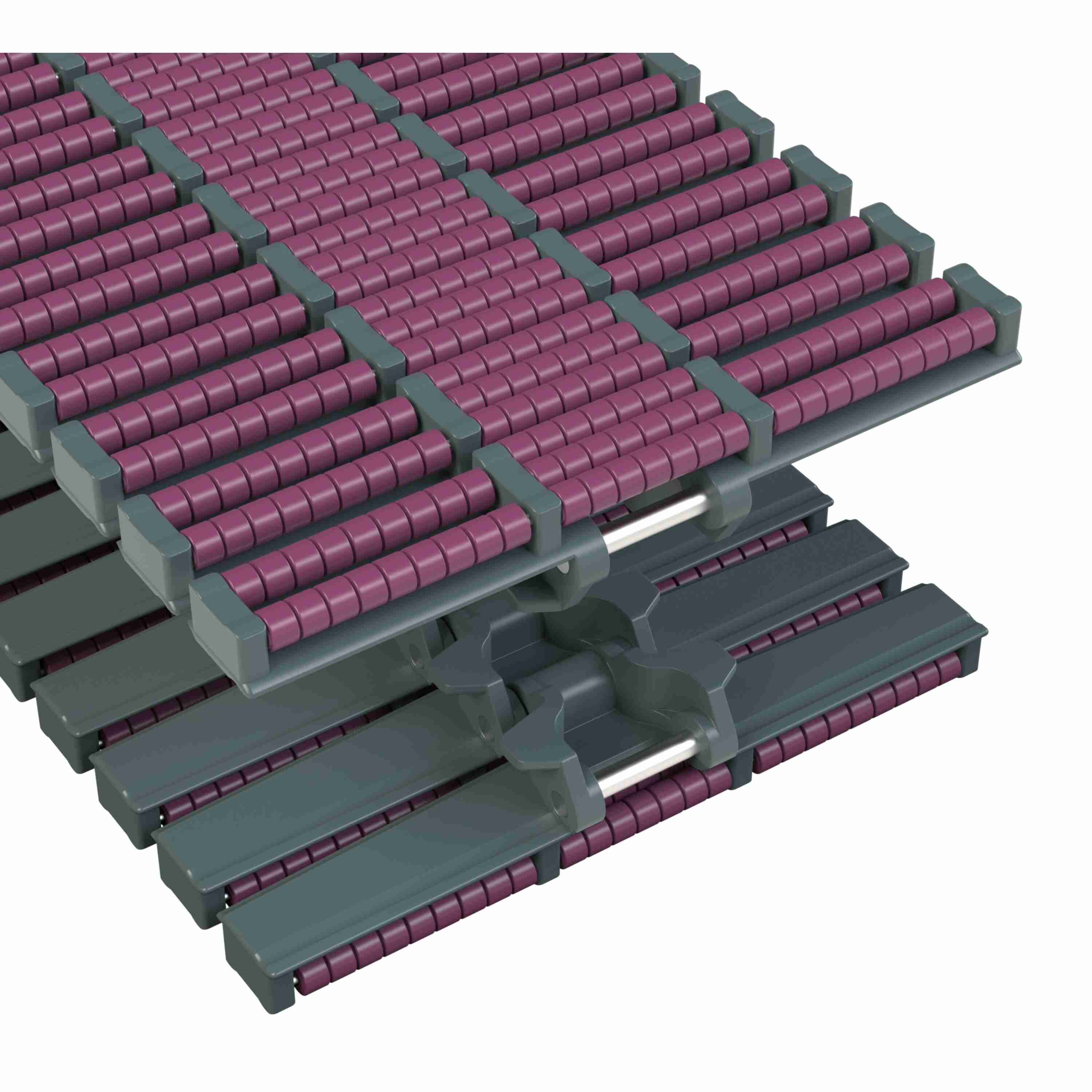

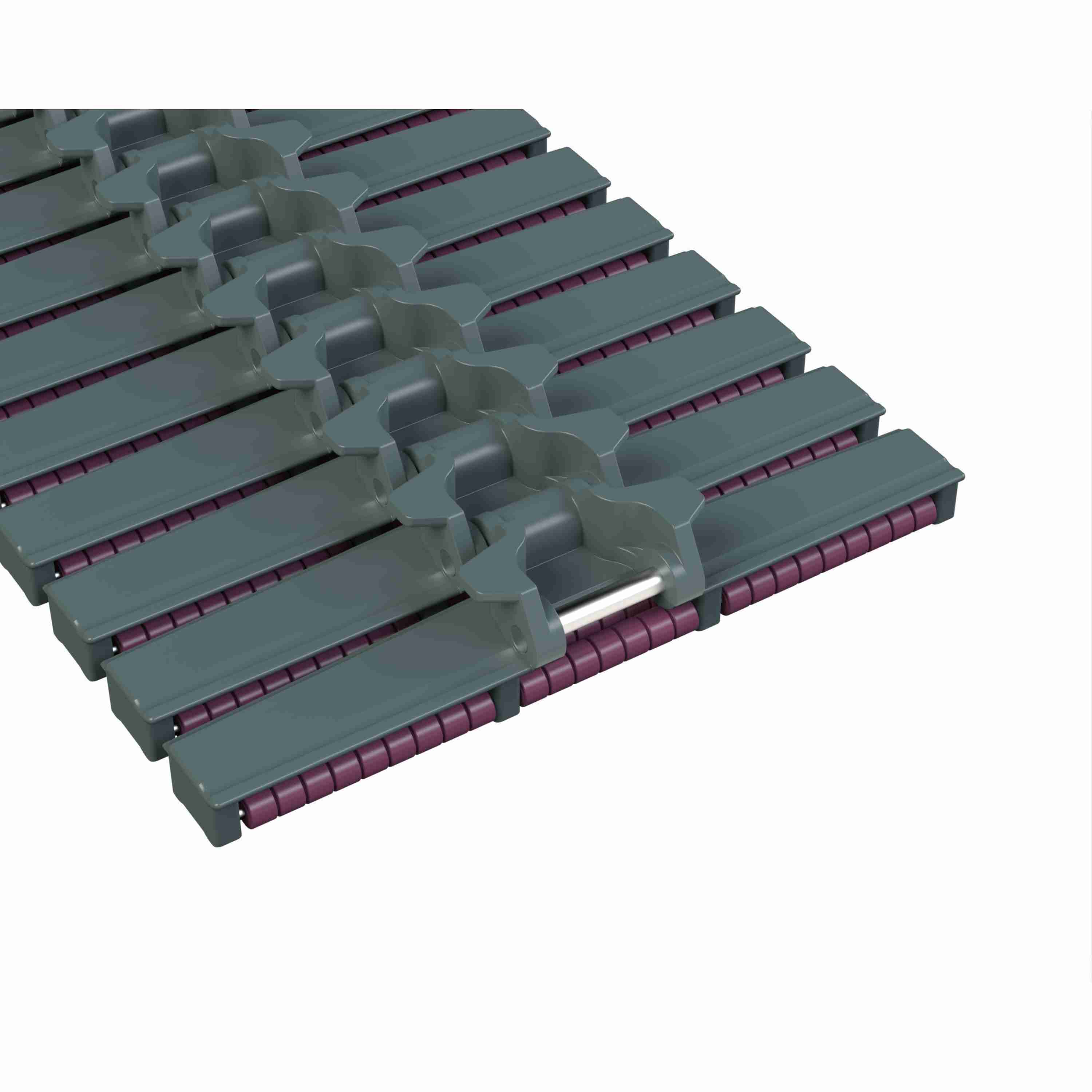

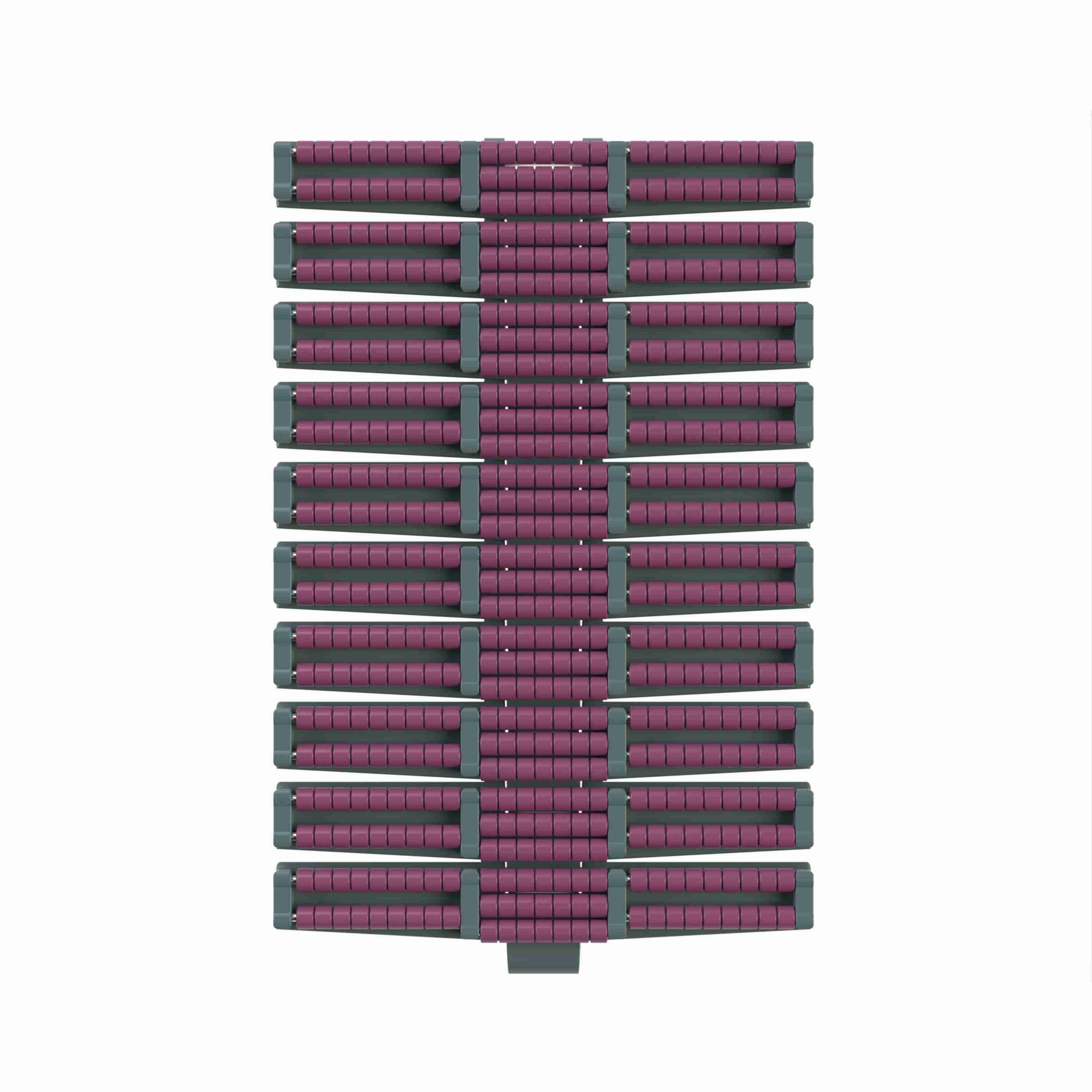

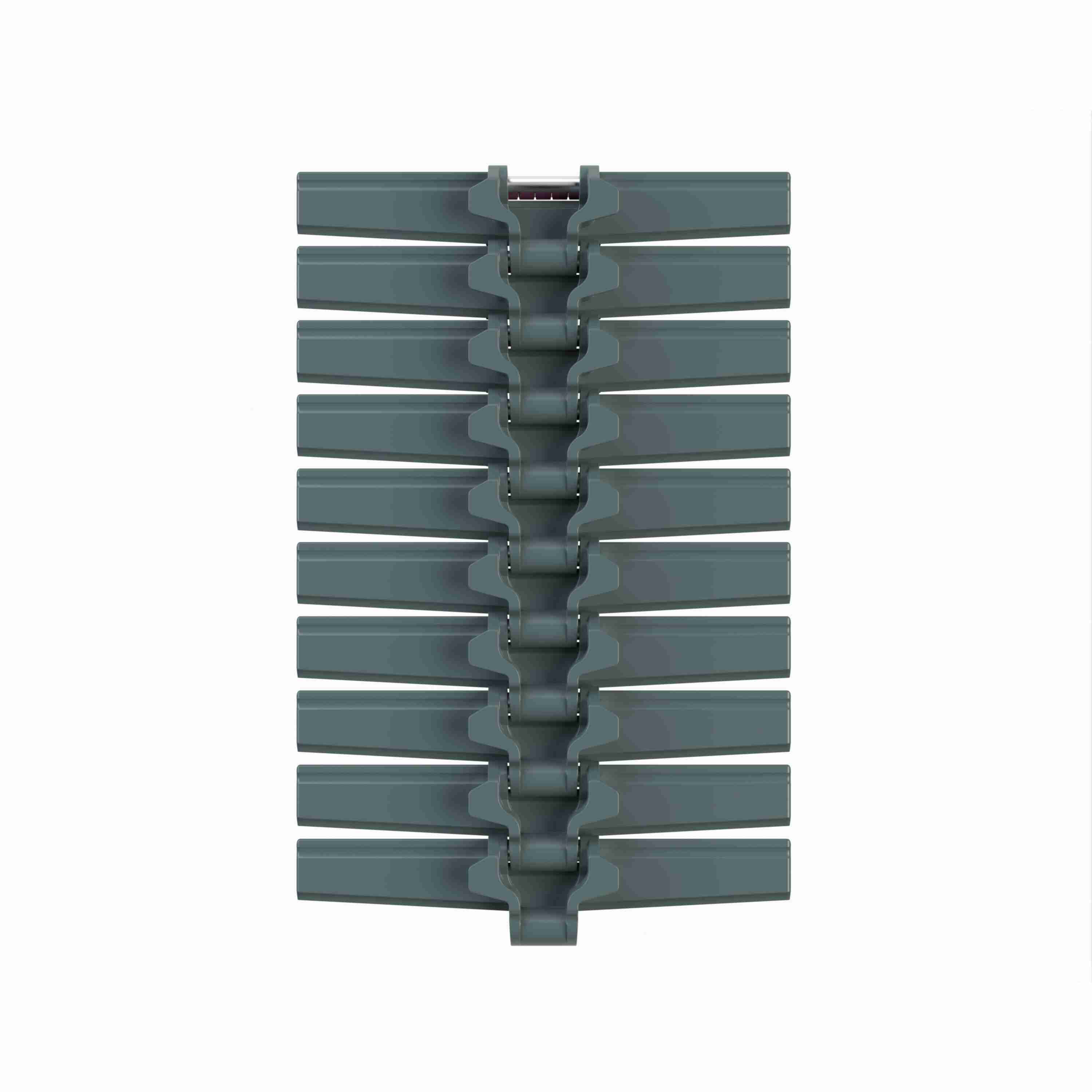

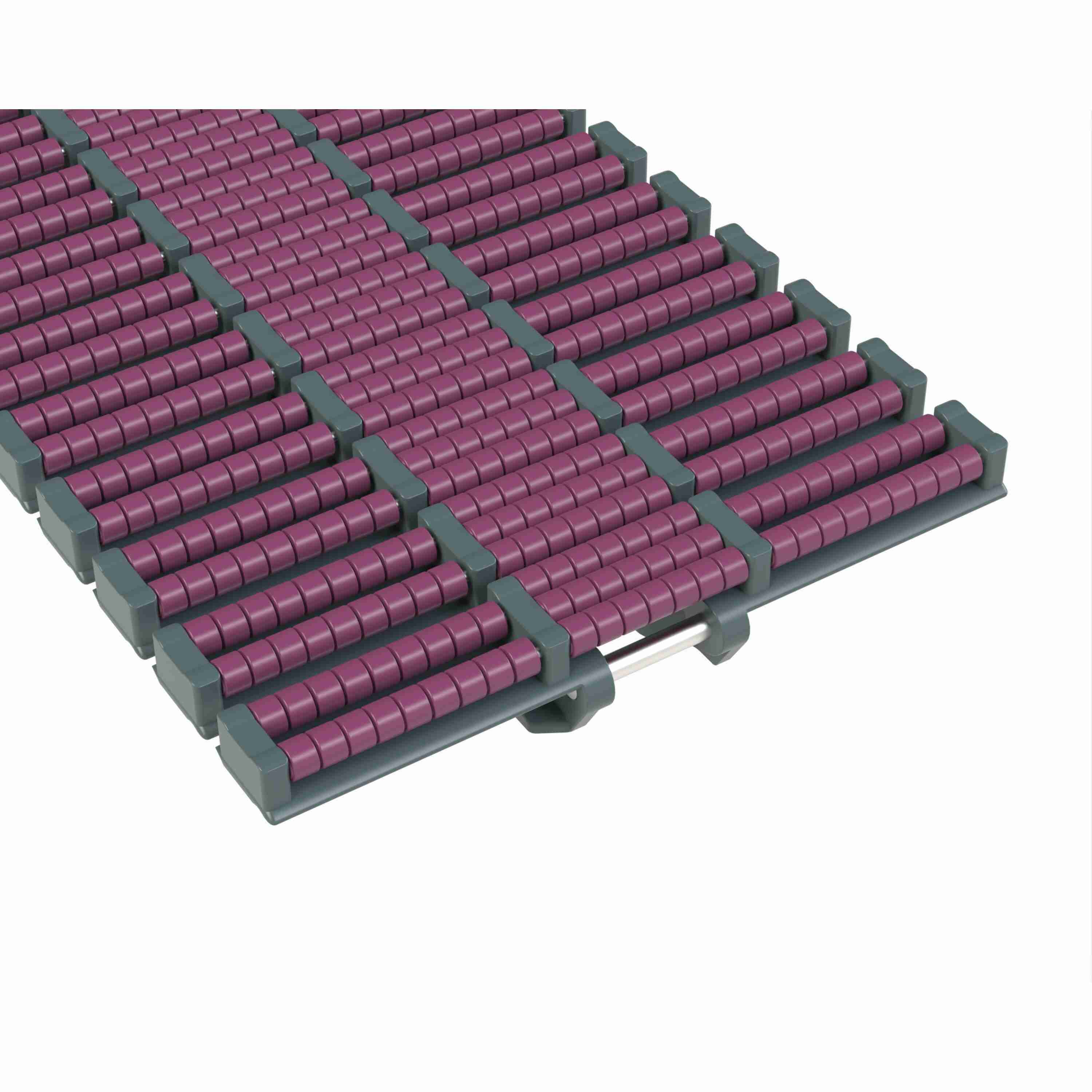

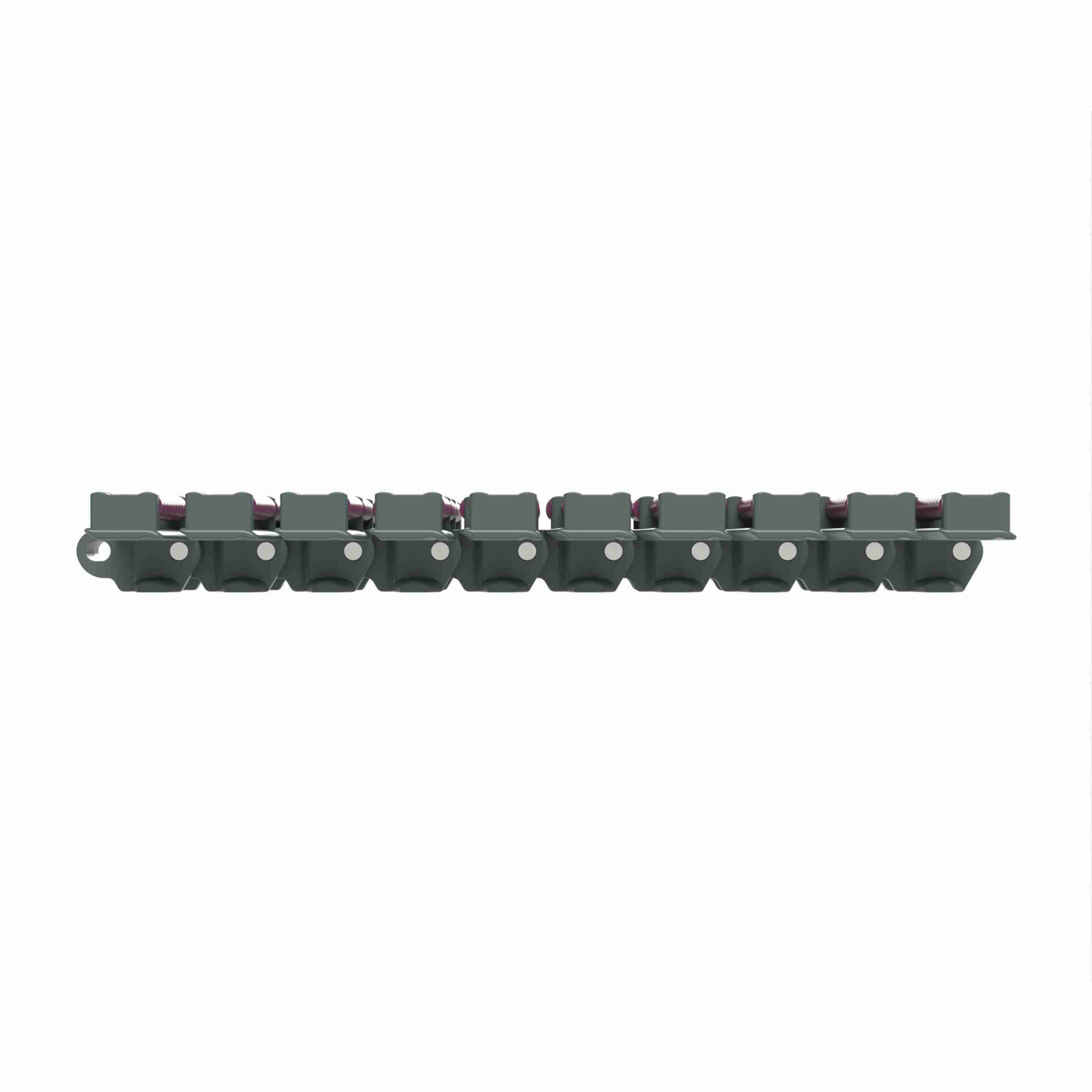

Rexnord HDF LBP Side-flexing Low Backline Pressure, Material: Internally Lubricated Polyacetal (Grey), Width: 10in, Pitch: 1.5in - 752.89.19
Part #:10139144
Catalog #:752.89.19
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Curve Retention Type: | TAB | Chain Width (mm): | 254 mm |
| Chain Strength (N): | 3,830 N | Chain Pitch (mm): | 38.1 mm |
| Straight or Side-Flex: | Side-flexing | Rod/Pin Material: | Stainless Steel |
| Surface Type: | Low Backline Pressure | Chain Material: | XLA |
| Flight Thickness (in): | 0.76 in | Series: | TableTop 882 Series Side-flexing Chain |
| Chain Material Description: | Internally Lubricated Polyacetal (Grey) | Chain Strength (lb): | 863 lb |
| Chain Width (in): | 10 in | Chain Pitch (in): | 1.5 in |
| Chain Width Measurement System: | Imperial | Chain Number: | HDF LBP |
| Flight Thickness (mm): | 19.3 mm |
General Specifications
| Weight: | 91.96 G | HTC: | 3926906090 |
| Country of Origin: | Netherlands |
