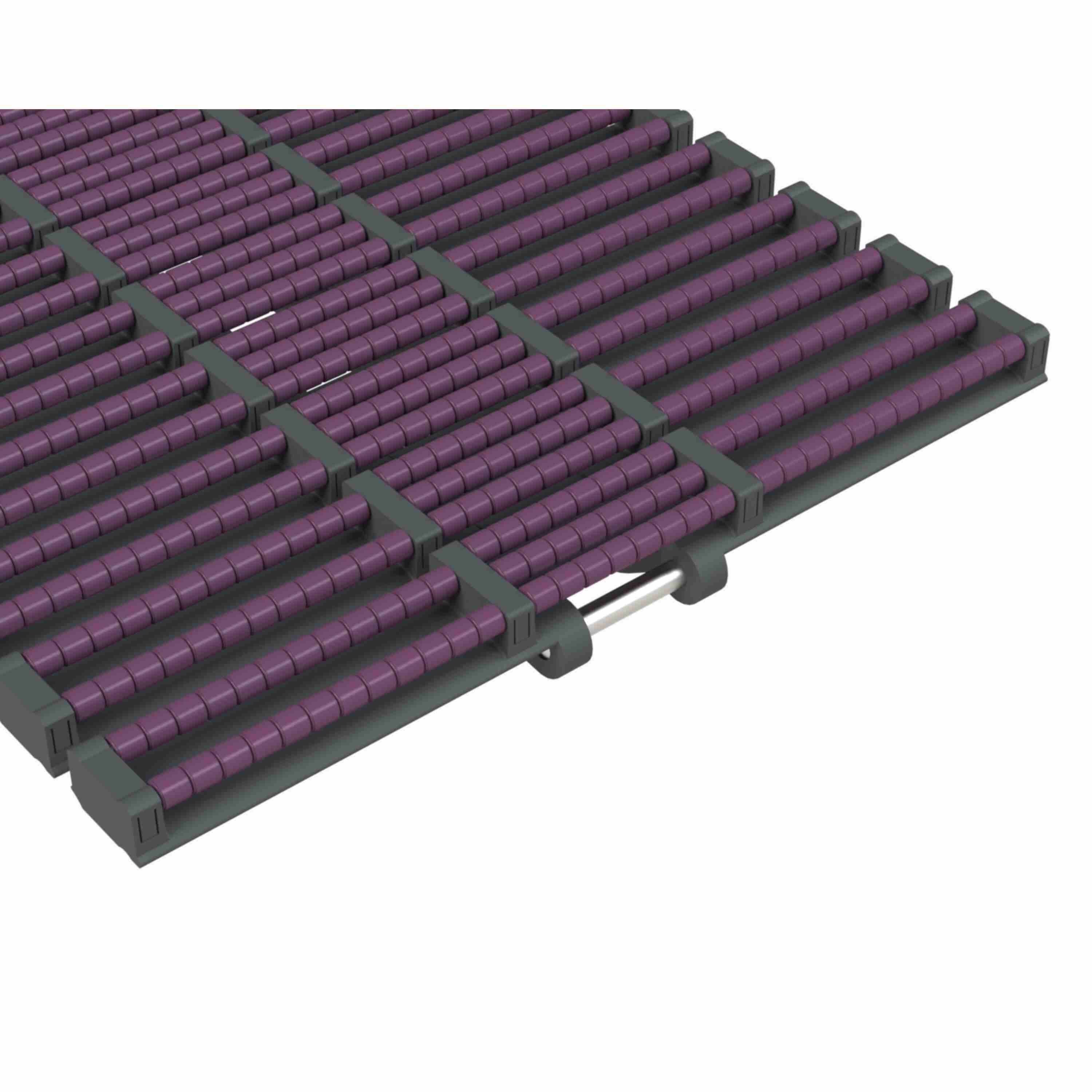

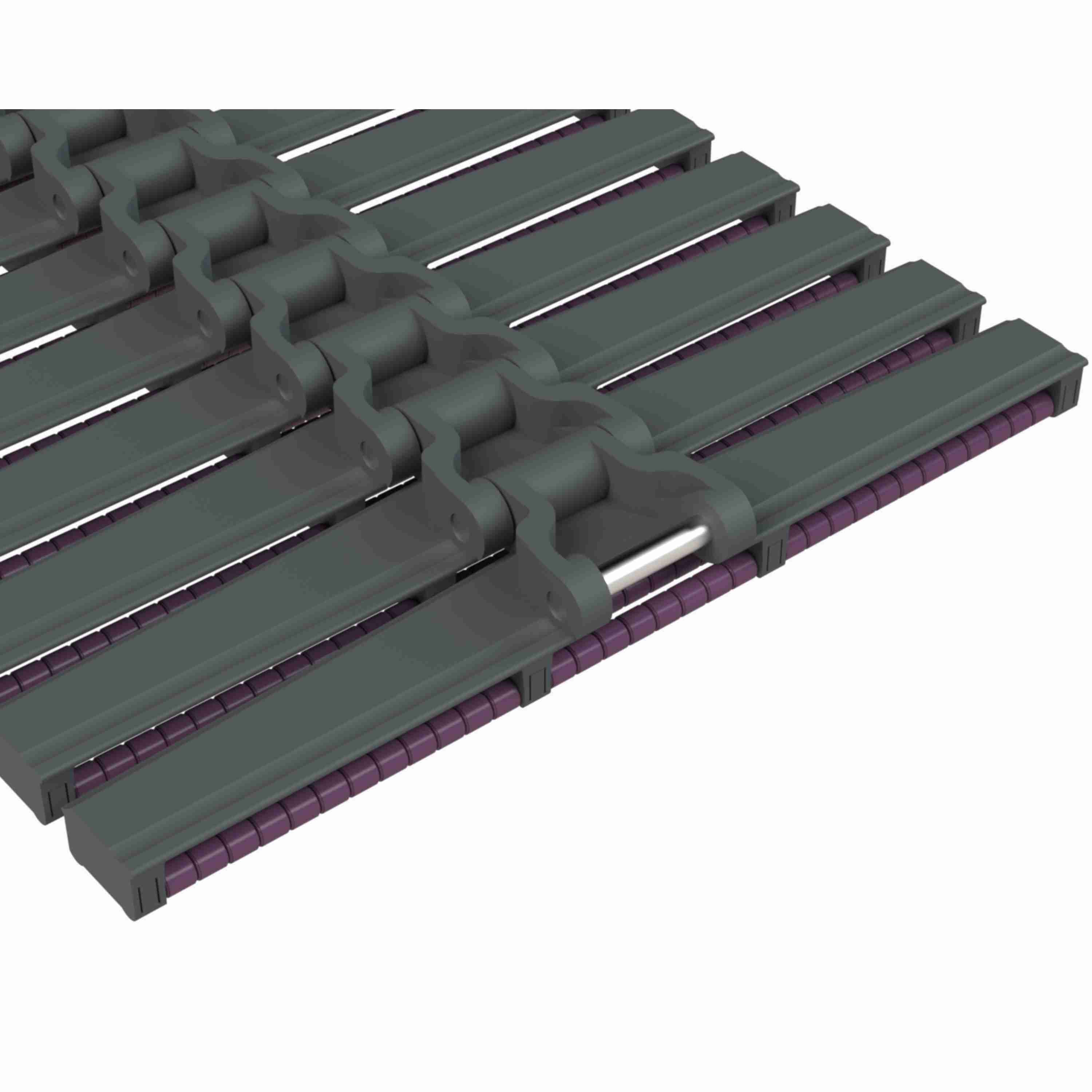

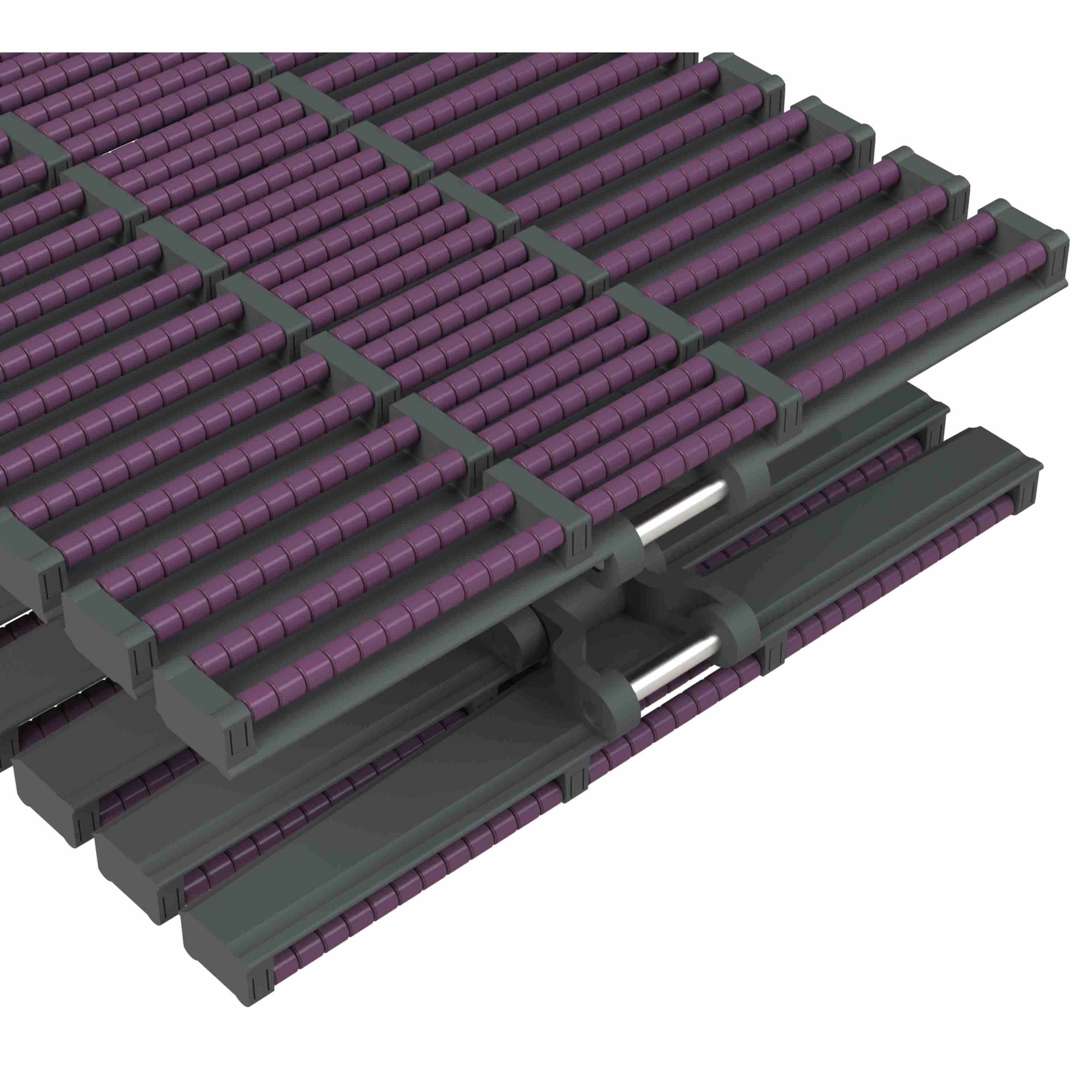

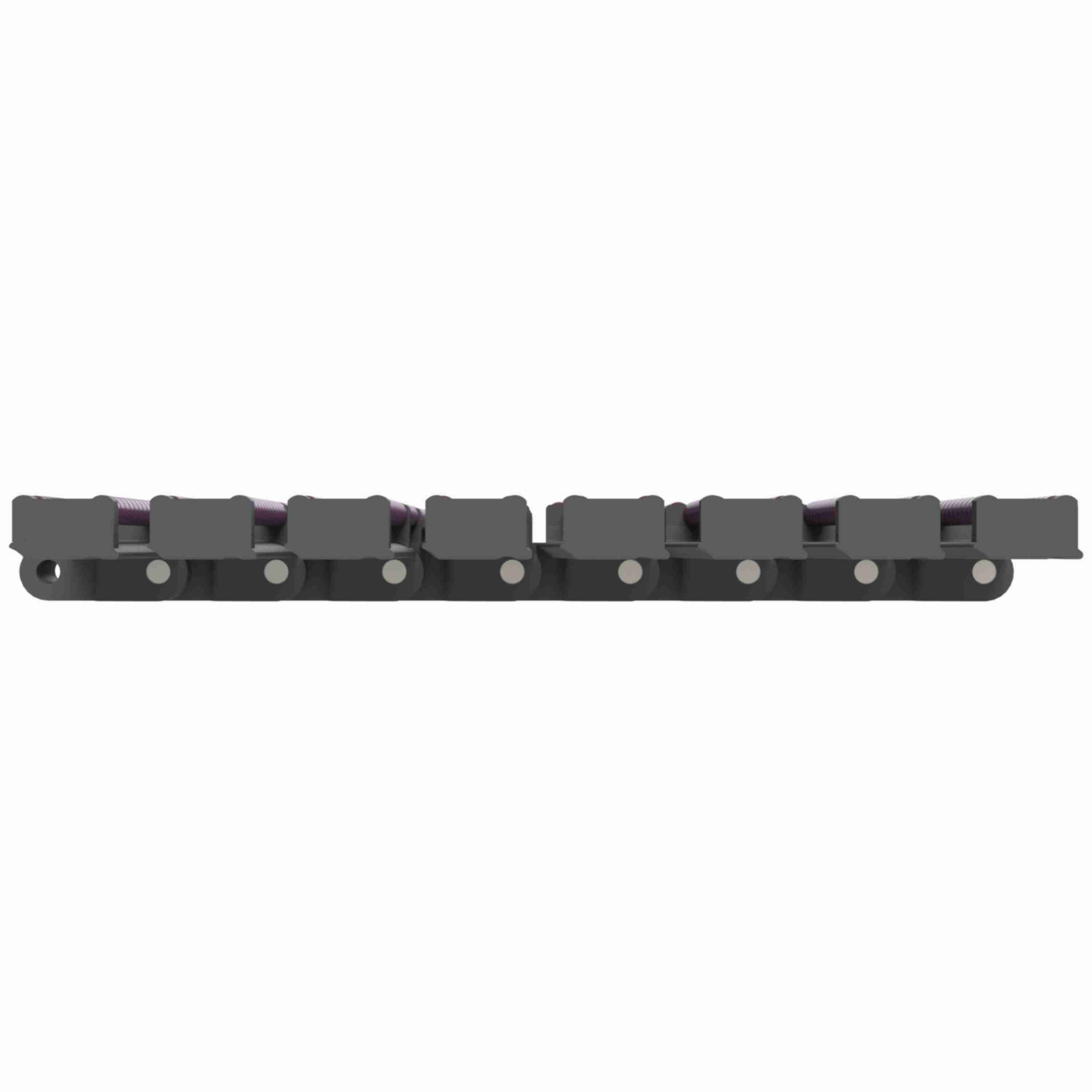

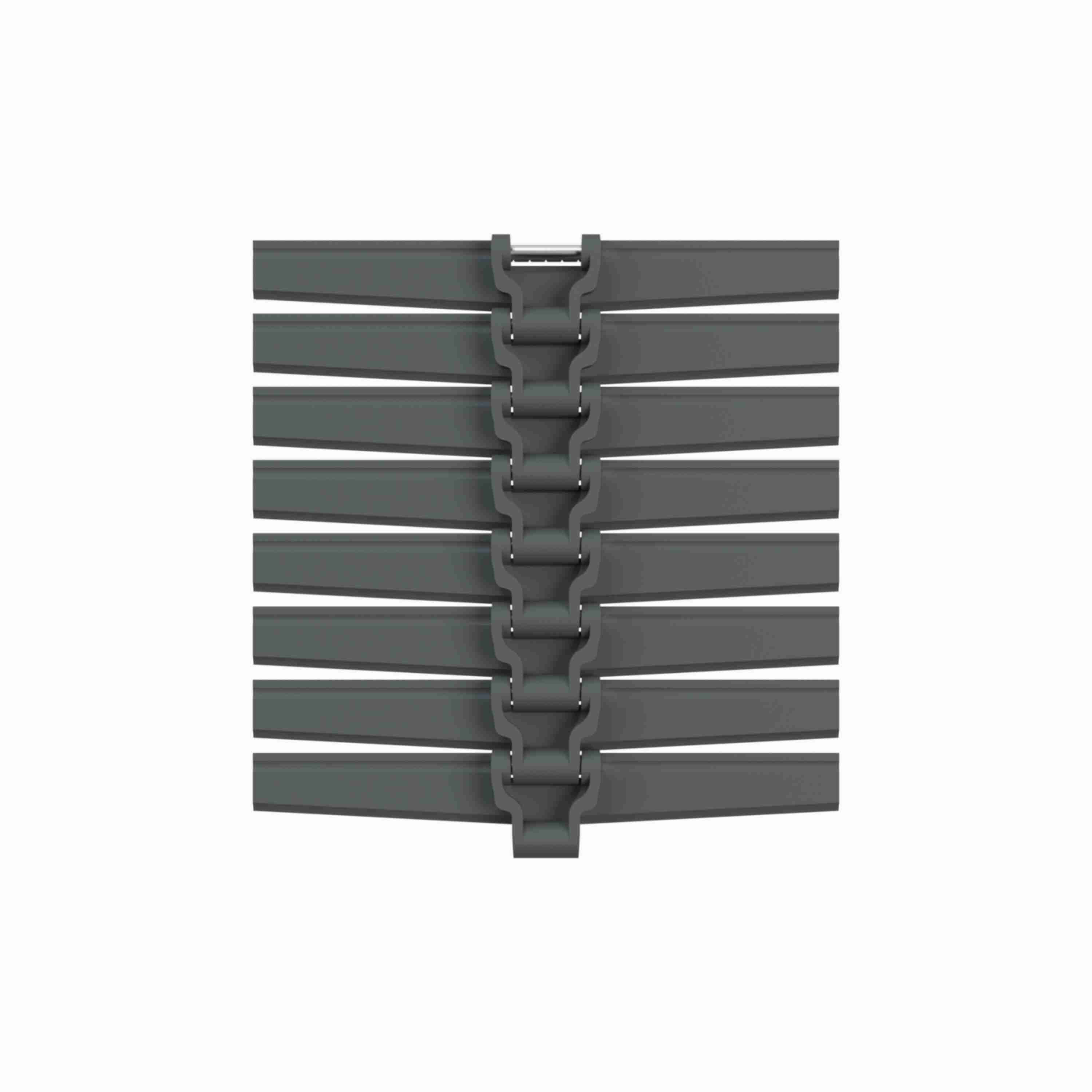

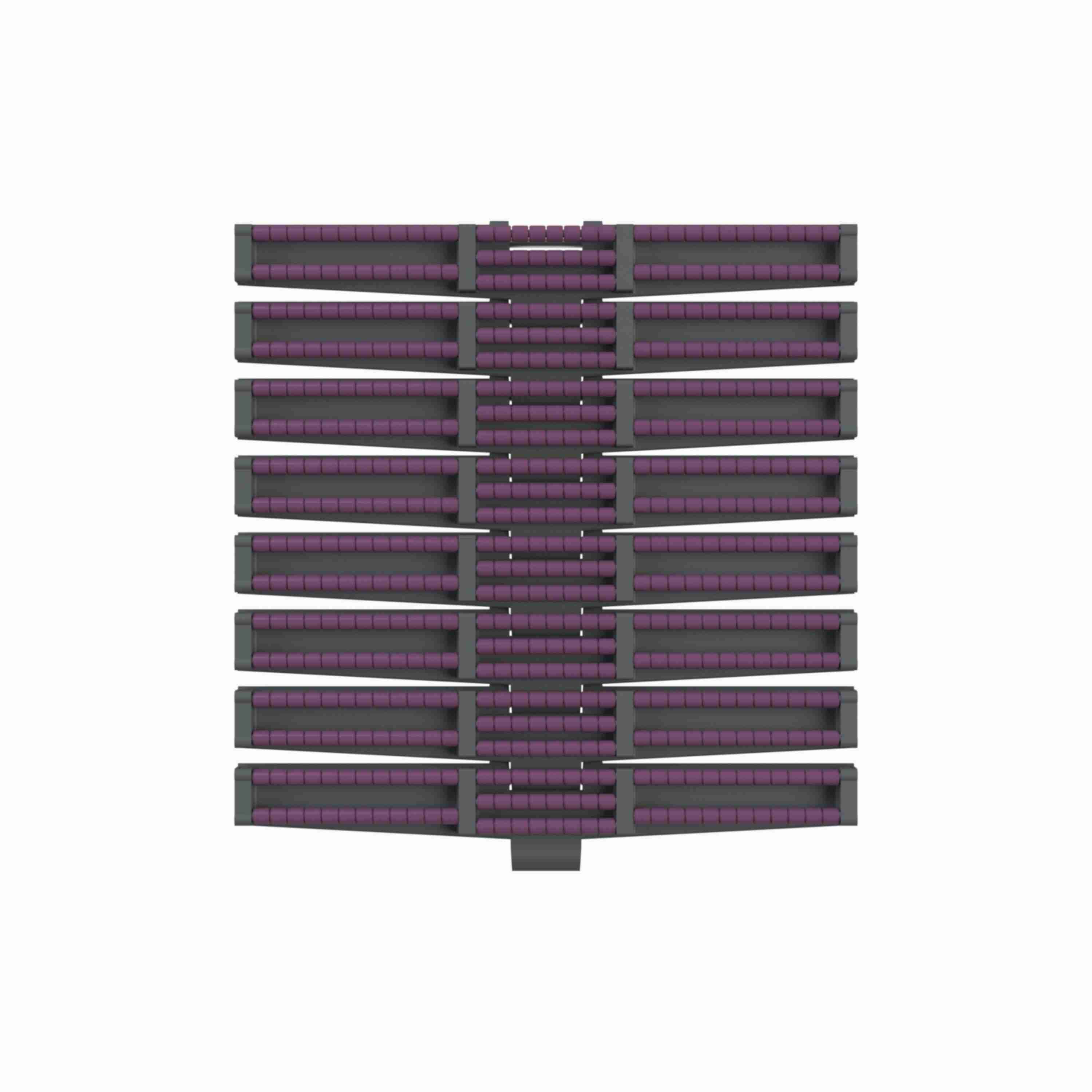

Rexnord HDFM LBP Side-flexing Low Backline Pressure, Material: Internally Lubricated Polyacetal (Grey), Width: 12in, Pitch: 1.5in - 752.88.20
Part #:10139141
Catalog #:752.88.20
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Flight Thickness (mm): | 19.3 mm | Chain Pitch (mm): | 38.1 mm |
| Series: | TableTop 882 Series Side-flexing Chain | Chain Number: | HDFM LBP |
| Chain Strength (N): | 3,830 N | Chain Strength (lb): | 863 lb |
| Chain Material: | XLA | Straight or Side-Flex: | Side-flexing |
| Rod/Pin Material: | Stainless Steel | Curve Retention Type: | Magnetic |
| Chain Width (mm): | 304.8 mm | Flight Thickness (in): | 0.76 in |
| Chain Width (in): | 12 in | Chain Material Description: | Internally Lubricated Polyacetal (Grey) |
| Surface Type: | Low Backline Pressure | Chain Width Measurement System: | Imperial |
| Chain Pitch (in): | 1.5 in |
General Specifications
| Weight: | 0.24 KG | HTC: | 3926906090 |
| Country of Origin: | Netherlands |
