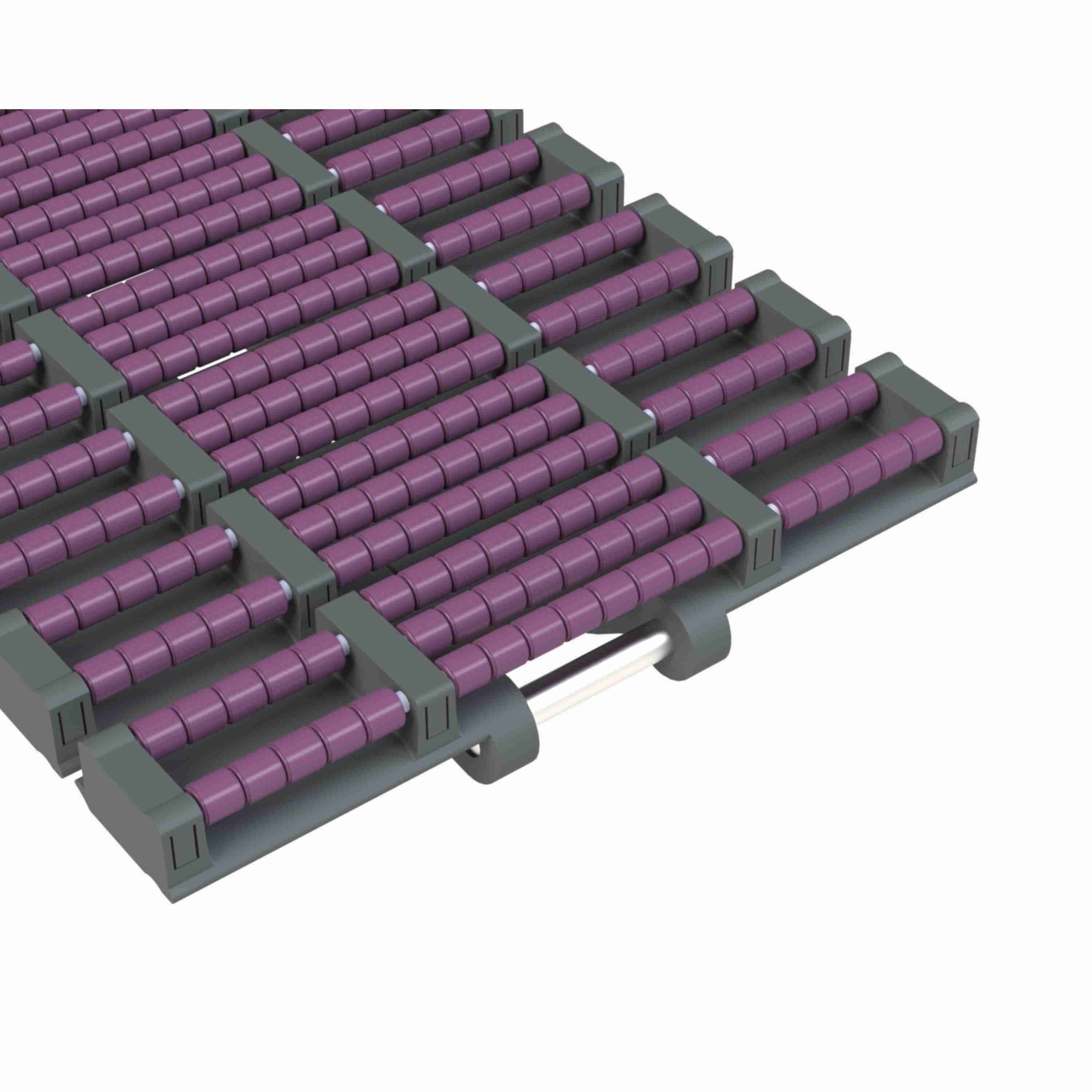

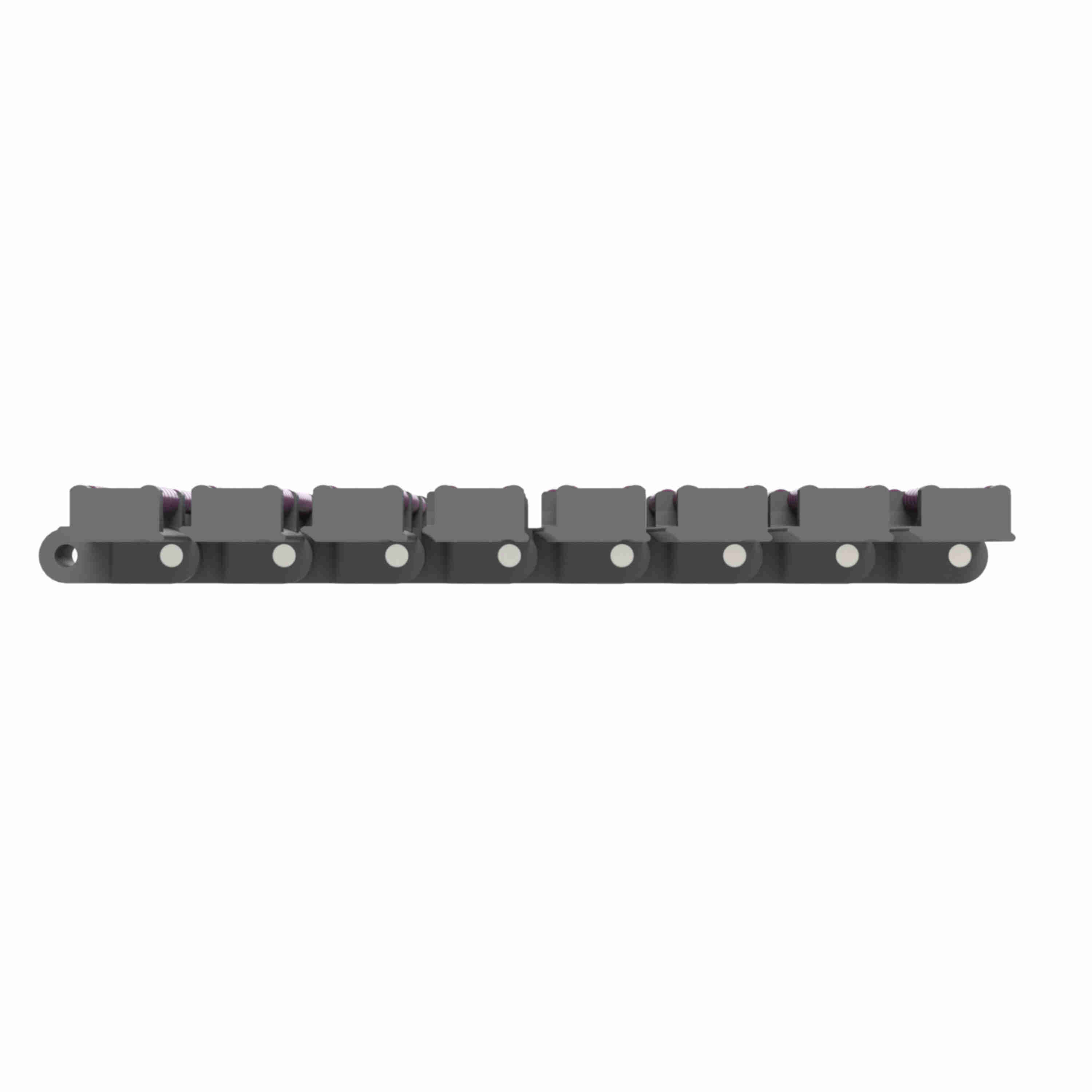

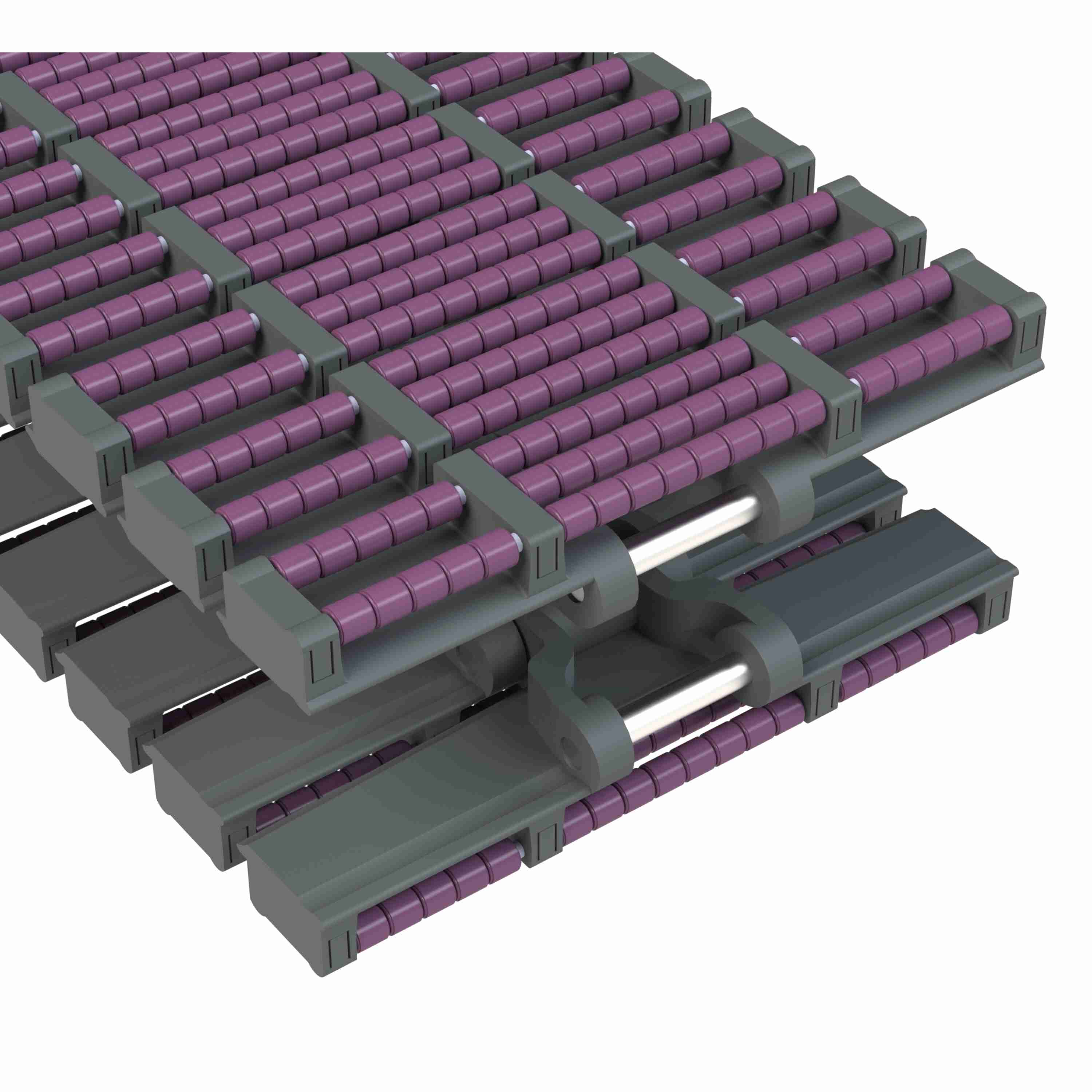

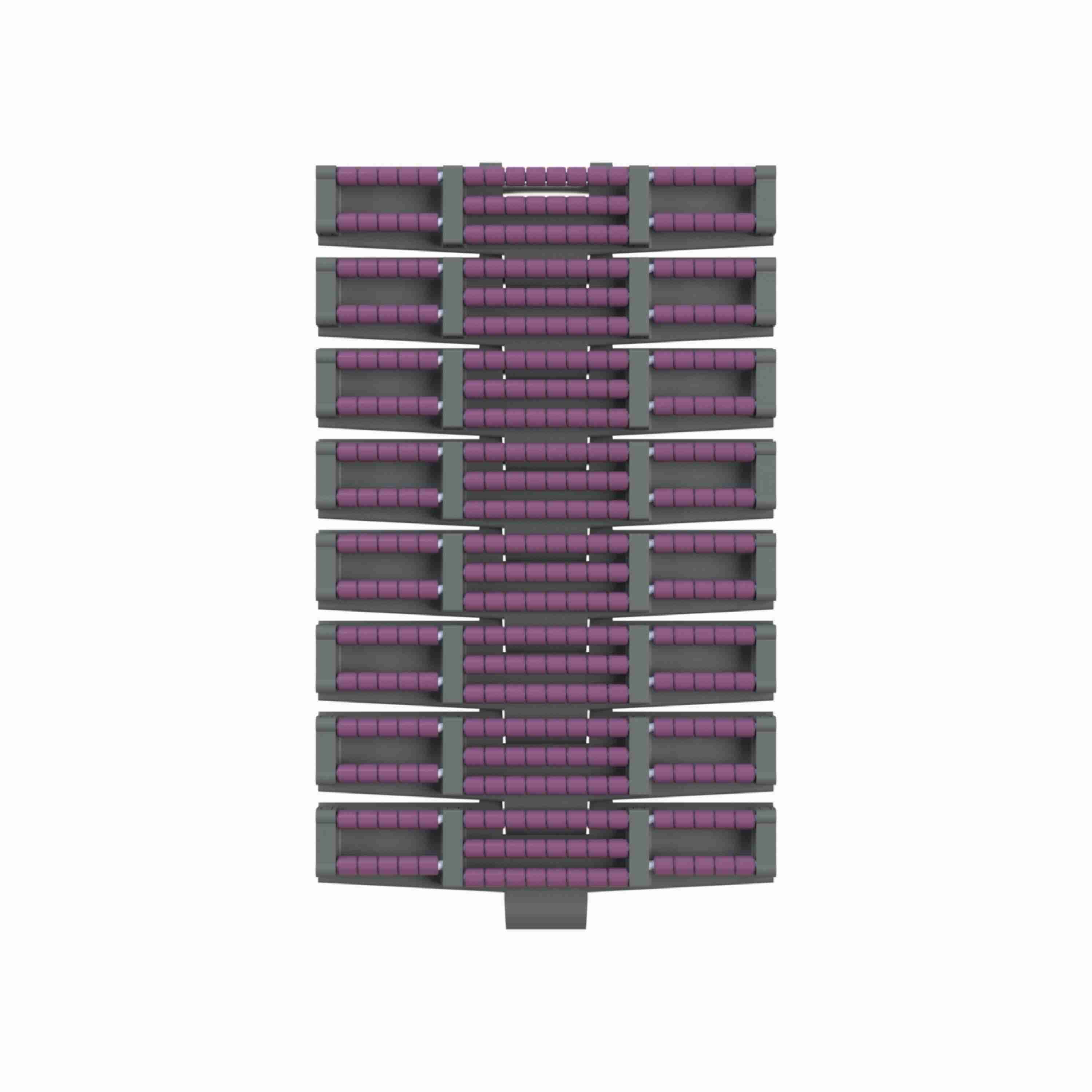

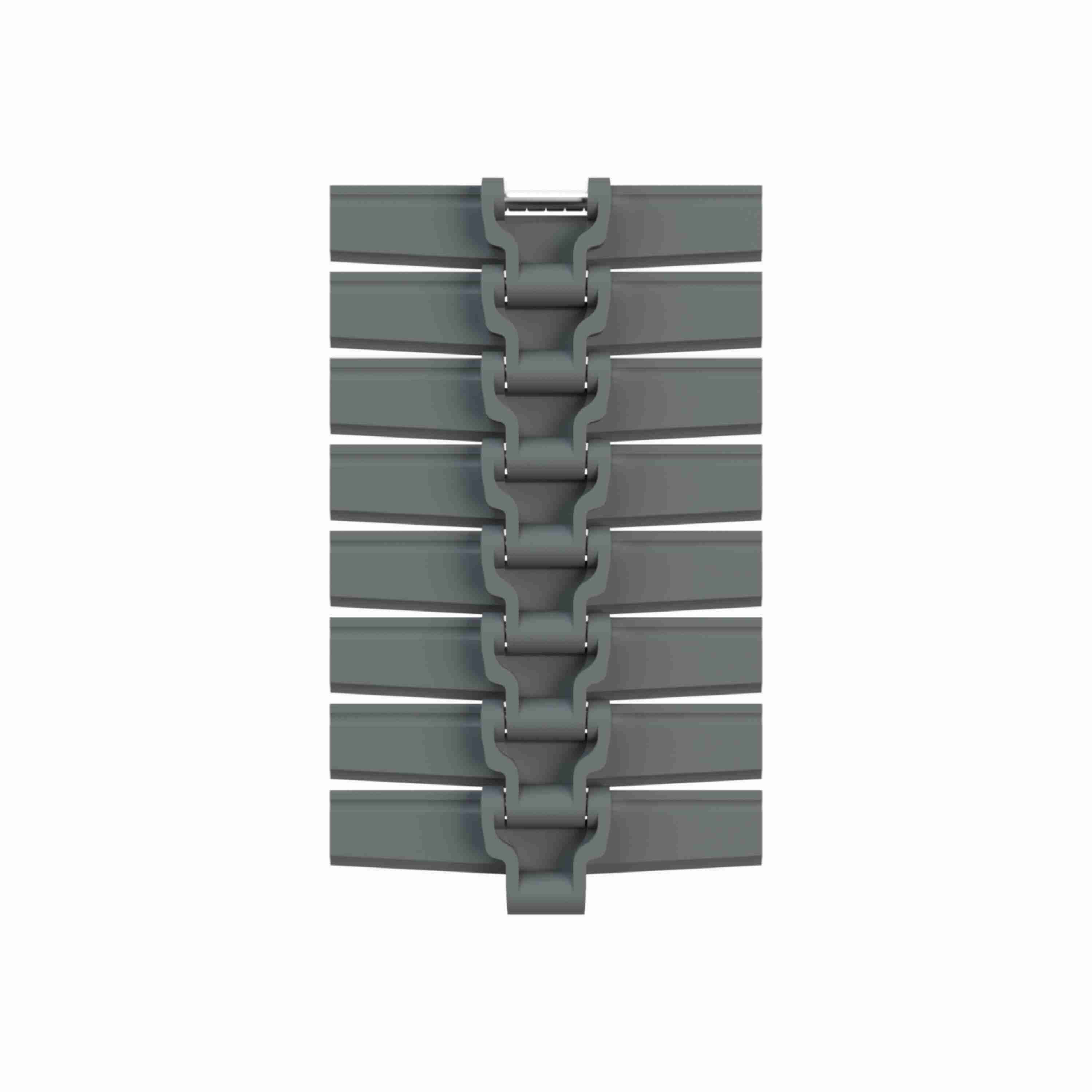

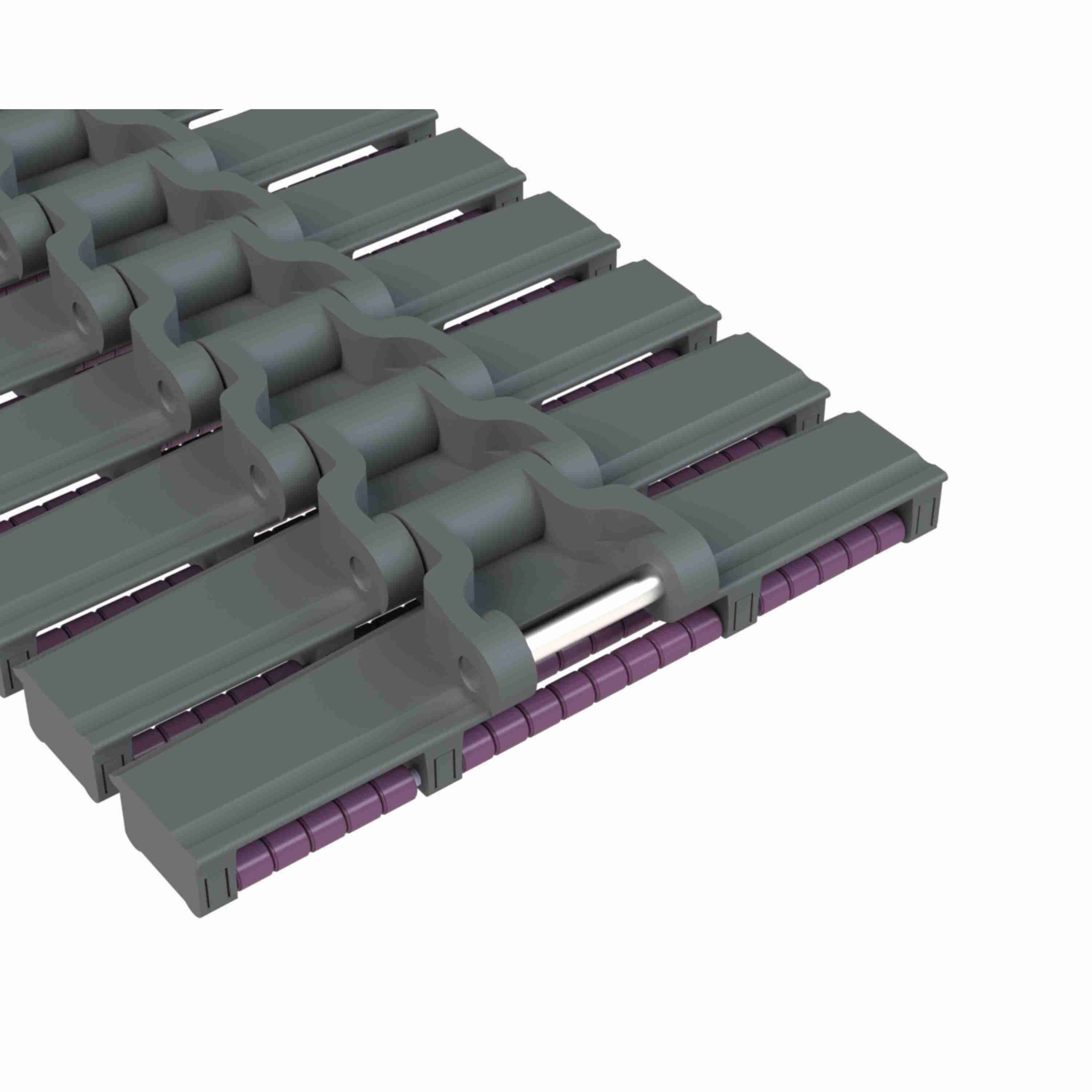

Rexnord HDFM LBP Side-flexing Low Backline Pressure, Material: Internally Lubricated Polyacetal (Grey), Width: 7.5in, Pitch: 1.5in - 752.88.13
Part #:10139139
Catalog #:752.88.13
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Series: | TableTop 882 Series Side-flexing Chain | Chain Width (mm): | 190.5 mm |
| Rod/Pin Material: | Stainless Steel | Chain Material: | XLA |
| Chain Strength (N): | 3,830 N | Chain Width (in): | 7.5 in |
| Surface Type: | Low Backline Pressure | Chain Pitch (in): | 1.5 in |
| Curve Retention Type: | Magnetic | Chain Material Description: | Internally Lubricated Polyacetal (Grey) |
| Flight Thickness (mm): | 19.3 mm | Chain Strength (lb): | 863 lb |
| Flight Thickness (in): | 0.76 in | Straight or Side-Flex: | Side-flexing |
| Chain Number: | HDFM LBP | Chain Pitch (mm): | 38.1 mm |
| Chain Width Measurement System: | Imperial |
General Specifications
| Weight: | 70.31 G | HTC: | 3926906090 |
| Country of Origin: | Netherlands |
