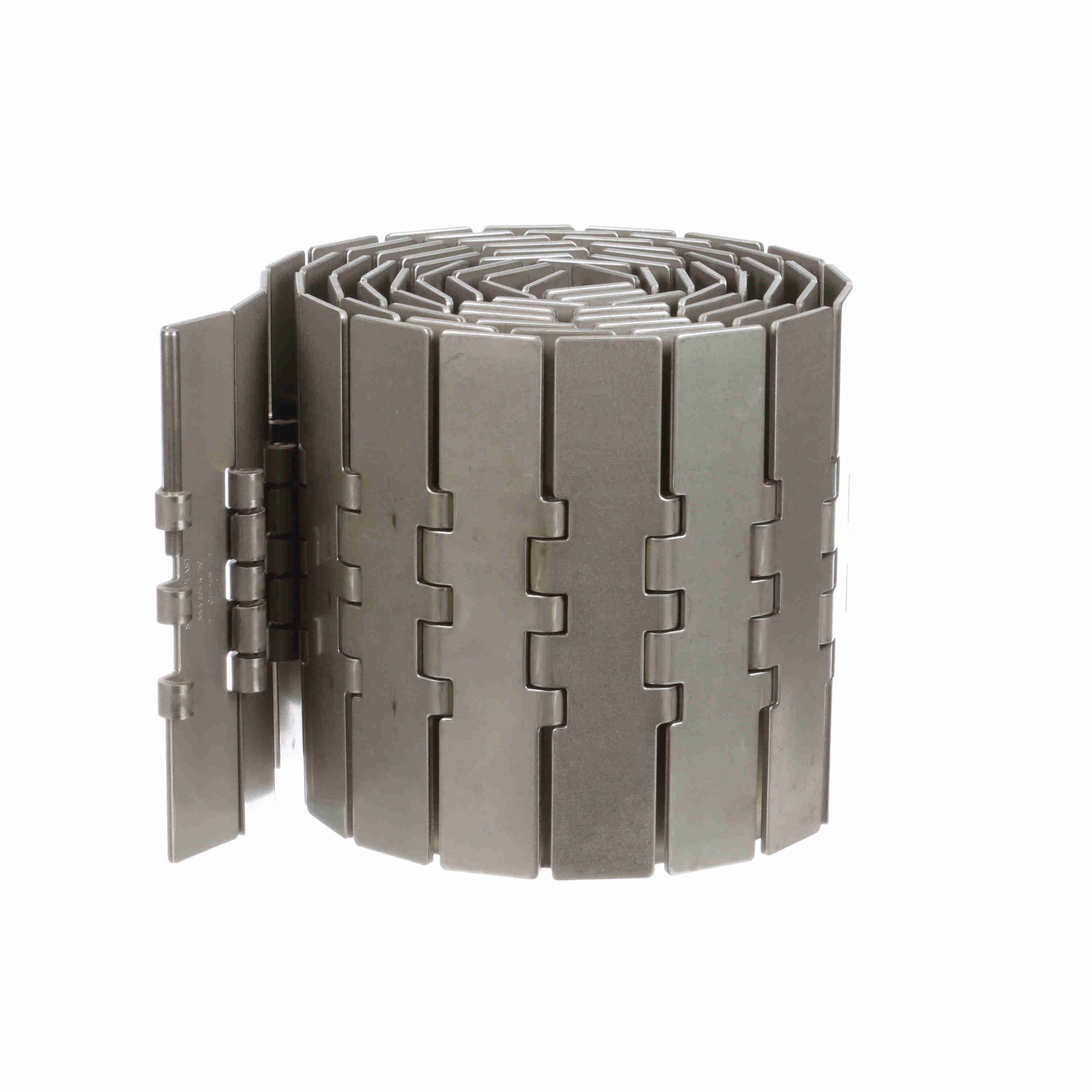

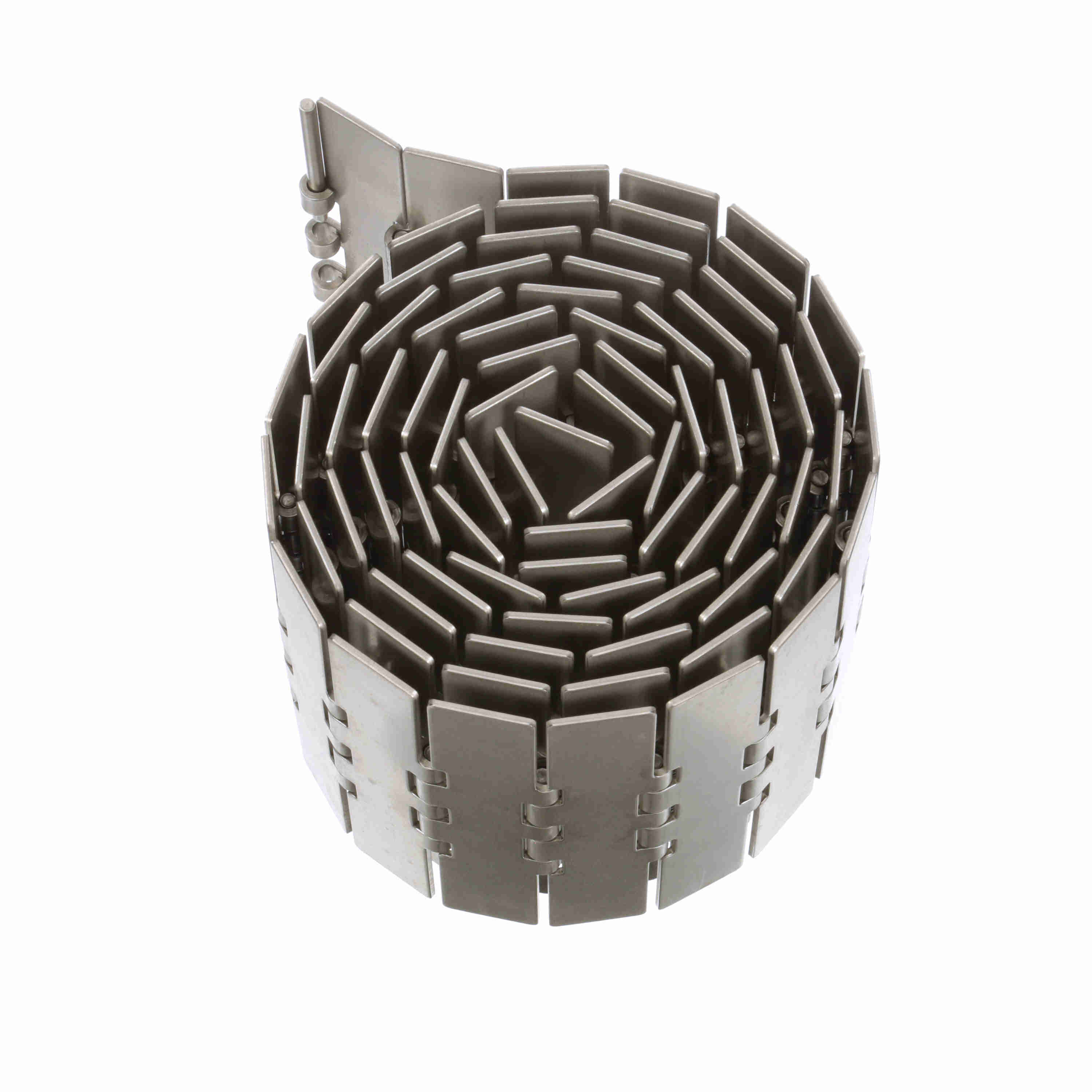

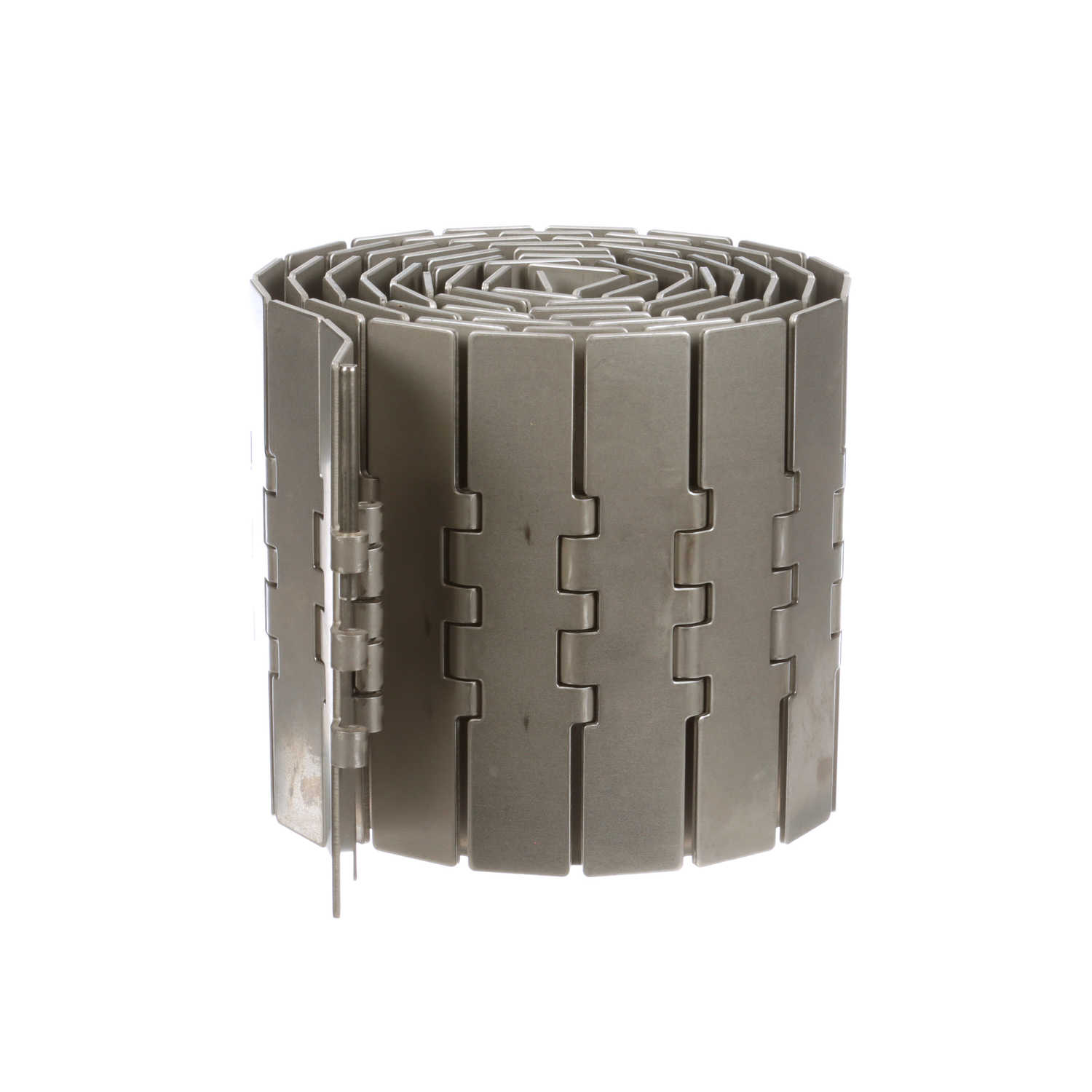

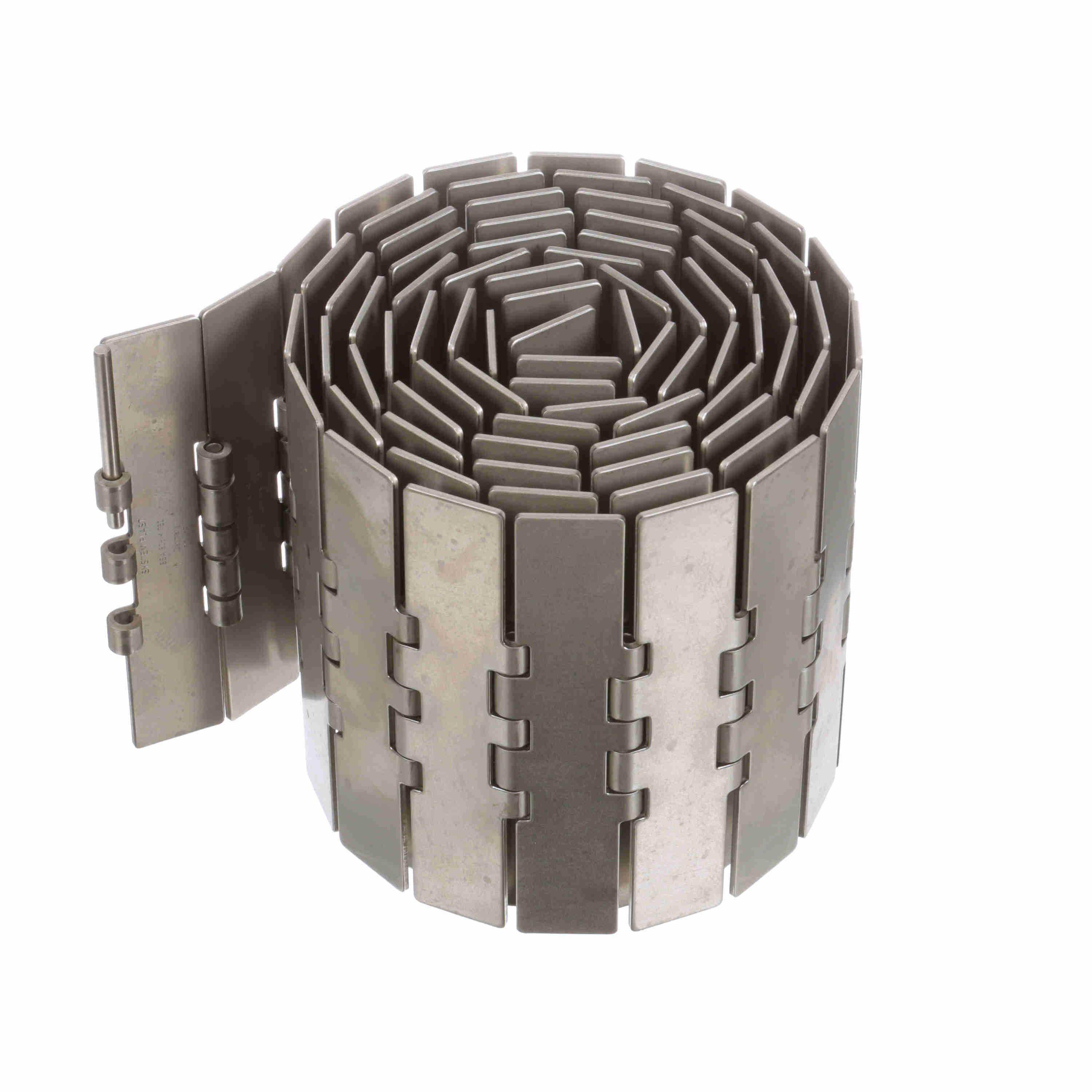

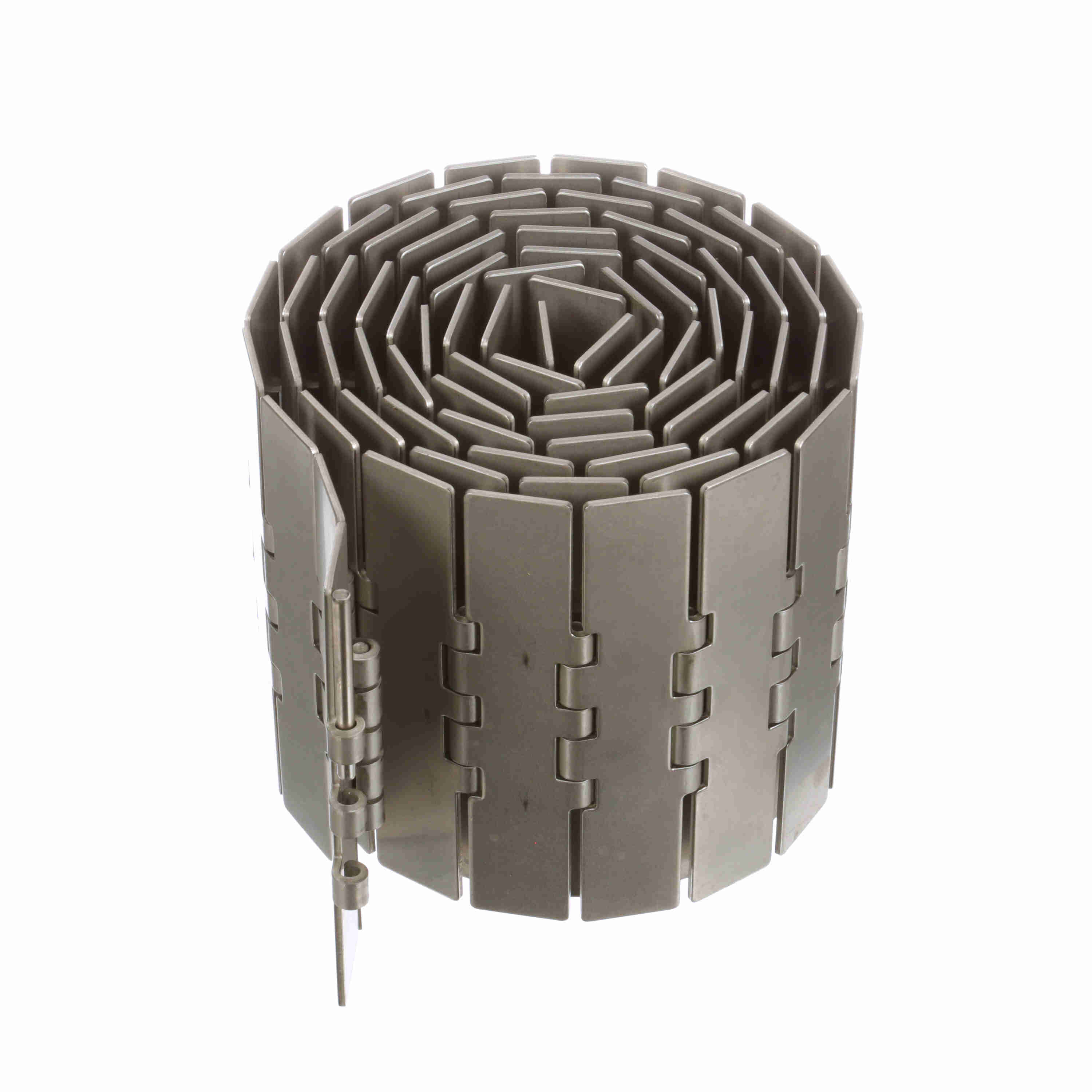

System Plast 805 Straight Running Solid Top, Material: Austenitic Stainless Steel, Width: 7.5in, Pitch: 1.5in - SSA805-K750
Part #:10053
Catalog #:SSA805-K750
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Series: | TableTop 805 Series Chain | Flight Thickness (in): | 0.12 in |
| Product Group: | Chain | Product Line: | Conveying Chains and Belts |
| Product Type: | Straight Running | Chain Width (in): | 7.5 in |
| Max Working Load (N): | 9,600 N | Chain Material: | SSA |
| Flight Thickness (mm): | 3.1 mm | Finish (μm): | 0.3 |
| Straight or Side-Flex: | Straight Running | Chain Pitch (mm): | 38.1 mm |
| Chain Number: | 805 | Weight (lb/ft): | 3.9 lb/ft |
| Chain Pitch (in): | 1.5 in | Chain Material Description: | Austenitic Stainless Steel |
| Rod/Pin Material: | SPM | Surface Type: | Solid Top |
| Weight (kg/m): | 5.8 kg/m | Max Working Load (lb): | 2,160 lb |
| Chain Width (mm): | 190.5 mm | Chain Width Measurement System: | Imperial |
General Specifications
| UPC: | 726166147815 | Weight: | 3.93 LB |
| Packaged Length: | 8.30 IN | Packaged Width: | 8.30 IN |
| Packaged Height: | 7.70 IN | HTC: | 7315.12.0080 |
| Country of Origin: | Germany |
