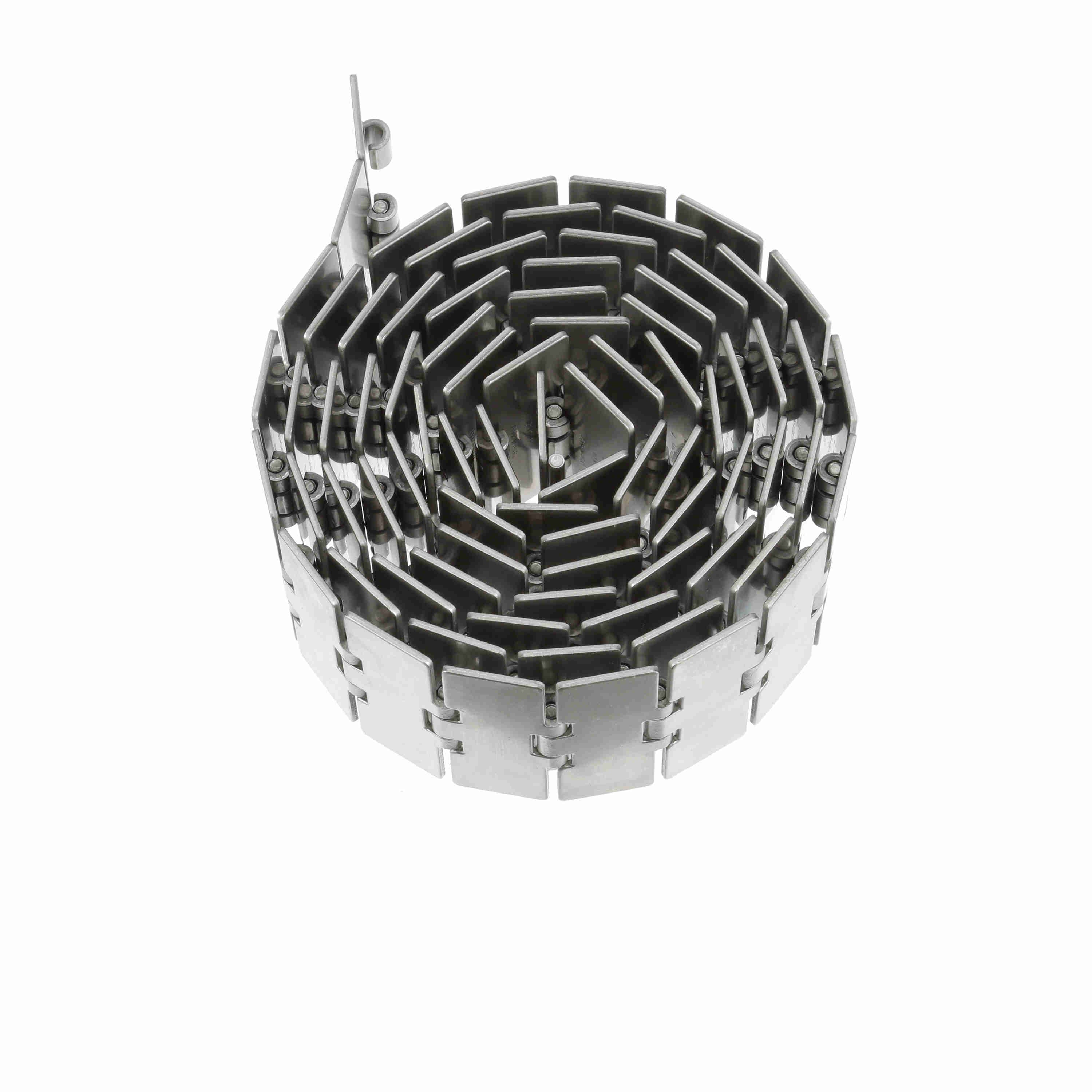

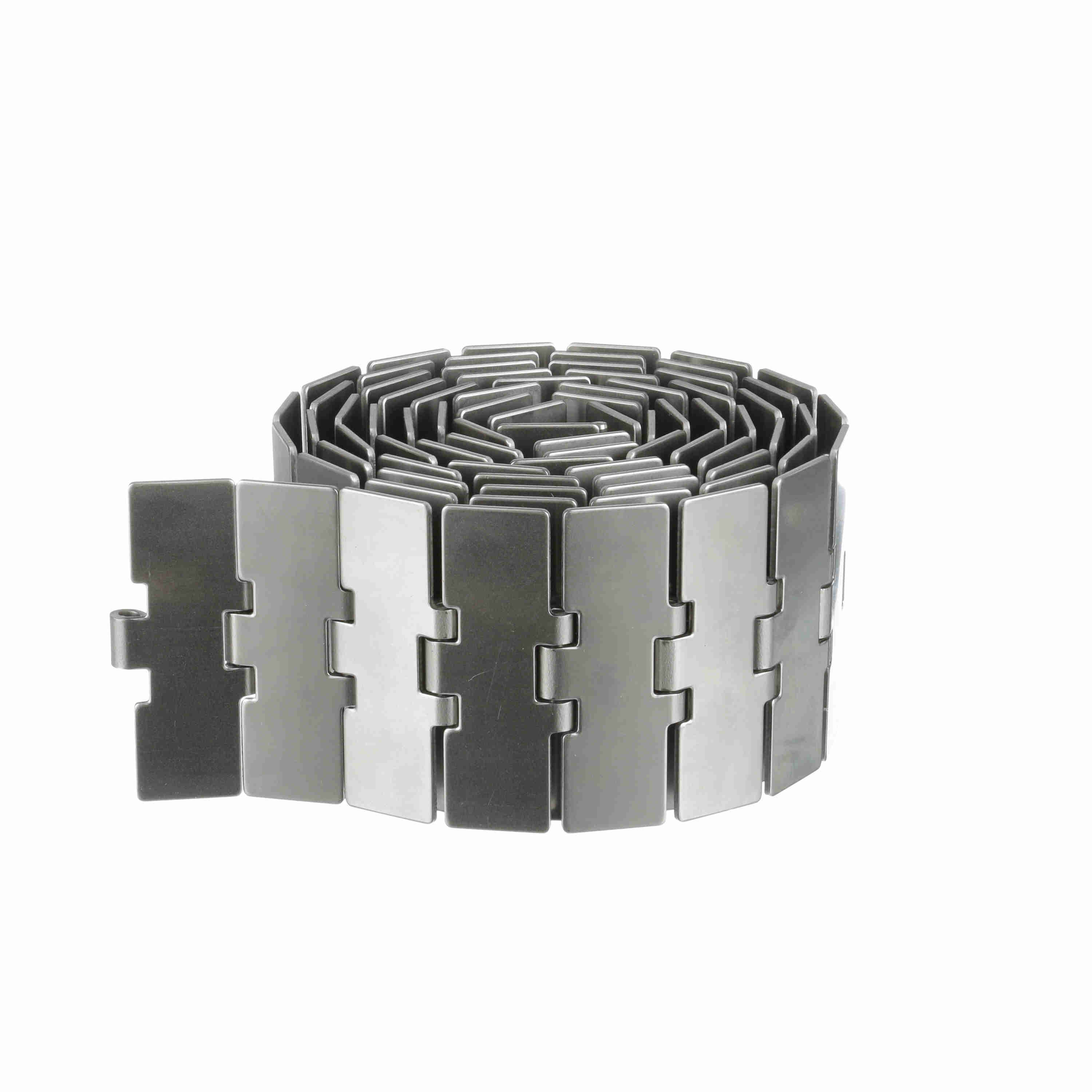

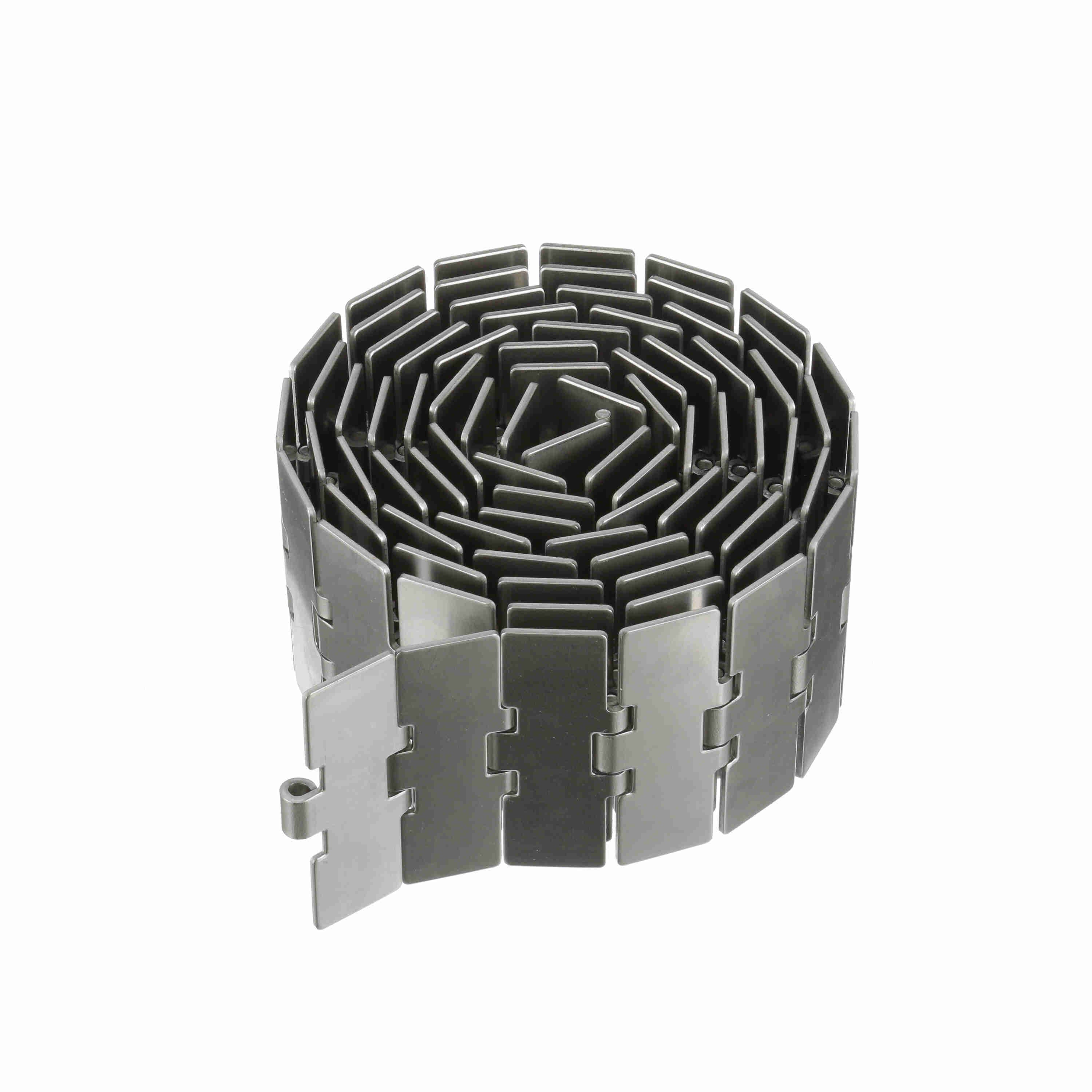

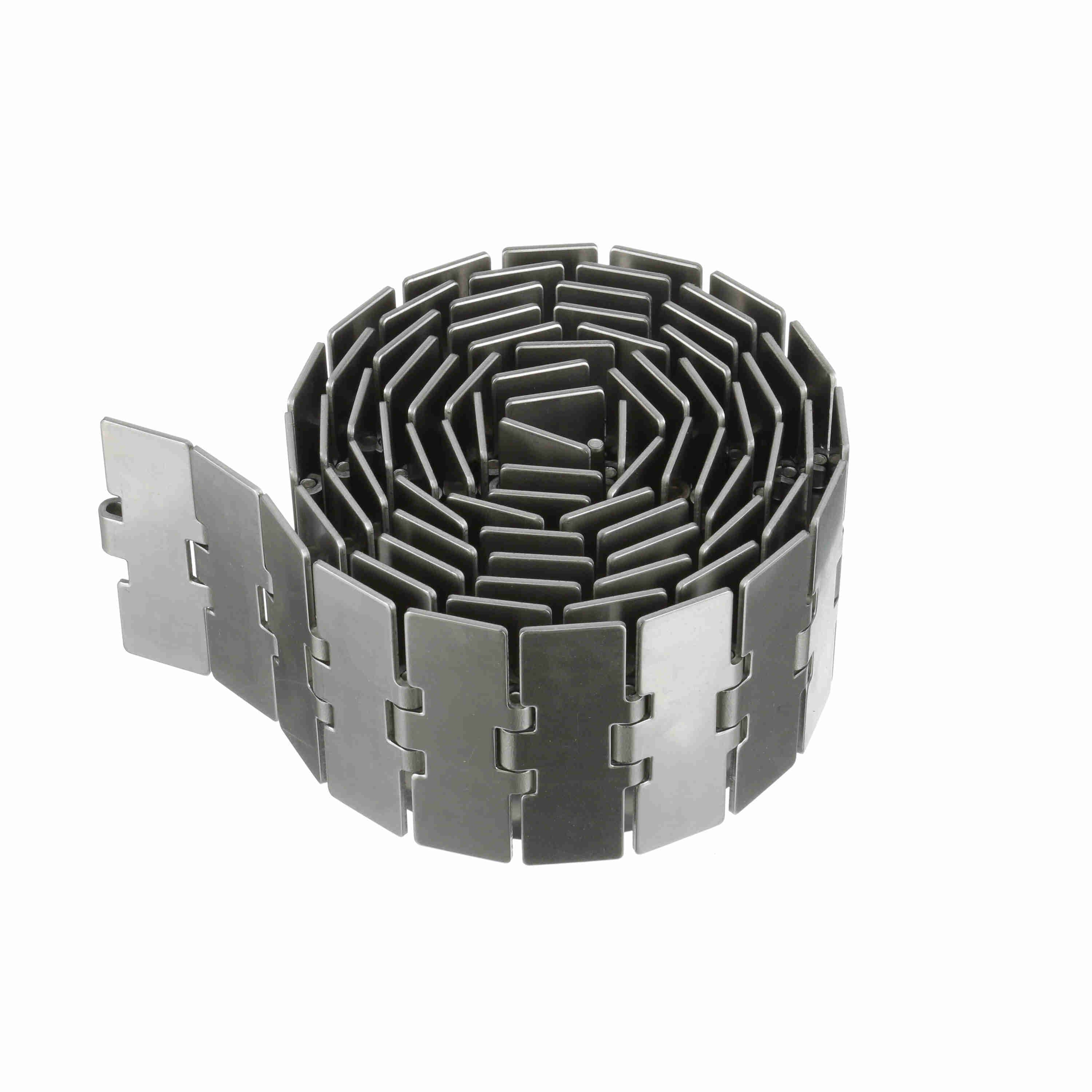

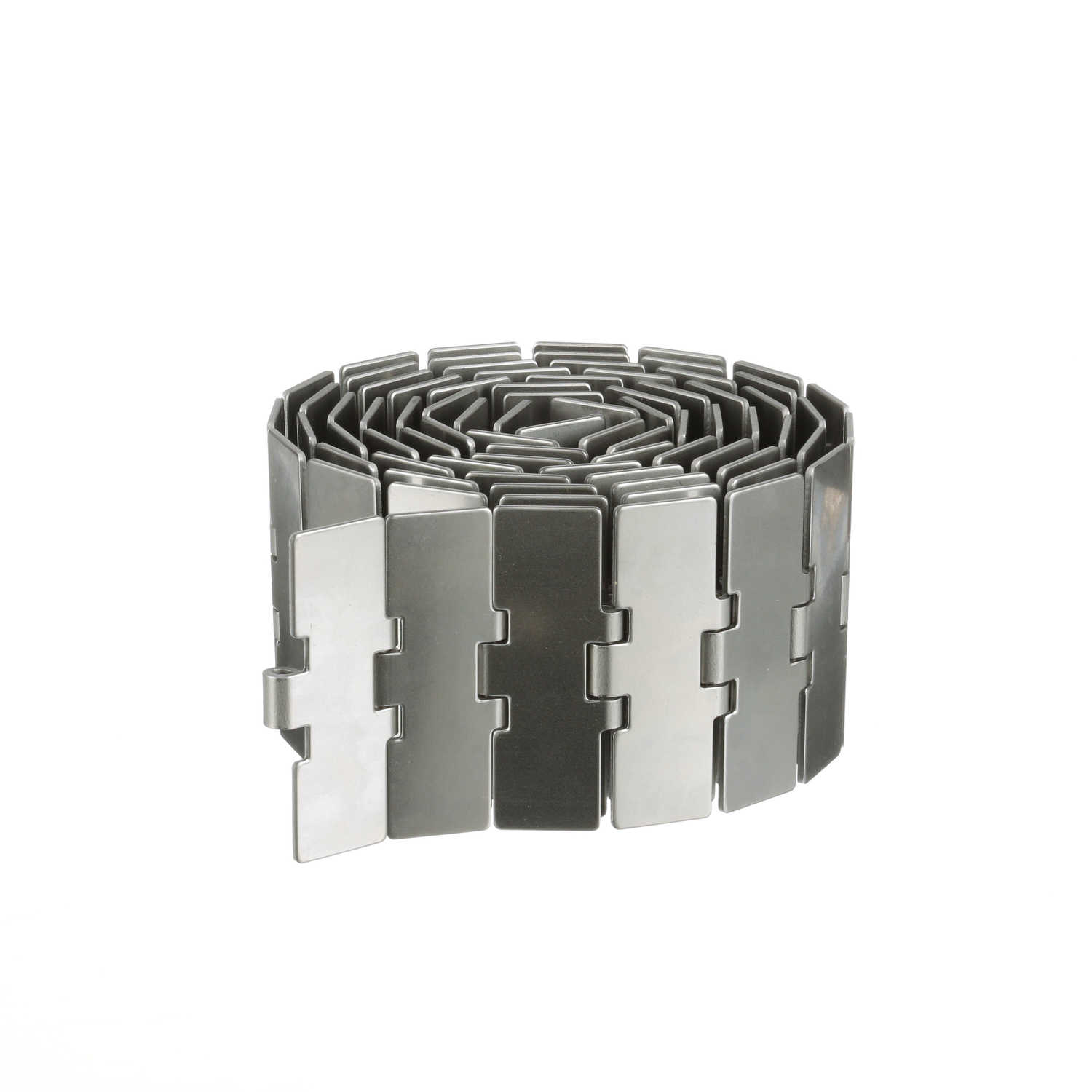

System Plast 812 Straight Running Solid Top, Material: Stainless Steel, Width: 4.5in, Pitch: 1.5in - SS812-K450
Part #:10004
Catalog #:SS812-K450
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Flight Thickness (in): | 0.12 in | Series: | TableTop 812 Series Chain |
| Product Type: | Straight Running | Product Group: | Chain |
| Product Line: | Conveying Chains and Belts | Chain Width (in): | 4.5 in |
| Flight Thickness (mm): | 3.1 mm | Chain Material: | SS |
| Max Working Load (N): | 5,400 N | Chain Width (mm): | 114.3 mm |
| Chain Width Measurement System: | Imperial | Chain Number: | 812 |
| Chain Material Description: | Stainless Steel | Weight (kg/m): | 3.3 kg/m |
| Max Working Load (lb): | 1,220 lb | Surface Type: | Solid Top |
| Rod/Pin Material: | SPM | Finish (μm): | 0.6 |
| Straight or Side-Flex: | Straight Running | Chain Pitch (in): | 1.5 in |
| Weight (lb/ft): | 2.2 lb/ft | Chain Pitch (mm): | 38.1 mm |
General Specifications
| UPC: | 726166184858 | Weight: | 2.21 LB |
| Packaged Length: | 8.35 IN | Packaged Width: | 8.35 IN |
| Packaged Height: | 4.55 IN | HTC: | 7315.12.0080 |
| Country of Origin: | Germany |
