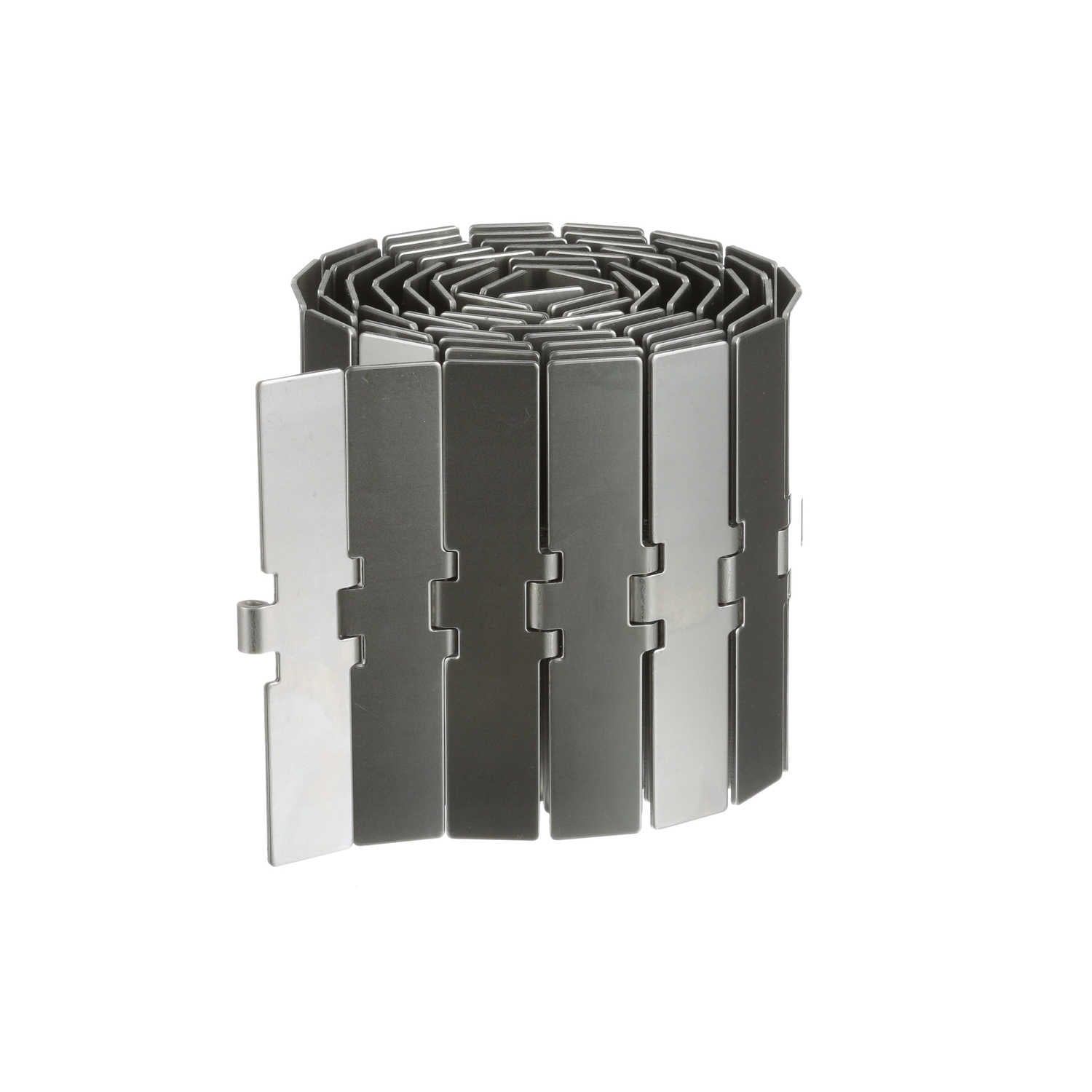

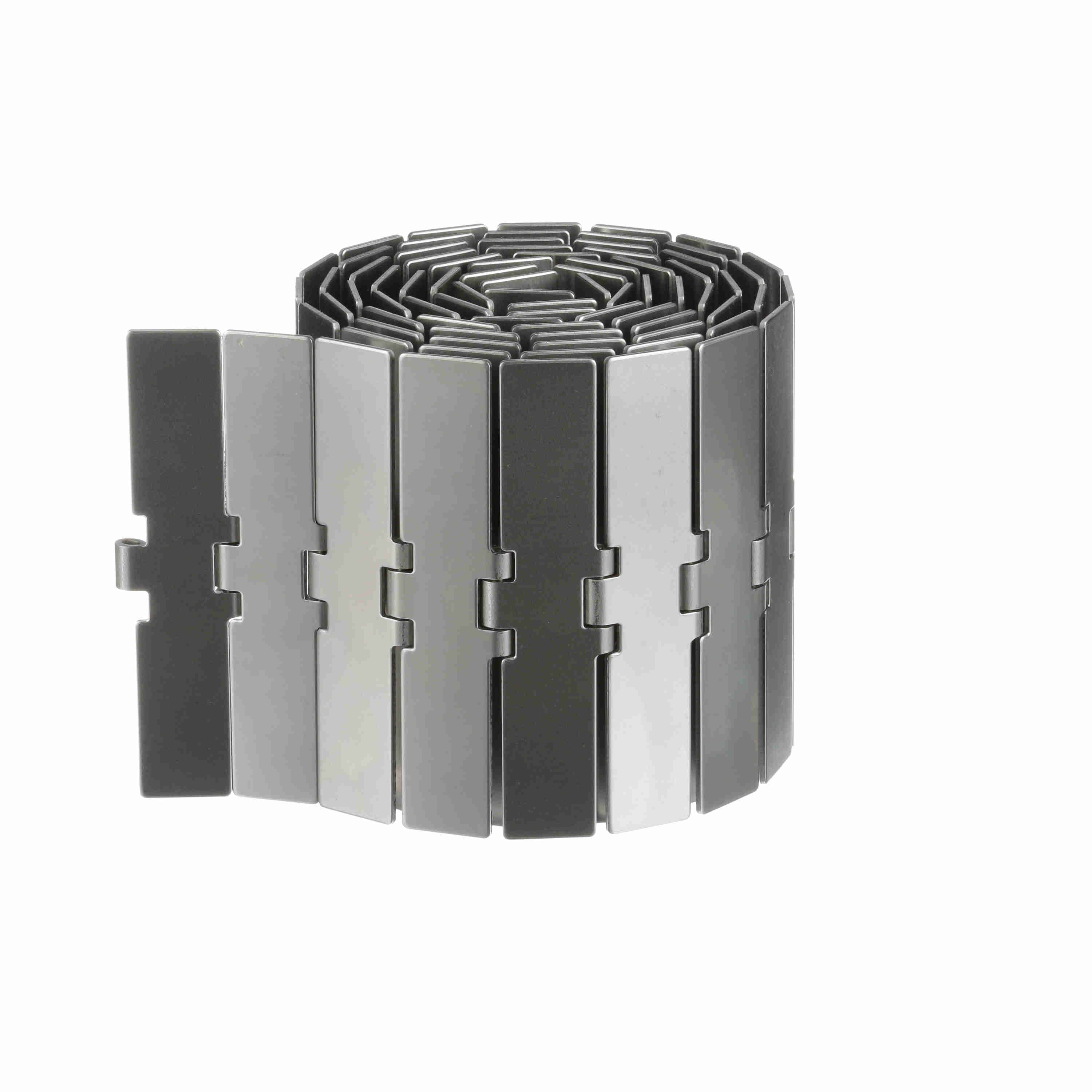

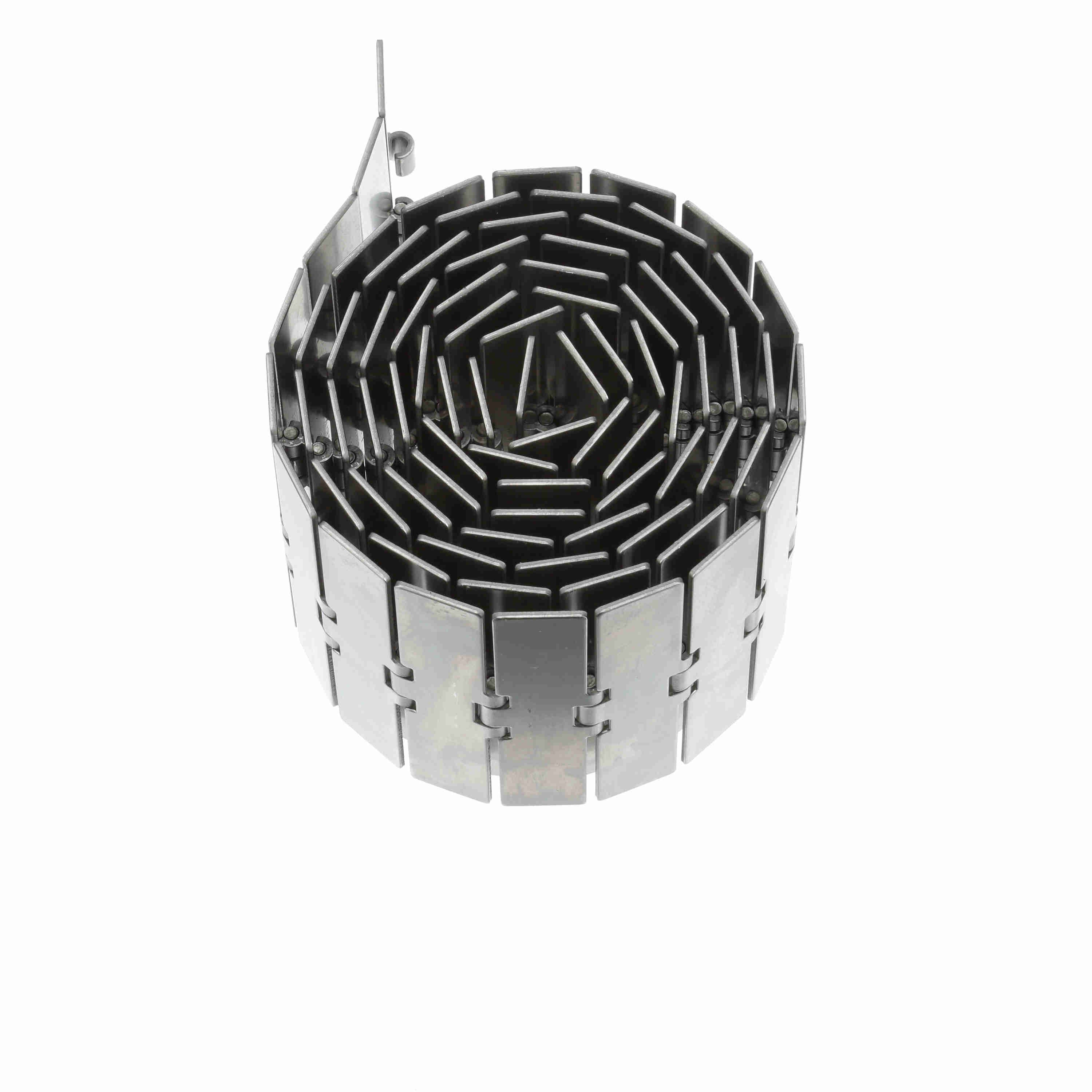

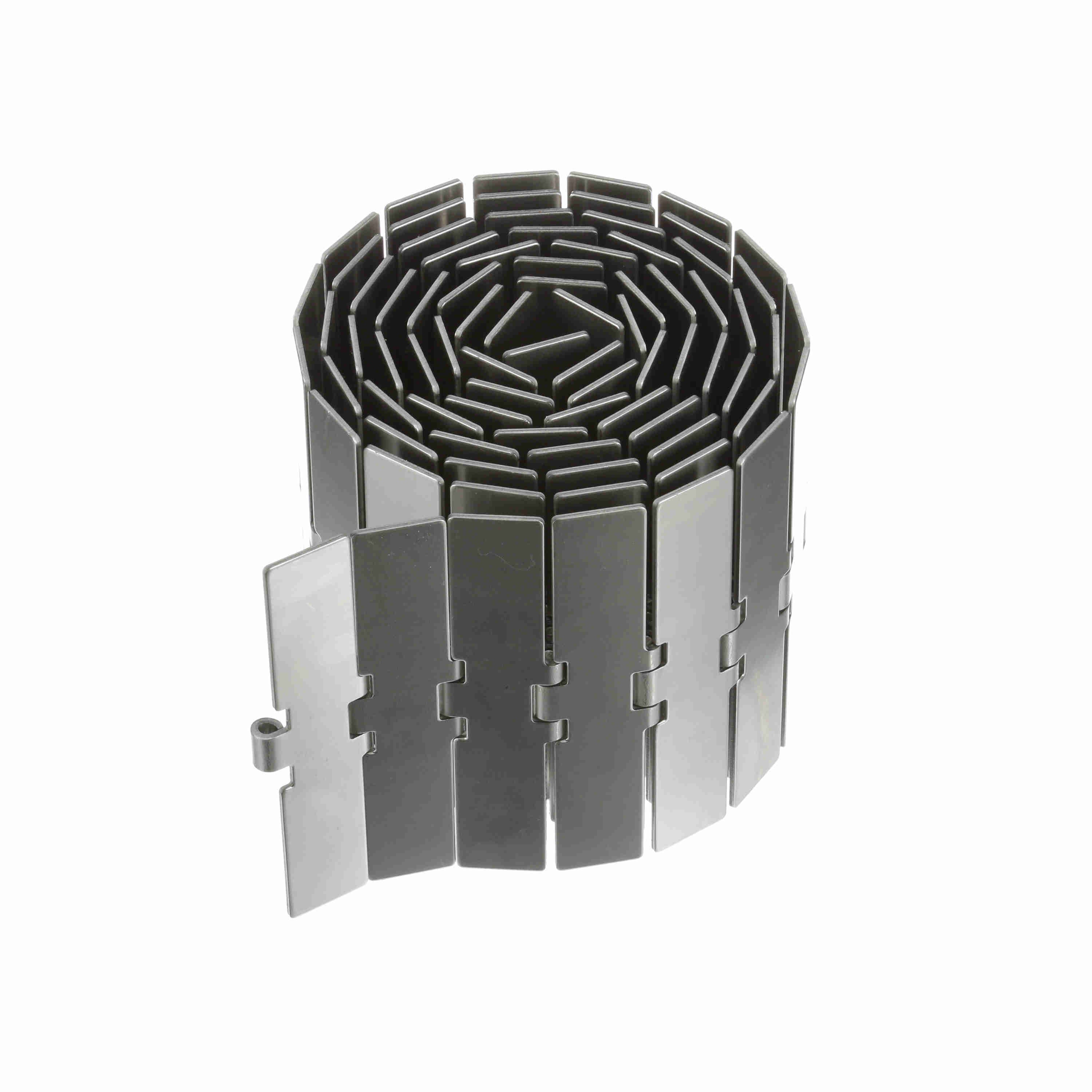

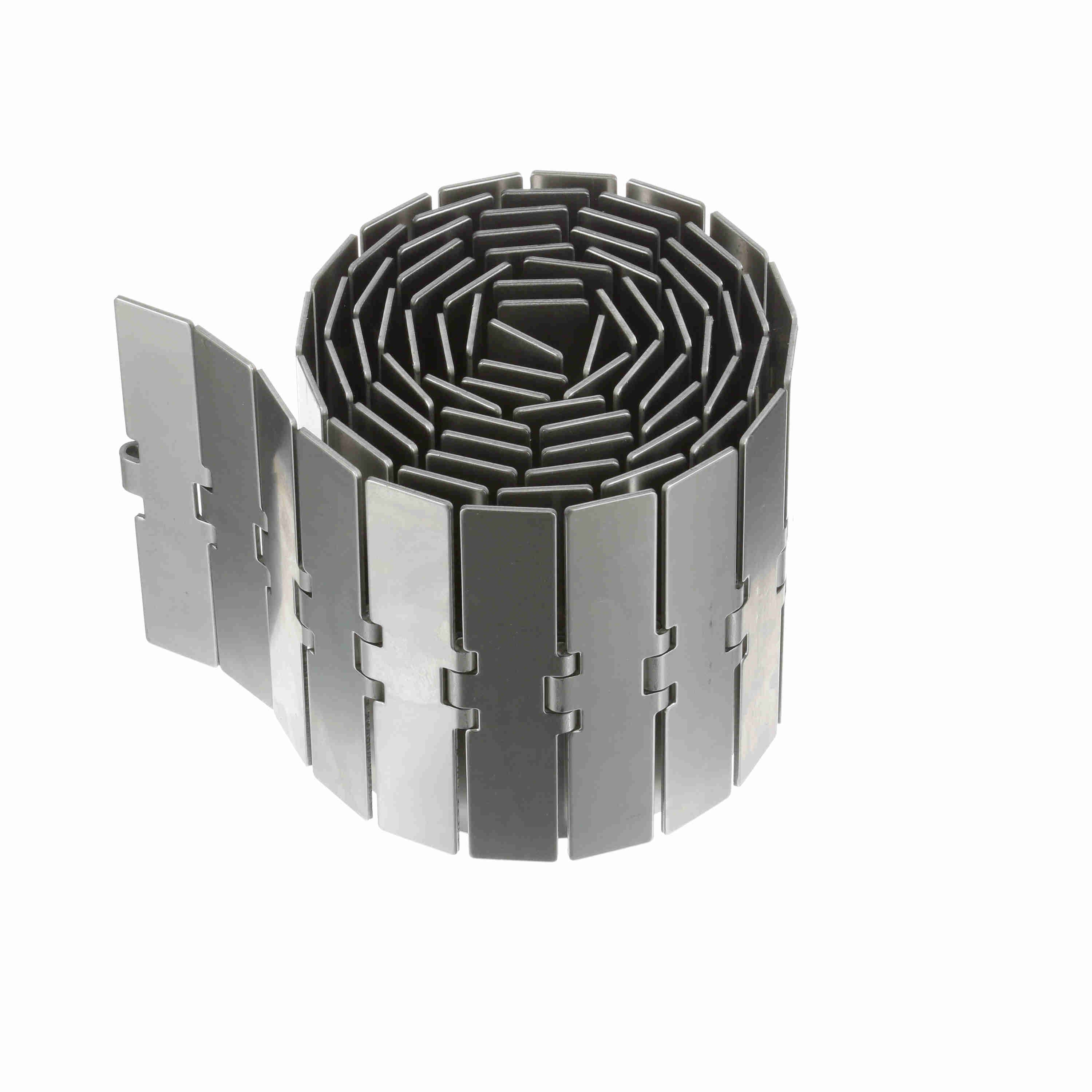

System Plast 812 Straight Running Solid Top, Material: Stainless Steel, Width: 7.5in, Pitch: 1.5in - SS812-K750
Part #:10006
Catalog #:SS812-K750
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Series: | TableTop 812 Series Chain | Flight Thickness (in): | 0.12 in |
| Product Group: | Chain | Product Type: | Straight Running |
| Product Line: | Conveying Chains and Belts | Chain Material: | SS |
| Max Working Load (N): | 5,400 N | Flight Thickness (mm): | 3.1 mm |
| Chain Width (in): | 7.5 in | Surface Type: | Solid Top |
| Chain Material Description: | Stainless Steel | Weight (lb/ft): | 3.4 lb/ft |
| Chain Width (mm): | 190.5 mm | Weight (kg/m): | 5.1 kg/m |
| Chain Width Measurement System: | Imperial | Chain Pitch (mm): | 38.1 mm |
| Finish (μm): | 0.6 | Chain Pitch (in): | 1.5 in |
| Chain Number: | 812 | Rod/Pin Material: | SPM |
| Straight or Side-Flex: | Straight Running | Max Working Load (lb): | 1,220 lb |
General Specifications
| UPC: | 662288968245 | Weight: | 3.47 LB |
| Packaged Length: | 10.90 IN | Packaged Width: | 10.50 IN |
| Packaged Height: | 9.30 IN | HTC: | 7315.12.0080 |
| Country of Origin: | Germany |
