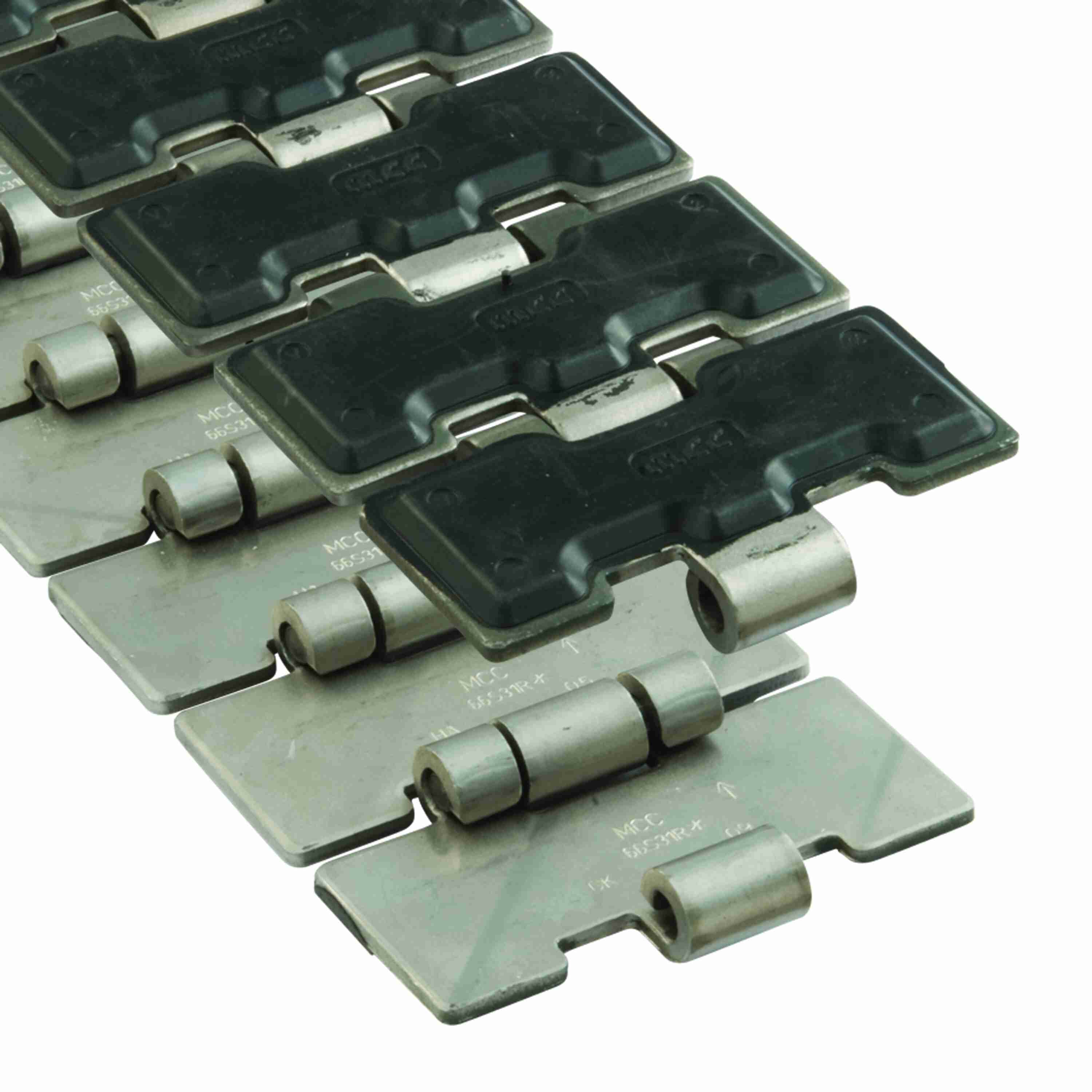

Rexnord 815 RubberTop® Straight Running RubberTop®, Material: 0, Width: 3.25in, Pitch: 1.5in - 762.04.31
Part #:10139365
Catalog #:762.04.31
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Series: | TableTop 815 Series Chain | Flight Thickness (in): | 0.24 in |
| Flight Thickness (mm): | 6.1 mm | Chain Number: | 815 RubberTop® |
| Surface Type: | RubberTop® | Rod/Pin Material: | Extra Hard Stainless Steel |
| Chain Width (mm): | 82.6 mm | Chain Width (in): | 3.25 in |
| Chain Strength (lb): | 1,351 lb | Chain Strength (N): | 6,000 N |
| Chain Pitch (mm): | 38.1 mm | Number of SuperGrip/RubberTop Rows: | Every Pitch |
| Chain Material: | SSC | Chain Pitch (in): | 1.5 in |
| Straight or Side-Flex: | Straight Running | Chain Width Measurement System: | Imperial |
| SG/RT Spacing (Pitches): | Every Pitch |
General Specifications
| Weight: | 0.24 LB | HTC: | 7315120080 |
| Country of Origin: | Netherlands |
