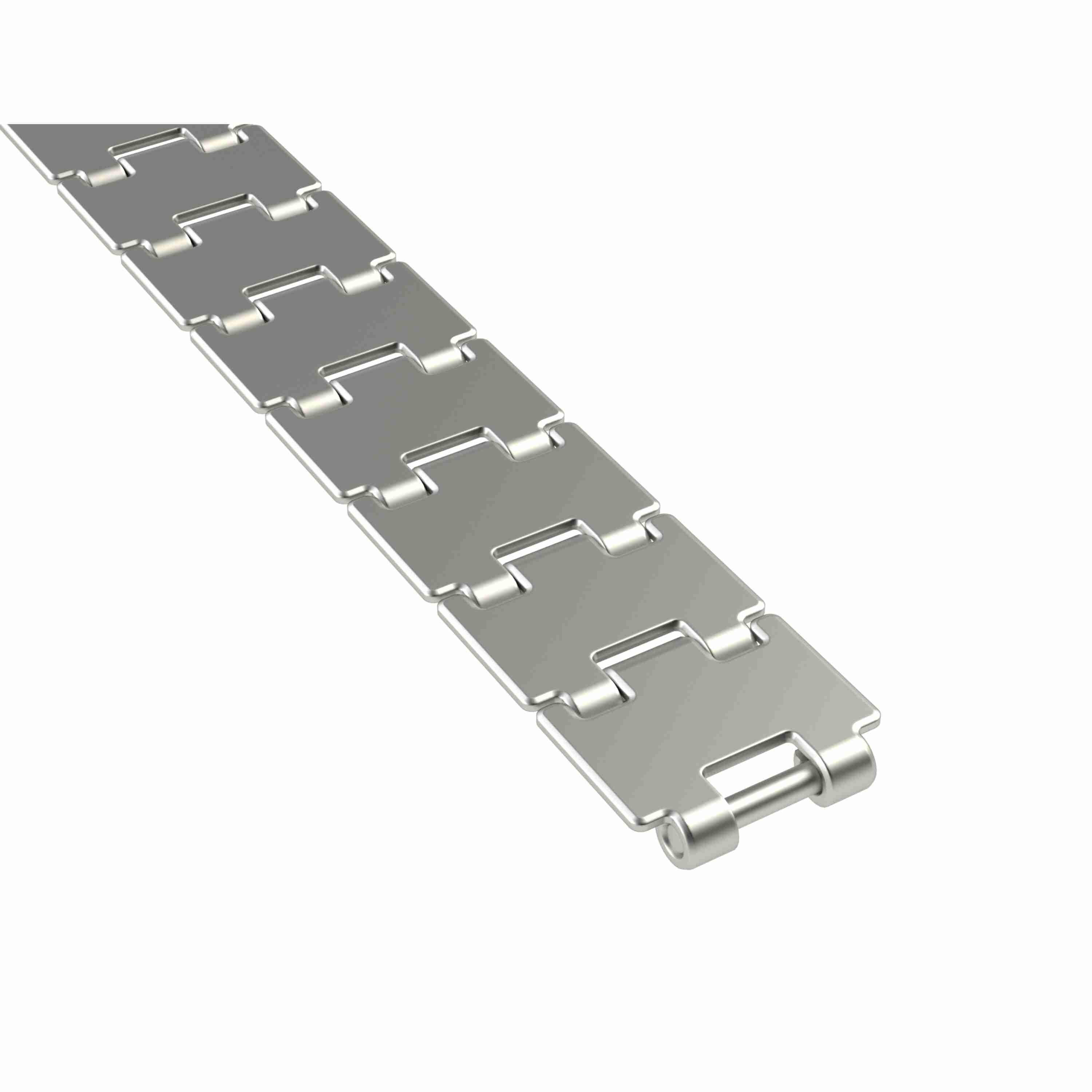

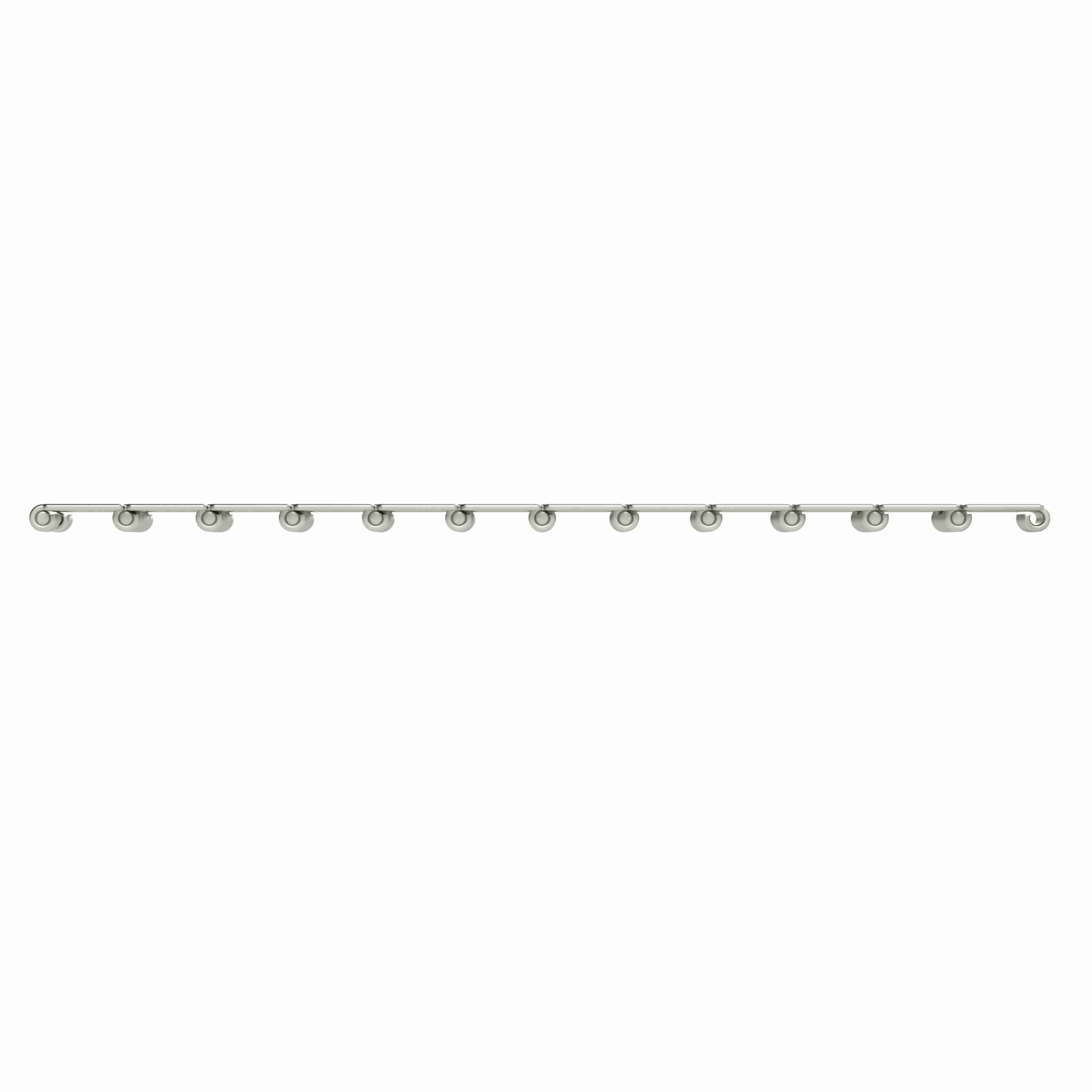

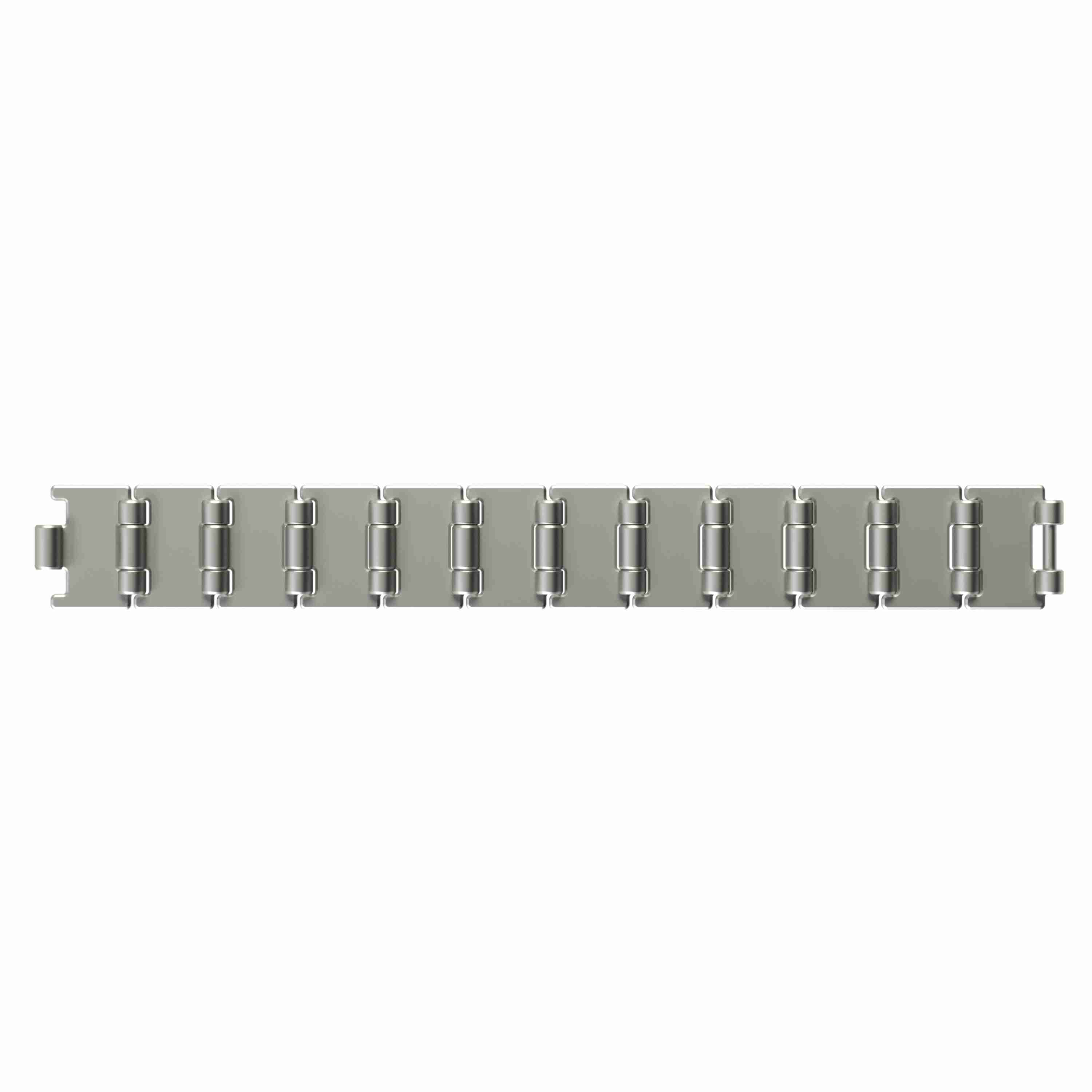

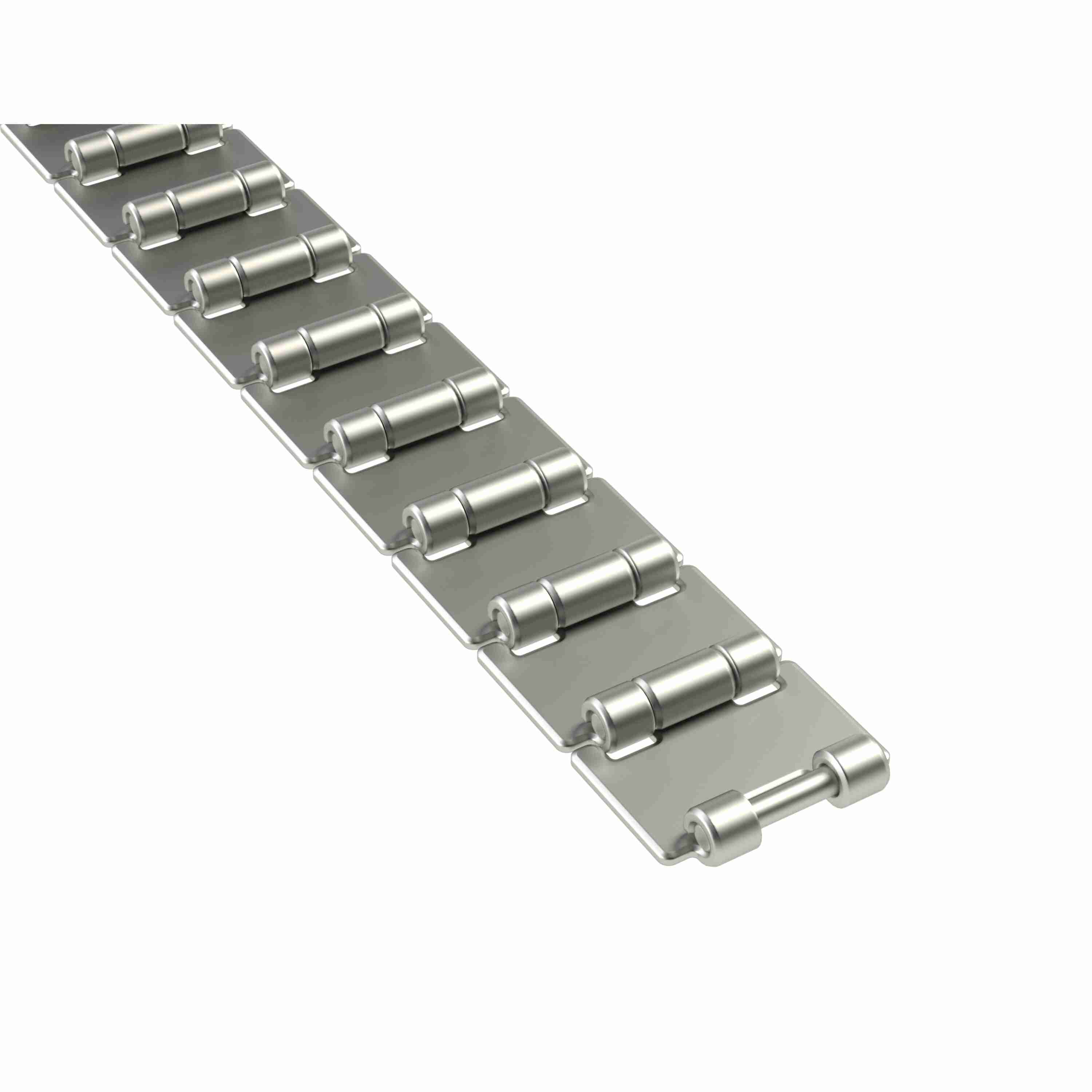

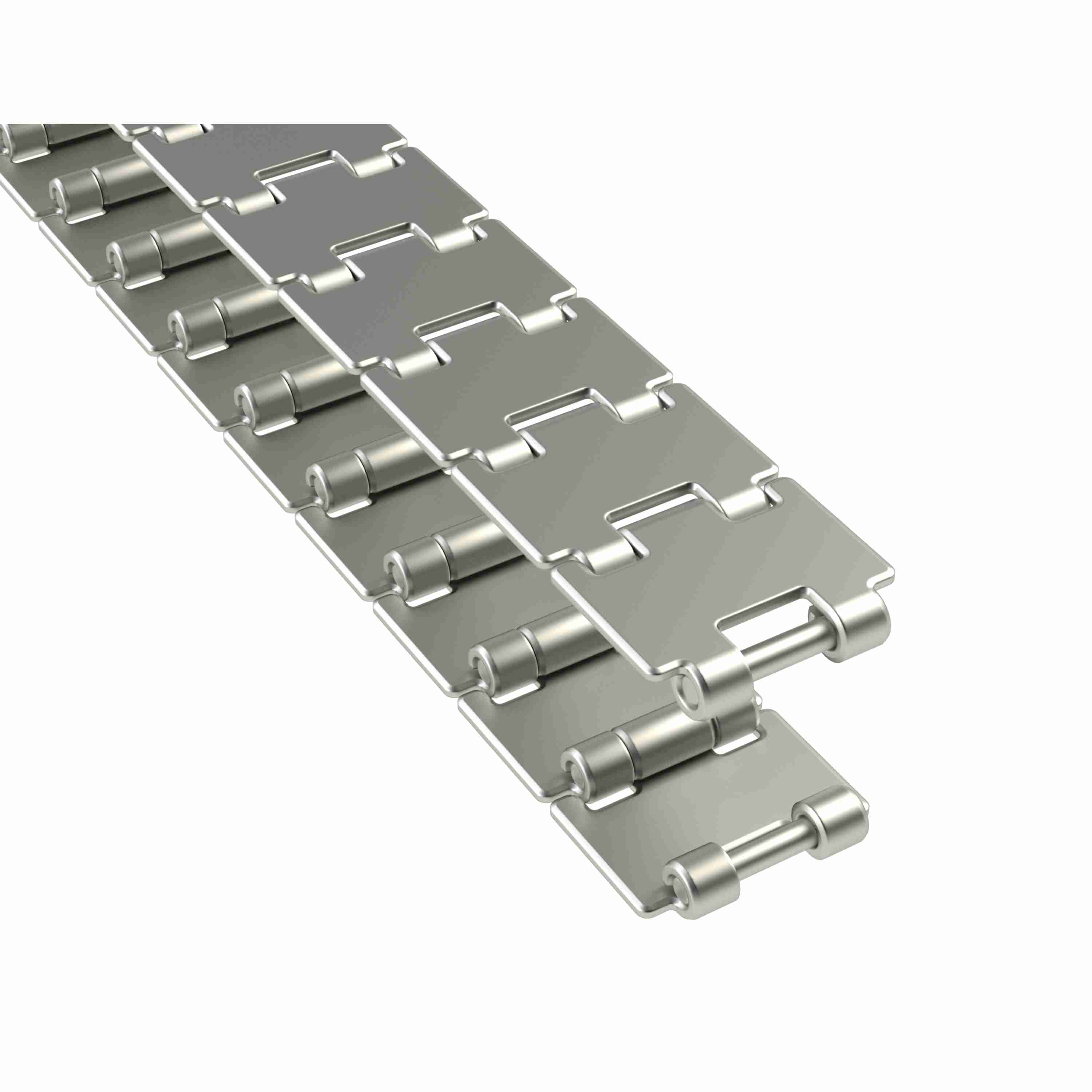

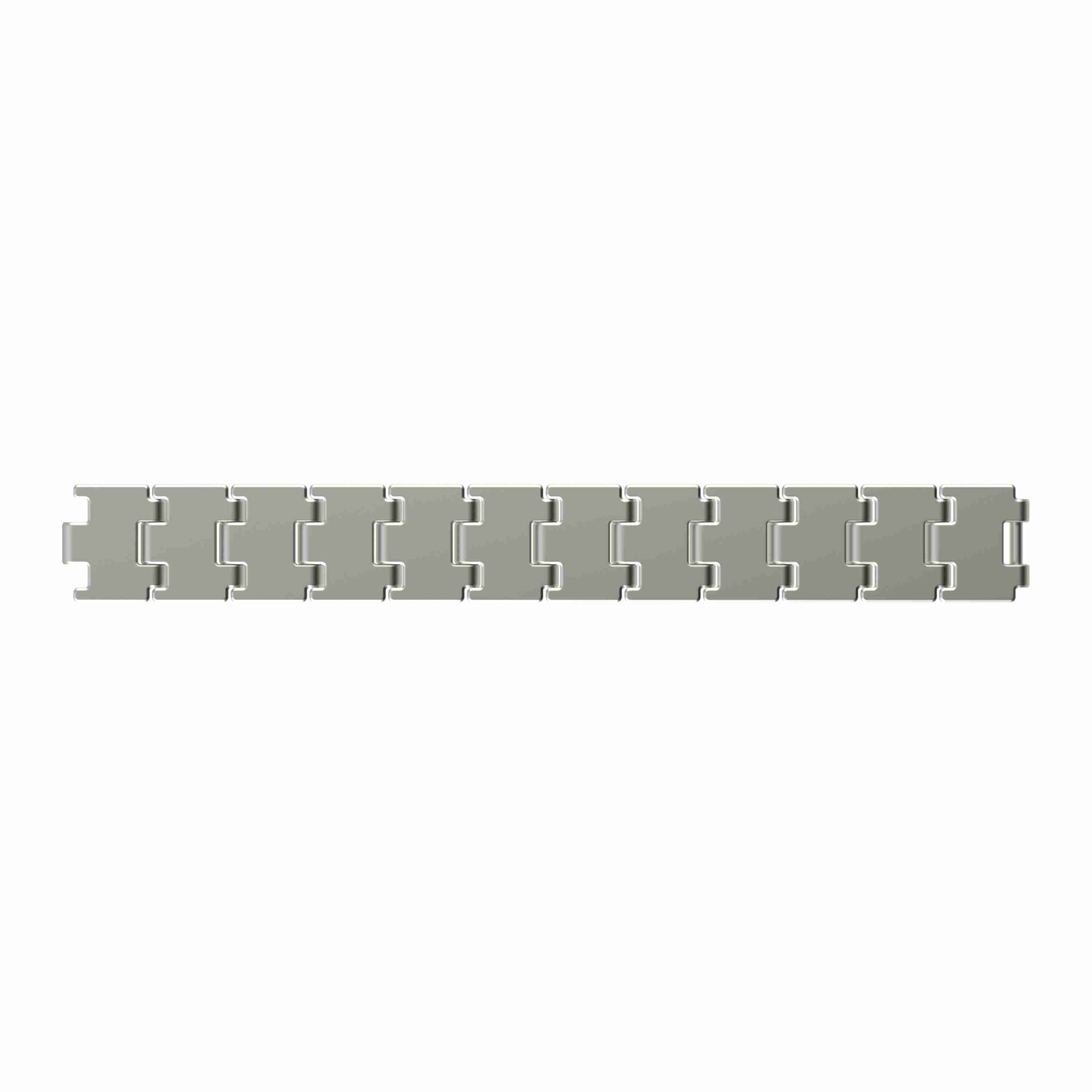

Rexnord 815 RubberTop® Straight Running RubberTop®, Material: Austenitic Stainless Steel, Width: 2.25in, Pitch: 1.5in - 762.38.21
Part #:10139383
Catalog #:762.38.21
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Pitch (in): | 1.5 in | Chain Material Description: | Austenitic Stainless Steel |
| Chain Strength (lb): | 625 lb | Chain Pitch (mm): | 38.1 mm |
| Chain Width (in): | 2.25 in | Surface Type: | RubberTop® |
| Chain Number: | 815 RubberTop® | Number of SuperGrip/RubberTop Rows: | 1 Row |
| Chain Strength (N): | 2,775 N | Series: | TableTop 815 Series Chain |
| Straight or Side-Flex: | Straight Running | Chain Width Measurement System: | Imperial |
| Rod/Pin Material: | Stainless Steel | Flight Thickness (mm): | 6.1 mm |
| Chain Material: | SSA | Chain Width (mm): | 57.2 mm |
| SG/RT Spacing (Pitches): | Every Pitch | Flight Thickness (in): | 0.24 in |
General Specifications
| Weight: | 0.25 LB | HTC: | 7315120080 |
| Country of Origin: | Netherlands |
