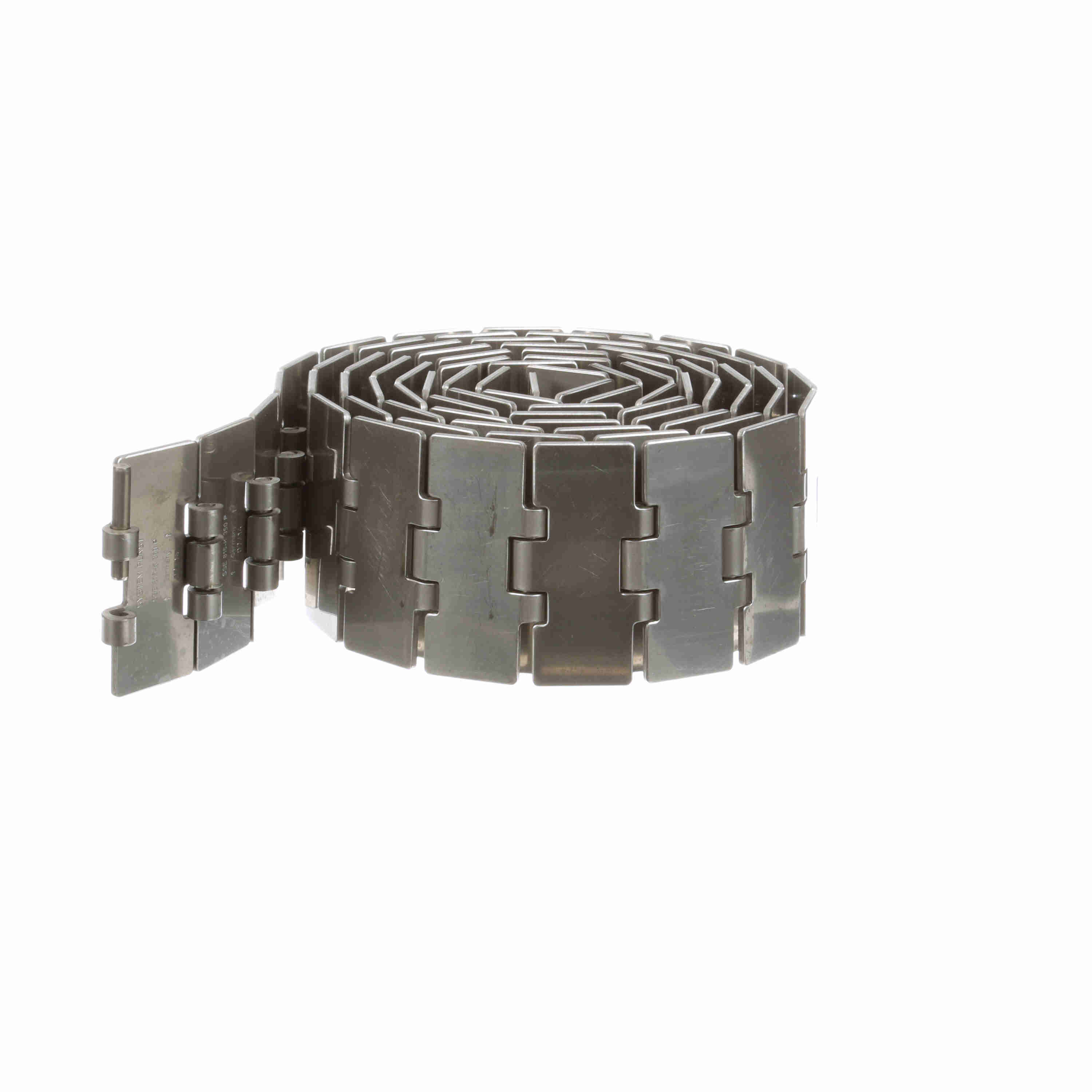

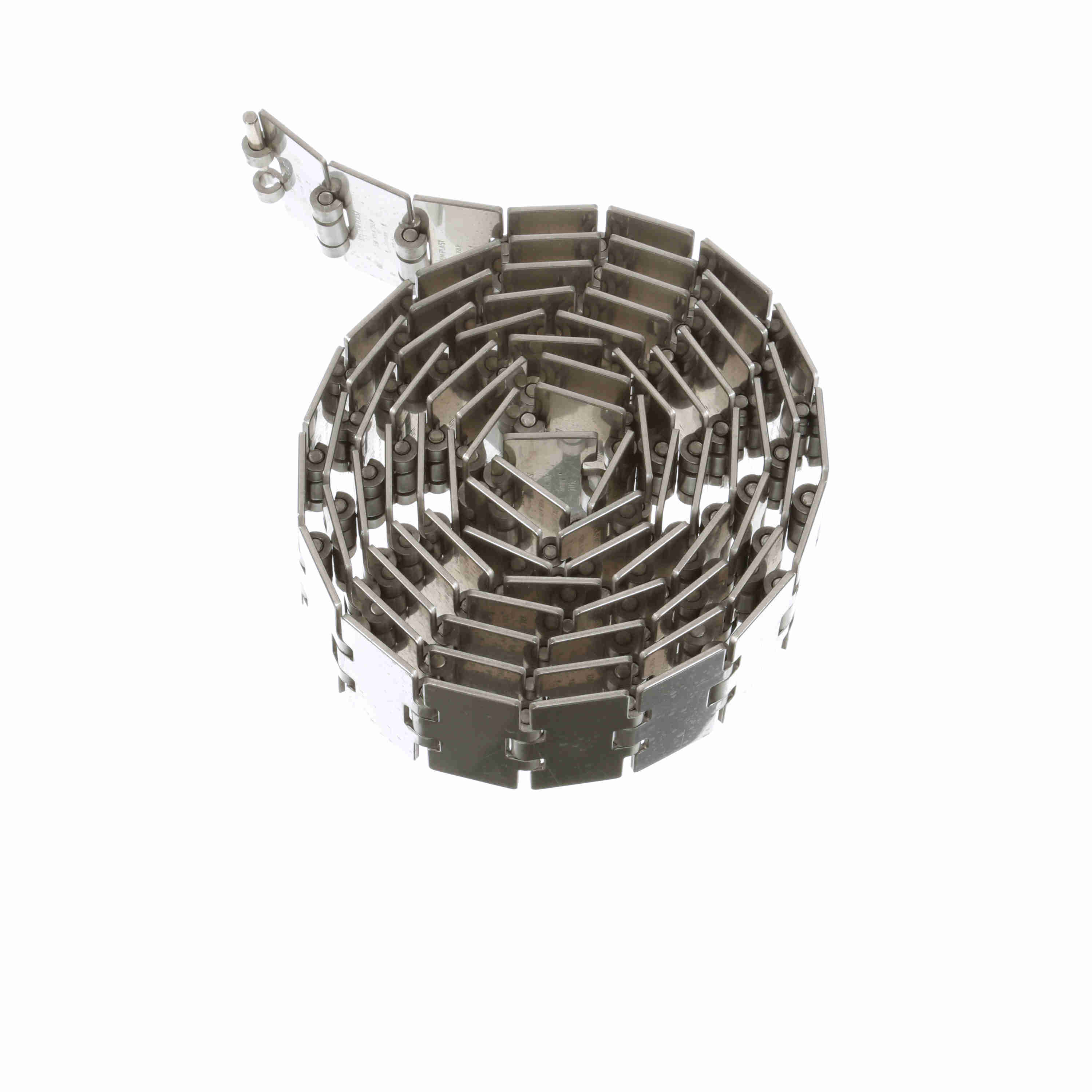

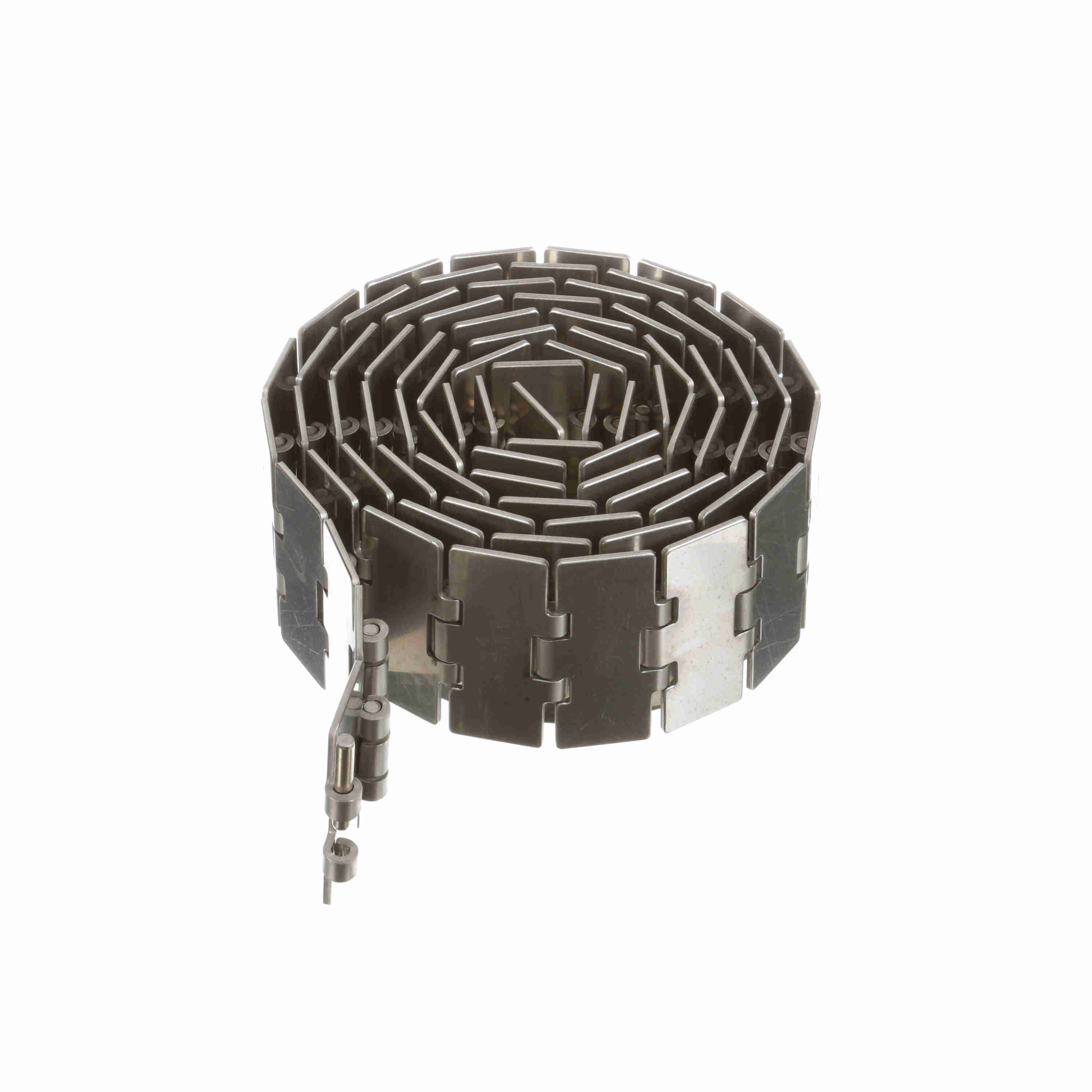

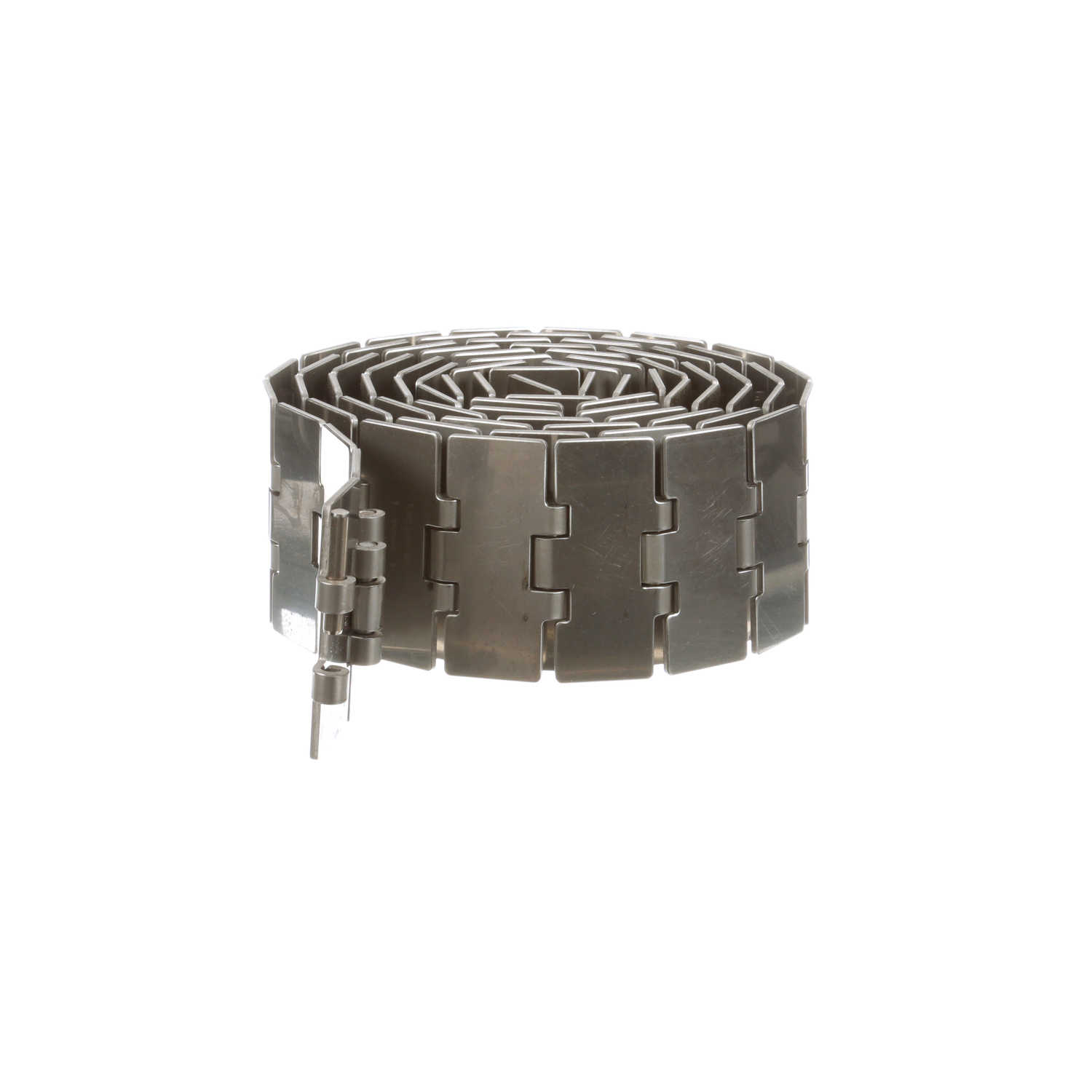

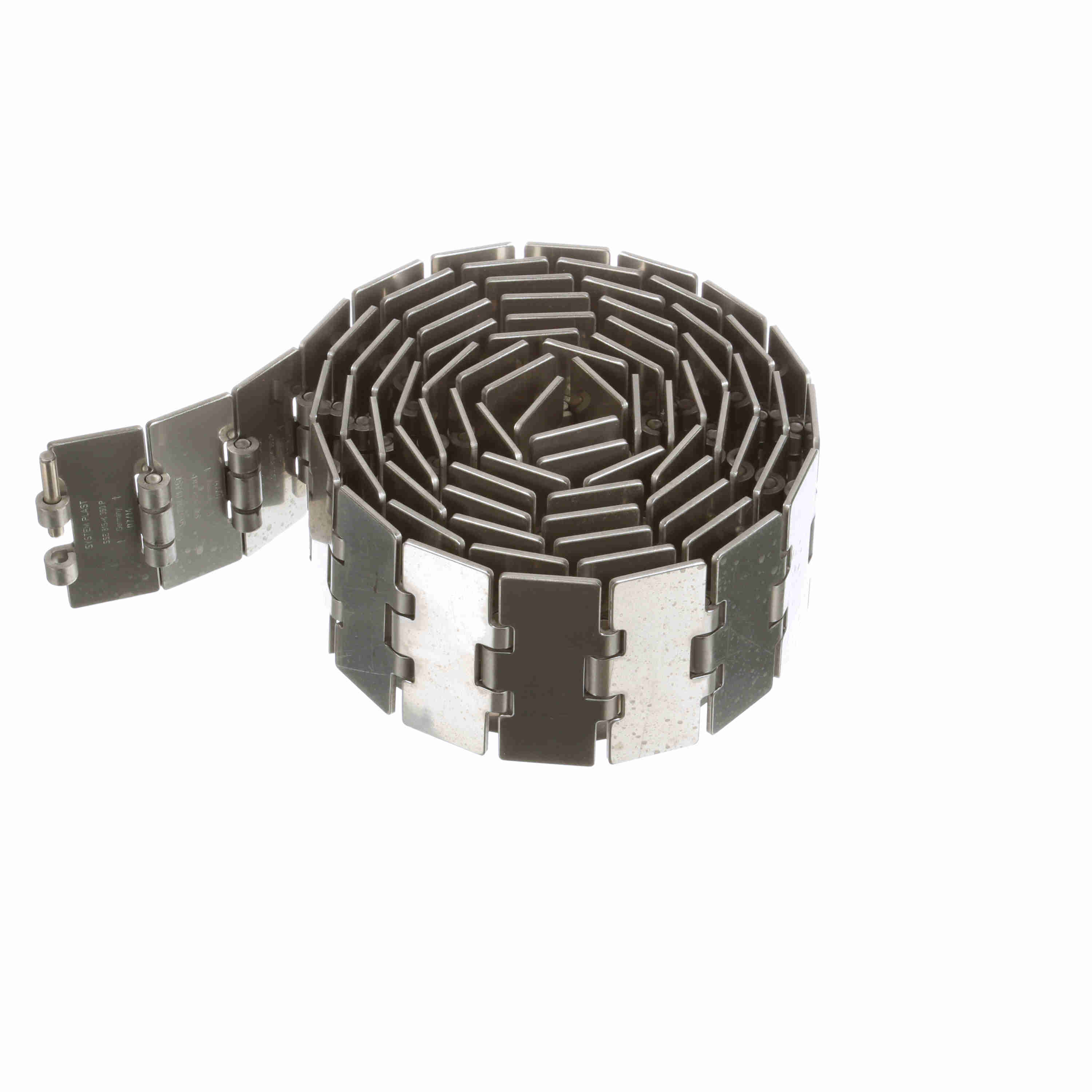

System Plast 815 Straight Running Solid Top, Material: 0, Width: 3.5in, Pitch: 1.5in - SSE815-K350
Part #:10010
Catalog #:SSE815-K350
KEY FEATURES
- High performance stainless steel, specially developed for high speed and heavy duty applications.
- Offers excellent corrosion resitance and highest surface hardness.
- Extremely flat and best surface finish.
- High corrosion and wear resistance.
- Highest ultimate yield loading capability.
- Typically used in pressureless combiners and excessively long conveyors.
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Flight Thickness (in): | 0.12 in | Series: | TableTop 815 Series Chain |
| Product Type: | Straight Running | Product Group: | Chain |
| Product Line: | Conveying Chains and Belts | Chain Width (in): | 3.5 in |
| Max Working Load (N): | 6,000 N | Flight Thickness (mm): | 3.1 mm |
| Chain Material: | SSE | Straight or Side-Flex: | Straight Running |
| Weight (lb/ft): | 1.8 lb/ft | Chain Pitch (mm): | 38.1 mm |
| Rod/Pin Material: | SPM | Chain Pitch (in): | 1.5 in |
| Finish (μm): | 0.3 | Chain Number: | 815 |
| Weight (kg/m): | 2.7 kg/m | Max Working Load (lb): | 1,350 lb |
| Surface Type: | Solid Top | Chain Width Measurement System: | Imperial |
| Chain Width (mm): | 88.9 mm |
General Specifications
| UPC: | 726166184995 | Weight: | 1.83 LB |
| Packaged Length: | 8.00 IN | Packaged Width: | 8.50 IN |
| Packaged Height: | 3.70 IN | HTC: | 7315.12.0080 |
| Country of Origin: | Germany |
