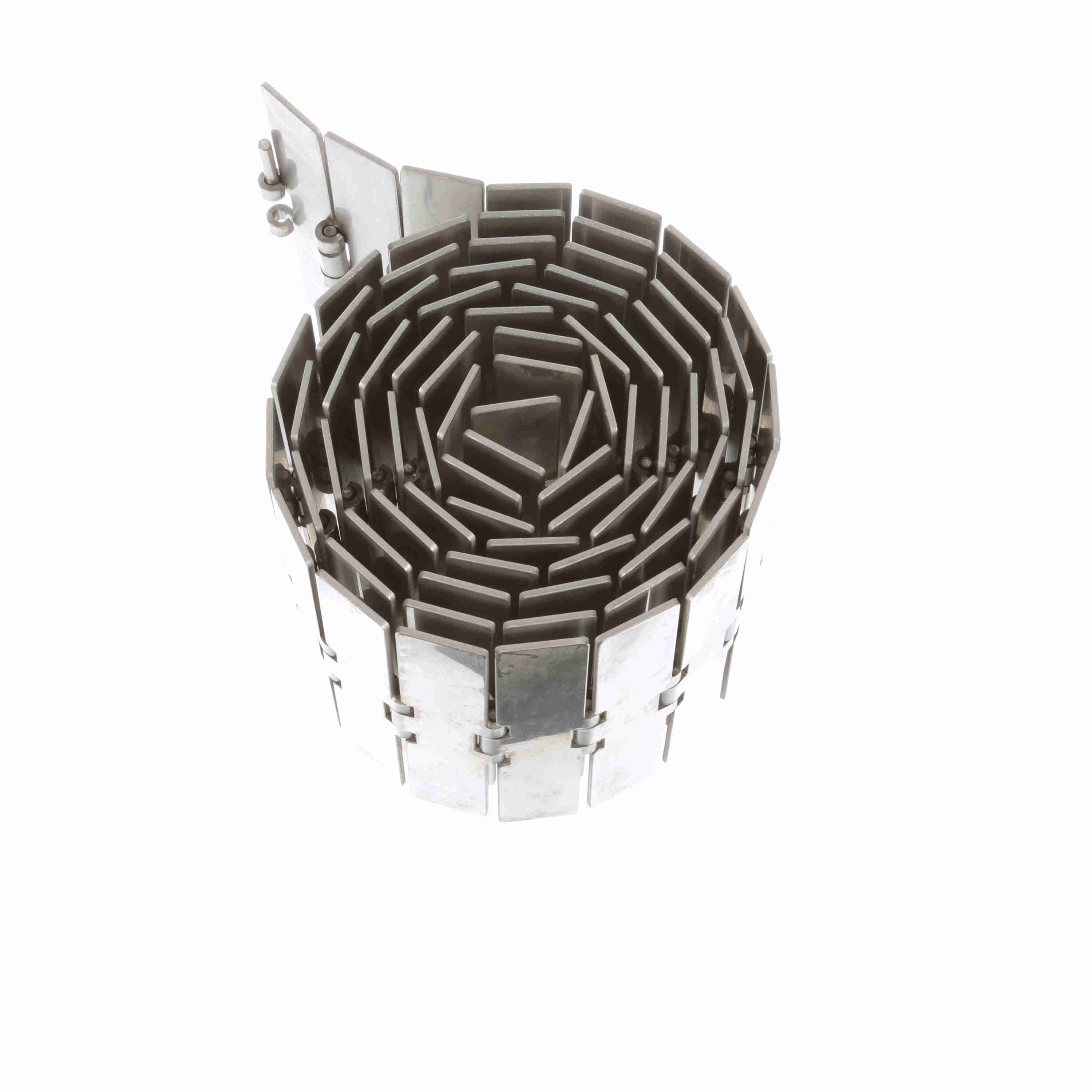

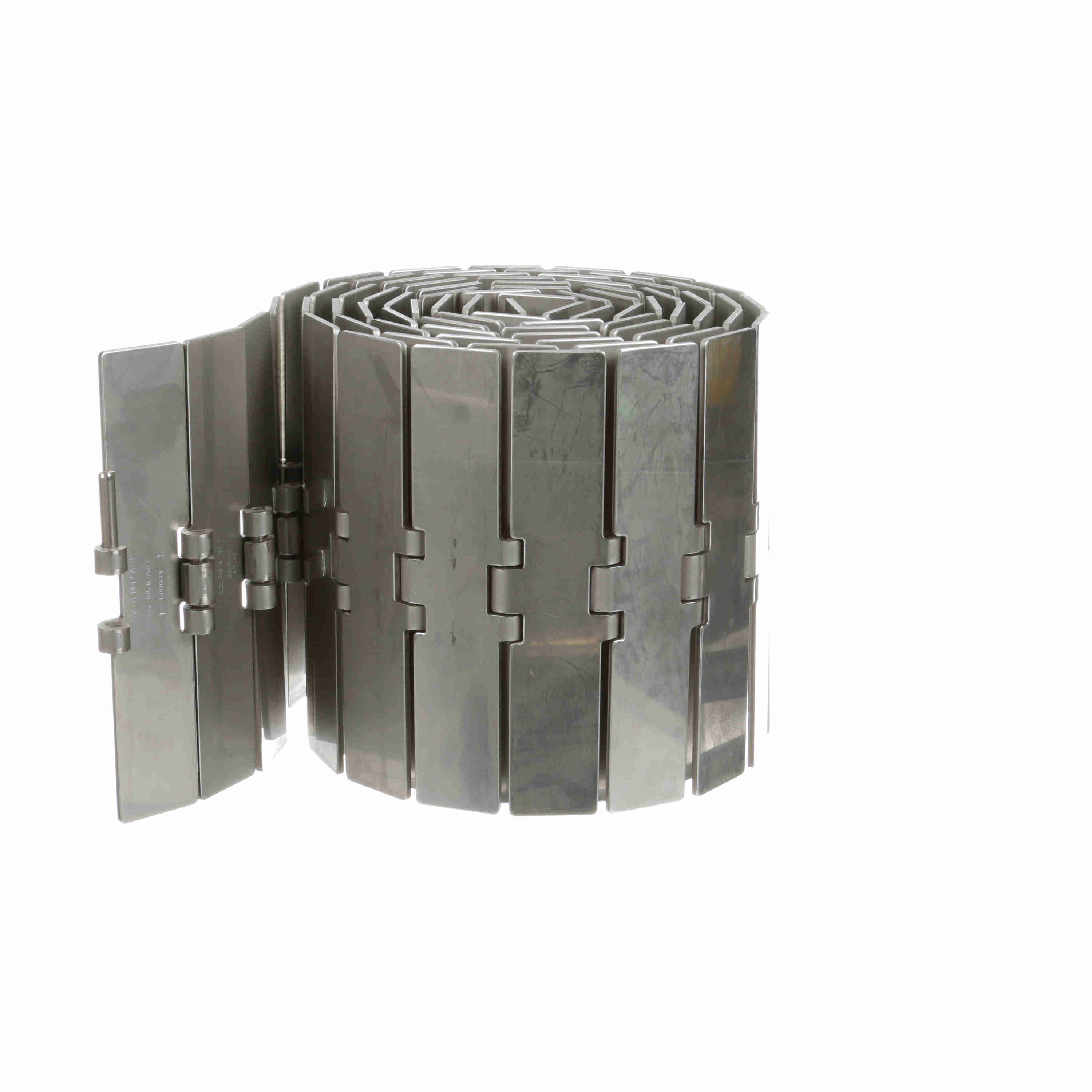

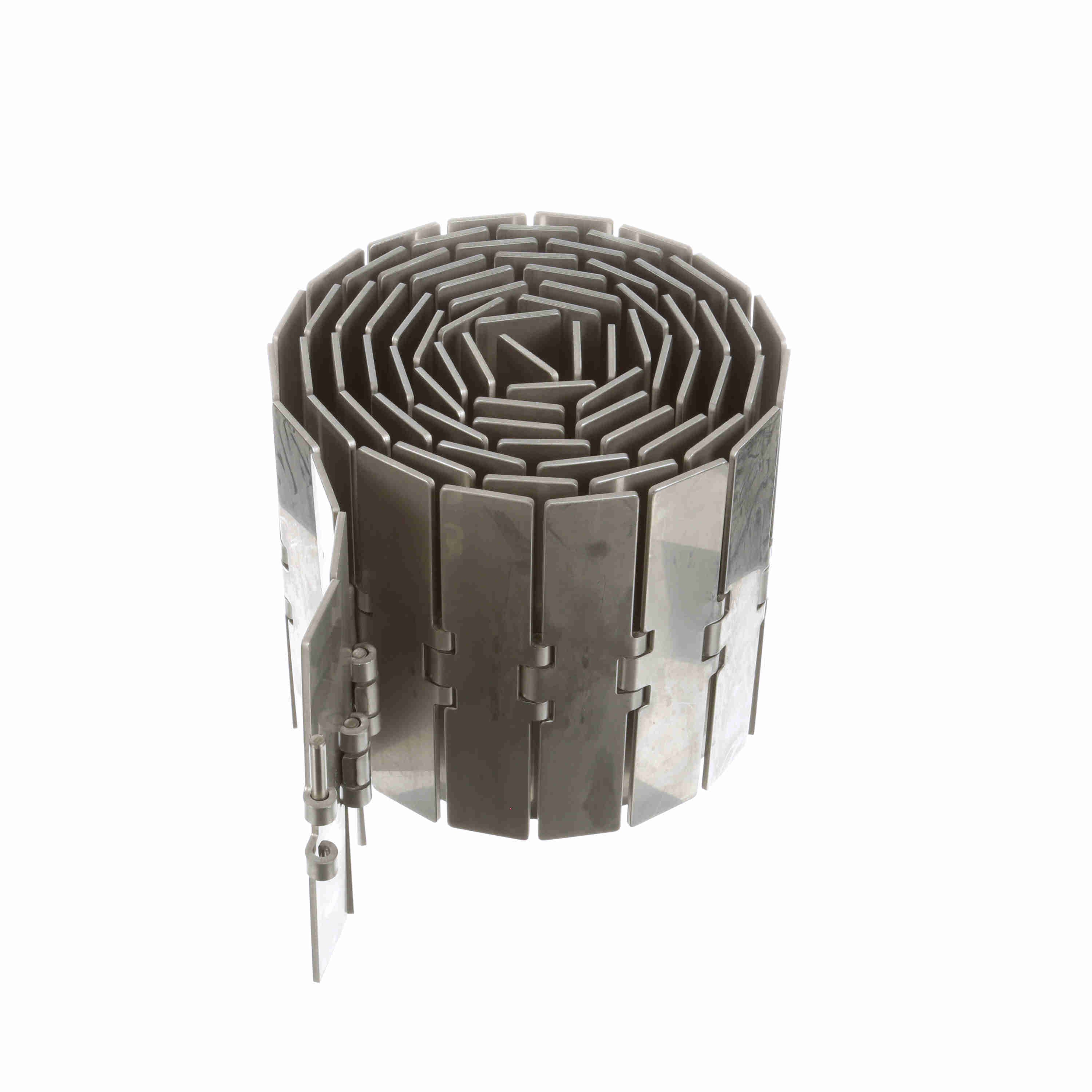

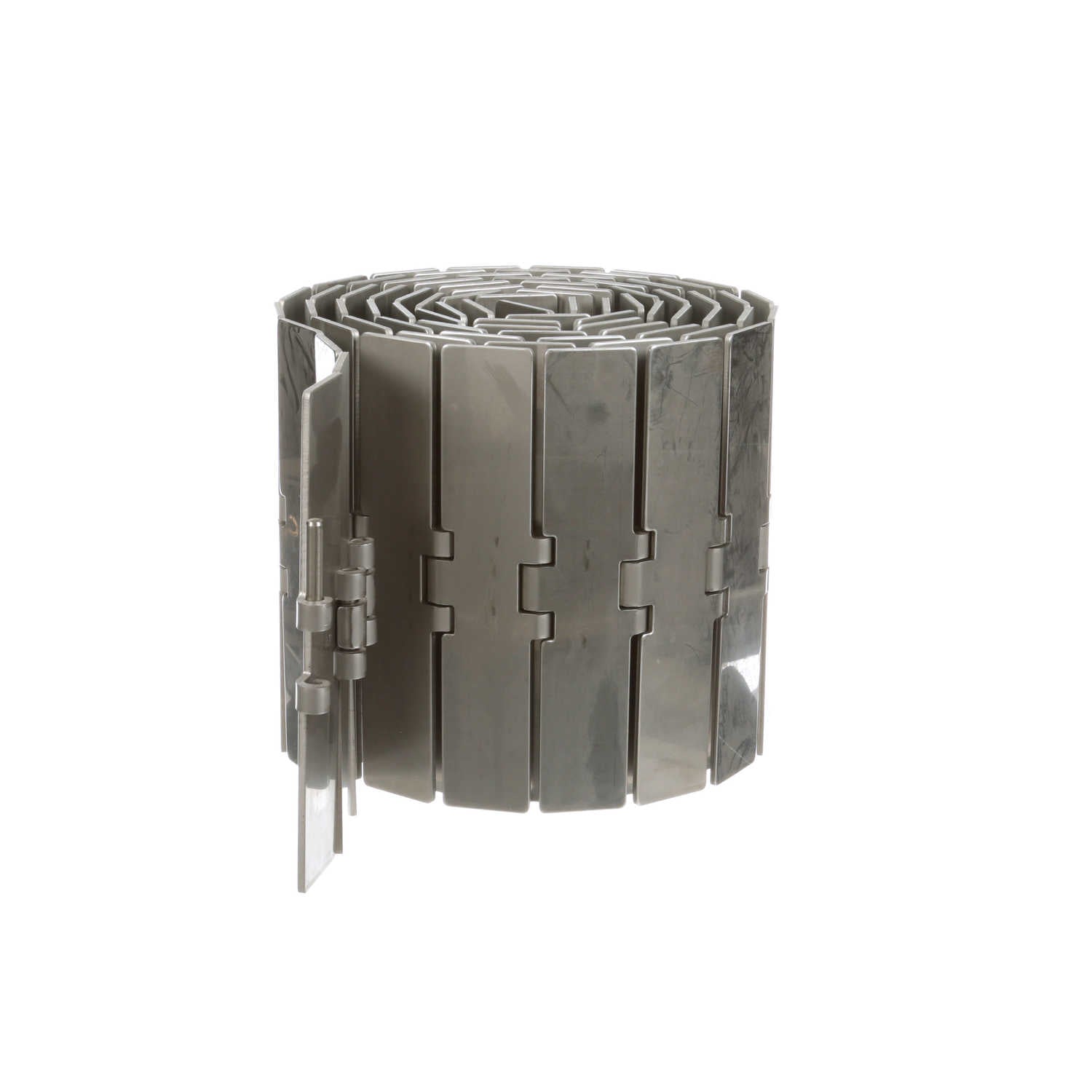

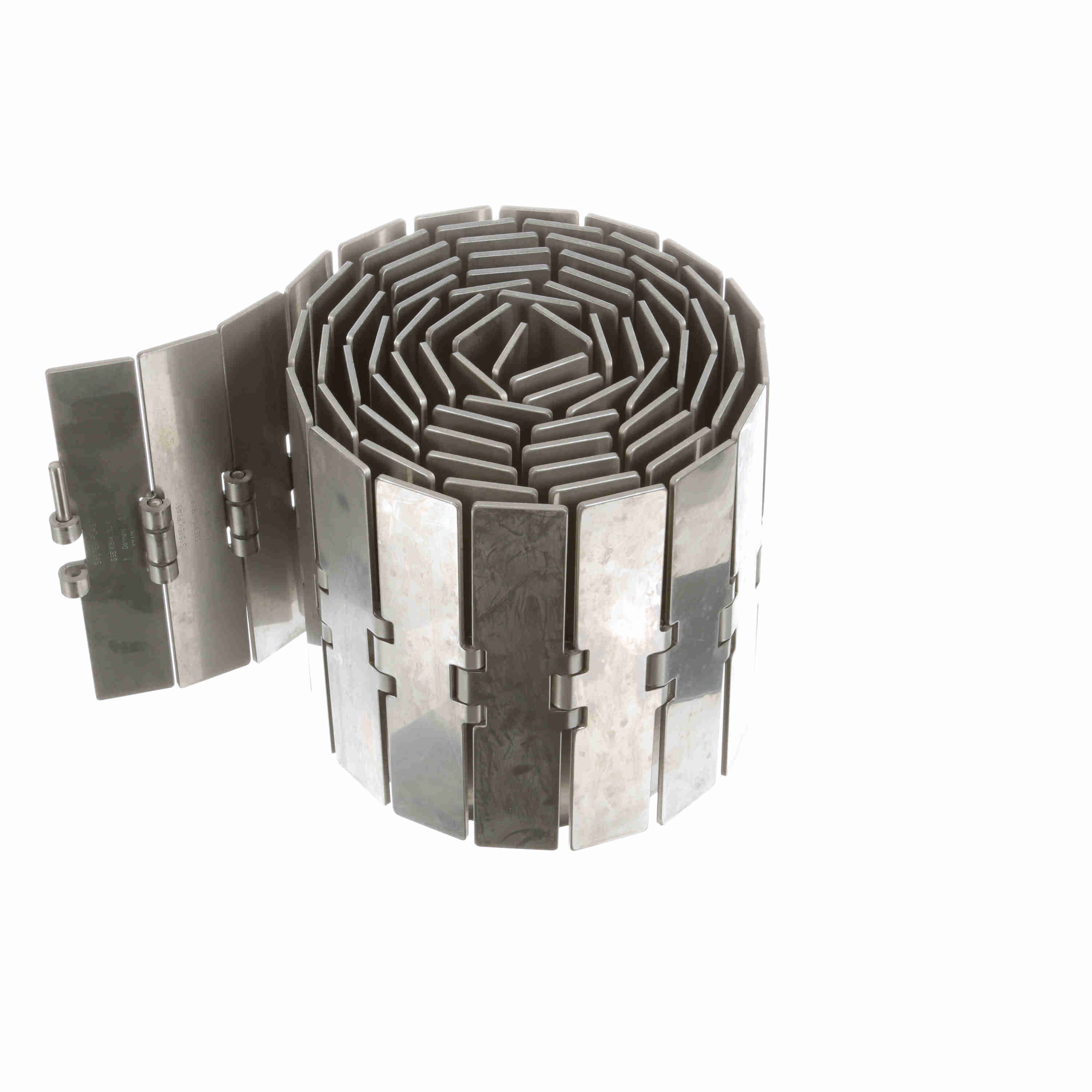

System Plast 815 Straight Running Solid Top, Material: 0, Width: 7.5in, Pitch: 1.5in - SSE815-K750
Part #:10014
Catalog #:SSE815-K750
KEY FEATURES
- High performance stainless steel, specially developed for high speed and heavy duty applications.
- Offers excellent corrosion resitance and highest surface hardness.
- Extremely flat and best surface finish.
- High corrosion and wear resistance.
- Highest ultimate yield loading capability.
- Typically used in pressureless combiners and excessively long conveyors.
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Flight Thickness (in): | 0.12 in | Series: | TableTop 815 Series Chain |
| Product Type: | Straight Running | Product Line: | Conveying Chains and Belts |
| Product Group: | Chain | Chain Material: | SSE |
| Chain Width (in): | 7.5 in | Max Working Load (N): | 6,000 N |
| Flight Thickness (mm): | 3.1 mm | Finish (μm): | 0.3 |
| Surface Type: | Solid Top | Chain Pitch (mm): | 38.1 mm |
| Weight (lb/ft): | 3.4 lb/ft | Chain Pitch (in): | 1.5 in |
| Rod/Pin Material: | SPM | Chain Width (mm): | 190.5 mm |
| Weight (kg/m): | 5.1 kg/m | Max Working Load (lb): | 1,350 lb |
| Straight or Side-Flex: | Straight Running | Chain Width Measurement System: | Imperial |
| Chain Number: | 815 |
General Specifications
| UPC: | 726166185046 | Weight: | 3.45 LB |
| Packaged Length: | 8.50 IN | Packaged Width: | 8.45 IN |
| Packaged Height: | 7.60 IN | HTC: | 7315.12.0080 |
| Country of Origin: | Germany |
