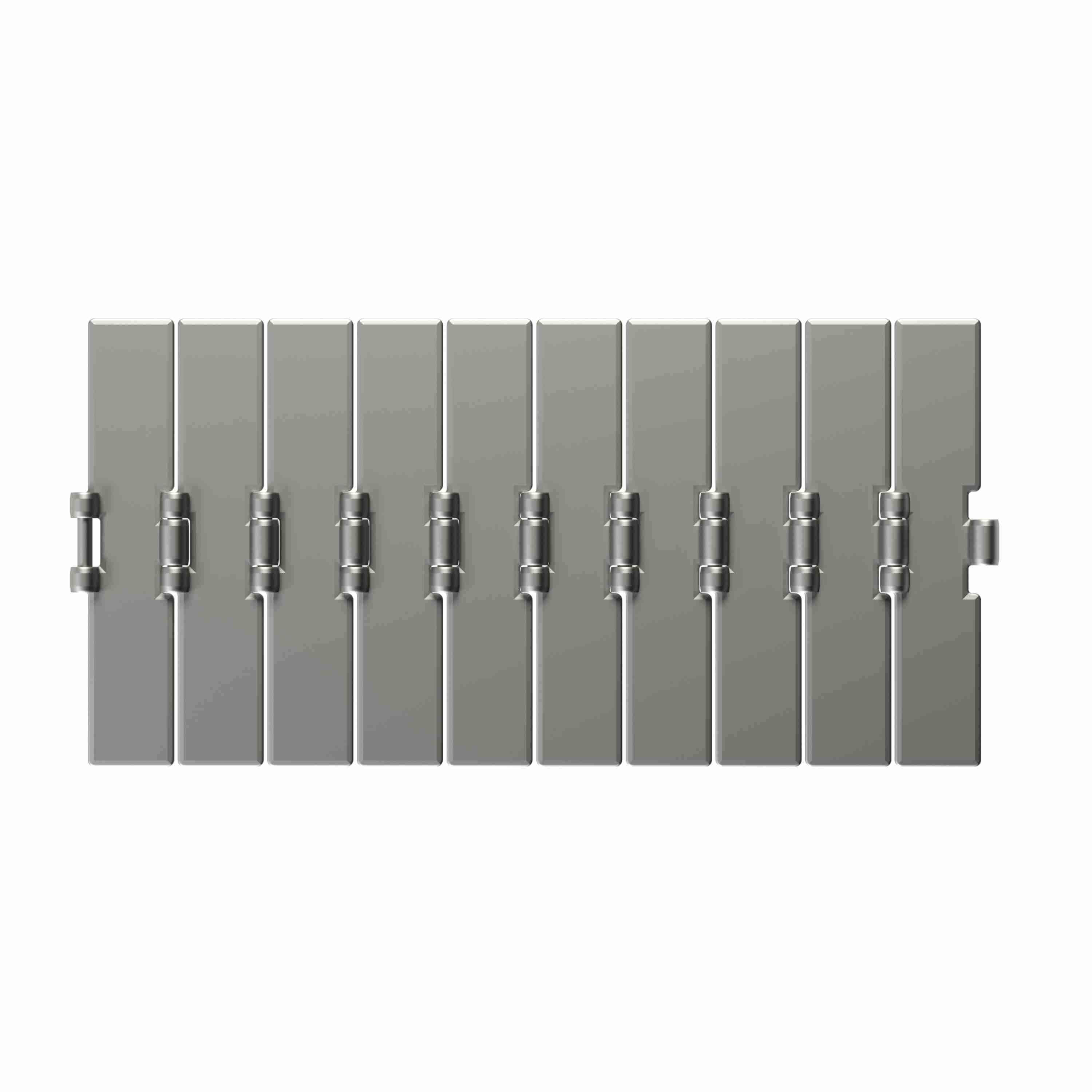

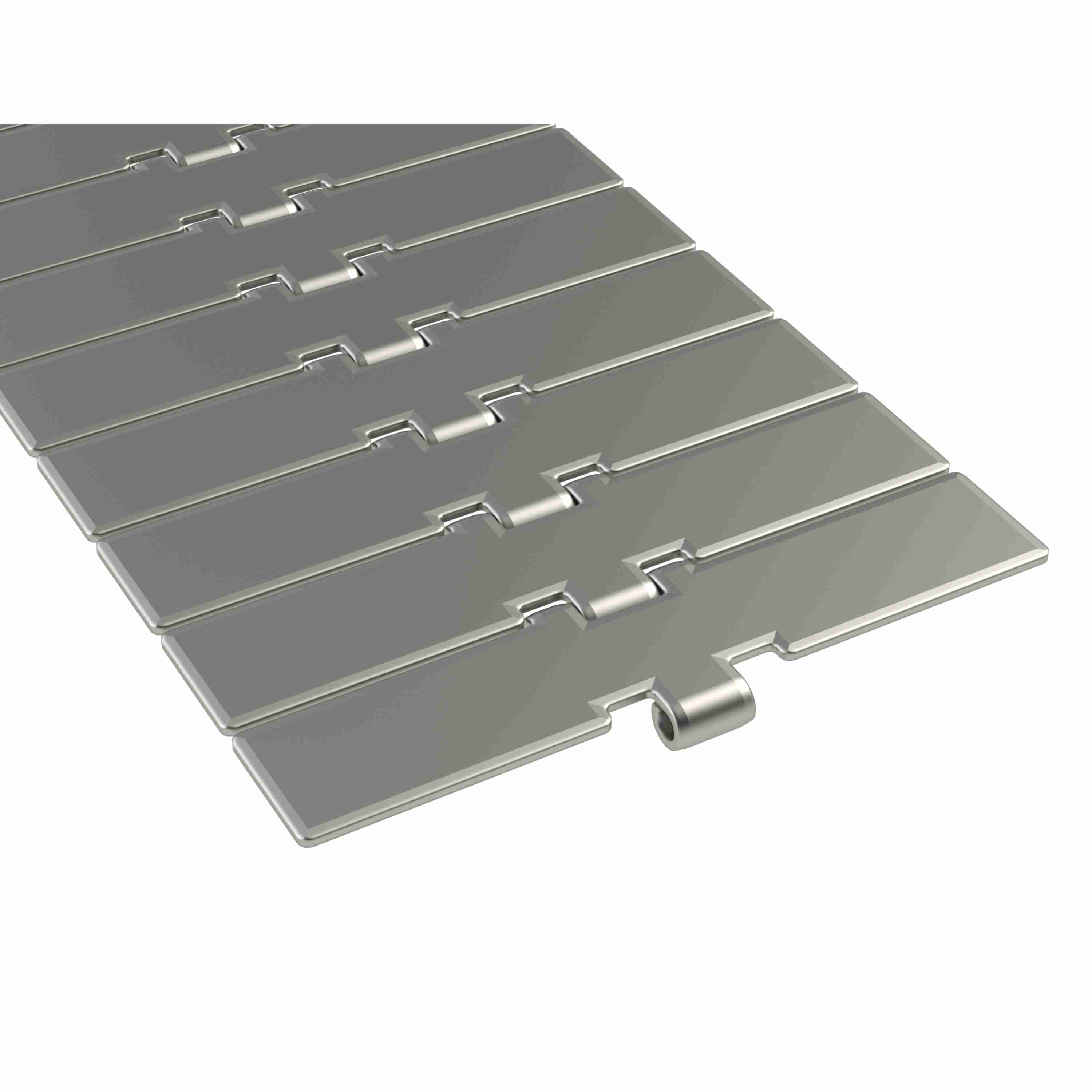

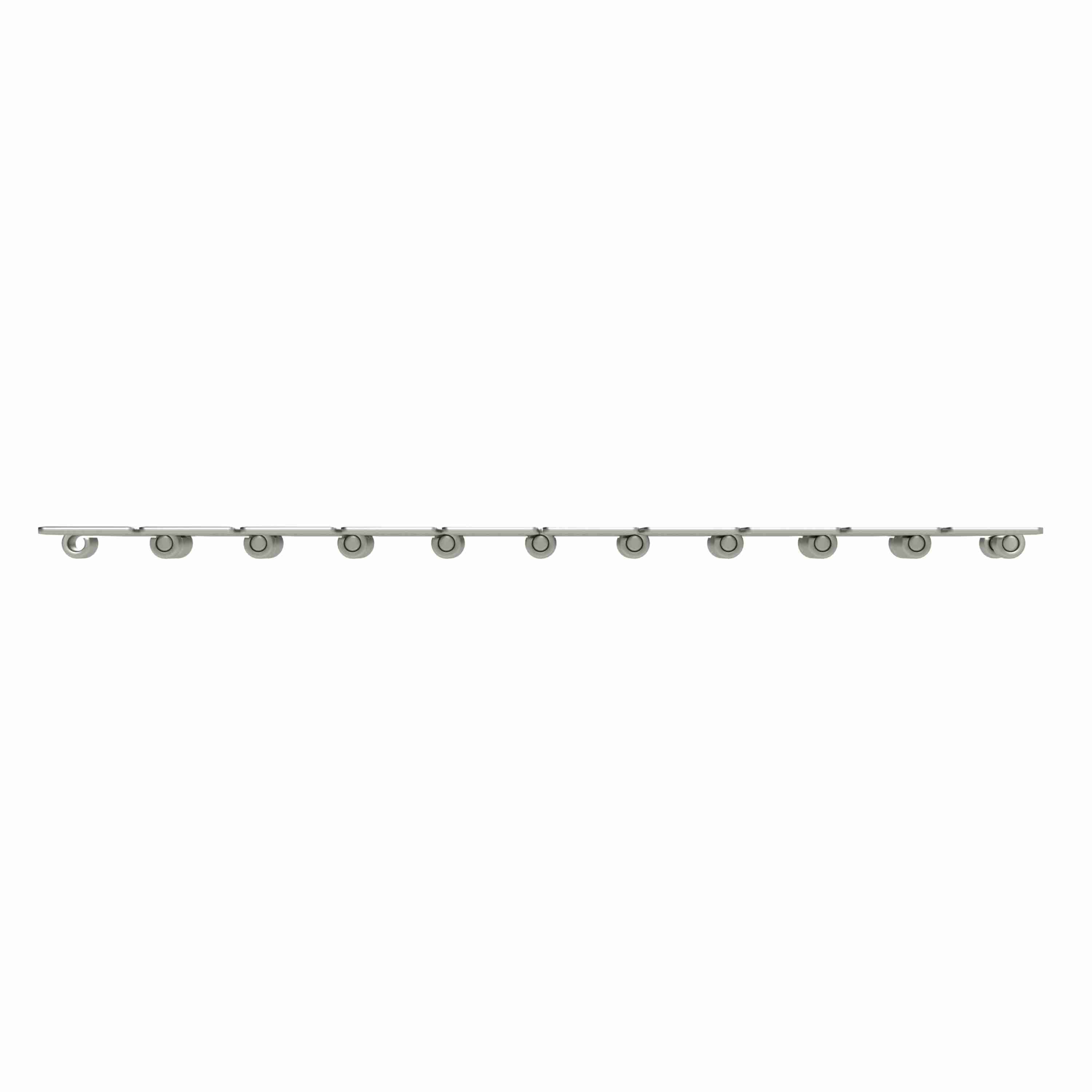

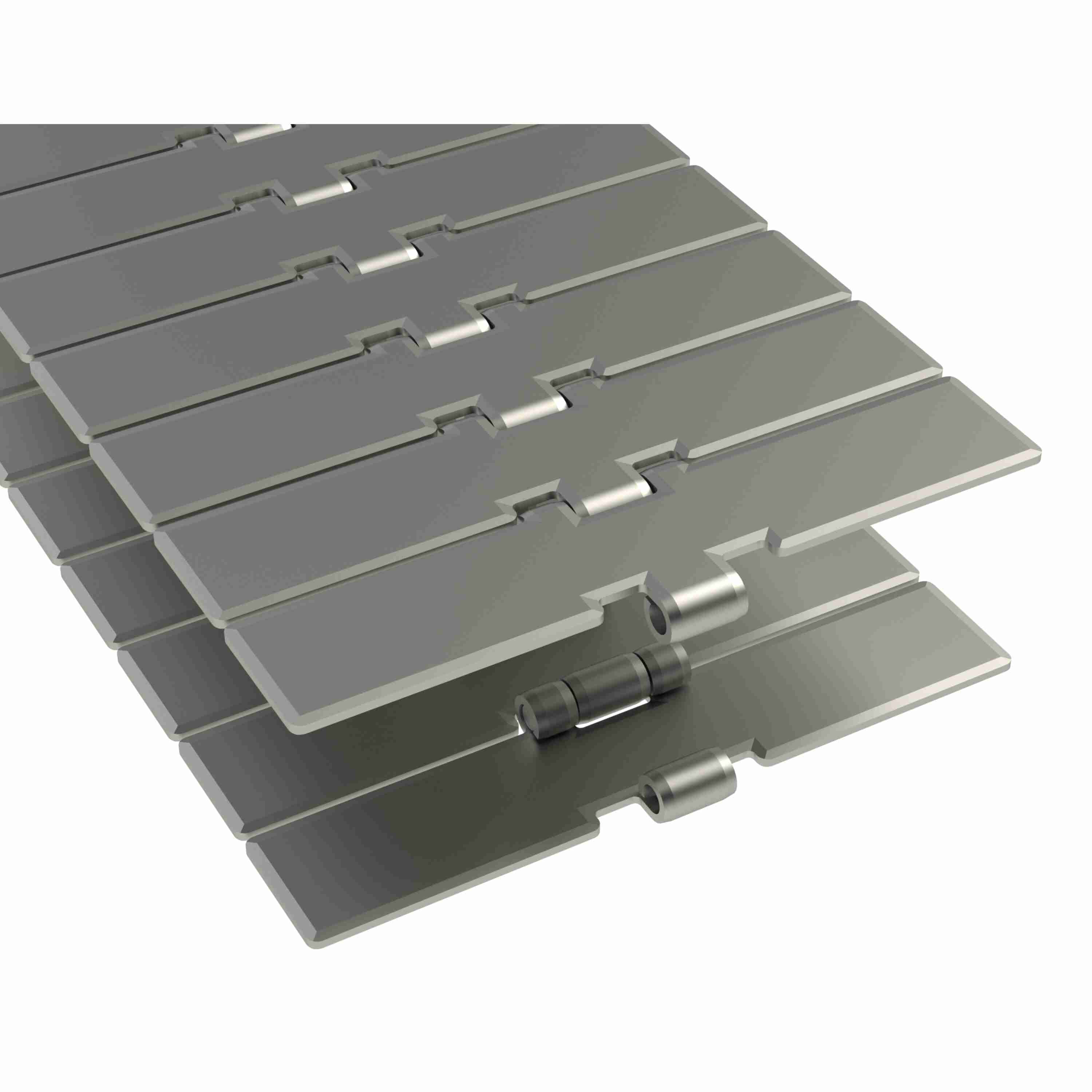

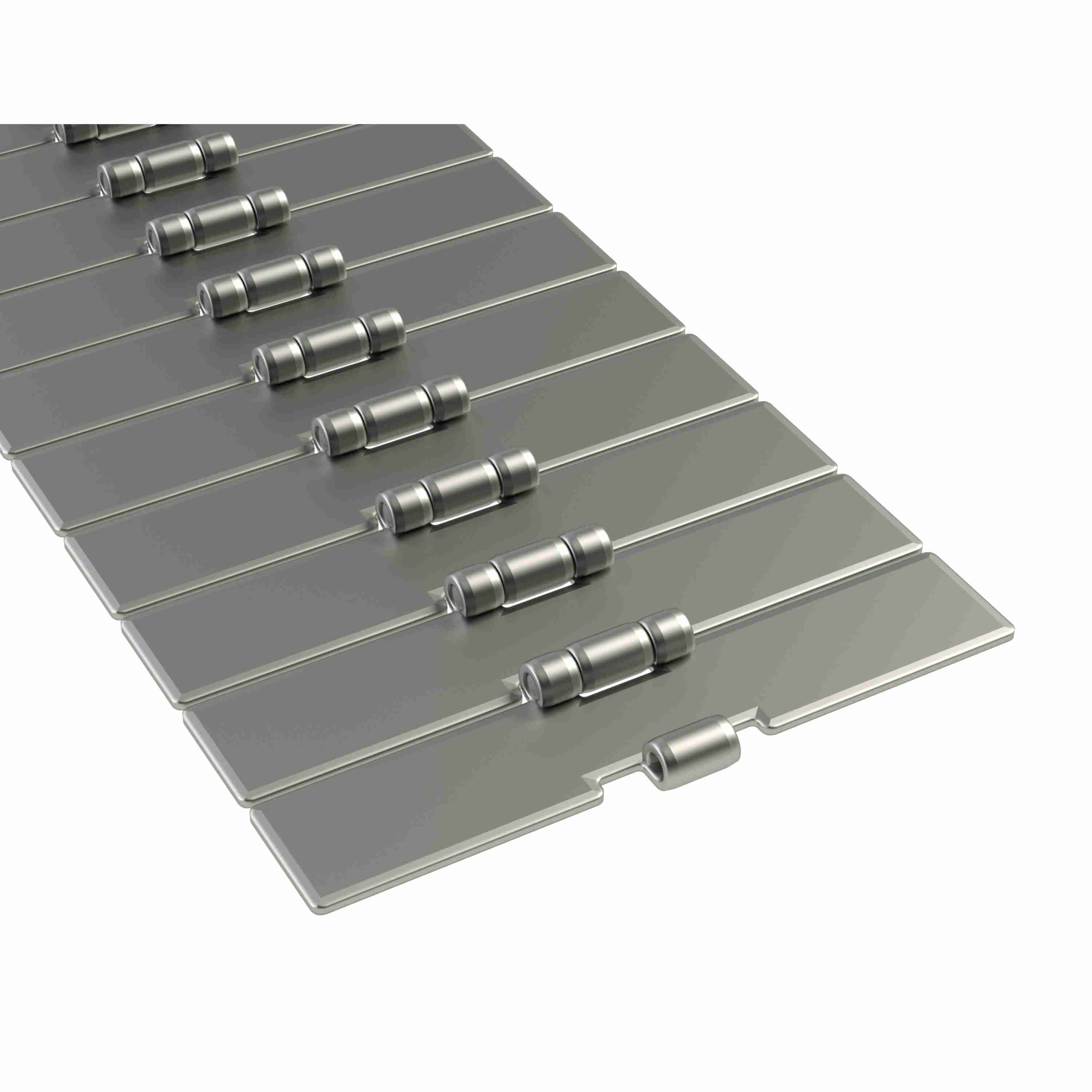

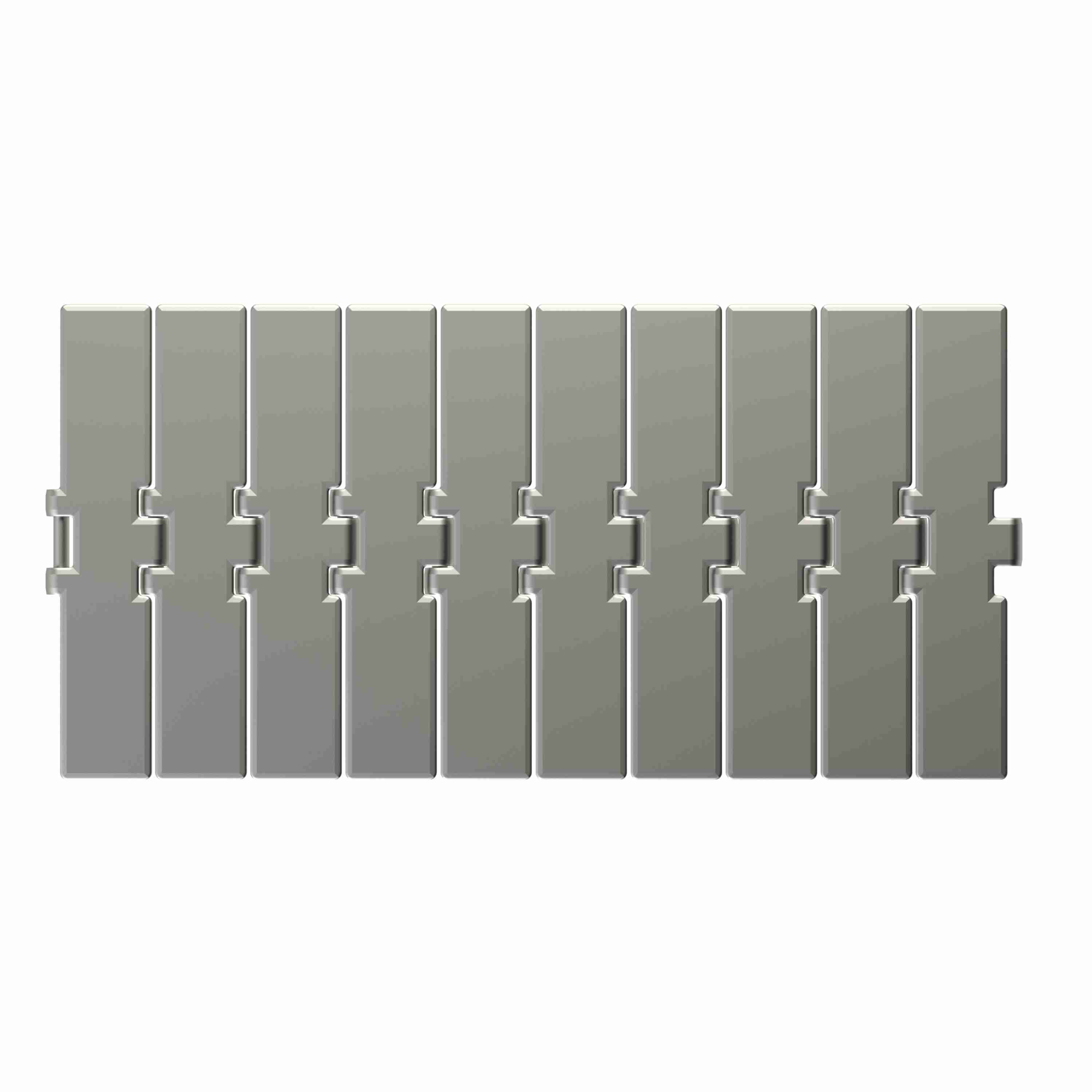

Rexnord 815 Straight Running Solid Top, Material: 0, Width: 7.5in, Pitch: 1.5in - 762.53.72
Part #:10139389
Catalog #:762.53.72
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Flight Thickness (in): | 0.12 in | Chain Material: | SSC |
| Series: | TableTop 815 Series Chain | Flight Thickness (mm): | 3.1 mm |
| Chain Width (in): | 7.5 in | Surface Type: | Solid Top |
| Chain Width Measurement System: | Imperial | Chain Number: | 815 |
| Straight or Side-Flex: | Straight Running | Chain Strength (N): | 6,000 N |
| Chain Pitch (in): | 1.5 in | Rod/Pin Material: | Stainless Steel |
| Chain Width (mm): | 190.5 mm | Chain Pitch (mm): | 38.1 mm |
| Chain Strength (lb): | 1,351 lb |
General Specifications
| Weight: | 0.42 LB | HTC: | 7315120080 |
| Country of Origin: | Netherlands |
