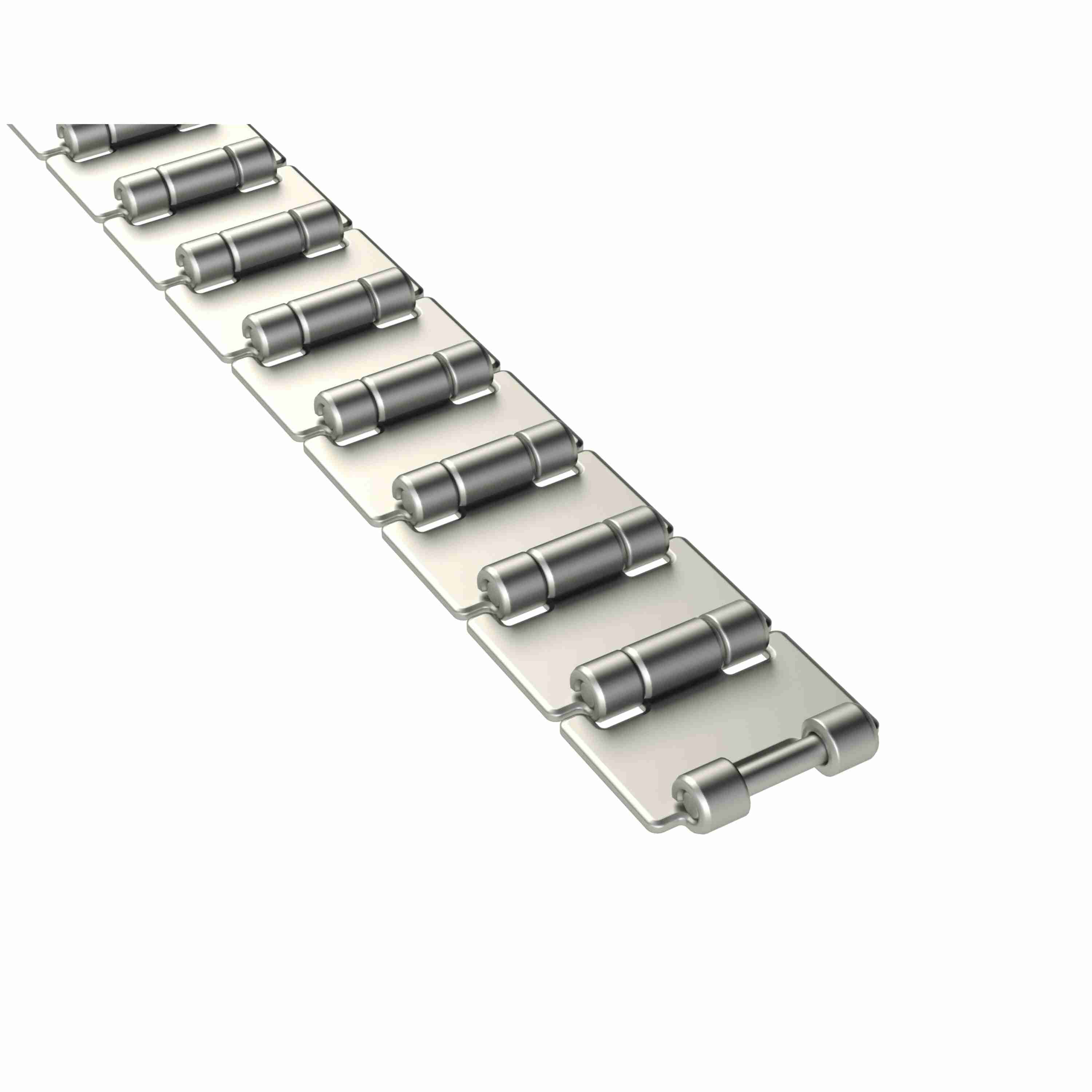

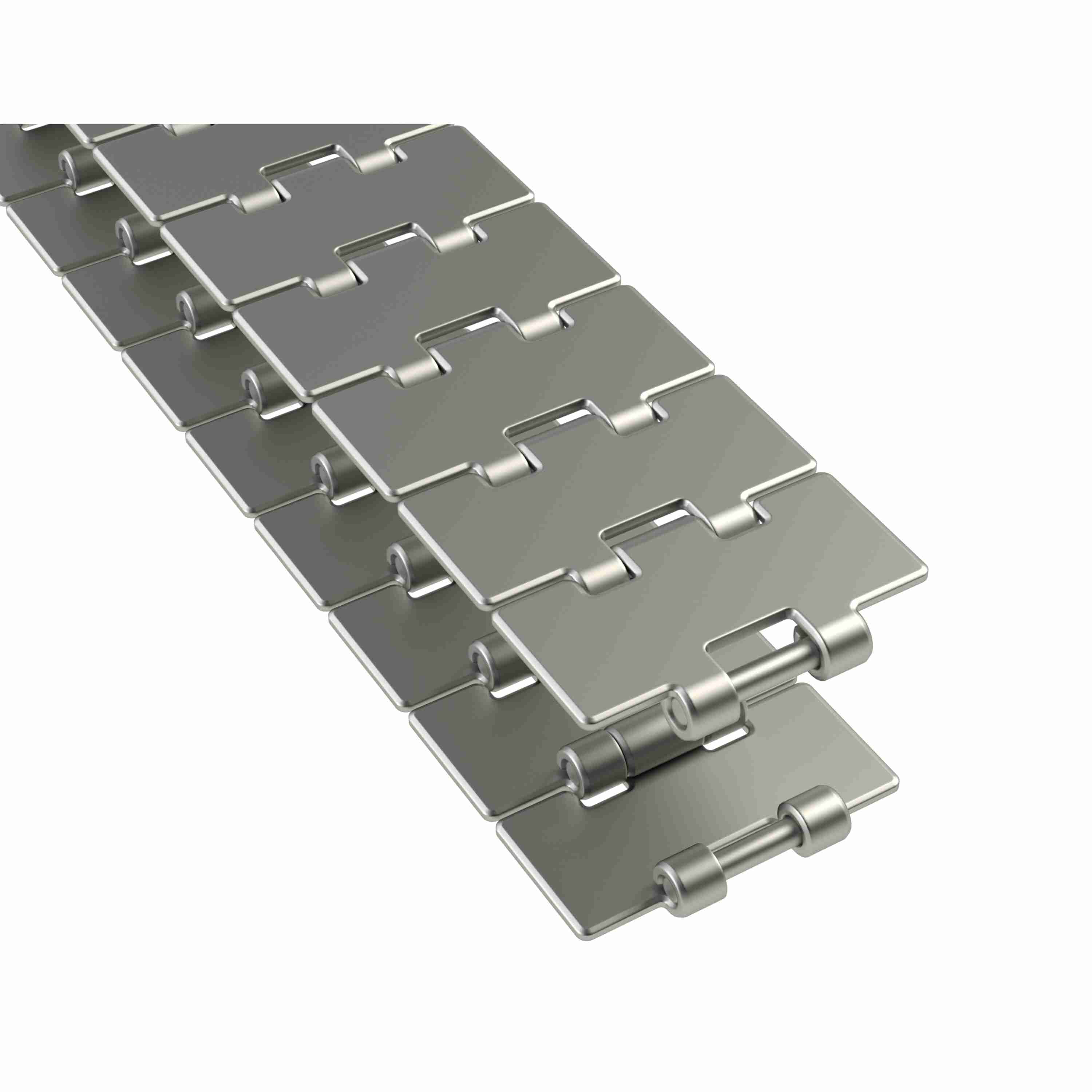

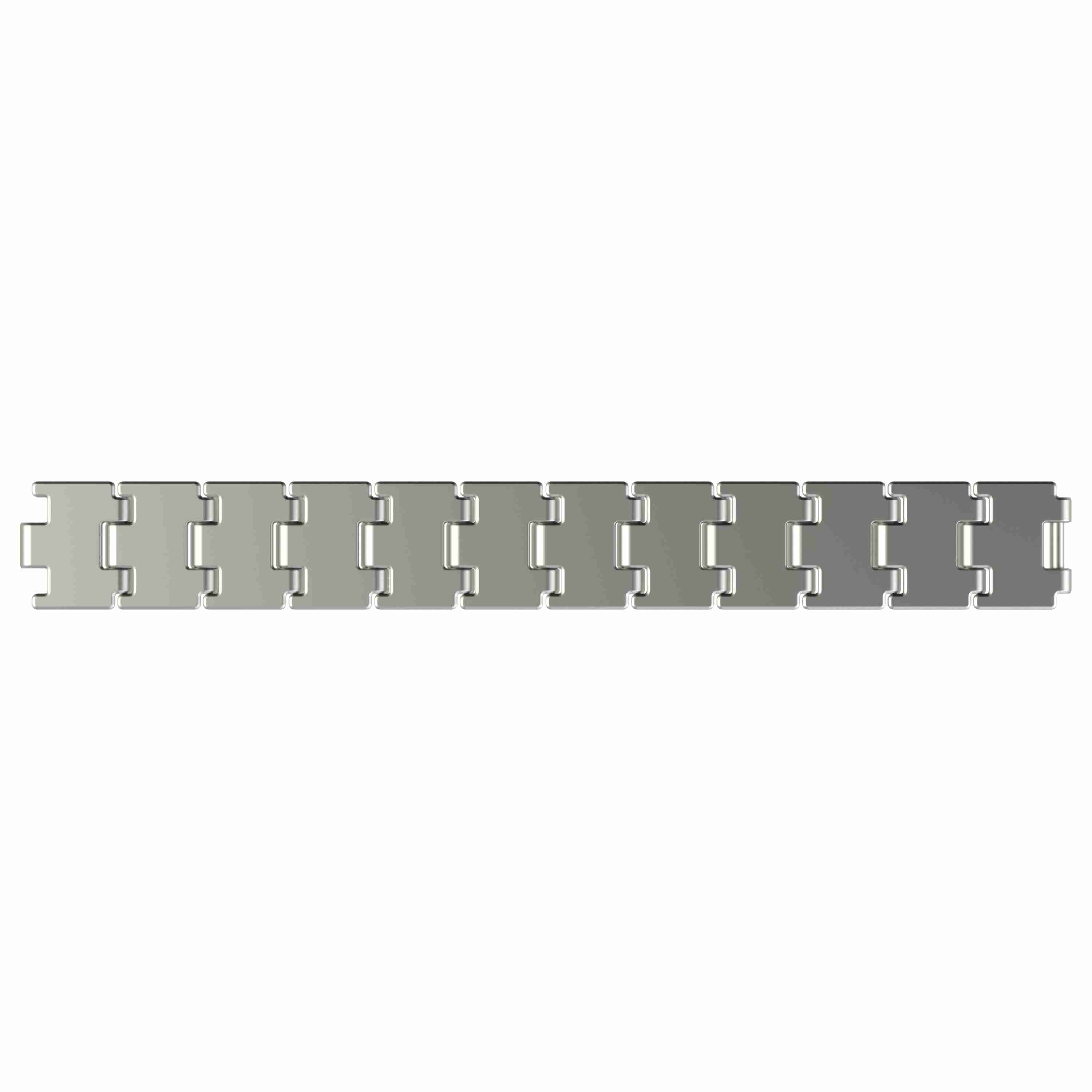

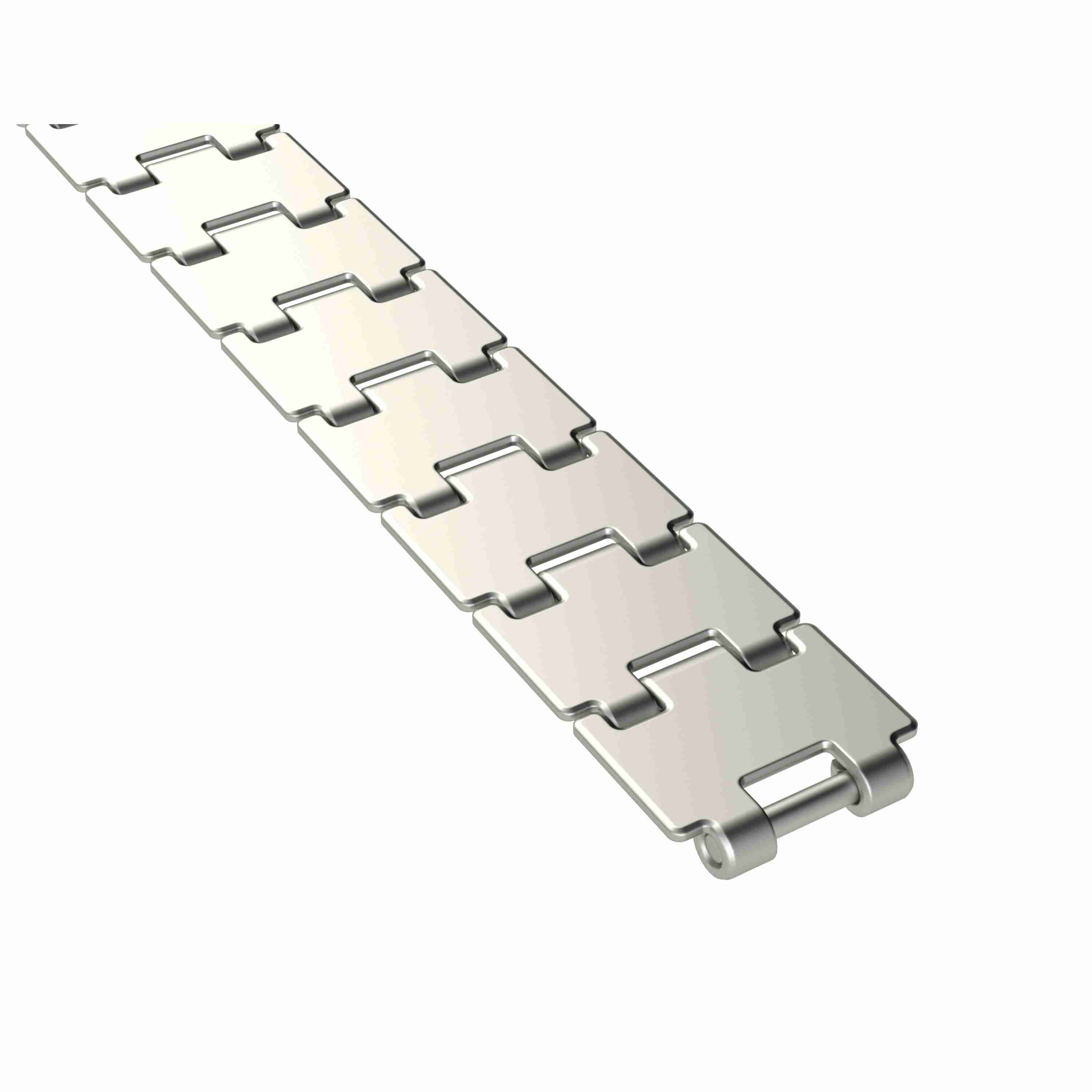

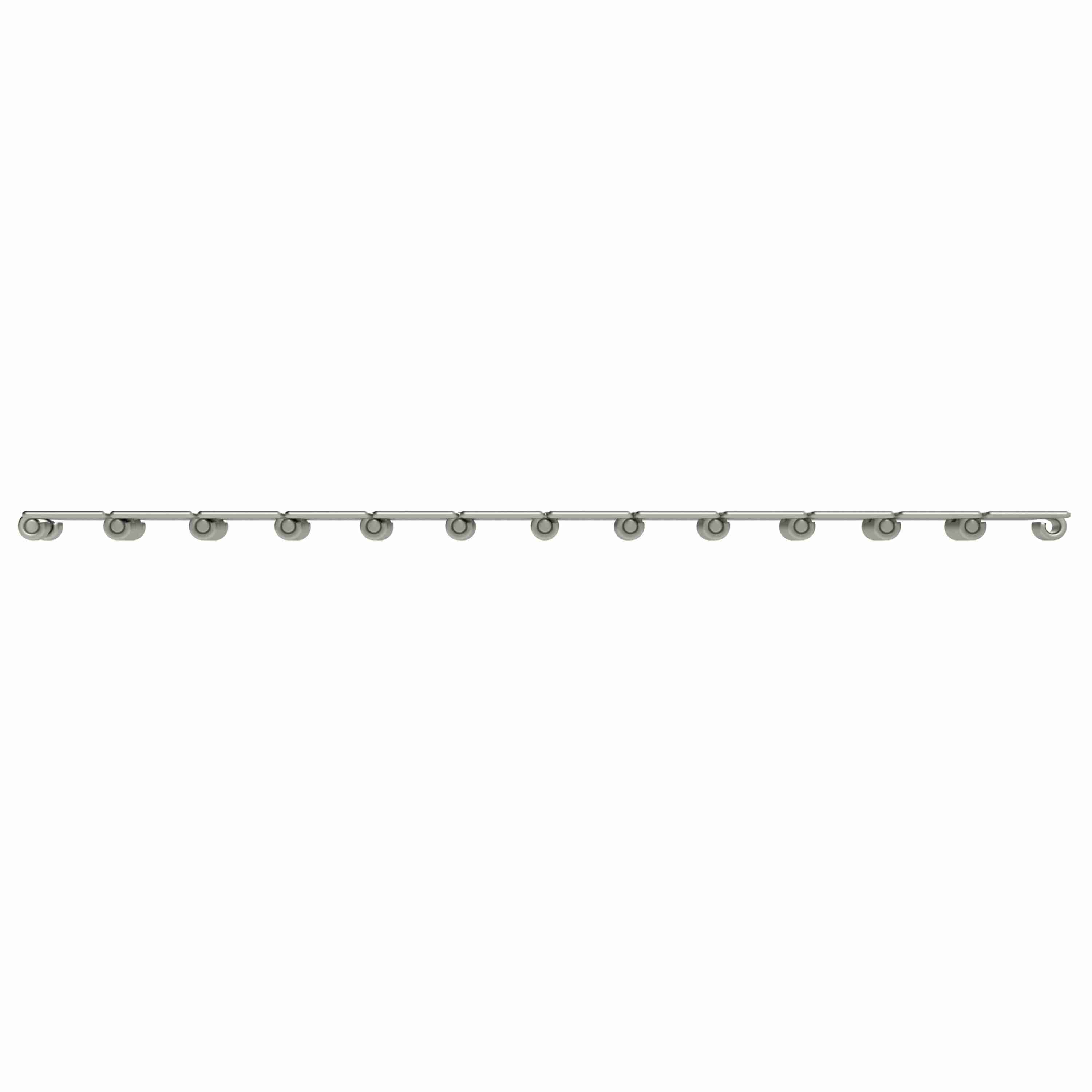

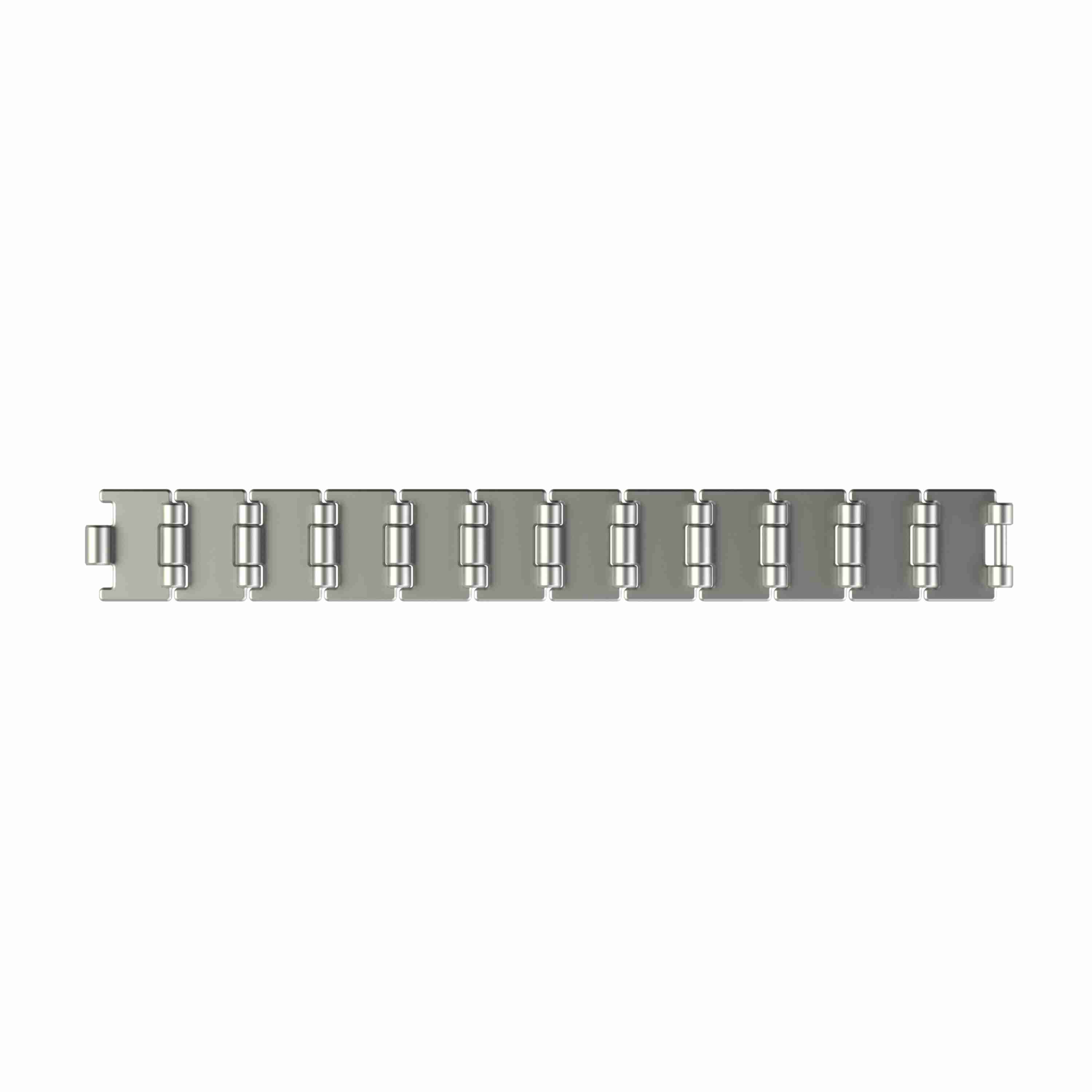

Rexnord 815 Straight Running Solid Top, Material: Austenitic Stainless Steel, Width: 3.25in, Pitch: 1.5in - 762.33.31
Part #:10139377
Catalog #:762.33.31
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Series: | TableTop 815 Series Chain | Chain Material: | SSA |
| Chain Width (in): | 3.25 in | Flight Thickness (in): | 0.12 in |
| Flight Thickness (mm): | 3.1 mm | Chain Width (mm): | 82.6 mm |
| Chain Pitch (mm): | 38.1 mm | Surface Type: | Solid Top |
| Chain Number: | 815 | Chain Strength (N): | 2,775 N |
| Chain Pitch (in): | 1.5 in | Chain Width Measurement System: | Imperial |
| Chain Material Description: | Austenitic Stainless Steel | Straight or Side-Flex: | Straight Running |
| Rod/Pin Material: | Stainless Steel | Chain Strength (lb): | 625 lb |
General Specifications
| Weight: | 0.22 LB | HTC: | 7315120080 |
| Country of Origin: | Netherlands |
