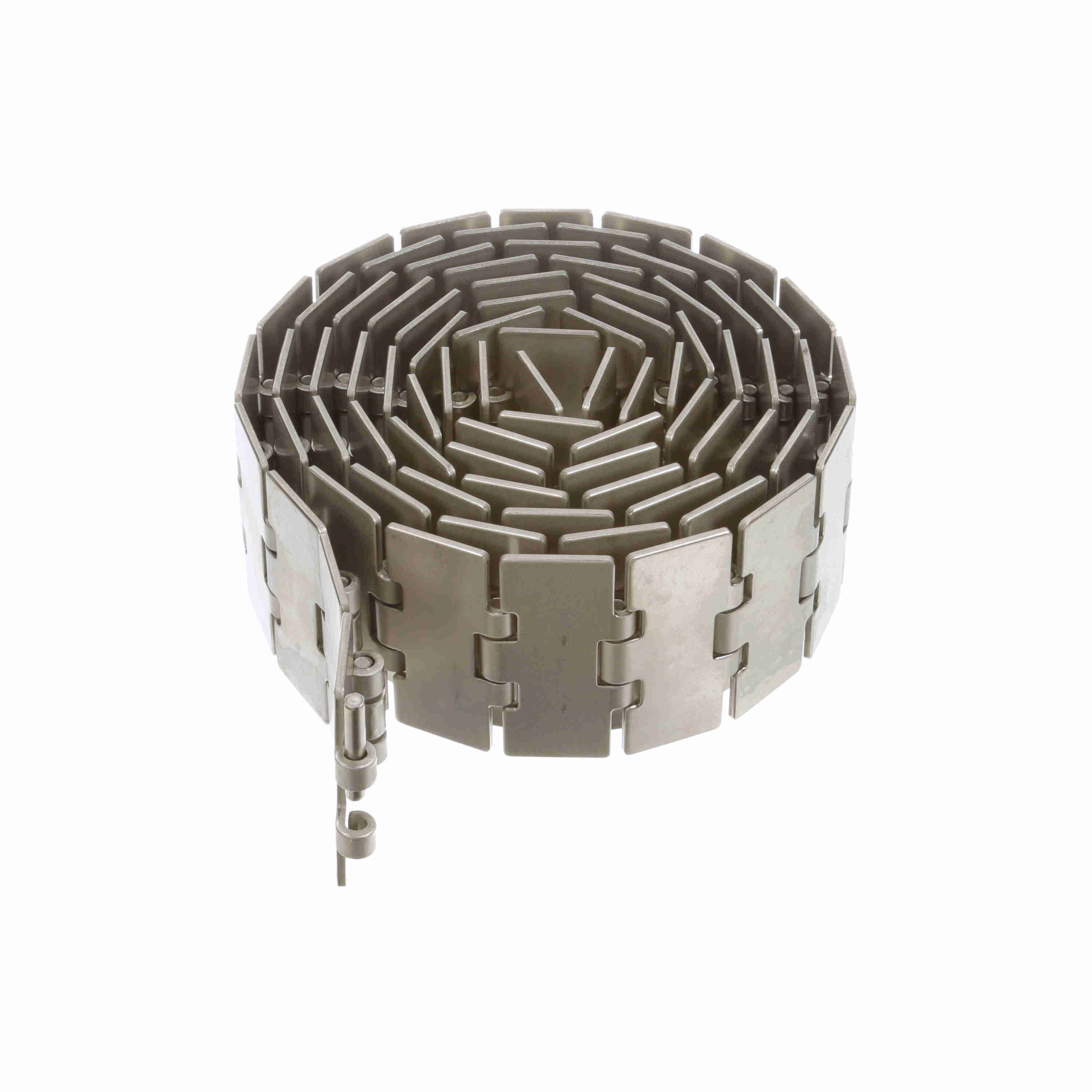

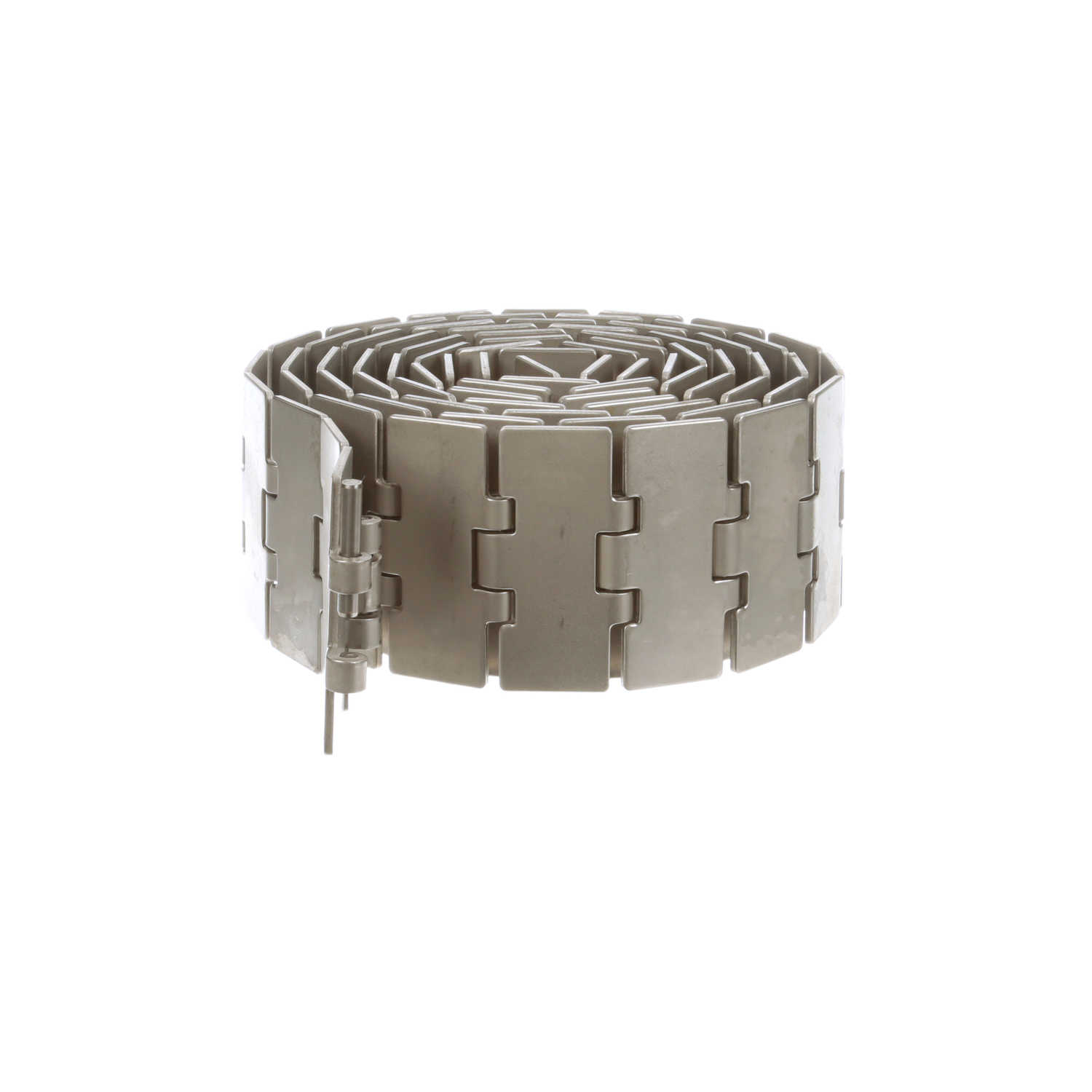

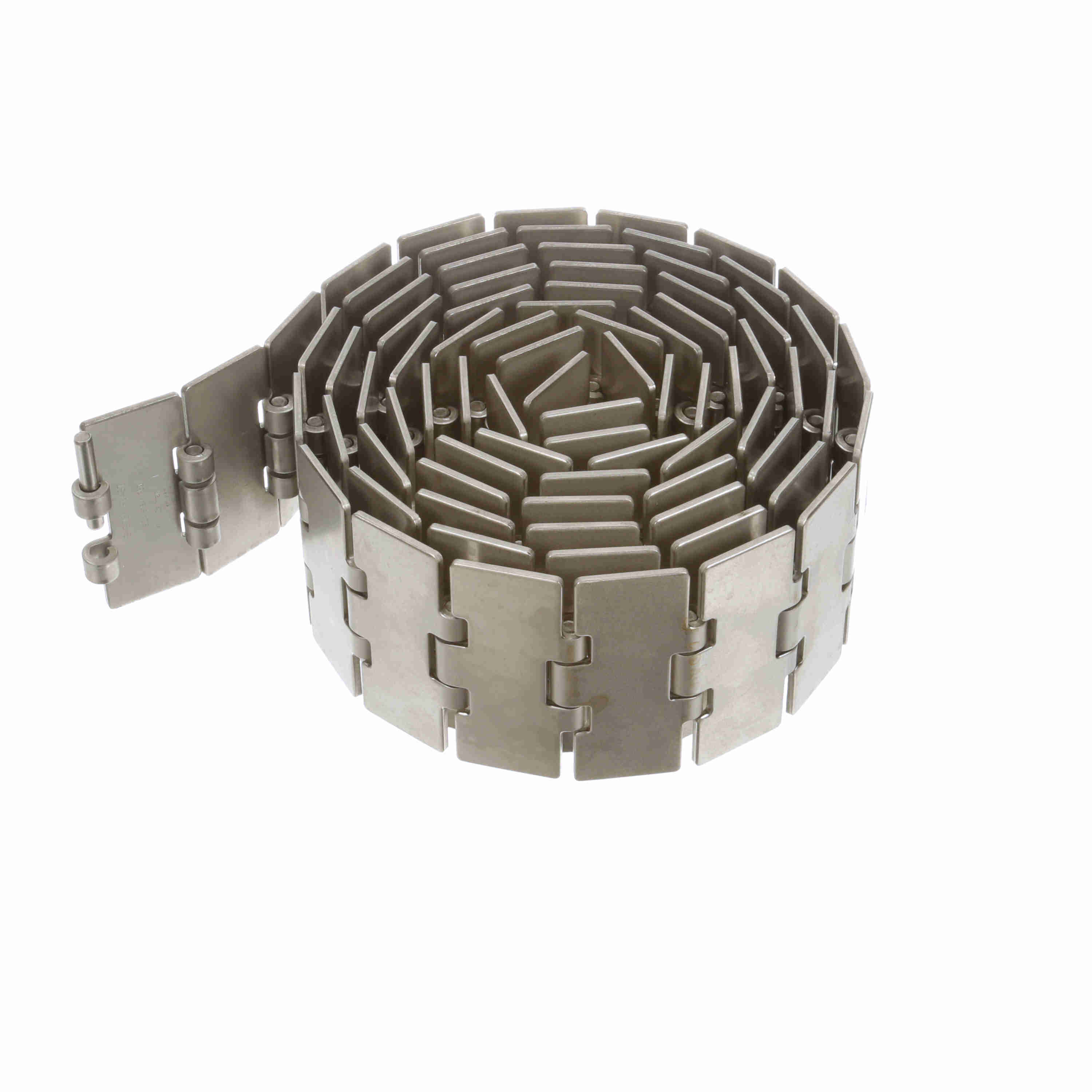

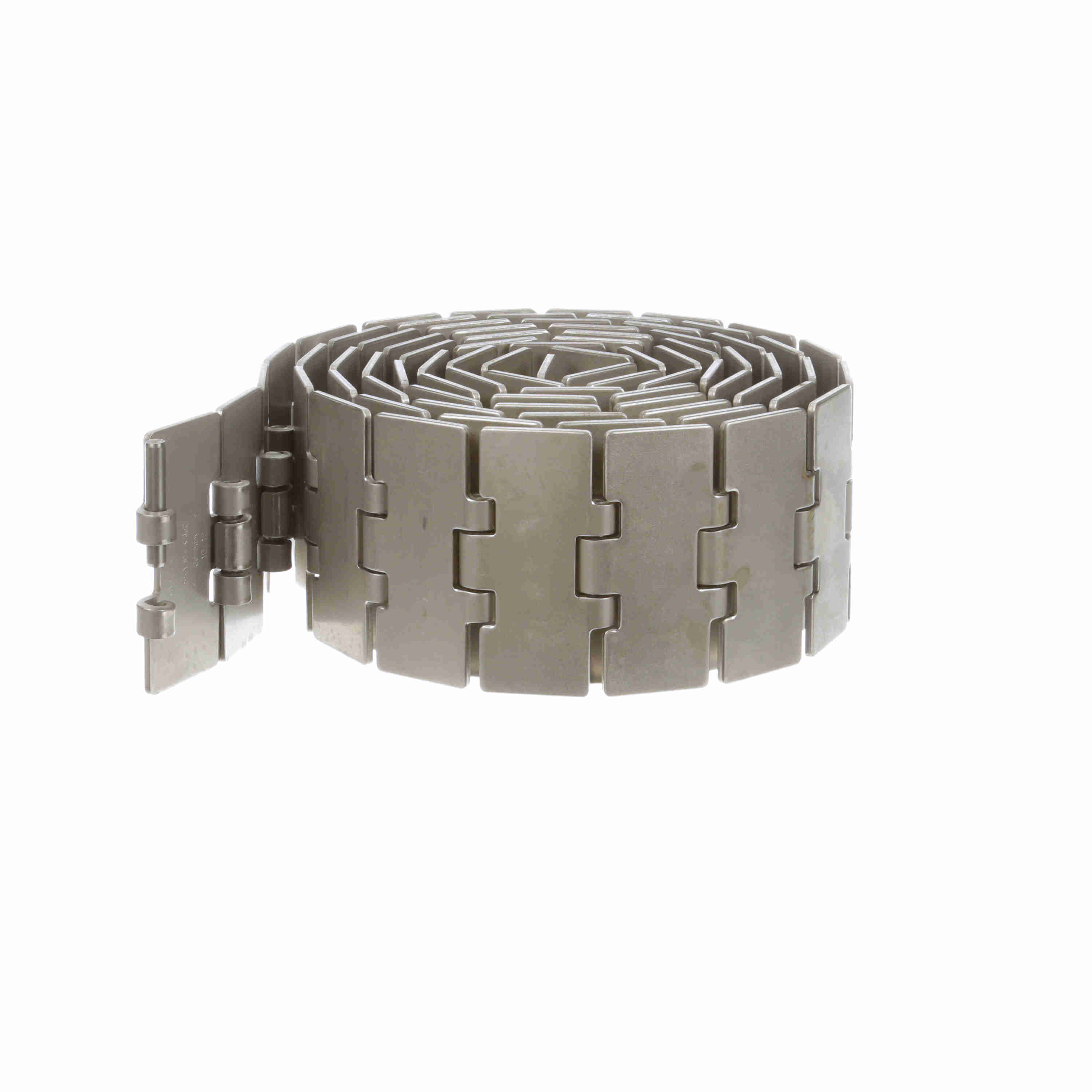

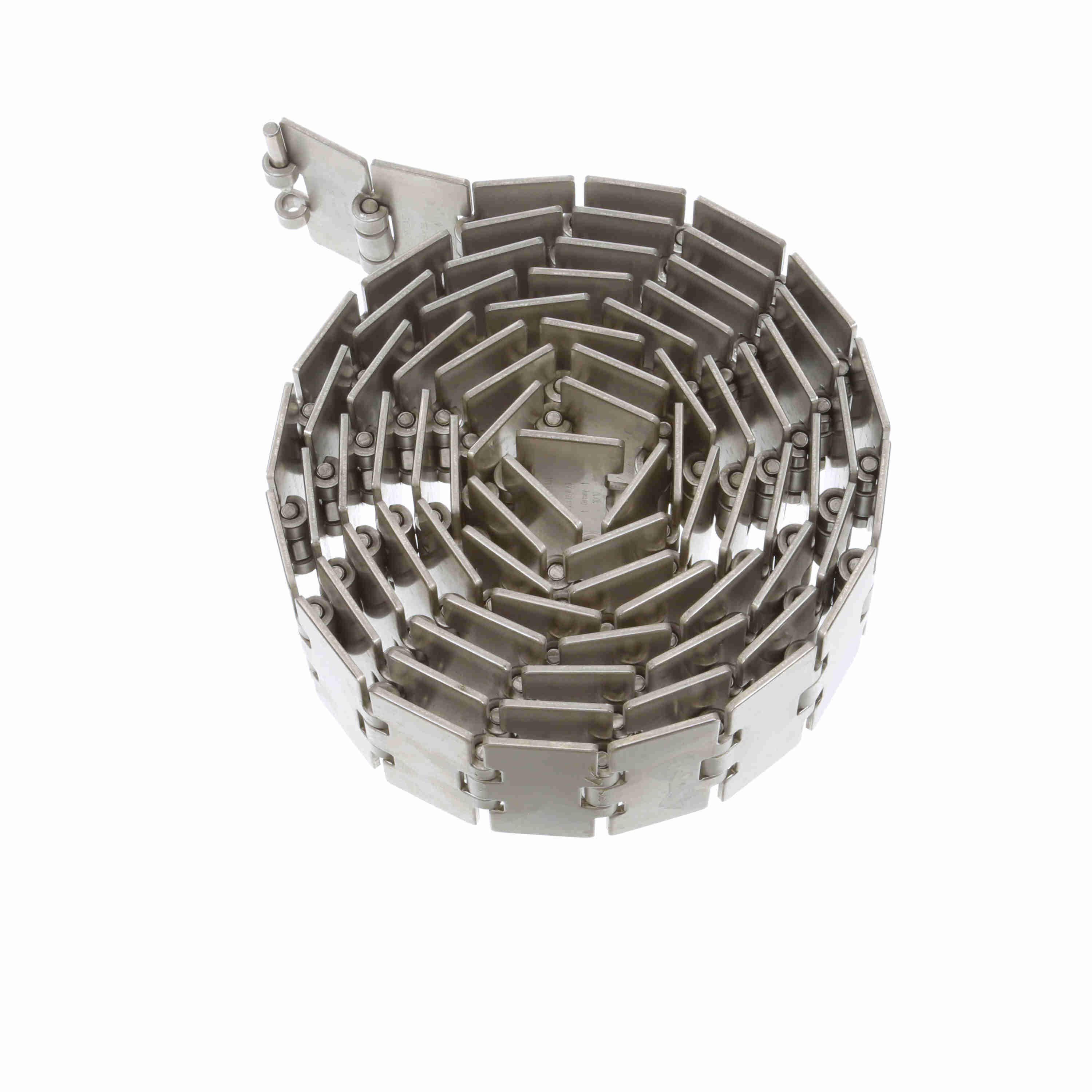

System Plast 815 Straight Running Solid Top, Material: Austenitic Stainless Steel, Width: 3.5in, Pitch: 1.5in - SSA815-K350
Part #:10017
Catalog #:SSA815-K350
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Series: | TableTop 815 Series Chain | Flight Thickness (in): | 0.12 in |
| Product Group: | Chain | Product Type: | Straight Running |
| Product Line: | Conveying Chains and Belts | Chain Material: | SSA |
| Max Working Load (N): | 5,300 N | Chain Width (in): | 3.5 in |
| Flight Thickness (mm): | 3.1 mm | Chain Width Measurement System: | Imperial |
| Surface Type: | Solid Top | Chain Material Description: | Austenitic Stainless Steel |
| Chain Width (mm): | 88.9 mm | Weight (kg/m): | 2.7 kg/m |
| Finish (μm): | 0.3 | Weight (lb/ft): | 1.8 lb/ft |
| Max Working Load (lb): | 1,190 lb | Rod/Pin Material: | SPM |
| Chain Pitch (in): | 1.5 in | Chain Number: | 815 |
| Straight or Side-Flex: | Straight Running | Chain Pitch (mm): | 38.1 mm |
General Specifications
| UPC: | 726166147761 | Weight: | 1.93 LB |
| Packaged Length: | 8.30 IN | Packaged Width: | 8.35 IN |
| Packaged Height: | 3.80 IN | HTC: | 7315.12.0080 |
| Country of Origin: | Germany |
