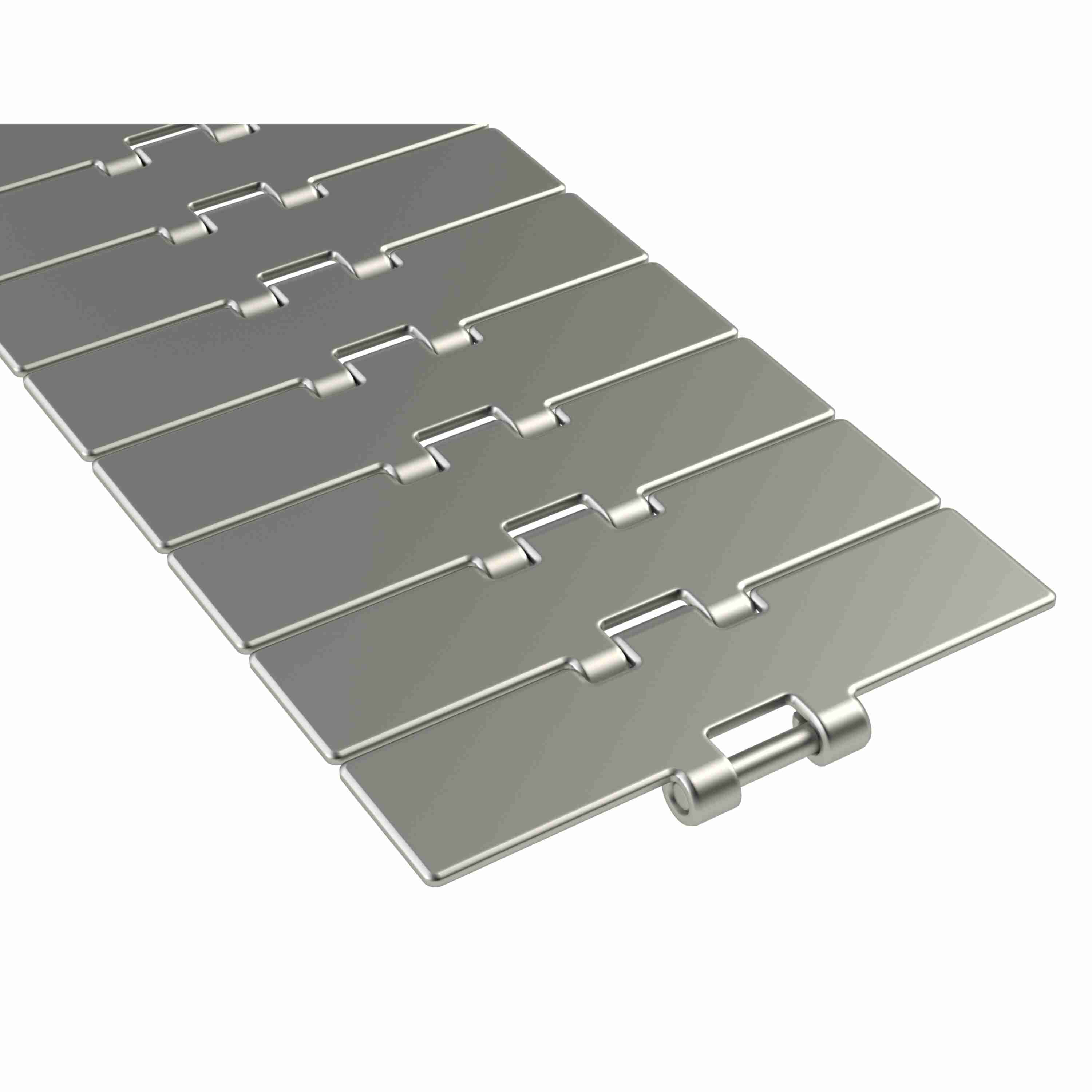

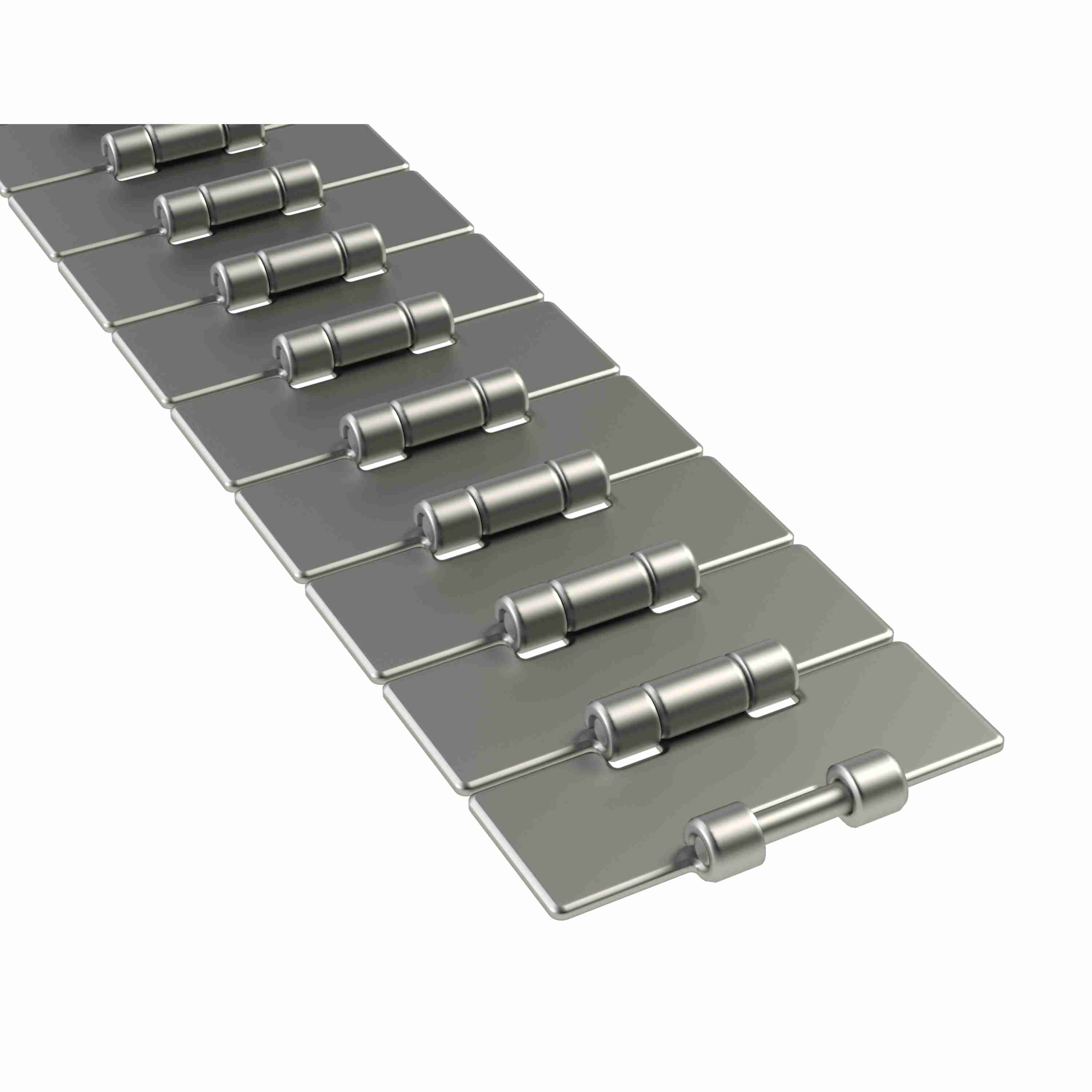

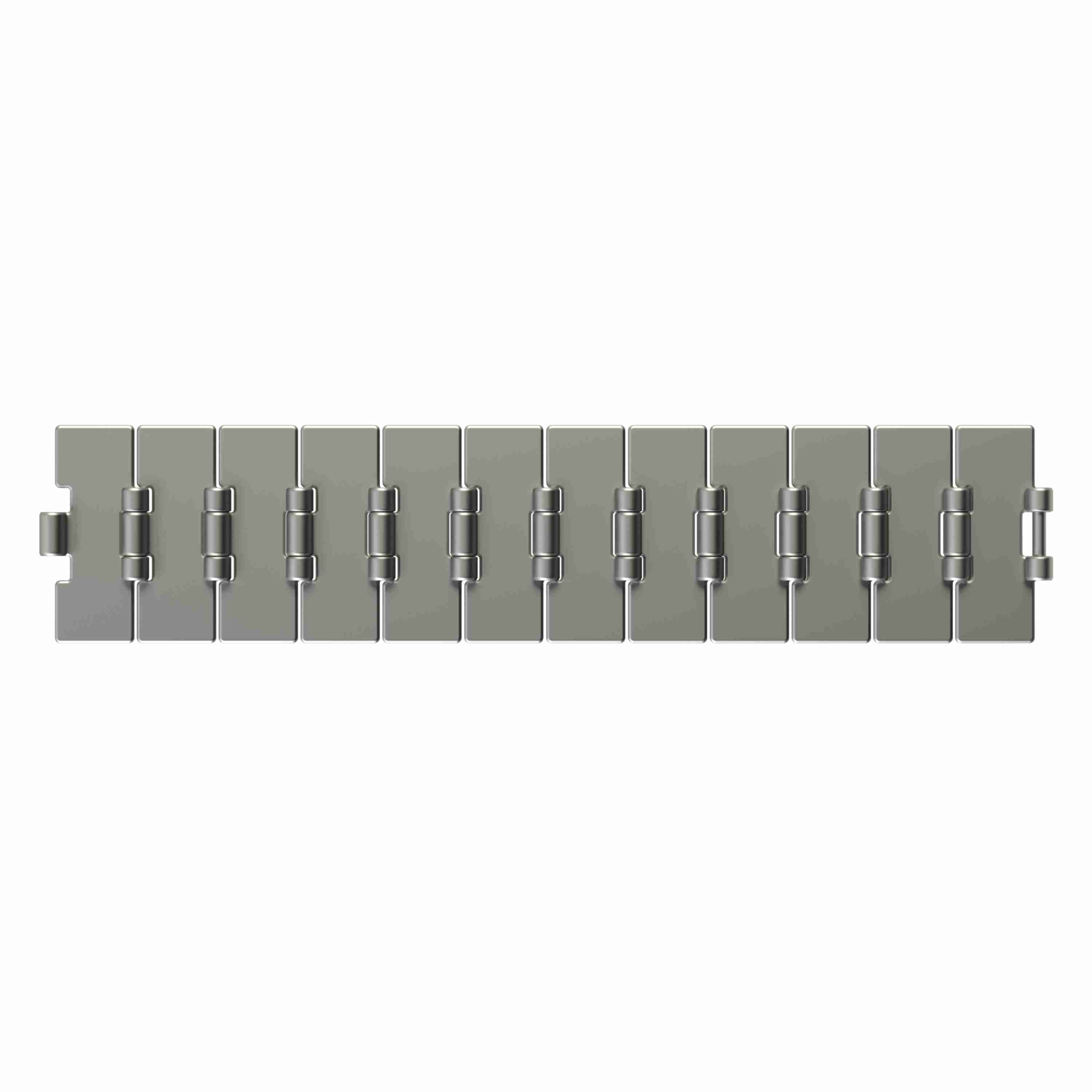

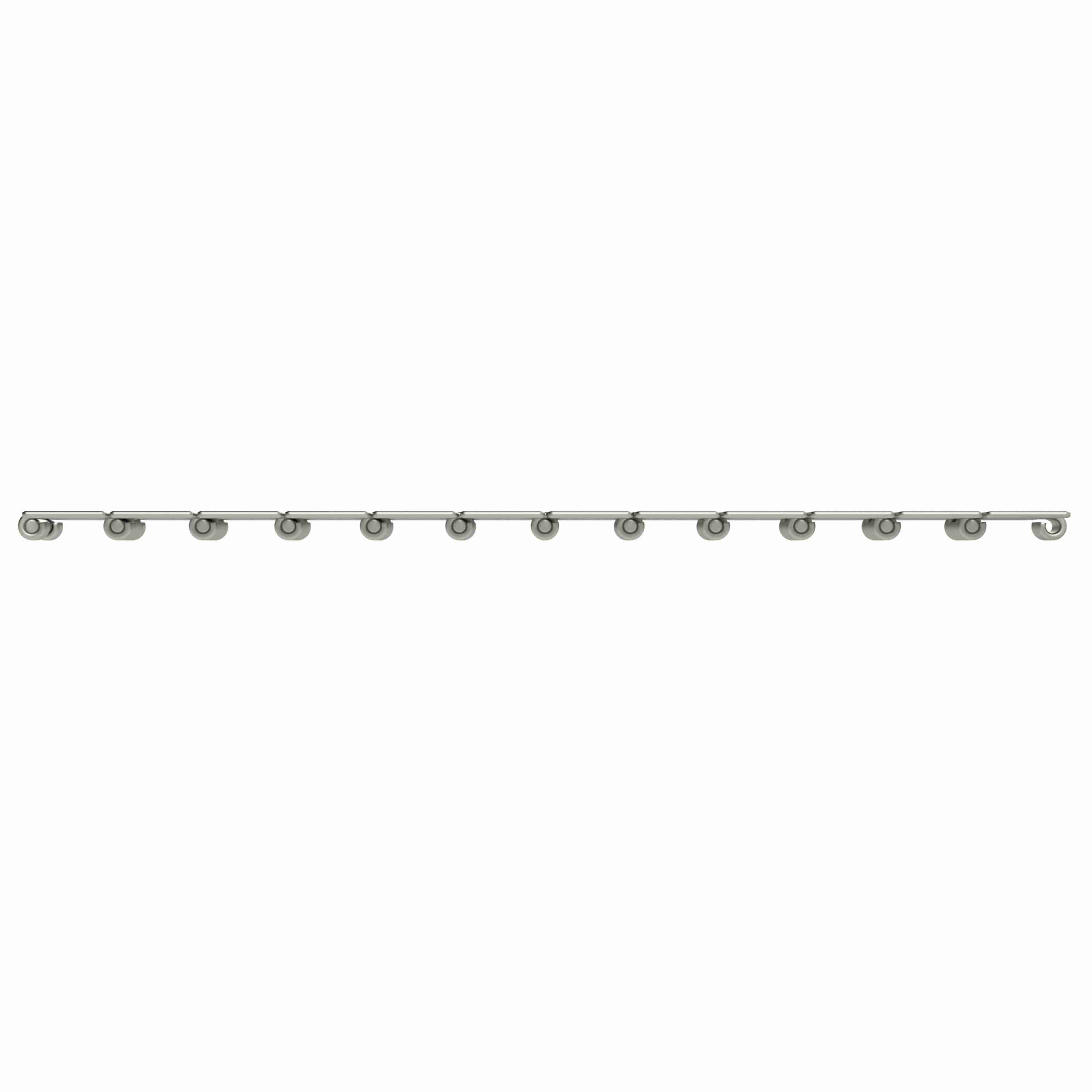

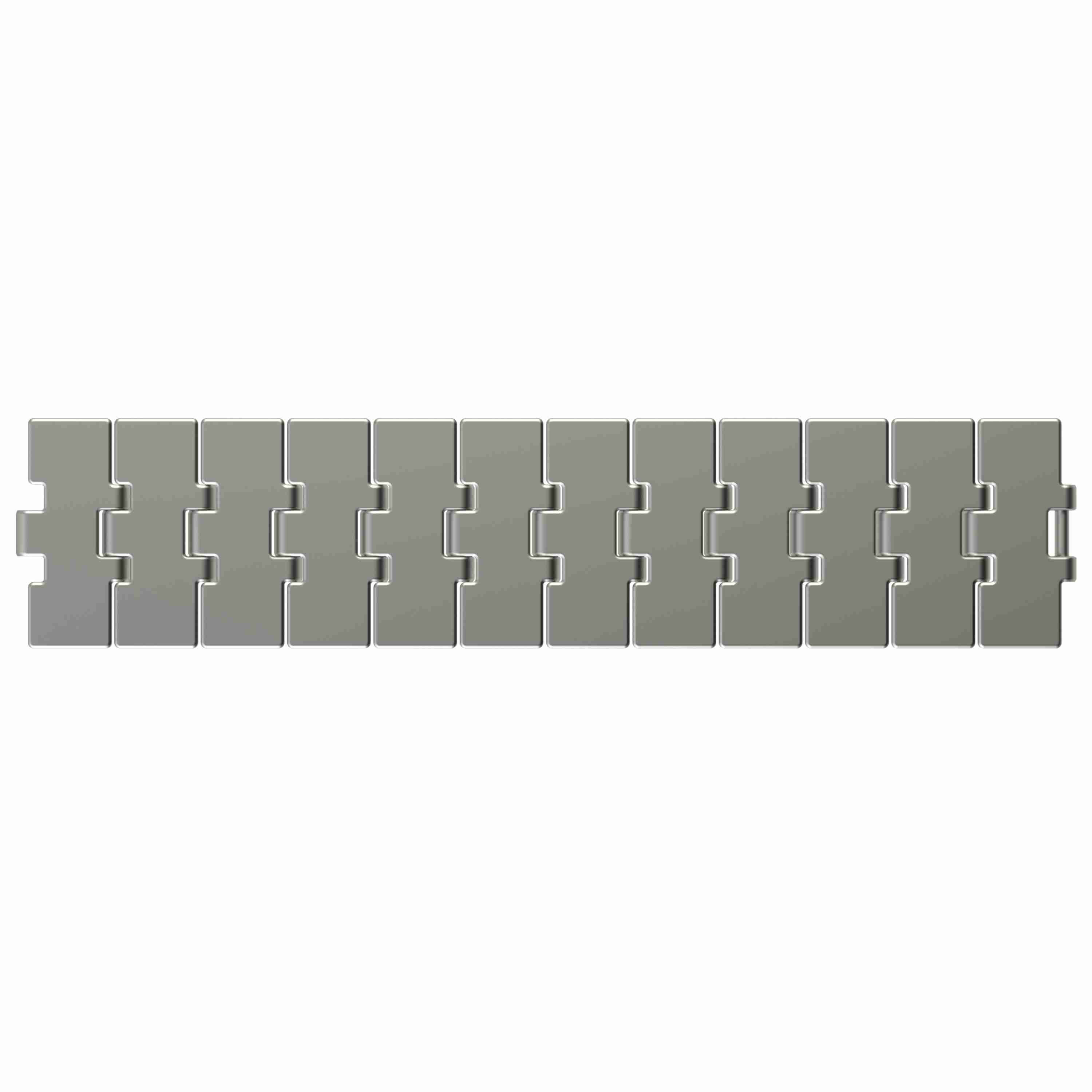

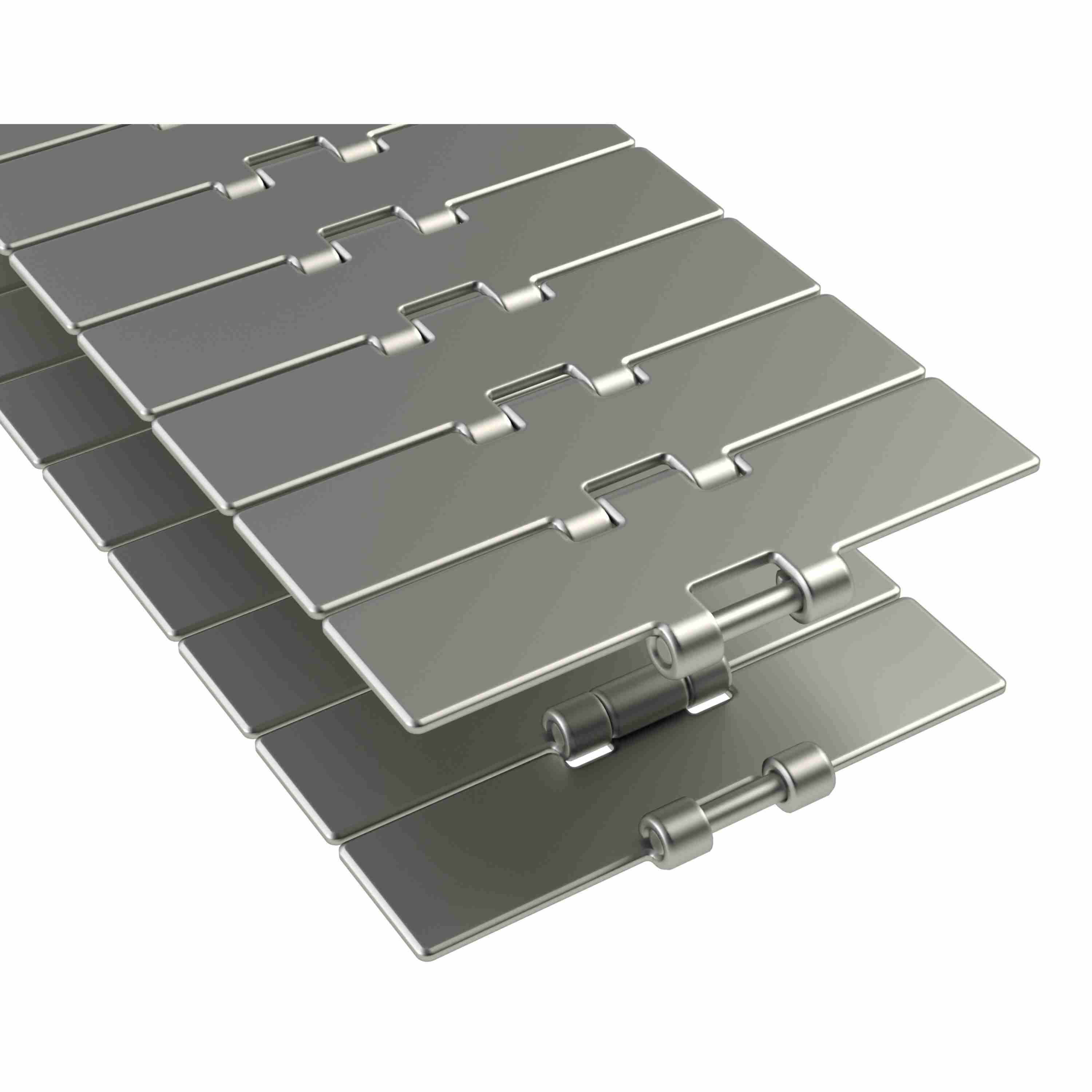

Rexnord 815 Straight Running Solid Top, Material: Austenitic Stainless Steel, Width: 4.5in, Pitch: 1.5in - 762.33.42
Part #:10139380
Catalog #:762.33.42
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Flight Thickness (mm): | 3.1 mm | Series: | TableTop 815 Series Chain |
| Chain Width (in): | 4.5 in | Chain Material: | SSA |
| Flight Thickness (in): | 0.12 in | Chain Strength (lb): | 625 lb |
| Straight or Side-Flex: | Straight Running | Surface Type: | Solid Top |
| Chain Material Description: | Austenitic Stainless Steel | Chain Pitch (mm): | 38.1 mm |
| Chain Width (mm): | 114.3 mm | Chain Width Measurement System: | Imperial |
| Chain Pitch (in): | 1.5 in | Chain Strength (N): | 2,775 N |
| Chain Number: | 815 | Rod/Pin Material: | Stainless Steel |
General Specifications
| Weight: | 0.13 KG | HTC: | 7315120080 |
| Country of Origin: | Netherlands |
