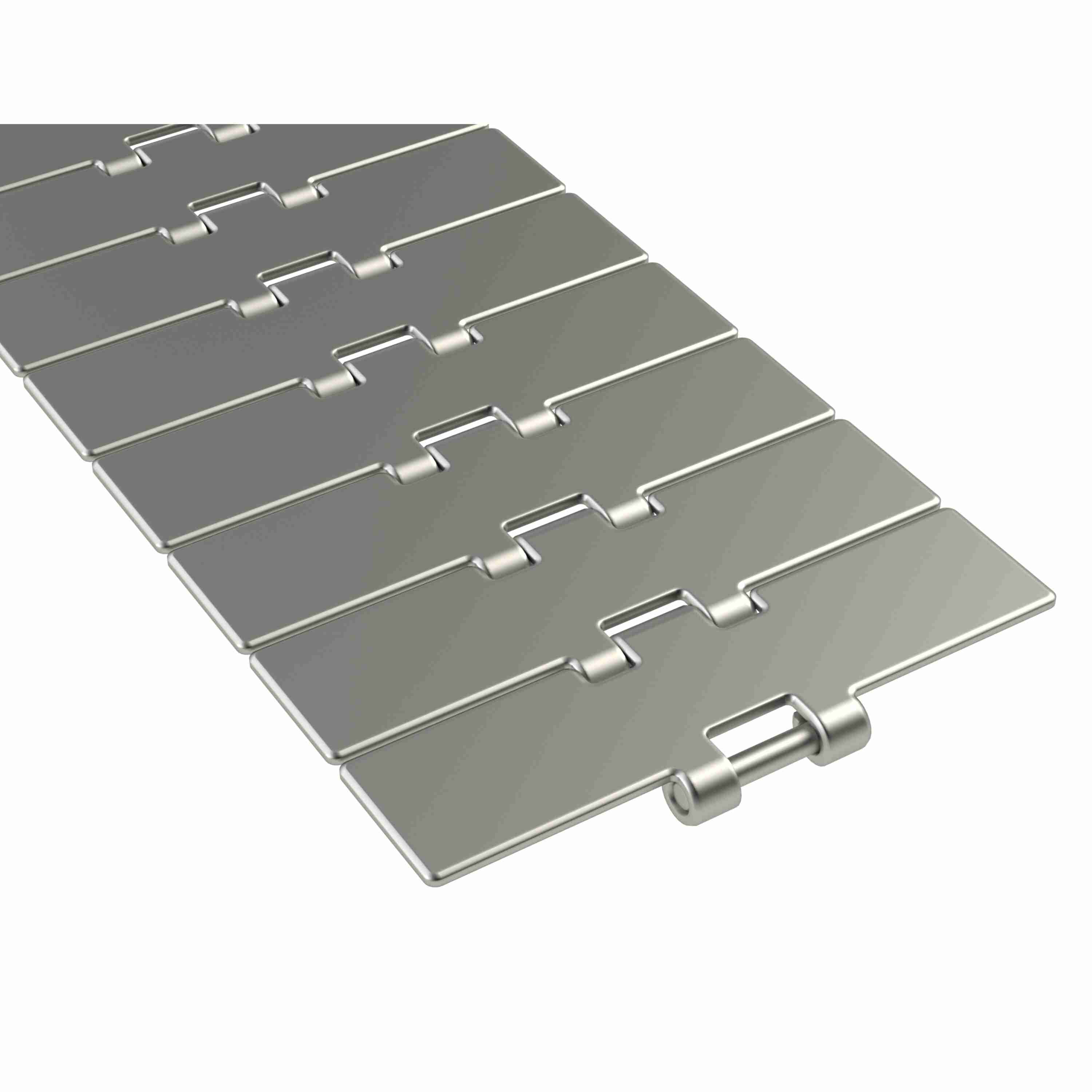

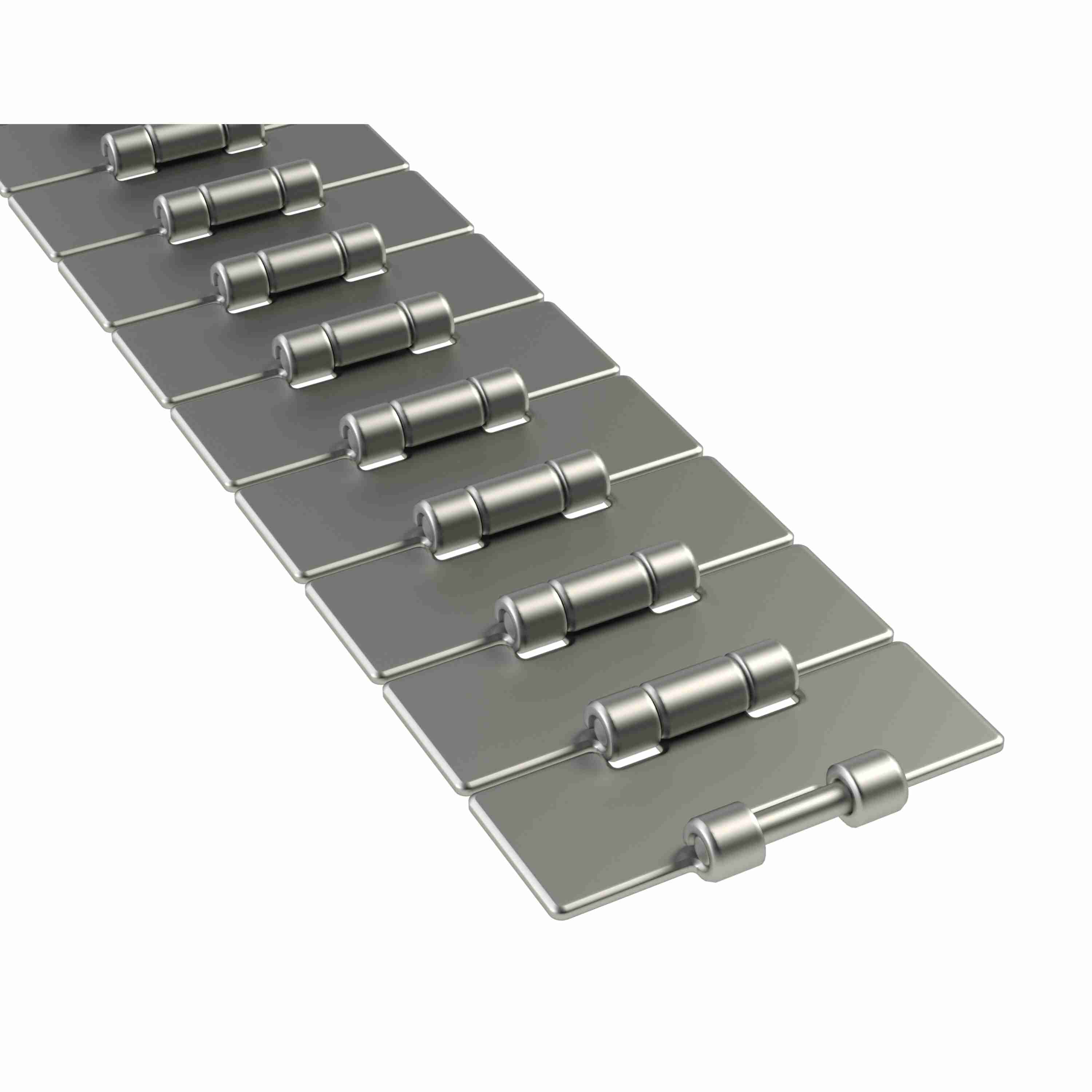

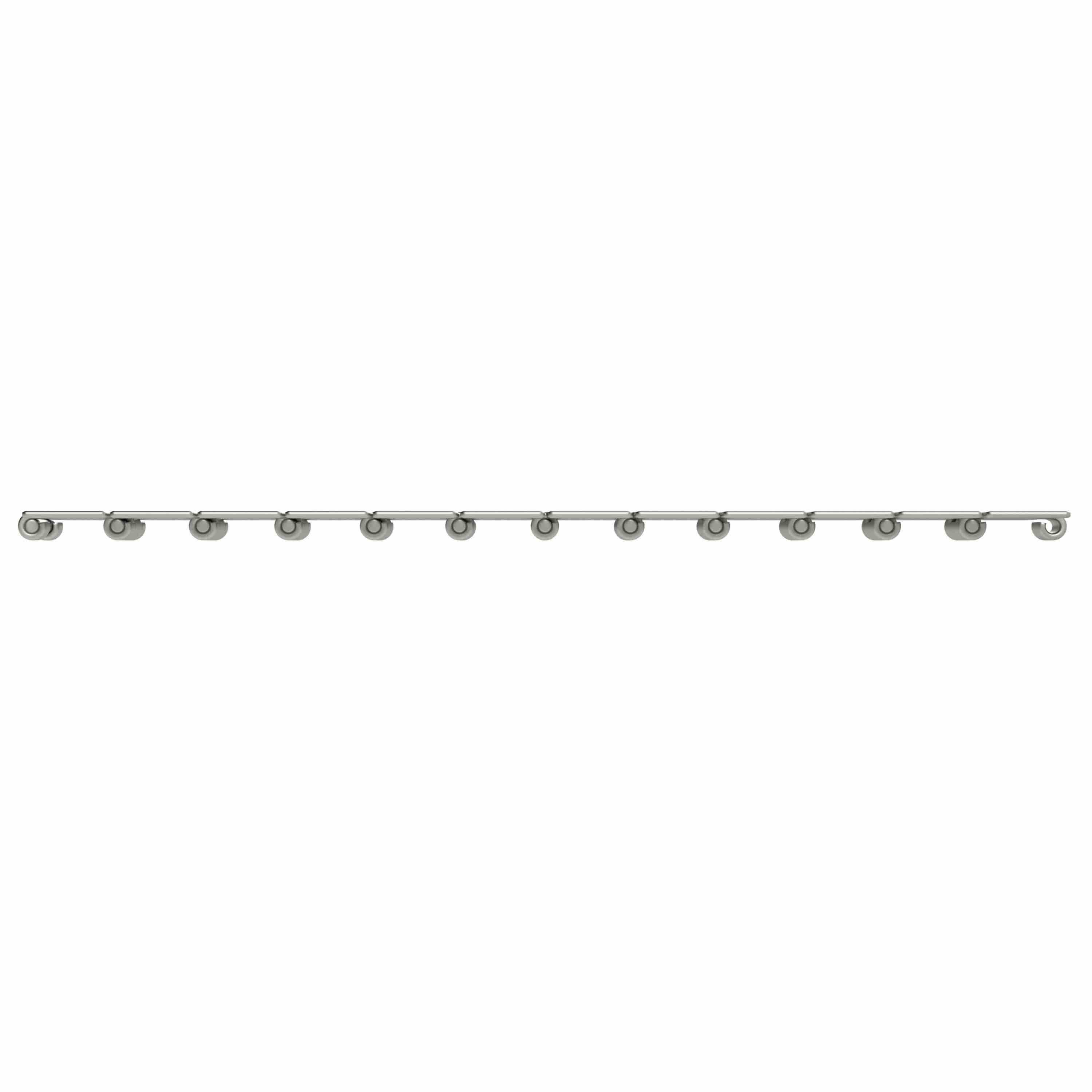

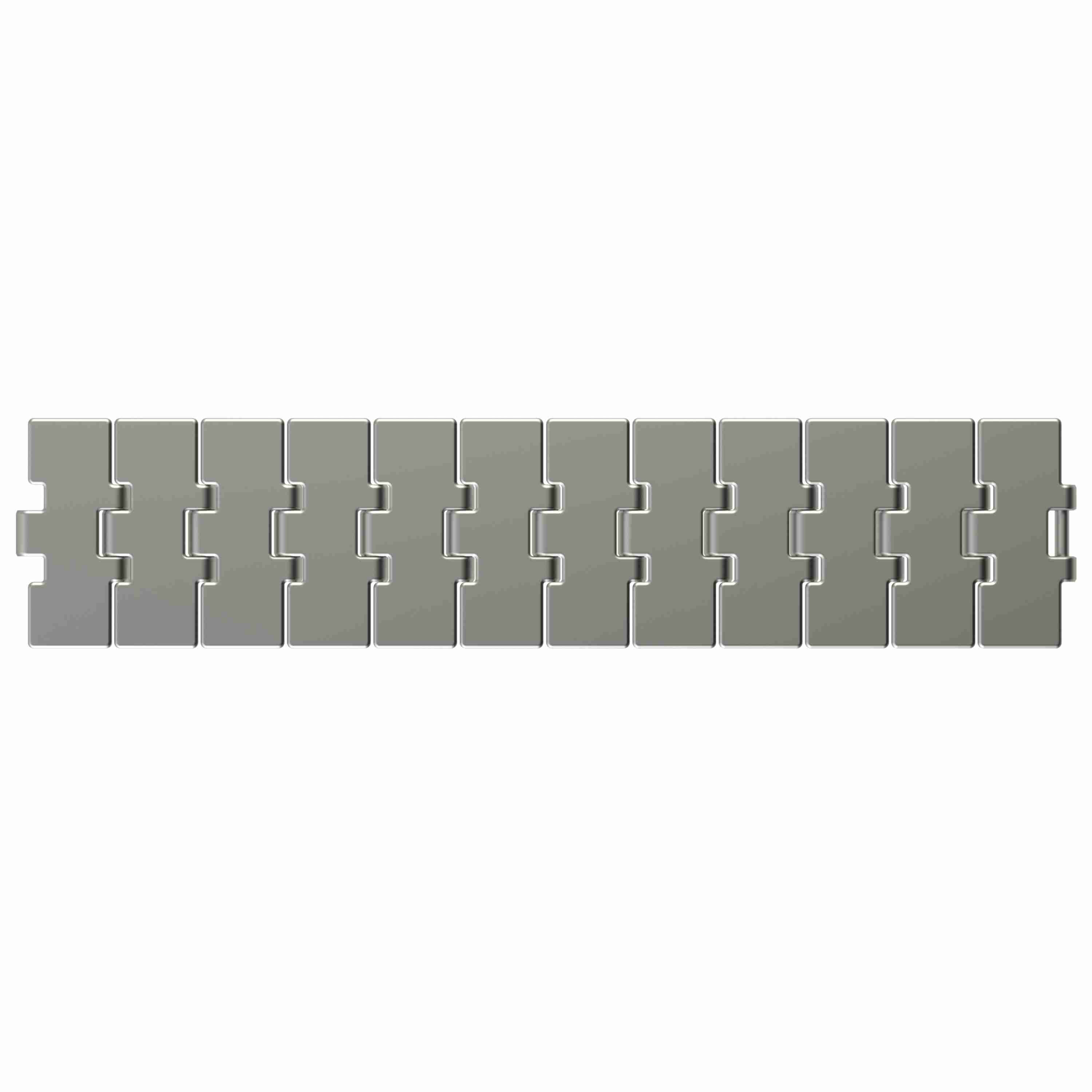

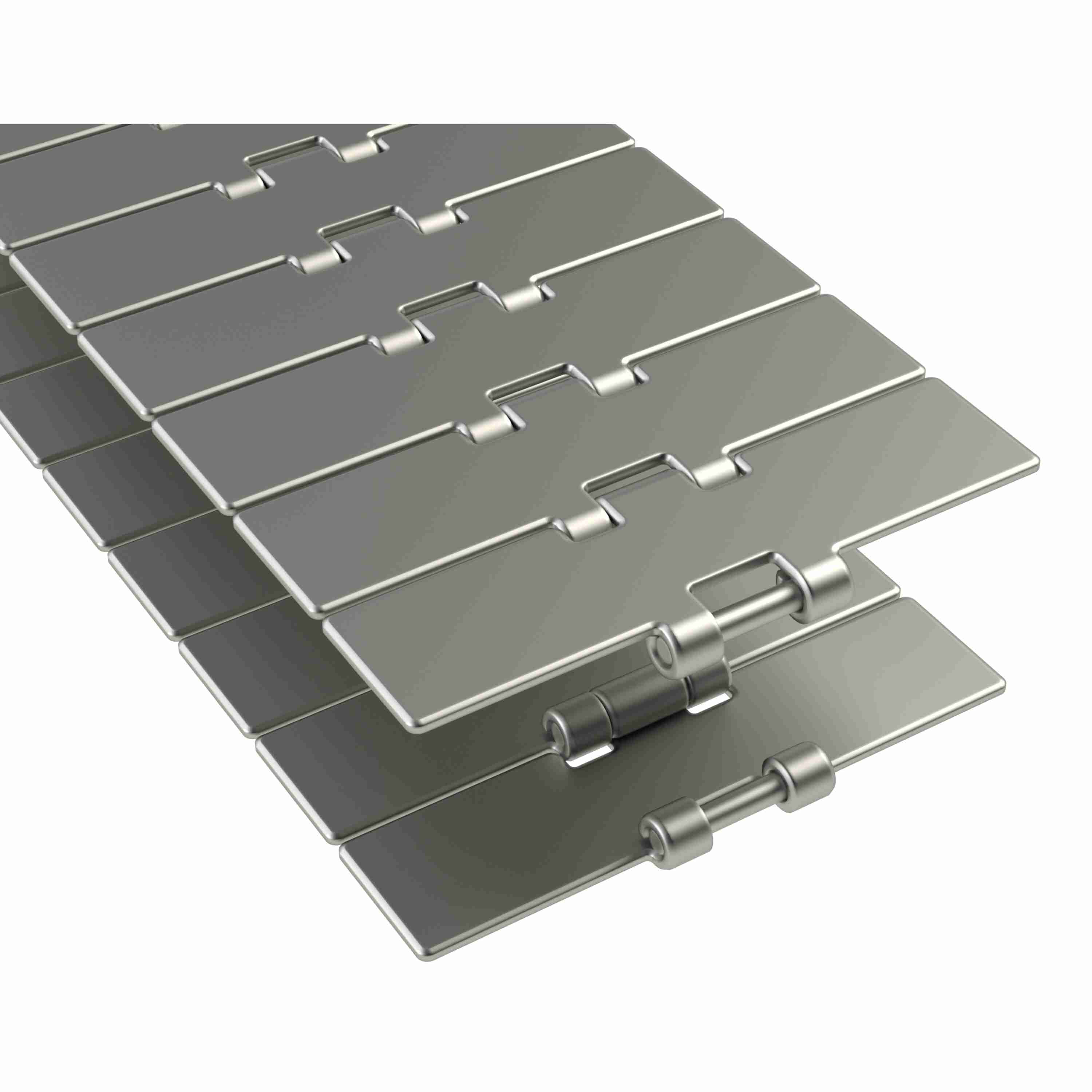

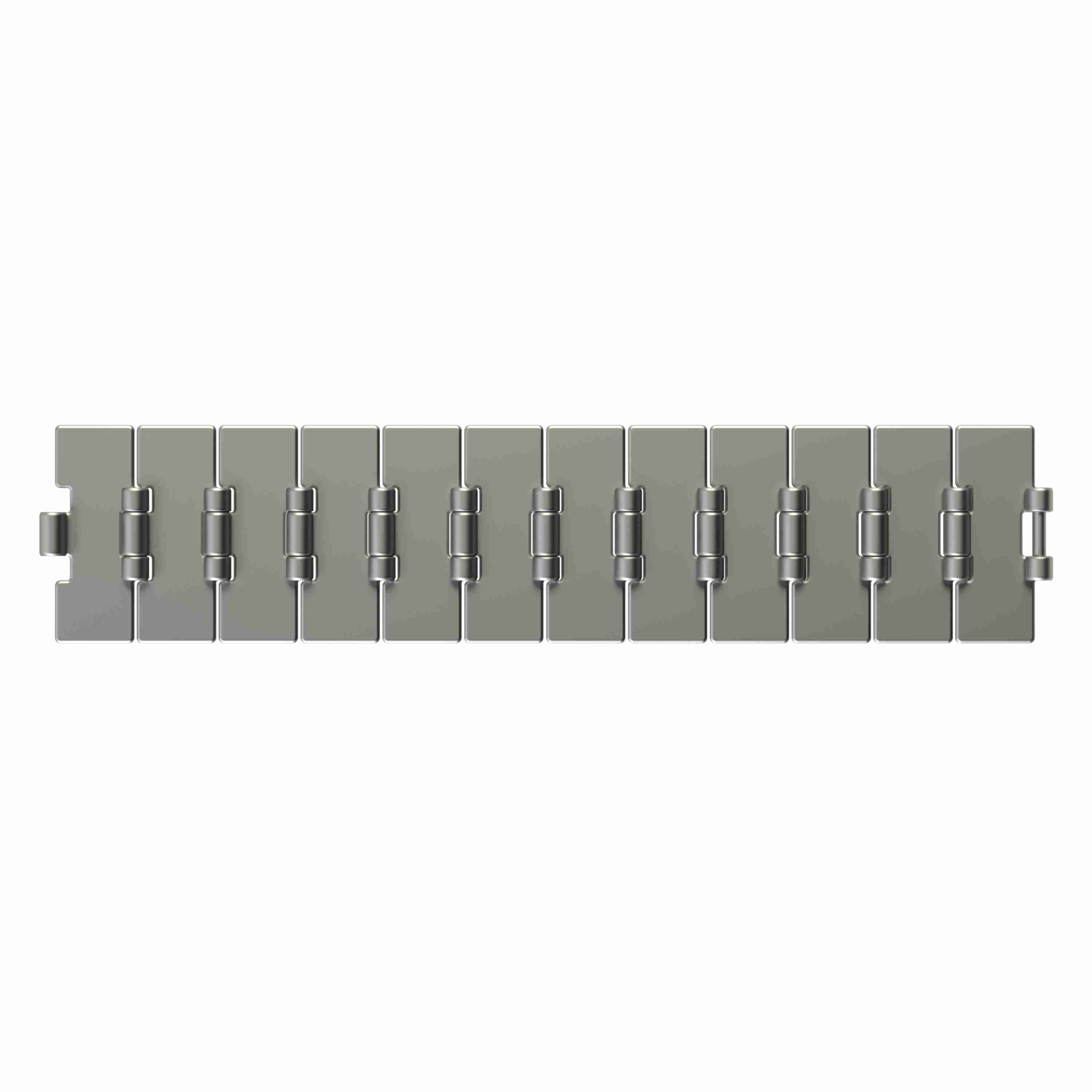

Rexnord 815 Straight Running Solid Top, Material: Non Magnetic Austenitic Stainless Steel, Width: 7.5in, Pitch: 1.5in - 10.006.84.16
Part #:10068060
Catalog #:10.006.84.16
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Width (in): | 7.5 in | Chain Strength (lb): | 625 lb |
| Chain Number: | 815 | Flight Thickness (mm): | 3.1 mm |
| Series: | TableTop 815 Series Chain | Chain Pitch (in): | 1.5 in |
| Straight or Side-Flex: | Straight Running | Chain Material: | SSB |
| Surface Type: | Solid Top | Chain Width Measurement System: | Imperial |
| Chain Material Description: | Non Magnetic Austenitic Stainless Steel | Flight Thickness (in): | 0.12 in |
| Rod/Pin Material: | Stainless Steel | Chain Width (mm): | 190.5 mm |
| Chain Strength (N): | 2,775 N | Chain Pitch (mm): | 38.1 mm |
General Specifications
| Weight: | 0.44 LB | HTC: | 7315120080 |
| Country of Origin: | Netherlands |
