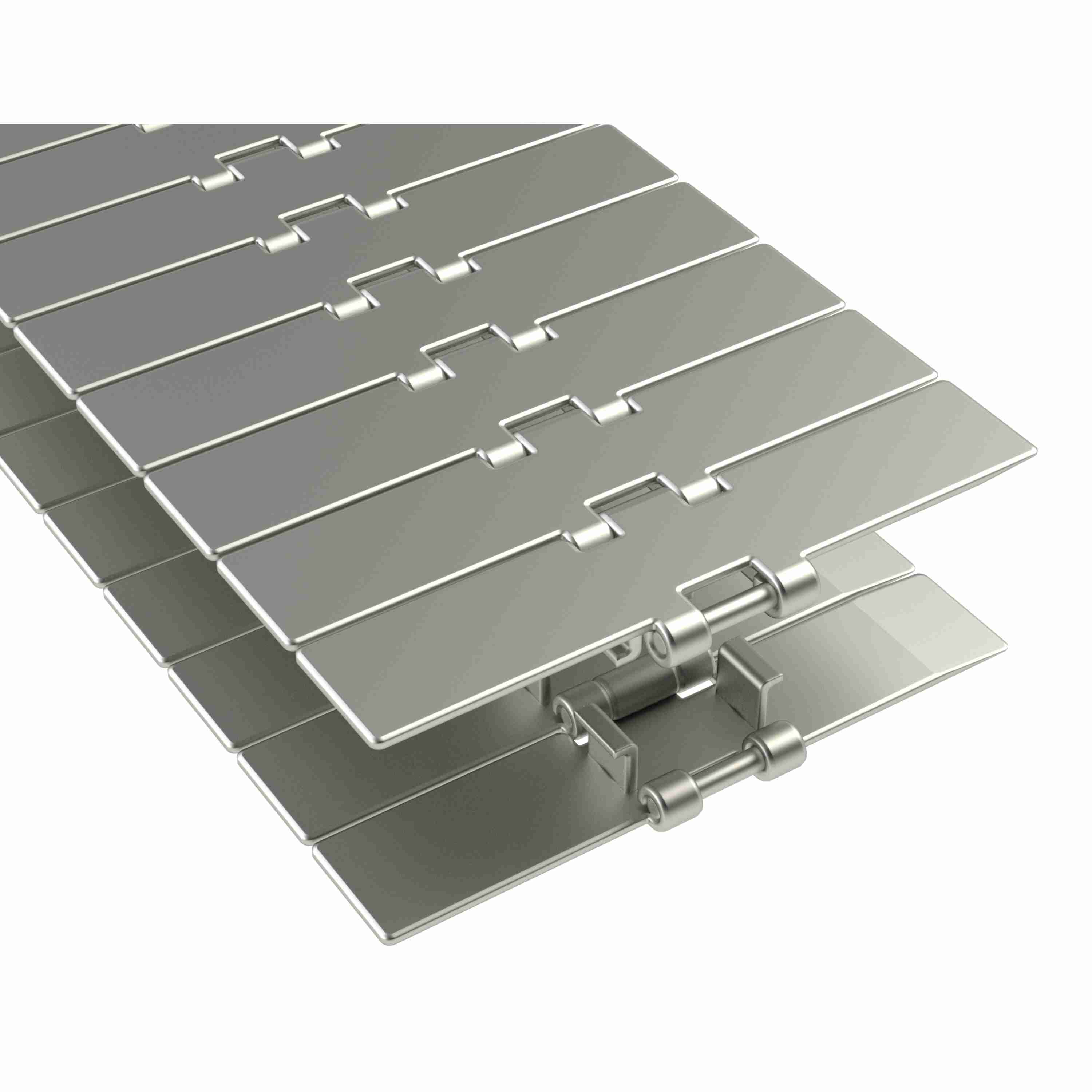

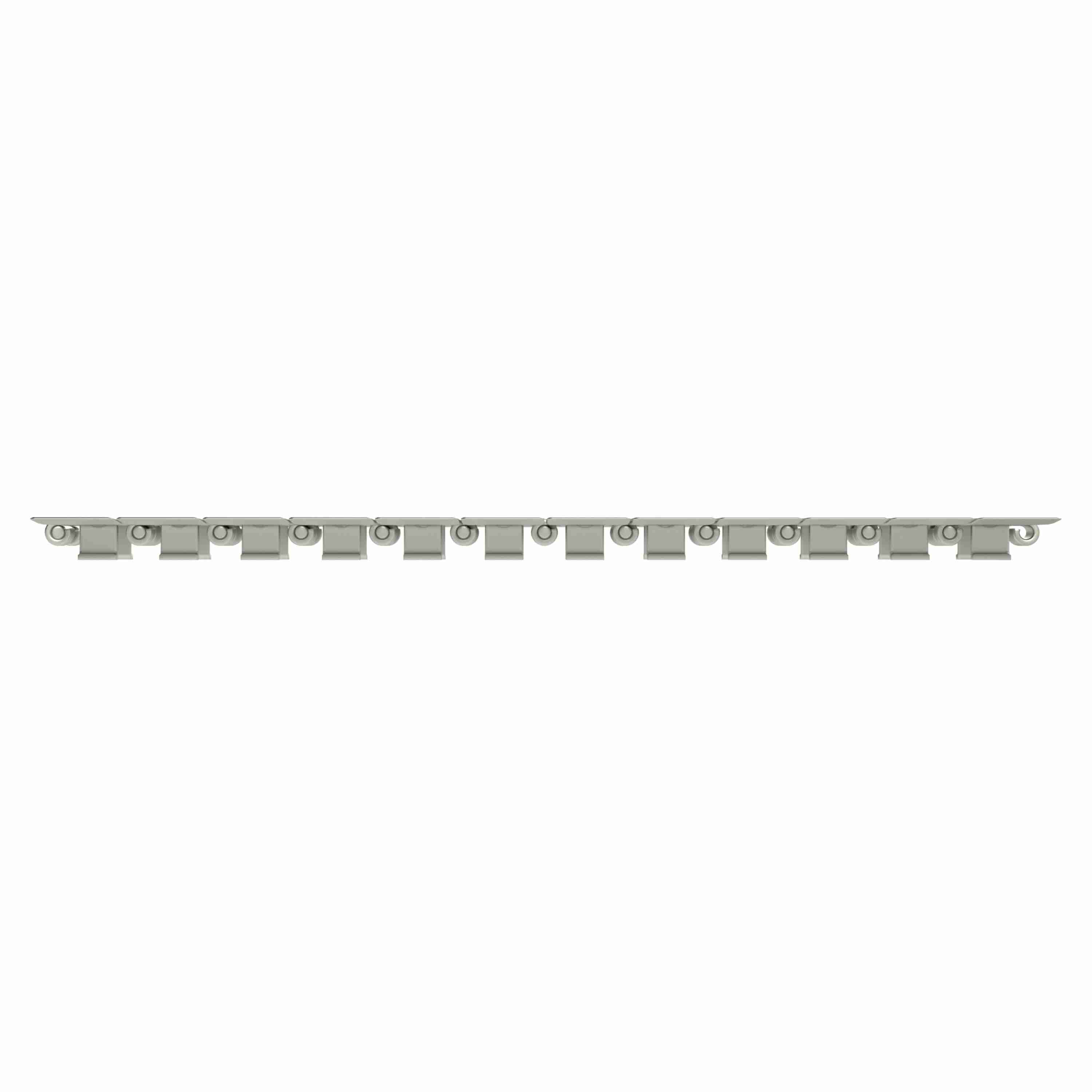

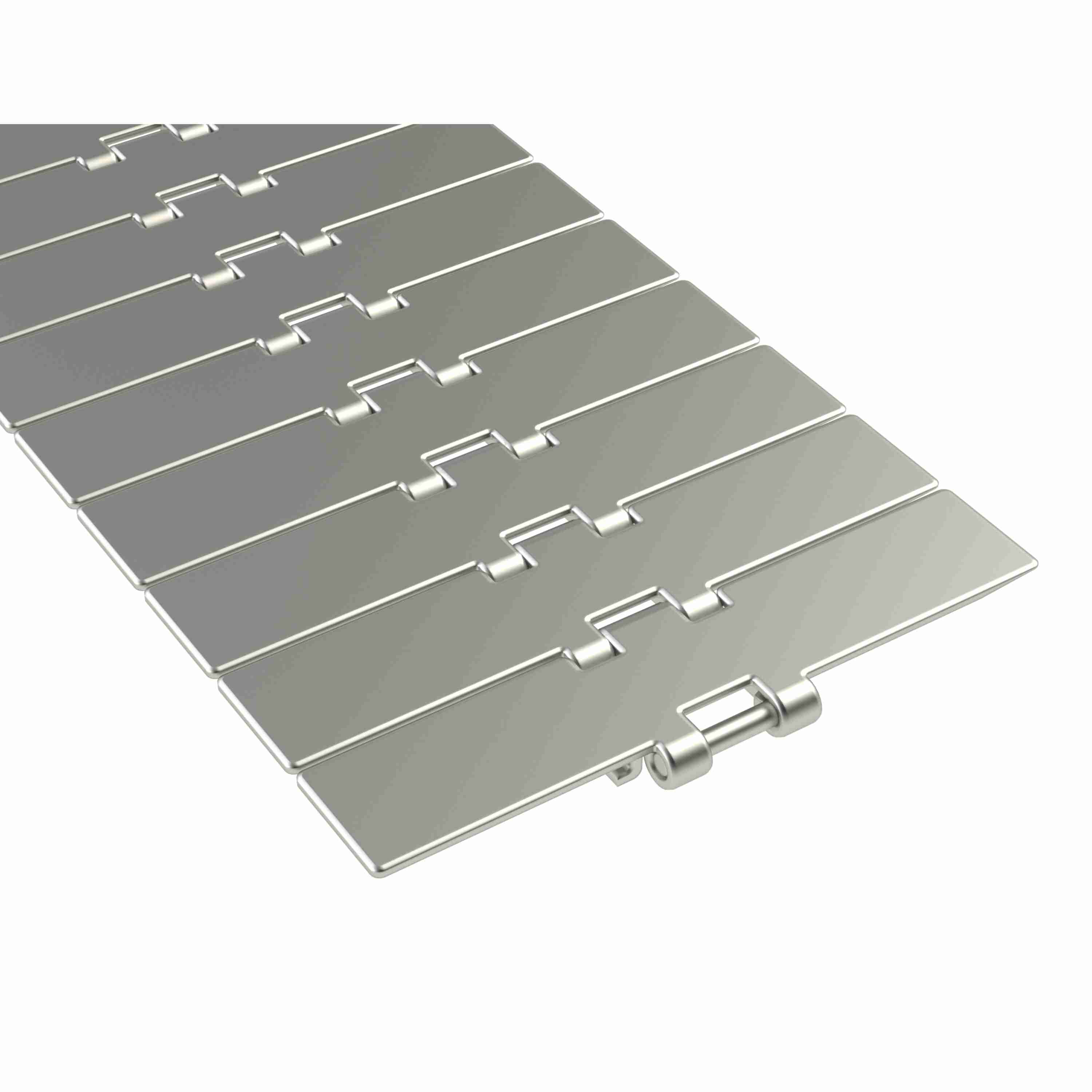

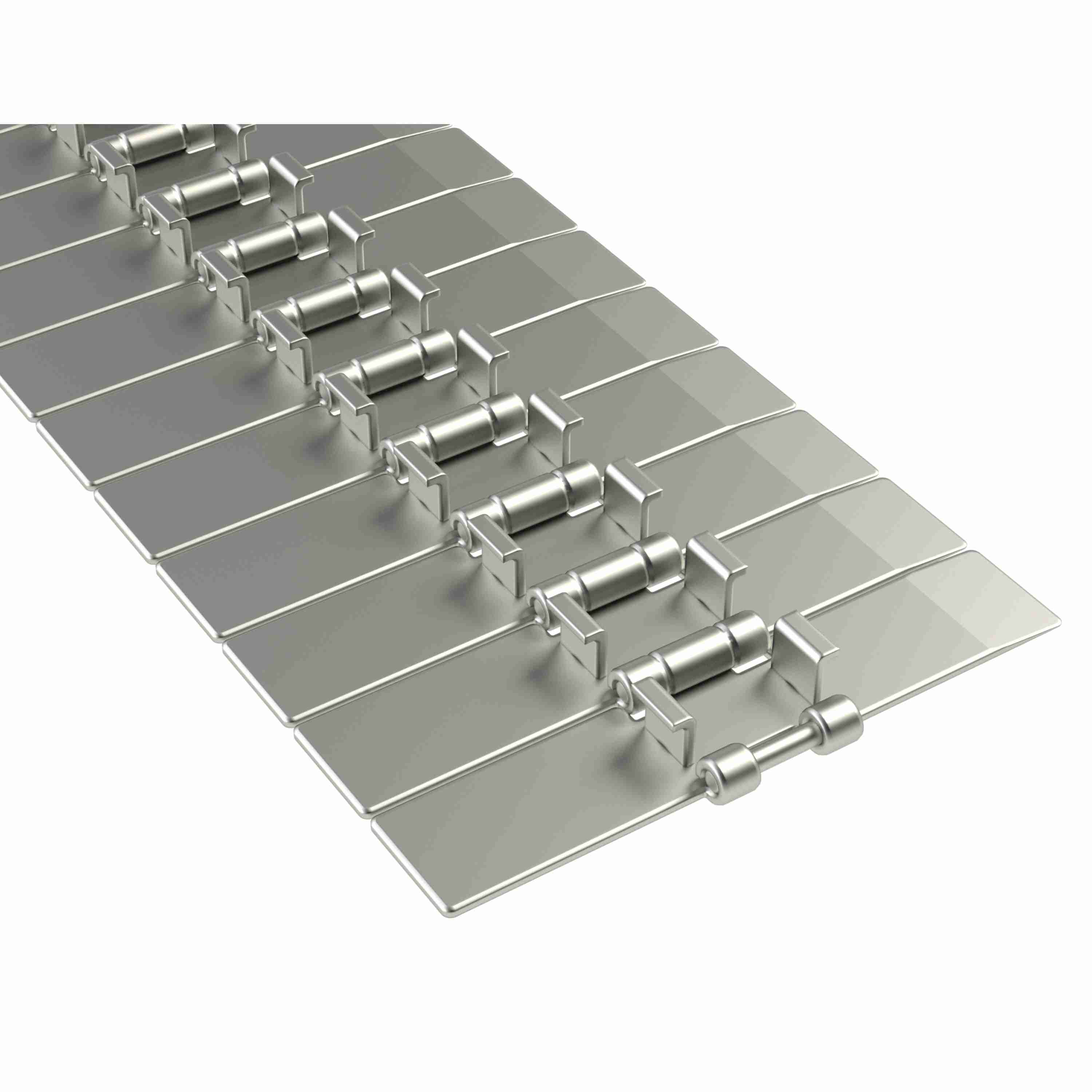

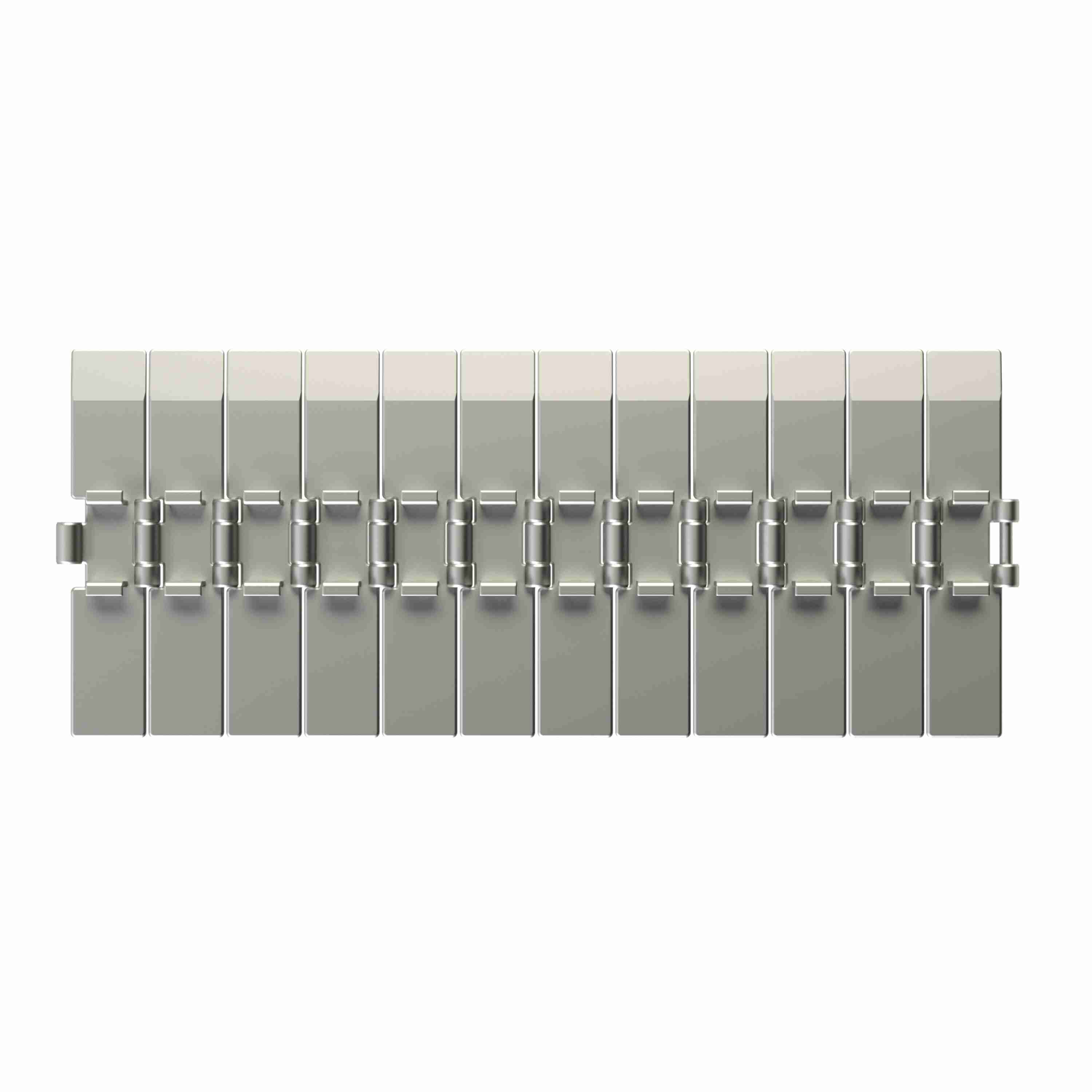

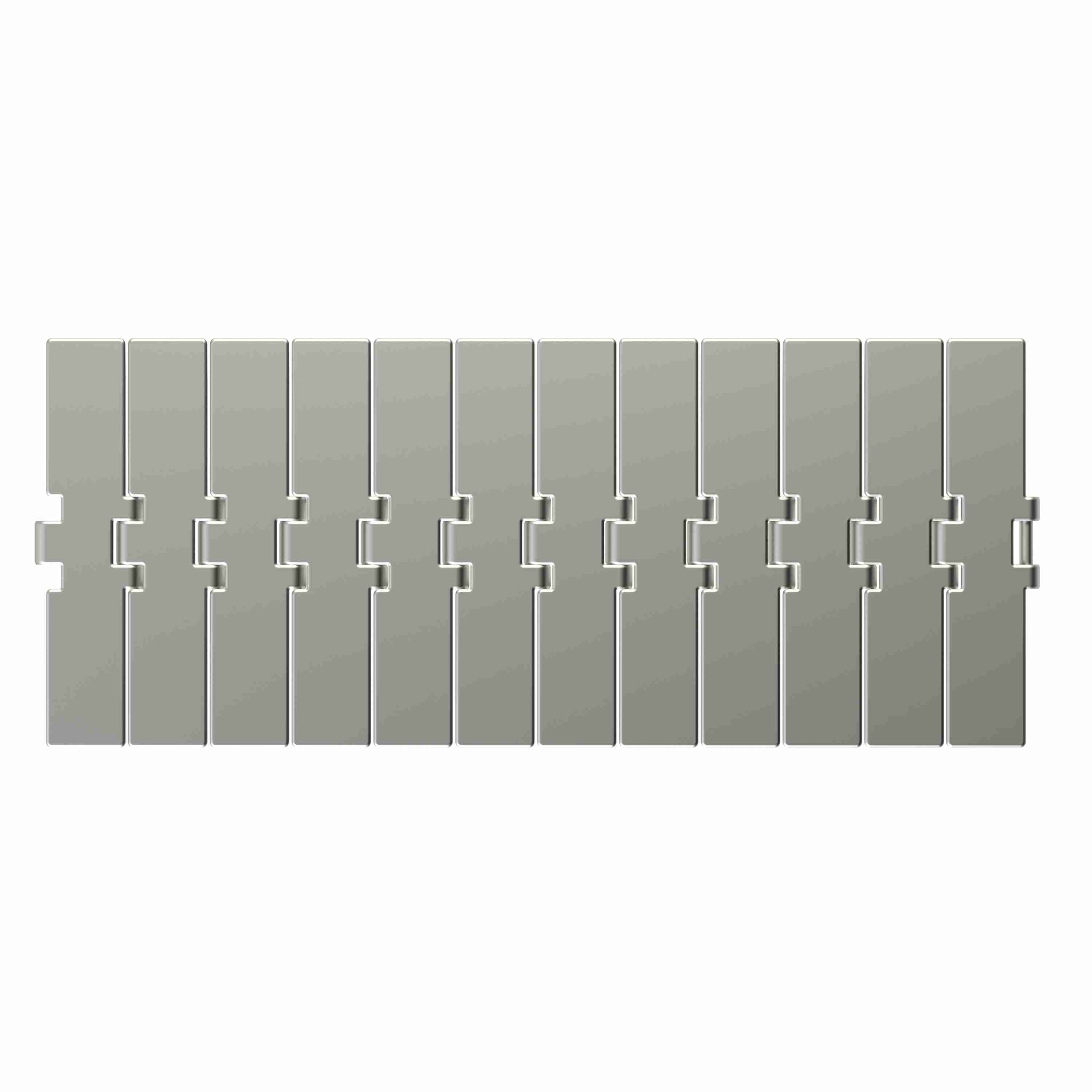

Rexnord 815TAB DTS Straight Running DTS®, Material: Stainless Steel, Width: 7.5in, Pitch: 1.5in - 763.33.73
Part #:10139408
Catalog #:763.33.73
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Flight Thickness (in): | 0.12 in | Flight Thickness (mm): | 3.1 mm |
| Surface Type: | DTS® | Chain Pitch (mm): | 38.1 mm |
| Straight or Side-Flex: | Straight Running | Chain Width (mm): | 190.5 mm |
| Chain Number: | 815TAB DTS | Series: | TableTop 815 Series Chain |
| Chain Pitch (in): | 1.5 in | Chain Width Measurement System: | Imperial |
| Chain Strength (lb): | 625 lb | Chain Strength (N): | 2,775 N |
| Chain Material: | SS | Direction: | LH |
| Rod/Pin Material: | Stainless Steel | Chain Width (in): | 7.5 in |
| Chain Material Description: | Stainless Steel |
General Specifications
| Weight: | 0.48 LB | HTC: | 7315120080 |
| Country of Origin: | Netherlands |
