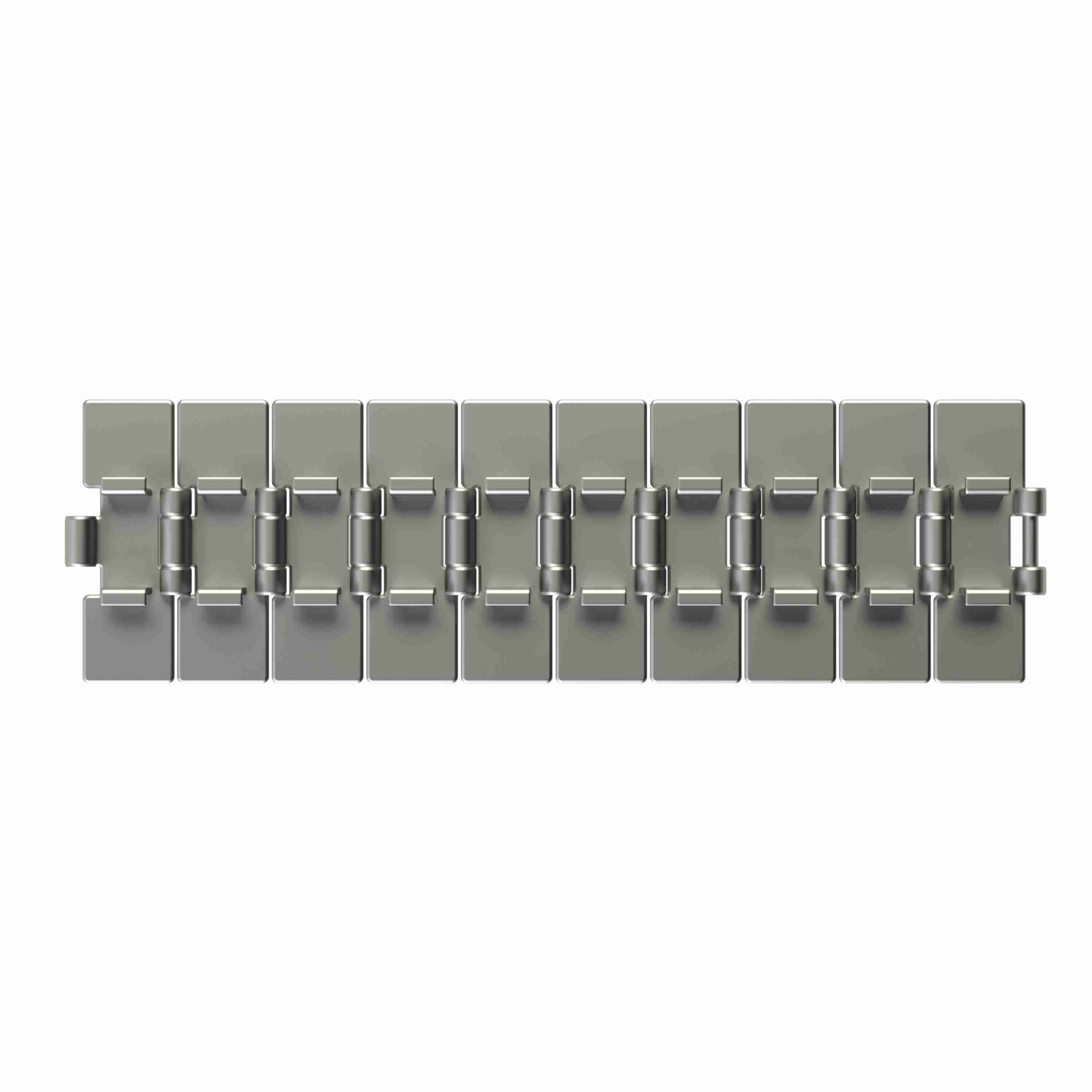

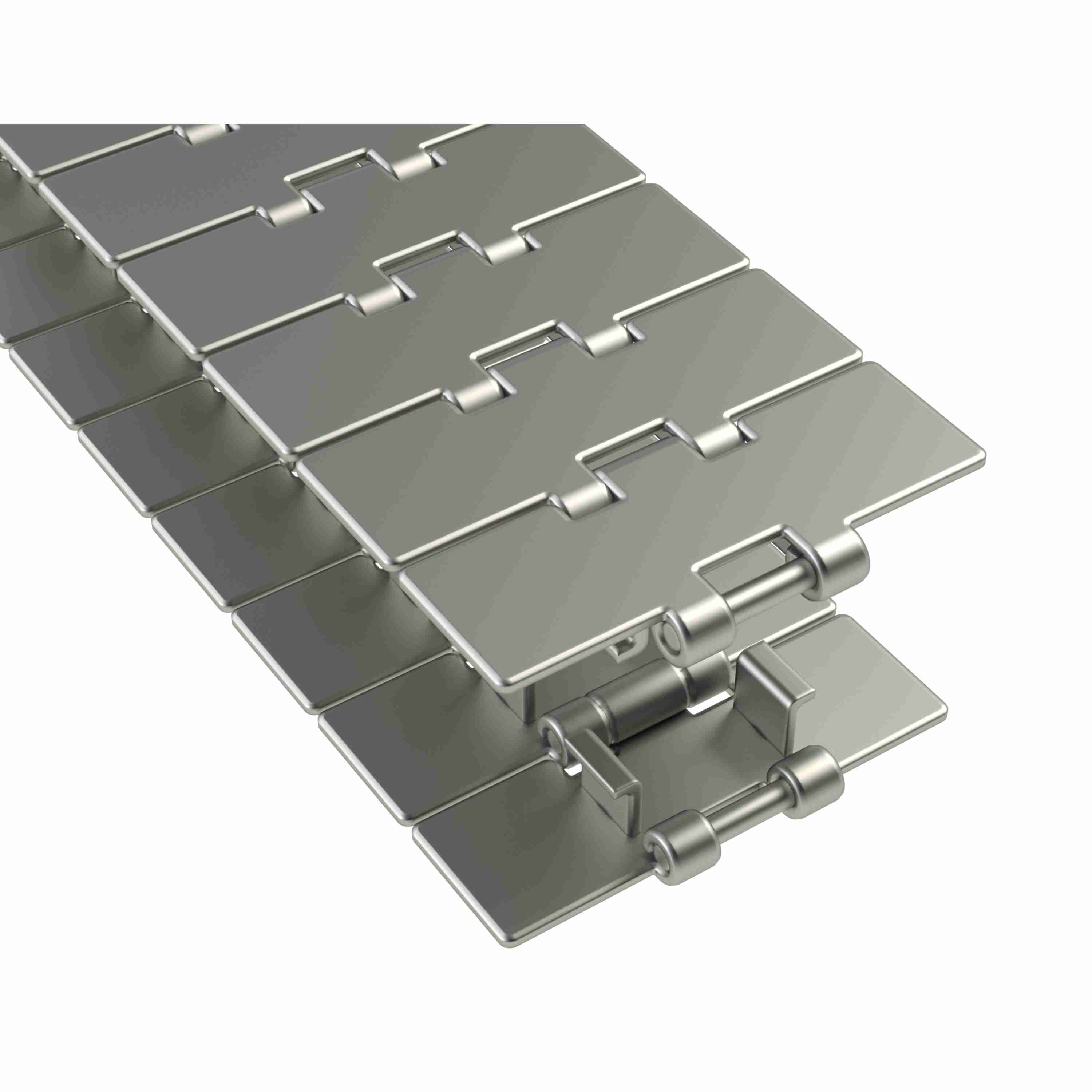

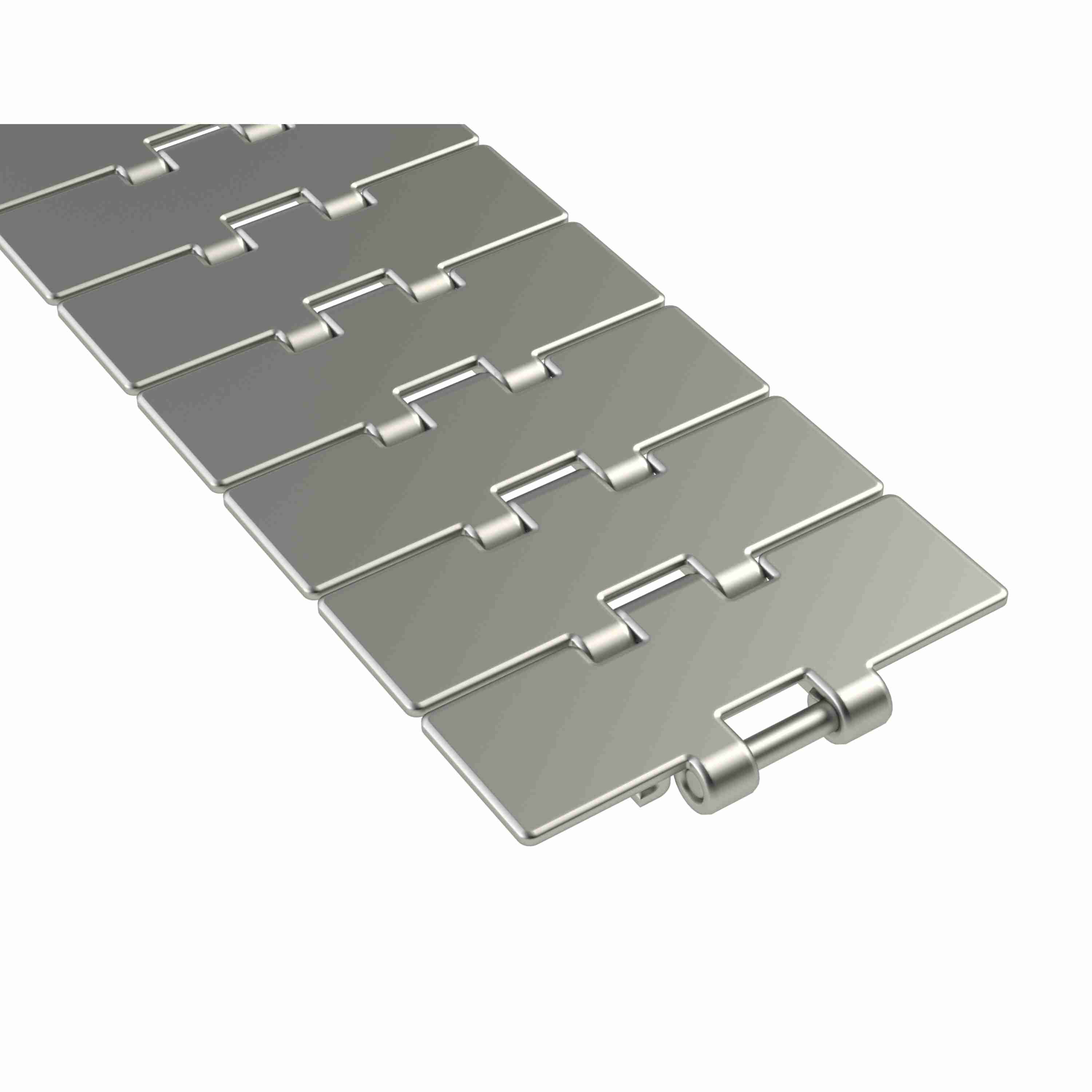

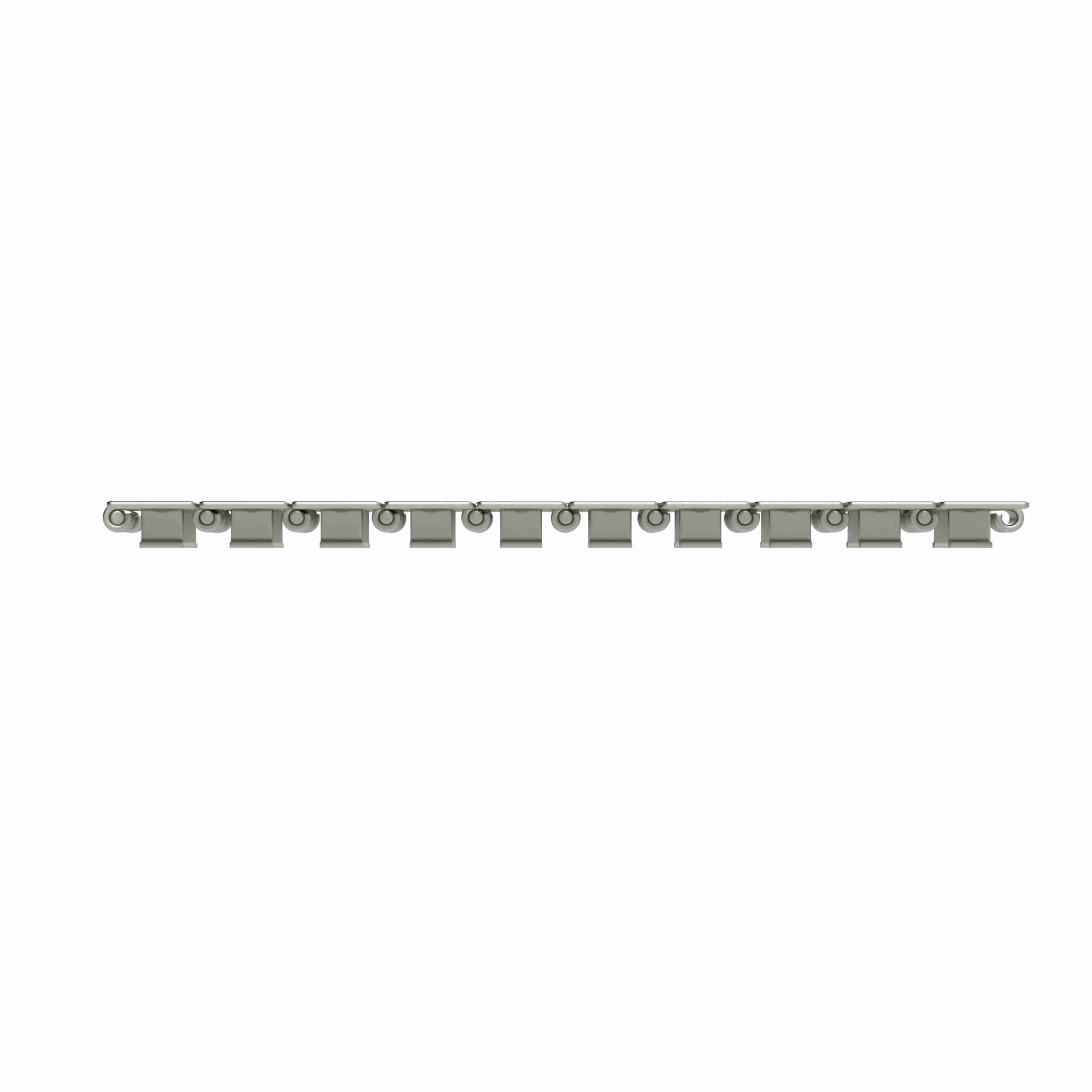

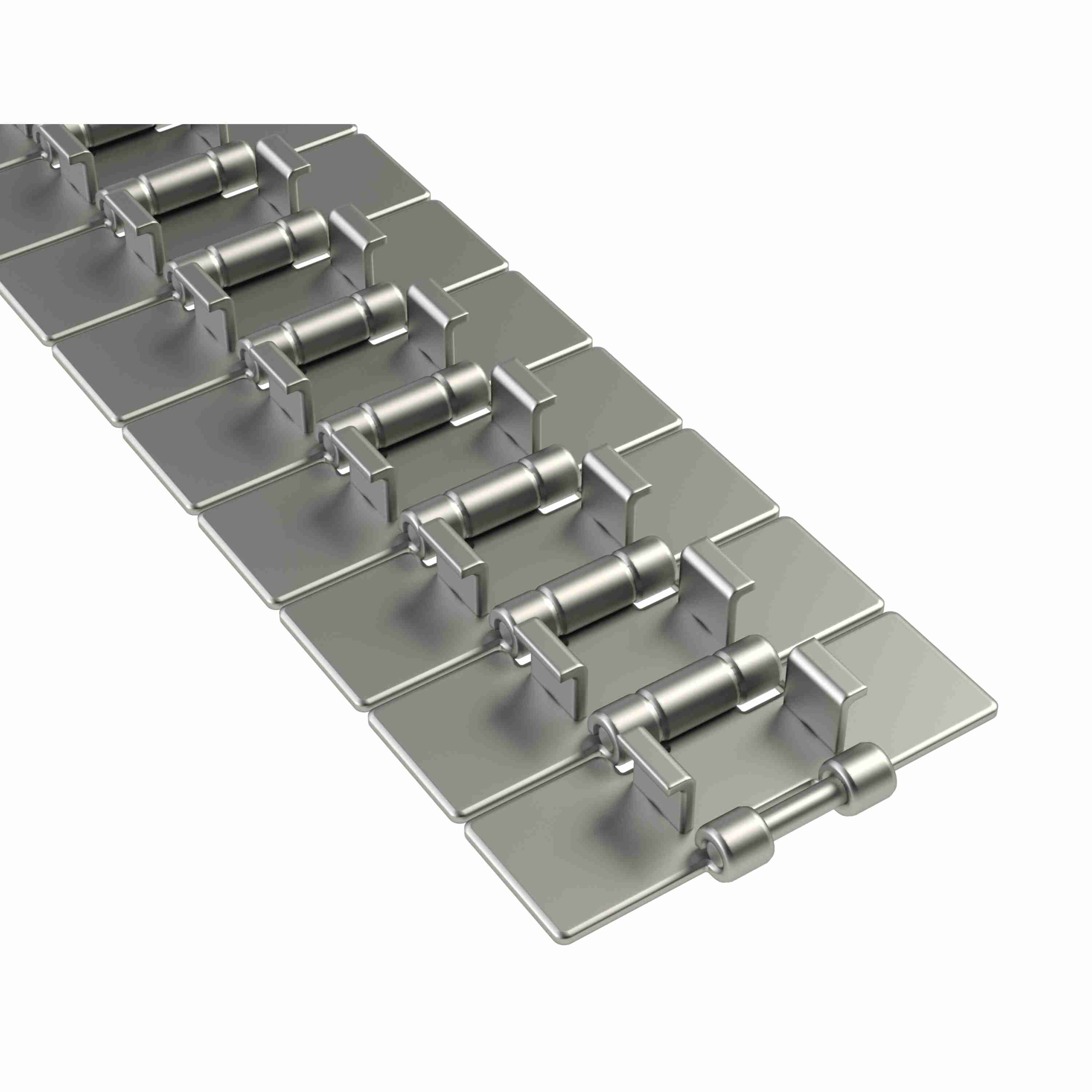

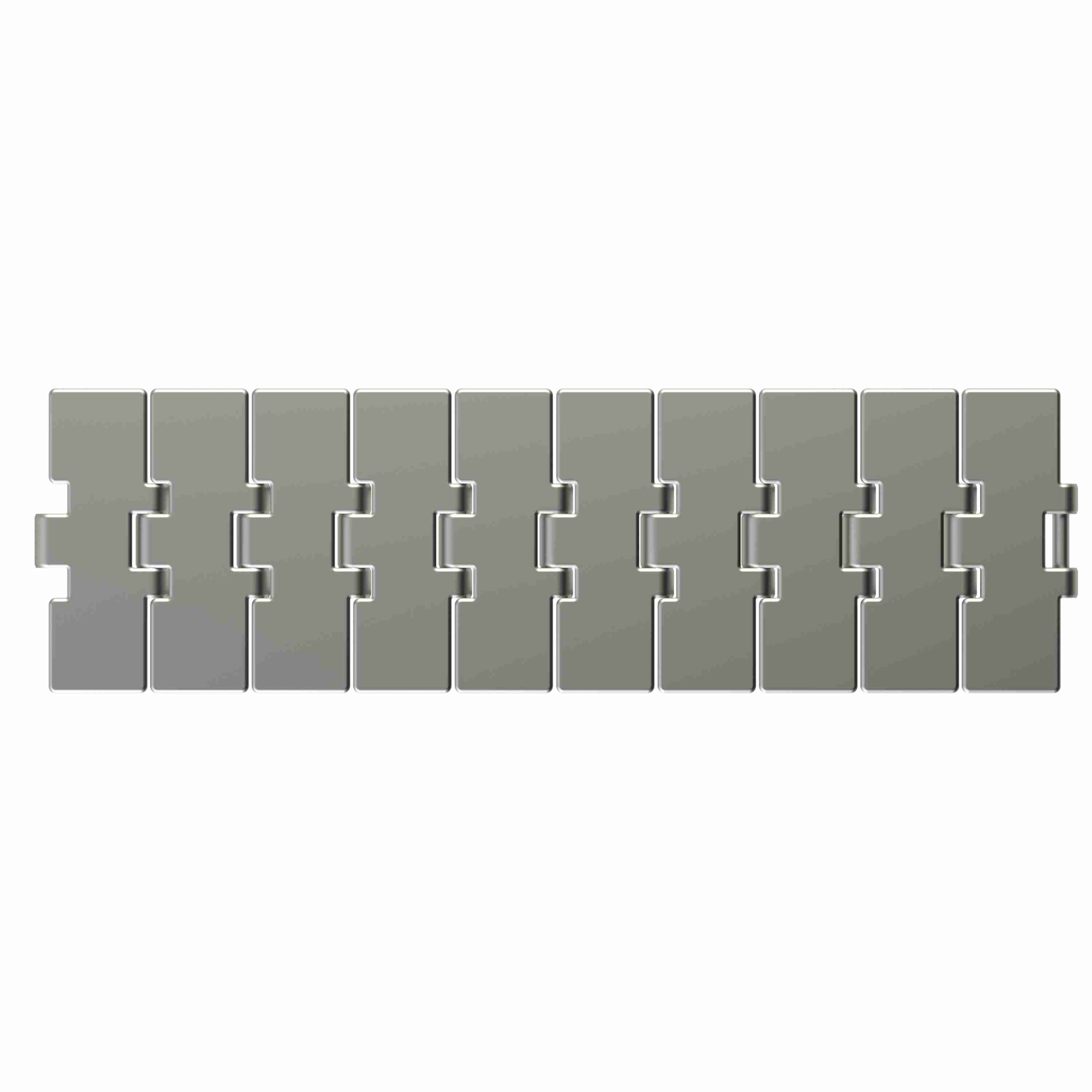

Rexnord 815TAB Straight Running Solid Top, Material: Carbon Steel, Width: 3.25in, Pitch: 1.5in - 763.93.31
Part #:10139410
Catalog #:763.93.31
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Strength (N): | 2,775 N | Chain Material Description: | Carbon Steel |
| Chain Strength (lb): | 625 lb | Flight Thickness (in): | 0.12 in |
| Rod/Pin Material: | Stainless Steel | Chain Width (mm): | 82.6 mm |
| Chain Pitch (mm): | 38.1 mm | Chain Width Measurement System: | Imperial |
| Series: | TableTop 815 Series Chain | Chain Pitch (in): | 1.5 in |
| Straight or Side-Flex: | Straight Running | Flight Thickness (mm): | 3.1 mm |
| Chain Number: | 815TAB | Surface Type: | Solid Top |
| Chain Width (in): | 3.25 in | Chain Material: | S |
General Specifications
| Weight: | 0.25 LB | HTC: | 7315120080 |
| Country of Origin: | Netherlands |
