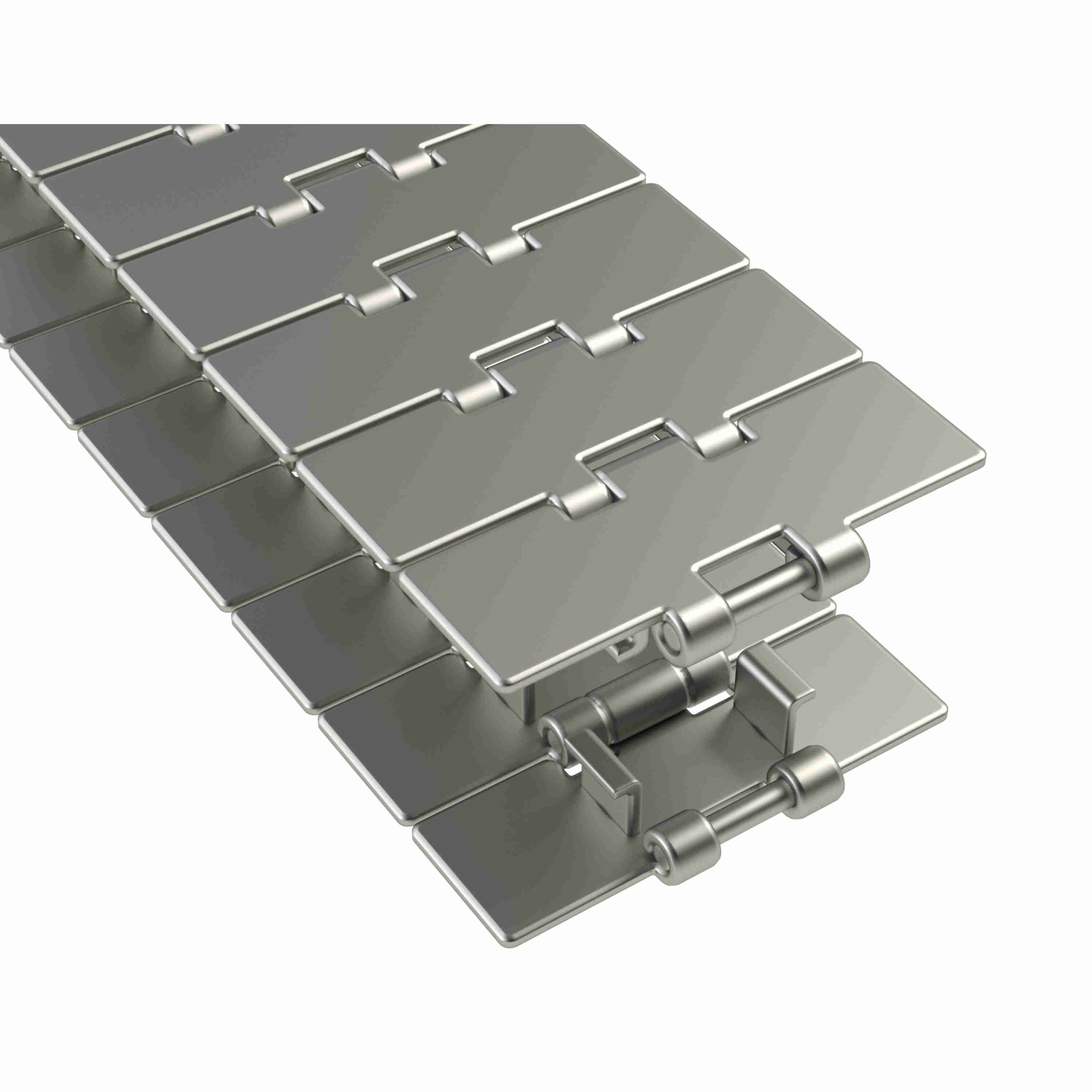

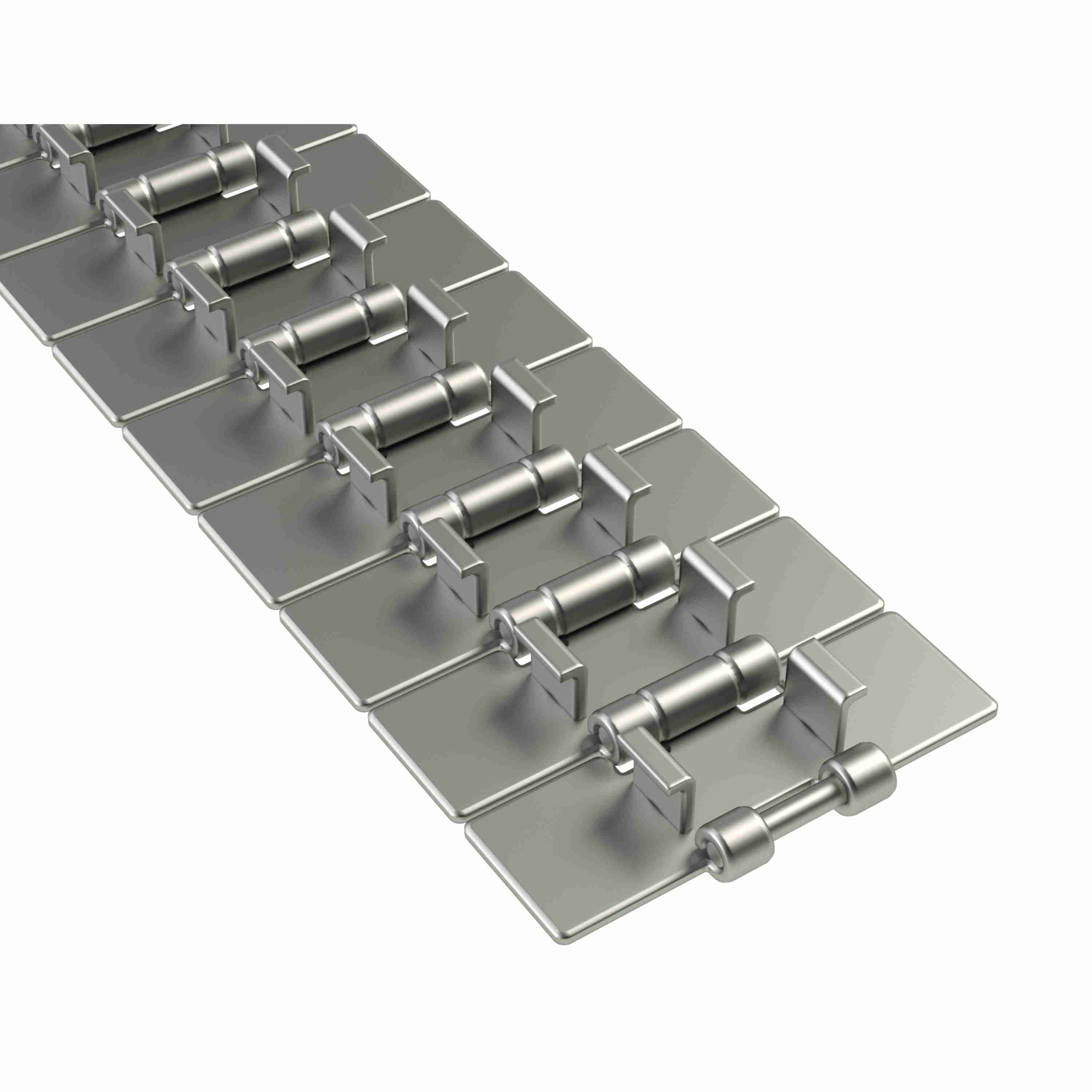

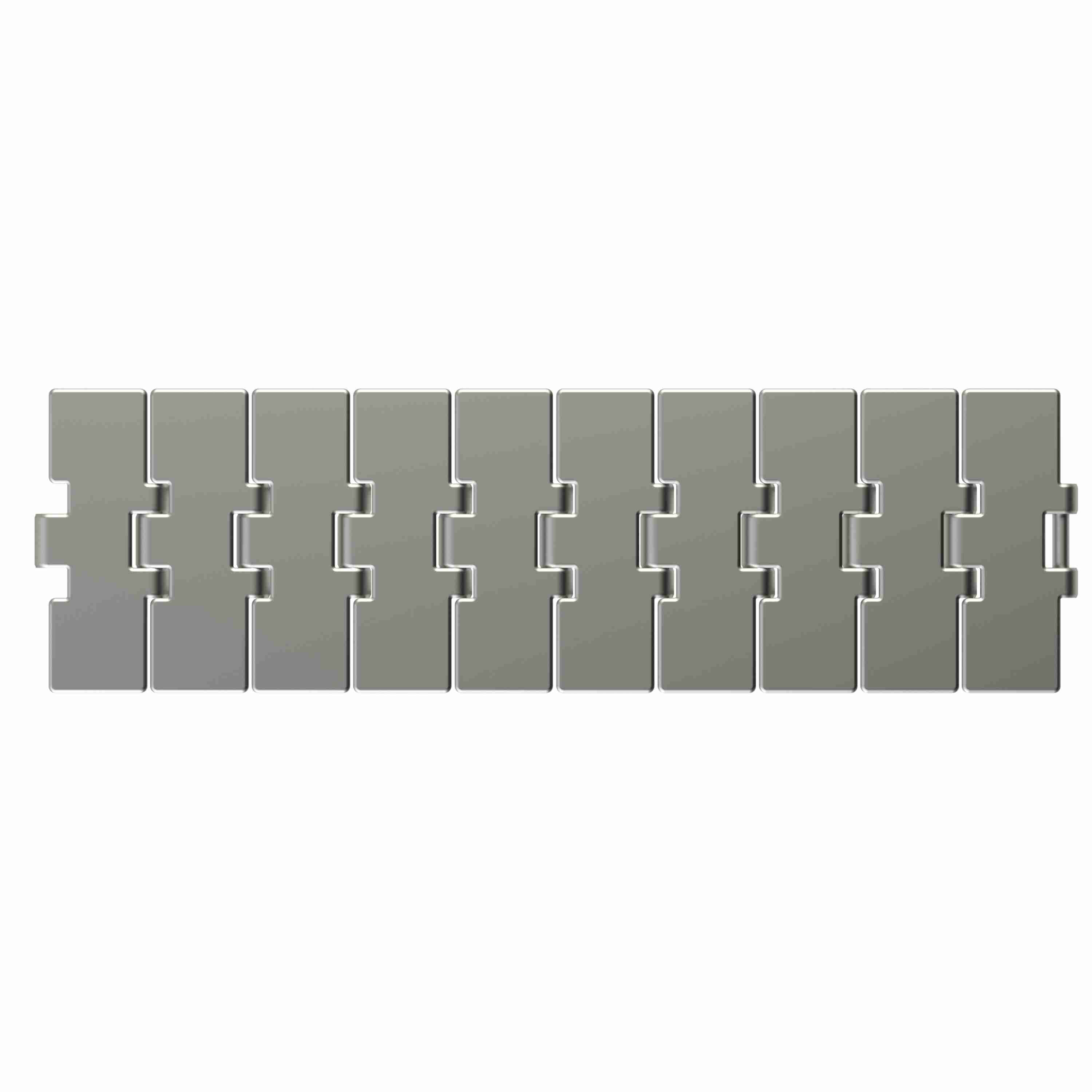

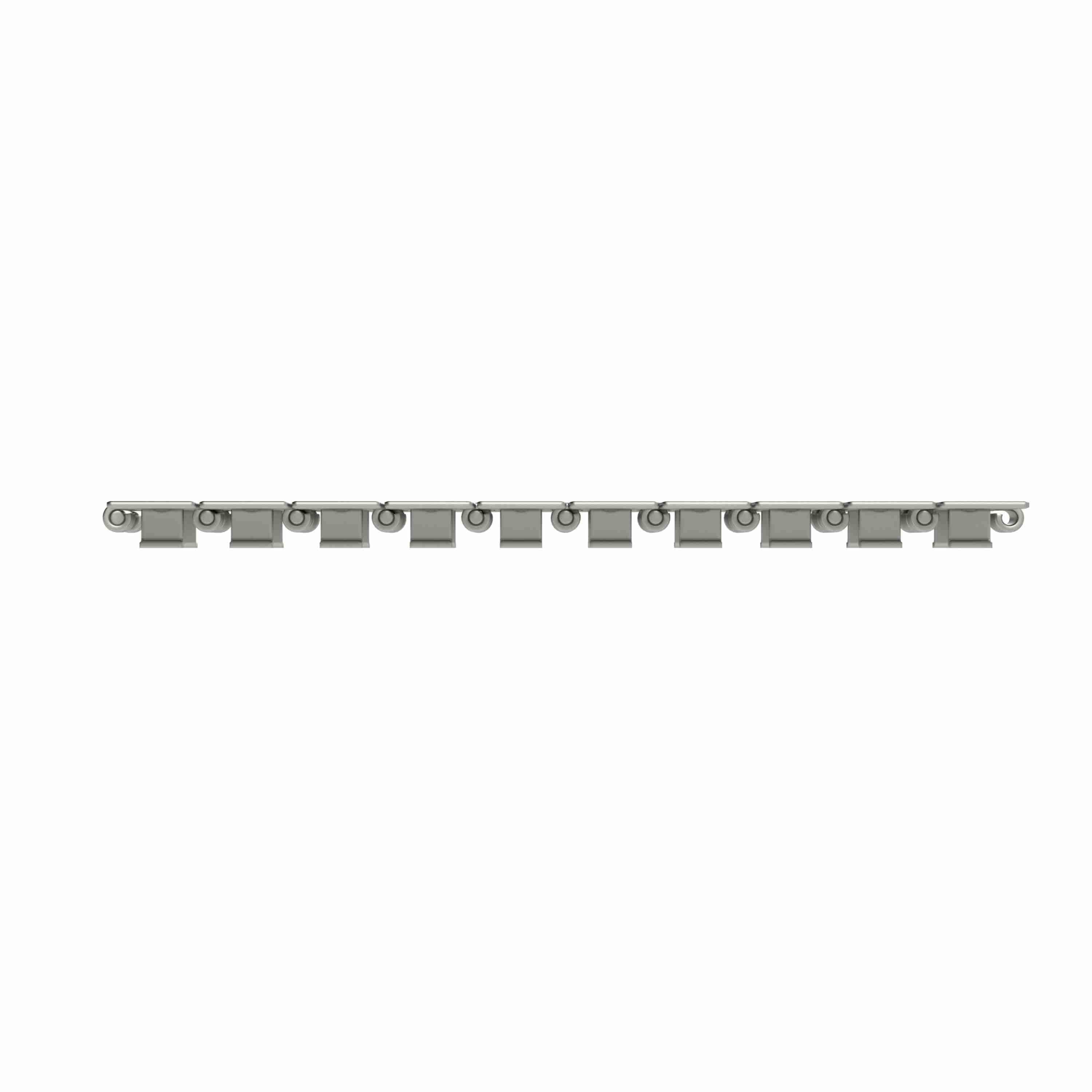

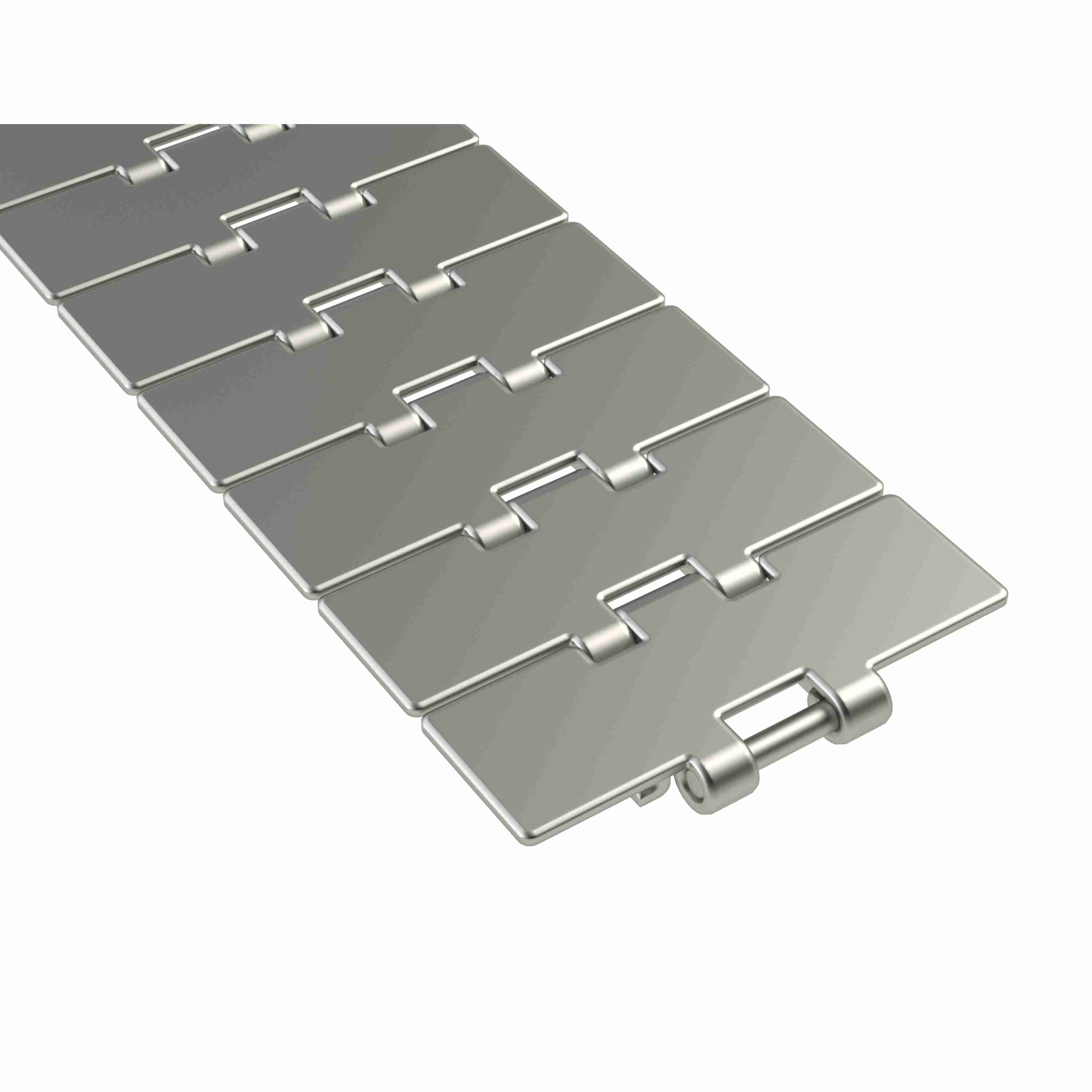

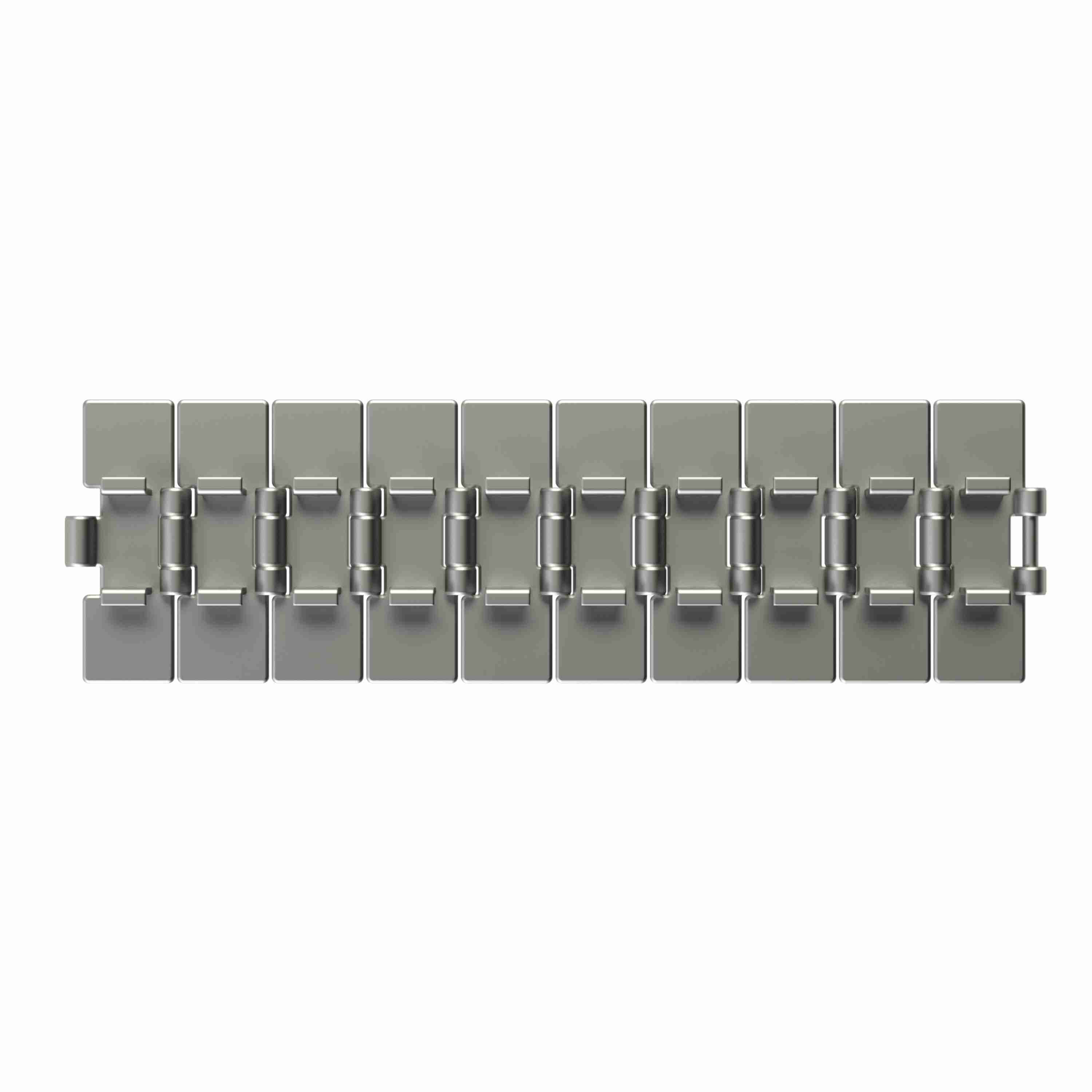

Rexnord 815TAB Straight Running Solid Top, Material: Stainless Steel, Width: 3.25in, Pitch: 1.5in - 763.33.31
Part #:10139405
Catalog #:763.33.31
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Rod/Pin Material: | Stainless Steel | Straight or Side-Flex: | Straight Running |
| Chain Width (in): | 3.25 in | Chain Material: | SS |
| Chain Strength (N): | 2,775 N | Chain Number: | 815TAB |
| Chain Material Description: | Stainless Steel | Chain Pitch (in): | 1.5 in |
| Chain Width Measurement System: | Imperial | Flight Thickness (mm): | 3.1 mm |
| Surface Type: | Solid Top | Series: | TableTop 815 Series Chain |
| Chain Width (mm): | 82.6 mm | Flight Thickness (in): | 0.12 in |
| Chain Strength (lb): | 625 lb | Chain Pitch (mm): | 38.1 mm |
General Specifications
| Weight: | 0.27 LB | HTC: | 7315120080 |
| Country of Origin: | Netherlands |
