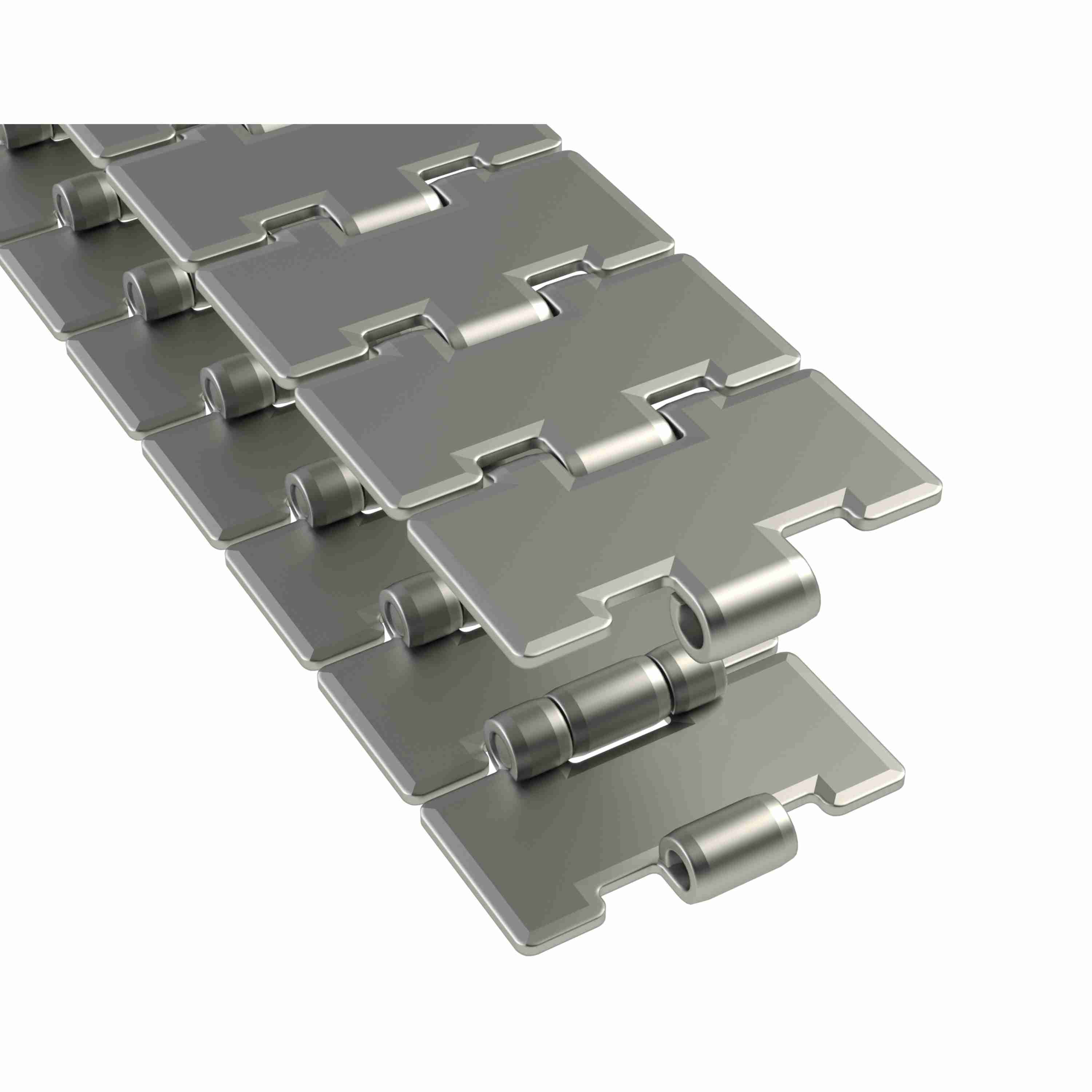

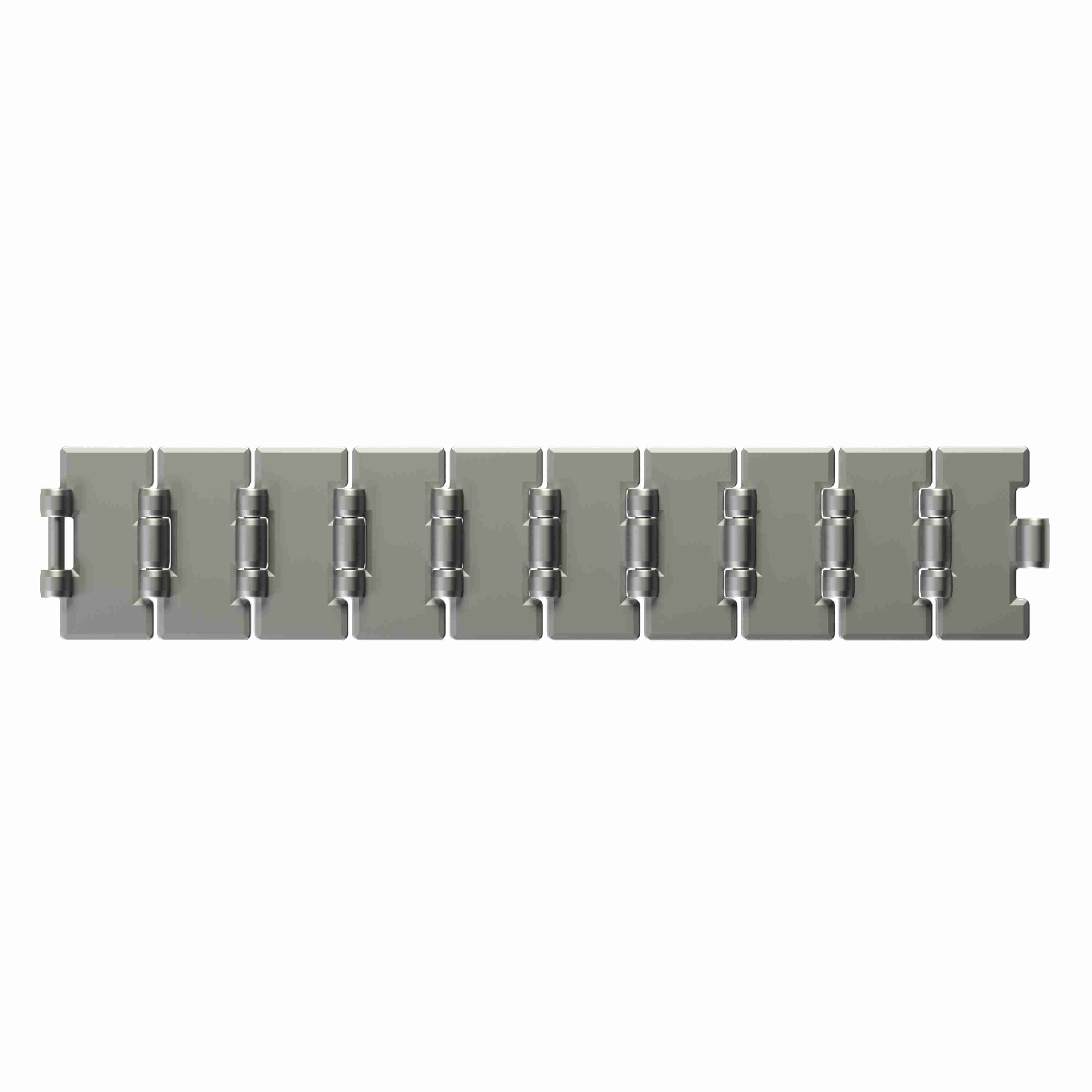

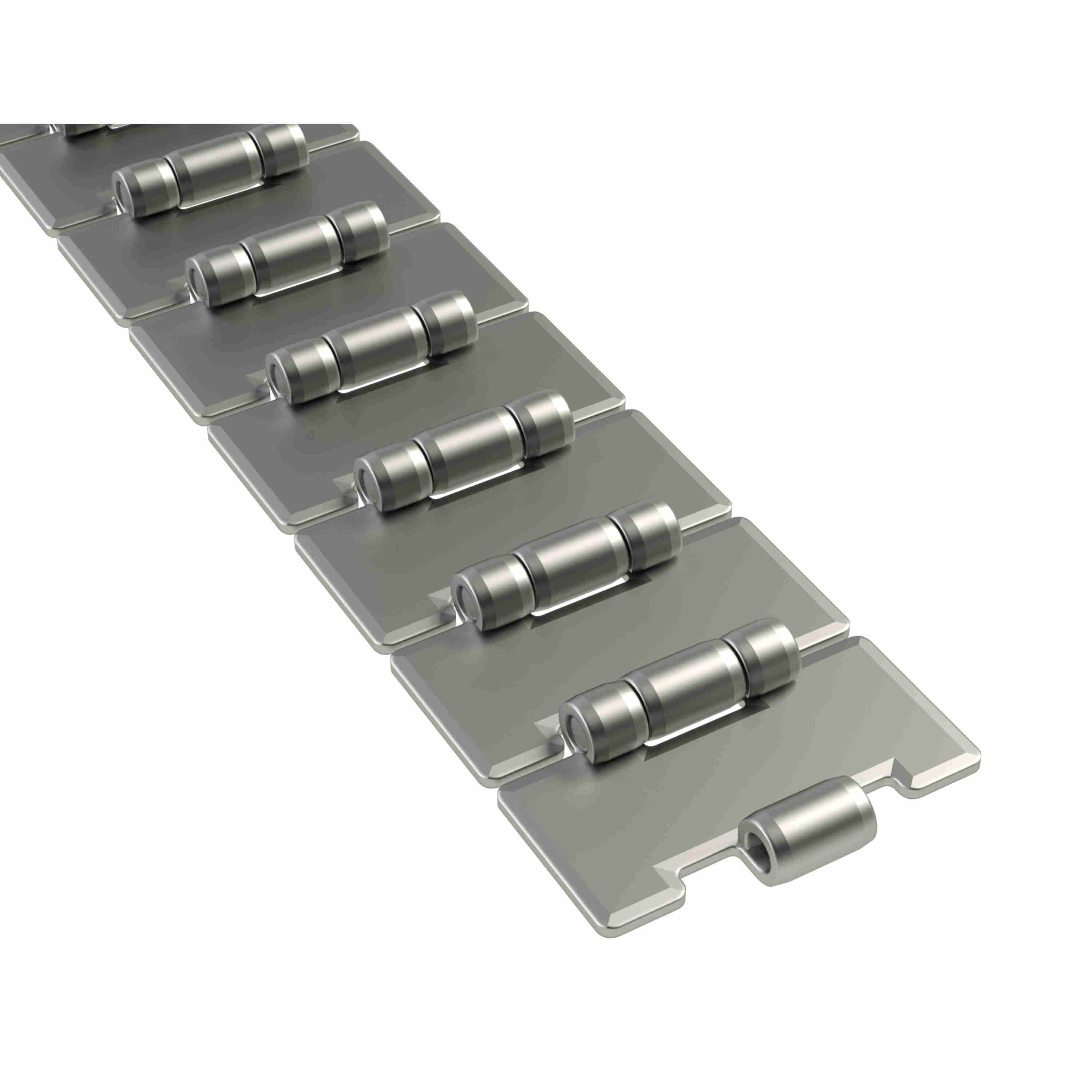

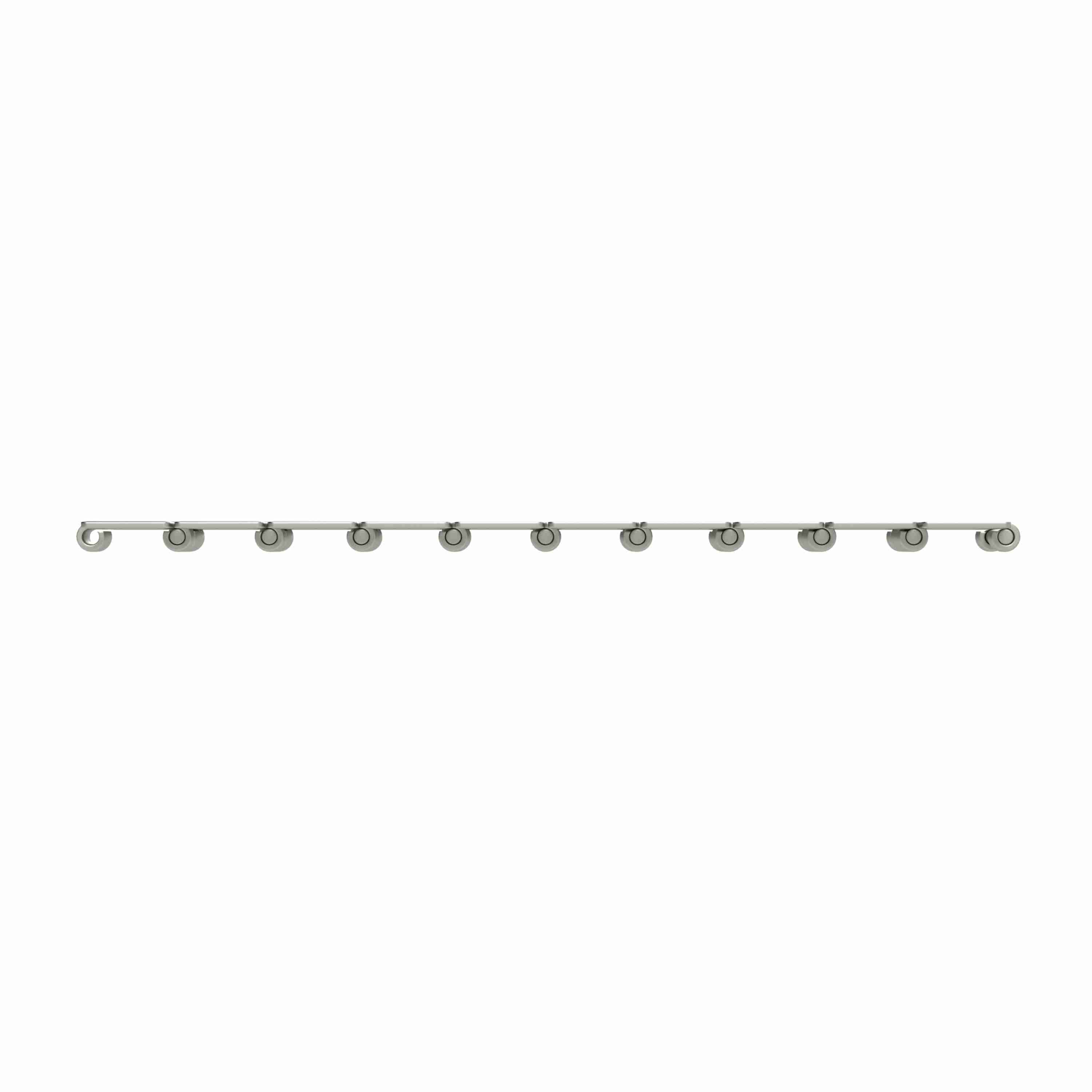

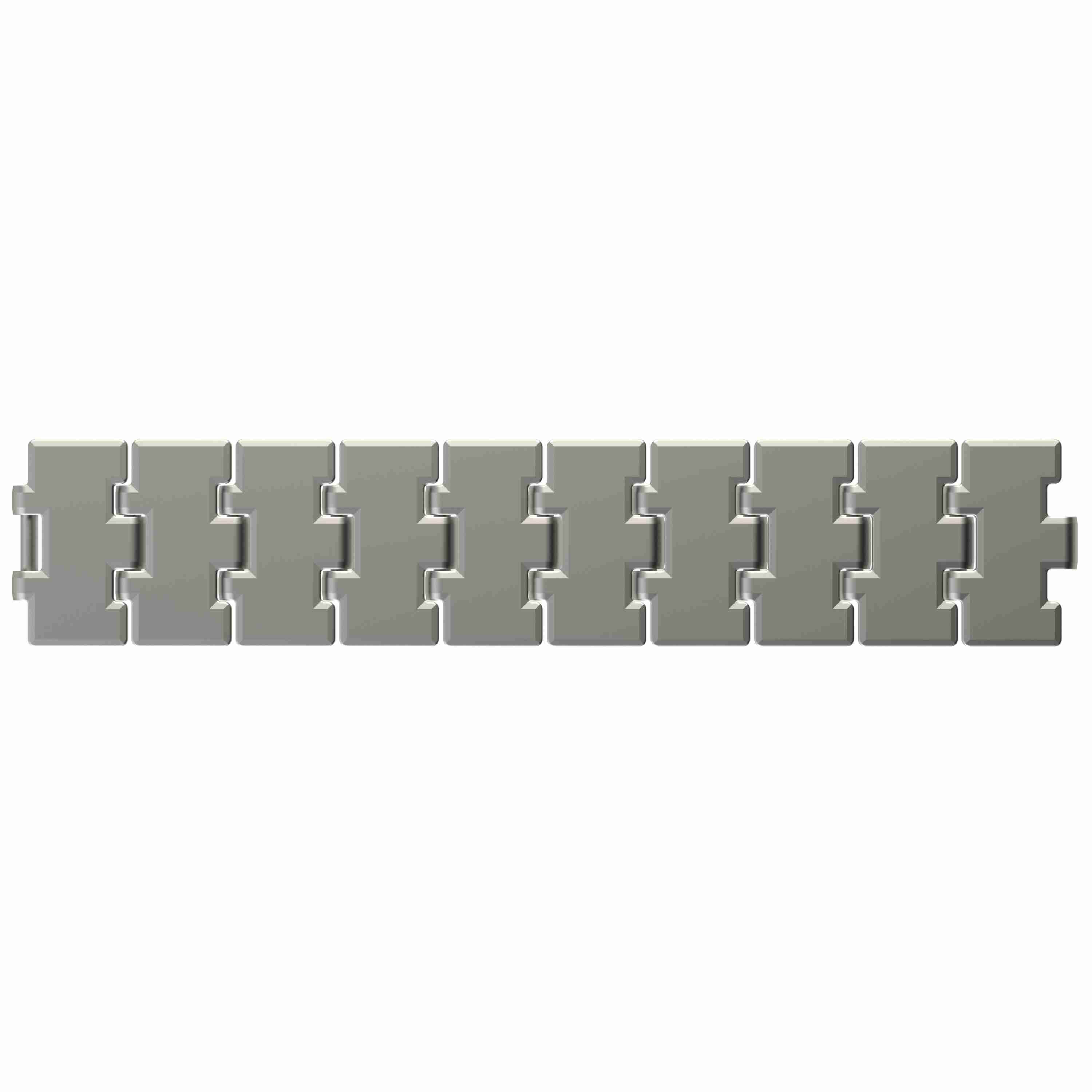

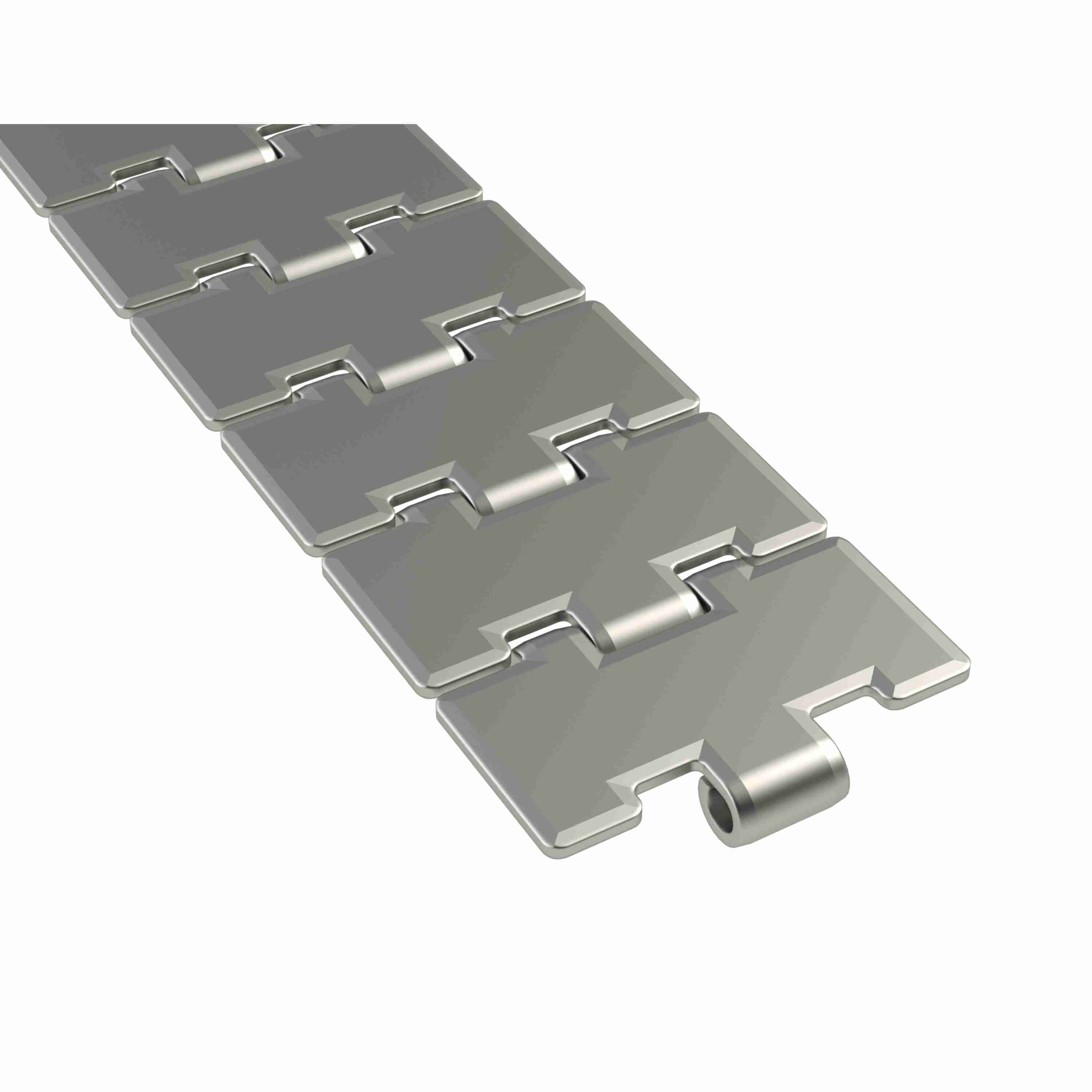

Rexnord 815X Straight Running Solid Top, Material: 0, Width: 3.25in, Pitch: 1.5in - 762.69.31
Part #:10139394
Catalog #:762.69.31
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Flight Thickness (in): | 0.12 in | Chain Material: | SSC |
| Flight Thickness (mm): | 3.1 mm | Series: | TableTop 815 Series Chain |
| Chain Width (in): | 3.25 in | Chain Width (mm): | 82.6 mm |
| Chain Width Measurement System: | Imperial | Chain Strength (lb): | 1,351 lb |
| Chain Pitch (in): | 1.5 in | Chain Number: | 815X |
| Surface Type: | Solid Top | Straight or Side-Flex: | Straight Running |
| Rod/Pin Material: | Stainless Steel | Chain Pitch (mm): | 38.1 mm |
| Chain Strength (N): | 6,000 N |
General Specifications
| Weight: | 0.23 LB | HTC: | 7315120080 |
| Country of Origin: | Netherlands |
