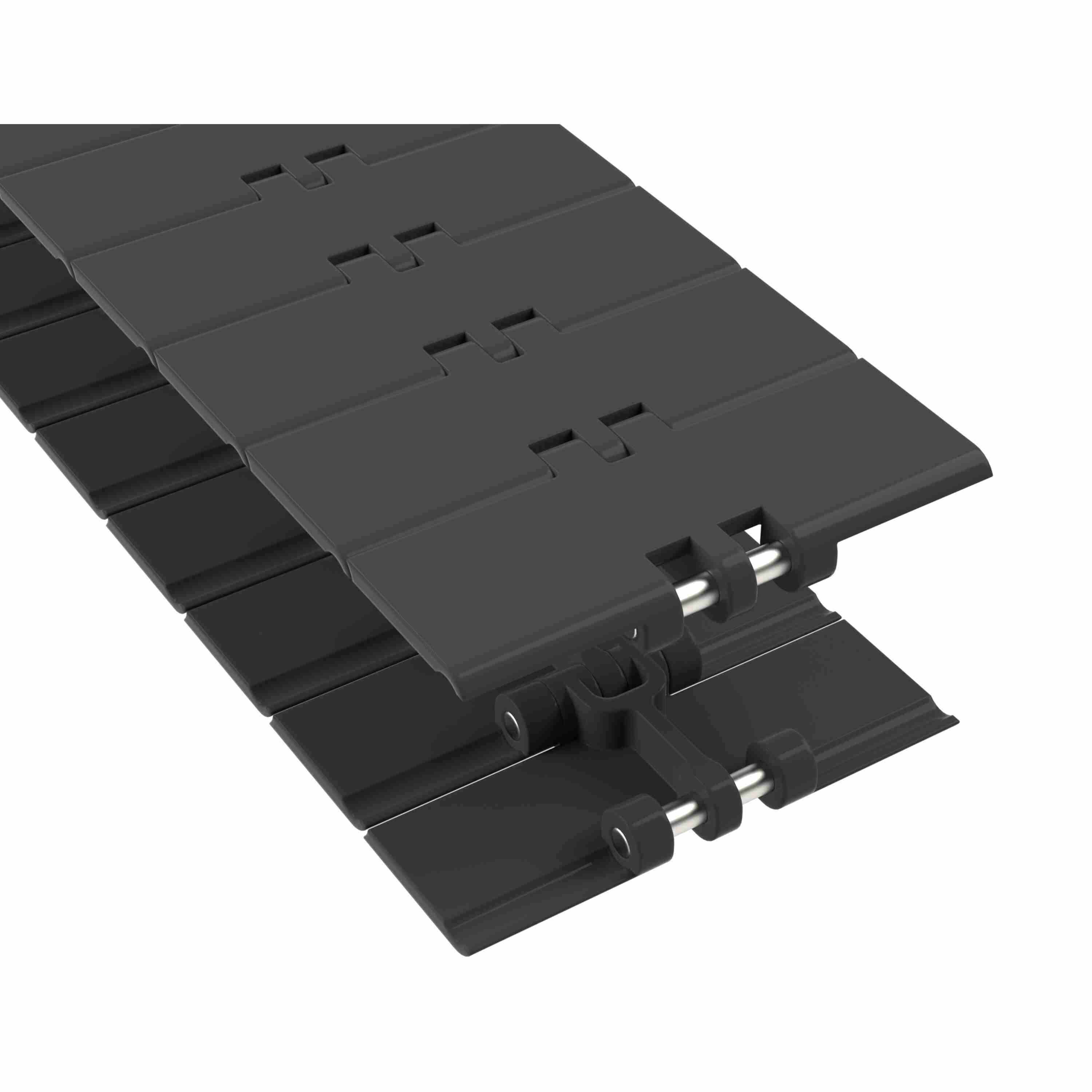

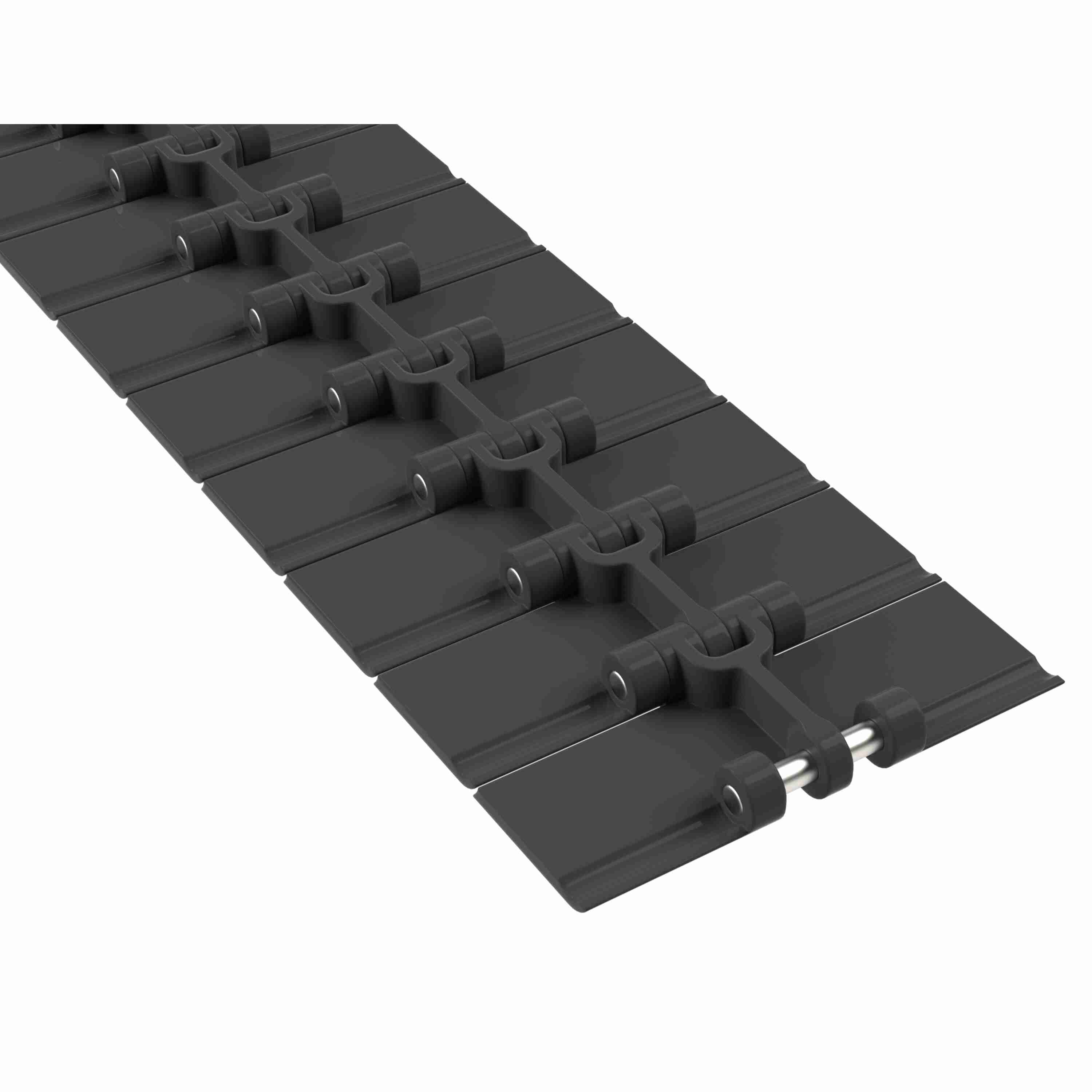

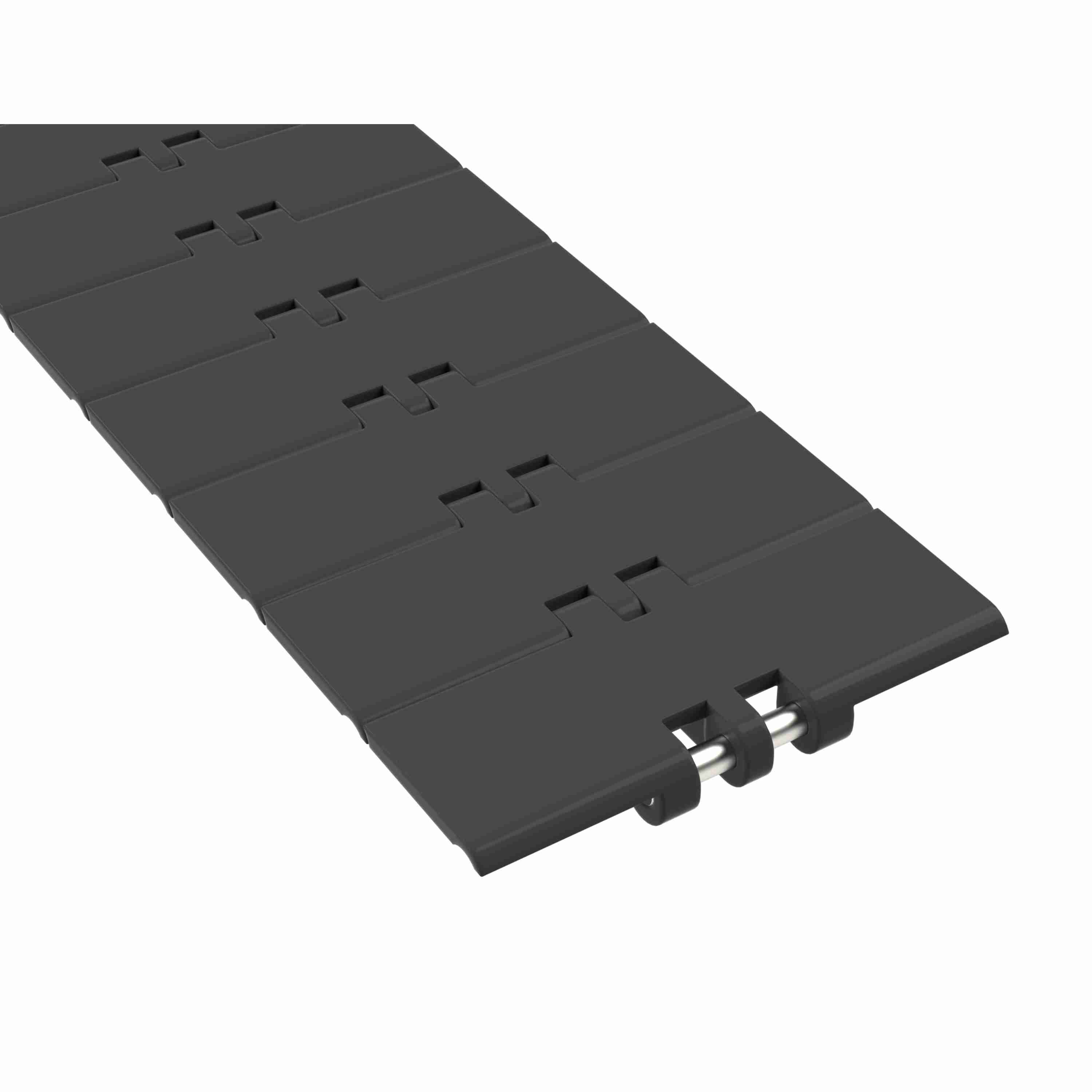

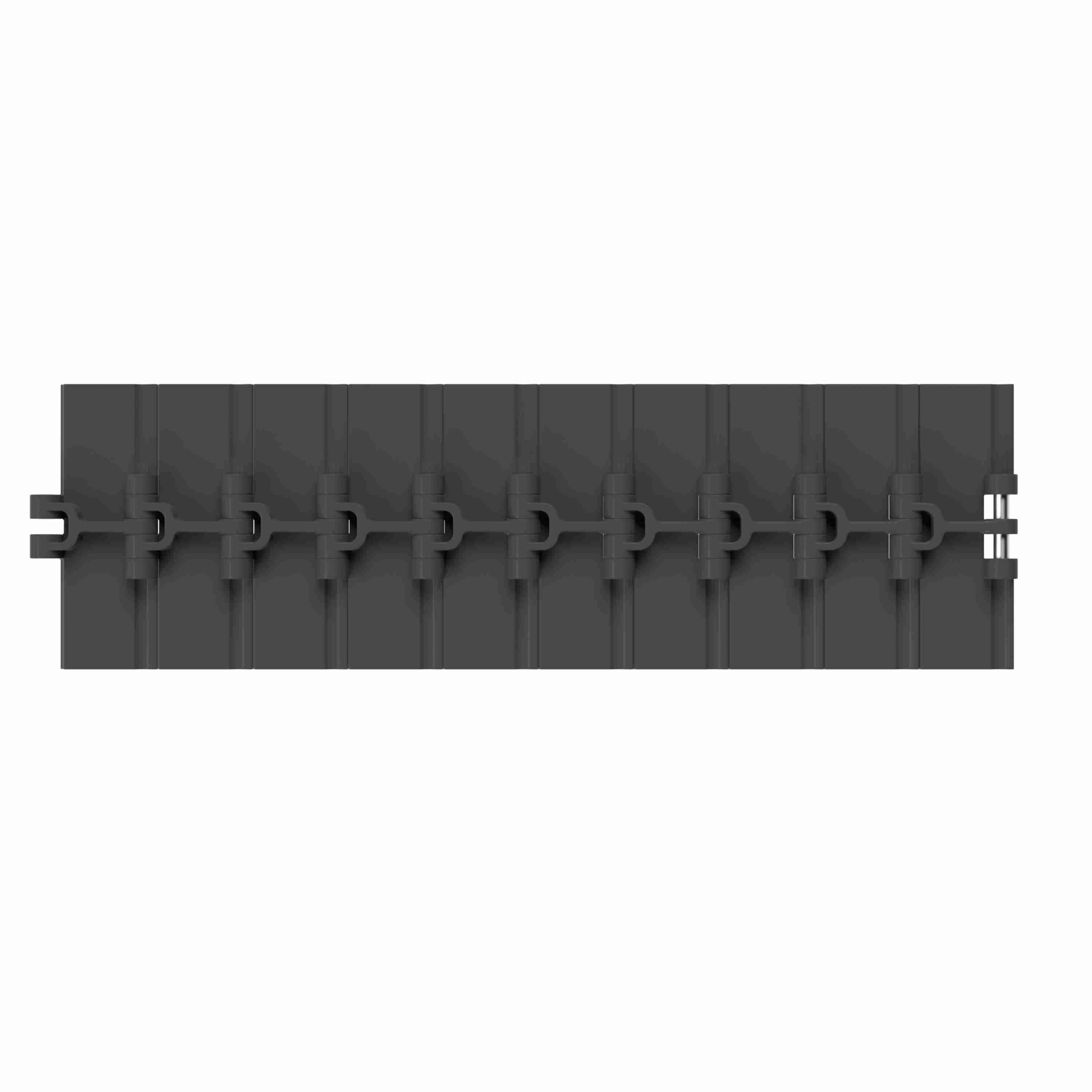

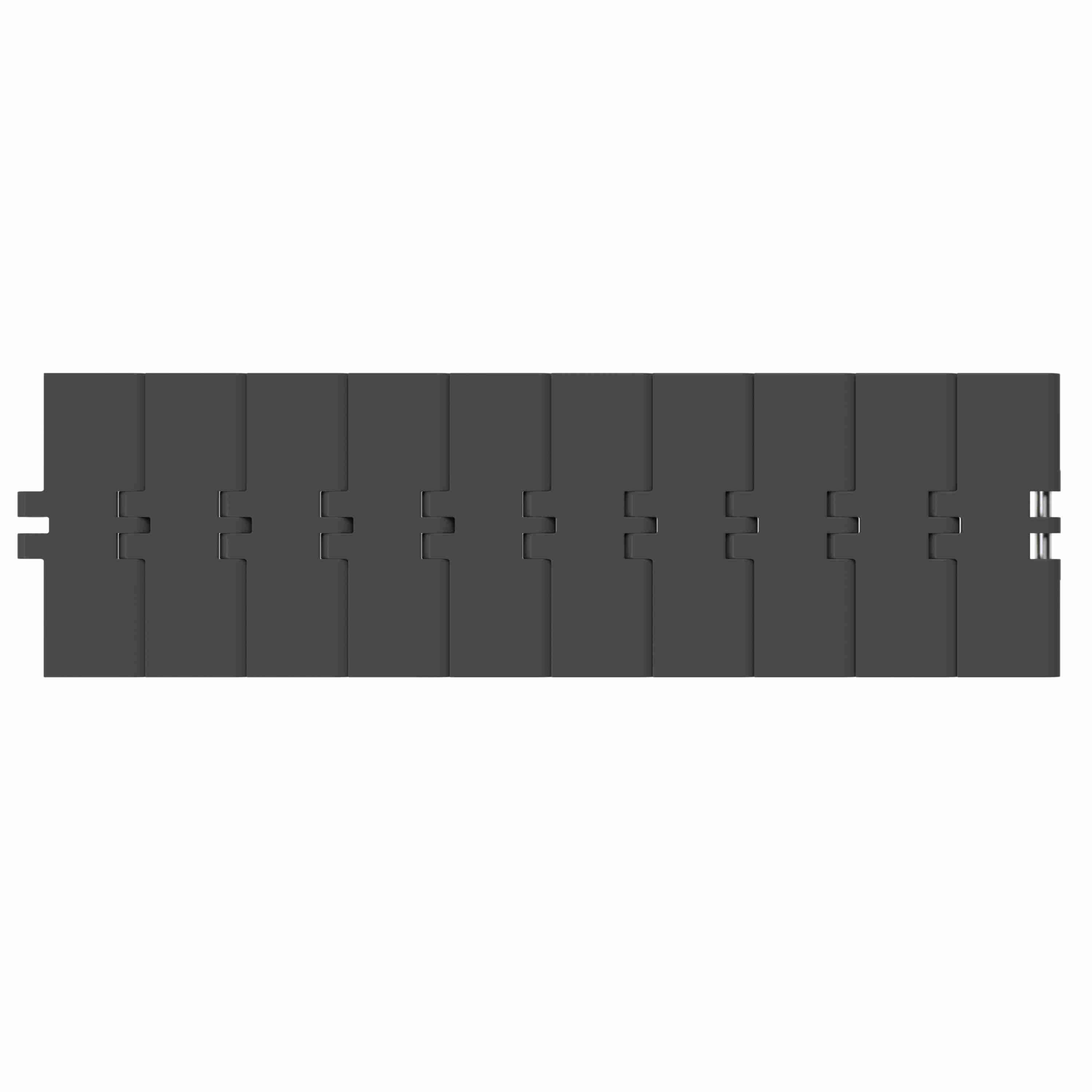

Rexnord 820 Straight Running Solid Top, Material: Black Anti-Static, Width: 7.5in, Pitch: 1.5in - 81400795
Part #:10144690
Catalog #:81400795
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Number: | 820 | Surface Type: | Solid Top |
| Rod/Pin Material: | Stainless Steel | Chain Pitch (in): | 1.5 in |
| Chain Width (mm): | 190.5 mm | Straight or Side-Flex: | Straight Running |
| Chain Width (in): | 7.5 in | Chain Material: | AS |
| Chain Strength (lb): | 219 lb | Flight Thickness (mm): | 4.1 mm |
| Flight Thickness (in): | 0.16 in | Chain Pitch (mm): | 38.1 mm |
| Chain Width Measurement System: | Imperial | Chain Strength (N): | 972 N |
| Chain Material Description: | Black Anti-Static | Series: | TableTop 820 Series Chain |
General Specifications
| Weight: | 0.13 LB | HTC: | 3926909989 |
| Country of Origin: | Mexico |
