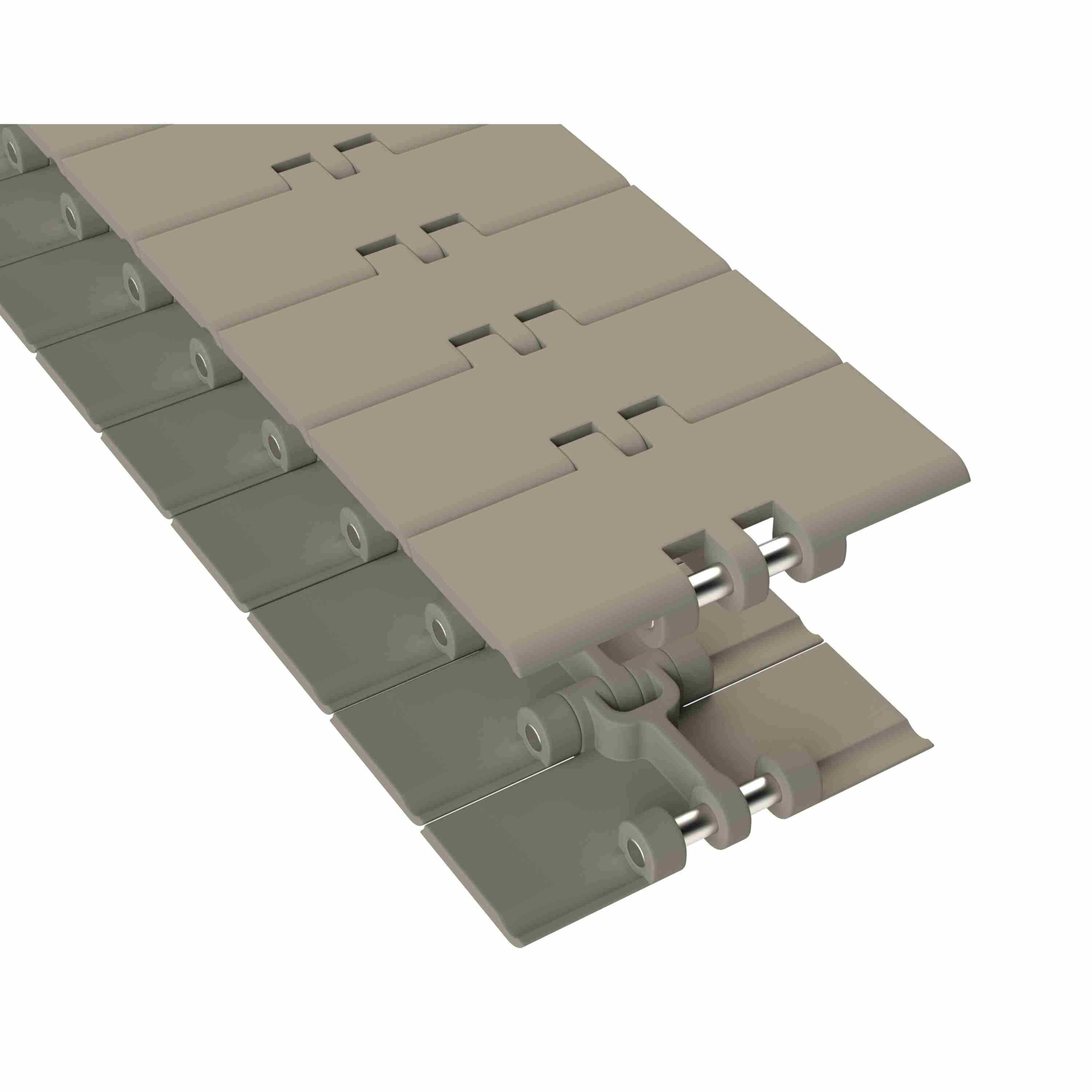

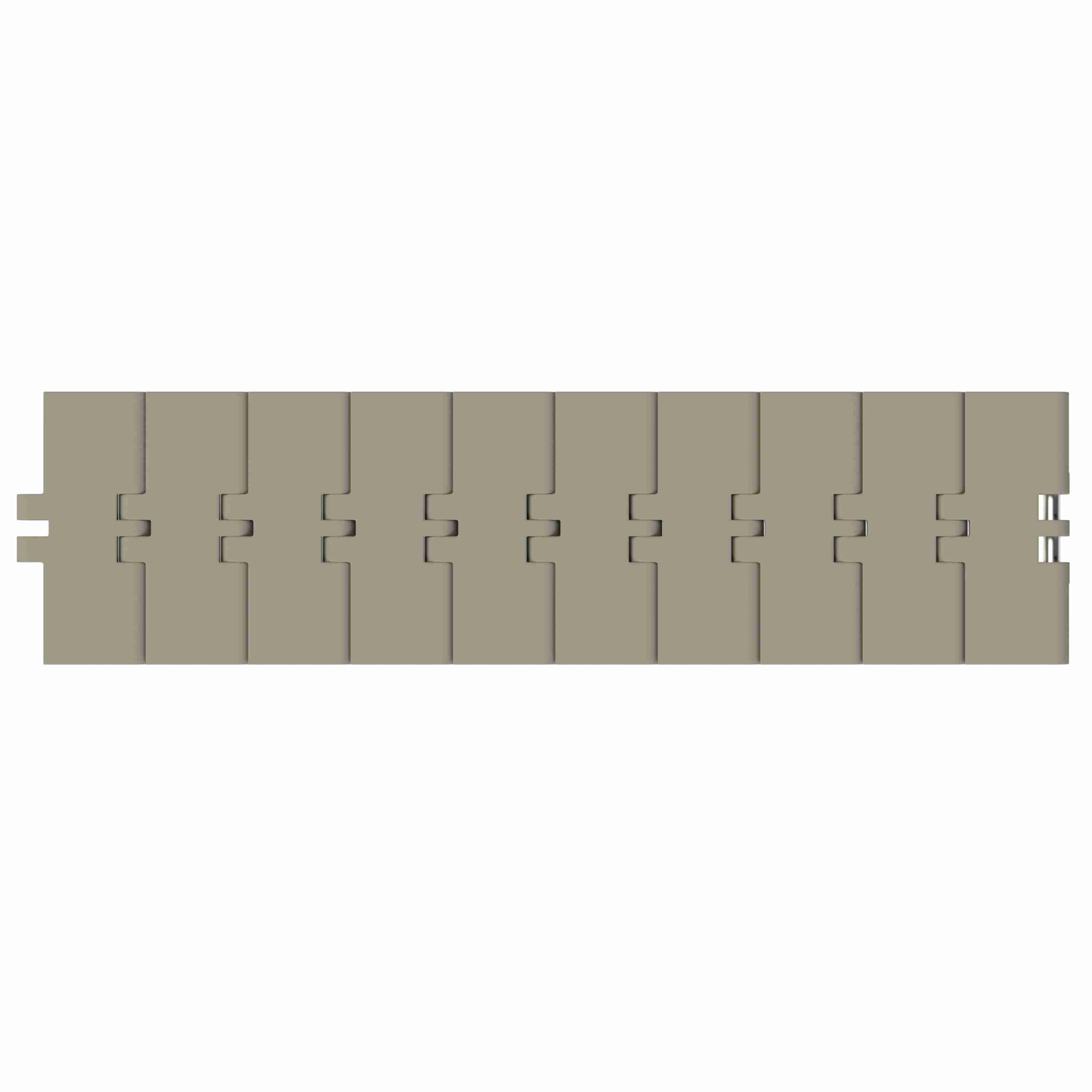

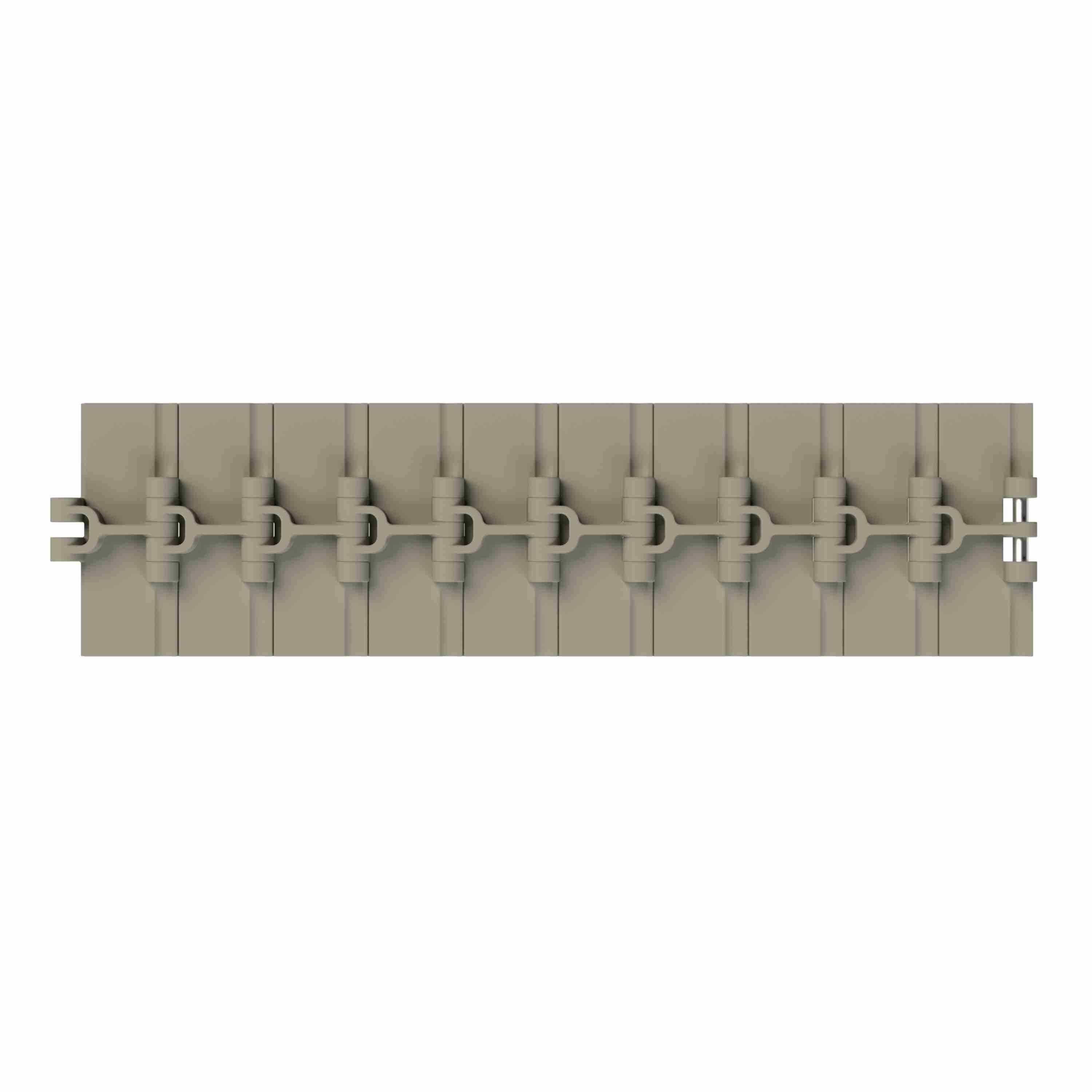

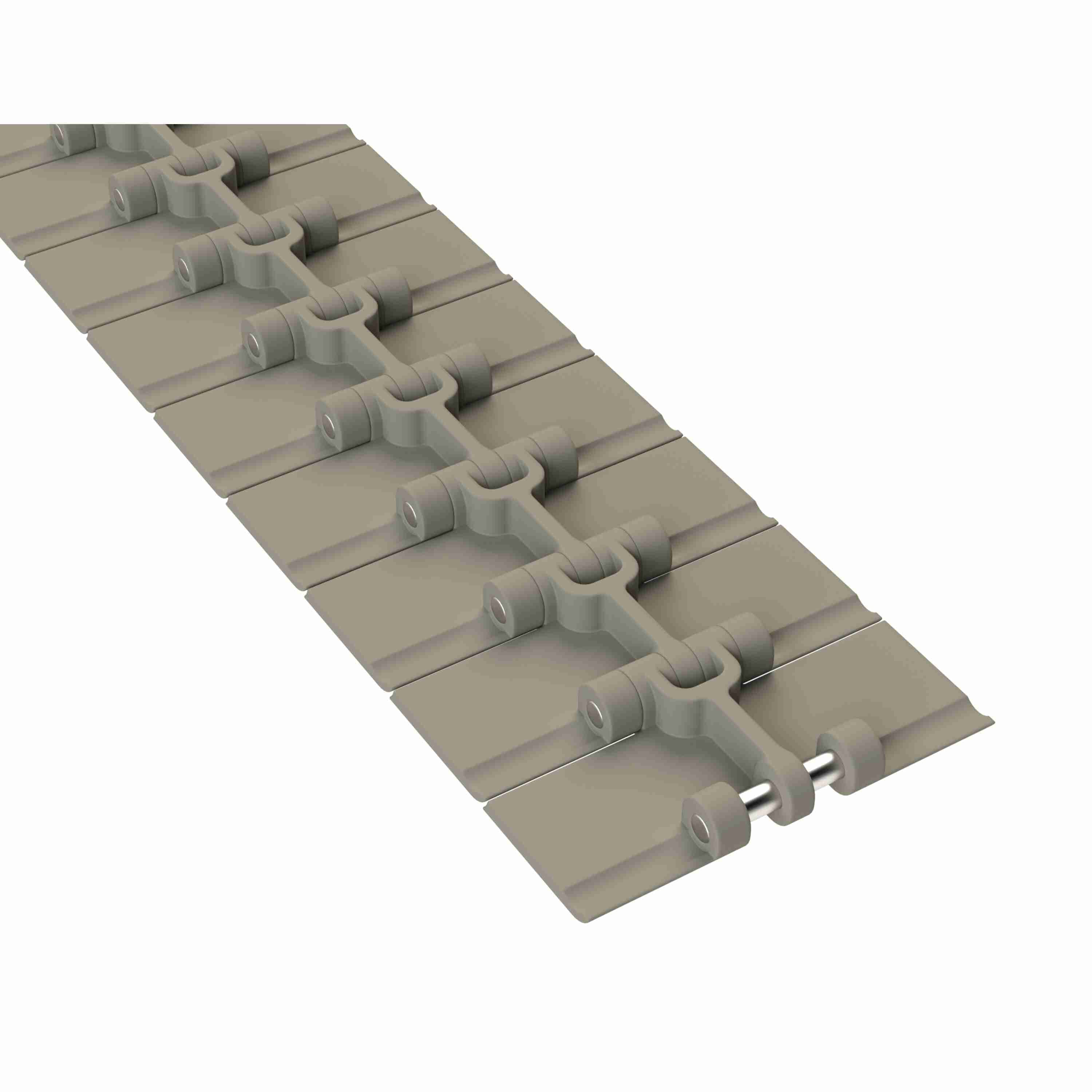

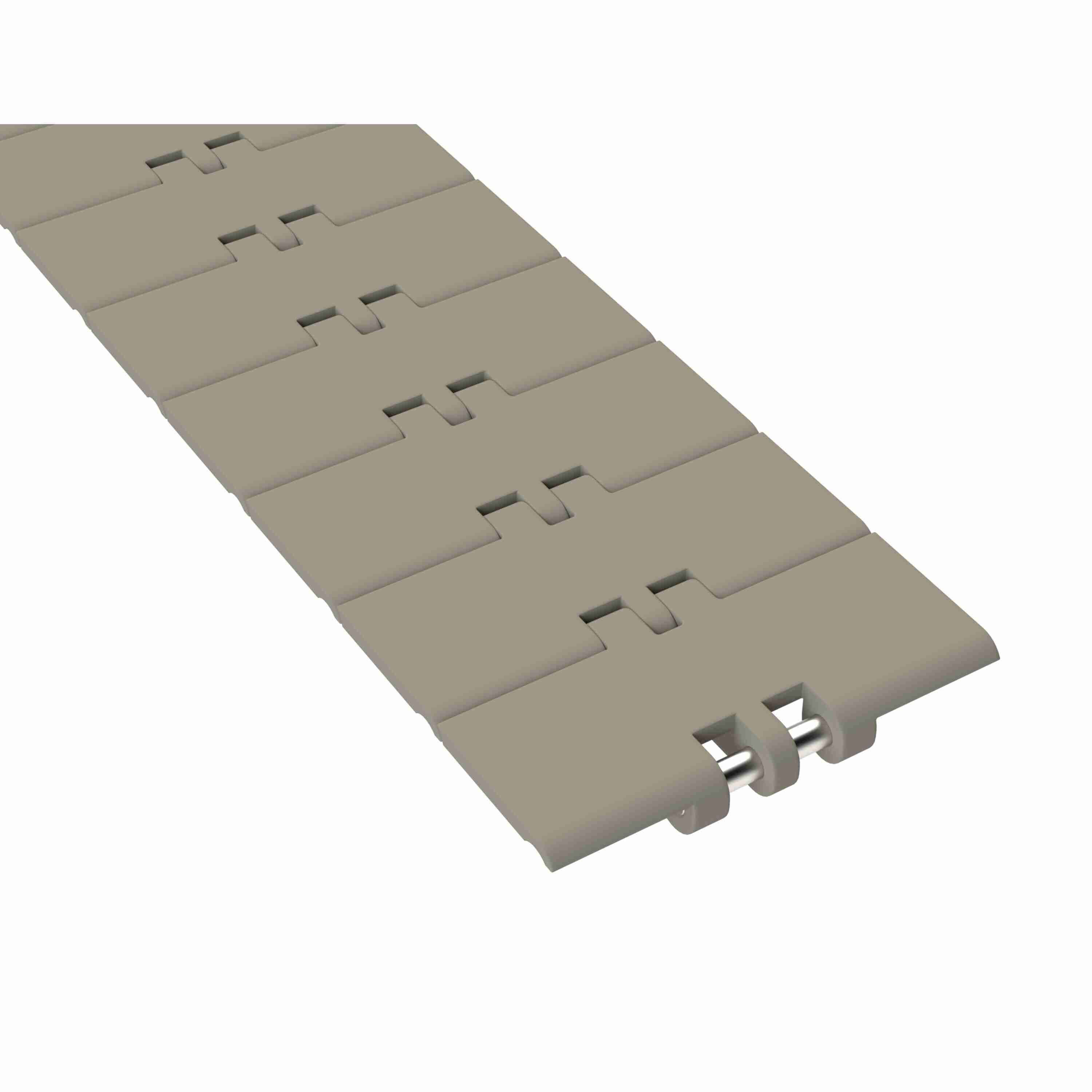

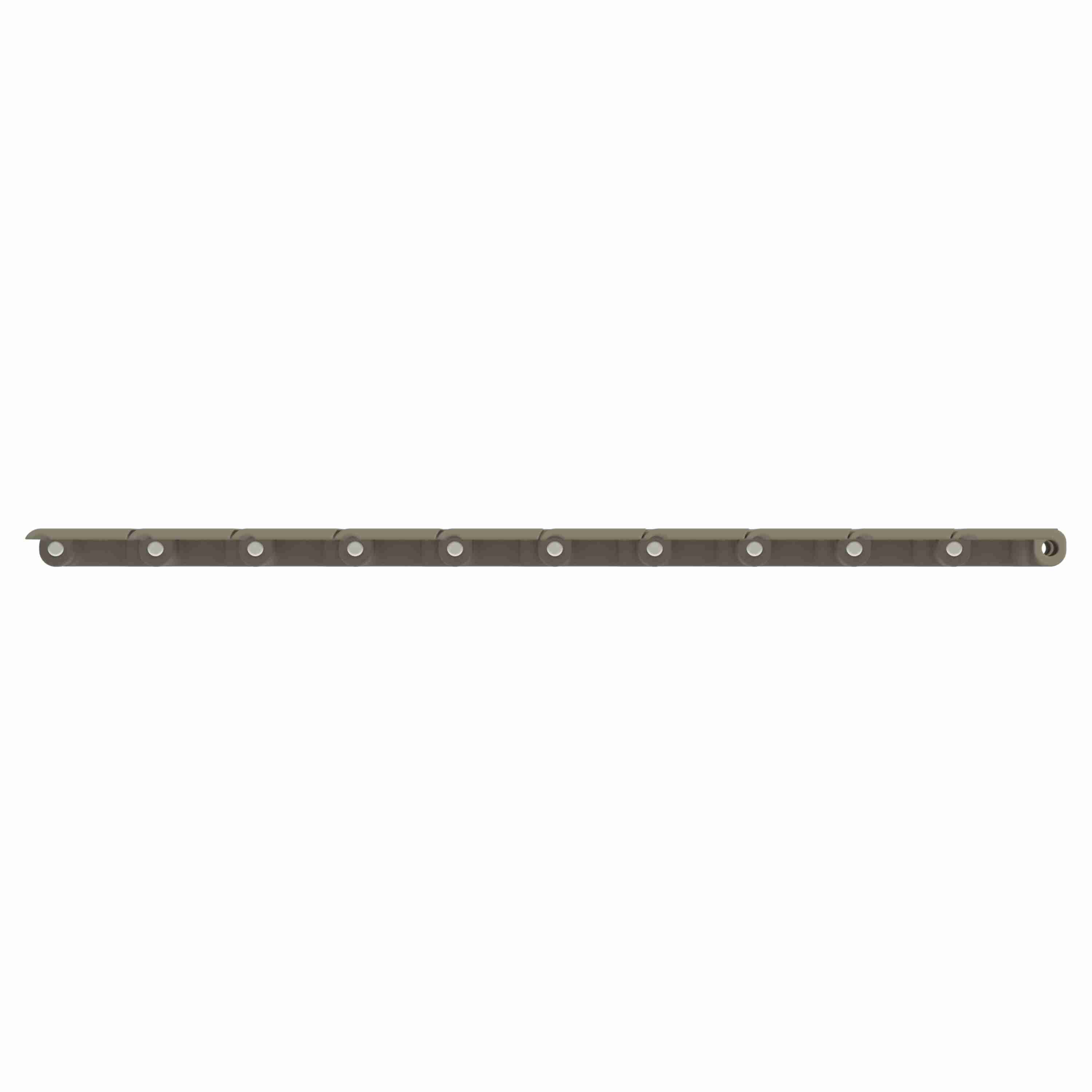

Rexnord 820 Straight Running Solid Top, Material: Extreme Chemical Resistant (Grey), Width: 4.5in, Pitch: 1.5in - 81428602
Part #:10145496
Catalog #:81428602
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Width Measurement System: | Imperial | Chain Strength (N): | 1,296 N |
| Flight Thickness (mm): | 4.1 mm | Chain Width (mm): | 114.3 mm |
| Straight or Side-Flex: | Straight Running | Rod/Pin Material: | 316 Stainless Steel |
| Chain Pitch (in): | 1.5 in | Surface Type: | Solid Top |
| Chain Width (in): | 4.5 in | Chain Strength (lb): | 292 lb |
| Chain Number: | 820 | Chain Material: | CR |
| Chain Material Description: | Extreme Chemical Resistant (Grey) | Flight Thickness (in): | 0.16 in |
| Series: | TableTop 820 Series Chain | Chain Pitch (mm): | 38.1 mm |
General Specifications
| Weight: | 0.09 LB | HTC: | 3926909989 |
| Country of Origin: | Mexico |
