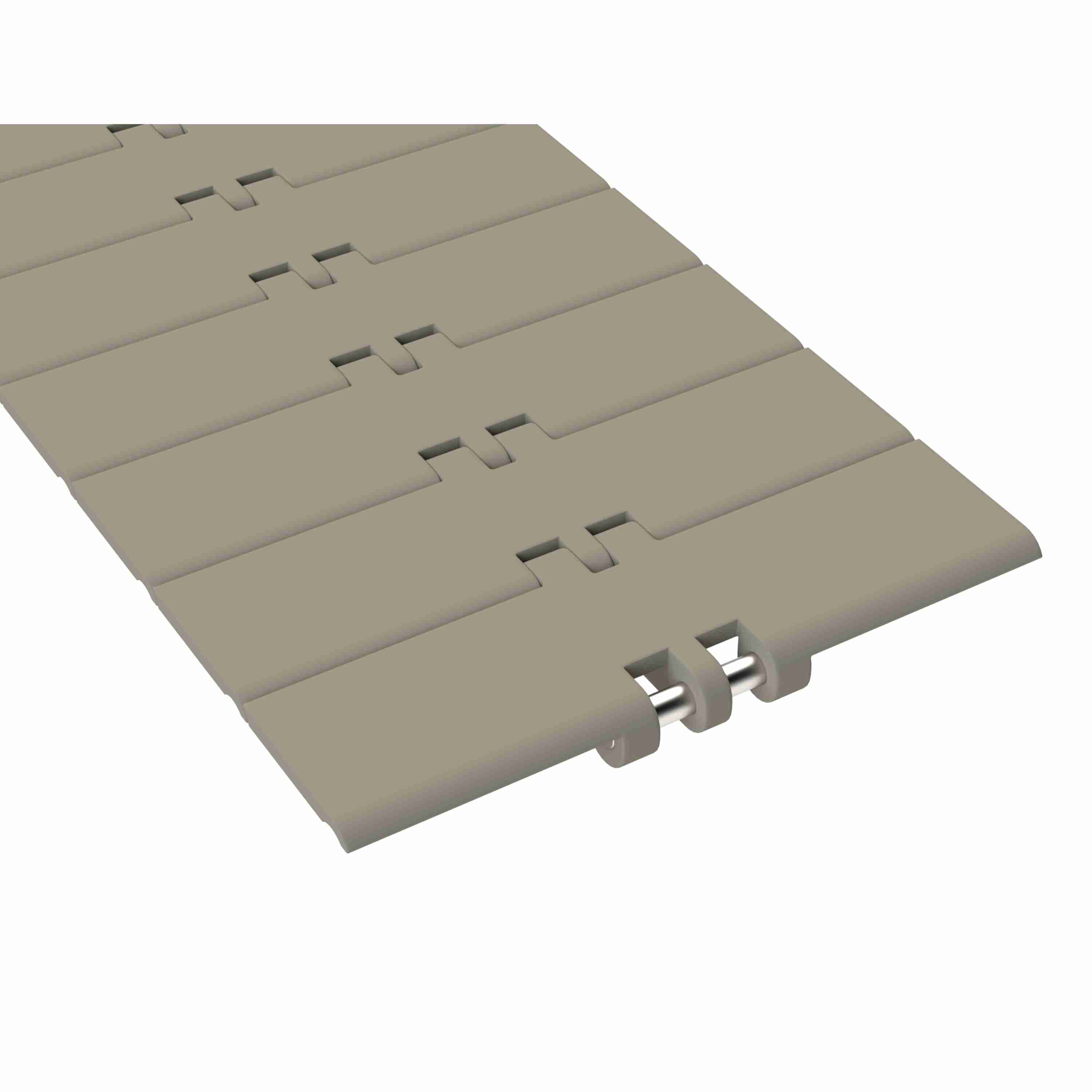

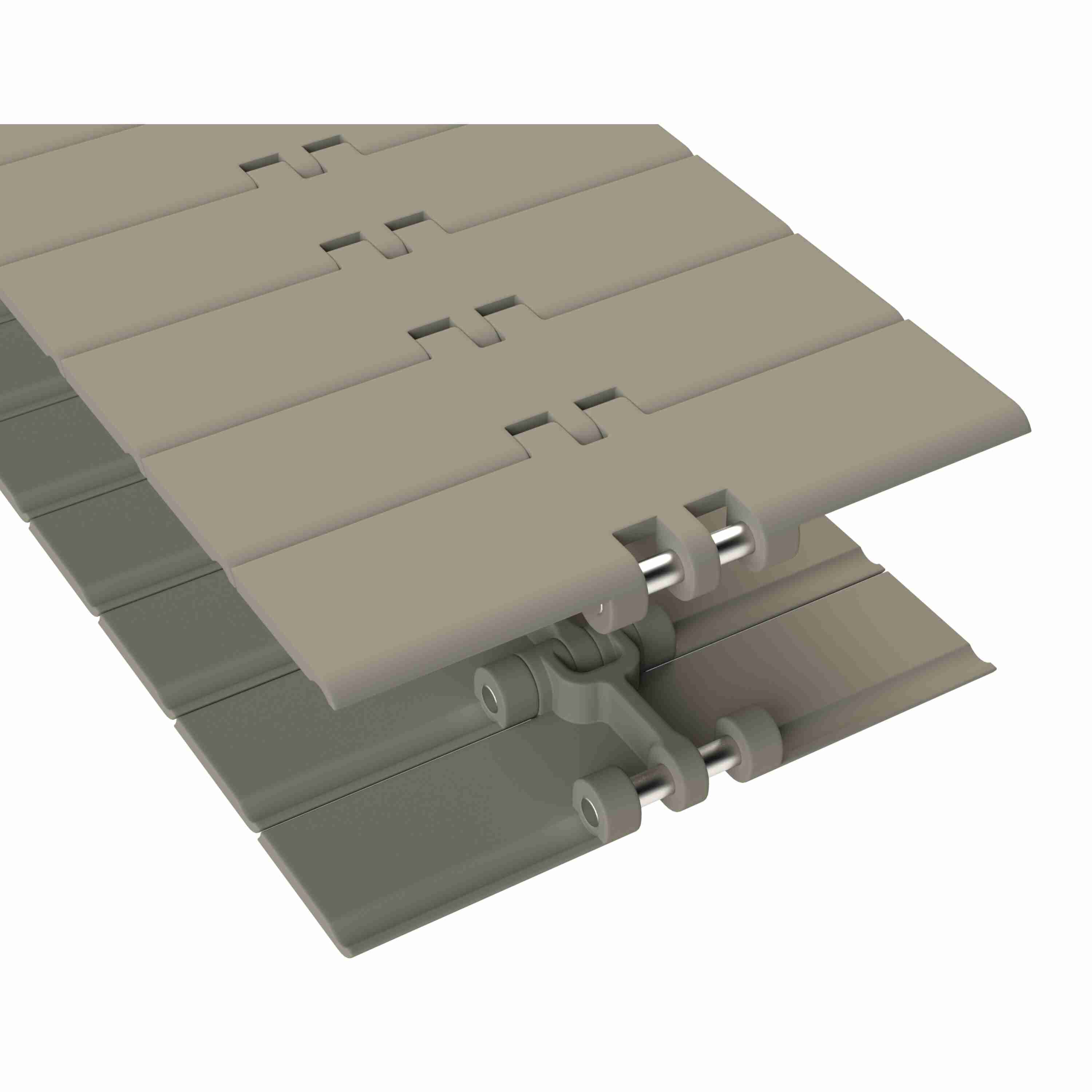

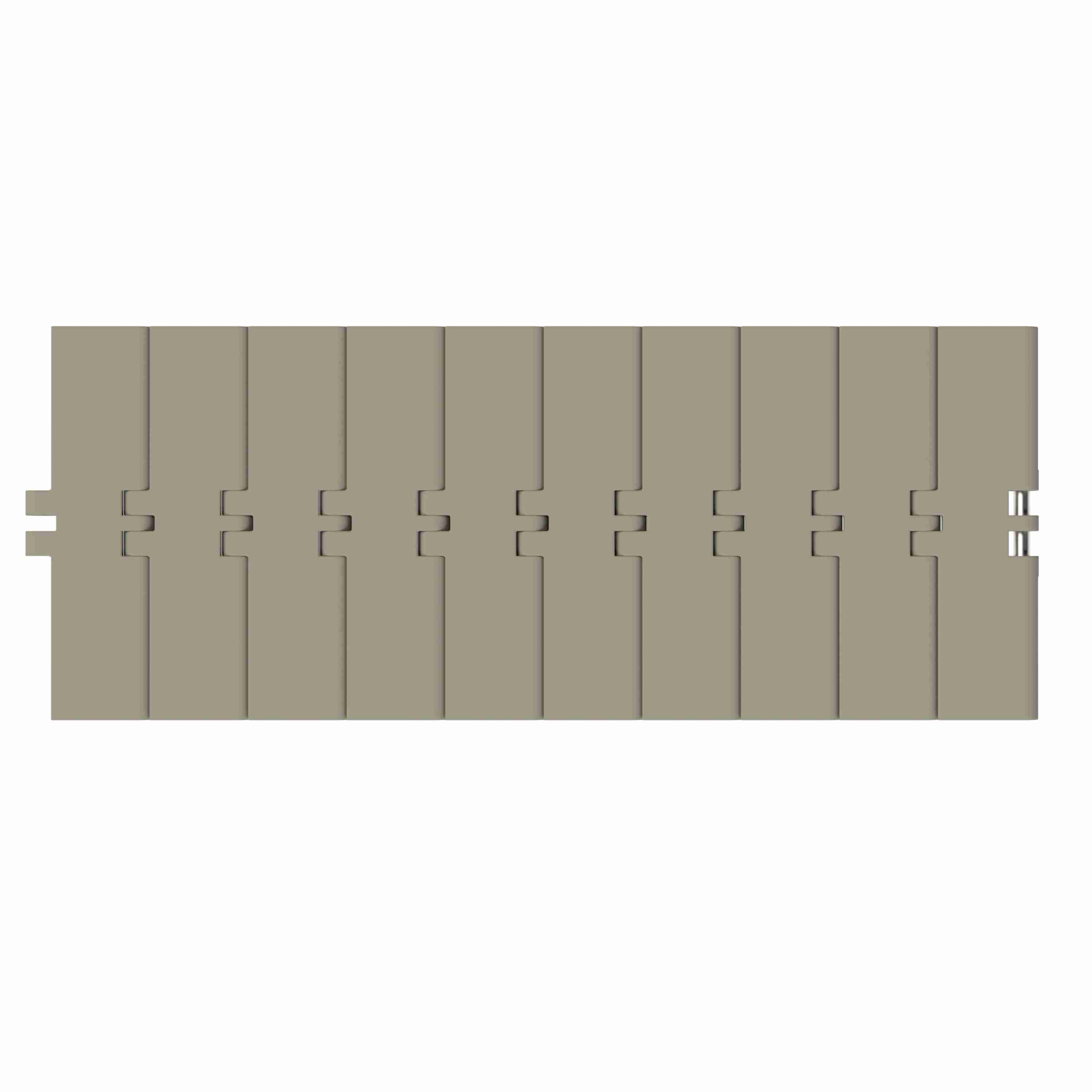

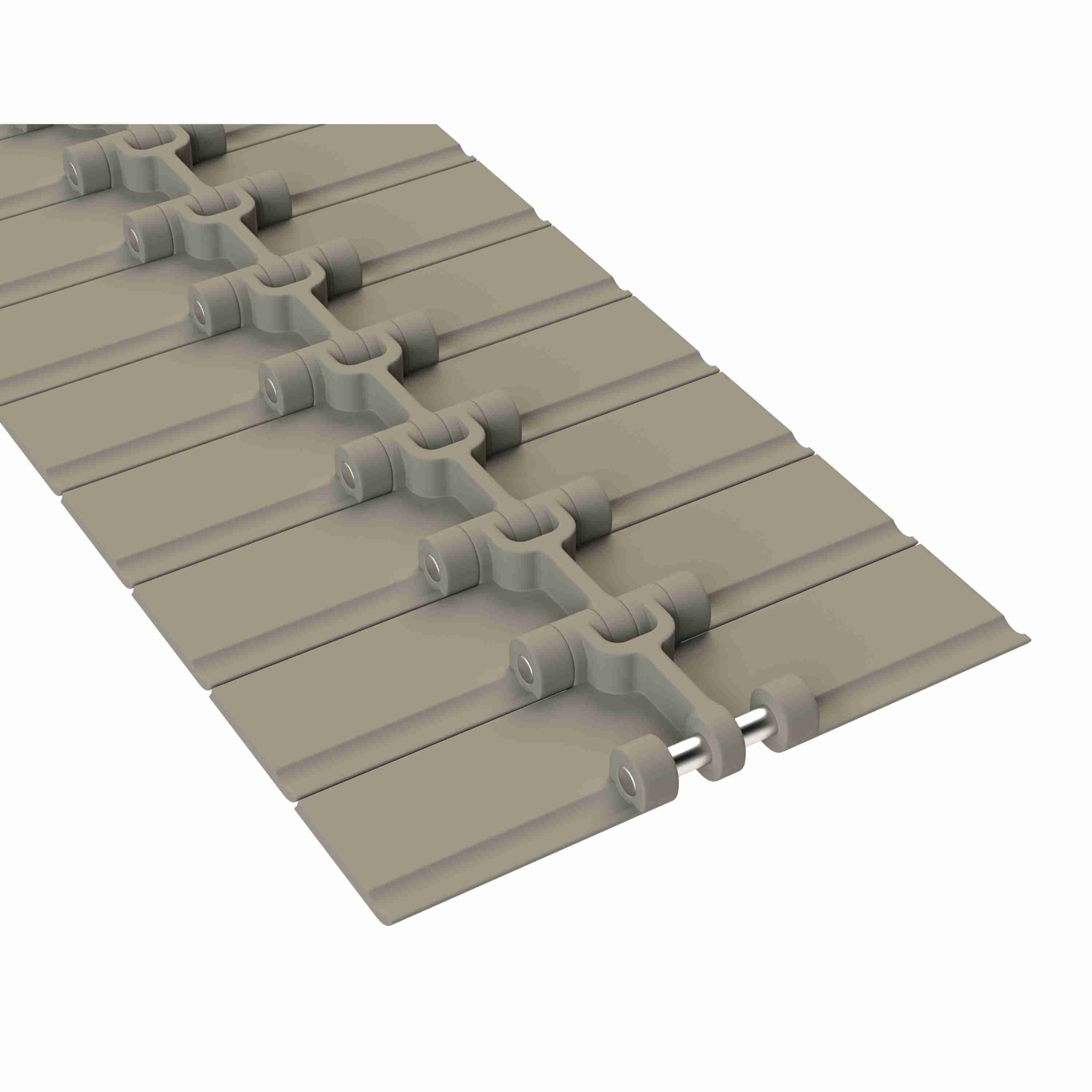

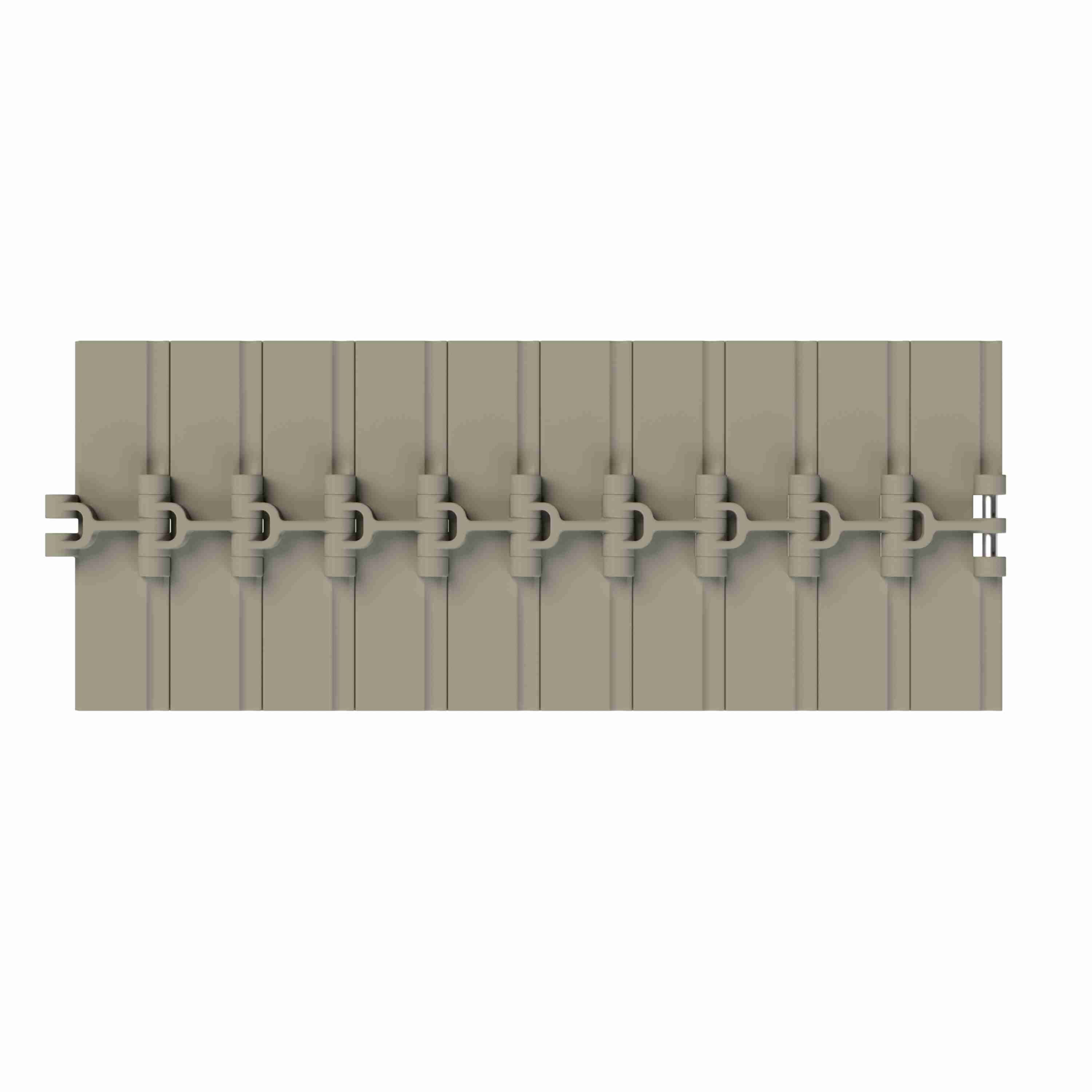

Rexnord 820 Straight Running Solid Top, Material: Extreme Chemical Resistant (Grey), Width: 7.5in, Pitch: 1.5in - 81428604
Part #:10145498
Catalog #:81428604
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Material: | CR | Surface Type: | Solid Top |
| Chain Width (mm): | 190.5 mm | Chain Material Description: | Extreme Chemical Resistant (Grey) |
| Chain Strength (lb): | 292 lb | Chain Strength (N): | 1,296 N |
| Rod/Pin Material: | 316 Stainless Steel | Chain Width (in): | 7.5 in |
| Chain Pitch (in): | 1.5 in | Chain Pitch (mm): | 38.1 mm |
| Chain Width Measurement System: | Imperial | Straight or Side-Flex: | Straight Running |
| Series: | TableTop 820 Series Chain | Flight Thickness (mm): | 4.1 mm |
| Chain Number: | 820 | Flight Thickness (in): | 0.16 in |
General Specifications
| Weight: | 0.12 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
