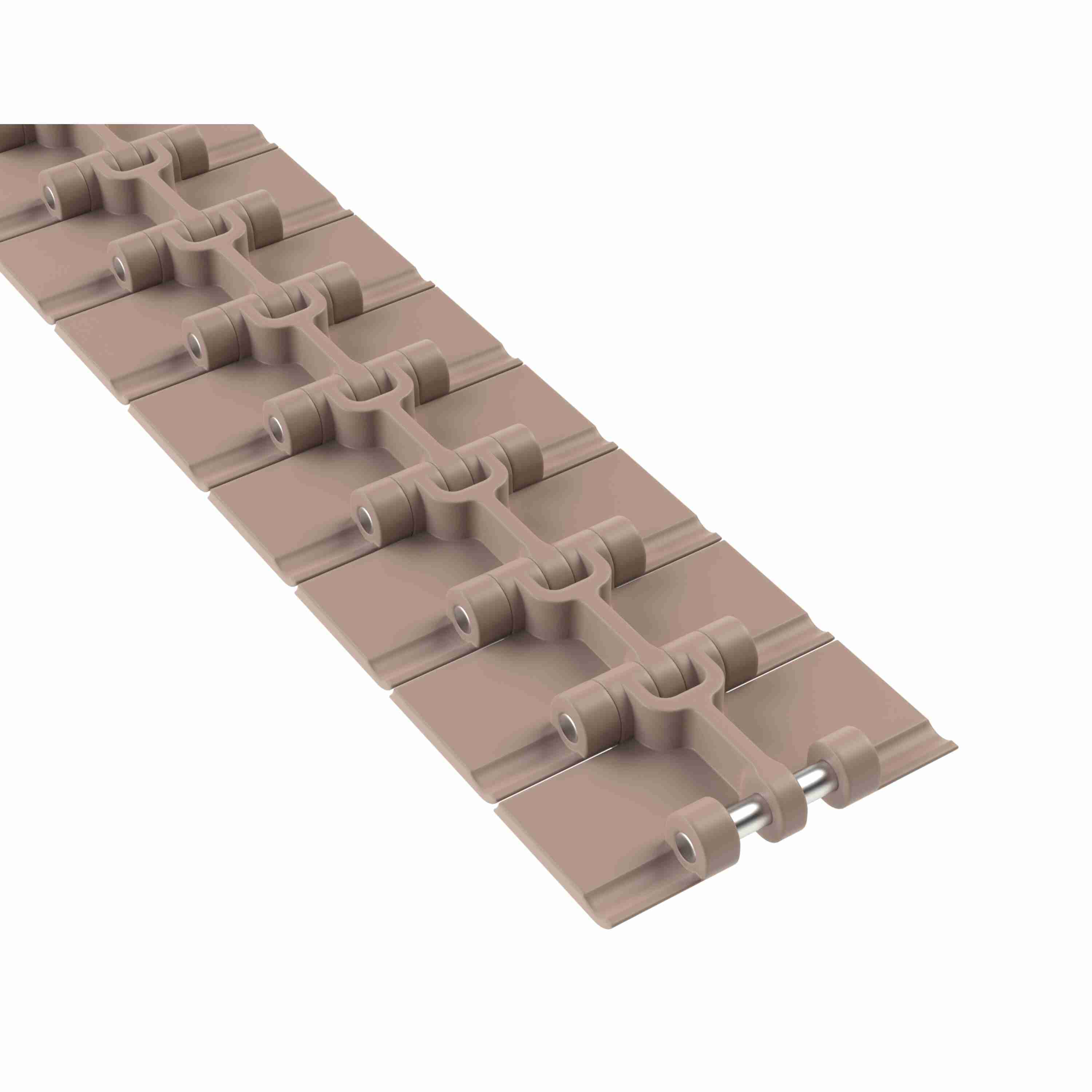

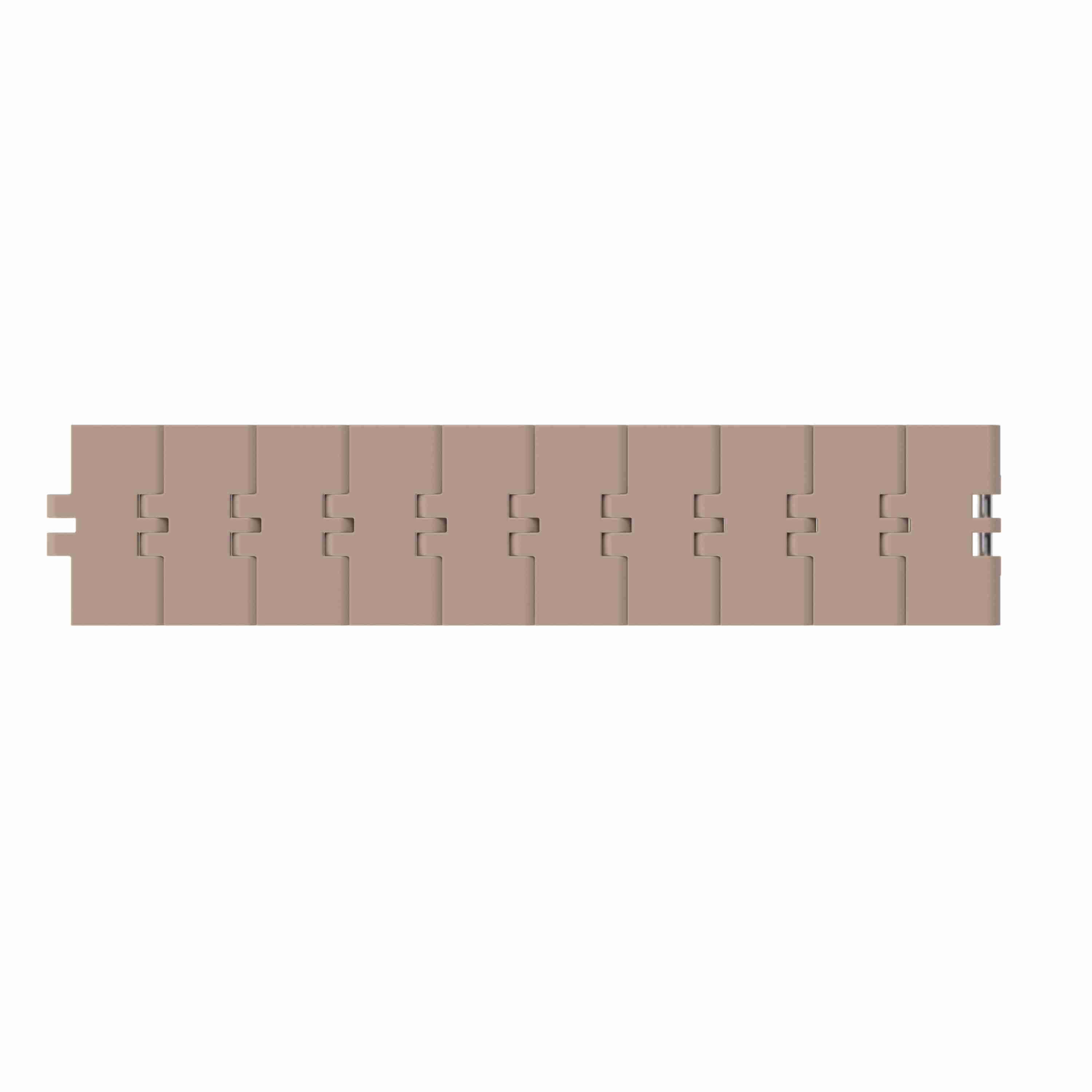

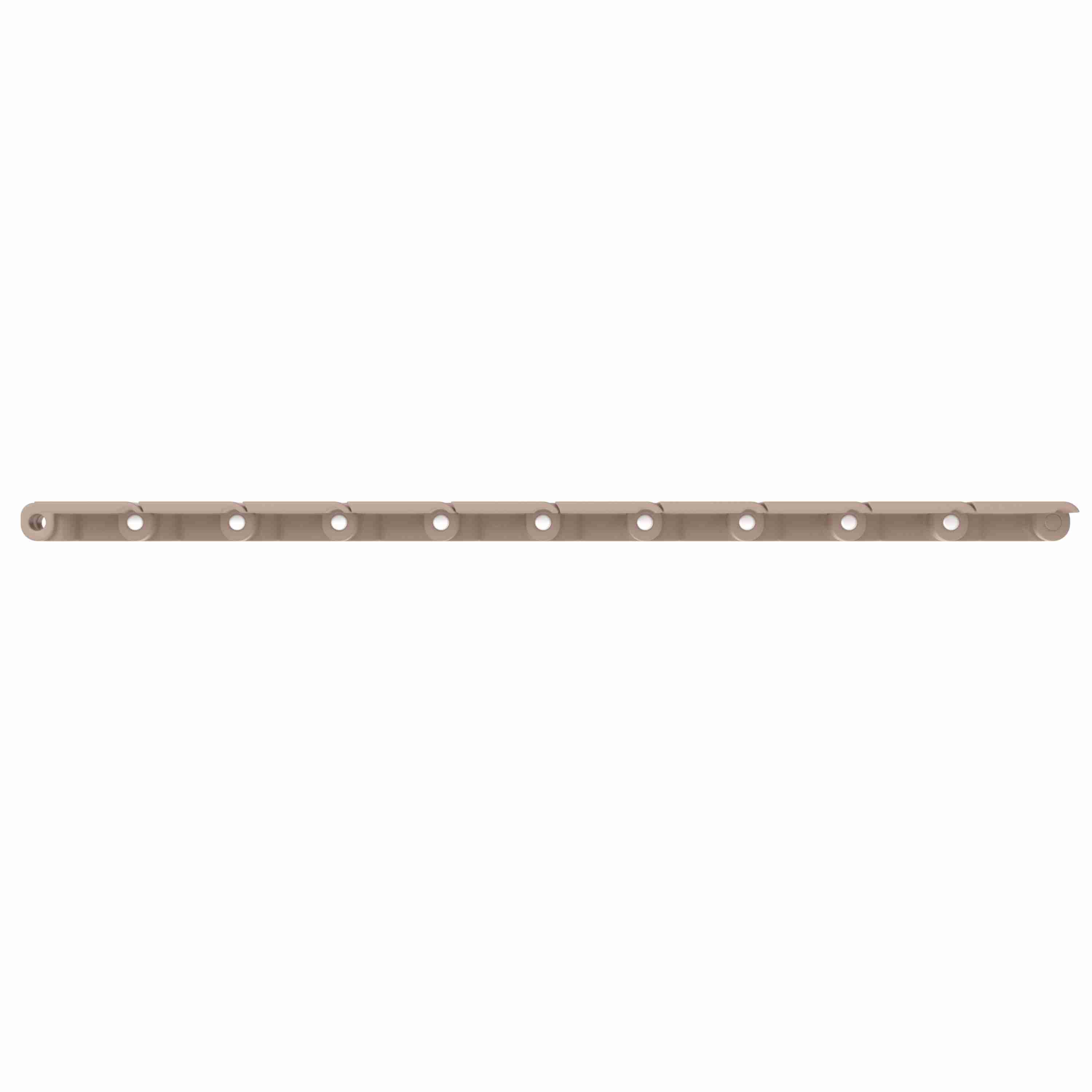

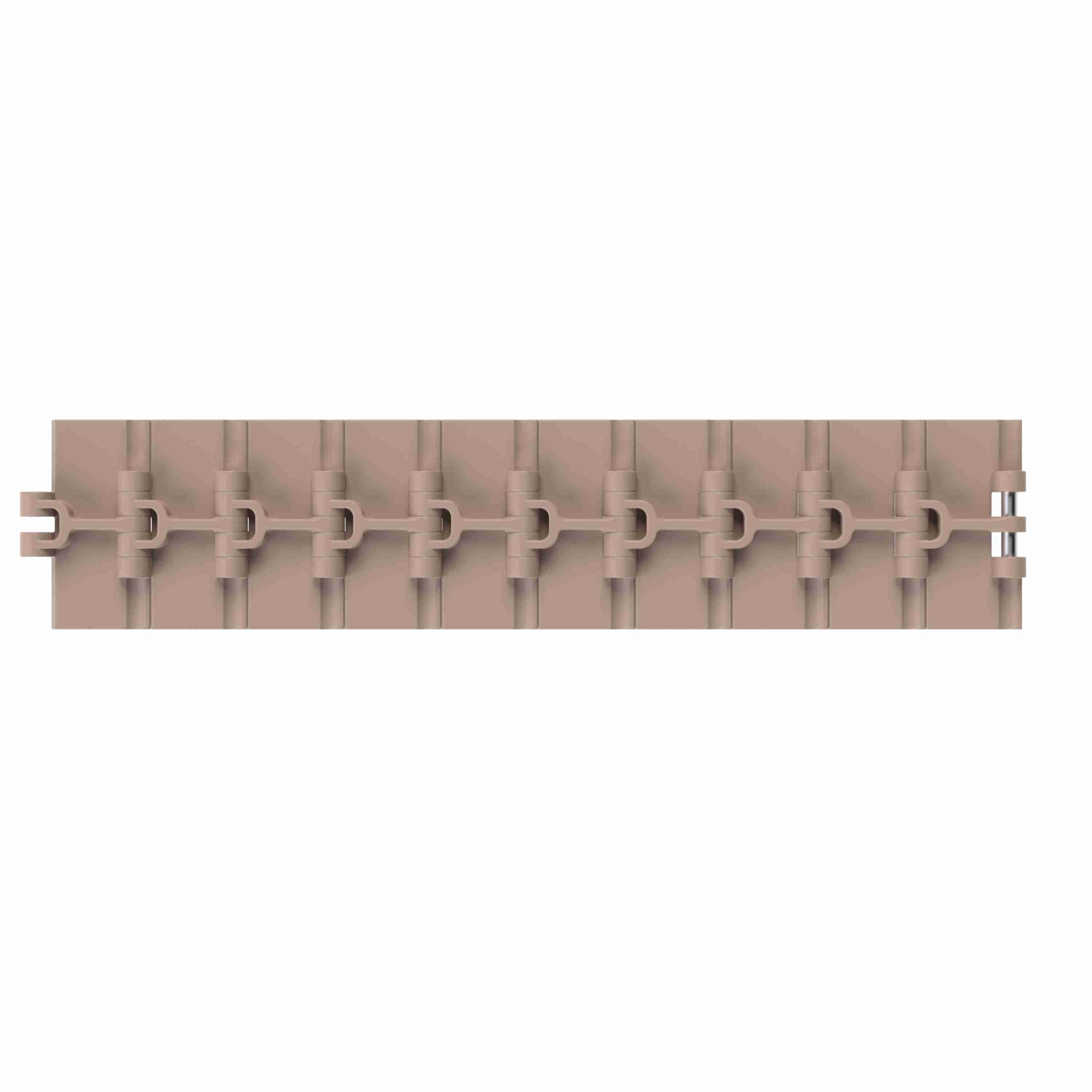

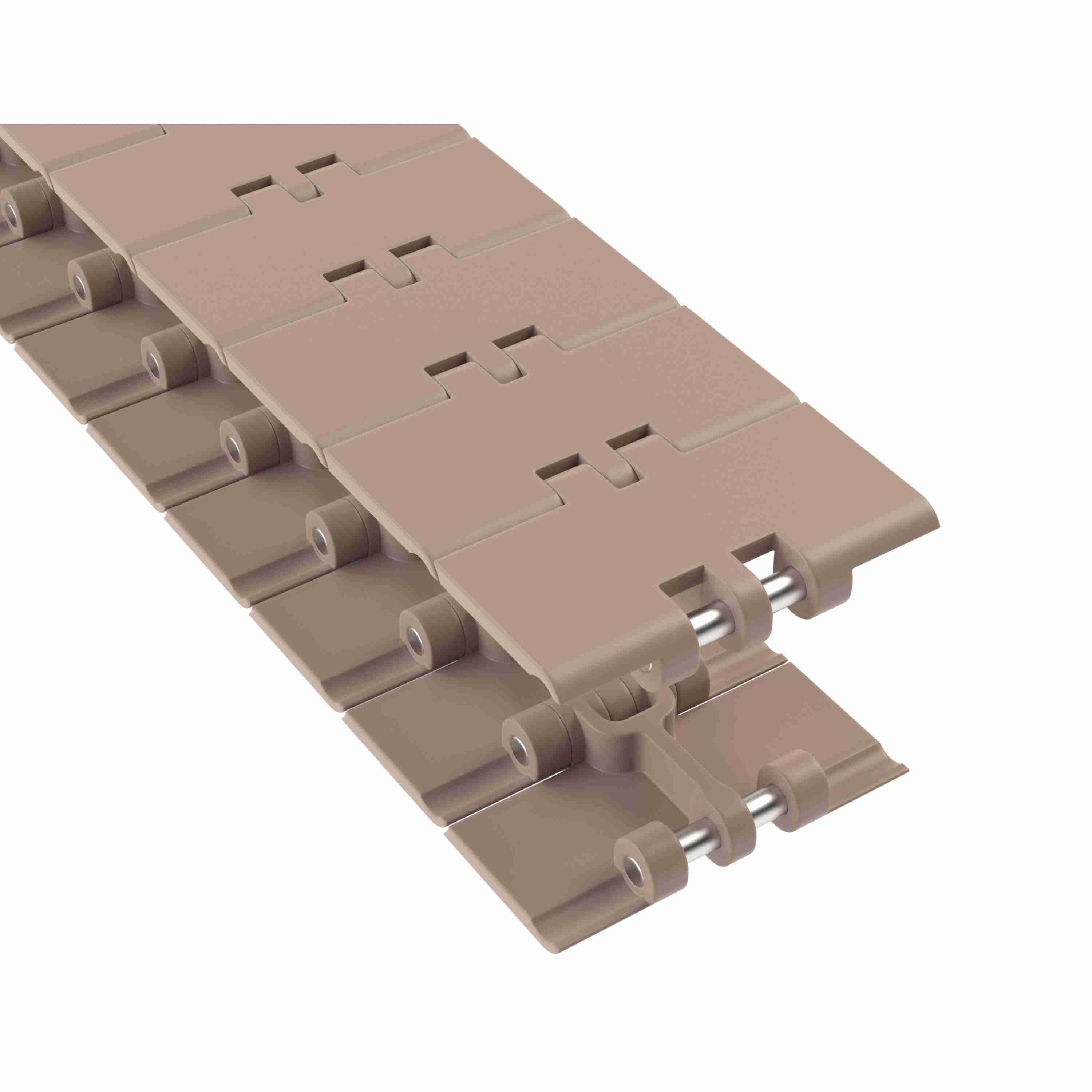

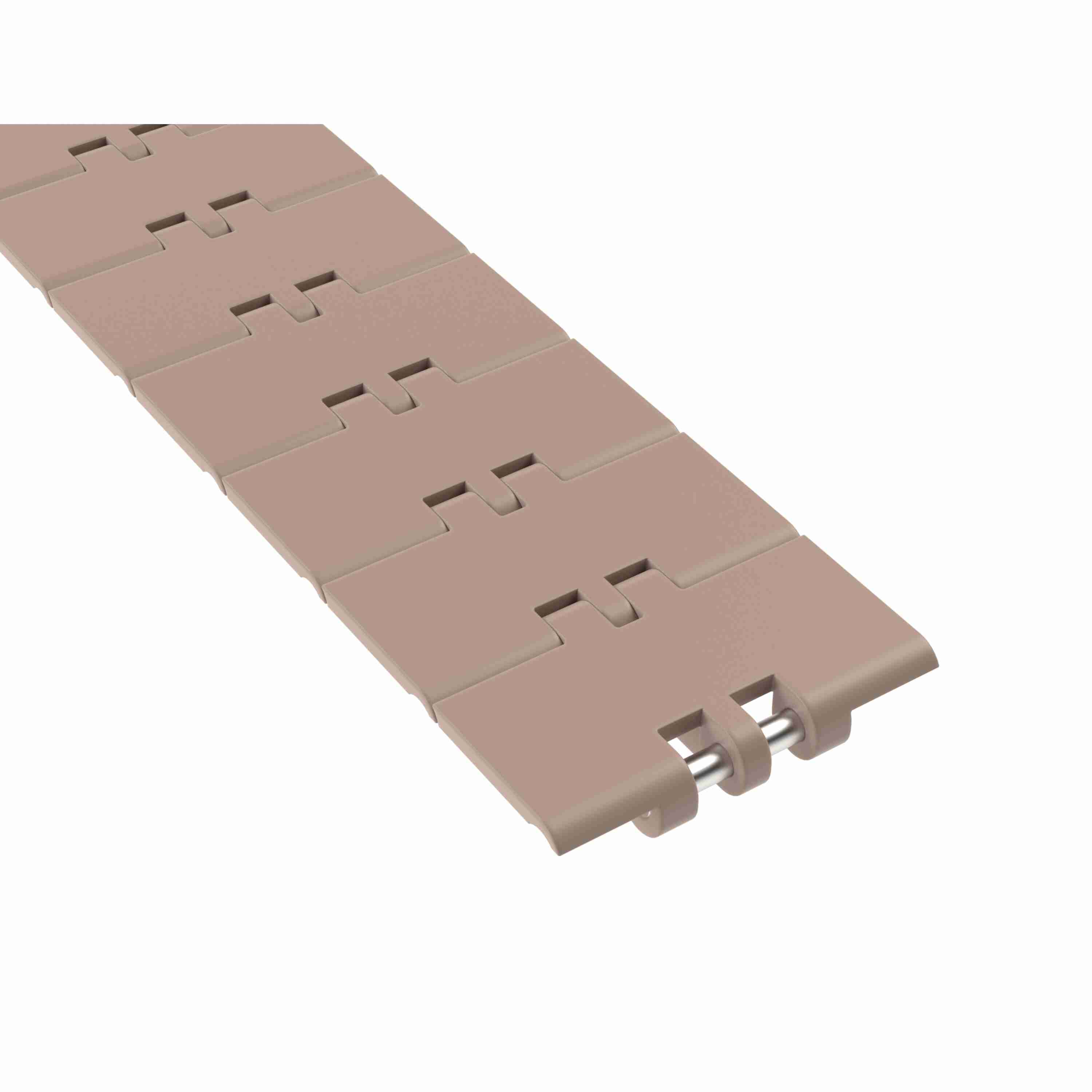

Rexnord 820 Straight Running Solid Top, Material: Tan Low Friction, Width: 3.5in, Pitch: 1.5in - L0820603771
Part #:10177476
Catalog #:L0820603771
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Material Description: | Tan Low Friction | Surface Type: | Solid Top |
| Flight Thickness (mm): | 4.1 mm | Chain Pitch (mm): | 38.1 mm |
| Chain Width Measurement System: | Imperial | Straight or Side-Flex: | Straight Running |
| Series: | TableTop 820 Series Chain | Chain Material: | LF |
| Chain Width (mm): | 88.9 mm | Chain Strength (N): | 1,621 N |
| Rod/Pin Material: | Stainless Steel | Chain Number: | 820 |
| Flight Thickness (in): | 0.16 in | Chain Strength (lb): | 365 lb |
| Chain Pitch (in): | 1.5 in | Chain Width (in): | 3.5 in |
General Specifications
| Weight: | 0.06 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
